2004 NISSAN TERRANO Service Repair Manual

CONSULT-II Reference Value in Data Monitor
Mode
Remarks: Specification data are reference values.
MONITOR ITEMCONDITION SPECIFICATION
FUEL TEMP SEN IEngine: After warming up More than 40ÉC (104ÉF)
SPILL/V IEngine: After warming up Approx. 13ÉCA
INJ TIMG C/V I
Engine: After warming up,
idle the engine. Approx. 50 - 70%
DECELER F/CUT I
Engine: After warm-
ing up Idle OFF
BARO SEN IIgnition switch: ON Altitude
Approx.0m(0ft): Approx. 100.62 kPa (1.0062 bar, 1.026 kg/cm
2, 14.59
psi)
Approx. 1,000 m (3,281 ft): Approx. 88.95 kPa (0.8895 bar, 0.907 kg/cm
2,
12.90 psi)
Approx. 1,500 m (4,992 ft): Approx. 83.16 kPa (0.8316 bar, 0.848 kg/cm
2,
12.06 psi)
Approx. 2,000 m (6,562 ft): Approx. 78.36 kPa (0.7836 bar, 0.799 kg/cm
2,
11.36 psi)
ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
33 G Electronic control fuel
injection pump Engine is running.
Warm-up condition
Idle speed
Approximately 2.5V
40 R Electronic control fuel
injection pump Engine is running.
Warm-up condition
Idle speed
Approximately 2.5V
52 Y Electronic control fuel
injection pump Engine is running.
Idle speed
Approximately 0.1V
53 OR Electronic control fuel
injection pump Engine is running.
Idle speed
Approximately 0.35V
On Board Diagnosis Logic
Malfunction is detected when ....
Check Items (Possible cause)
I Fuel injection timing control system does not function properly. IHarness or connectors
(Electronic control fuel injection pump circuit is open or
shorted.)
I Electronic control fuel injection pump
I Improper fuel quality
I ªINJ TIMINGº in ªACTIVE TESTº mode with CONSULT-II.*
*: When using this item, DTC may be detected. If so, erase it because it is not a malfunction.
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
EC-198
http://vnx.su/

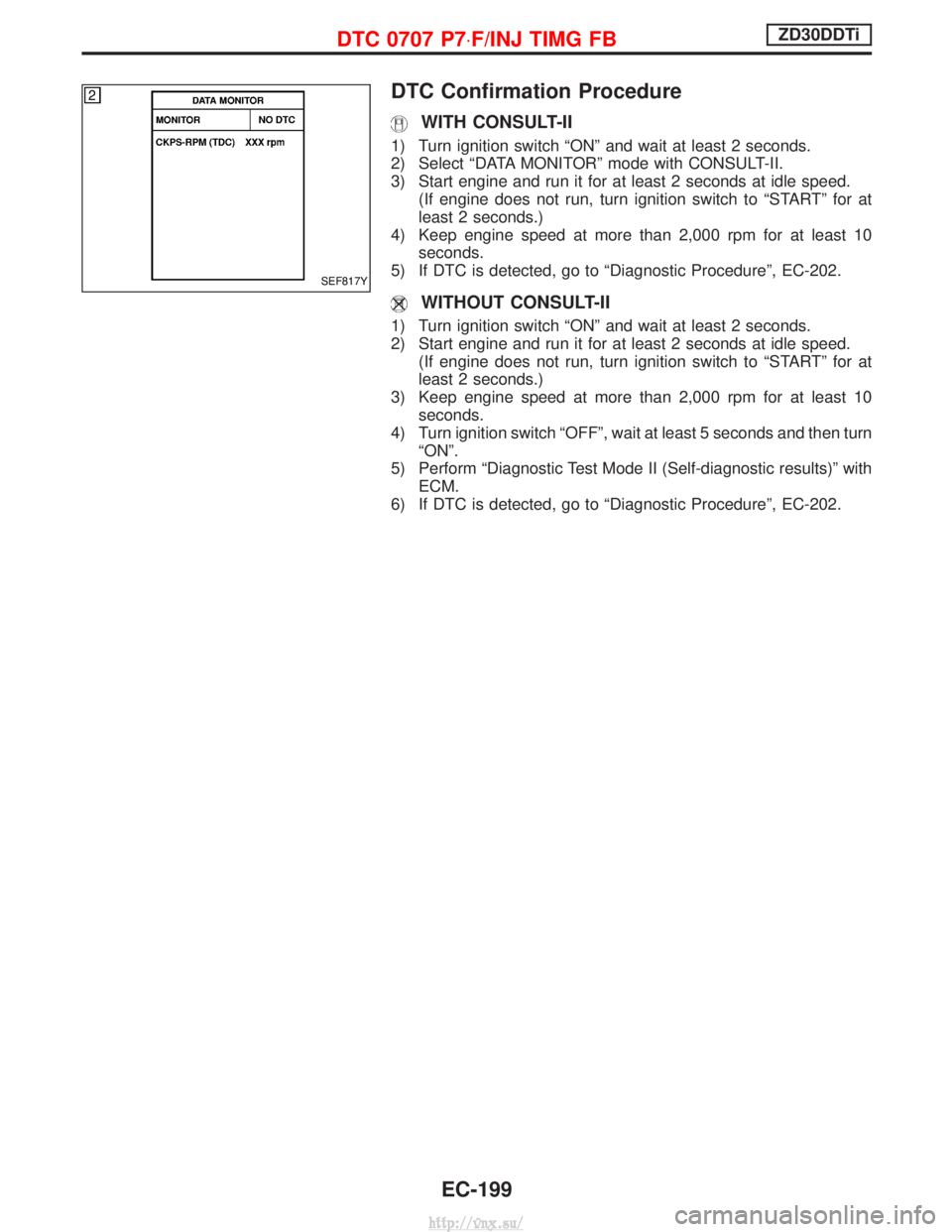

DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº and wait at least 2 seconds.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and run it for at least 2 seconds at idle speed.(If engine does not run, turn ignition switch to ªSTARTº for at
least 2 seconds.)
4) Keep engine speed at more than 2,000 rpm for at least 10 seconds.
5) If DTC is detected, go to ªDiagnostic Procedureº, EC-202.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº and wait at least 2 seconds.
2) Start engine and run it for at least 2 seconds at idle speed. (If engine does not run, turn ignition switch to ªSTARTº for at
least 2 seconds.)
3) Keep engine speed at more than 2,000 rpm for at least 10 seconds.
4) Turn ignition switch ªOFFº, wait at least 5 seconds and then turn ªONº.
5) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
6) If DTC is detected, go to ªDiagnostic Procedureº, EC-202.
SEF817Y
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
EC-199
http://vnx.su/

Wiring Diagram
LHD MODELS
YEC181A
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
EC-200
http://vnx.su/

RHD MODELS
YEC182A
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
Wiring Diagram (Cont'd)EC-201
http://vnx.su/

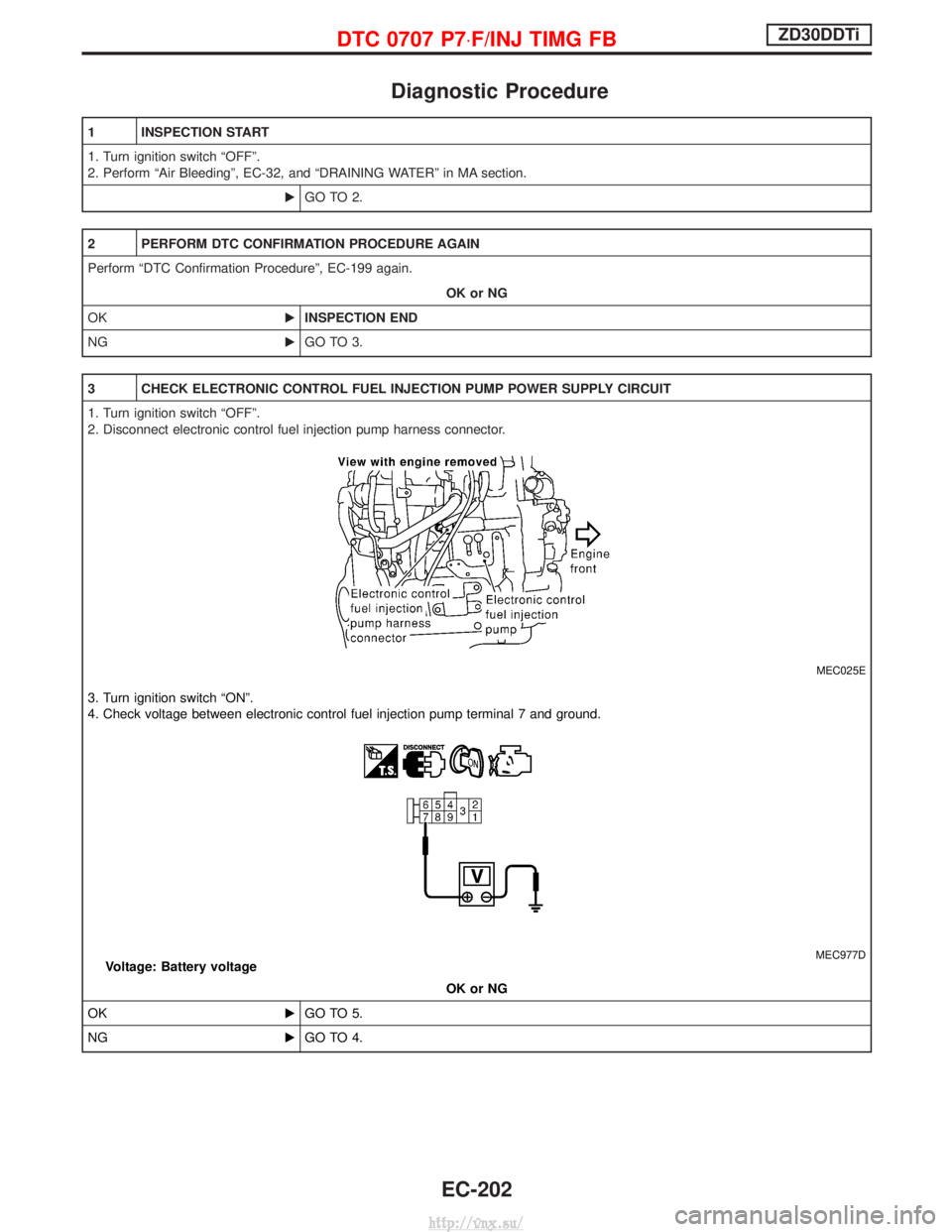

Diagnostic Procedure
1 INSPECTION START
1. Turn ignition switch ªOFFº.
2. Perform ªAir Bleedingº, EC-32, and ªDRAINING WATERº in MA section.EGO TO 2.
2 PERFORM DTC CONFIRMATION PROCEDURE AGAIN
Perform ªDTC Confirmation Procedureº, EC-199 again.
OK or NG
OK EINSPECTION END
NG EGO TO 3.
3 CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP POWER SUPPLY CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect electronic control fuel injection pump harness connector.
MEC025E
3. Turn ignition switch ªONº.
4. Check voltage between electronic control fuel injection pump terminal 7 and ground.
MEC977DVoltage: Battery voltage
OK or NG
OK EGO TO 5.
NG EGO TO 4.
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
EC-202
http://vnx.su/

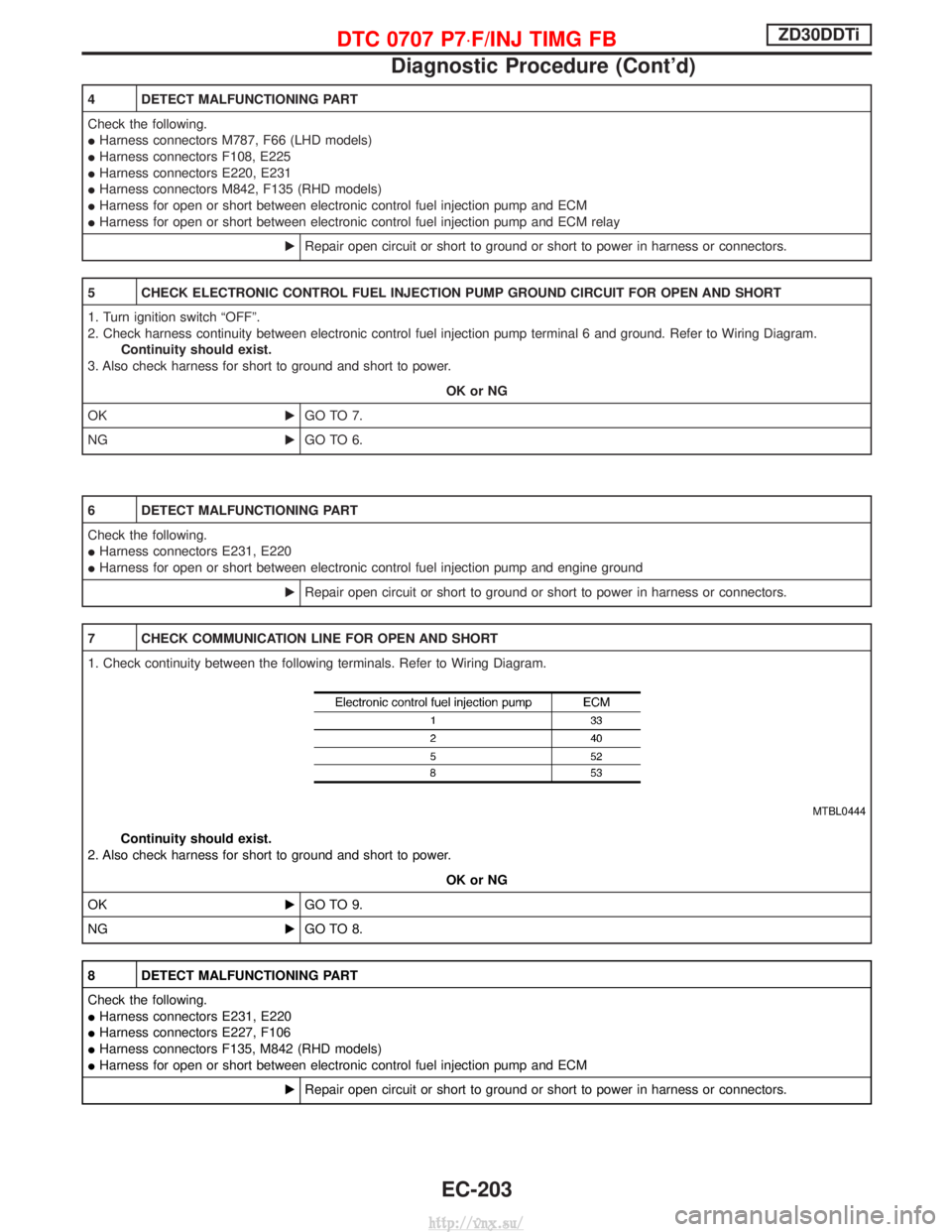

4 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors M787, F66 (LHD models)
I Harness connectors F108, E225
I Harness connectors E220, E231
I Harness connectors M842, F135 (RHD models)
I Harness for open or short between electronic control fuel injection pump and ECM
I Harness for open or short between electronic control fuel injection pump and ECM relay
ERepair open circuit or short to ground or short to power in harness or connectors.
5 CHECK ELECTRONIC CONTROL FUEL INJECTION PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Check harness continuity between electronic control fuel injection pump terminal 6 and ground. Refer to Wiring Diagram.
Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 7.
NG EGO TO 6.
6 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors E231, E220
I Harness for open or short between electronic control fuel injection pump and engine ground
ERepair open circuit or short to ground or short to power in harness or connectors.
7 CHECK COMMUNICATION LINE FOR OPEN AND SHORT
1. Check continuity between the following terminals. Refer to Wiring Diagram.
MTBL0444
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 9.
NG EGO TO 8.
8 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors E231, E220
I Harness connectors E227, F106
I Harness connectors F135, M842 (RHD models)
I Harness for open or short between electronic control fuel injection pump and ECM
ERepair open circuit or short to ground or short to power in harness or connectors.
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
Diagnostic Procedure (Cont'd)
EC-203
http://vnx.su/

9 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-78.OK or NG
OK EReplace electronic control fuel injection pump.
NG ERepair open circuit or short to ground or short to power in harness or connectors.
DTC 0707 P7×F/INJ TIMG FBZD30DDTi
Diagnostic Procedure (Cont'd)
EC-204
http://vnx.su/

Description
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The unit controls the engine.
On Board Diagnosis Logic
Malfunction is detected when ...Check Items (Possible Cause)
I An excessively high or low voltage from the absolute pressure
sensor (built-into ECM) is sent to ECM. I
ECM
DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and wait at least 2 seconds.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-206.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº and wait at least 2 seconds.
2) Start engine and wait at least 2 seconds.
3) Turn ignition switch ªOFFº, wait at least 5 seconds and then turn
ªONº.
4) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
5) If DTC is detected, go to ªDiagnostic Procedureº, EC-206.
SEC220B
SEF817Y
DTC 0802 ECM 10ZD30DDTi
EC-205
