2004 NISSAN TERRANO Service Repair Manual

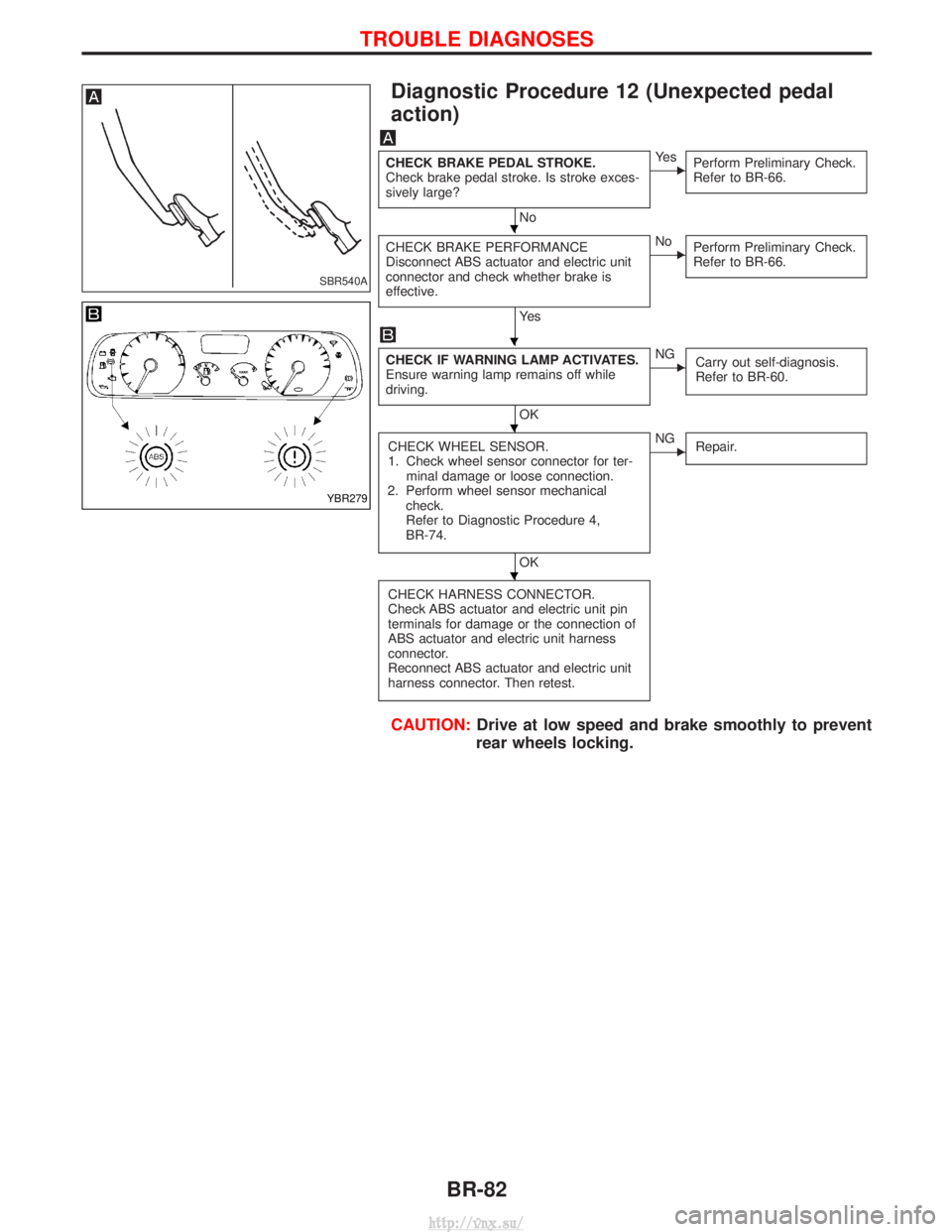

Diagnostic Procedure 12 (Unexpected pedal
action)
CHECK BRAKE PEDAL STROKE.
Check brake pedal stroke. Is stroke exces-
sively large?
No
EYe sPerform Preliminary Check.
Refer to BR-66.
CHECK BRAKE PERFORMANCE
Disconnect ABS actuator and electric unit
connector and check whether brake is
effective.
Ye s
ENoPerform Preliminary Check.
Refer to BR-66.
CHECK IF WARNING LAMP ACTIVATES.
Ensure warning lamp remains off while
driving.
OK
ENG
Carry out self-diagnosis.
Refer to BR-60.
CHECK WHEEL SENSOR.
1. Check wheel sensor connector for ter-
minal damage or loose connection.
2. Perform wheel sensor mechanical check.
Refer to Diagnostic Procedure 4,
BR-74.
OK
ENG Repair.
CHECK HARNESS CONNECTOR.
Check ABS actuator and electric unit pin
terminals for damage or the connection of
ABS actuator and electric unit harness
connector.
Reconnect ABS actuator and electric unit
harness connector. Then retest.
CAUTION: Drive at low speed and brake smoothly to prevent
rear wheels locking.
SBR540A
YBR279
H
H
H
H
TROUBLE DIAGNOSES
BR-82
http://vnx.su/

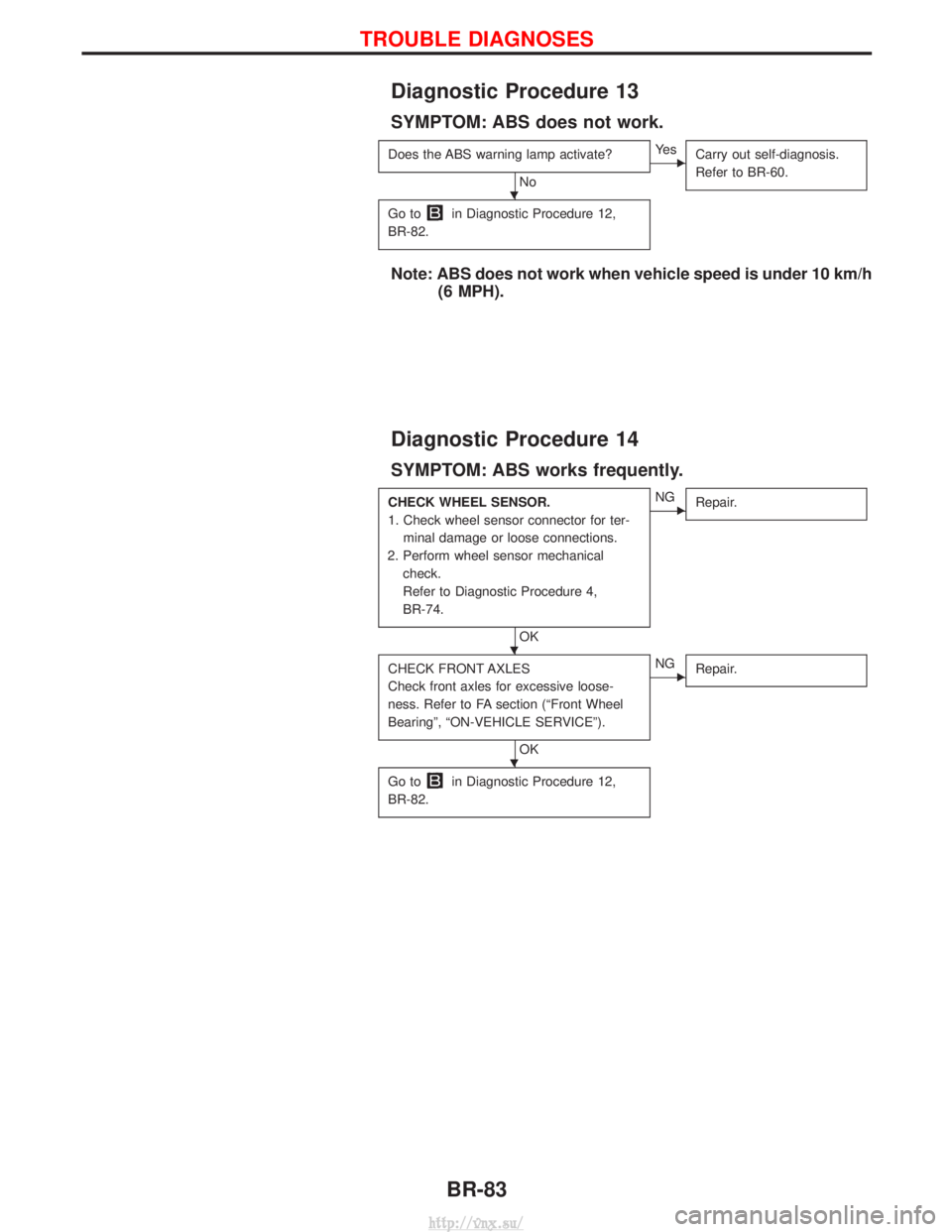

Diagnostic Procedure 13
SYMPTOM: ABS does not work.
Does the ABS warning lamp activate?
No
EYe sCarry out self-diagnosis.
Refer to BR-60.
Go toin Diagnostic Procedure 12,
BR-82.
Note: ABS does not work when vehicle speed is under 10 km/h (6 MPH).
Diagnostic Procedure 14
SYMPTOM: ABS works frequently.
CHECK WHEEL SENSOR.
1. Check wheel sensor connector for ter-
minal damage or loose connections.
2. Perform wheel sensor mechanical check.
Refer to Diagnostic Procedure 4,
BR-74.
OK
ENG Repair.
CHECK FRONT AXLES
Check front axles for excessive loose-
ness. Refer to FA section (ªFront Wheel
Bearingº, ªON-VEHICLE SERVICEº).
OK
ENGRepair.
Go toin Diagnostic Procedure 12,
BR-82.
H
H
H
TROUBLE DIAGNOSES
BR-83
http://vnx.su/

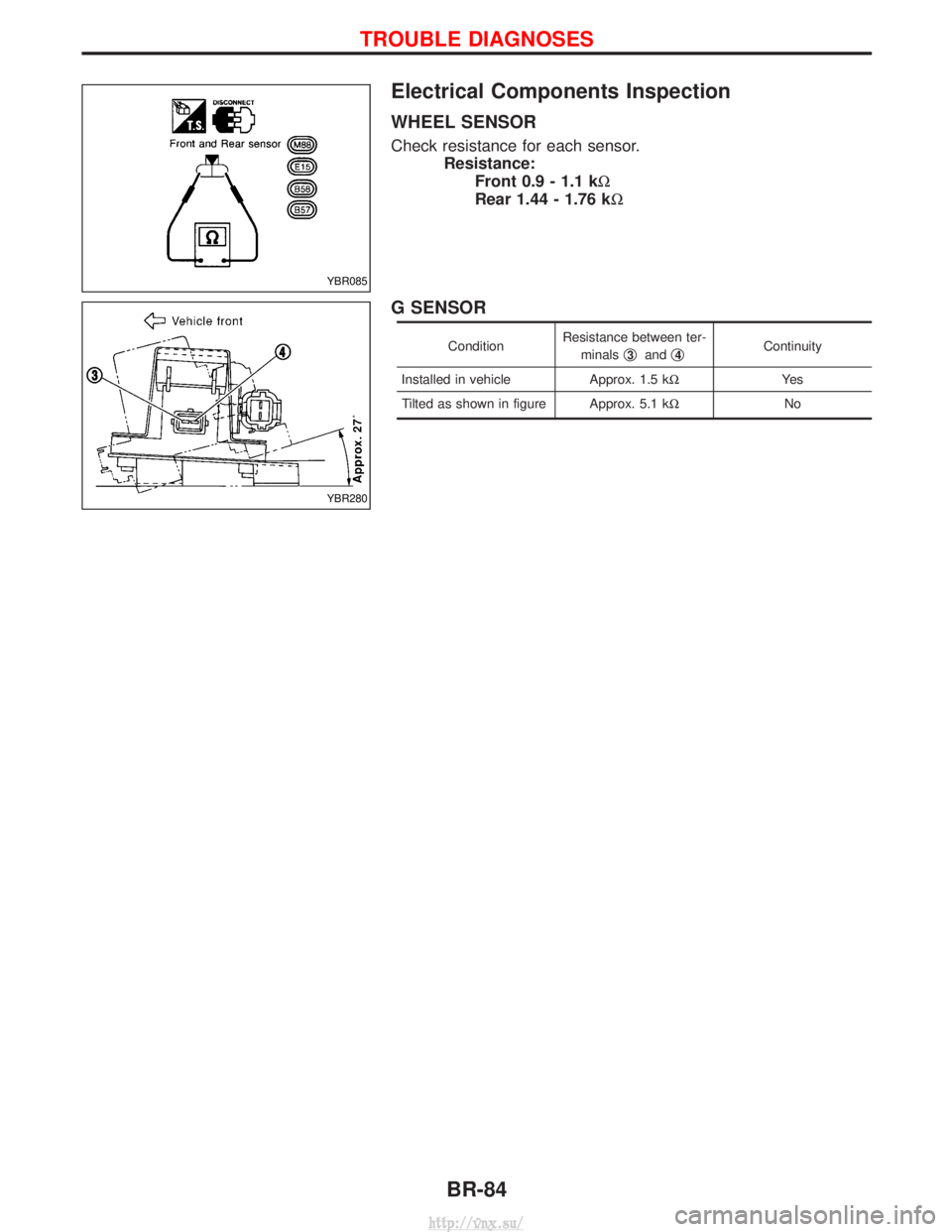

Electrical Components Inspection
WHEEL SENSOR
Check resistance for each sensor.Resistance:Front 0.9 - 1.1 k W
Rear 1.44 - 1.76 k W
G SENSOR
Condition Resistance between ter-
minals q3andq4Continuity
Installed in vehicle Approx. 1.5 kW Ye s
Tilted as shown in figure Approx. 5.1 kW No
YBR085
YBR280
TROUBLE DIAGNOSES
BR-84
http://vnx.su/

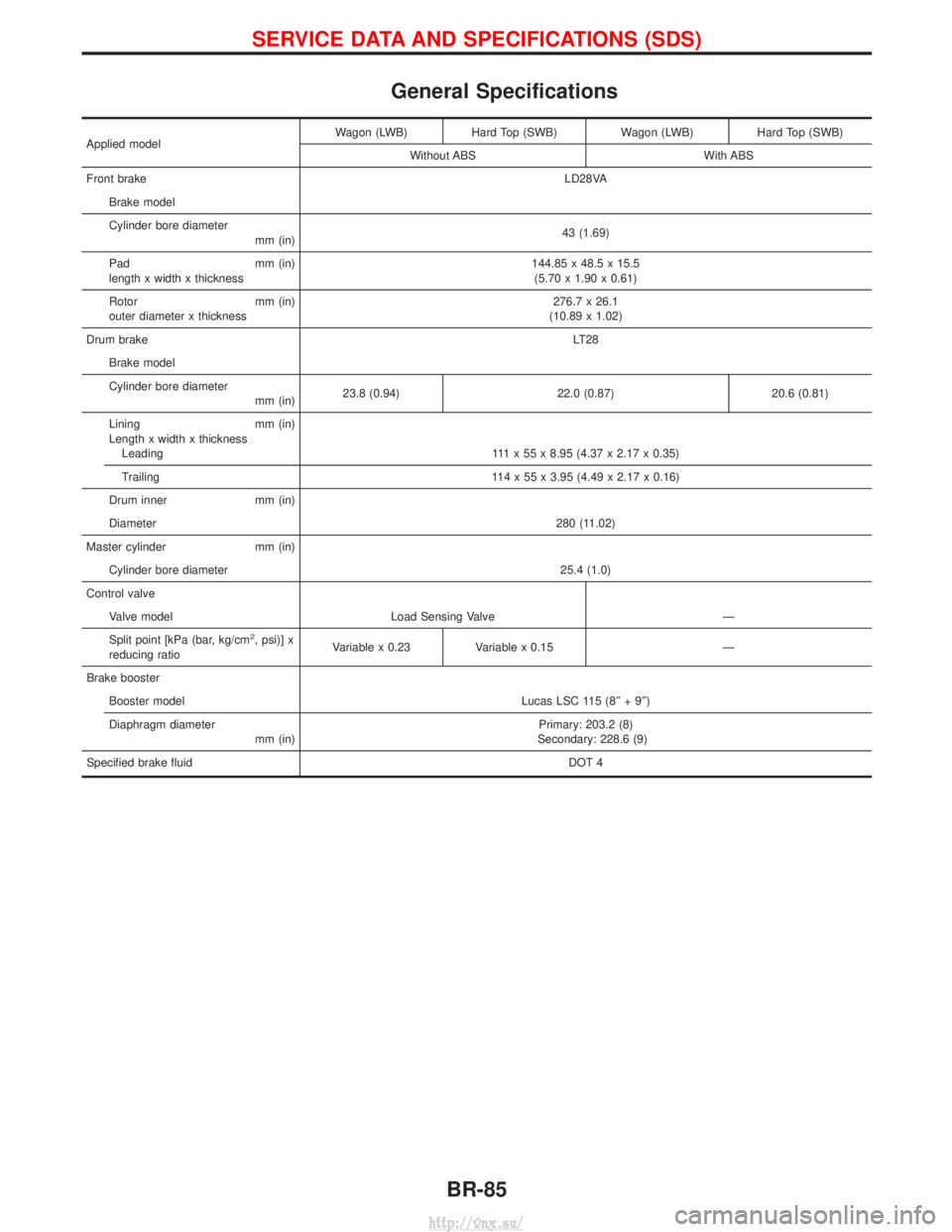

General Specifications
Applied modelWagon (LWB) Hard Top (SWB) Wagon (LWB) Hard Top (SWB)
Without ABS With ABS
Front brake LD28VA
Brake model
Cylinder bore diameter mm (in) 43 (1.69)
Pad mm (in)
length x width x thickness 144.85 x 48.5 x 15.5
(5.70 x 1.90 x 0.61)
Rotor mm (in)
outer diameter x thickness 276.7 x 26.1
(10.89 x 1.02)
Drum brake LT28
Brake model
Cylinder bore diameter mm (in)23.8 (0.94) 22.0 (0.87) 20.6 (0.81)
Lining mm (in)
Length x width x thickness Leading 111 x 55 x 8.95 (4.37 x 2.17 x 0.35)
Trailing 114 x 55 x 3.95 (4.49 x 2.17 x 0.16)
Drum inner mm (in)
Diameter 280 (11.02)
Master cylinder mm (in) Cylinder bore diameter 25.4 (1.0)
Control valve Valve model Load Sensing Valve Ð
Split point [kPa (bar, kg/cm
2, psi)] x
reducing ratio Variable x 0.23 Variable x 0.15 Ð
Brake booster Booster model Lucas LSC 115 (8² +9²)
Diaphragm diameter mm (in) Primary: 203.2 (8)
Secondary: 228.6 (9)
Specified brake fluid DOT 4
SERVICE DATA AND SPECIFICATIONS (SDS)
BR-85
http://vnx.su/

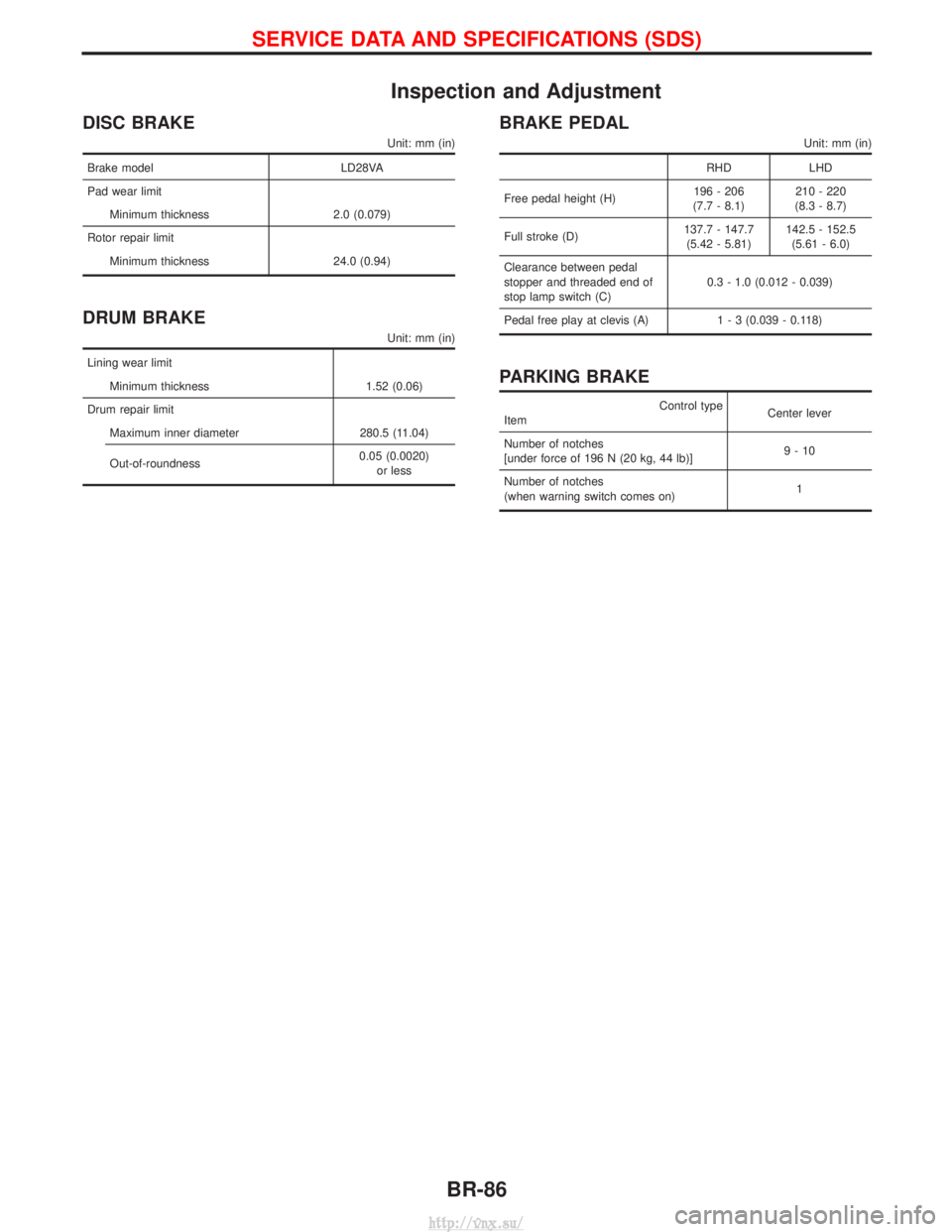

Inspection and Adjustment
DISC BRAKE
Unit: mm (in)
Brake modelLD28VA
Pad wear limit Minimum thickness 2.0 (0.079)
Rotor repair limit Minimum thickness 24.0 (0.94)
DRUM BRAKE
Unit: mm (in)
Lining wear limit
Minimum thickness 1.52 (0.06)
Drum repair limit Maximum inner diameter 280.5 (11.04)
Out-of-roundness 0.05 (0.0020)
or less
BRAKE PEDAL
Unit: mm (in)
RHD LHD
Free pedal height (H) 196 - 206
(7.7 - 8.1) 210 - 220
(8.3 - 8.7)
Full stroke (D) 137.7 - 147.7
(5.42 - 5.81) 142.5 - 152.5
(5.61 - 6.0)
Clearance between pedal
stopper and threaded end of
stop lamp switch (C) 0.3 - 1.0 (0.012 - 0.039)
Pedal free play at clevis (A) 1 - 3 (0.039 - 0.118)
PARKING BRAKE
Control type
Item Center lever
Number of notches
[under force of 196 N (20 kg, 44 lb)] 9-10
Number of notches
(when warning switch comes on) 1
SERVICE DATA AND SPECIFICATIONS (SDS)
BR-86
http://vnx.su/

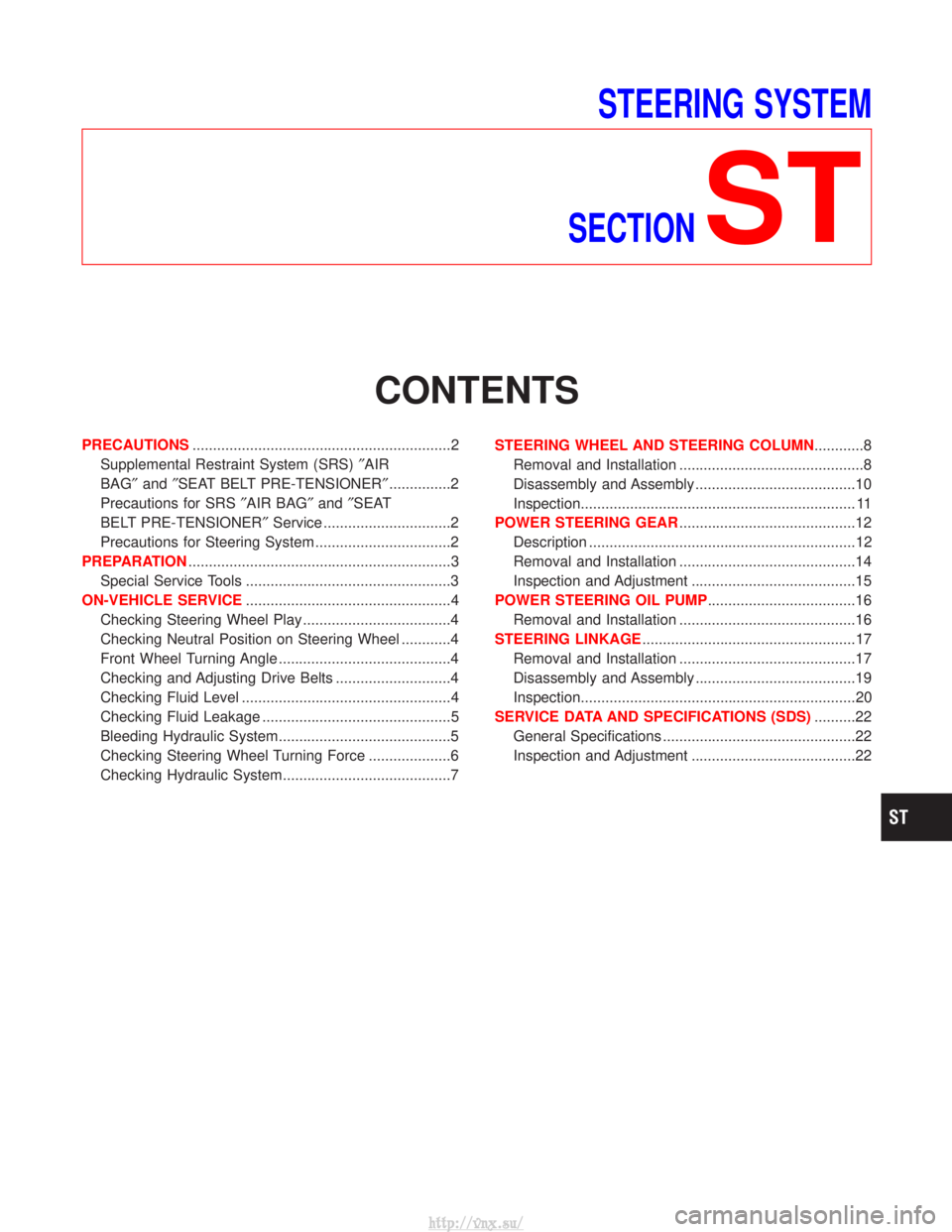

STEERING SYSTEM
SECTION
ST
CONTENTS
PRECAUTIONS ...............................................................2
Supplemental Restraint System (SRS) ²AIR
BAG² and²SEAT BELT PRE-TENSIONER² ...............2
Precautions for SRS ²AIR BAG² and²SEAT
BELT PRE-TENSIONER² Service ...............................2
Precautions for Steering System .................................2
PREPARATION ................................................................3
Special Service Tools ..................................................3
ON-VEHICLE SERVICE ..................................................4
Checking Steering Wheel Play ....................................4
Checking Neutral Position on Steering Wheel ............4
Front Wheel Turning Angle ..........................................4
Checking and Adjusting Drive Belts ............................4
Checking Fluid Level ...................................................4
Checking Fluid Leakage ..............................................5
Bleeding Hydraulic System..........................................5
Checking Steering Wheel Turning Force ....................6
Checking Hydraulic System.........................................7 STEERING WHEEL AND STEERING COLUMN
............8
Removal and Installation .............................................8
Disassembly and Assembly .......................................10
Inspection................................................................... 11
POWER STEERING GEAR ...........................................12
Description .................................................................12
Removal and Installation ...........................................14
Inspection and Adjustment ........................................15
POWER STEERING OIL PUMP ....................................16
Removal and Installation ...........................................16
STEERING LINKAGE ....................................................17
Removal and Installation ...........................................17
Disassembly and Assembly .......................................19
Inspection...................................................................20
SERVICE DATA AND SPECIFICATIONS (SDS) ..........22
General Specifications ...............................................22
Inspection and Adjustment ........................................22
http://vnx.su/

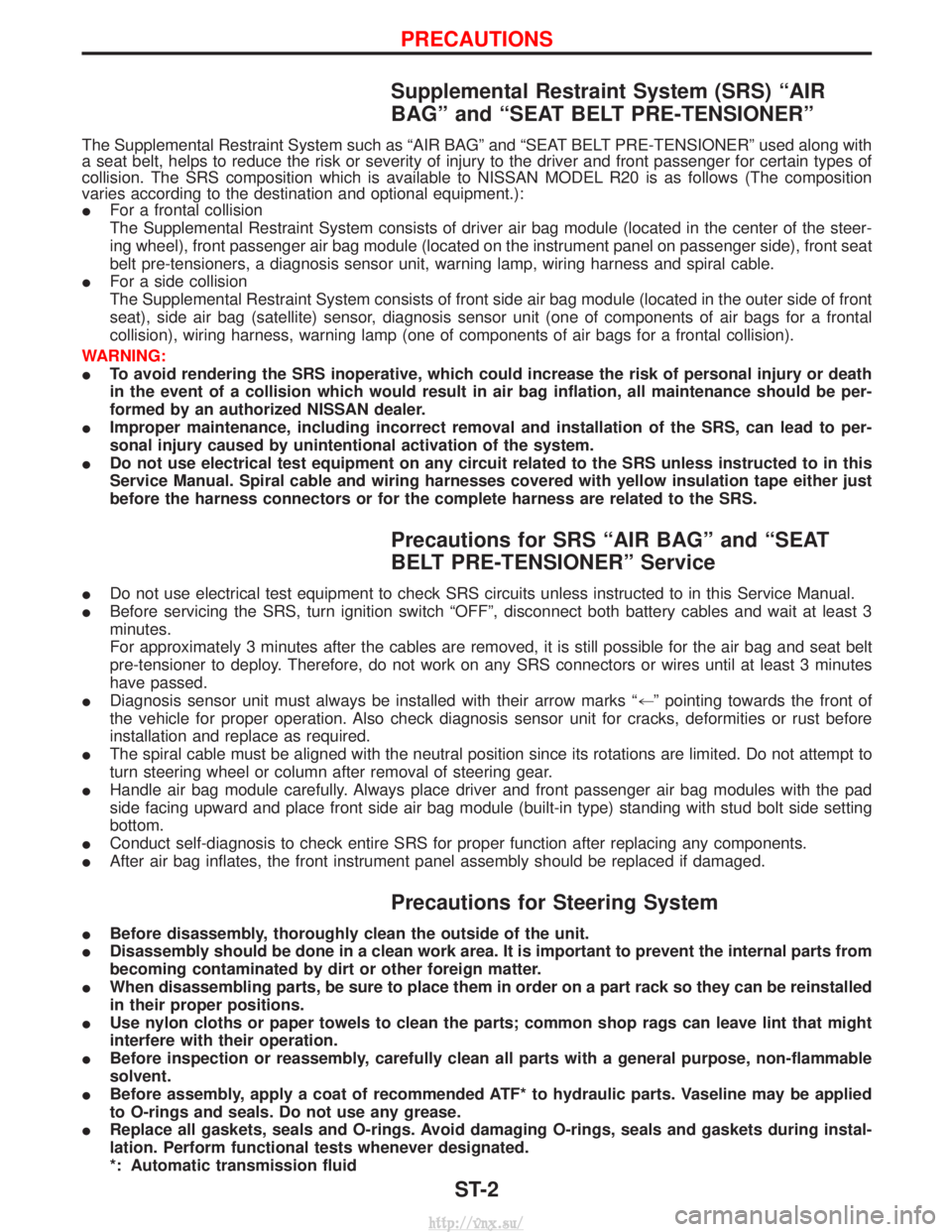

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS composition which is available to NISSAN MODEL R20 is as follows (The composition
varies according to the destination and optional equipment.):
IFor a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
I For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
WARNING:
I To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
I Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
I Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
Precautions for SRS ªAIR BAGº and ªSEAT
BELT PRE-TENSIONERº Service
IDo not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
I Before servicing the SRS, turn ignition switch ªOFFº, disconnect both battery cables and wait at least 3
minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
I Diagnosis sensor unit must always be installed with their arrow marks ª +º pointing towards the front of
the vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before
installation and replace as required.
I The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.
I Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and place front side air bag module (built-in type) standing with stud bolt side setting
bottom.
I Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
I After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Precautions for Steering System
IBefore disassembly, thoroughly clean the outside of the unit.
I Disassembly should be done in a clean work area. It is important to prevent the internal parts from
becoming contaminated by dirt or other foreign matter.
I When disassembling parts, be sure to place them in order on a part rack so they can be reinstalled
in their proper positions.
I Use nylon cloths or paper towels to clean the parts; common shop rags can leave lint that might
interfere with their operation.
I Before inspection or reassembly, carefully clean all parts with a general purpose, non-flammable
solvent.
I Before assembly, apply a coat of recommended ATF* to hydraulic parts. Vaseline may be applied
to O-rings and seals. Do not use any grease.
I Replace all gaskets, seals and O-rings. Avoid damaging O-rings, seals and gaskets during instal-
lation. Perform functional tests whenever designated.
*: Automatic transmission fluid
PRECAUTIONS
ST-2
http://vnx.su/

Special Service Tools
*: Special tool or commercial equivalent
Tool number
Tool nameDescription
KV48100700
Torque adapter
Measuring pinion rotating torque
ST27180001*
Steering wheel puller
Removing and installing steering wheel
ST27850000
Ball joint remover
Removing ball joint
ST29020001*
Steering gear arm puller
Removing and installing pitman arm
ST3127S000*
q
1GG91030000
Torque wrench
q
2HT62940000
Socket adapter
q
3HT62900000
Socket adapter
Measuring turning torque
KV48100301*
Strut & steering gearbox
attachment
Steering gear is installed
KV48103500-A
Pressure gauge
Measuring oil pressure
KV48102500
Pressure gauge adapter
Measuring oil pressure
KV481009S0
Oil seal drift set
q
1KV48100910
Drift
q
2KV48100920
Adapter
q
3KV48100930
Adapter
Installing oil seal
PREPARATION
