2004 NISSAN TERRANO Service Repair Manual

Schematic
YEL142D
POWER DOOR LOCK
EL-164
http://vnx.su/

YEL143D
POWER DOOR LOCK
Schematic (Cont'd)EL-165
http://vnx.su/

Wiring Diagram Ð D/LOCK Ð
YEL743E
POWER DOOR LOCK
EL-166
http://vnx.su/

YEL145D
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)EL-167
http://vnx.su/

YEL744E
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)EL-168
http://vnx.su/

YEL147D
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)EL-169
http://vnx.su/

YEL148D
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)EL-170
http://vnx.su/

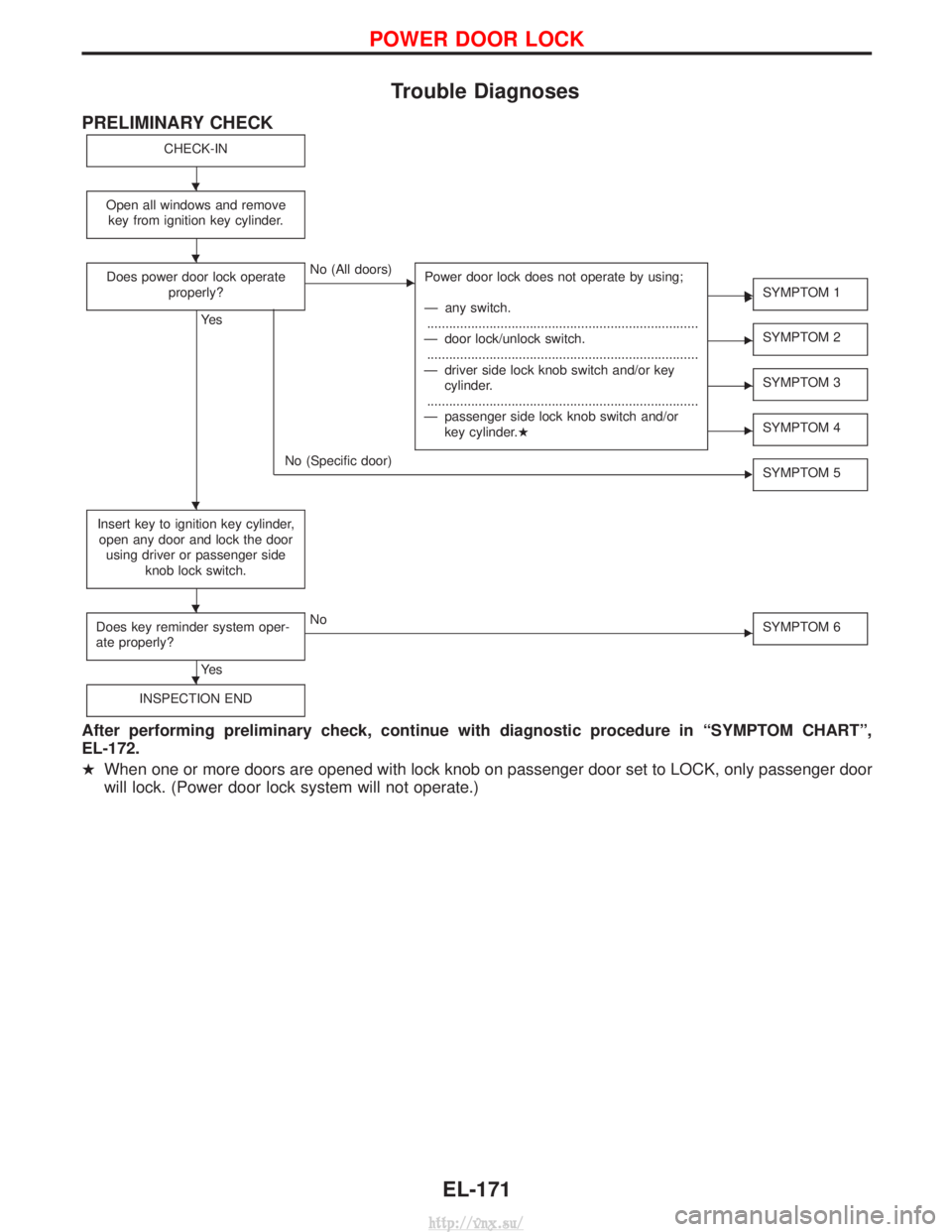

Trouble Diagnoses
PRELIMINARY CHECK
CHECK-IN
Open all windows and removekey from ignition key cylinder.
Does power door lock operate properly?
Ye s
ENo (All doors) Power door lock does not operate by using;
Ð any switch.
........................................................................\
..
Ð door lock/unlock switch. ........................................................................\
..
Ð driver side lock knob switch and/or key cylinder.
........................................................................\
..
Ð passenger side lock knob switch and/or key cylinder.H
ESYMPTOM 1
ESYMPTOM 2
ESYMPTOM 3
ESYMPTOM 4
No (Specific door) SYMPTOM 5
Insert key to ignition key cylinder,
open any door and lock the door using driver or passenger side knob lock switch.
Does key reminder system oper-
ate properly?
Ye s
ENo SYMPTOM 6
INSPECTION END
After performing preliminary check, continue with diagnostic procedure in ªSYMPTOM CHARTº,
EL-172.
HWhen one or more doors are opened with lock knob on passenger door set to LOCK, only passenger door
will lock. (Power door lock system will not operate.)
E E
H
H
H
H
H
POWER DOOR LOCK
EL-171
