2004 NISSAN TERRANO Service Repair Manual

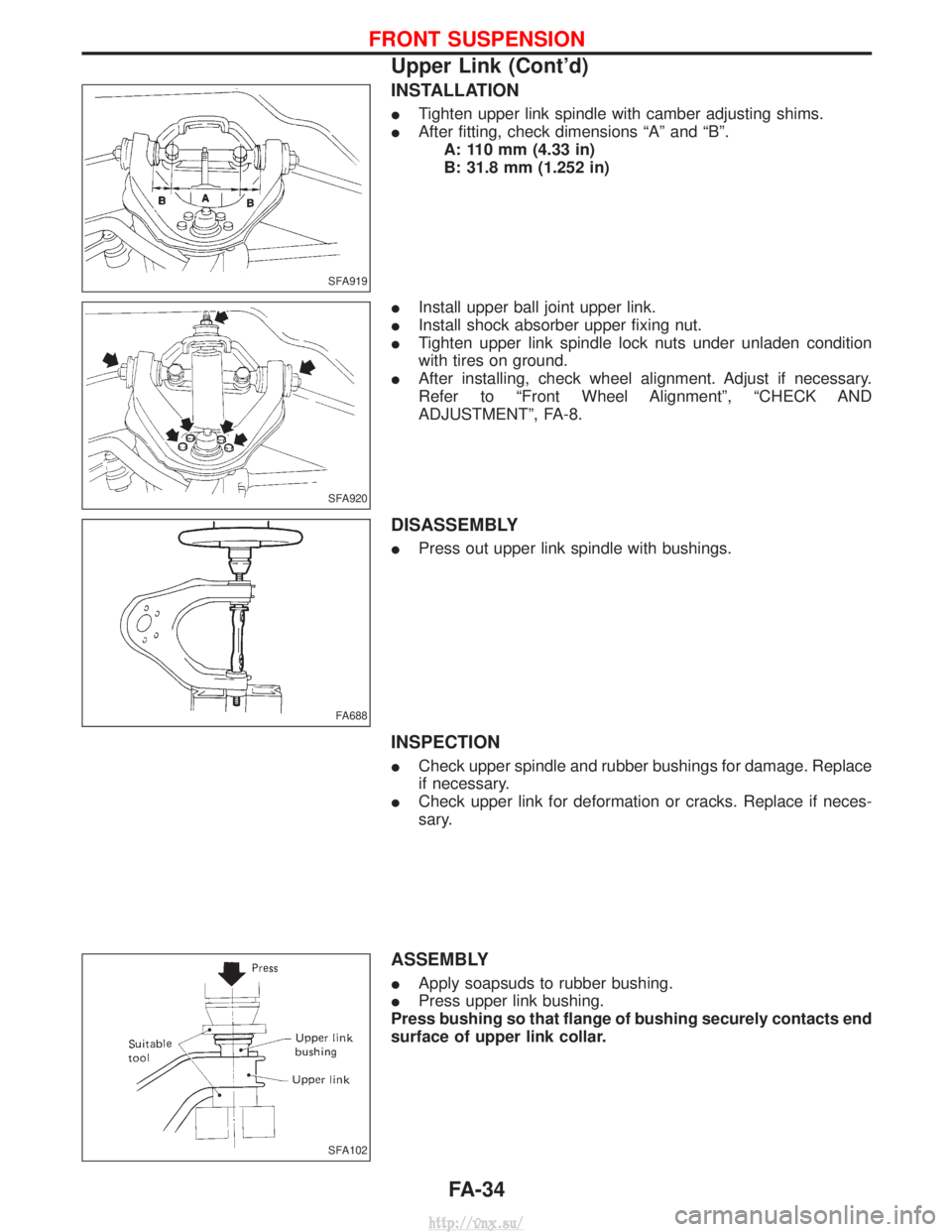

INSTALLATION
ITighten upper link spindle with camber adjusting shims.
I After fitting, check dimensions ªAº and ªBº.
A: 110 mm (4.33 in)
B: 31.8 mm (1.252 in)
I Install upper ball joint upper link.
I Install shock absorber upper fixing nut.
I Tighten upper link spindle lock nuts under unladen condition
with tires on ground.
I After installing, check wheel alignment. Adjust if necessary.
Refer to ªFront Wheel Alignmentº, ªCHECK AND
ADJUSTMENTº, FA-8.
DISASSEMBLY
IPress out upper link spindle with bushings.
INSPECTION
ICheck upper spindle and rubber bushings for damage. Replace
if necessary.
I Check upper link for deformation or cracks. Replace if neces-
sary.
ASSEMBLY
IApply soapsuds to rubber bushing.
I Press upper link bushing.
Press bushing so that flange of bushing securely contacts end
surface of upper link collar.
SFA919
SFA920
FA688
SFA102
FRONT SUSPENSION
Upper Link (Cont'd)
FA-34
http://vnx.su/

IInsert upper link spindle and inner washers.
Install inner washers with rounded edges facing inward.
I Press another bushing.
Press bushing so that flange of bushing securely contacts end
surface of upper link collar.
I Temporarily tighten nuts.
Compression Rod
REMOVAL AND INSTALLATION
IRemove fixing nuts on lower link and frame
Support lower link with jack.
I Install compression rod.
Make sure that bushings and washers are installed correctly.
Lower Link
REMOVAL AND INSTALLATION
I Remove torsion bar. Refer to ªREMOVALº, ªTorsion Barº,
FA-30.
Make matching mark on anchor arm and crossmember when
loosening adjusting nut until there is no tension on torsion
bar.
SFA103
SFA105
NFA017
NFA018
NFA019
FRONT SUSPENSION
Upper Link (Cont'd)
FA-35
http://vnx.su/

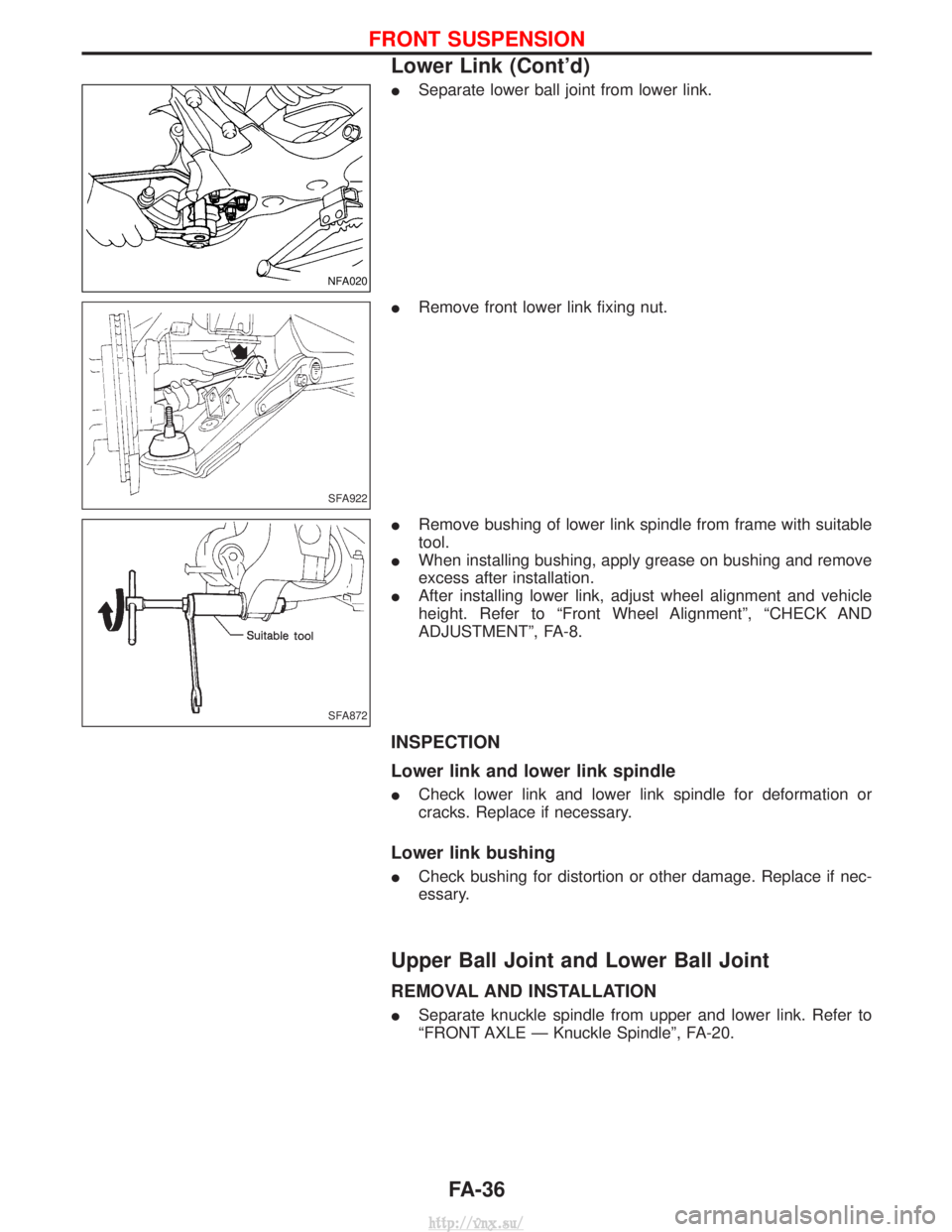

ISeparate lower ball joint from lower link.
I Remove front lower link fixing nut.
I Remove bushing of lower link spindle from frame with suitable
tool.
I When installing bushing, apply grease on bushing and remove
excess after installation.
I After installing lower link, adjust wheel alignment and vehicle
height. Refer to ªFront Wheel Alignmentº, ªCHECK AND
ADJUSTMENTº, FA-8.
INSPECTION
Lower link and lower link spindle
ICheck lower link and lower link spindle for deformation or
cracks. Replace if necessary.
Lower link bushing
ICheck bushing for distortion or other damage. Replace if nec-
essary.
Upper Ball Joint and Lower Ball Joint
REMOVAL AND INSTALLATION
ISeparate knuckle spindle from upper and lower link. Refer to
ªFRONT AXLE Ð Knuckle Spindleº, FA-20.
NFA020
SFA922
SFA872
FRONT SUSPENSION
Lower Link (Cont'd)
FA-36
http://vnx.su/

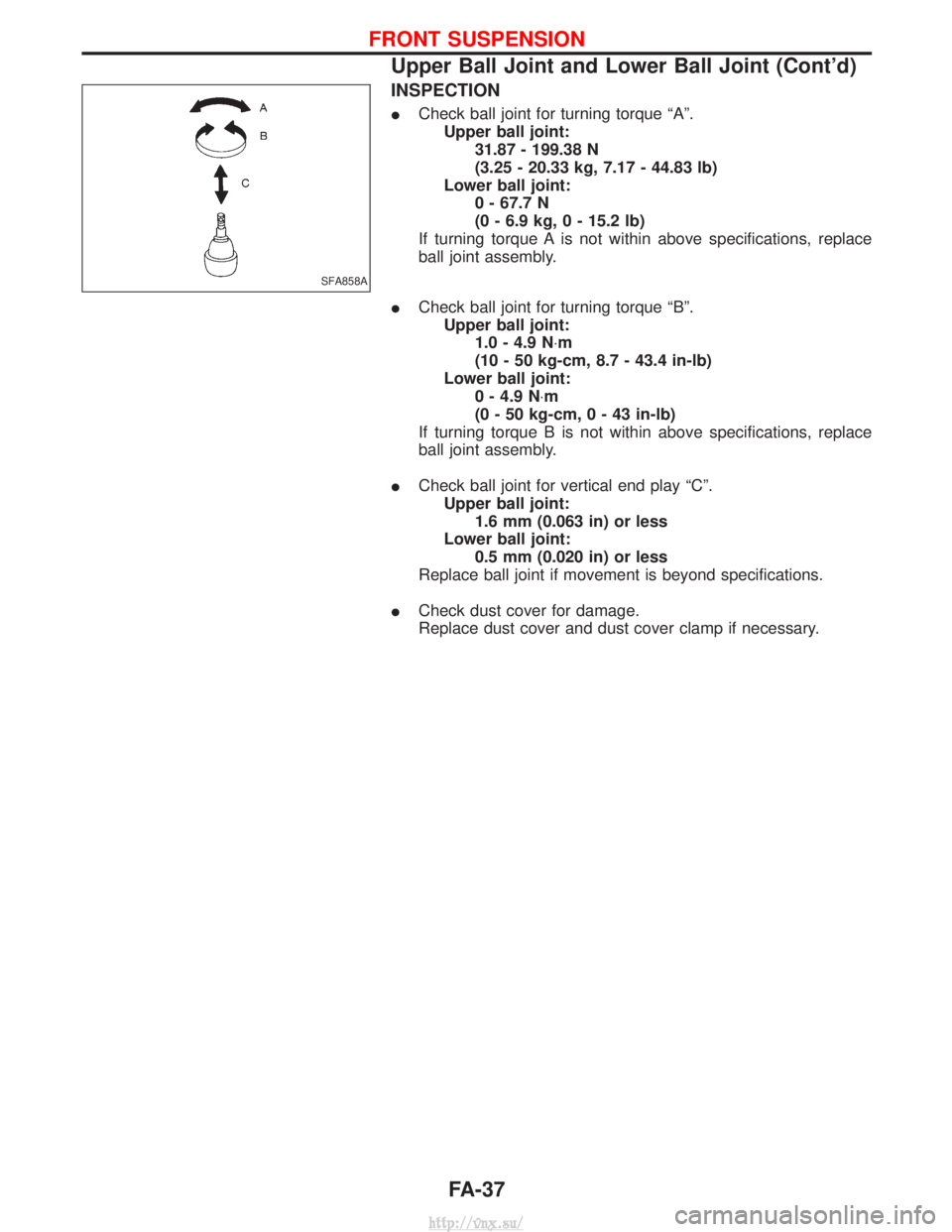

INSPECTION
ICheck ball joint for turning torque ªAº.
Upper ball joint: 31.87 - 199.38 N
(3.25 - 20.33 kg, 7.17 - 44.83 lb)
Lower ball joint: 0 - 67.7 N
(0 - 6.9 kg, 0 - 15.2 lb)
If turning torque A is not within above specifications, replace
ball joint assembly.
I Check ball joint for turning torque ªBº.
Upper ball joint: 1.0 - 4.9 N ×m
(10 - 50 kg-cm, 8.7 - 43.4 in-lb)
Lower ball joint: 0 - 4.9 N ×m
(0 - 50 kg-cm,0-43 in-lb)
If turning torque B is not within above specifications, replace
ball joint assembly.
I Check ball joint for vertical end play ªCº.
Upper ball joint: 1.6 mm (0.063 in) or less
Lower ball joint: 0.5 mm (0.020 in) or less
Replace ball joint if movement is beyond specifications.
I Check dust cover for damage.
Replace dust cover and dust cover clamp if necessary.
SFA858A
FRONT SUSPENSION
Upper Ball Joint and Lower Ball Joint (Cont'd)
FA-37
http://vnx.su/

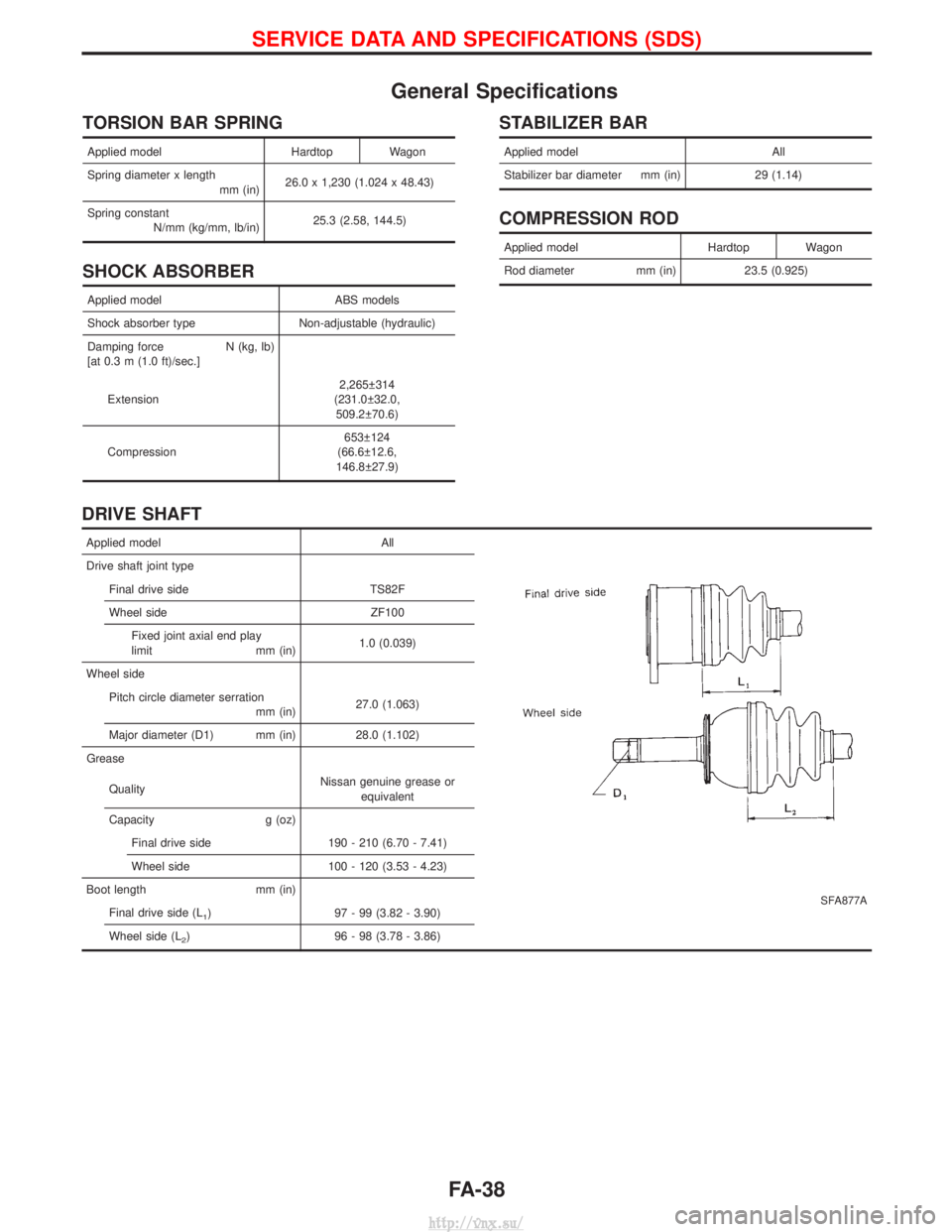

General Specifications
TORSION BAR SPRING
Applied modelHardtop Wagon
Spring diameter x length mm (in)26.0 x 1,230 (1.024 x 48.43)
Spring constant N/mm (kg/mm, lb/in) 25.3 (2.58, 144.5)
SHOCK ABSORBER
Applied model
ABS models
Shock absorber type Non-adjustable (hydraulic)
Damping force N (kg, lb)
[at 0.3 m (1.0 ft)/sec.]
Extension 2,265 314
(231.0 32.0, 509.2 70.6)
Compression 653 124
(66.6 12.6,
146.8 27.9)
STABILIZER BAR
Applied model All
Stabilizer bar diameter mm (in) 29 (1.14)
COMPRESSION ROD
Applied model Hardtop Wagon
Rod diameter mm (in) 23.5 (0.925)
DRIVE SHAFT
Applied model All
SFA877A
Drive shaft joint type
Final drive side TS82F
Wheel side ZF100Fixed joint axial end play
limit mm (in) 1.0 (0.039)
Wheel side Pitch circle diameter serration mm (in)27.0 (1.063)
Major diameter (D1) mm (in) 28.0 (1.102)
Grease
Quality Nissan genuine grease or
equivalent
Capacity g (oz) Final drive side 190 - 210 (6.70 - 7.41)
Wheel side 100 - 120 (3.53 - 4.23)
Boot length mm (in) Final drive side (L
1) 97 - 99 (3.82 - 3.90)
Wheel side (L
2) 96 - 98 (3.78 - 3.86)
SERVICE DATA AND SPECIFICATIONS (SDS)
FA-38
http://vnx.su/

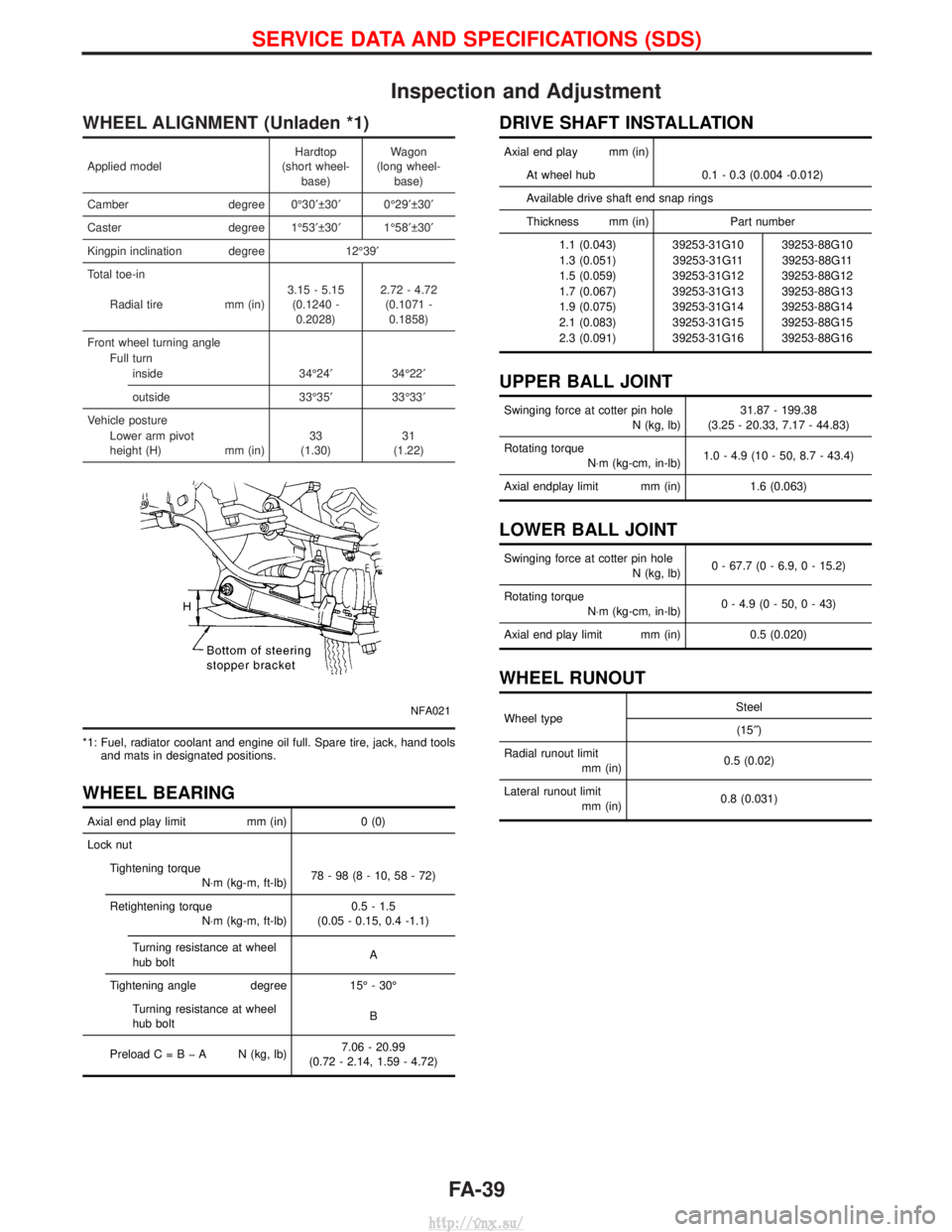

Inspection and Adjustment
WHEEL ALIGNMENT (Unladen *1)
Applied modelHardtop
(short wheel- base) Wagon
(long wheel- base)
Camber degree 0É30¢  30¢0É29¢ 30¢
Caster degree 1É53¢  30¢1É58¢ 30¢
Kingpin inclination degree 12É39¢
Total toe-in
Radial tire mm (in)3.15 - 5.15
(0.1240 -0.2028) 2.72 - 4.72
(0.1071 -0.1858)
Front wheel turning angle Full turninside 34É24¢34É22¢
outside 33É35¢33É33¢
Vehicle posture Lower arm pivot
height (H) mm (in)33
(1.30) 31
(1.22)
NFA021
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
WHEEL BEARING
Axial end play limit mm (in)0 (0)
Lock nut Tightening torque N×m (kg-m, ft-lb) 78-98(8-10,58-72)
Retightening torque N×m (kg-m, ft-lb) 0.5 - 1.5
(0.05 - 0.15, 0.4 -1.1)
Turning resistance at wheel
hub bolt A
Tightening angle degree 15É - 30É
Turning resistance at wheel
hub bolt B
PreloadC=BþA N(kg, lb) 7.06 - 20.99
(0.72 - 2.14, 1.59 - 4.72)
DRIVE SHAFT INSTALLATION
Axial end play mm (in)
At wheel hub 0.1 - 0.3 (0.004 -0.012)
Available drive shaft end snap rings
Thickness mm (in) Part number 1.1 (0.043) 39253-31G10 39253-88G10
1.3 (0.051) 39253-31G11 39253-88G11
1.5 (0.059) 39253-31G12 39253-88G12
1.7 (0.067) 39253-31G13 39253-88G13
1.9 (0.075) 39253-31G14 39253-88G14
2.1 (0.083) 39253-31G15 39253-88G15
2.3 (0.091) 39253-31G16 39253-88G16
UPPER BALL JOINT
Swinging force at cotter pin hole N (kg, lb)31.87 - 199.38
(3.25 - 20.33, 7.17 - 44.83)
Rotating torque N×m (kg-cm, in-lb) 1.0 - 4.9 (10 - 50, 8.7 - 43.4)
Axial endplay limit mm (in) 1.6 (0.063)
LOWER BALL JOINT
Swinging force at cotter pin hole
N (kg, lb)0 - 67.7 (0 - 6.9, 0 - 15.2)
Rotating torque N×m (kg-cm, in-lb) 0 - 4.9 (0 - 50, 0 - 43)
Axial end play limit mm (in) 0.5 (0.020)
WHEEL RUNOUT
Wheel type Steel
(15² )
Radial runout limit mm (in) 0.5 (0.02)
Lateral runout limit mm (in) 0.8 (0.031)
SERVICE DATA AND SPECIFICATIONS (SDS)
FA-39
http://vnx.su/

NOTES
http://vnx.su/

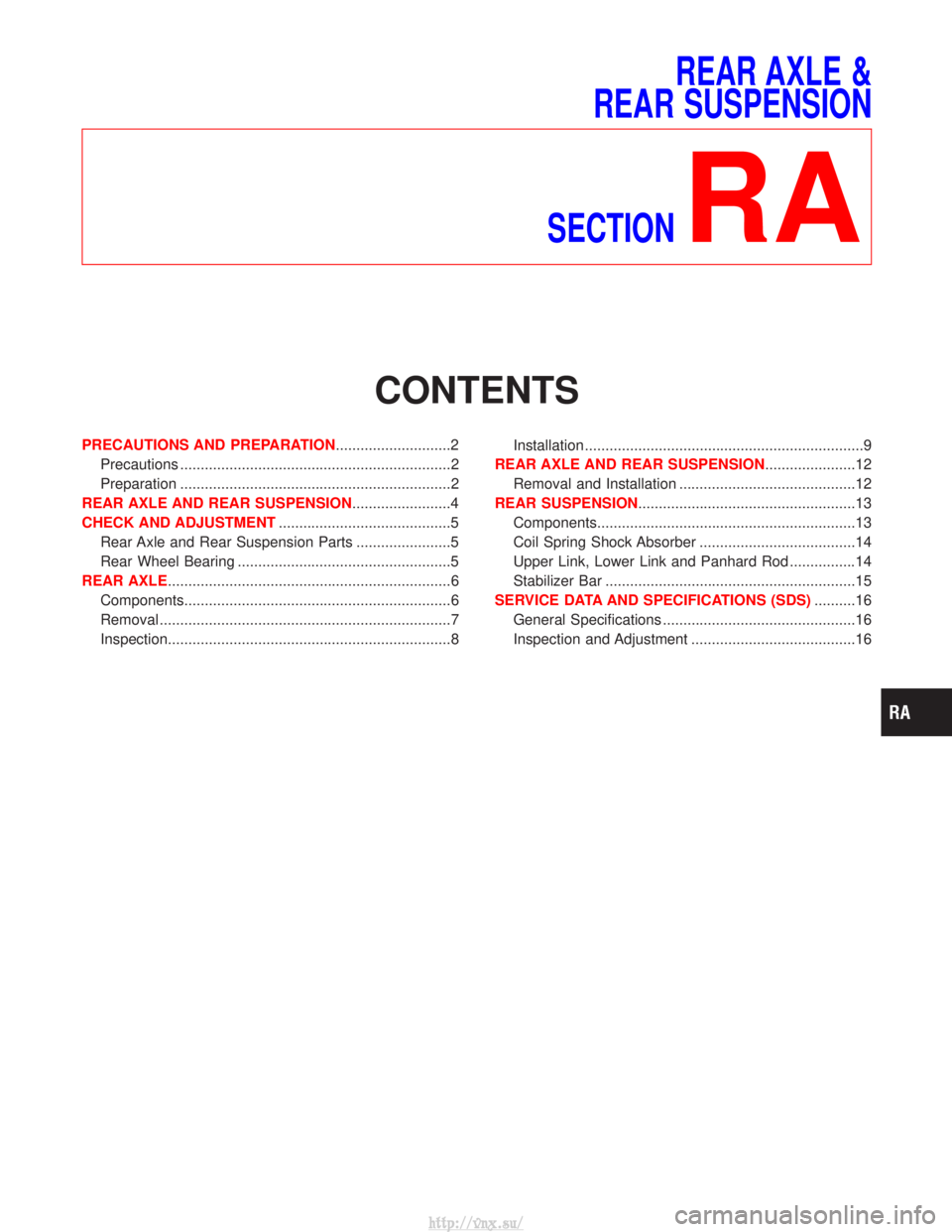

REAR AXLE &
