2004 NISSAN TERRANO Service Repair Manual

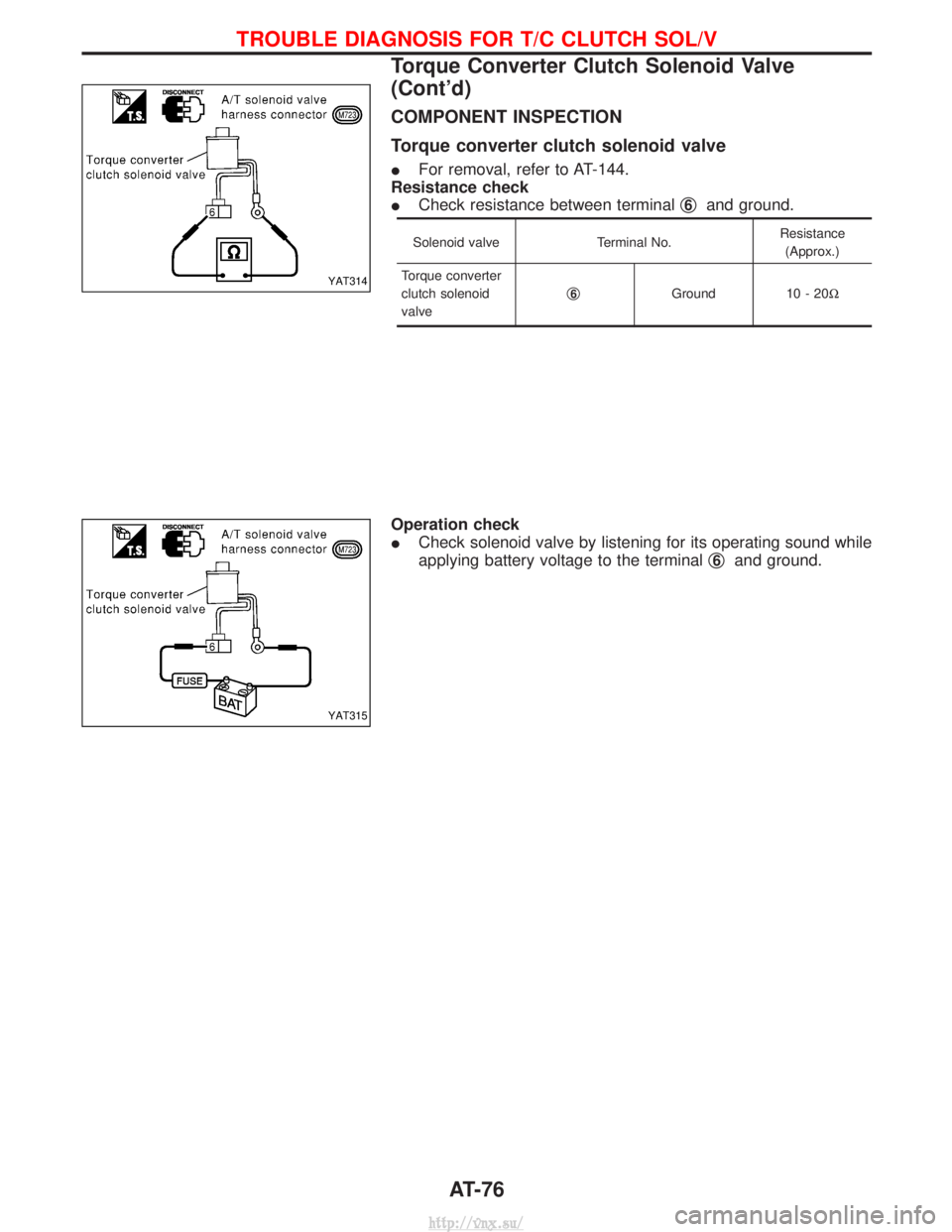

COMPONENT INSPECTION
Torque converter clutch solenoid valve
IFor removal, refer to AT-144.
Resistance check
I Check resistance between terminal q
6and ground.
Solenoid valve
Terminal No.Resistance
(Approx.)
Torque converter
clutch solenoid
valve q
6Ground
10 - 20W
Operation check
ICheck solenoid valve by listening for its operating sound while
applying battery voltage to the terminal q
6and ground.
YAT314
YAT315
TROUBLE DIAGNOSIS FOR T/C CLUTCH SOL/V
Torque Converter Clutch Solenoid Valve
(Cont'd)
AT-76
http://vnx.su/

Wiring Diagram Ð AT Ð BA/FTS
YAT403
TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN
AT-77
http://vnx.su/

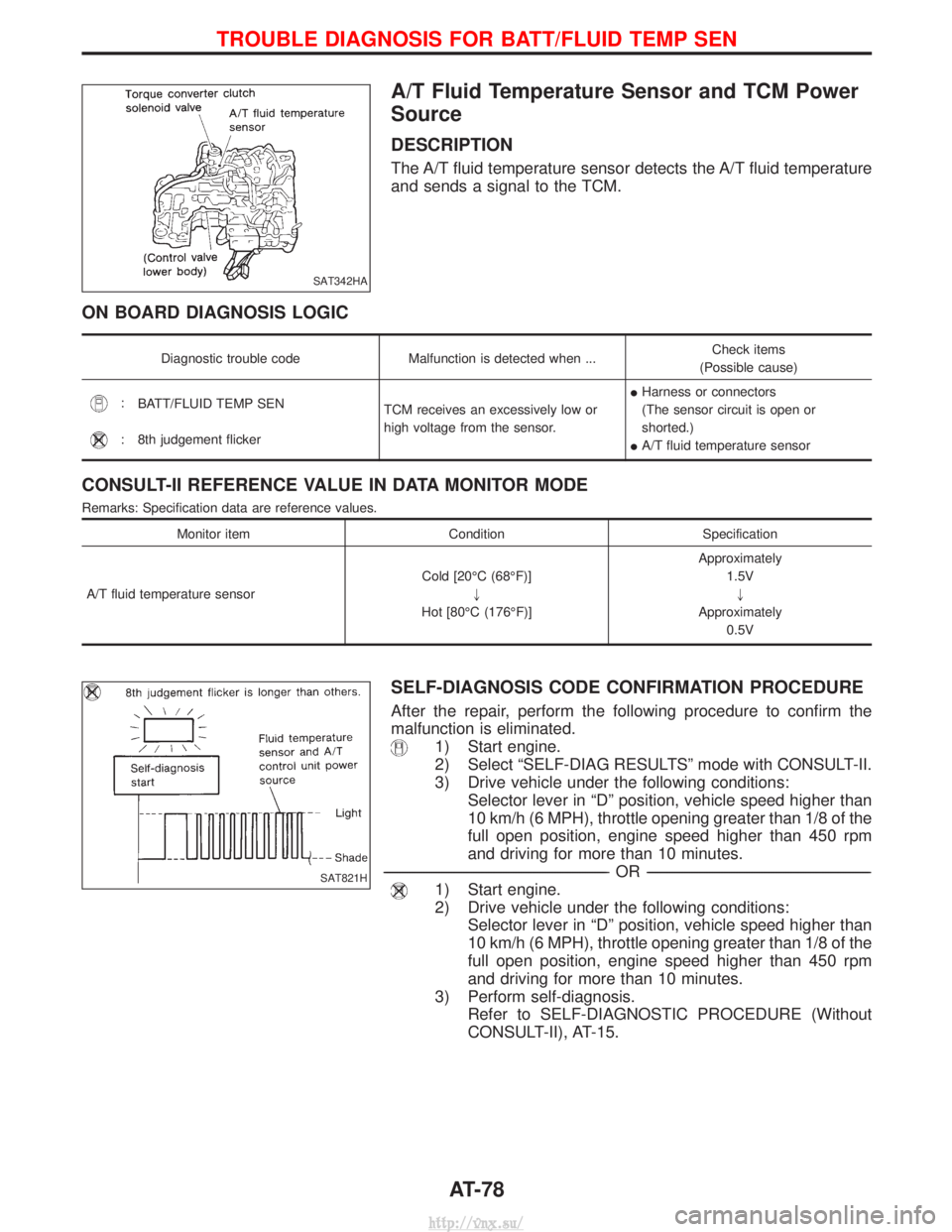

A/T Fluid Temperature Sensor and TCM Power
Source
DESCRIPTION
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
ON BOARD DIAGNOSIS LOGIC
Diagnostic trouble codeMalfunction is detected when ... Check items
(Possible cause)
: BATT/FLUID TEMP SEN
TCM receives an excessively low or
high voltage from the sensor.I
Harness or connectors
(The sensor circuit is open or
shorted.)
I A/T fluid temperature sensor
: 8th judgement flicker
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
Monitor item ConditionSpecification
A/T fluid temperature sensor Cold [20ÉC (68ÉF)]
"
Hot [80ÉC (176ÉF)] Approximately
1.5V"
Approximately 0.5V
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
1) Start engine.
2) Select ªSELF-DIAG RESULTSº mode with CONSULT-II.
3) Drive vehicle under the following conditions:Selector lever in ªDº position, vehicle speed higher than
10 km/h (6 MPH), throttle opening greater than 1/8 of the
full open position, engine speed higher than 450 rpm
and driving for more than 10 minutes.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- -OR------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than
10 km/h (6 MPH), throttle opening greater than 1/8 of the
full open position, engine speed higher than 450 rpm
and driving for more than 10 minutes.
3) Perform self-diagnosis. Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.
SAT342HA
SAT821H
TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN
AT-78
http://vnx.su/

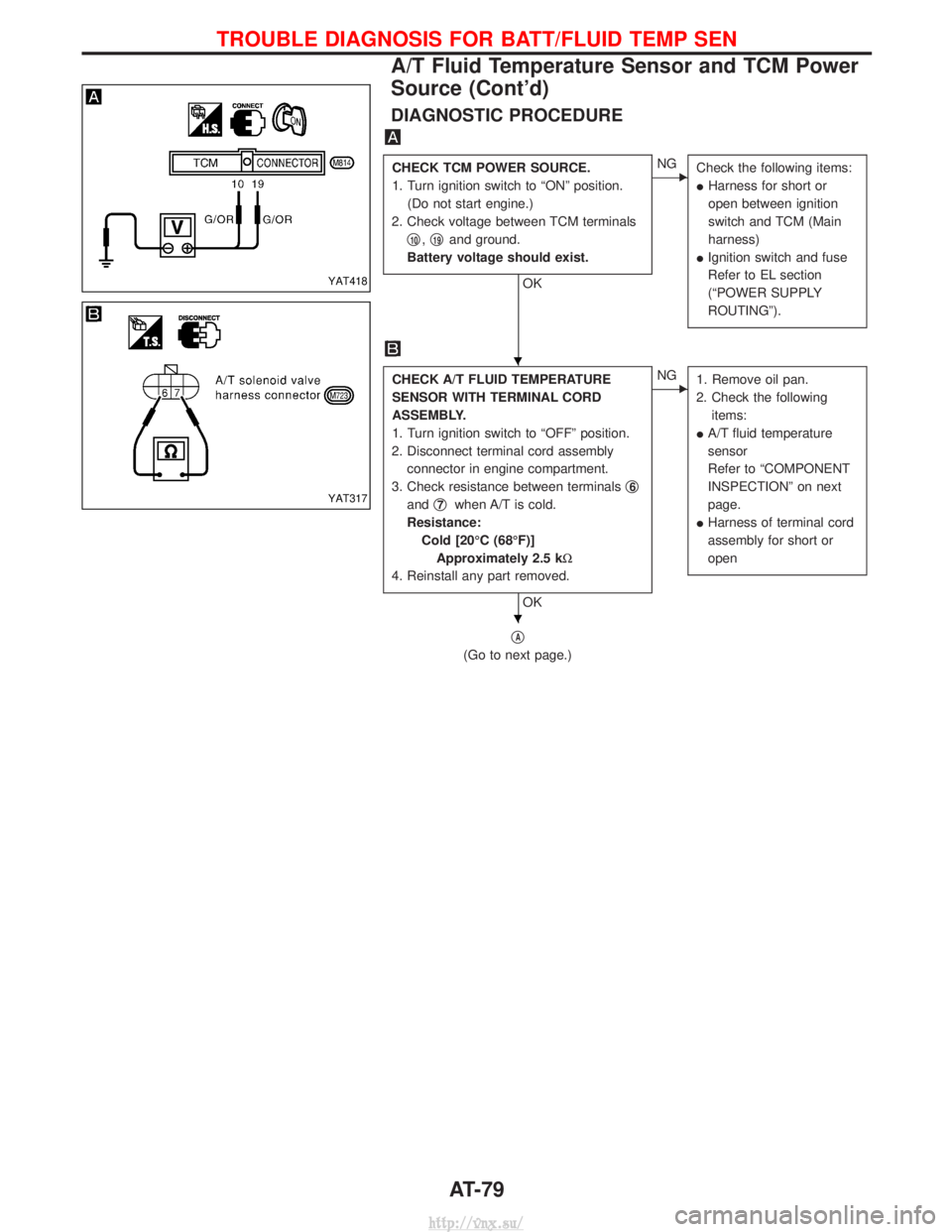

DIAGNOSTIC PROCEDURE
CHECK TCM POWER SOURCE.
1. Turn ignition switch to ªONº position.(Do not start engine.)
2. Check voltage between TCM terminals q
10,q19and ground.
Battery voltage should exist.
OK
ENG Check the following items:
IHarness for short or
open between ignition
switch and TCM (Main
harness)
I Ignition switch and fuse
Refer to EL section
(ªPOWER SUPPLY
ROUTINGº).
CHECK A/T FLUID TEMPERATURE
SENSOR WITH TERMINAL CORD
ASSEMBLY.
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals q
6
andq7when A/T is cold.
Resistance: Cold [20ÉC (68ÉF)]Approximately 2.5 kW
4. Reinstall any part removed.
OK
ENG 1. Remove oil pan.
2. Check the following items:
I A/T fluid temperature
sensor
Refer to ªCOMPONENT
INSPECTIONº on next
page.
I Harness of terminal cord
assembly for short or
open
qA
(Go to next page.)
YAT418
YAT317
H
H
TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN
A/T Fluid Temperature Sensor and TCM Power
Source (Cont'd)
AT-79
http://vnx.su/

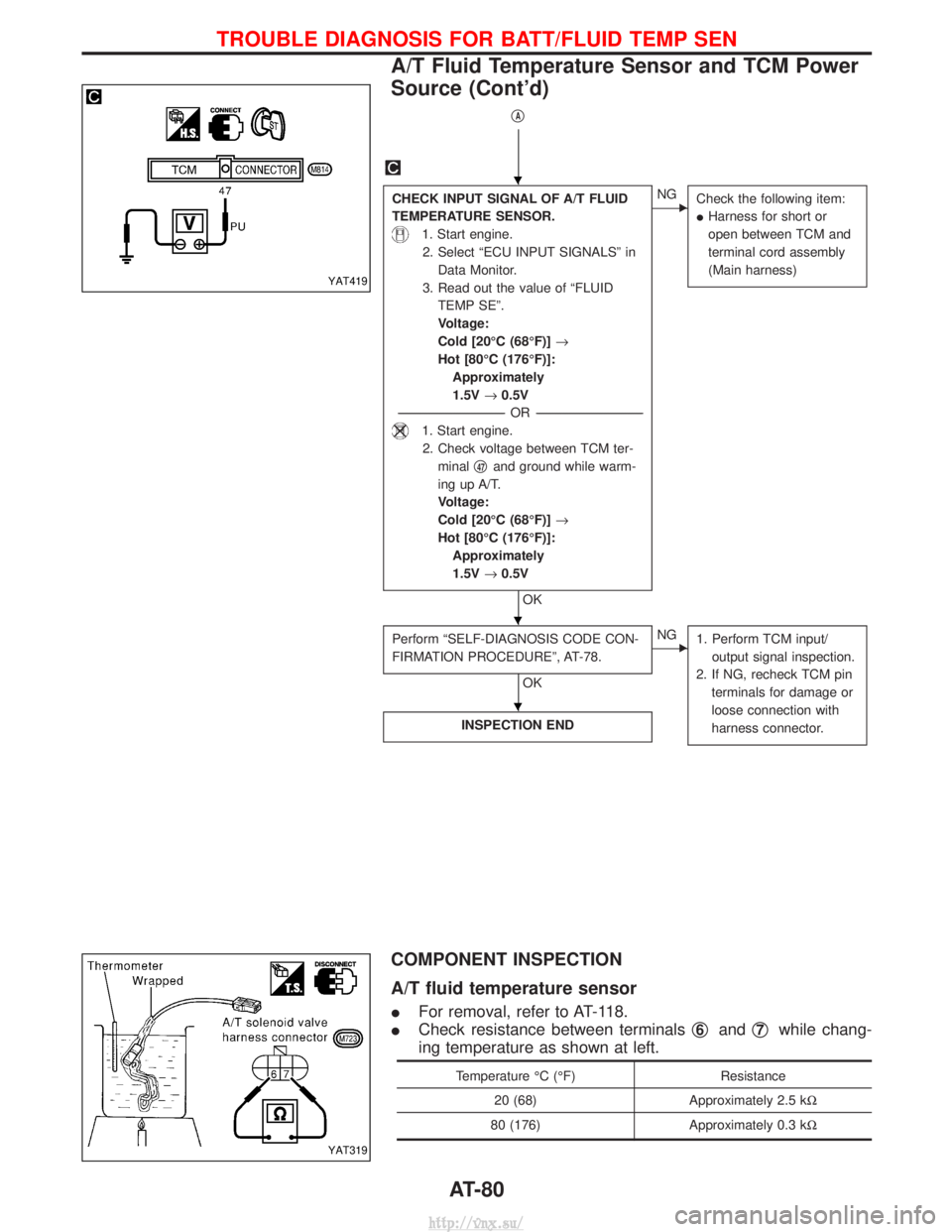

qA
CHECK INPUT SIGNAL OF A/T FLUID
TEMPERATURE SENSOR.
1. Start engine.2. Select ªECU INPUT SIGNALSº in Data Monitor.
3. Read out the value of ªFLUID TEMP SEº.
Voltage:
Cold [20ÉC (68ÉF)] ®
Hot [80ÉC (176ÉF)]: Approximately
1.5V ®0.5V
---------------------------------------------------------------------------------------------------------------------- -OR -----------------------------------------------------------------------------------------------------------------------
1. Start engine.
2. Check voltage between TCM ter- minal q
47and ground while warm-
ing up A/T.
Voltage:
Cold [20ÉC (68ÉF)] ®
Hot [80ÉC (176ÉF)]: Approximately
1.5V ®0.5V
OK
ENG
Check the following item:
IHarness for short or
open between TCM and
terminal cord assembly
(Main harness)
Perform ªSELF-DIAGNOSIS CODE CON-
FIRMATION PROCEDUREº, AT-78.
OK
ENG
1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin terminals for damage or
loose connection with
harness connector.
INSPECTION END
COMPONENT INSPECTION
A/T fluid temperature sensor
I For removal, refer to AT-118.
I Check resistance between terminals q
6andq7while chang-
ing temperature as shown at left.
Temperature ÉC (ÉF) Resistance
20 (68) Approximately 2.5 kW
80 (176) Approximately 0.3 kW
YAT419
YAT319
H
H
H
TROUBLE DIAGNOSIS FOR BATT/FLUID TEMP SEN
A/T Fluid Temperature Sensor and TCM Power
Source (Cont'd)
AT-80
http://vnx.su/

Wiring Diagram Ð AT Ð ENGSS
YAT271
TROUBLE DIAGNOSIS FOR ENGINE SPEED SIG
AT-81
http://vnx.su/

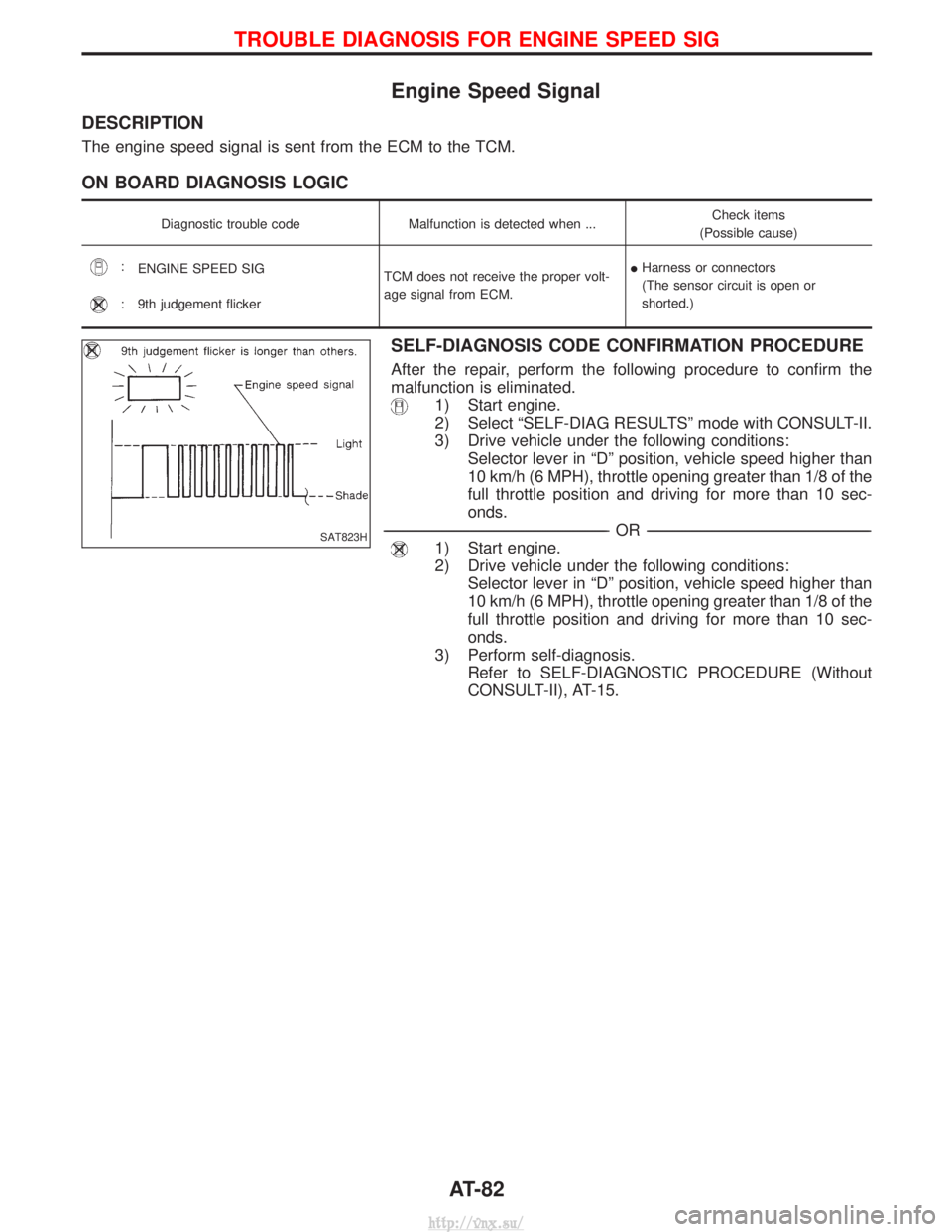

Engine Speed Signal
DESCRIPTION
The engine speed signal is sent from the ECM to the TCM.
ON BOARD DIAGNOSIS LOGIC
Diagnostic trouble codeMalfunction is detected when ... Check items
(Possible cause)
: ENGINE SPEED SIG
TCM does not receive the proper volt-
age signal from ECM.I
Harness or connectors
(The sensor circuit is open or
shorted.)
:
9th judgement flicker
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
1) Start engine.
2) Select ªSELF-DIAG RESULTSº mode with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than
10 km/h (6 MPH), throttle opening greater than 1/8 of the
full throttle position and driving for more than 10 sec-
onds.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- -OR------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than
10 km/h (6 MPH), throttle opening greater than 1/8 of the
full throttle position and driving for more than 10 sec-
onds.
3) Perform self-diagnosis. Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.SAT823H
TROUBLE DIAGNOSIS FOR ENGINE SPEED SIG
AT-82
http://vnx.su/

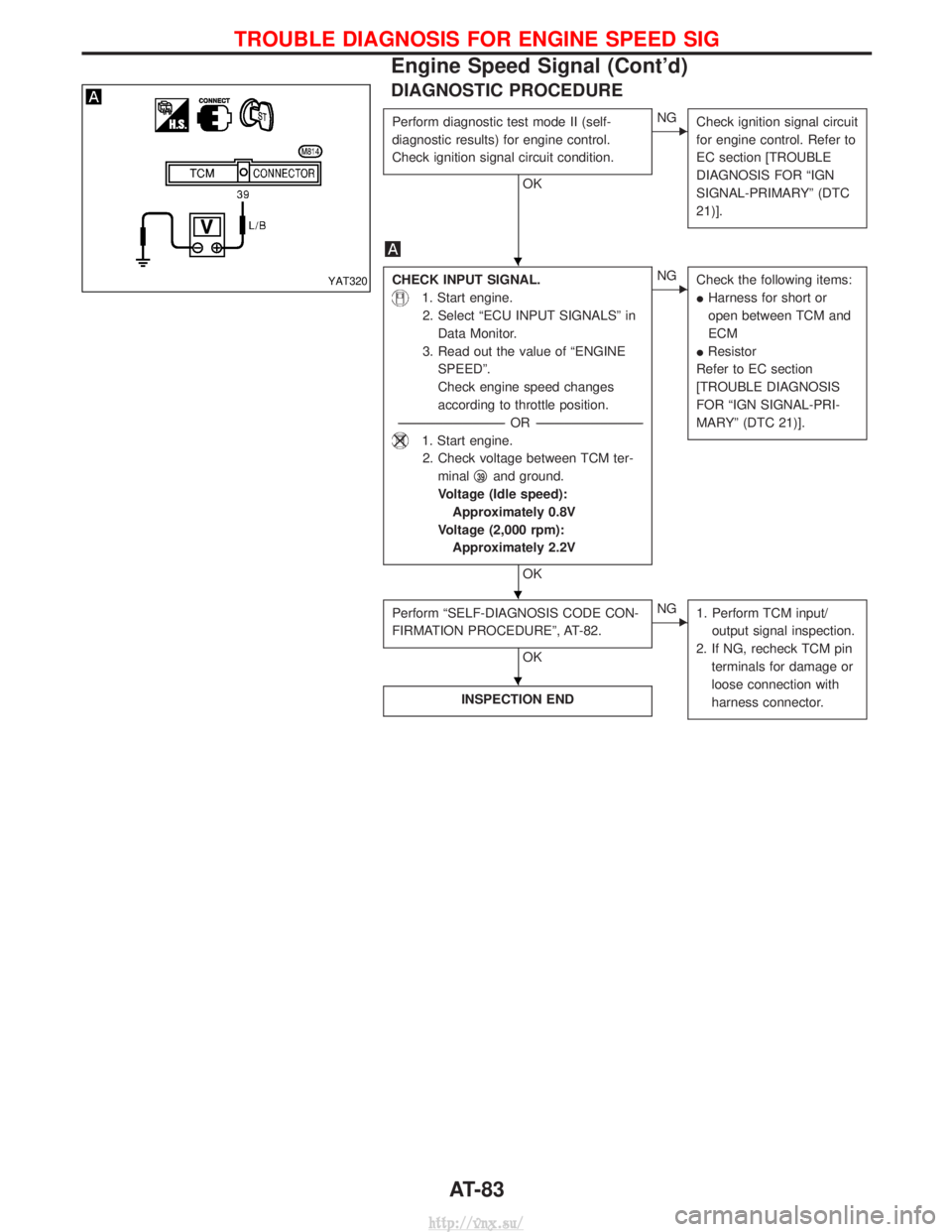

DIAGNOSTIC PROCEDURE
Perform diagnostic test mode II (self-
diagnostic results) for engine control.
Check ignition signal circuit condition.
OK
ENGCheck ignition signal circuit
for engine control. Refer to
EC section [TROUBLE
DIAGNOSIS FOR ªIGN
SIGNAL-PRIMARYº (DTC
21)].
CHECK INPUT SIGNAL.
1. Start engine.
2. Select ªECU INPUT SIGNALSº in Data Monitor.
3. Read out the value of ªENGINE SPEEDº.
Check engine speed changes
according to throttle position.
---------------------------------------------------------------------------------------------------------------------- -OR -----------------------------------------------------------------------------------------------------------------------
1. Start engine.
2. Check voltage between TCM ter- minal q
39and ground.
Voltage (Idle speed): Approximately 0.8V
Voltage (2,000 rpm): Approximately 2.2V
OK
ENG Check the following items:
IHarness for short or
open between TCM and
ECM
I Resistor
Refer to EC section
[TROUBLE DIAGNOSIS
FOR ªIGN SIGNAL-PRI-
MARYº (DTC 21)].
Perform ªSELF-DIAGNOSIS CODE CON-
FIRMATION PROCEDUREº, AT-82.
OK
ENG 1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin terminals for damage or
loose connection with
harness connector.
INSPECTION END
YAT320
H
H
H
TROUBLE DIAGNOSIS FOR ENGINE SPEED SIG
Engine Speed Signal (Cont'd)
AT-83
http://vnx.su/
