2004 NISSAN TERRANO Service Repair Manual

6 CHECK SWIRL CONTROL VALVE ACTUATOR
1. Turn ignition switch ªOFFº.
2. Install a vacuum pump to swirl control valve actuator.
3. Make sure that the swirl control valve actuator rod moves smoothly when applying vacuum of þ93.3 kPa (þ933 mbar, þ700
mmHg, þ27.6 inHg) and releasing it.
MEC010E
OK or NG
OK ERepair or replace vacuum hoses and vacuum gallery.
NG EReplace swirl control valve actuator.
7 CHECK VACUUM HOSE
1. Turn ignition switch ªOFFº.
2. Check vacuum hoses and vacuum gallery for clogging, cracks or improper connection.
SEF109L
OK or NG
OK EGO TO 8.
NG ERepair or replace vacuum hoses and vacuum gallery.
SWIRL CONTROL VALVE CONTROL SOLENOID VALVEZD30DDTi
Diagnostic Procedure (Cont'd)
EC-278
http://vnx.su/

8 CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect swirl control valve control solenoid valve harness connector.
MEC006E
3. Turn ignition switch ªONº.
4. Check voltage between swirl control valve control solenoid valve terminal 2 and ground with CONSULT-II or tester.
SEF312Z
OK or NG
OK EGO TO 10.
NG EGO TO 9.
9 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors F108, E225
I Harness connectors M842, F135
I Fuse block (J/B) connector F48 (LHD models), M756 (RHD models)
I 10A fuse
I Harness for open or short between swirl control valve control solenoid valve and fuse
ERepair open circuit or short to ground or short to power in harness or connectors.
10 CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 54 and swirl control valve control solenoid valve terminal 1. Refer to Wiring
Diagram. Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 12.
NG EGO TO 11.
SWIRL CONTROL VALVE CONTROL SOLENOID VALVEZD30DDTi
Diagnostic Procedure (Cont'd)
EC-279
http://vnx.su/

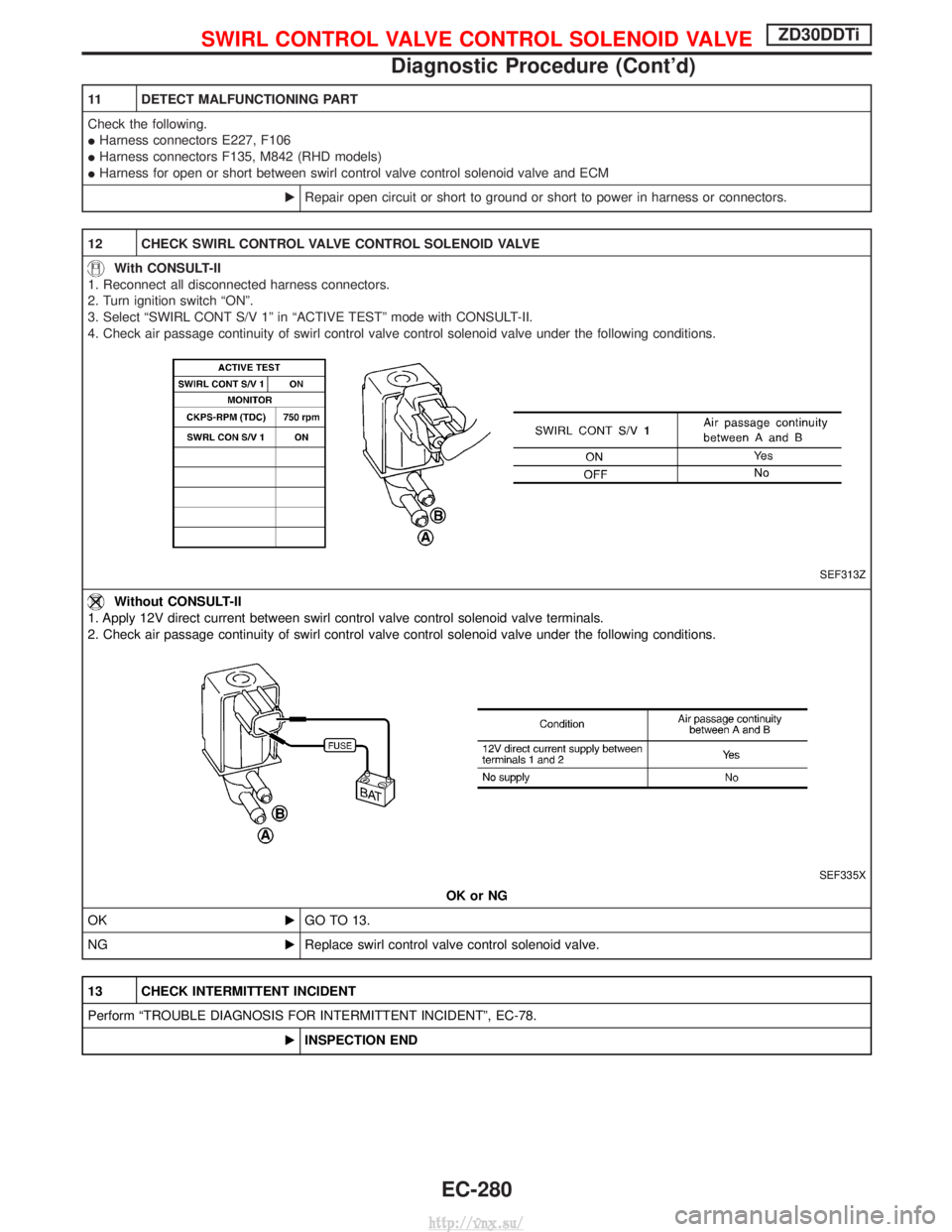

11 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors E227, F106
I Harness connectors F135, M842 (RHD models)
I Harness for open or short between swirl control valve control solenoid valve and ECM
ERepair open circuit or short to ground or short to power in harness or connectors.
12 CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE
With CONSULT-II
1. Reconnect all disconnected harness connectors.
2. Turn ignition switch ªONº.
3. Select ªSWIRL CONT S/V 1º in ªACTIVE TESTº mode with CONSULT-II.
4. Check air passage continuity of swirl control valve control solenoid valve under the following conditions.
SEF313Z
Without CONSULT-II
1. Apply 12V direct current between swirl control valve control solenoid valve terminals.
2. Check air passage continuity of swirl control valve control solenoid valve under the following conditions.
SEF335X
OK or NG
OK EGO TO 13.
NG EReplace swirl control valve control solenoid valve.
13 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-78.
EINSPECTION END
SWIRL CONTROL VALVE CONTROL SOLENOID VALVEZD30DDTi
Diagnostic Procedure (Cont'd)
EC-280
http://vnx.su/

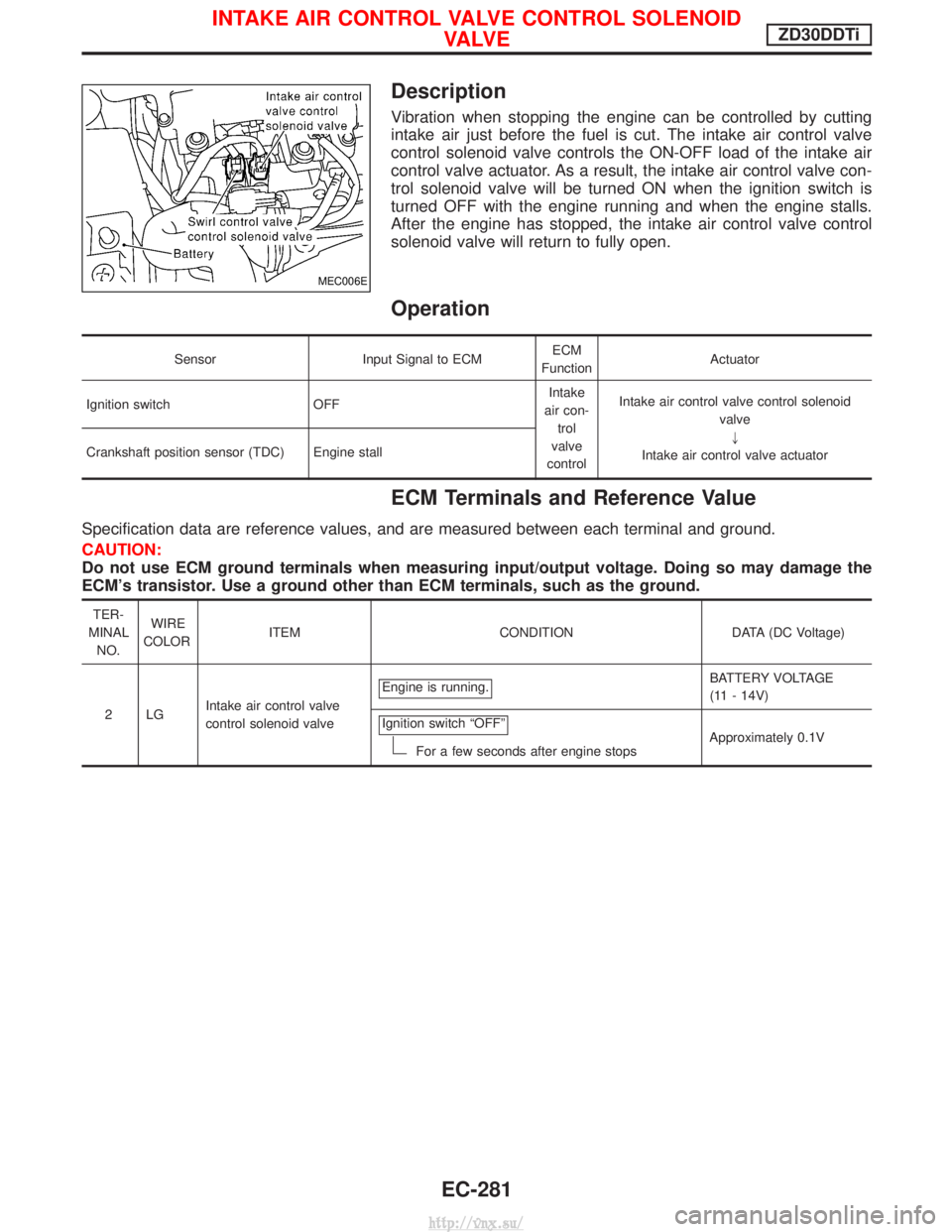

Description
Vibration when stopping the engine can be controlled by cutting
intake air just before the fuel is cut. The intake air control valve
control solenoid valve controls the ON-OFF load of the intake air
control valve actuator. As a result, the intake air control valve con-
trol solenoid valve will be turned ON when the ignition switch is
turned OFF with the engine running and when the engine stalls.
After the engine has stopped, the intake air control valve control
solenoid valve will return to fully open.
Operation
SensorInput Signal to ECM ECM
Function Actuator
Ignition switch OFF Intake
air con- trol
valve
control Intake air control valve control solenoid
valve"
Intake air control valve actuator
Crankshaft position sensor (TDC) Engine stall
ECM Terminals and Reference Value
Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
2LG Intake air control valve
control solenoid valve Engine is running.
BATTERY VOLTAGE
(11 - 14V)
Ignition switch ªOFFº
For a few seconds after engine stops Approximately 0.1V
MEC006E
INTAKE AIR CONTROL VALVE CONTROL SOLENOID
VA LV EZD30DDTi
EC-281
http://vnx.su/

Wiring Diagram
YEC200A
INTAKE AIR CONTROL VALVE CONTROL SOLENOIDVA LV EZD30DDTi
EC-282
http://vnx.su/

Diagnostic Procedure
1 CHECK OVERALL FUNCTION
1. Start engine and let it idle.
2. Make sure that intake air control valve actuator rod moves when turning ignition switch ªOFFº.
MEC011E
OK or NG
OK EINSPECTION END
NG EGO TO 2.
2 CHECK VACUUM SOURCE
1. Turn ignition switch ªOFFº.
2. Disconnect vacuum hose connected to intake air control valve actuator.
3. Start engine and let it idle.
4. Check vacuum hose for vacuum existence under the following conditions.
MEC012E
MTBL1328
OK or NG
OK EGO TO 3.
NG EGO TO 4.
INTAKE AIR CONTROL VALVE CONTROL SOLENOID
VA LV EZD30DDTi
EC-283
http://vnx.su/

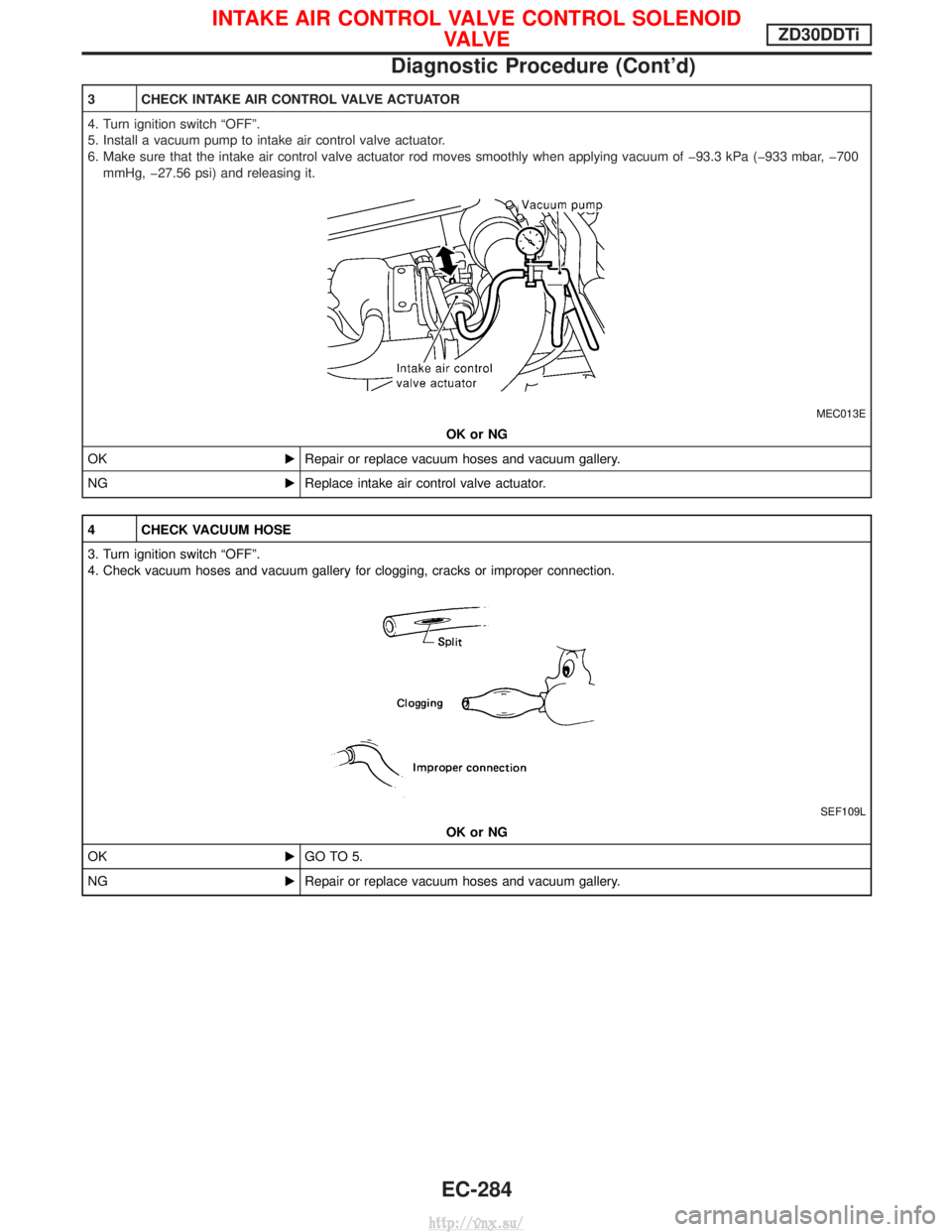

3 CHECK INTAKE AIR CONTROL VALVE ACTUATOR
4. Turn ignition switch ªOFFº.
5. Install a vacuum pump to intake air control valve actuator.
6. Make sure that the intake air control valve actuator rod moves smoothly when applying vacuum of þ93.3 kPa (þ933 mbar, þ700mmHg, þ27.56 psi) and releasing it.
MEC013E
OK or NG
OK ERepair or replace vacuum hoses and vacuum gallery.
NG EReplace intake air control valve actuator.
4 CHECK VACUUM HOSE
3. Turn ignition switch ªOFFº.
4. Check vacuum hoses and vacuum gallery for clogging, cracks or improper connection.
SEF109L
OK or NG
OK EGO TO 5.
NG ERepair or replace vacuum hoses and vacuum gallery.
INTAKE AIR CONTROL VALVE CONTROL SOLENOID
VA LV EZD30DDTi
Diagnostic Procedure (Cont'd)
EC-284
http://vnx.su/

5 CHECK INTAKE AIR CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ªOFFº.
2. Disconnect intake air control valve control solenoid valve harness connector.
MEC006E
3. Turn ignition switch ªONº.
4. Check voltage between intake air control valve control solenoid valve terminal 2 and ground with CONSULT-II or tester.
SEF312Z
OK or NG
OK EGO TO 11.
NG EGO TO 6.
INTAKE AIR CONTROL VALVE CONTROL SOLENOID
VA LV EZD30DDTi
Diagnostic Procedure (Cont'd)
EC-285
