or M33, M754 (RHD models).
Ground is supplied to terminal 4 of each rear combination lamp through body grounds B10 and B18.
With power and ground supplied, the time control unit controls the flashing of the hazard warning lamps, and
time control unit supplies power to combination meter terminals 7 or 33, to flash hazard warning indicator.
HAZARD REMINDER OPERATION FOR MULTI-REMOTE CONTROL SYSTEM
When the doors are locked or unlocked by multi-remote controller, time control unit controls turn lamps haz-
ard reminder flashes as follows.
ILocked operation: Flash once
I Unlock operation: Flash twice
EXTERIOR LAMP
System Description (Cont'd)
EL-60
http://vnx.su/

Schematic
YEL089D
EXTERIOR LAMP
EL-61
http://vnx.su/

Wiring Diagram Ð TURN Ð
YEL759E
EXTERIOR LAMP
EL-62
http://vnx.su/

LHD MODELS
YEL091D
EXTERIOR LAMP
Wiring Diagram Ð TURN Ð (Cont'd)EL-63
http://vnx.su/

RHD MODELS
YEL092D
EXTERIOR LAMP
Wiring Diagram Ð TURN Ð (Cont'd)EL-64
http://vnx.su/

YEL093D
EXTERIOR LAMP
Wiring Diagram Ð TURN Ð (Cont'd)EL-65
http://vnx.su/

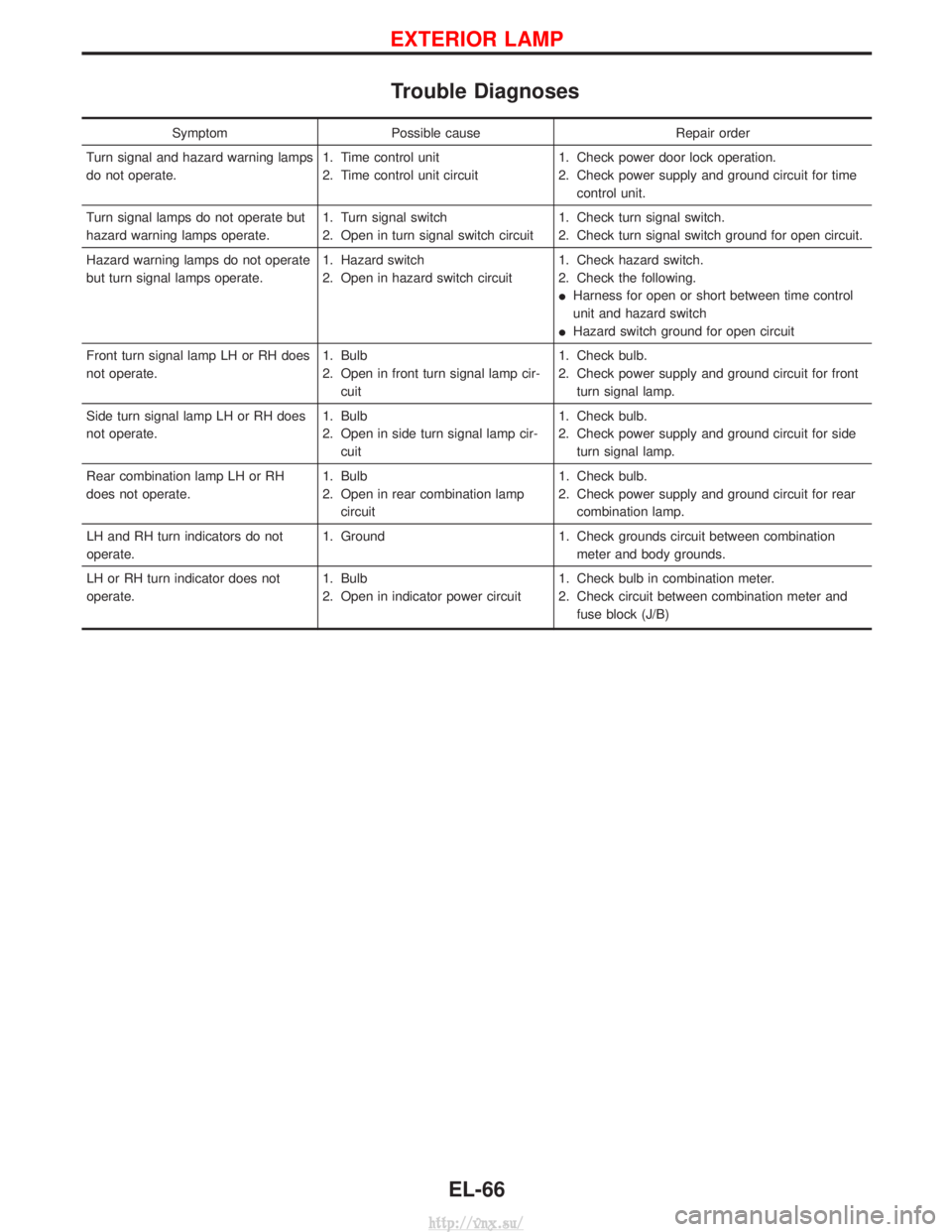

Trouble Diagnoses
SymptomPossible cause Repair order
Turn signal and hazard warning lamps
do not operate. 1. Time control unit
2. Time control unit circuit1. Check power door lock operation.
2. Check power supply and ground circuit for time
control unit.
Turn signal lamps do not operate but
hazard warning lamps operate. 1. Turn signal switch
2. Open in turn signal switch circuit1. Check turn signal switch.
2. Check turn signal switch ground for open circuit.
Hazard warning lamps do not operate
but turn signal lamps operate. 1. Hazard switch
2. Open in hazard switch circuit1. Check hazard switch.
2. Check the following.
I
Harness for open or short between time control
unit and hazard switch
I Hazard switch ground for open circuit
Front turn signal lamp LH or RH does
not operate. 1. Bulb
2. Open in front turn signal lamp cir-
cuit 1. Check bulb.
2. Check power supply and ground circuit for front
turn signal lamp.
Side turn signal lamp LH or RH does
not operate. 1. Bulb
2. Open in side turn signal lamp cir-
cuit 1. Check bulb.
2. Check power supply and ground circuit for side
turn signal lamp.
Rear combination lamp LH or RH
does not operate. 1. Bulb
2. Open in rear combination lamp
circuit 1. Check bulb.
2. Check power supply and ground circuit for rear
combination lamp.
LH and RH turn indicators do not
operate. 1. Ground
1. Check grounds circuit between combination
meter and body grounds.
LH or RH turn indicator does not
operate. 1. Bulb
2. Open in indicator power circuit1. Check bulb in combination meter.
2. Check circuit between combination meter and
fuse block (J/B)
EXTERIOR LAMP
EL-66
http://vnx.su/

Schematic
YEL738E
