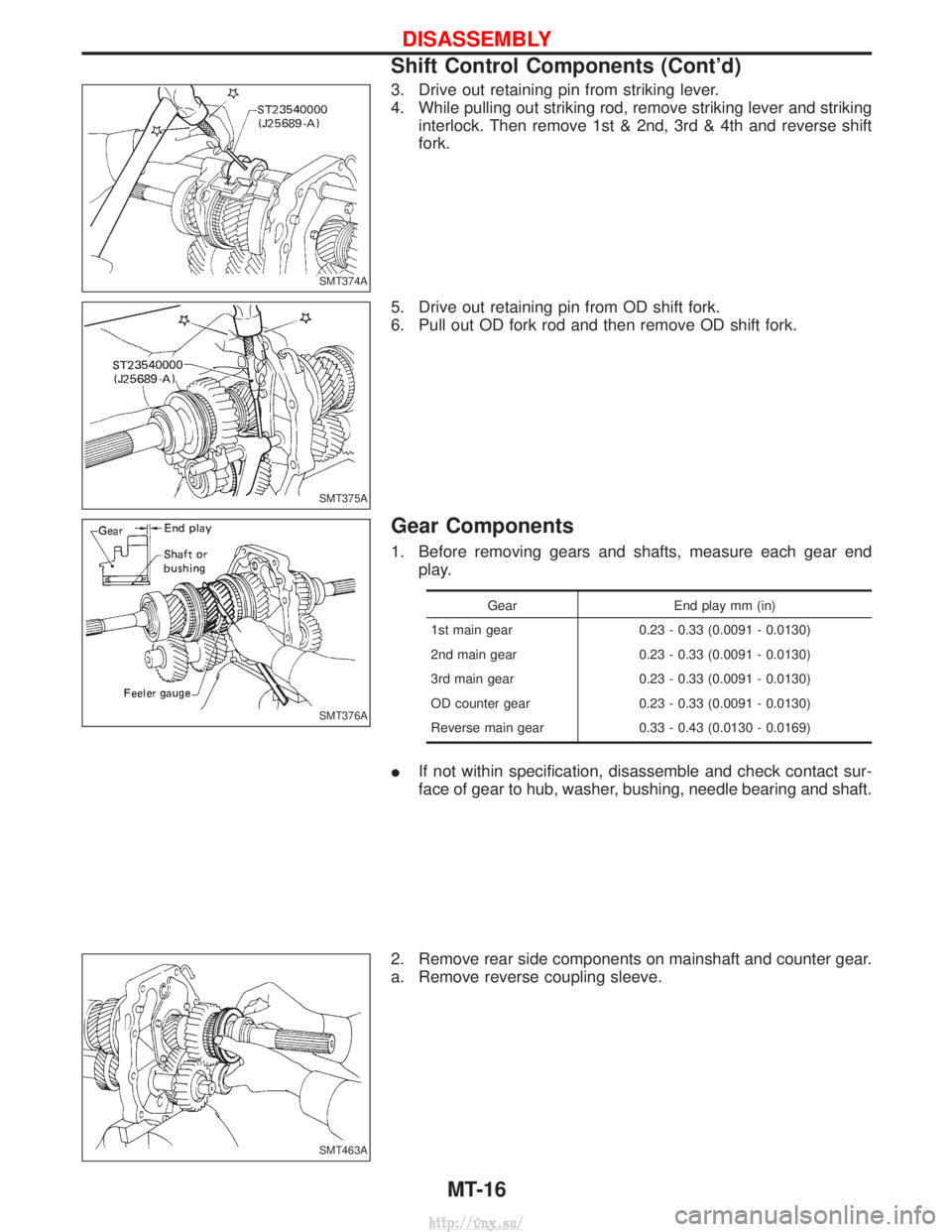

3. Drive out retaining pin from striking lever.
4. While pulling out striking rod, remove striking lever and strikinginterlock. Then remove 1st & 2nd, 3rd & 4th and reverse shift
fork.
5. Drive out retaining pin from OD shift fork.
6. Pull out OD fork rod and then remove OD shift fork.
Gear Components
1. Before removing gears and shafts, measure each gear end play.
Gear End play mm (in)
1st main gear 0.23 - 0.33 (0.0091 - 0.0130)
2nd main gear 0.23 - 0.33 (0.0091 - 0.0130)
3rd main gear 0.23 - 0.33 (0.0091 - 0.0130)
OD counter gear 0.23 - 0.33 (0.0091 - 0.0130)
Reverse main gear 0.33 - 0.43 (0.0130 - 0.0169)
IIf not within specification, disassemble and check contact sur-
face of gear to hub, washer, bushing, needle bearing and shaft.
2. Remove rear side components on mainshaft and counter gear.
a. Remove reverse coupling sleeve.
SMT374A
SMT375A
SMT376A
SMT463A
DISASSEMBLY
Shift Control Components (Cont'd)
MT-16
http://vnx.su/

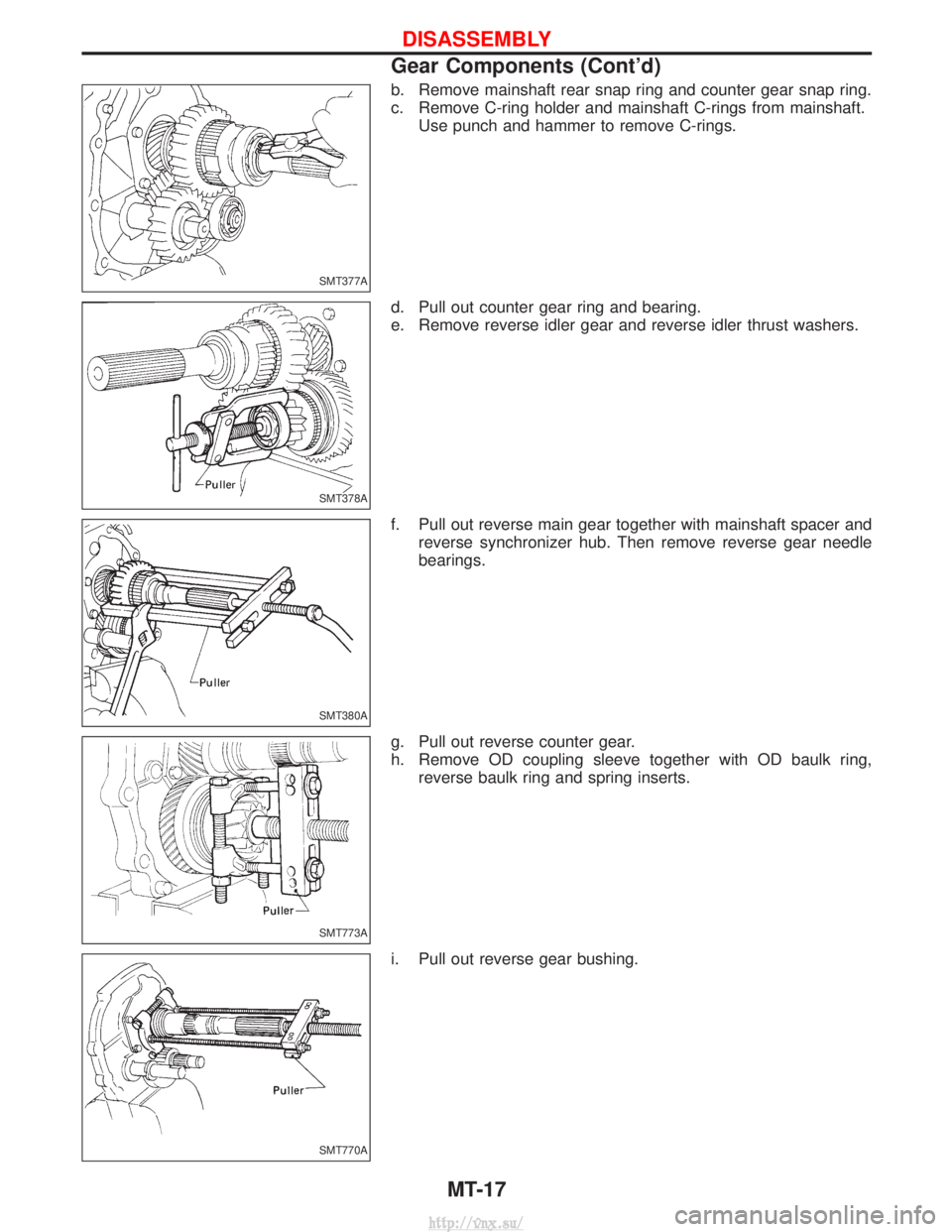

b. Remove mainshaft rear snap ring and counter gear snap ring.
c. Remove C-ring holder and mainshaft C-rings from mainshaft.Use punch and hammer to remove C-rings.
d. Pull out counter gear ring and bearing.
e. Remove reverse idler gear and reverse idler thrust washers.
f. Pull out reverse main gear together with mainshaft spacer and reverse synchronizer hub. Then remove reverse gear needle
bearings.
g. Pull out reverse counter gear.
h. Remove OD coupling sleeve together with OD baulk ring, reverse baulk ring and spring inserts.
i. Pull out reverse gear bushing.
SMT377A
SMT378A
SMT380A
SMT773A
SMT770A
DISASSEMBLY
Gear Components (Cont'd)
MT-17
http://vnx.su/

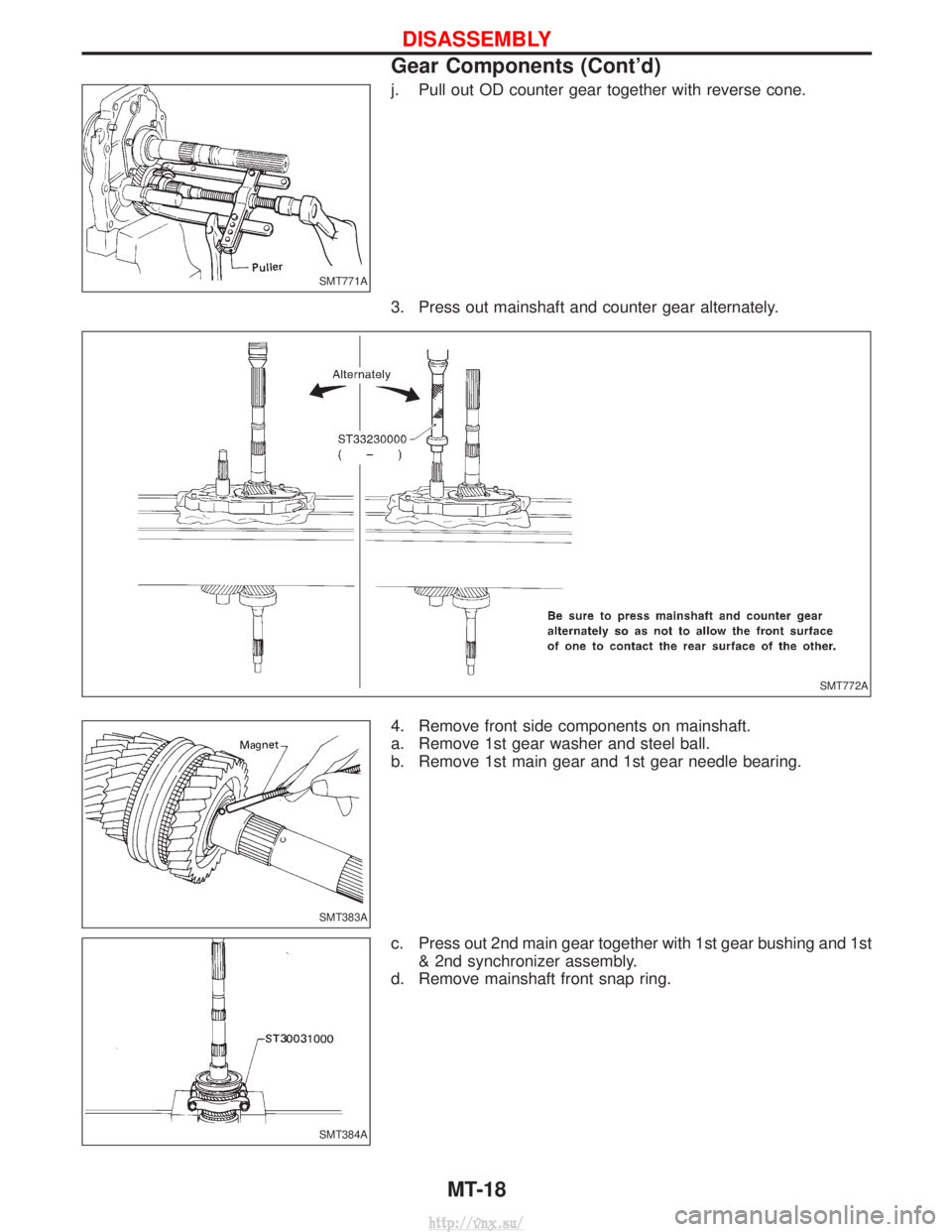

j. Pull out OD counter gear together with reverse cone.
3. Press out mainshaft and counter gear alternately.
4. Remove front side components on mainshaft.
a. Remove 1st gear washer and steel ball.
b. Remove 1st main gear and 1st gear needle bearing.
c. Press out 2nd main gear together with 1st gear bushing and 1st& 2nd synchronizer assembly.
d. Remove mainshaft front snap ring.
SMT771A
SMT772A
SMT383A
SMT384A
DISASSEMBLY
Gear Components (Cont'd)
MT-18
http://vnx.su/

e. Press out 3rd main gear together with 3rd & 4th synchronizerassembly and 3rd gear needle bearing.
5. Remove front side components on counter gear.
a. Remove counter gear rear thrust bearing.
b. Remove sub-gear components.
6. Remove main drive gear bearing.
a. Remove main drive gear snap ring and spacer.
b. Press out main drive gear bearing.
SMT385A
SMT404A
SMT470A
SMT420A
DISASSEMBLY
Gear Components (Cont'd)
MT-19
http://vnx.su/

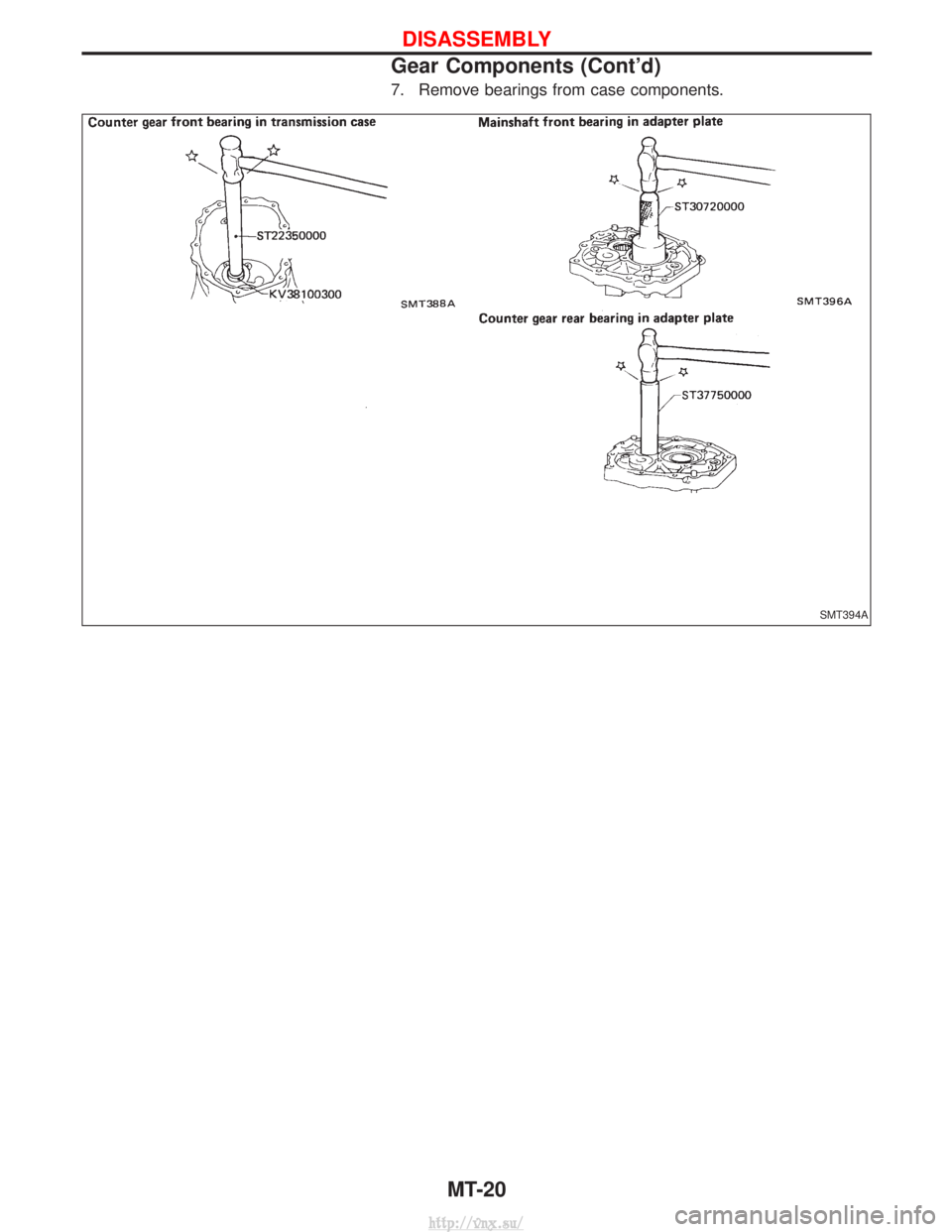

7. Remove bearings from case components.
SMT394A
DISASSEMBLY
Gear Components (Cont'd)MT-20
http://vnx.su/

Shift Control Components

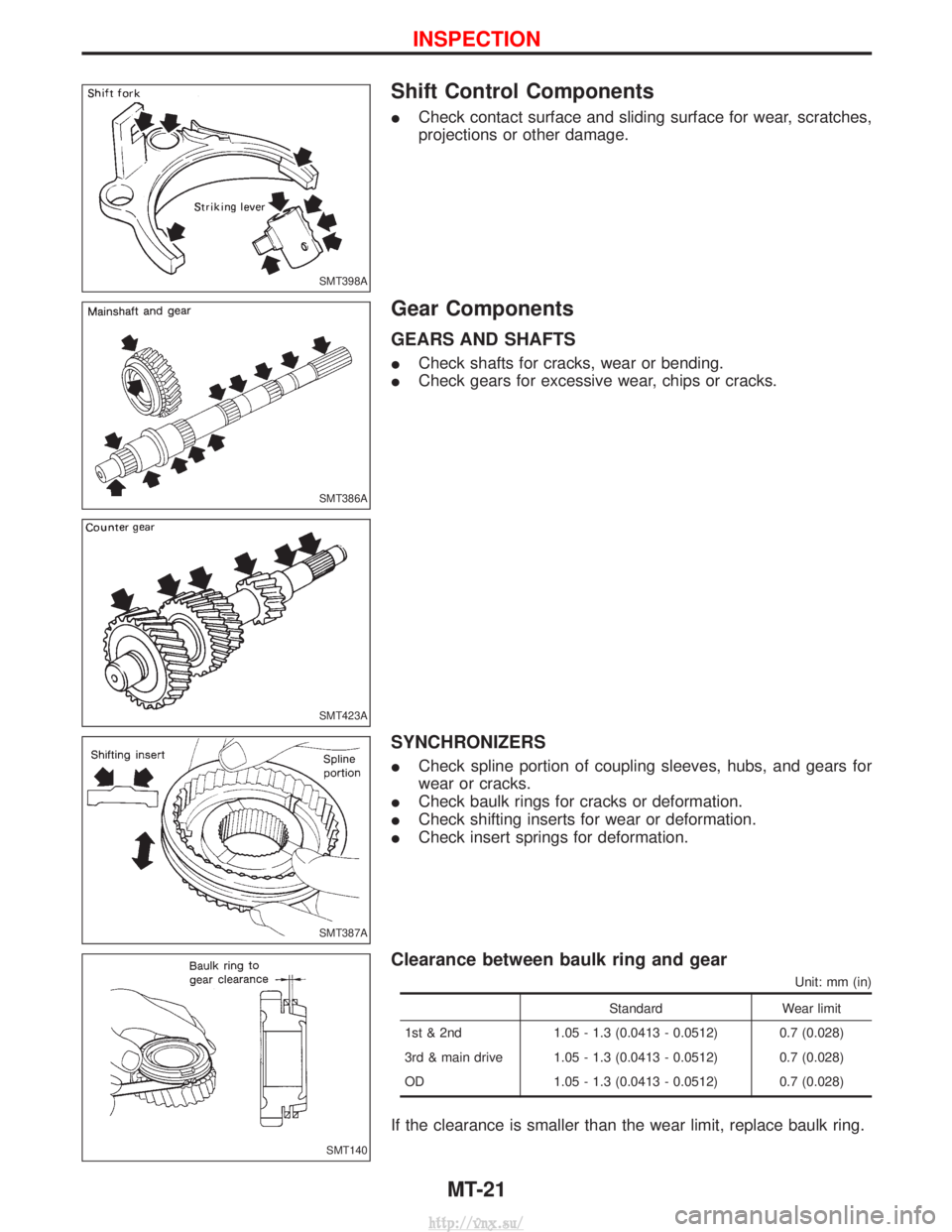

ICheck contact surface and sliding surface for wear, scratches,
projections or other damage.
Gear Components
GEARS AND SHAFTS
ICheck shafts for cracks, wear or bending.
I Check gears for excessive wear, chips or cracks.
SYNCHRONIZERS
ICheck spline portion of coupling sleeves, hubs, and gears for
wear or cracks.
I Check baulk rings for cracks or deformation.
I Check shifting inserts for wear or deformation.
I Check insert springs for deformation.
Clearance between baulk ring and gear
Unit: mm (in)
Standard Wear limit
1st & 2nd 1.05 - 1.3 (0.0413 - 0.0512) 0.7 (0.028)
3rd & main drive 1.05 - 1.3 (0.0413 - 0.0512) 0.7 (0.028)
OD 1.05 - 1.3 (0.0413 - 0.0512) 0.7 (0.028)
If the clearance is smaller than the wear limit, replace baulk ring.
SMT398A
SMT386A
SMT423A
SMT387A
SMT140
INSPECTION
MT-21
http://vnx.su/

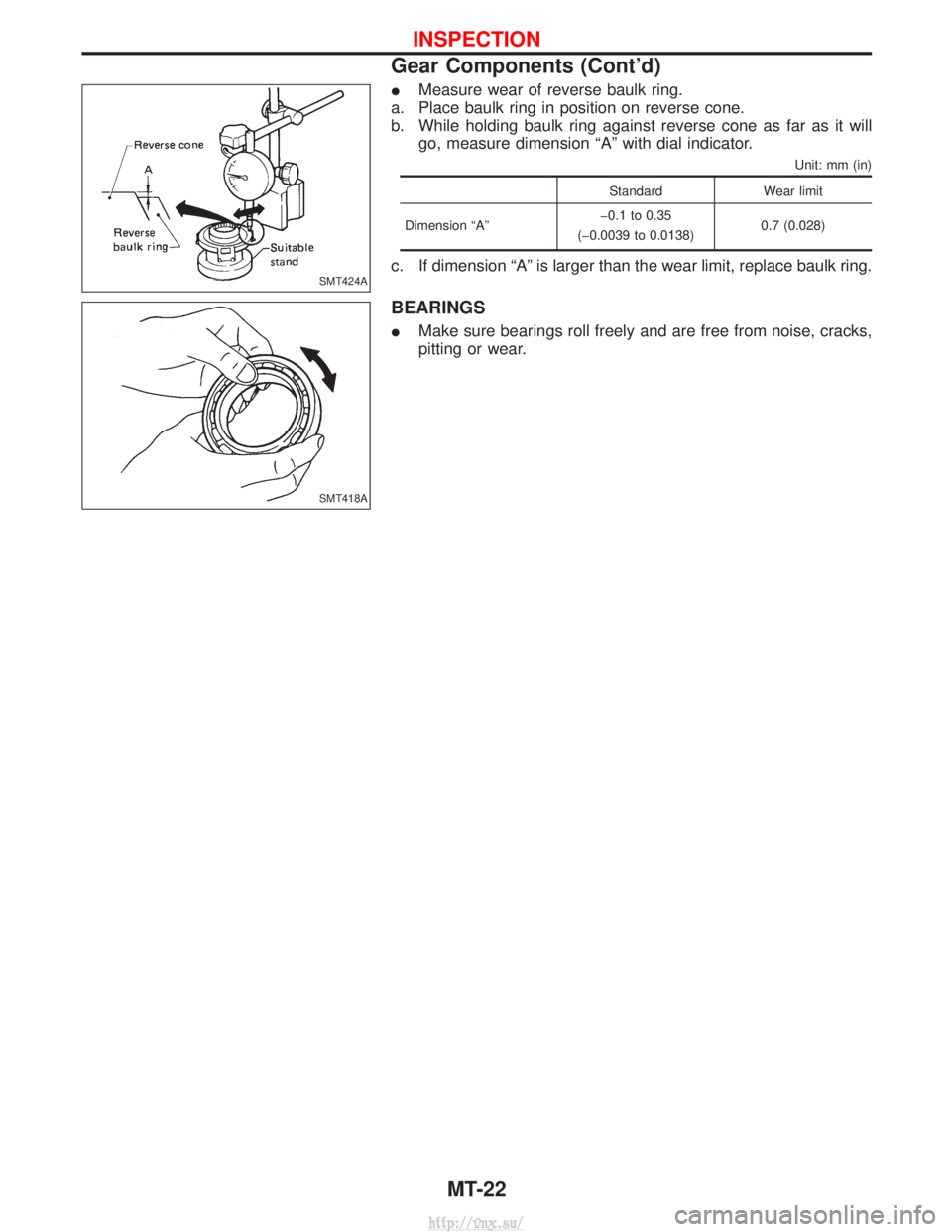

IMeasure wear of reverse baulk ring.
a. Place baulk ring in position on reverse cone.
b. While holding baulk ring against reverse cone as far as it will go, measure dimension ªAº with dial indicator.
Unit: mm (in)
Standard Wear limit
Dimension ªAº þ0.1 to 0.35
(þ0.0039 to 0.0138) 0.7 (0.028)
c. If dimension ªAº is larger than the wear limit, replace baulk ring.
BEARINGS
I
Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.
SMT424A
SMT418A
INSPECTION
Gear Components (Cont'd)
MT-22
http://vnx.su/

Gear Components

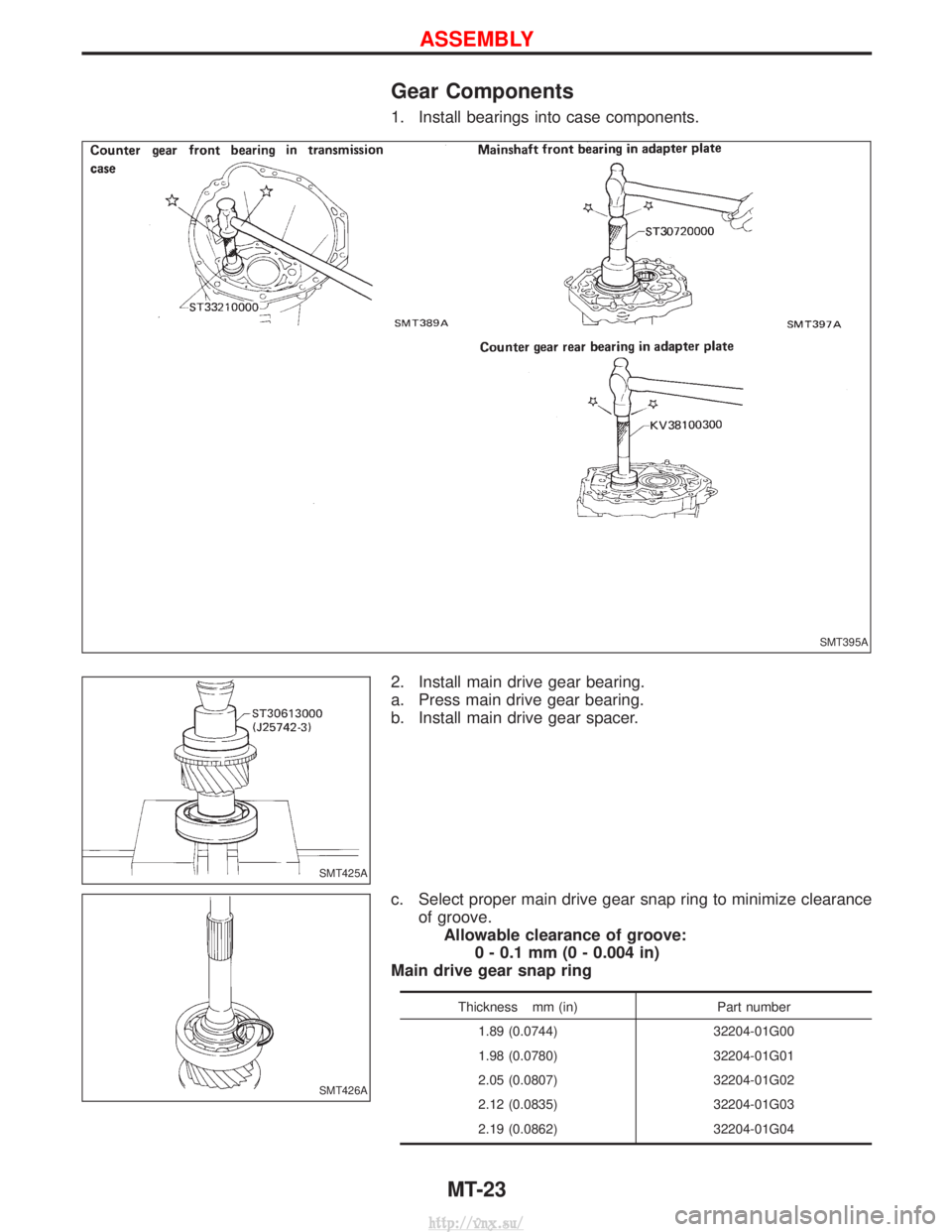

1. Install bearings into case components.
2. Install main drive gear bearing.
a. Press main drive gear bearing.
b. Install main drive gear spacer.
c. Select proper main drive gear snap ring to minimize clearanceof groove.Allowable clearance of groove: 0 - 0.1 mm (0 - 0.004 in)
Main drive gear snap ring
Thickness mm (in) Part number
1.89 (0.0744) 32204-01G00
1.98 (0.0780) 32204-01G01
2.05 (0.0807) 32204-01G02
2.12 (0.0835) 32204-01G03
2.19 (0.0862) 32204-01G04
SMT395A
SMT425A
SMT426A
ASSEMBLY
MT-23
