2004 NISSAN TERRANO Service Repair Manual

RHD MODELS
YEL788E
NATS (Nissan Anti-Theft System)
Wiring Diagram Ð NATS Ð (Cont'd)EL-228
http://vnx.su/

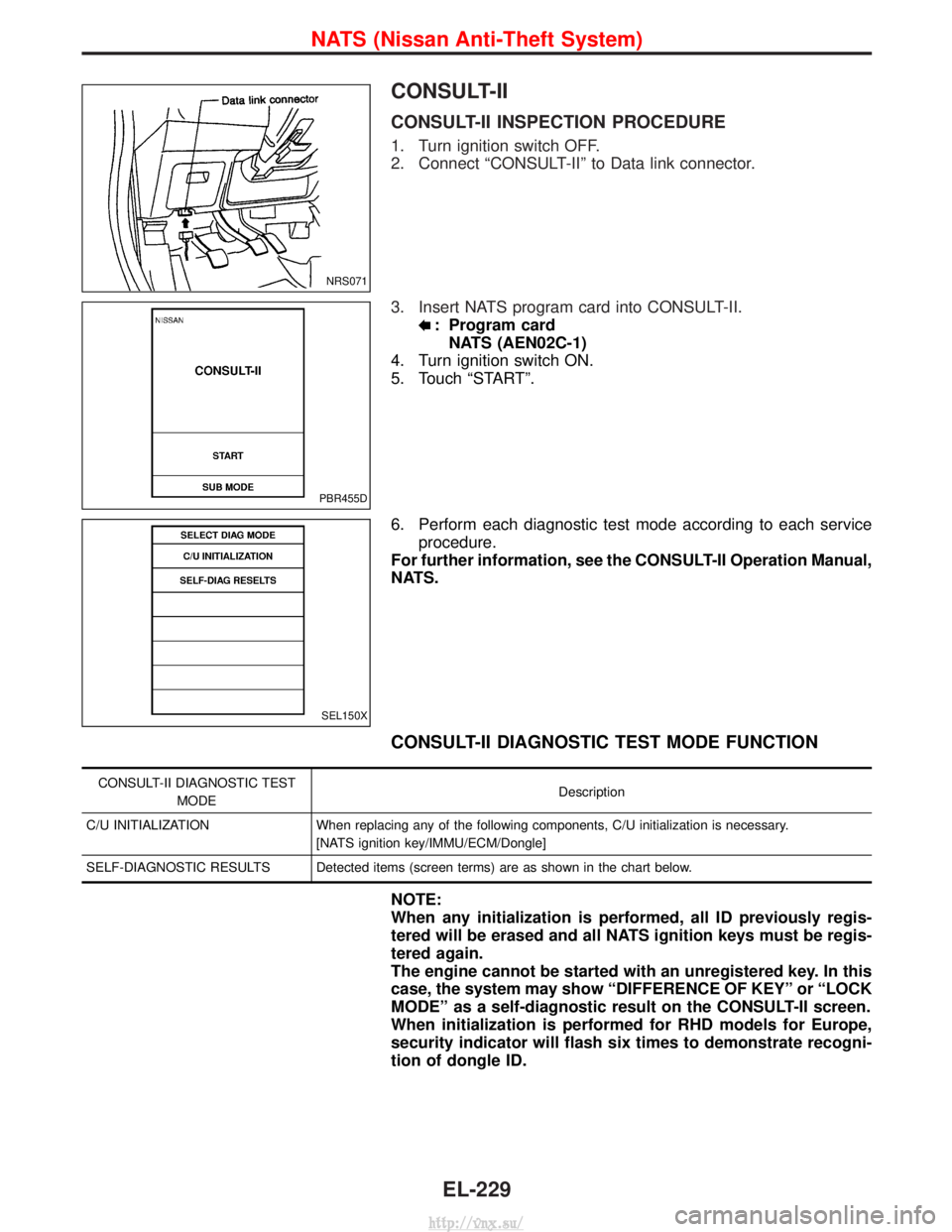

CONSULT-II
CONSULT-II INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect ªCONSULT-IIº to Data link connector.
3. Insert NATS program card into CONSULT-II.
: Program cardNATS (AEN02C-1)
4. Turn ignition switch ON.
5. Touch ªSTARTº.
6. Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual,
NATS.
CONSULT-II DIAGNOSTIC TEST MODE FUNCTION
CONSULT-II DIAGNOSTIC TEST
MODE Description
C/U INITIALIZATION When replacing any of the following components, C/U initialization is necessary. [NATS ignition key/IMMU/ECM/Dongle]
SELF-DIAGNOSTIC RESULTS Detected items (screen terms) are as shown in the chart below.
NOTE:
When any initialization is performed, all ID previously regis-
tered will be erased and all NATS ignition keys must be regis-
tered again.
The engine cannot be started with an unregistered key. In this
case, the system may show ªDIFFERENCE OF KEYº or ªLOCK
MODEº as a self-diagnostic result on the CONSULT-II screen.
When initialization is performed for RHD models for Europe,
security indicator will flash six times to demonstrate recogni-
tion of dongle ID.
NRS071
PBR455D
SEL150X
NATS (Nissan Anti-Theft System)
EL-229
http://vnx.su/

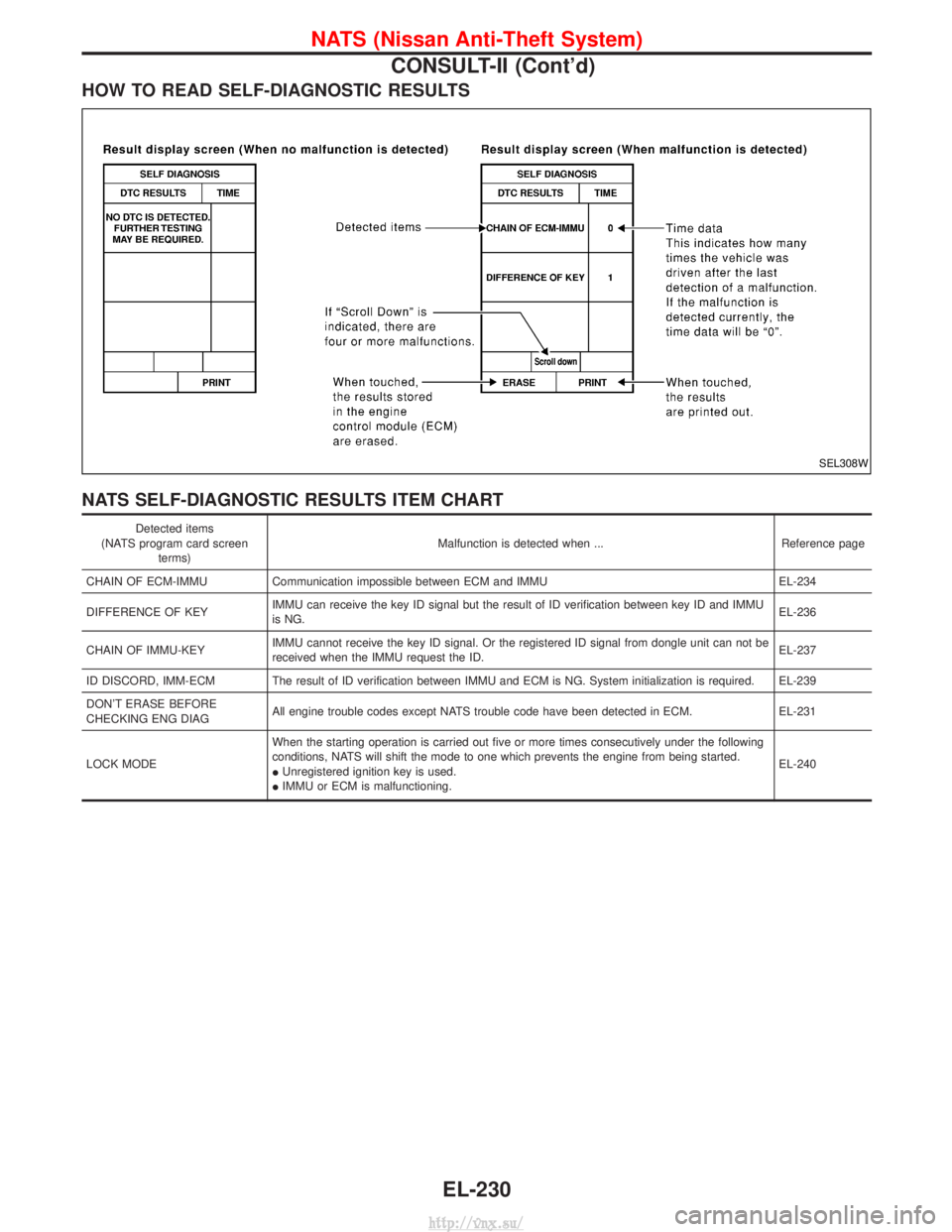

HOW TO READ SELF-DIAGNOSTIC RESULTS
NATS SELF-DIAGNOSTIC RESULTS ITEM CHART
Detected items
(NATS program card screen terms) Malfunction is detected when ... Reference page
CHAIN OF ECM-IMMU Communication impossible between ECM and IMMU EL-234
DIFFERENCE OF KEY IMMU can receive the key ID signal but the result of ID verification between key ID and IMMU
is NG. EL-236
CHAIN OF IMMU-KEY IMMU cannot receive the key ID signal. Or the registered ID signal from dongle unit can not be
received when the IMMU request the ID. EL-237
ID DISCORD, IMM-ECM The result of ID verification between IMMU and ECM is NG. System initialization is required. EL-239
DON'T ERASE BEFORE
CHECKING ENG DIAG All engine trouble codes except NATS trouble code have been detected in ECM. EL-231
LOCK MODE When the starting operation is carried out five or more times consecutively under the following
conditions, NATS will shift the mode to one which prevents the engine from being started.
I
Unregistered ignition key is used.
I IMMU or ECM is malfunctioning. EL-240
SEL308W
NATS (Nissan Anti-Theft System)
CONSULT-II (Cont'd)
EL-230
http://vnx.su/

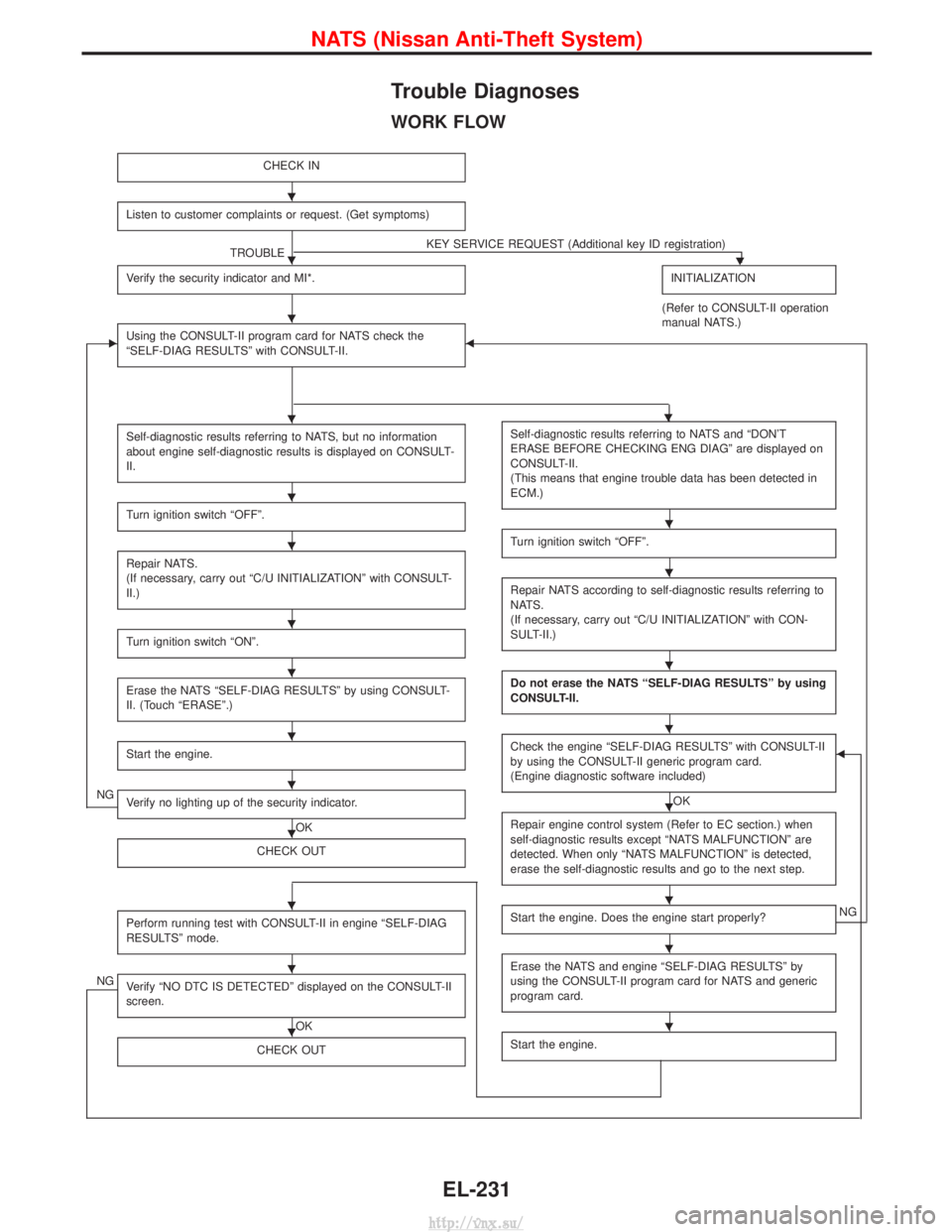

Trouble Diagnoses
WORK FLOW
CHECK IN
Listen to customer complaints or request. (Get symptoms)
TROUBLEKEY SERVICE REQUEST (Additional key ID registration)H
Verify the security indicator and MI*.INITIALIZATION
(Refer to CONSULT-II operation
manual NATS.)
EUsing the CONSULT-II program card for NATS check the
ªSELF-DIAG RESULTSº with CONSULT-II.F
Self-diagnostic results referring to NATS, but no information
about engine self-diagnostic results is displayed on CONSULT-
II.
Turn ignition switch ªOFFº.
Repair NATS.
(If necessary, carry out ªC/U INITIALIZATIONº with CONSULT-
II.)
Turn ignition switch ªONº.
Erase the NATS ªSELF-DIAG RESULTSº by using CONSULT-
II. (Touch ªERASEº.)
Start the engine.
NGVerify no lighting up of the security indicator.
OK
CHECK OUT
Perform running test with CONSULT-II in engine ªSELF-DIAG
RESULTSº mode.
NGVerify ªNO DTC IS DETECTEDº displayed on the CONSULT-II
screen.
OK
CHECK OUT
Self-diagnostic results referring to NATS and ªDON'T
ERASE BEFORE CHECKING ENG DIAGº are displayed on
CONSULT-II.
(This means that engine trouble data has been detected in
ECM.)
Turn ignition switch ªOFFº.
Repair NATS according to self-diagnostic results referring to
NATS.
(If necessary, carry out ªC/U INITIALIZATIONº with CON-
SULT-II.)
Do not erase the NATS ªSELF-DIAG RESULTSº by using
CONSULT-II.
Check the engine ªSELF-DIAG RESULTSº with CONSULT-II
by using the CONSULT-II generic program card.
(Engine diagnostic software included)
OK
F
Repair engine control system (Refer to EC section.) when
self-diagnostic results except ªNATS MALFUNCTIONº are
detected. When only ªNATS MALFUNCTIONº is detected,
erase the self-diagnostic results and go to the next step.
Start the engine. Does the engine start properly?NG
Erase the NATS and engine ªSELF-DIAG RESULTSº by
using the CONSULT-II program card for NATS and generic
program card.
Start the engine.
H
H
H
HH
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
NATS (Nissan Anti-Theft System)
EL-231
http://vnx.su/

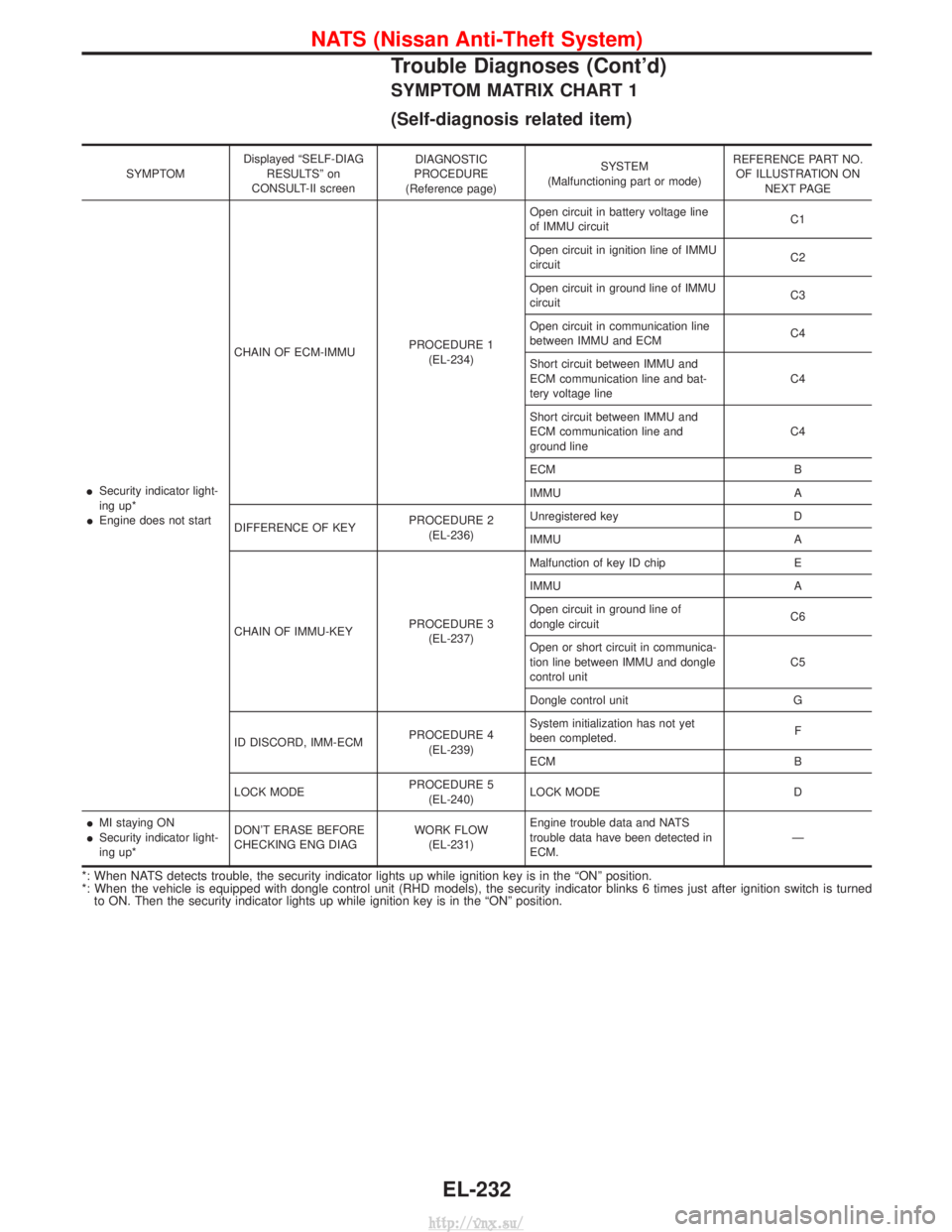

SYMPTOM MATRIX CHART 1
(Self-diagnosis related item)
SYMPTOMDisplayed ªSELF-DIAG
RESULTSº on
CONSULT-II screen DIAGNOSTIC
PROCEDURE
(Reference page) SYSTEM
(Malfunctioning part or mode) REFERENCE PART NO.
OF ILLUSTRATION ON NEXT PAGE
I Security indicator light-
ing up*
I Engine does not start CHAIN OF ECM-IMMU
PROCEDURE 1
(EL-234) Open circuit in battery voltage line
of IMMU circuit
C1
Open circuit in ignition line of IMMU
circuit C2
Open circuit in ground line of IMMU
circuit C3
Open circuit in communication line
between IMMU and ECM C4
Short circuit between IMMU and
ECM communication line and bat-
tery voltage line C4
Short circuit between IMMU and
ECM communication line and
ground line C4
ECM B
IMMU A
DIFFERENCE OF KEY PROCEDURE 2
(EL-236) Unregistered key D
IMMU A
CHAIN OF IMMU-KEY PROCEDURE 3
(EL-237) Malfunction of key ID chip E
IMMU A
Open circuit in ground line of
dongle circuit
C6
Open or short circuit in communica-
tion line between IMMU and dongle
control unit C5
Dongle control unit G
ID DISCORD, IMM-ECM PROCEDURE 4
(EL-239) System initialization has not yet
been completed.
F
ECM B
LOCK MODE PROCEDURE 5
(EL-240) LOCK MODE D
I MI staying ON
I Security indicator light-
ing up* DON'T ERASE BEFORE
CHECKING ENG DIAG
WORK FLOW
(EL-231) Engine trouble data and NATS
trouble data have been detected in
ECM.
Ð
*: When NATS detects trouble, the security indicator lights up while ignition key is in the ªONº position.
*: When the vehicle is equipped with dongle control unit (RHD models), the security indicator blinks 6 times just after ignition switch is turned
to ON. Then the security indicator lights up while ignition key is in the ªONº position.
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-232
http://vnx.su/

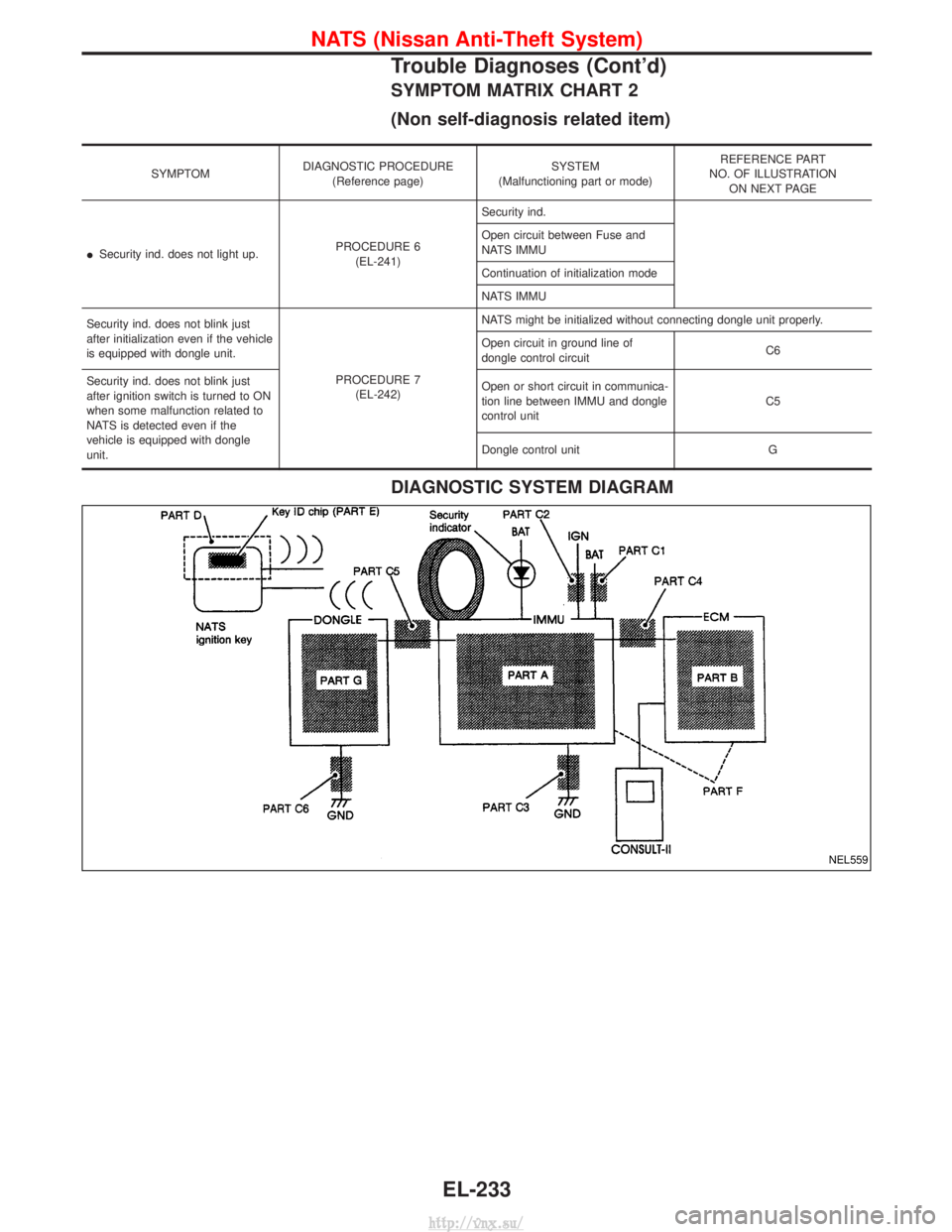

SYMPTOM MATRIX CHART 2
(Non self-diagnosis related item)
SYMPTOMDIAGNOSTIC PROCEDURE
(Reference page) SYSTEM
(Malfunctioning part or mode) REFERENCE PART
NO. OF ILLUSTRATION ON NEXT PAGE
I Security ind. does not light up. PROCEDURE 6
(EL-241) Security ind.
Open circuit between Fuse and
NATS IMMU
Continuation of initialization mode
NATS IMMU
Security ind. does not blink just
after initialization even if the vehicle
is equipped with dongle unit. PROCEDURE 7(EL-242) NATS might be initialized without connecting dongle unit properly.
Open circuit in ground line of
dongle control circuit
C6
Security ind. does not blink just
after ignition switch is turned to ON
when some malfunction related to
NATS is detected even if the
vehicle is equipped with dongle
unit. Open or short circuit in communica-
tion line between IMMU and dongle
control unit
C5
Dongle control unit G
DIAGNOSTIC SYSTEM DIAGRAM
NEL559
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-233
http://vnx.su/

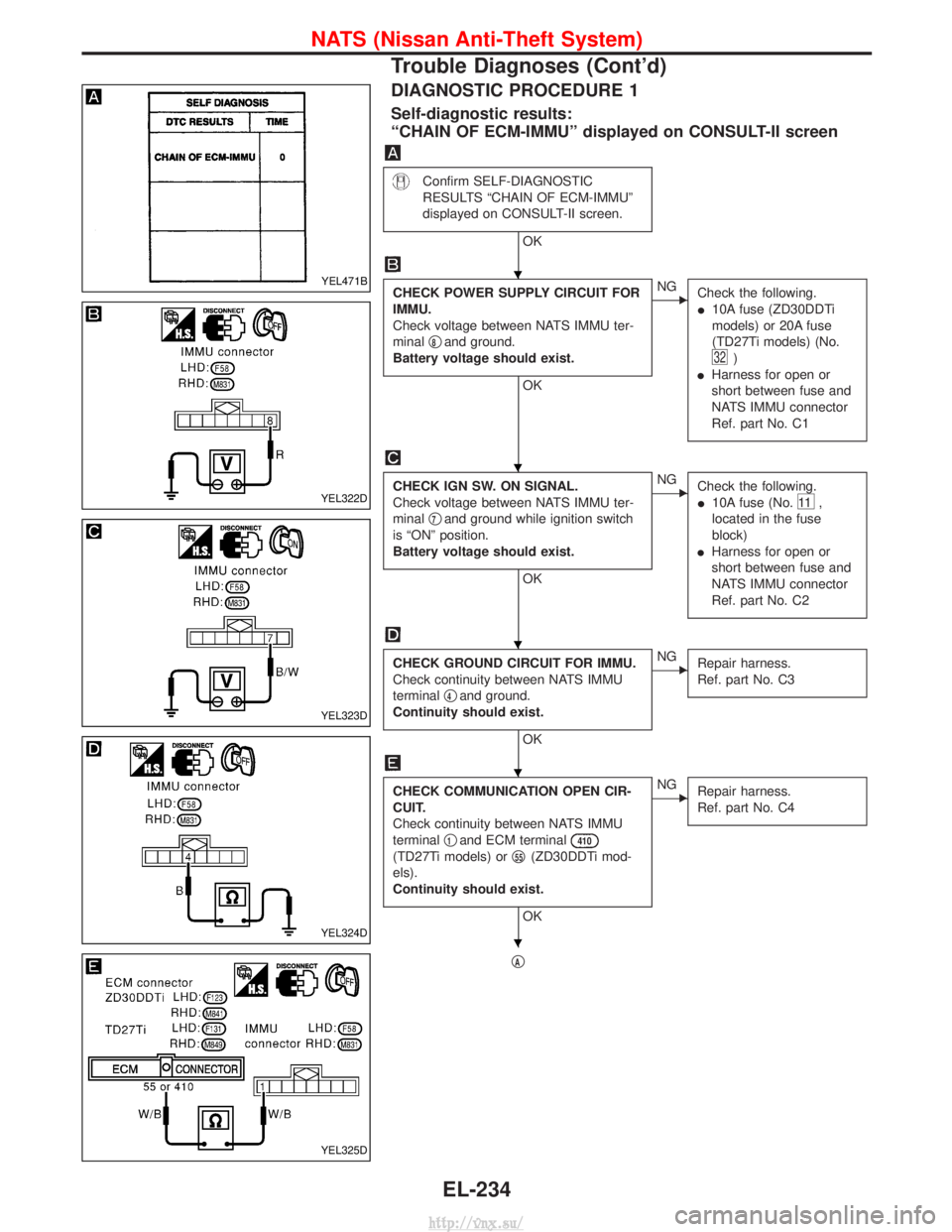

DIAGNOSTIC PROCEDURE 1
Self-diagnostic results:
ªCHAIN OF ECM-IMMUº displayed on CONSULT-II screen
Confirm SELF-DIAGNOSTIC
RESULTS ªCHAIN OF ECM-IMMUº
displayed on CONSULT-II screen.
OK
CHECK POWER SUPPLY CIRCUIT FOR
IMMU.
Check voltage between NATS IMMU ter-
minalq
8and ground.
Battery voltage should exist.
OK
ENG Check the following.
I10A fuse (ZD30DDTi
models) or 20A fuse
(TD27Ti models) (No.
32)
I Harness for open or
short between fuse and
NATS IMMU connector
Ref. part No. C1
CHECK IGN SW. ON SIGNAL.
Check voltage between NATS IMMU ter-
minal q
7and ground while ignition switch
is ªONº position.
Battery voltage should exist.
OK
ENG Check the following.
I10A fuse (No.
11 ,
located in the fuse
block)
I Harness for open or
short between fuse and
NATS IMMU connector
Ref. part No. C2
CHECK GROUND CIRCUIT FOR IMMU.
Check continuity between NATS IMMU
terminal q
4and ground.
Continuity should exist.
OK
ENG Repair harness.
Ref. part No. C3
CHECK COMMUNICATION OPEN CIR-
CUIT.
Check continuity between NATS IMMU
terminal q
1and ECM terminal410
(TD27Ti models) or q55(ZD30DDTi mod-
els).
Continuity should exist.
OK
ENG Repair harness.
Ref. part No. C4
qA
YEL471B
YEL322D
YEL323D
YEL324D
YEL325D
H
H
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-234
http://vnx.su/

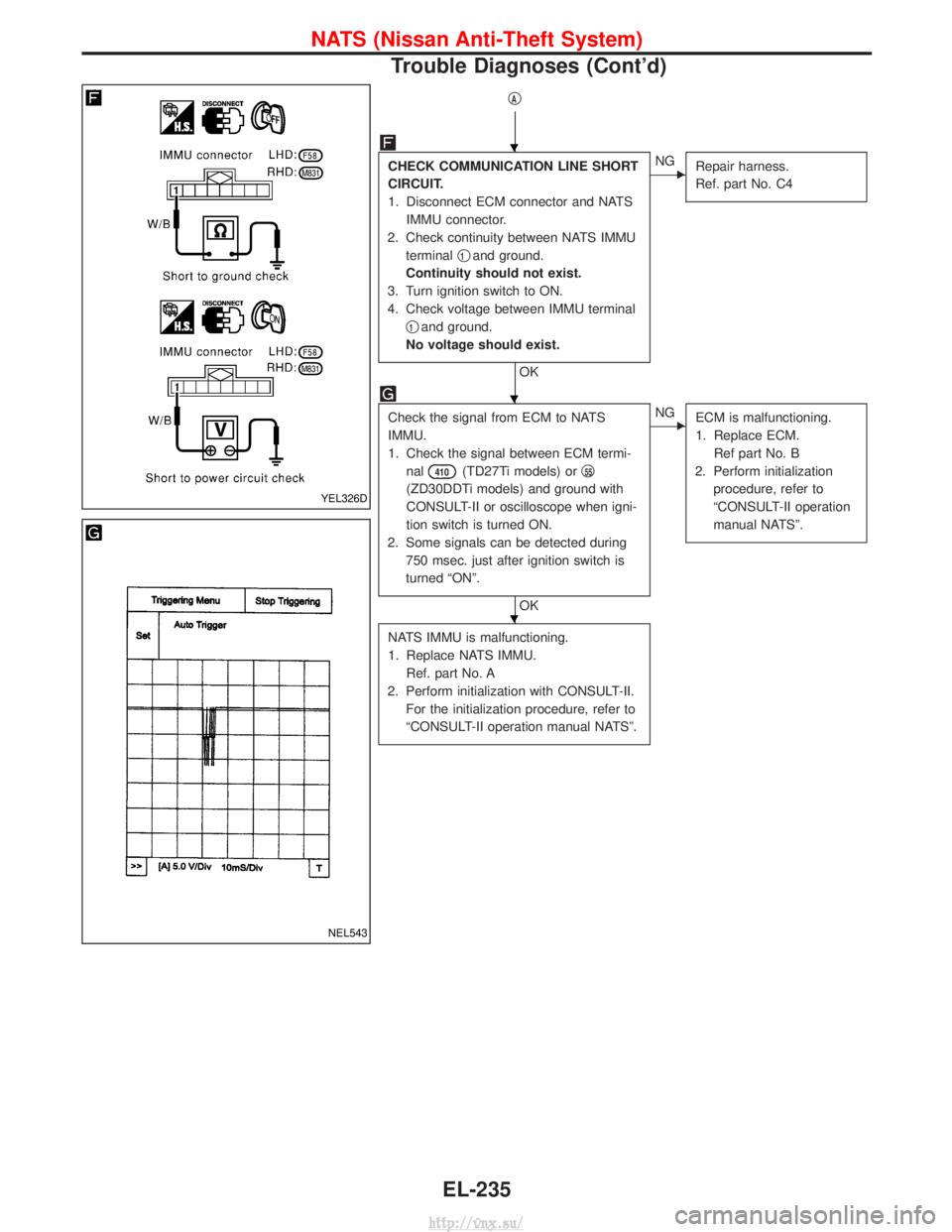

qA
CHECK COMMUNICATION LINE SHORT
CIRCUIT.
1. Disconnect ECM connector and NATSIMMU connector.
2. Check continuity between NATS IMMU terminal q
1and ground.
Continuity should not exist.
3. Turn ignition switch to ON.
4. Check voltage between IMMU terminal q
1and ground.
No voltage should exist.
OK
ENG Repair harness.
Ref. part No. C4
Check the signal from ECM to NATS
IMMU.
1. Check the signal between ECM termi-
nal
410(TD27Ti models) or q55
(ZD30DDTi models) and ground with
CONSULT-II or oscilloscope when igni-
tion switch is turned ON.
2. Some signals can be detected during 750 msec. just after ignition switch is
turned ªONº.
OK
ENG ECM is malfunctioning.
1. Replace ECM.
Ref part No. B
2. Perform initialization procedure, refer to
ªCONSULT-II operation
manual NATSº.
NATS IMMU is malfunctioning.
1. Replace NATS IMMU.Ref. part No. A
2. Perform initialization with CONSULT-II. For the initialization procedure, refer to
ªCONSULT-II operation manual NATSº.
YEL326D
NEL543
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-235
http://vnx.su/
