2004 NISSAN TERRANO Service Repair Manual

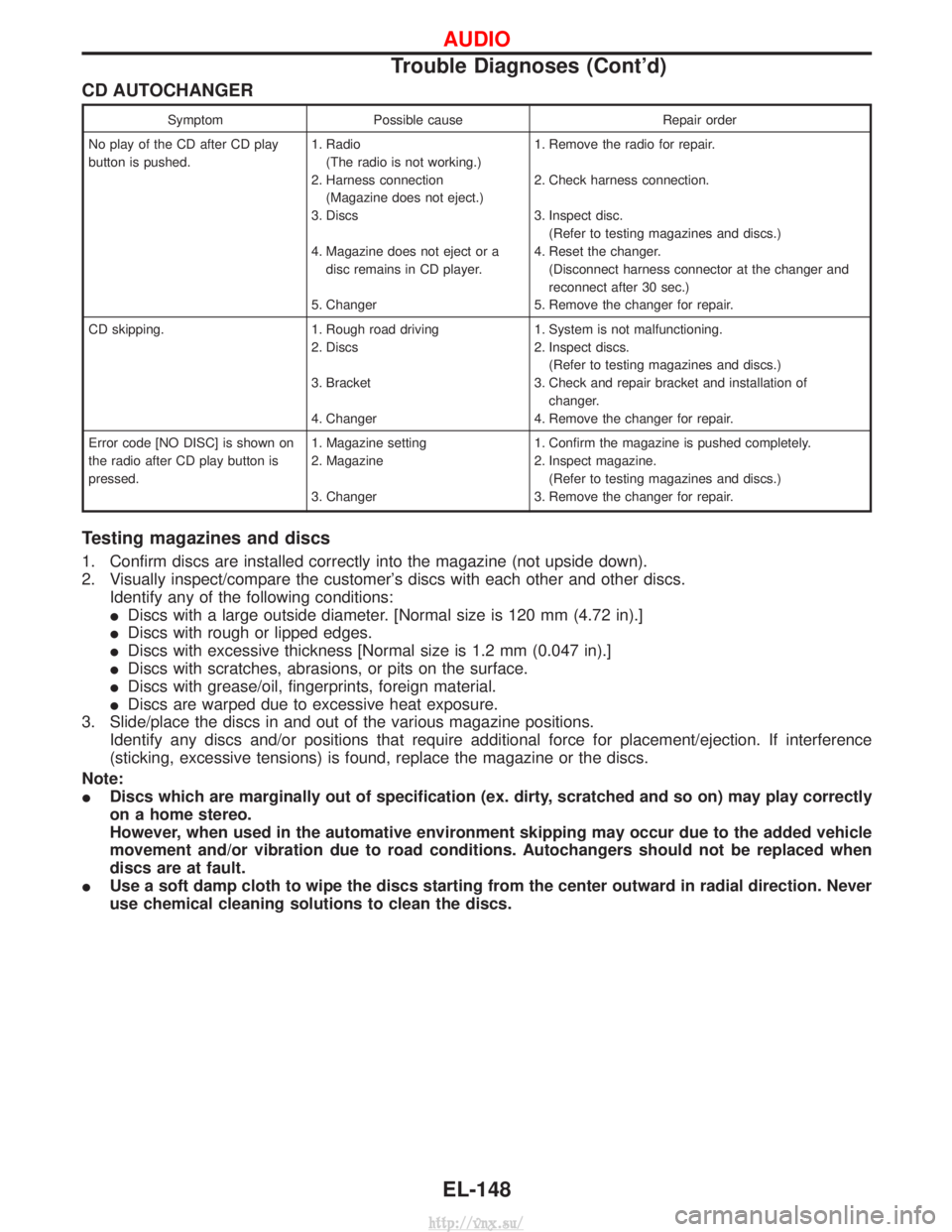

CD AUTOCHANGER
SymptomPossible cause Repair order
No play of the CD after CD play
button is pushed. 1. Radio
(The radio is not working.)
2. Harness connection (Magazine does not eject.)
3. Discs
4. Magazine does not eject or a disc remains in CD player.
5. Changer 1. Remove the radio for repair.
2. Check harness connection.
3. Inspect disc.
(Refer to testing magazines and discs.)
4. Reset the changer. (Disconnect harness connector at the changer and
reconnect after 30 sec.)
5. Remove the changer for repair.
CD skipping. 1. Rough road driving 2. Discs
3. Bracket
4. Changer1. System is not malfunctioning.
2. Inspect discs.
(Refer to testing magazines and discs.)
3. Check and repair bracket and installation of changer.
4. Remove the changer for repair.
Error code [NO DISC] is shown on
the radio after CD play button is
pressed. 1. Magazine setting
2. Magazine
3. Changer1. Confirm the magazine is pushed completely.
2. Inspect magazine.
(Refer to testing magazines and discs.)
3. Remove the changer for repair.
Testing magazines and discs
1. Confirm discs are installed correctly into the magazine (not upside down).
2. Visually inspect/compare the customer's discs with each other and other discs. Identify any of the following conditions:
IDiscs with a large outside diameter. [Normal size is 120 mm (4.72 in).]
I Discs with rough or lipped edges.
I Discs with excessive thickness [Normal size is 1.2 mm (0.047 in).]
I Discs with scratches, abrasions, or pits on the surface.
I Discs with grease/oil, fingerprints, foreign material.
I Discs are warped due to excessive heat exposure.
3. Slide/place the discs in and out of the various magazine positions. Identify any discs and/or positions that require additional force for placement/ejection. If interference
(sticking, excessive tensions) is found, replace the magazine or the discs.
Note:
I Discs which are marginally out of specification (ex. dirty, scratched and so on) may play correctly
on a home stereo.
However, when used in the automative environment skipping may occur due to the added vehicle
movement and/or vibration due to road conditions. Autochangers should not be replaced when
discs are at fault.
I Use a soft damp cloth to wipe the discs starting from the center outward in radial direction. Never
use chemical cleaning solutions to clean the discs.
AUDIO
Trouble Diagnoses (Cont'd)
EL-148
http://vnx.su/

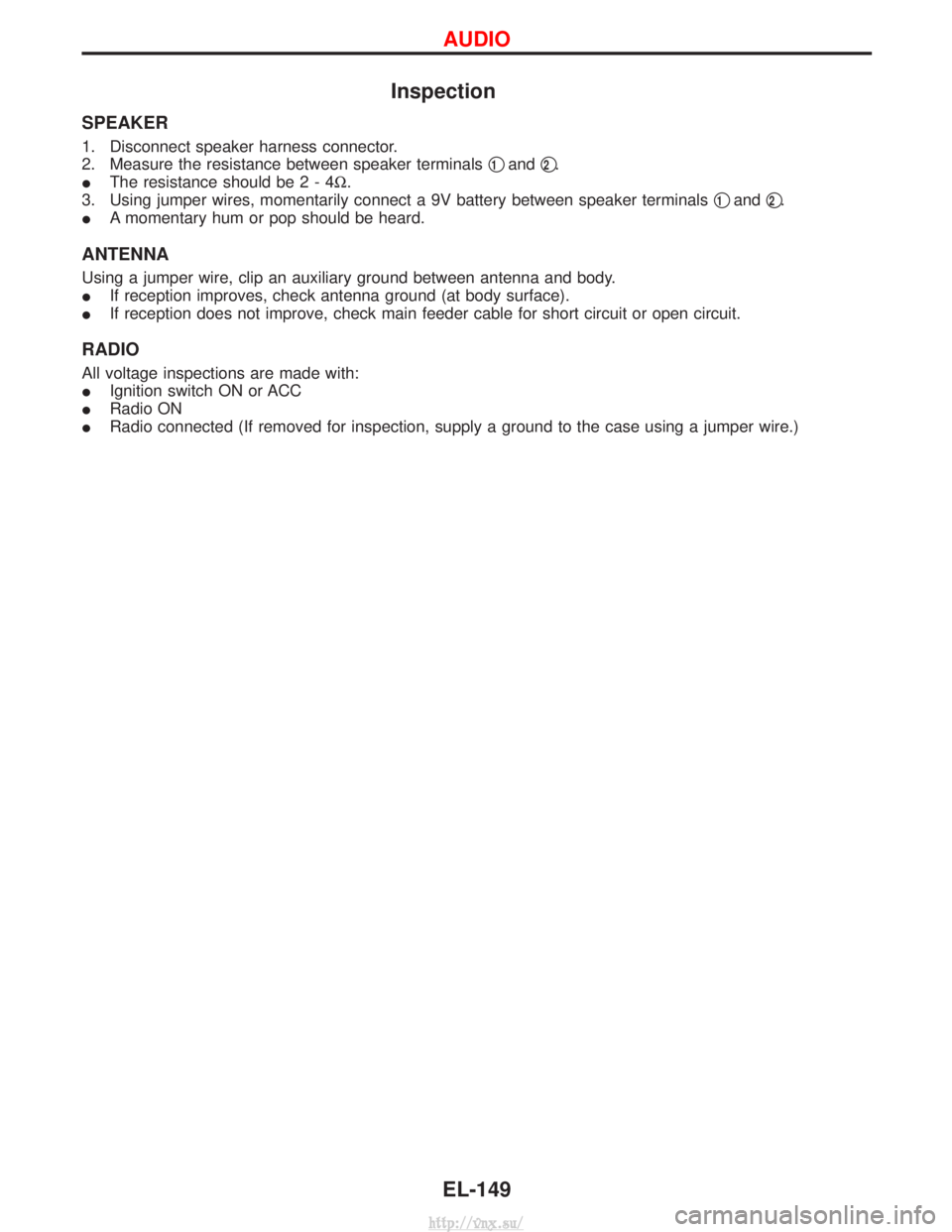

Inspection
SPEAKER
1. Disconnect speaker harness connector.
2. Measure the resistance between speaker terminalsq
1andq2.
I The resistance should be2-4 W.
3. Using jumper wires, momentarily connect a 9V battery between speaker terminals q
1andq2.
I A momentary hum or pop should be heard.
ANTENNA
Using a jumper wire, clip an auxiliary ground between antenna and body.
IIf reception improves, check antenna ground (at body surface).
I If reception does not improve, check main feeder cable for short circuit or open circuit.
RADIO
All voltage inspections are made with:
IIgnition switch ON or ACC
I Radio ON
I Radio connected (If removed for inspection, supply a ground to the case using a jumper wire.)
AUDIO
EL-149
http://vnx.su/

Location of Roof Mounted Antenna
YEL602D
AUDIO
EL-150
http://vnx.su/

Wiring Diagram Ð HSEAT Ð
LHD MODELS WITH SEAT HEATER
YEL783E
HEATED SEAT
EL-151
http://vnx.su/

YEL134D
HEATED SEAT
Wiring Diagram Ð HSEAT Ð (Cont'd)EL-152
http://vnx.su/

Wiring Diagram Ð SROOF Ð
YEL135D
SUNROOF
EL-153
http://vnx.su/

Wiring Diagram Ð MIRROR Ð
LHD MODELS
YEL136D
DOOR MIRROR
EL-154
http://vnx.su/

RHD MODELS
YEL137D
DOOR MIRROR
Wiring Diagram Ð MIRROR Ð (Cont'd)EL-155
