2004 NISSAN TERRANO Service Repair Manual

Installation
1. Prior to wiper arm installation, turn on wiper switch to operatewiper motor and then turn it ªOFFº (Auto Stop).
2. Lift the blade up and then set it down onto glass surface to set the blade center to clearance ªCº or ªDº immediately before
tightening nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor and then turn it ªOFFº.
4. Ensure that wiper blades stop within clearance ªCº or ªDº. Clearance ªCº: 25 - 35 mm (0.98 - 1.38 in)
Clearance ªDº: 25 - 35 mm (0.98 - 1.38 in)
I Tighten windshield wiper arm nuts to specified torque.
Front wiper:
:20-30N ×m (2.1 - 3.0 kg-m, 15 - 22 ft-lb)
Rear wiper:
: 11.0 - 16.0 N ×m
(1.12 - 1.63 kg-m, 8.1 - 11.8 ft-lb)
YEL077
NEL628
WIPER AND WASHER
EL-116
http://vnx.su/

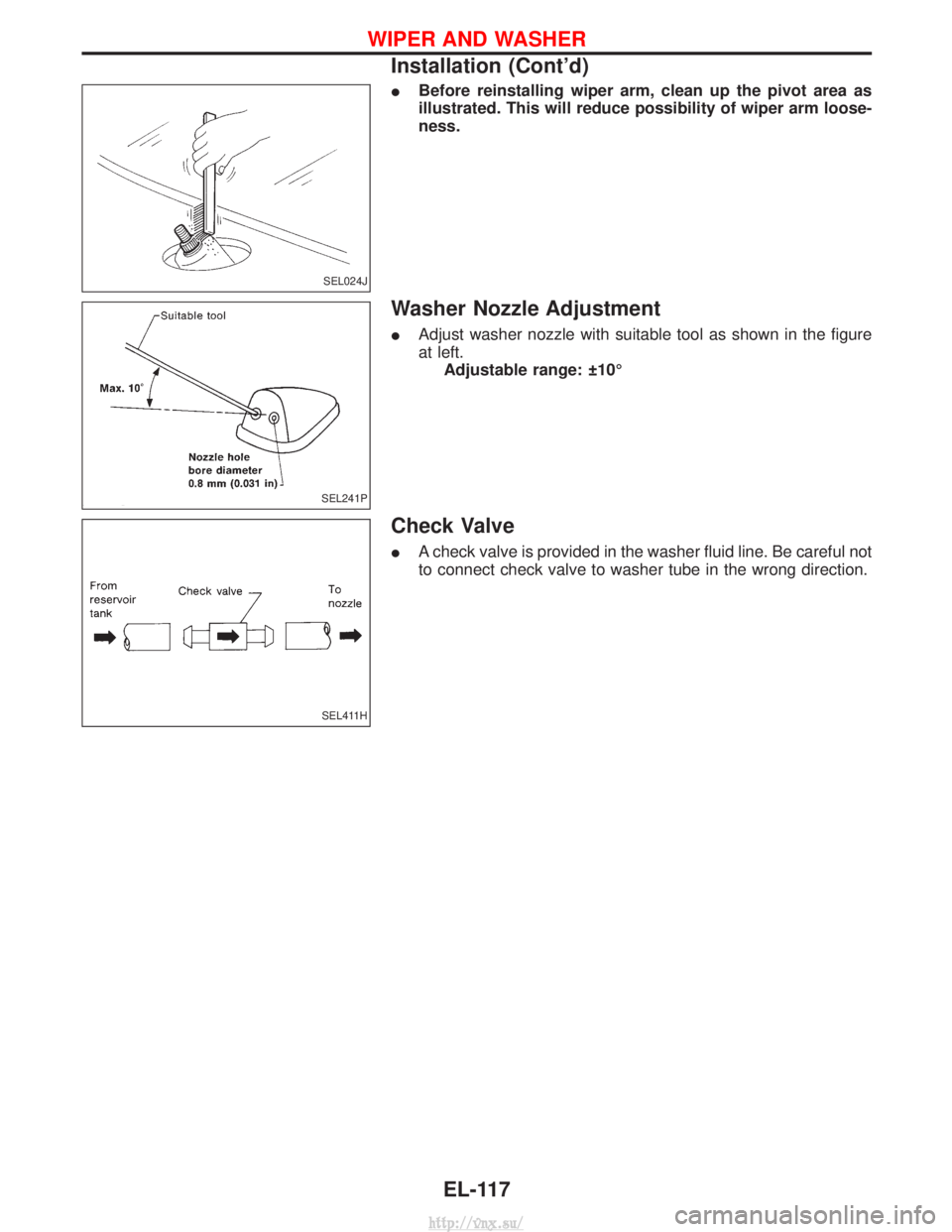

IBefore reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
Washer Nozzle Adjustment
IAdjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:  10É
Check Valve
I A check valve is provided in the washer fluid line. Be careful not
to connect check valve to washer tube in the wrong direction.
SEL024J
SEL241P
SEL411H
WIPER AND WASHER
Installation (Cont'd)
EL-117
http://vnx.su/

Wiring Diagram Ð HLC Ð
LHD MODELS
YEL114D
WIPER AND WASHER
EL-118
http://vnx.su/

LHD MODELS
YEL115D
WIPER AND WASHER
Wiring Diagram Ð HLC Ð (Cont'd)EL-119
http://vnx.su/

RHD MODELS
YEL776E
WIPER AND WASHER
Wiring Diagram Ð HLC Ð (Cont'd)EL-120
http://vnx.su/

RHD MODELS
YEL117D
WIPER AND WASHER
Wiring Diagram Ð HLC Ð (Cont'd)EL-121
http://vnx.su/

Wiring Diagram Ð HORN Ð
YEL777E
HORN, CIGARETTE LIGHTER AND CLOCK
EL-122
http://vnx.su/

Wiring Diagram Ð CIGAR Ð
YEL778E
HORN, CIGARETTE LIGHTER AND CLOCK
EL-123
