2004 NISSAN TERRANO Service Repair Manual

TYPE 1 (WITHOUT CD AUTO-CHANGER)
YEL126D
AUDIO
Wiring Diagram Ð AUDIO Ð (Cont'd)EL-140
http://vnx.su/

TYPE 2 (WITH CD AUTO-CHANGER)
YEL869E
AUDIO
Wiring Diagram Ð AUDIO Ð (Cont'd)EL-141
http://vnx.su/

TYPE 2 (WITH CD AUTO-CHANGER)
YEL128D
AUDIO
Wiring Diagram Ð AUDIO Ð (Cont'd)EL-142
http://vnx.su/

TYPE 2 (WITH CD AUTO-CHANGER)
YEL129D
AUDIO
Wiring Diagram Ð AUDIO Ð (Cont'd)EL-143
http://vnx.su/

TYPE 2 (WITH CD AUTO-CHANGER)
YEL782E
AUDIO
Wiring Diagram Ð AUDIO Ð (Cont'd)EL-144
http://vnx.su/

Wiring Diagram Ð REMOTE Ð
LHD MODELS
YEL131D
AUDIO
EL-145
http://vnx.su/

RHD MODELS
YEL132D
AUDIO
Wiring Diagram Ð REMOTE Ð (Cont'd)EL-146
http://vnx.su/

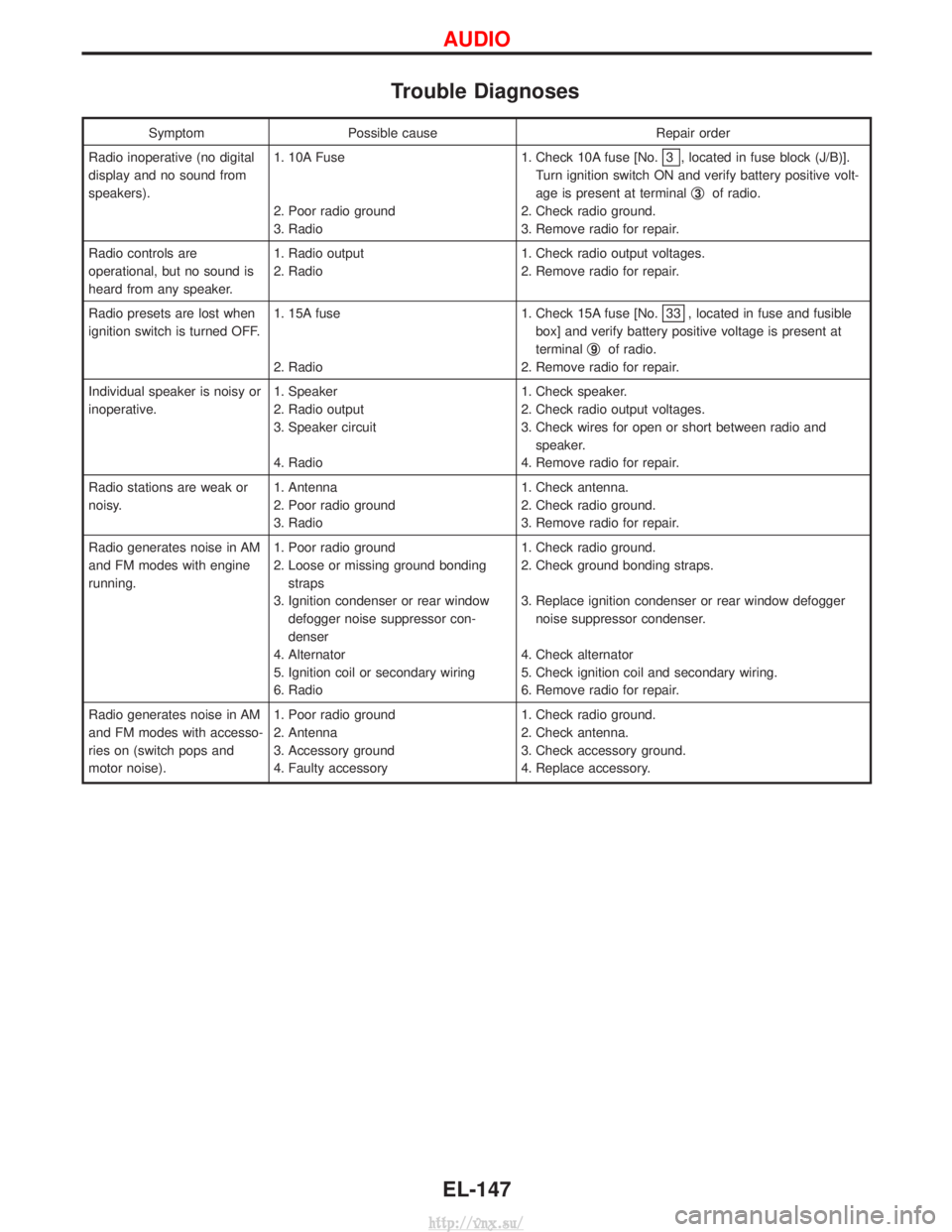

Trouble Diagnoses
SymptomPossible cause Repair order
Radio inoperative (no digital
display and no sound from
speakers). 1. 10A Fuse
2. Poor radio ground
3. Radio 1. Check 10A fuse [No.
3 , located in fuse block (J/B)].
Turn ignition switch ON and verify battery positive volt-
age is present at terminal q
3of radio.
2. Check radio ground.
3. Remove radio for repair.
Radio controls are
operational, but no sound is
heard from any speaker. 1. Radio output
2. Radio
1. Check radio output voltages.
2. Remove radio for repair.
Radio presets are lost when
ignition switch is turned OFF. 1. 15A fuse
2. Radio 1. Check 15A fuse [No.
33 , located in fuse and fusible
box] and verify battery positive voltage is present at
terminal q
9of radio.
2. Remove radio for repair.
Individual speaker is noisy or
inoperative. 1. Speaker
2. Radio output
3. Speaker circuit
4. Radio 1. Check speaker.
2. Check radio output voltages.
3. Check wires for open or short between radio and
speaker.
4. Remove radio for repair.
Radio stations are weak or
noisy. 1. Antenna
2. Poor radio ground
3. Radio 1. Check antenna.
2. Check radio ground.
3. Remove radio for repair.
Radio generates noise in AM
and FM modes with engine
running. 1. Poor radio ground
2. Loose or missing ground bonding
straps
3. Ignition condenser or rear window defogger noise suppressor con-
denser
4. Alternator
5. Ignition coil or secondary wiring
6. Radio 1. Check radio ground.
2. Check ground bonding straps.
3. Replace ignition condenser or rear window defogger
noise suppressor condenser.
4. Check alternator
5. Check ignition coil and secondary wiring.
6. Remove radio for repair.
Radio generates noise in AM
and FM modes with accesso-
ries on (switch pops and
motor noise). 1. Poor radio ground
2. Antenna
3. Accessory ground
4. Faulty accessory 1. Check radio ground.
2. Check antenna.
3. Check accessory ground.
4. Replace accessory.
AUDIO
EL-147
