2004 NISSAN TERRANO Service Repair Manual

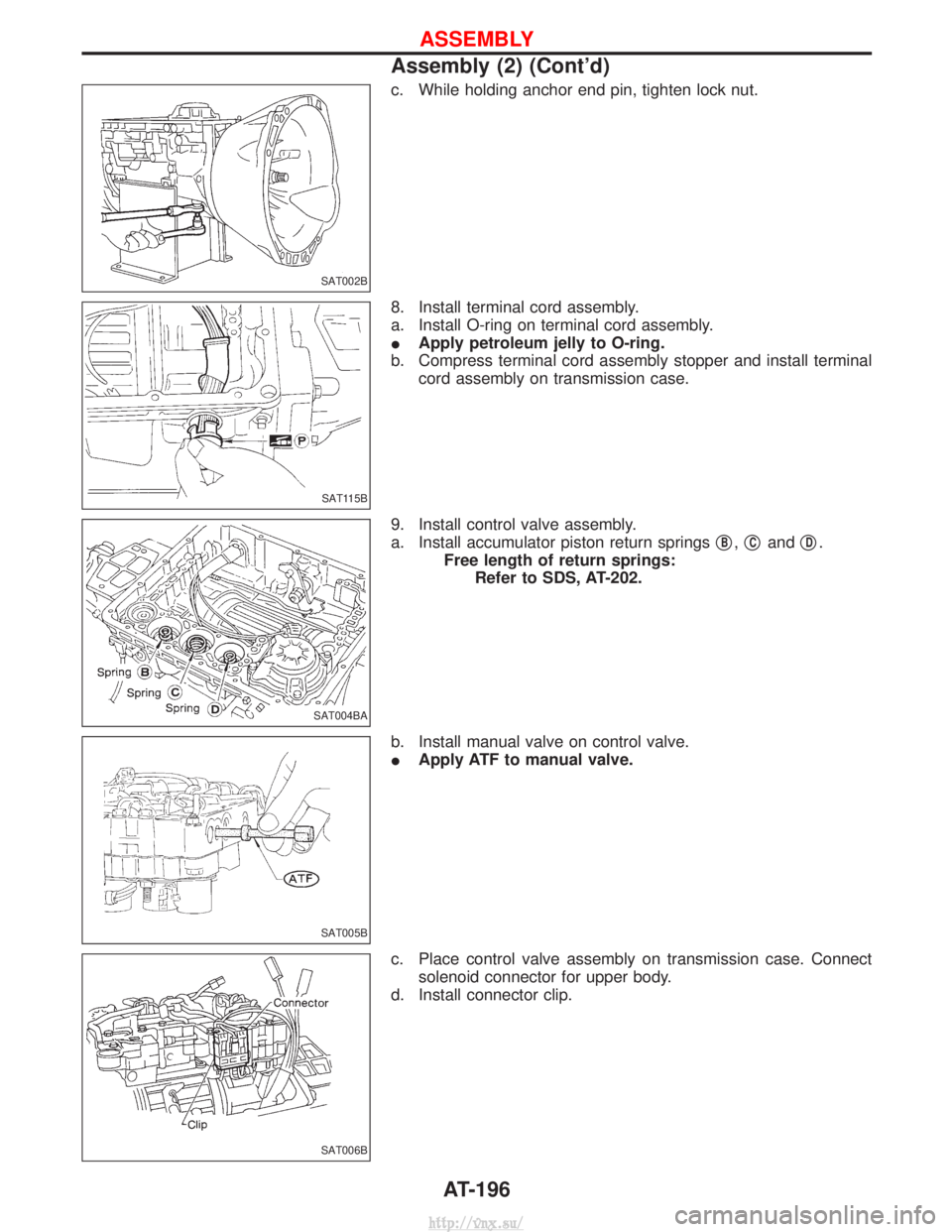

c. While holding anchor end pin, tighten lock nut.
8. Install terminal cord assembly.
a. Install O-ring on terminal cord assembly.
IApply petroleum jelly to O-ring.
b. Compress terminal cord assembly stopper and install terminal cord assembly on transmission case.
9. Install control valve assembly.
a. Install accumulator piston return springs q
B,qCand qD.
Free length of return springs: Refer to SDS, AT-202.
b. Install manual valve on control valve.
I Apply ATF to manual valve.
c. Place control valve assembly on transmission case. Connect solenoid connector for upper body.
d. Install connector clip.
SAT002B
SAT115B
SAT004BA
SAT005B
SAT006B
ASSEMBLY
Assembly (2) (Cont'd)
AT-196
http://vnx.su/

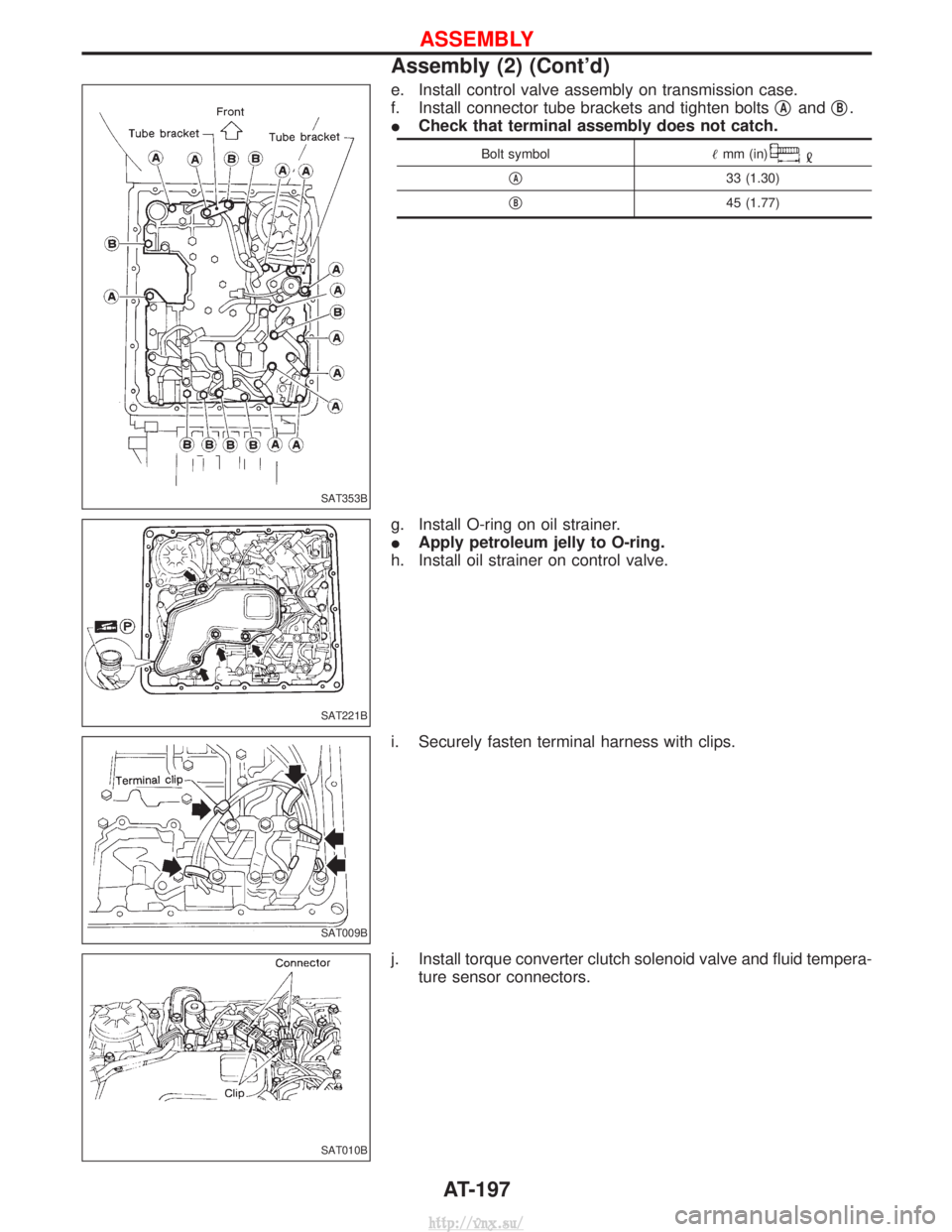

e. Install control valve assembly on transmission case.
f. Install connector tube brackets and tighten boltsq
AandqB.
I Check that terminal assembly does not catch.
Bolt symbol mm (in)
qA33 (1.30)
q
B45 (1.77)
g. Install O-ring on oil strainer.
I Apply petroleum jelly to O-ring.
h. Install oil strainer on control valve.
i. Securely fasten terminal harness with clips.
j. Install torque converter clutch solenoid valve and fluid tempera- ture sensor connectors.
SAT353B
SAT221B
SAT009B
SAT010B
ASSEMBLY
Assembly (2) (Cont'd)
AT-197
http://vnx.su/

10. Install oil pan.
a. Attach a magnet to oil pan.
b. Install new oil pan gasket on transmission case.
c. Install oil pan and bracket on transmission case.
IAlways replace oil pan bolts as they are self-sealing bolts.
I Before installing bolts, remove traces of sealant and oil
from mating surface and thread holes.
I Tighten four bolts in a criss-cross pattern to prevent dis-
location of gasket.
d. Tighten drain plug.
11. Install park/neutral position switch.
a. Check that manual shaft is in ª1º position.
b. Temporarily install park/neutral position switch on manual shaft.
c. Move manual shaft to ªNº.
d. Tighten bolts while inserting 4.0 mm (0.157 in) dia. pin vertically into locating holes in park/neutral position switch and manual
shaft.
12. Install torque converter.
a. Pour ATF into torque converter.
I Approximately 2 liters (1-3/4 Imp qt) of fluid are required for
a new torque converter.
I When reusing old torque converter, add the same amount
of fluid as was drained.
SAT011B
NAT291
NAT292
NAT290
SAT428DA
ASSEMBLY
Assembly (2) (Cont'd)
AT-198
http://vnx.su/

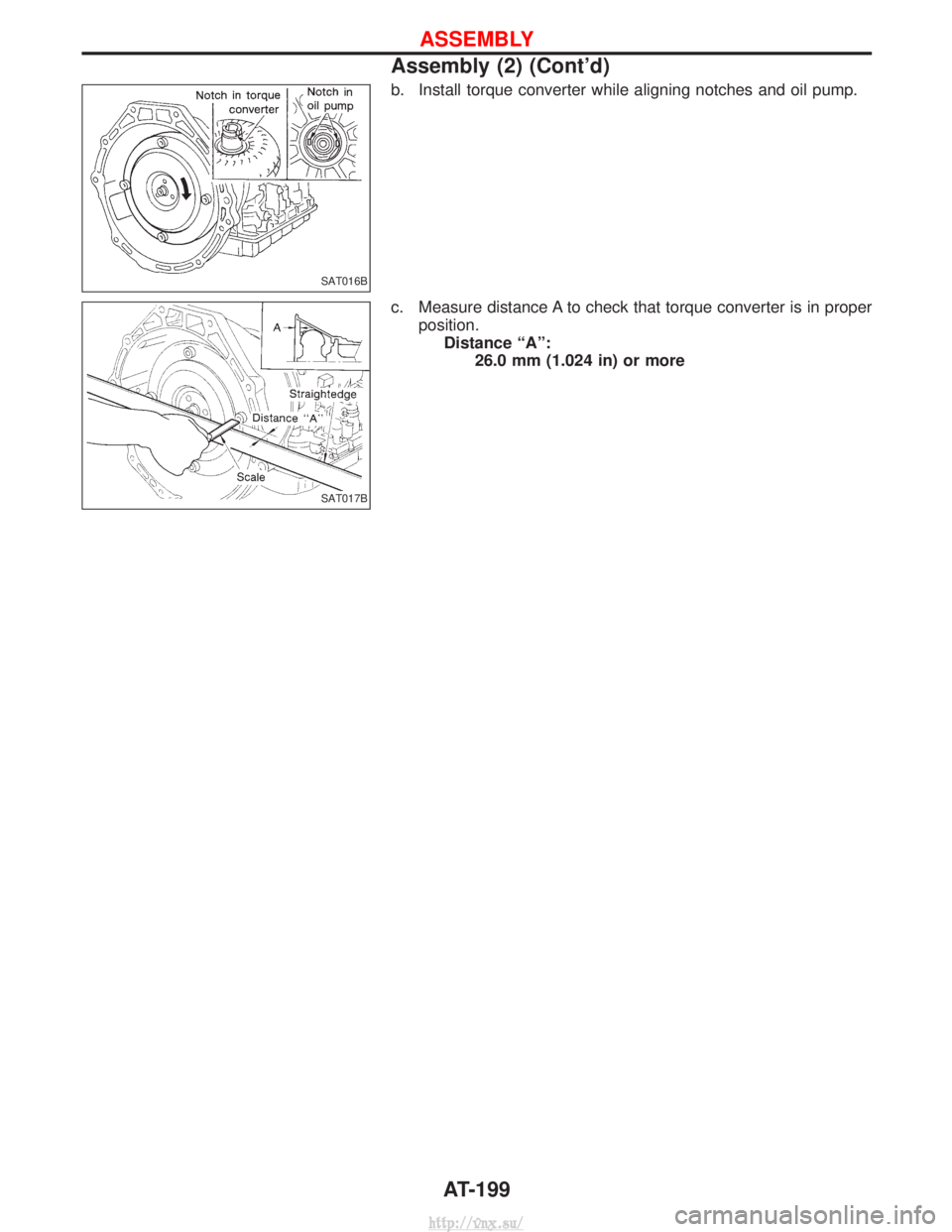

b. Install torque converter while aligning notches and oil pump.
c. Measure distance A to check that torque converter is in properposition.Distance ªAº: 26.0 mm (1.024 in) or more
SAT016B
SAT017B
ASSEMBLY
Assembly (2) (Cont'd)
AT-199
http://vnx.su/

A/T Fluid Cooler
REMOVAL AND INSTALLATION
1. Remove front radiator grill. Refer to BT section (ªBODY ENDº).
2. Disconnect fluid hoses from fluid cooler unit.
3. Remove fluid cooler unit.
4. Remove fluid cooler bracket.
5. Remove clips securing fluid hose (cooler unit to radiator) andloosen hose clamps, then remove the fluid hose.
6. Loosen clamps securing fluid hose (A/T assembly to fluid cooler), then remove the fluid hose.
7. Remove bolts securing fluid cooler tube bracket.
8. Remove fluid hose with bracket. Reverse the removal procedure to install the A/T fluid cooler
unit. Refer to the component drawing and specified tightening
torque.
Check A/T fluid level and refill if necessary. Refer to MA sec-
tion (ªCHASSIS AND BODY MAINTENANCEº).
NAT288
NAT289
A/T FLUID COOLER SYSTEM
AT-200
http://vnx.su/

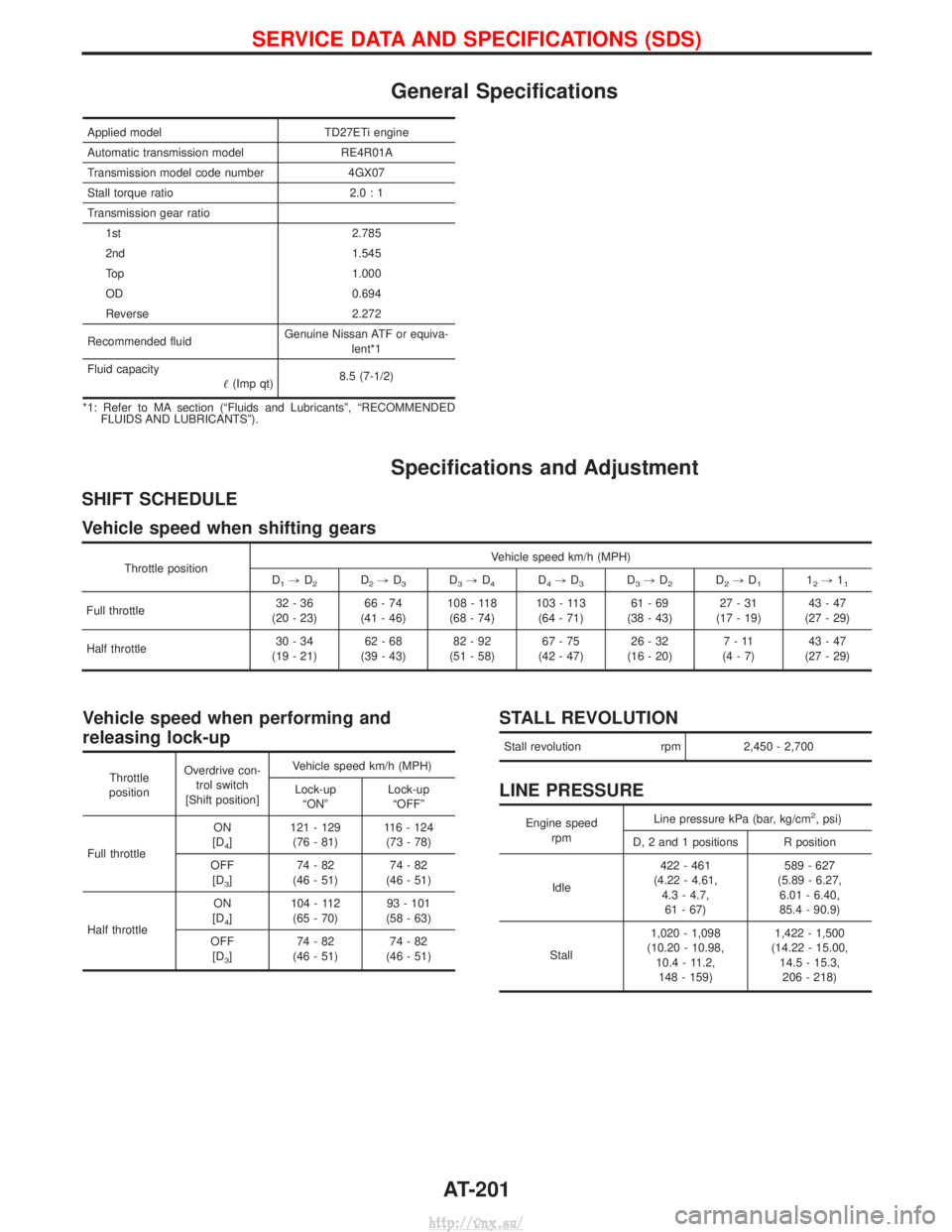

General Specifications
Applied modelTD27ETi engine
Automatic transmission model RE4R01A
Transmission model code number 4GX07
Stall torque ratio 2.0 : 1
Transmission gear ratio 1st 2.785
2nd 1.545
Top 1.000
OD 0.694
Reverse 2.272
Recommended fluid Genuine Nissan ATF or equiva-
lent*1
Fluid capacity (Imp qt) 8.5 (7-1/2)
*1: Refer to MA section (ªFluids and Lubricantsº, ªRECOMMENDED FLUIDS AND LUBRICANTSº).
Specifications and Adjustment
SHIFT SCHEDULE
Vehicle speed when shifting gears
Throttle position Vehicle speed km/h (MPH)
D1, D2D2,D3D3,D4D4,D3D3,D2D2,D112,11
Full throttle 32-36
(20 - 23) 66-74
(41 - 46) 108 - 118
(68 - 74) 103 - 113
(64 - 71) 61-69
(38 - 43) 27-31
(17 - 19) 43-47
(27 - 29)
Half throttle 30-34
(19 - 21) 62-68
(39 - 43) 82-92
(51 - 58) 67-75
(42 - 47) 26-32
(16 - 20) 7-11
(4-7) 43-47
(27 - 29)
Vehicle speed when performing and
releasing lock-up
Throttle
position Overdrive con-
trol switch
[Shift position] Vehicle speed km/h (MPH)
Lock-up ªONº Lock-up
ªOFFº
Full throttle ON
[D
4] 121 - 129
(76 - 81) 116 - 124
(73 - 78)
OFF [D
3] 74-82
(46 - 51) 74-82
(46 - 51)
Half throttle ON
[D
4] 104 - 112
(65 - 70) 93 - 101
(58 - 63)
OFF [D
3] 74-82
(46 - 51) 74-82
(46 - 51)
STALL REVOLUTION
Stall revolution rpm2,450 - 2,700
LINE PRESSURE
Engine speed
rpm Line pressure kPa (bar, kg/cm2, psi)
D, 2 and 1 positions R position
Idle 422 - 461
(4.22 - 4.61, 4.3 - 4.7,61 - 67) 589 - 627
(5.89 - 6.27, 6.01 - 6.40,
85.4 - 90.9)
Stall 1,020 - 1,098
(10.20 - 10.98, 10.4 - 11.2,148 - 159) 1,422 - 1,500
(14.22 - 15.00, 14.5 - 15.3,206 - 218)
SERVICE DATA AND SPECIFICATIONS (SDS)
AT-201
http://vnx.su/

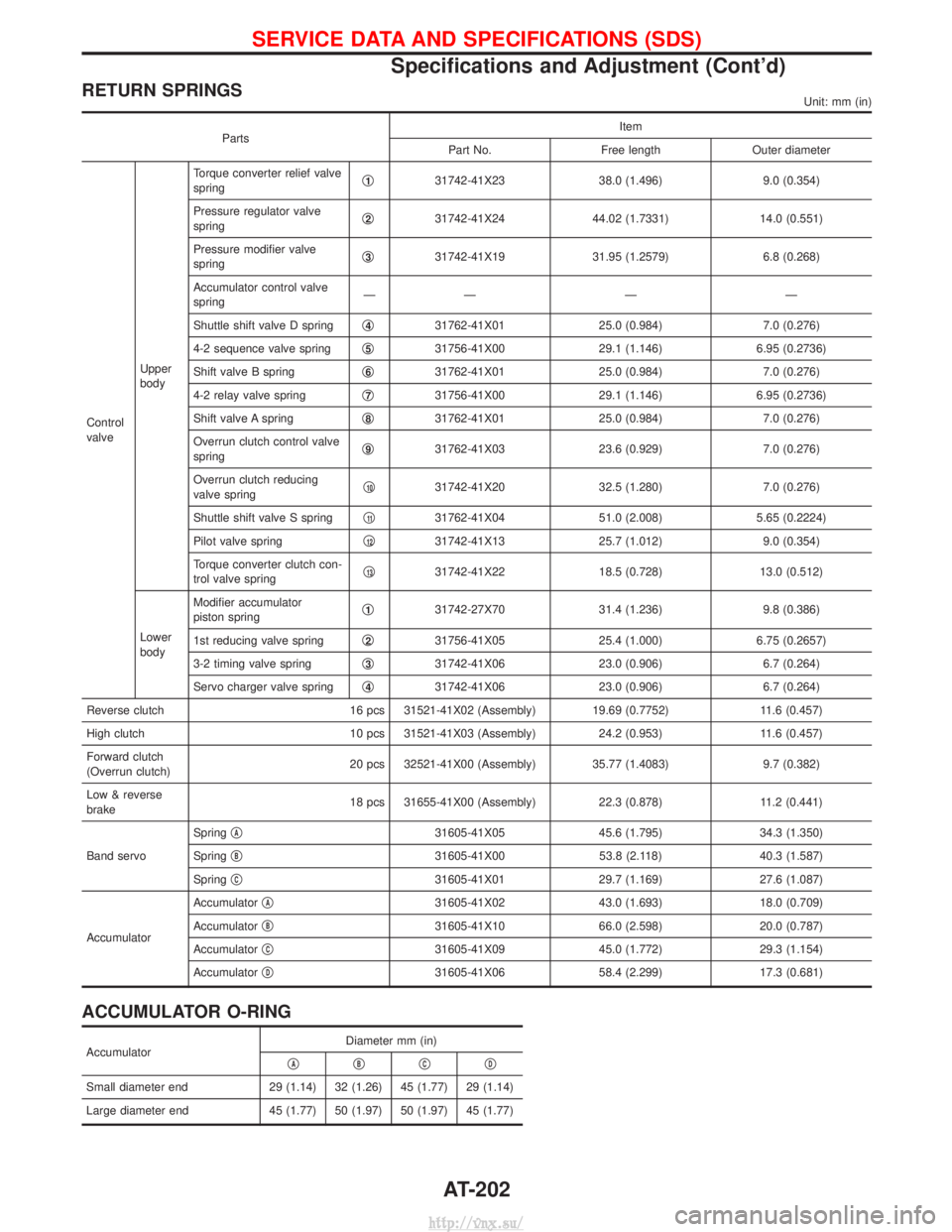

RETURN SPRINGSUnit: mm (in)
PartsItem
Part No. Free length Outer diameter
Control
valve Upper
bodyTorque converter relief valve
spring
q
131742-41X23
38.0 (1.496)9.0 (0.354)
Pressure regulator valve
spring q
231742-41X24
44.02 (1.7331) 14.0 (0.551)
Pressure modifier valve
spring q
331742-41X19
31.95 (1.2579) 6.8 (0.268)
Accumulator control valve
spring ÐÐÐÐ
Shuttle shift valve D spring q
431762-41X01
25.0 (0.984)7.0 (0.276)
4-2 sequence valve spring q
531756-41X00
29.1 (1.146)6.95 (0.2736)
Shift valve B spring q
631762-41X01
25.0 (0.984)7.0 (0.276)
4-2 relay valve spring q
731756-41X00
29.1 (1.146)6.95 (0.2736)
Shift valve A spring q
831762-41X01
25.0 (0.984)7.0 (0.276)
Overrun clutch control valve
spring q
931762-41X03
23.6 (0.929)7.0 (0.276)
Overrun clutch reducing
valve spring q
1031742-41X20
32.5 (1.280)7.0 (0.276)
Shuttle shift valve S spring q
1131762-41X04
51.0 (2.008)5.65 (0.2224)
Pilot valve spring q
1231742-41X13
25.7 (1.012)9.0 (0.354)
Torque converter clutch con-
trol valve spring q
1331742-41X22
18.5 (0.728)13.0 (0.512)
Lower
body Modifier accumulator
piston spring
q
131742-27X70
31.4 (1.236)9.8 (0.386)
1st reducing valve spring q
231756-41X05
25.4 (1.000)6.75 (0.2657)
3-2 timing valve spring q
331742-41X06
23.0 (0.906)6.7 (0.264)
Servo charger valve spring q
431742-41X06
23.0 (0.906)6.7 (0.264)
Reverse clutch 16 pcs 31521-41X02 (Assembly) 19.69 (0.7752) 11.6 (0.457)
High clutch 10 pcs 31521-41X03 (Assembly)24.2 (0.953)11.6 (0.457)
Forward clutch
(Overrun clutch) 20 pcs 32521-41X00 (Assembly) 35.77 (1.4083)
9.7 (0.382)
Low & reverse
brake 18 pcs 31655-41X00 (Assembly)
22.3 (0.878)11.2 (0.441)
Band servo Spring
q
A31605-41X05
45.6 (1.795)34.3 (1.350)
Spring q
B31605-41X00
53.8 (2.118)40.3 (1.587)
Spring q
C31605-41X01
29.7 (1.169)27.6 (1.087)
Accumulator Accumulator
q
A31605-41X02
43.0 (1.693)18.0 (0.709)
Accumulator q
B31605-41X10
66.0 (2.598)20.0 (0.787)
Accumulator q
C31605-41X09
45.0 (1.772)29.3 (1.154)
Accumulator q
D31605-41X06
58.4 (2.299)17.3 (0.681)
ACCUMULATOR O-RING
Accumulator Diameter mm (in)
qAqBqCqD
Small diameter end 29 (1.14) 32 (1.26) 45 (1.77) 29 (1.14)
Large diameter end 45 (1.77) 50 (1.97) 50 (1.97) 45 (1.77)
SERVICE DATA AND SPECIFICATIONS (SDS)
Specifications and Adjustment (Cont'd)
AT-202
http://vnx.su/

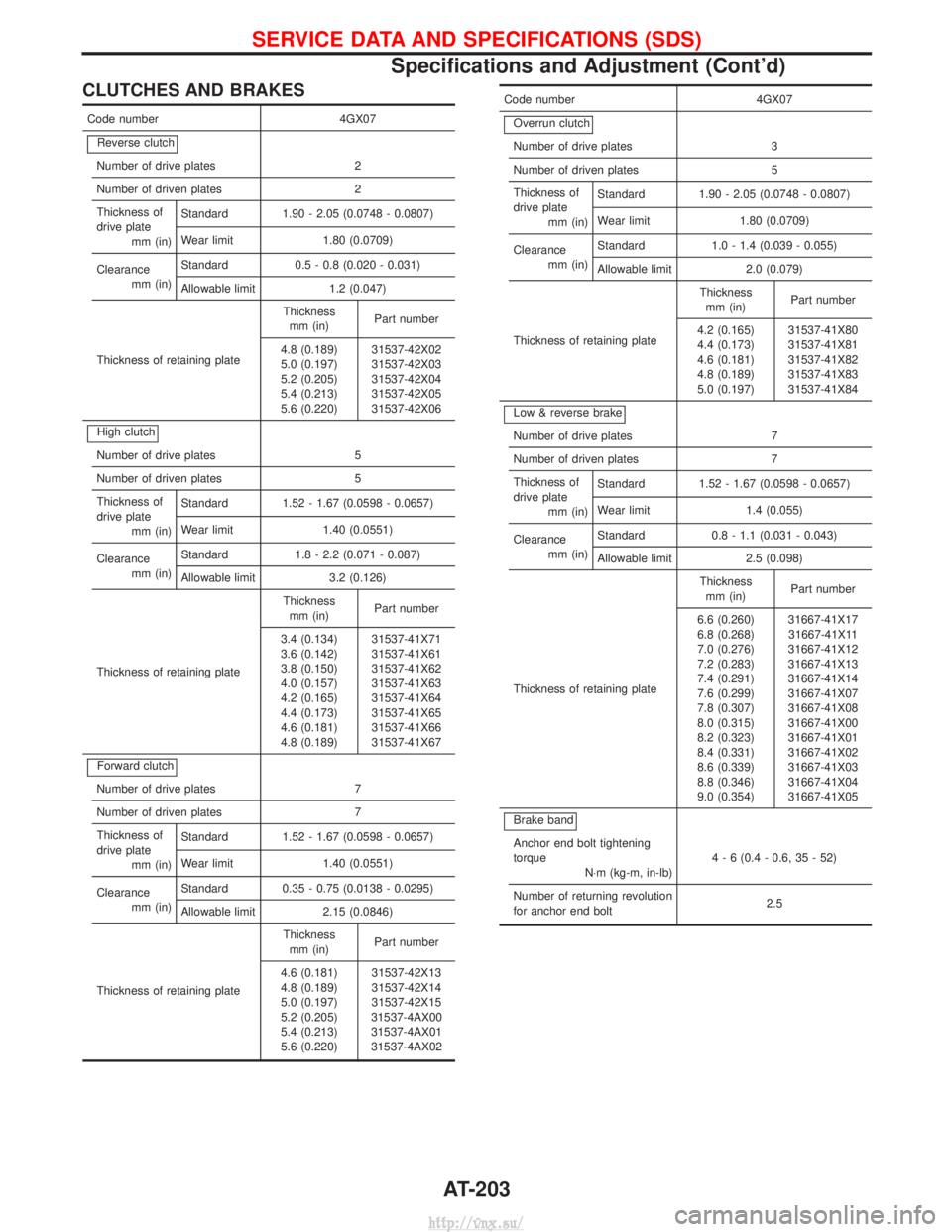

CLUTCHES AND BRAKES
Code number4GX07
Reverse clutch
Number of drive plates 2
Number of driven plates 2
Thickness of
drive plate mm (in) Standard 1.90 - 2.05 (0.0748 - 0.0807)
Wear limit 1.80 (0.0709)
Clearance mm (in) Standard 0.5 - 0.8 (0.020 - 0.031)
Allowable limit 1.2 (0.047)
Thickness of retaining plate Thickness
mm (in) Part number
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)
5.4 (0.213)
5.6 (0.220) 31537-42X02
31537-42X03
31537-42X04
31537-42X05
31537-42X06
High clutch
Number of drive plates 5
Number of driven plates 5
Thickness of
drive plate mm (in) Standard 1.52 - 1.67 (0.0598 - 0.0657)
Wear limit 1.40 (0.0551)
Clearance mm (in) Standard 1.8 - 2.2 (0.071 - 0.087)
Allowable limit 3.2 (0.126)
Thickness of retaining plate Thickness
mm (in) Part number
3.4 (0.134)
3.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189) 31537-41X71
31537-41X61
31537-41X62
31537-41X63
31537-41X64
31537-41X65
31537-41X66
31537-41X67
Forward clutch
Number of drive plates 7
Number of driven plates 7
Thickness of
drive plate mm (in) Standard 1.52 - 1.67 (0.0598 - 0.0657)
Wear limit 1.40 (0.0551)
Clearance mm (in) Standard 0.35 - 0.75 (0.0138 - 0.0295)
Allowable limit 2.15 (0.0846)
Thickness of retaining plate Thickness
mm (in) Part number
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)
5.4 (0.213)
5.6 (0.220) 31537-42X13
31537-42X14
31537-42X15
31537-4AX00
31537-4AX01
31537-4AX02
Code number 4GX07
Overrun clutch
Number of drive plates 3
Number of driven plates 5
Thickness of
drive plate mm (in) Standard 1.90 - 2.05 (0.0748 - 0.0807)
Wear limit 1.80 (0.0709)
Clearance mm (in) Standard 1.0 - 1.4 (0.039 - 0.055)
Allowable limit 2.0 (0.079)
Thickness of retaining plate Thickness
mm (in) Part number
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197) 31537-41X80
31537-41X81
31537-41X82
31537-41X83
31537-41X84
Low & reverse brake
Number of drive plates 7
Number of driven plates 7
Thickness of
drive plate mm (in) Standard 1.52 - 1.67 (0.0598 - 0.0657)
Wear limit 1.4 (0.055)
Clearance mm (in) Standard 0.8 - 1.1 (0.031 - 0.043)
Allowable limit 2.5 (0.098)
Thickness of retaining plate Thickness
mm (in) Part number
6.6 (0.260)
6.8 (0.268)
7.0 (0.276)
7.2 (0.283)
7.4 (0.291)
7.6 (0.299)
7.8 (0.307)
8.0 (0.315)
8.2 (0.323)
8.4 (0.331)
8.6 (0.339)
8.8 (0.346)
9.0 (0.354) 31667-41X17
31667-41X11
31667-41X12
31667-41X13
31667-41X14
31667-41X07
31667-41X08
31667-41X00
31667-41X01
31667-41X02
31667-41X03
31667-41X04
31667-41X05
Brake band
Anchor end bolt tightening
torque N×m (kg-m, in-lb) 4 - 6 (0.4 - 0.6, 35 - 52)
Number of returning revolution
for anchor end bolt 2.5
SERVICE DATA AND SPECIFICATIONS (SDS)
Specifications and Adjustment (Cont'd)
AT-203
