2004 NISSAN TERRANO Service Repair Manual

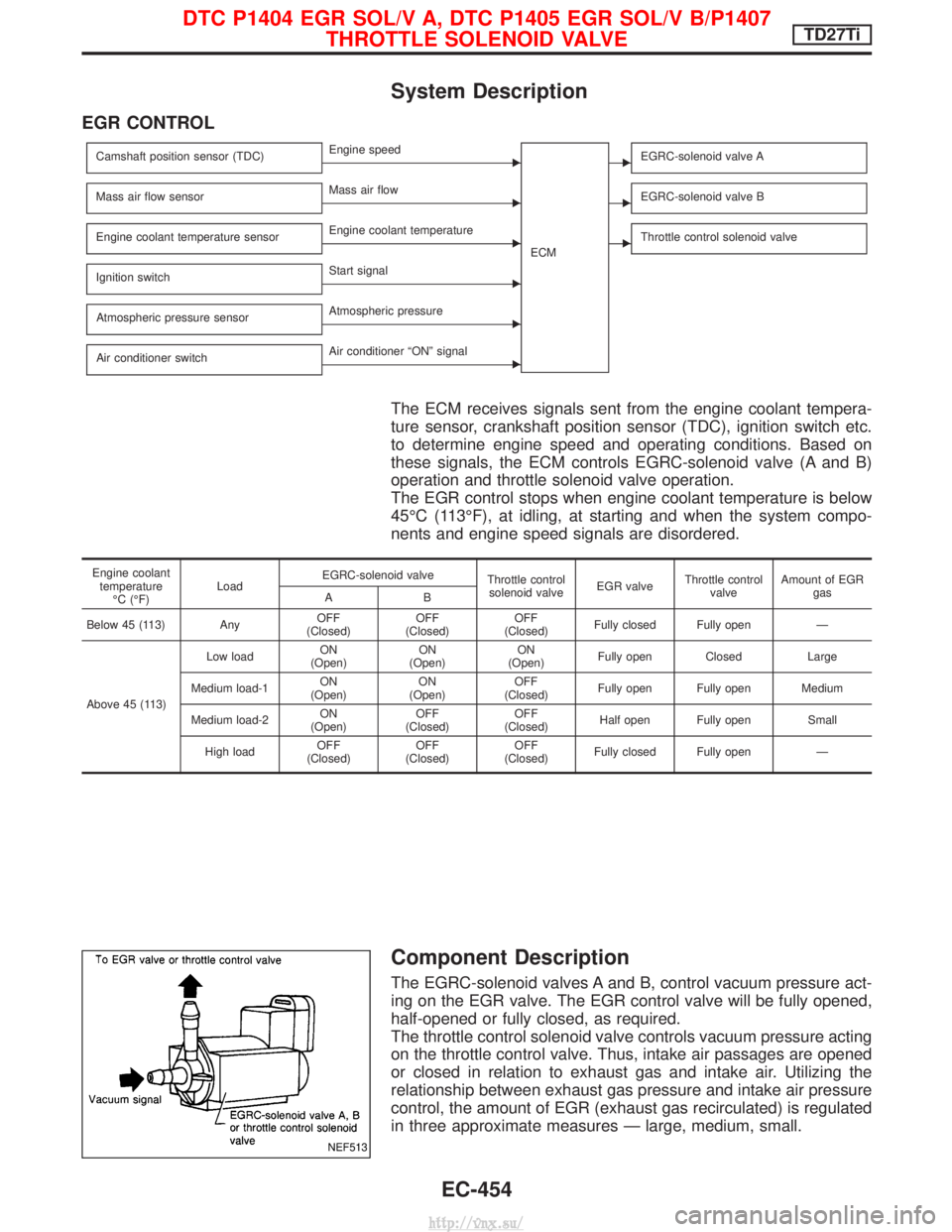

System Description
EGR CONTROL
Camshaft position sensor (TDC)EEngine speedECMEEGRC-solenoid valve A
Mass air flow sensorEMass air flowEEGRC-solenoid valve B
Engine coolant temperature sensorEEngine coolant temperatureEThrottle control solenoid valve
Ignition switchEStart signal
Atmospheric pressure sensor
EAtmospheric pressure
Air conditioner switch
EAir conditioner ªONº signal
The ECM receives signals sent from the engine coolant tempera-
ture sensor, crankshaft position sensor (TDC), ignition switch etc.
to determine engine speed and operating conditions. Based on
these signals, the ECM controls EGRC-solenoid valve (A and B)
operation and throttle solenoid valve operation.
The EGR control stops when engine coolant temperature is below
45ÉC (113ÉF), at idling, at starting and when the system compo-
nents and engine speed signals are disordered.
Engine coolant temperature ÉC (ÉF) Load
EGRC-solenoid valve
Throttle control
solenoid valve EGR valveThrottle control
valve Amount of EGR
gas
AB
Below 45 (113) Any OFF
(Closed) OFF
(Closed) OFF
(Closed) Fully closed Fully open Ð
Above 45 (113) Low load
ON
(Open) ON
(Open) ON
(Open) Fully open Closed Large
Medium load-1 ON
(Open) ON
(Open) OFF
(Closed) Fully open Fully open Medium
Medium load-2 ON
(Open) OFF
(Closed) OFF
(Closed) Half open Fully open Small
High load OFF
(Closed) OFF
(Closed) OFF
(Closed) Fully closed Fully open Ð
Component Description
The EGRC-solenoid valves A and B, control vacuum pressure act-
ing on the EGR valve. The EGR control valve will be fully opened,
half-opened or fully closed, as required.
The throttle control solenoid valve controls vacuum pressure acting
on the throttle control valve. Thus, intake air passages are opened
or closed in relation to exhaust gas and intake air. Utilizing the
relationship between exhaust gas pressure and intake air pressure
control, the amount of EGR (exhaust gas recirculated) is regulated
in three approximate measures Ð large, medium, small.
NEF513
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407
THROTTLE SOLENOID VALVETD27Ti
EC-454
http://vnx.su/

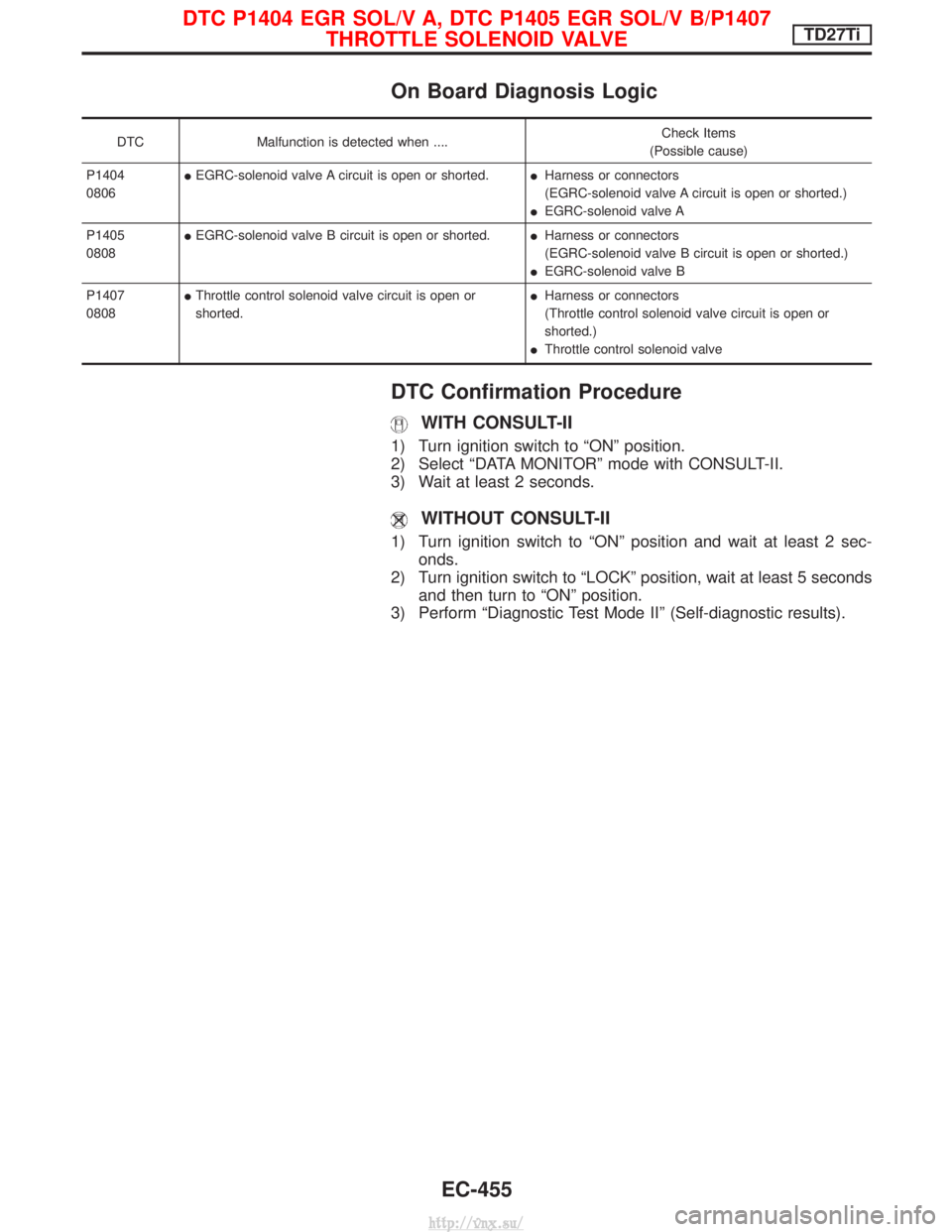

On Board Diagnosis Logic
DTCMalfunction is detected when .... Check Items
(Possible cause)
P1404
0806 I
EGRC-solenoid valve A circuit is open or shorted. IHarness or connectors
(EGRC-solenoid valve A circuit is open or shorted.)
I EGRC-solenoid valve A
P1405
0808 I
EGRC-solenoid valve B circuit is open or shorted. IHarness or connectors
(EGRC-solenoid valve B circuit is open or shorted.)
I EGRC-solenoid valve B
P1407
0808 I
Throttle control solenoid valve circuit is open or
shorted. I
Harness or connectors
(Throttle control solenoid valve circuit is open or
shorted.)
I Throttle control solenoid valve
DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch to ªONº position.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Wait at least 2 seconds.
WITHOUT CONSULT-II
1) Turn ignition switch to ªONº position and wait at least 2 sec-
onds.
2) Turn ignition switch to ªLOCKº position, wait at least 5 seconds and then turn to ªONº position.
3) Perform ªDiagnostic Test Mode IIº (Self-diagnostic results).
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407 THROTTLE SOLENOID VALVETD27Ti
EC-455
http://vnx.su/

Wiring Diagram
LHD MODELS
EGR control solenoid valve A and B
YEC683A
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407THROTTLE SOLENOID VALVETD27Ti
EC-456
http://vnx.su/

RHD MODELS
EGR control solenoid valve A and B
YEC684A
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407THROTTLE SOLENOID VALVETD27Ti
Wiring Diagram (Cont'd)
EC-457
http://vnx.su/

Throttle control solenoid valve
YEC685A
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407THROTTLE SOLENOID VALVETD27Ti
Wiring Diagram (Cont'd)
EC-458
http://vnx.su/

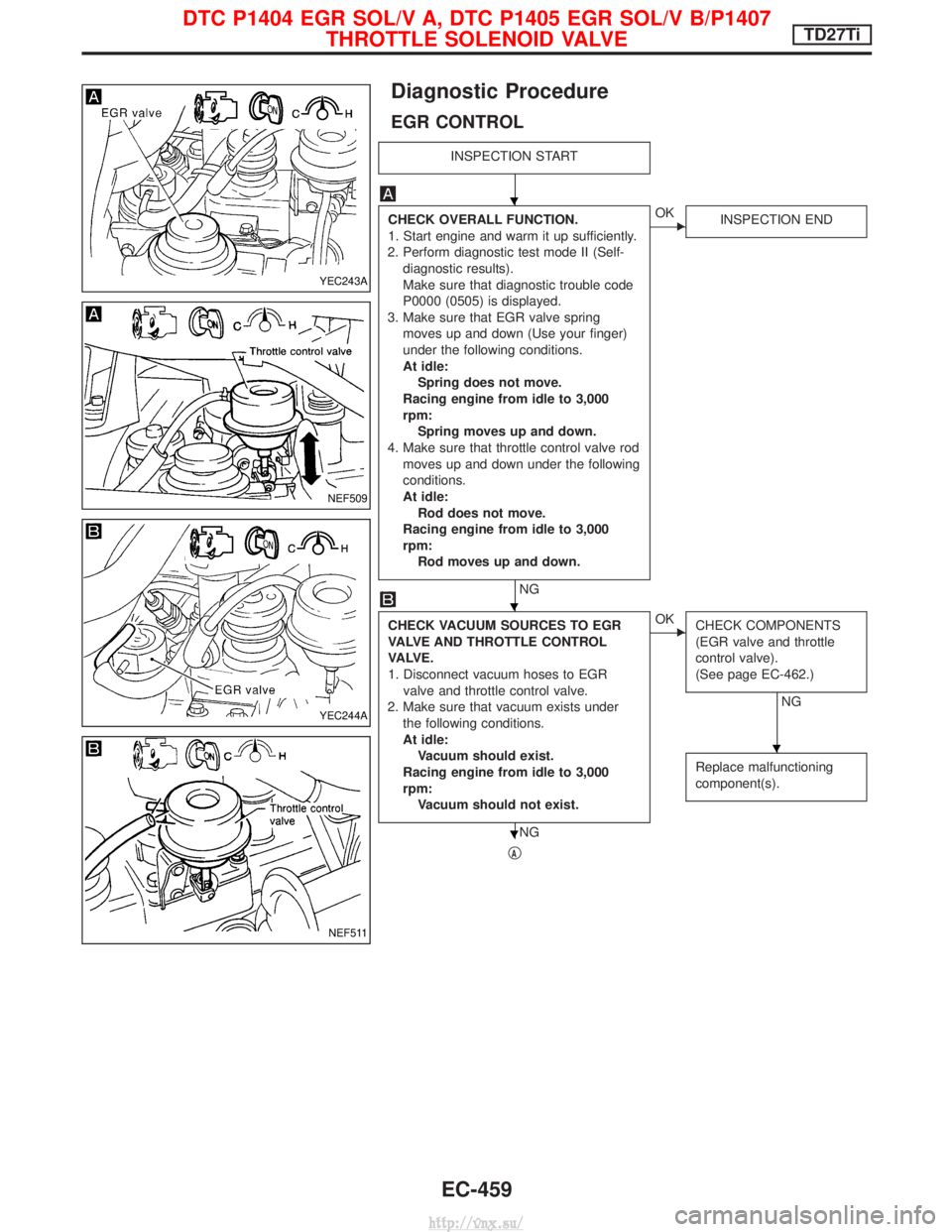

Diagnostic Procedure
EGR CONTROL
INSPECTION START
CHECK OVERALL FUNCTION.
1. Start engine and warm it up sufficiently.
2. Perform diagnostic test mode II (Self- diagnostic results).
Make sure that diagnostic trouble code
P0000 (0505) is displayed.
3. Make sure that EGR valve spring moves up and down (Use your finger)
under the following conditions.
At idle:Spring does not move.
Racing engine from idle to 3,000
rpm: Spring moves up and down.
4. Make sure that throttle control valve rod moves up and down under the following
conditions.
At idle:Rod does not move.
Racing engine from idle to 3,000
rpm: Rod moves up and down.
NG
EOK INSPECTION END
CHECK VACUUM SOURCES TO EGR
VALVE AND THROTTLE CONTROL
VA LV E .
1. Disconnect vacuum hoses to EGR
valve and throttle control valve.
2. Make sure that vacuum exists under the following conditions.
At idle:Vacuum should exist.
Racing engine from idle to 3,000
rpm: Vacuum should not exist.
NG
EOK CHECK COMPONENTS
(EGR valve and throttle
control valve).
(See page EC-462.)
NG
Replace malfunctioning
component(s).
qA
YEC243A
NEF509
YEC244A
NEF511
H
H
H
H
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407 THROTTLE SOLENOID VALVETD27Ti
EC-459
http://vnx.su/

qA

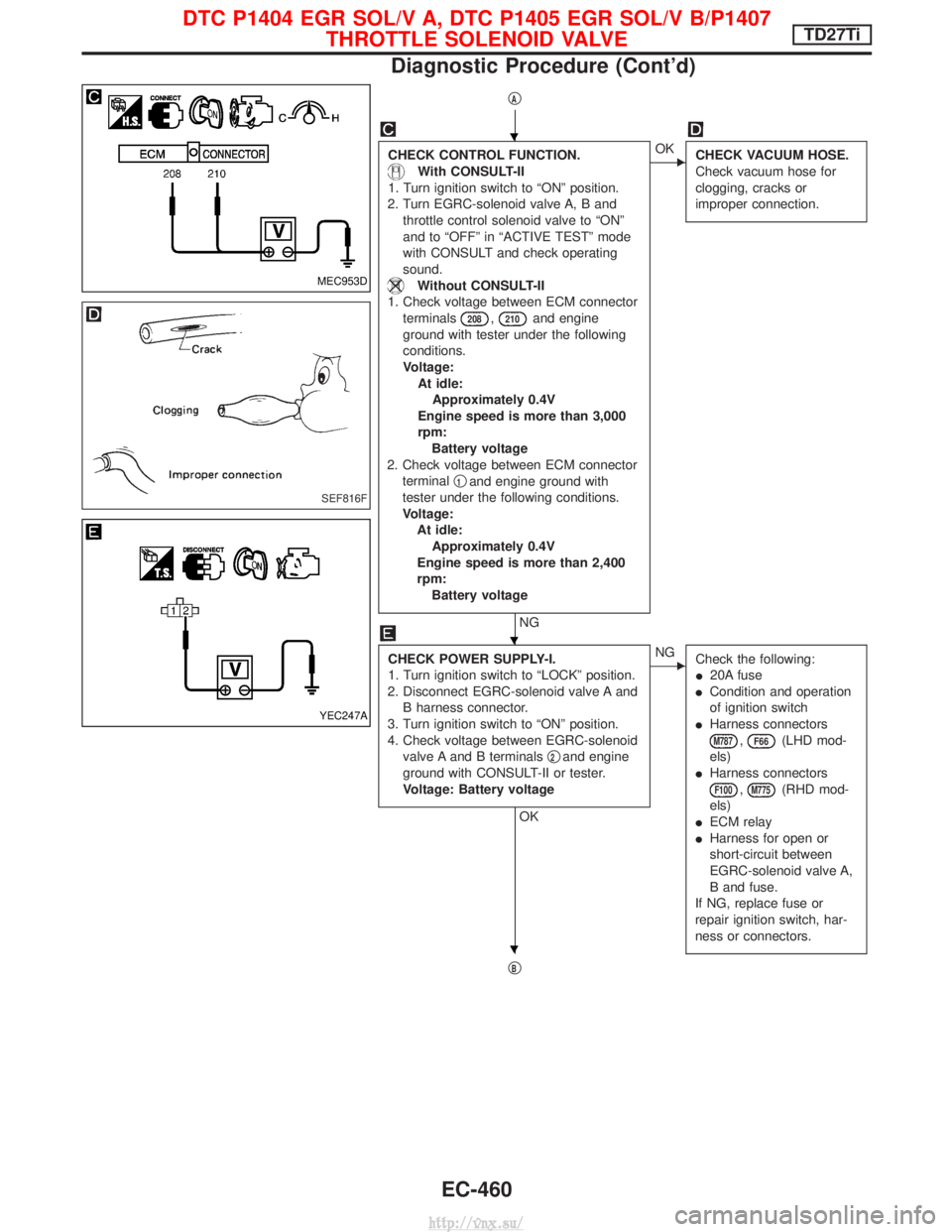

CHECK CONTROL FUNCTION.
With CONSULT-II
1. Turn ignition switch to ªONº position.
2. Turn EGRC-solenoid valve A, B and throttle control solenoid valve to ªONº
and to ªOFFº in ªACTIVE TESTº mode
with CONSULT and check operating
sound.
Without CONSULT-II
1. Check voltage between ECM connector terminals
208,210and engine
ground with tester under the following
conditions.
Voltage: At idle:Approximately 0.4V
Engine speed is more than 3,000
rpm: Battery voltage
2. Check voltage between ECM connector terminal q
1and engine ground with
tester under the following conditions.
Voltage: At idle:Approximately 0.4V
Engine speed is more than 2,400
rpm: Battery voltage
NG
EOK CHECK VACUUM HOSE.
Check vacuum hose for
clogging, cracks or
improper connection.
CHECK POWER SUPPLY-I.
1. Turn ignition switch to ªLOCKº position.
2. Disconnect EGRC-solenoid valve A and B harness connector.
3. Turn ignition switch to ªONº position.
4. Check voltage between EGRC-solenoid valve A and B terminals q
2and engine
ground with CONSULT-II or tester.
Voltage: Battery voltage
OK
ENG Check the following:
I20A fuse
I Condition and operation
of ignition switch
I Harness connectors
M787,F66(LHD mod-
els)
I Harness connectors
F100,M775(RHD mod-
els)
I ECM relay
I Harness for open or
short-circuit between
EGRC-solenoid valve A,
B and fuse.
If NG, replace fuse or
repair ignition switch, har-
ness or connectors.
qB
MEC953D
SEF816F
YEC247A
H
H
H
DTC P1404 EGR SOL/V A, DTC P1405 EGR SOL/V B/P1407 THROTTLE SOLENOID VALVETD27Ti
Diagnostic Procedure (Cont'd)
EC-460
http://vnx.su/

qB

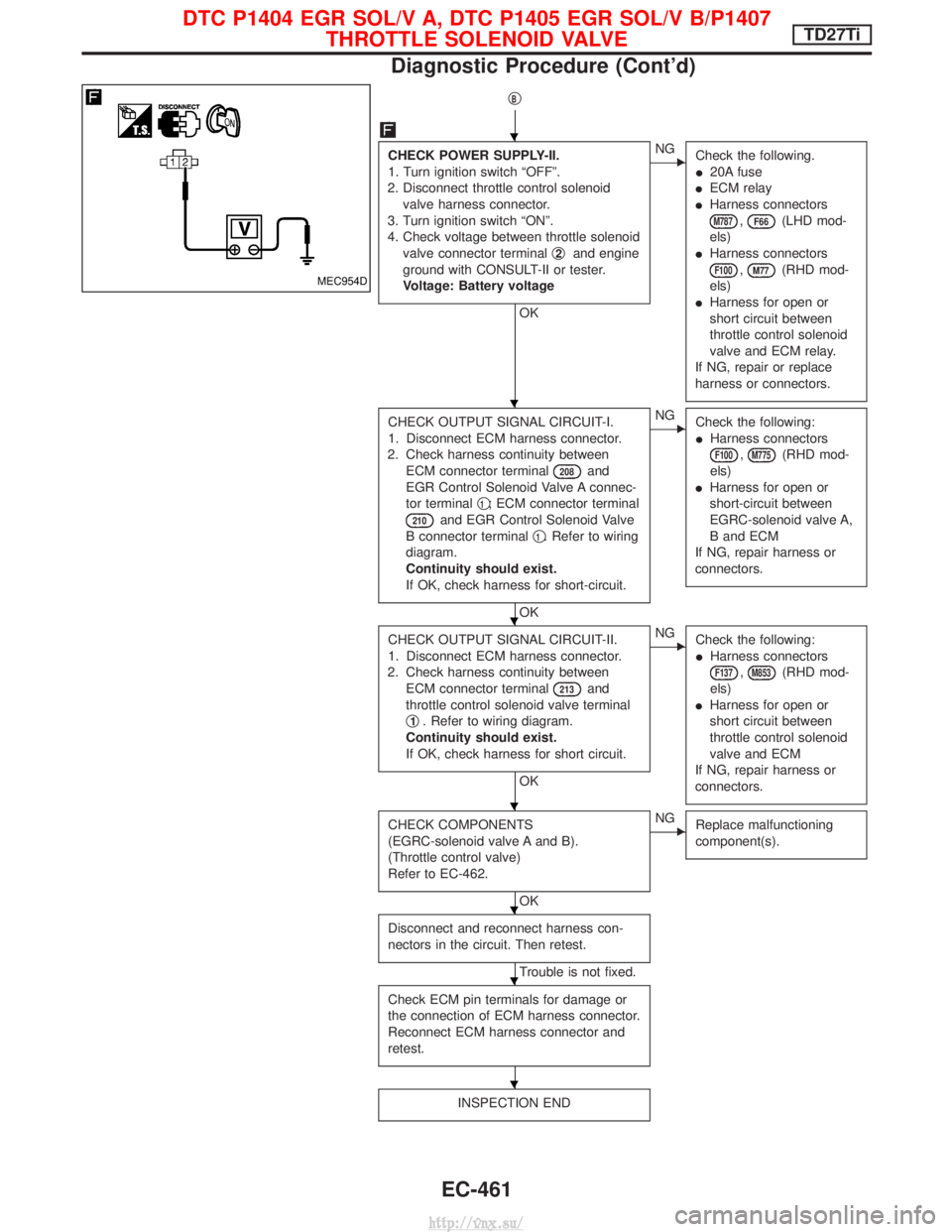

CHECK POWER SUPPLY-II.
