2004 NISSAN TERRANO Service Repair Manual

Schematic
YEL752E
TIME CONTROL UNIT (TCU)
EL-220
http://vnx.su/

YEL866E
TIME CONTROL UNIT (TCU)
Schematic (Cont'd)EL-221
http://vnx.su/

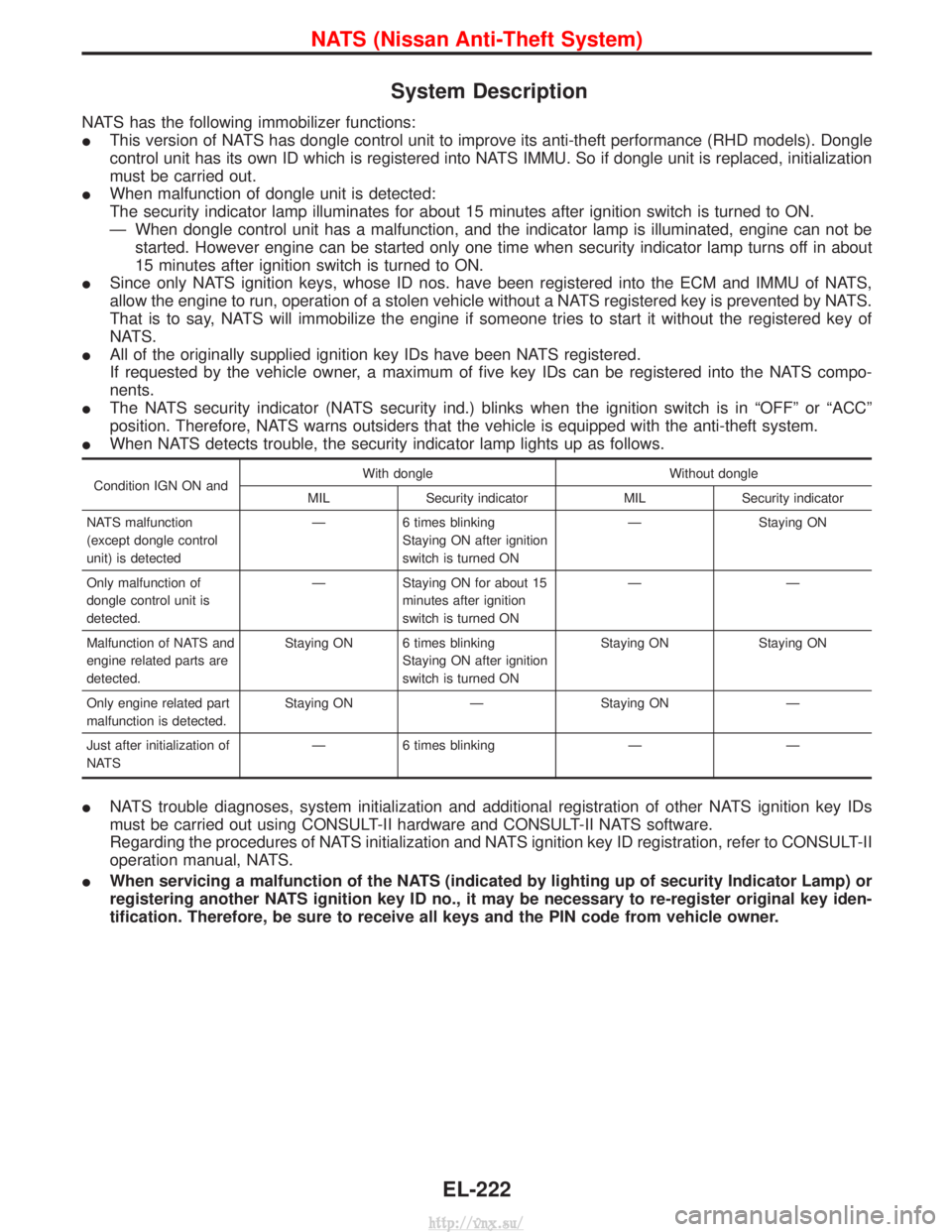

System Description
NATS has the following immobilizer functions:
IThis version of NATS has dongle control unit to improve its anti-theft performance (RHD models). Dongle
control unit has its own ID which is registered into NATS IMMU. So if dongle unit is replaced, initialization
must be carried out.
I When malfunction of dongle unit is detected:
The security indicator lamp illuminates for about 15 minutes after ignition switch is turned to ON.
Ð When dongle control unit has a malfunction, and the indicator lamp is illuminated, engine can not be
started. However engine can be started only one time when security indicator lamp turns off in about
15 minutes after ignition switch is turned to ON.
I Since only NATS ignition keys, whose ID nos. have been registered into the ECM and IMMU of NATS,
allow the engine to run, operation of a stolen vehicle without a NATS registered key is prevented by NATS.
That is to say, NATS will immobilize the engine if someone tries to start it without the registered key of
NATS.
I All of the originally supplied ignition key IDs have been NATS registered.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NATS compo-
nents.
I The NATS security indicator (NATS security ind.) blinks when the ignition switch is in ªOFFº or ªACCº
position. Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.
I When NATS detects trouble, the security indicator lamp lights up as follows.
Condition IGN ON and With dongle Without dongle
MIL Security indicator MIL Security indicator
NATS malfunction
(except dongle control
unit) is detected Ð
6 times blinking
Staying ON after ignition
switch is turned ON Ð
Staying ON
Only malfunction of
dongle control unit is
detected. Ð Staying ON for about 15
minutes after ignition
switch is turned ON ÐÐ
Malfunction of NATS and
engine related parts are
detected. Staying ON 6 times blinking
Staying ON after ignition
switch is turned ON Staying ON Staying ON
Only engine related part
malfunction is detected. Staying ON Ð Staying ON Ð
Just after initialization of
NATS Ð 6 times blinking Ð Ð
I
NATS trouble diagnoses, system initialization and additional registration of other NATS ignition key IDs
must be carried out using CONSULT-II hardware and CONSULT-II NATS software.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to CONSULT-II
operation manual, NATS.
I When servicing a malfunction of the NATS (indicated by lighting up of security Indicator Lamp) or
registering another NATS ignition key ID no., it may be necessary to re-register original key iden-
tification. Therefore, be sure to receive all keys and the PIN code from vehicle owner.
NATS (Nissan Anti-Theft System)
EL-222
http://vnx.su/

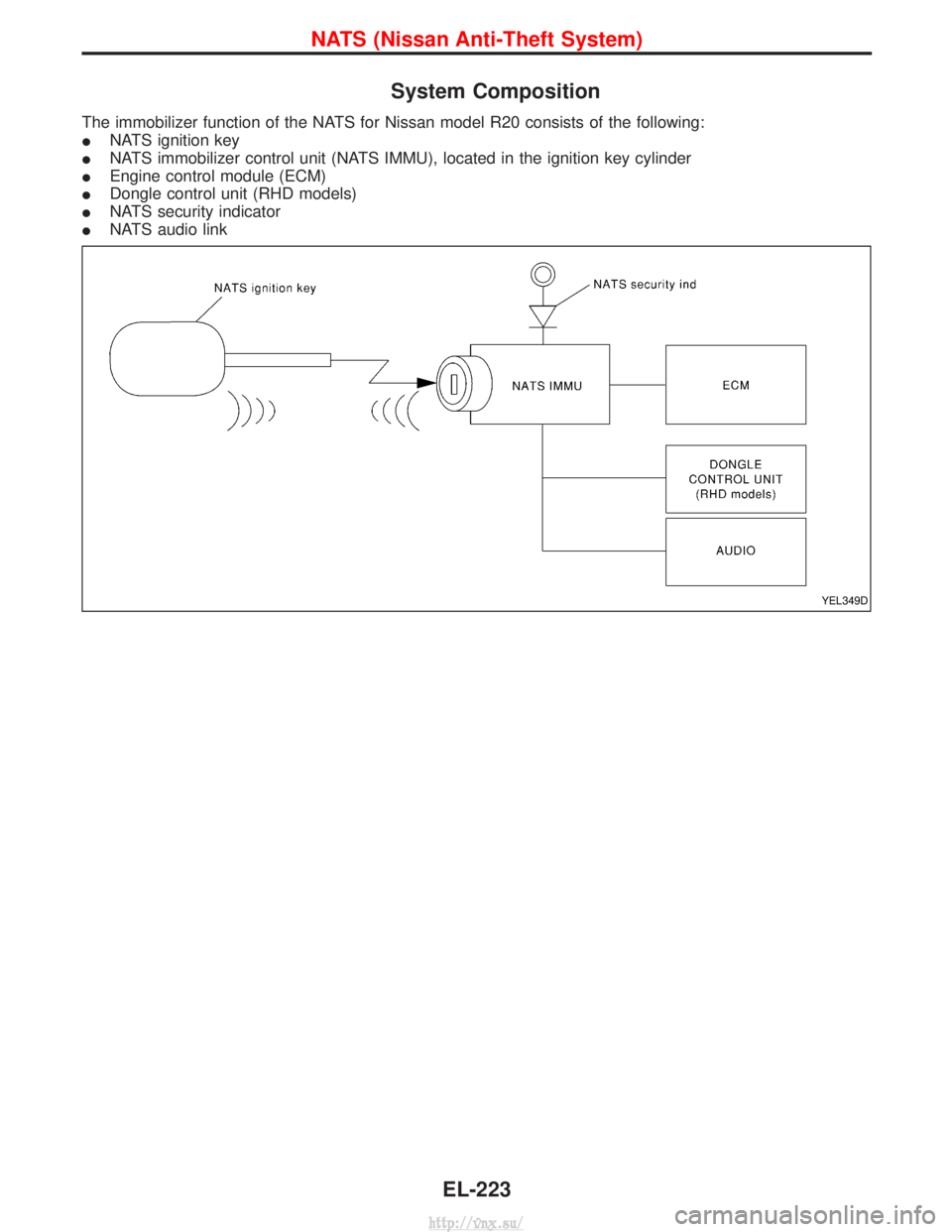

System Composition
The immobilizer function of the NATS for Nissan model R20 consists of the following:
INATS ignition key
I NATS immobilizer control unit (NATS IMMU), located in the ignition key cylinder
I Engine control module (ECM)
I Dongle control unit (RHD models)
I NATS security indicator
I NATS audio link
YEL349D
NATS (Nissan Anti-Theft System)
EL-223
http://vnx.su/

Component Parts Location
YEL320D
NATS (Nissan Anti-Theft System)
EL-224
http://vnx.su/

Wiring Diagram Ð NATS Ð
LHD MODELS
YEL187D
NATS (Nissan Anti-Theft System)
EL-225
http://vnx.su/

LHD MODELS
YEL753E
NATS (Nissan Anti-Theft System)
Wiring Diagram Ð NATS Ð (Cont'd)EL-226
http://vnx.su/

RHD MODELS
YEL189D
NATS (Nissan Anti-Theft System)
Wiring Diagram Ð NATS Ð (Cont'd)EL-227
