2004 NISSAN TERRANO Service Repair Manual

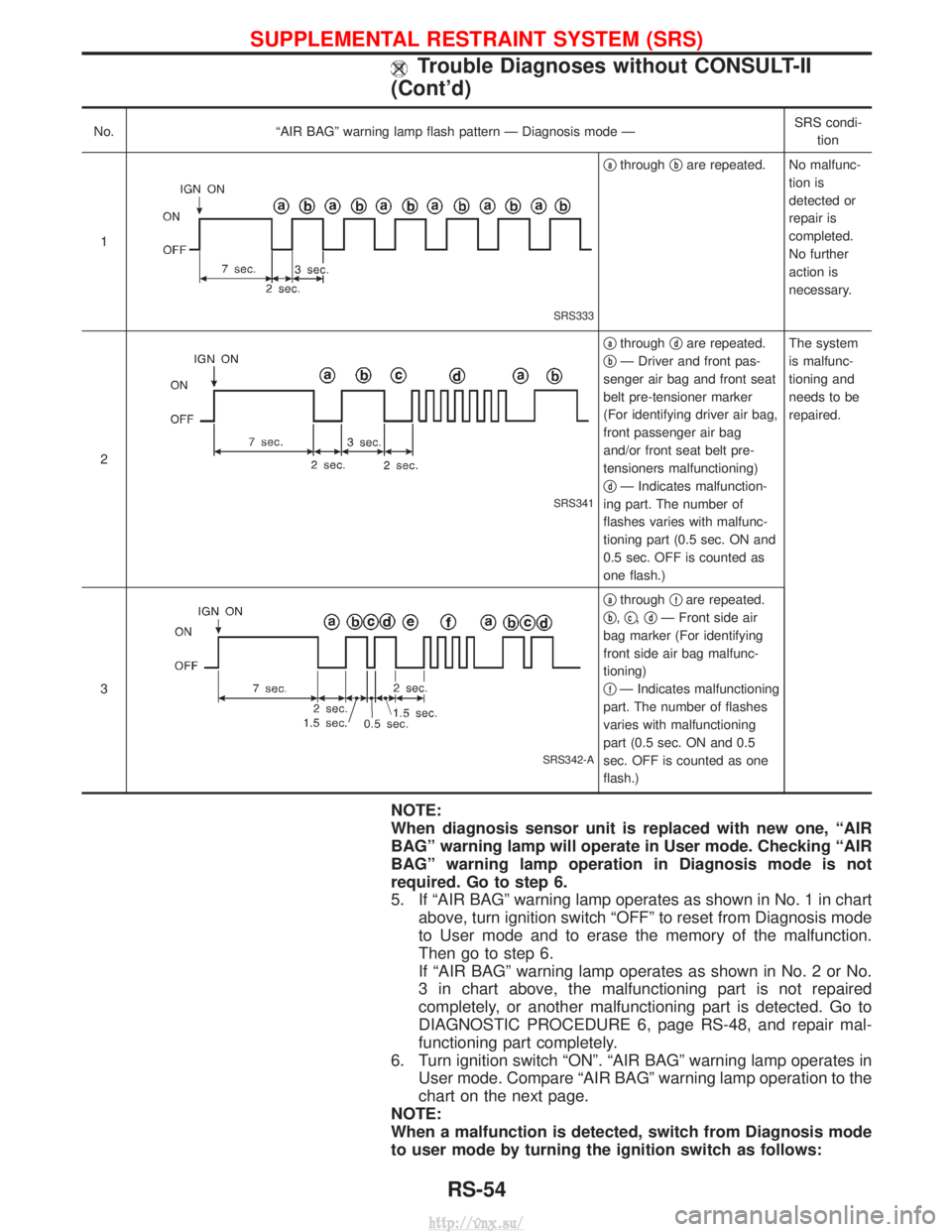

No.ªAIR BAGº warning lamp flash pattern Ð Diagnosis mode Ð SRS condi-
tion
1
SRS333
qathrough qbare repeated. No malfunc-
tion is
detected or
repair is
completed.
No further
action is
necessary.
2
SRS341
qathrough qdare repeated.
q
bÐ Driver and front pas-
senger air bag and front seat
belt pre-tensioner marker
(For identifying driver air bag,
front passenger air bag
and/or front seat belt pre-
tensioners malfunctioning)
q
dÐ Indicates malfunction-
ing part. The number of
flashes varies with malfunc-
tioning part (0.5 sec. ON and
0.5 sec. OFF is counted as
one flash.) The system
is malfunc-
tioning and
needs to be
repaired.
3
SRS342-A
qathrough qfare repeated.
q
b, qc,qdÐ Front side air
bag marker (For identifying
front side air bag malfunc-
tioning)
q
fÐ Indicates malfunctioning
part. The number of flashes
varies with malfunctioning
part (0.5 sec. ON and 0.5
sec. OFF is counted as one
flash.)
NOTE:
When diagnosis sensor unit is replaced with new one, ªAIR
BAGº warning lamp will operate in User mode. Checking ªAIR
BAGº warning lamp operation in Diagnosis mode is not
required. Go to step 6.
5. If ªAIR BAGº warning lamp operates as shown in No. 1 in chart above, turn ignition switch ªOFFº to reset from Diagnosis mode
to User mode and to erase the memory of the malfunction.
Then go to step 6.
If ªAIR BAGº warning lamp operates as shown in No. 2 or No.
3 in chart above, the malfunctioning part is not repaired
completely, or another malfunctioning part is detected. Go to
DIAGNOSTIC PROCEDURE 6, page RS-48, and repair mal-
functioning part completely.
6. Turn ignition switch ªONº. ªAIR BAGº warning lamp operates in User mode. Compare ªAIR BAGº warning lamp operation to the
chart on the next page.
NOTE:
When a malfunction is detected, switch from Diagnosis mode
to user mode by turning the ignition switch as follows:
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-54
http://vnx.su/

1) Turn ignition switch ªONº.
2) After ªAIR BAGº warning lamp lights for 7 seconds, turn ignitionswitch ªOFFº within 1 second.
3) Wait more than 3 seconds.
4) Repeat steps 1 to 3 three times.
5) Turn ignition switch ªONº.
SRS is now in User mode.
ªAIR BAGº warning lamp operation Ð User mode Ð SRS conditionReference item
MRS095A
No malfunction is detected.
No further action is neces-
sary. Ð
MRS096A
The system is malfunction-
ing and needs to be repaired
as indicated.Go to DIAGNOSTIC PRO-
CEDURE 6 (RS-48).
MRS097A
Air bag is deployed.
Seat belt pre-tensioner is
deployed.Go to COLLISION DIAGNO-
SIS (RS-59).
Air bag fuse, diagnosis sen-
sor unit or harness is mal-
functioning and needs to be
repaired. Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-56).
MRS098A
One of the following has
occurred and needs to be
repaired.
I
Meter fuse is blown.
I ªAIR BAGº warning lamp
circuit has open or short.
I Diagnosis sensor unit is
malfunctioning. Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-58).
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-55
http://vnx.su/

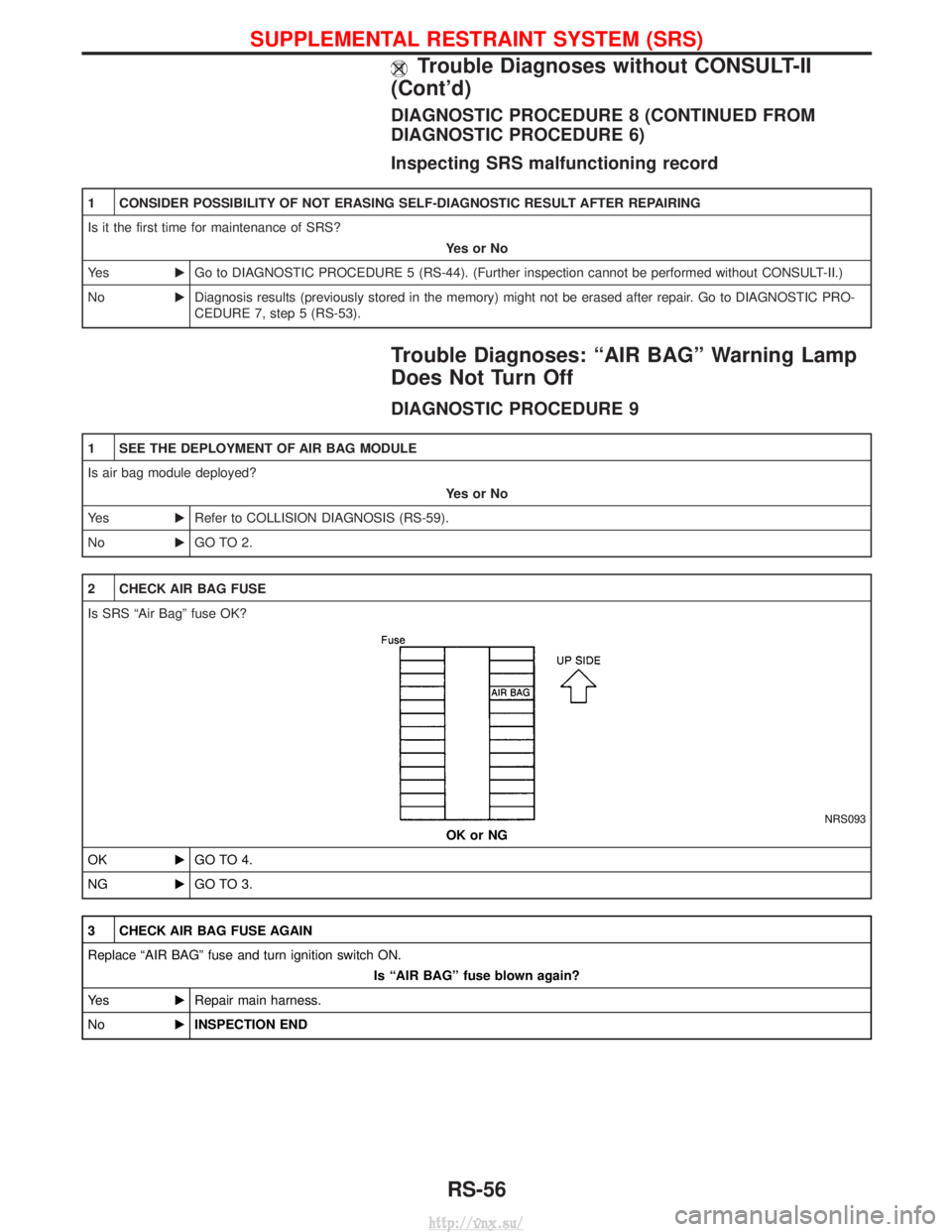

DIAGNOSTIC PROCEDURE 8 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 6)
Inspecting SRS malfunctioning record
1 CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING
Is it the first time for maintenance of SRS?YesorNo
Ye s EGo to DIAGNOSTIC PROCEDURE 5 (RS-44). (Further inspection cannot be performed without CONSULT-II.)
No EDiagnosis results (previously stored in the memory) might not be erased after repair. Go to DIAGNOSTIC PRO-
CEDURE 7, step 5 (RS-53).
Trouble Diagnoses: ªAIR BAGº Warning Lamp
Does Not Turn Off
DIAGNOSTIC PROCEDURE 9
1 SEE THE DEPLOYMENT OF AIR BAG MODULE
Is air bag module deployed?
YesorNo
Ye s ERefer to COLLISION DIAGNOSIS (RS-59).
No EGO TO 2.
2 CHECK AIR BAG FUSE
Is SRS ªAir Bagº fuse OK?
NRS093
OK or NG
OK EGO TO 4.
NG EGO TO 3.
3 CHECK AIR BAG FUSE AGAIN
Replace ªAIR BAGº fuse and turn ignition switch ON.
Is ªAIR BAGº fuse blown again?
Ye s ERepair main harness.
No EINSPECTION END
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-56
http://vnx.su/

4 CHECK DIAGNOSIS SENSOR UNIT
Connect CONSULT-II and touch ªSTARTº.
IIs ªAIR BAGº displayed on CONSULT-II?
C2SSE01
YesorNo
Ye s EGO TO 5.
No EVisually check the wiring harness connection of diagnosis sensor unit. If the harness connection check result is
OK, replace diagnosis sensor unit.
5 CHECK HARNESS CONNECTION
Is harness connection between warning lamp and diagnosis sensor unit OK?
OK or NG
OK EReplace diagnosis sensor unit.
NG EConnect ªAIR BAGº warning lamp and diagnosis sensor unit connector properly. If ªAIR BAGº warning lamp still
does not go off, replace harness.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses: ªAIR BAGº Warning Lamp
Does Not Turn Off (Cont'd)
RS-57
http://vnx.su/

Trouble Diagnoses: ªAIR BAGº Warning Lamp
Does Not Turn On
DIAGNOSTIC PROCEDURE 10
1 CHECK ªMETERº FUSE
Is meter fuse OK?
NRS092
OK or NG
OK EGO TO 3.
NG EGO TO 2.
2 CHECK ªMETERº FUSE AGAIN
Replace meter fuse and turn ignition switch ON.
Is meter fuse blown again?
Ye s ERepair main harness.
No EINSPECTION END
3 CHECK ªAIR BAGº WARNING LAMP LED
Is ªAIR BAGº warning lamp LED OK?
OK or NG
OK EGO TO 4.
NG EReplace ªAIR BAGº warning lamp LED.
4 CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND ªAIR BAGº WARNING LAMP
Disconnect diagnosis sensor unit connector and turn ignition switch ªONº.
IDoes ªAIR BAGº warning lamp turn on?
YesorNo
Ye s EReplace diagnosis sensor unit.
No ECheck the ground circuit of ªAIR BAGº warning lamp.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-58
http://vnx.su/

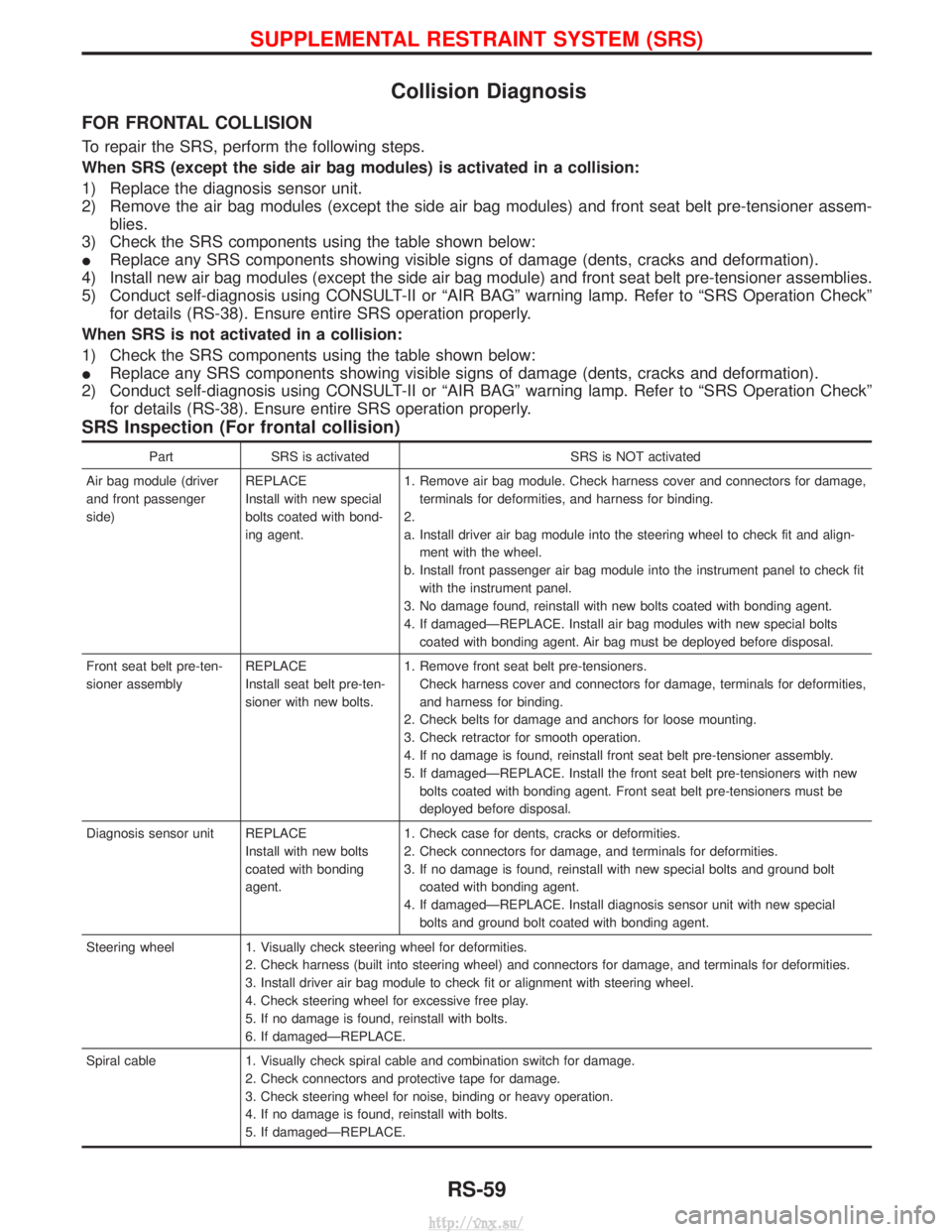

Collision Diagnosis
FOR FRONTAL COLLISION
To repair the SRS, perform the following steps.
When SRS (except the side air bag modules) is activated in a collision:
1) Replace the diagnosis sensor unit.
2) Remove the air bag modules (except the side air bag modules) and front seat belt pre-tensioner assem-blies.
3) Check the SRS components using the table shown below:
I Replace any SRS components showing visible signs of damage (dents, cracks and deformation).
4) Install new air bag modules (except the side air bag module) and front seat belt pre-tensioner assemblies.
5) Conduct self-diagnosis using CONSULT-II or ªAIR BAGº warning lamp. Refer to ªSRS Operation Checkº for details (RS-38). Ensure entire SRS operation properly.
When SRS is not activated in a collision:
1) Check the SRS components using the table shown below:
I Replace any SRS components showing visible signs of damage (dents, cracks and deformation).
2) Conduct self-diagnosis using CONSULT-II or ªAIR BAGº warning lamp. Refer to ªSRS Operation Checkº for details (RS-38). Ensure entire SRS operation properly.
SRS Inspection (For frontal collision)
Part SRS is activated SRS is NOT activated
Air bag module (driver
and front passenger
side) REPLACE
Install with new special
bolts coated with bond-
ing agent.1. Remove air bag module. Check harness cover and connectors for damage,
terminals for deformities, and harness for binding.
2.
a. Install driver air bag module into the steering wheel to check fit and align- ment with the wheel.
b. Install front passenger air bag module into the instrument panel to check fit with the instrument panel.
3. No damage found, reinstall with new bolts coated with bonding agent.
4. If damagedÐREPLACE. Install air bag modules with new special bolts coated with bonding agent. Air bag must be deployed before disposal.
Front seat belt pre-ten-
sioner assembly REPLACE
Install seat belt pre-ten-
sioner with new bolts.1. Remove front seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformities,
and harness for binding.
2. Check belts for damage and anchors for loose mounting.
3. Check retractor for smooth operation.
4. If no damage is found, reinstall front seat belt pre-tensioner assembly.
5. If damagedÐREPLACE. Install the front seat belt pre-tensioners with new bolts coated with bonding agent. Front seat belt pre-tensioners must be
deployed before disposal.
Diagnosis sensor unit REPLACE Install with new bolts
coated with bonding
agent.1. Check case for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall with new special bolts and ground bolt
coated with bonding agent.
4. If damagedÐREPLACE. Install diagnosis sensor unit with new special bolts and ground bolt coated with bonding agent.
Steering wheel 1. Visually check steering wheel for deformities. 2. Check harness (built into steering wheel) and connectors for damage, and terminals for deformities.
3. Install driver air bag module to check fit or alignment with steering wheel.
4. Check steering wheel for excessive free play.
5. If no damage is found, reinstall with bolts.
6. If damagedÐREPLACE.
Spiral cable 1. Visually check spiral cable and combination switch for damage. 2. Check connectors and protective tape for damage.
3. Check steering wheel for noise, binding or heavy operation.
4. If no damage is found, reinstall with bolts.
5. If damagedÐREPLACE.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-59
http://vnx.su/

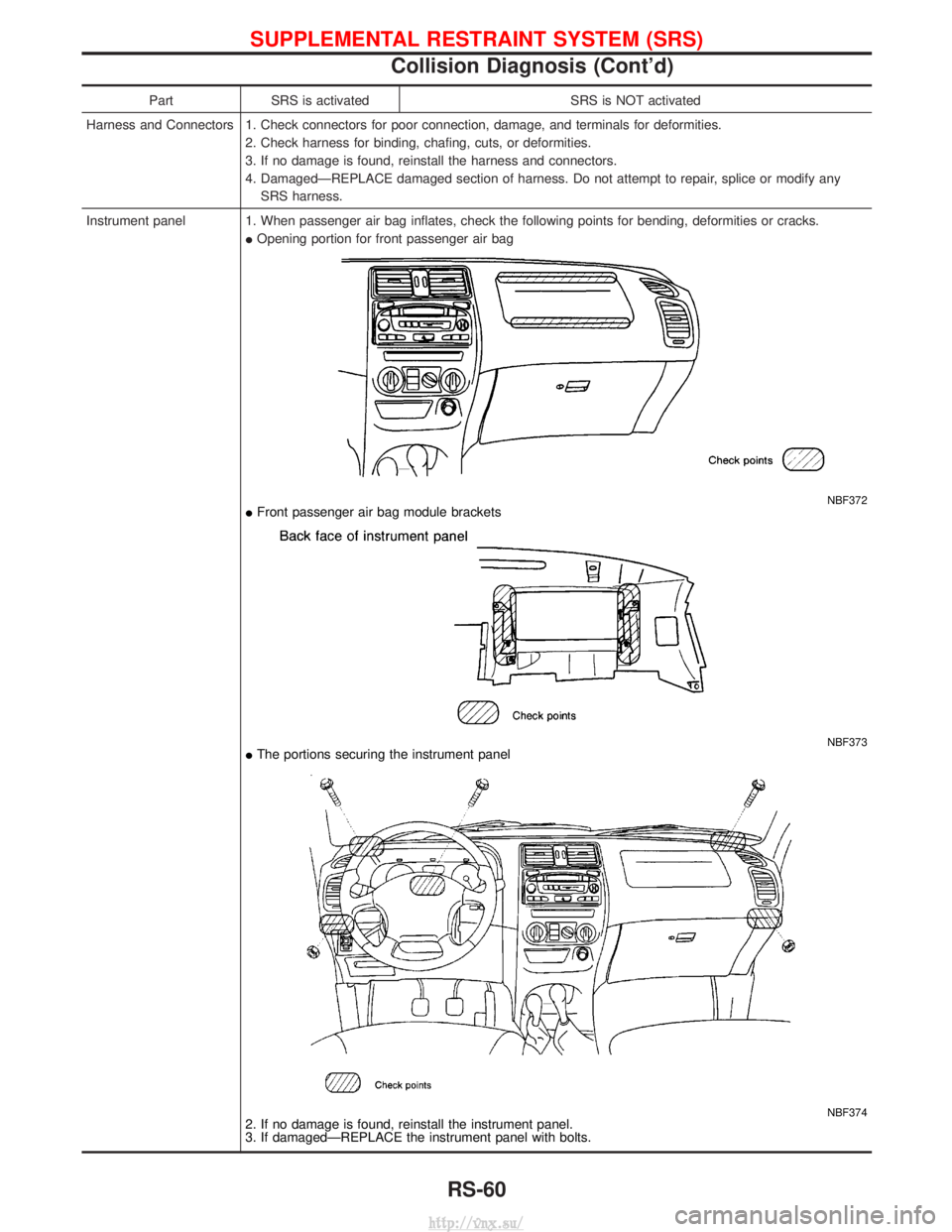

PartSRS is activated SRS is NOT activated
Harness and Connectors 1. Check connectors for poor connection, damage, and terminals for deformities. 2. Check harness for binding, chafing, cuts, or deformities.
3. If no damage is found, reinstall the harness and connectors.
4. DamagedÐREPLACE damaged section of harness. Do not attempt to repair, splice or modify anySRS harness.
Instrument panel 1. When passenger air bag inflates, check the following points for bending, deformities or cracks. IOpening portion for front passenger air bag
NBF372IFront passenger air bag module brackets
NBF373IThe portions securing the instrument panel
NBF3742. If no damage is found, reinstall the instrument panel.
3. If damagedÐREPLACE the instrument panel with bolts.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Collision Diagnosis (Cont'd)
RS-60
http://vnx.su/

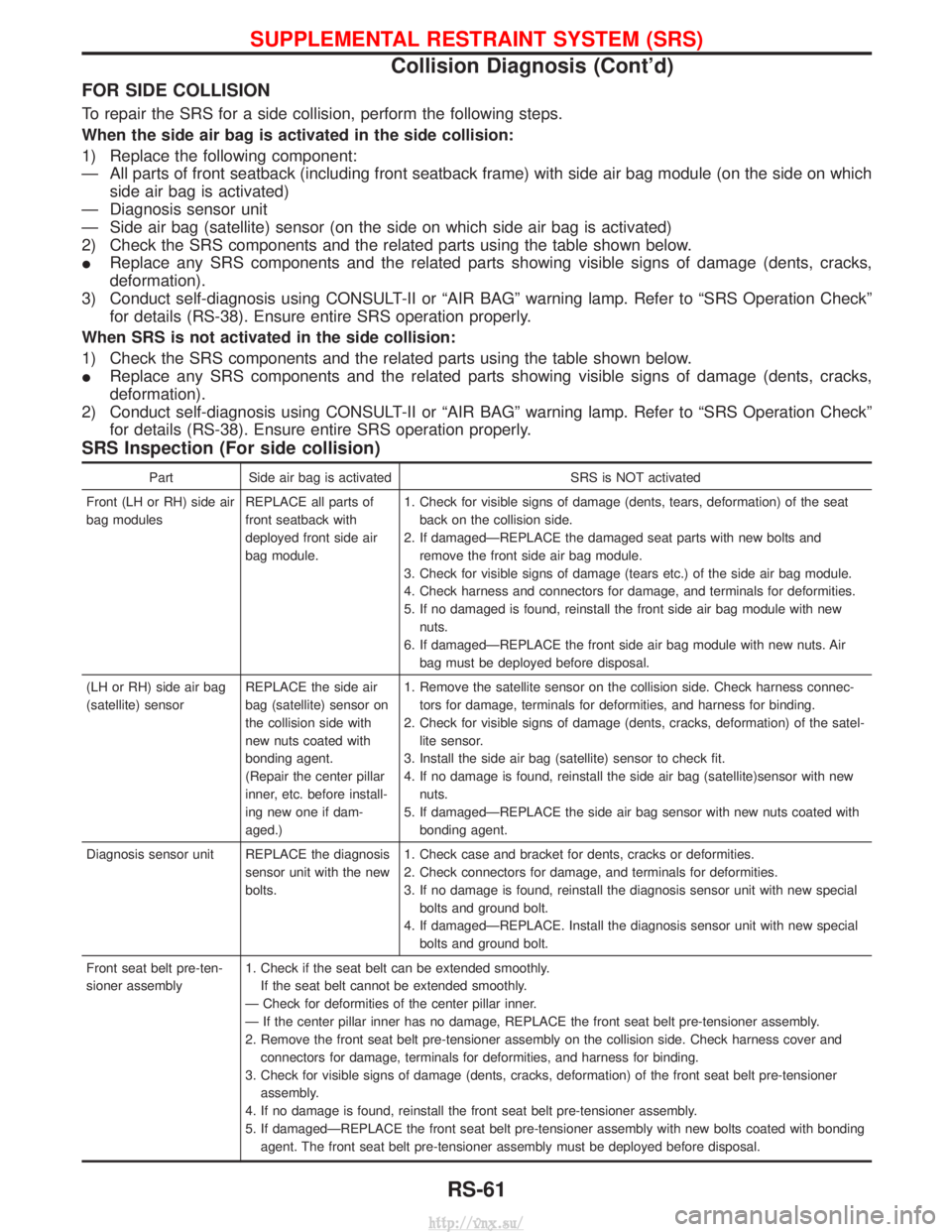

FOR SIDE COLLISION
To repair the SRS for a side collision, perform the following steps.
When the side air bag is activated in the side collision:
1) Replace the following component:
Ð All parts of front seatback (including front seatback frame) with side air bag module (on the side on whichside air bag is activated)
Ð Diagnosis sensor unit
Ð Side air bag (satellite) sensor (on the side on which side air bag is activated)
2) Check the SRS components and the related parts using the table shown below.
I Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
3) Conduct self-diagnosis using CONSULT-II or ªAIR BAGº warning lamp. Refer to ªSRS Operation Checkº for details (RS-38). Ensure entire SRS operation properly.
When SRS is not activated in the side collision:
1) Check the SRS components and the related parts using the table shown below.
I Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
2) Conduct self-diagnosis using CONSULT-II or ªAIR BAGº warning lamp. Refer to ªSRS Operation Checkº for details (RS-38). Ensure entire SRS operation properly.
SRS Inspection (For side collision)
Part Side air bag is activated SRS is NOT activated
Front (LH or RH) side air
bag modules REPLACE all parts of
front seatback with
deployed front side air
bag module.1. Check for visible signs of damage (dents, tears, deformation) of the seat
back on the collision side.
2. If damagedÐREPLACE the damaged seat parts with new bolts and remove the front side air bag module.
3. Check for visible signs of damage (tears etc.) of the side air bag module.
4. Check harness and connectors for damage, and terminals for deformities.
5. If no damaged is found, reinstall the front side air bag module with new nuts.
6. If damagedÐREPLACE the front side air bag module with new nuts. Air bag must be deployed before disposal.
(LH or RH) side air bag
(satellite) sensor REPLACE the side air
bag (satellite) sensor on
the collision side with
new nuts coated with
bonding agent.
(Repair the center pillar
inner, etc. before install-
ing new one if dam-
aged.)1. Remove the satellite sensor on the collision side. Check harness connec-
tors for damage, terminals for deformities, and harness for binding.
2. Check for visible signs of damage (dents, cracks, deformation) of the satel- lite sensor.
3. Install the side air bag (satellite) sensor to check fit.
4. If no damage is found, reinstall the side air bag (satellite)sensor with new nuts.
5. If damagedÐREPLACE the side air bag sensor with new nuts coated with bonding agent.
Diagnosis sensor unit REPLACE the diagnosis sensor unit with the new
bolts.1. Check case and bracket for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall the diagnosis sensor unit with new special
bolts and ground bolt.
4. If damagedÐREPLACE. Install the diagnosis sensor unit with new special bolts and ground bolt.
Front seat belt pre-ten-
sioner assembly 1. Check if the seat belt can be extended smoothly.
If the seat belt cannot be extended smoothly.
Ð Check for deformities of the center pillar inner.
Ð If the center pillar inner has no damage, REPLACE the front seat belt pre-tensioner assembly.
2. Remove the front seat belt pre-tensioner assembly on the collision side. Check harness cover and connectors for damage, terminals for deformities, and harness for binding.
3. Check for visible signs of damage (dents, cracks, deformation) of the front seat belt pre-tensioner assembly.
4. If no damage is found, reinstall the front seat belt pre-tensioner assembly.
5. If damagedÐREPLACE the front seat belt pre-tensioner assembly with new bolts coated with bonding agent. The front seat belt pre-tensioner assembly must be deployed before disposal.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Collision Diagnosis (Cont'd)
RS-61
http://vnx.su/
