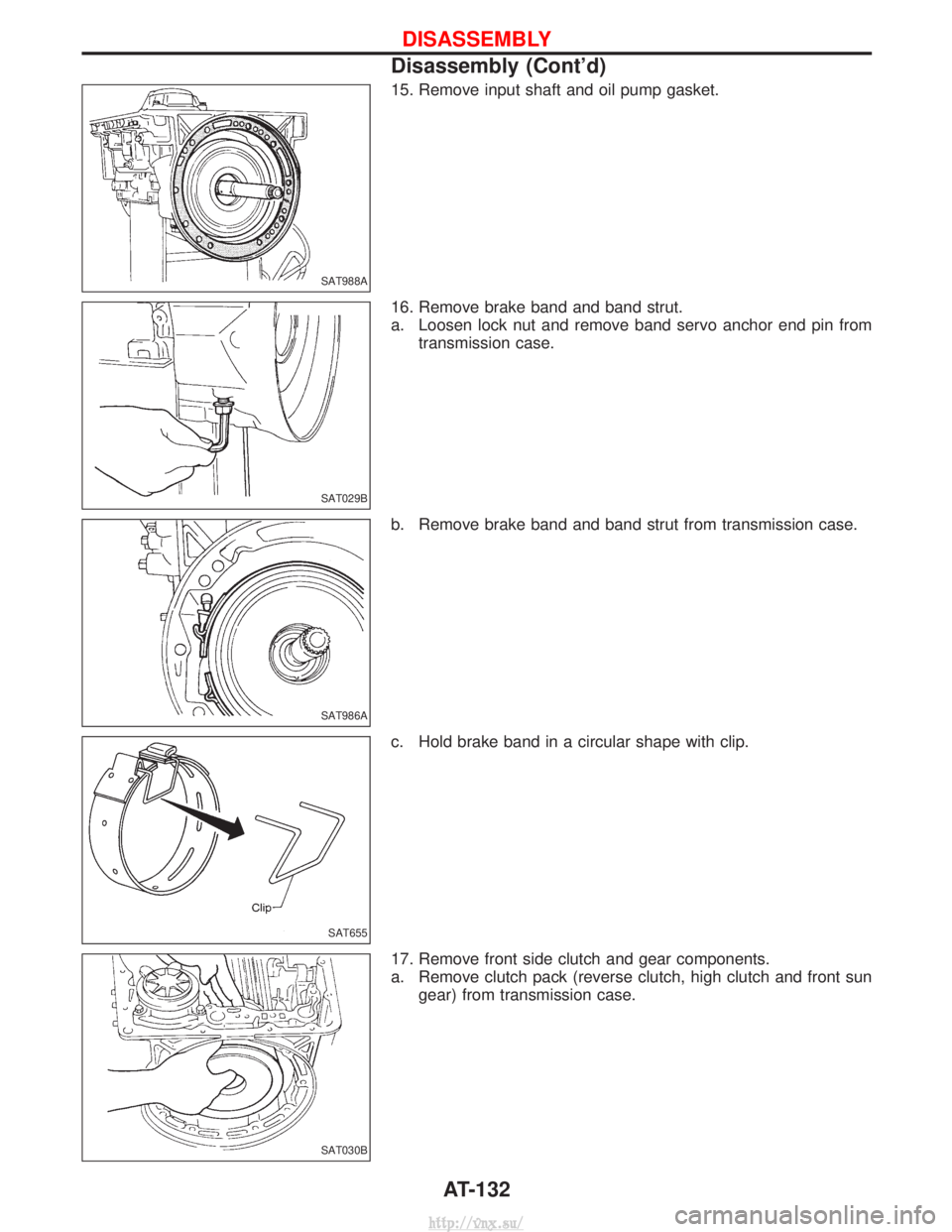

15. Remove input shaft and oil pump gasket.
16. Remove brake band and band strut.
a. Loosen lock nut and remove band servo anchor end pin fromtransmission case.
b. Remove brake band and band strut from transmission case.
c. Hold brake band in a circular shape with clip.
17. Remove front side clutch and gear components.
a. Remove clutch pack (reverse clutch, high clutch and front sun gear) from transmission case.
SAT988A
SAT029B
SAT986A
SAT655
SAT030B
DISASSEMBLY
Disassembly (Cont'd)
AT-132
http://vnx.su/

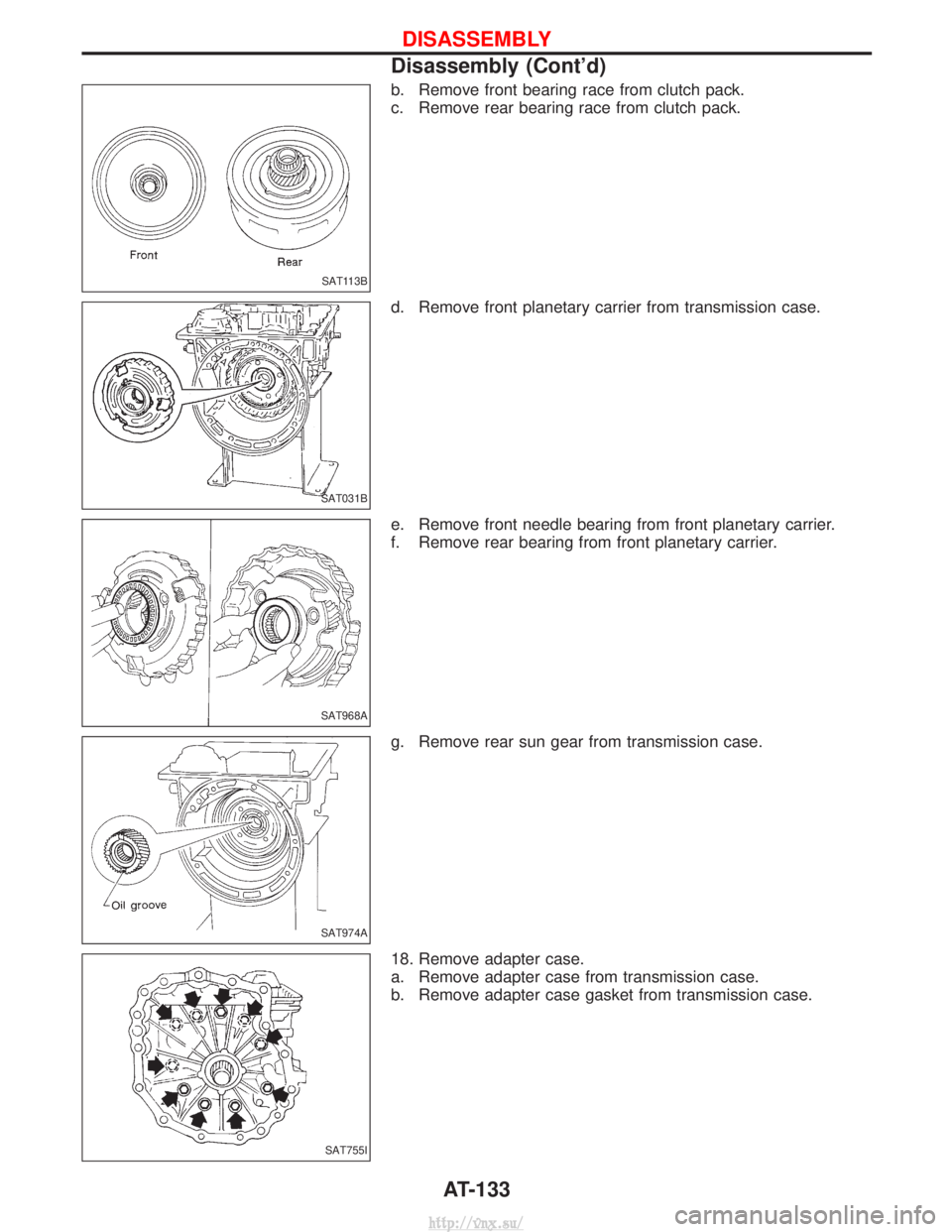

b. Remove front bearing race from clutch pack.
c. Remove rear bearing race from clutch pack.
d. Remove front planetary carrier from transmission case.
e. Remove front needle bearing from front planetary carrier.
f. Remove rear bearing from front planetary carrier.
g. Remove rear sun gear from transmission case.
18. Remove adapter case.
a. Remove adapter case from transmission case.
b. Remove adapter case gasket from transmission case.
SAT113B
SAT031B
SAT968A
SAT974A
SAT755I
DISASSEMBLY
Disassembly (Cont'd)AT-133
http://vnx.su/

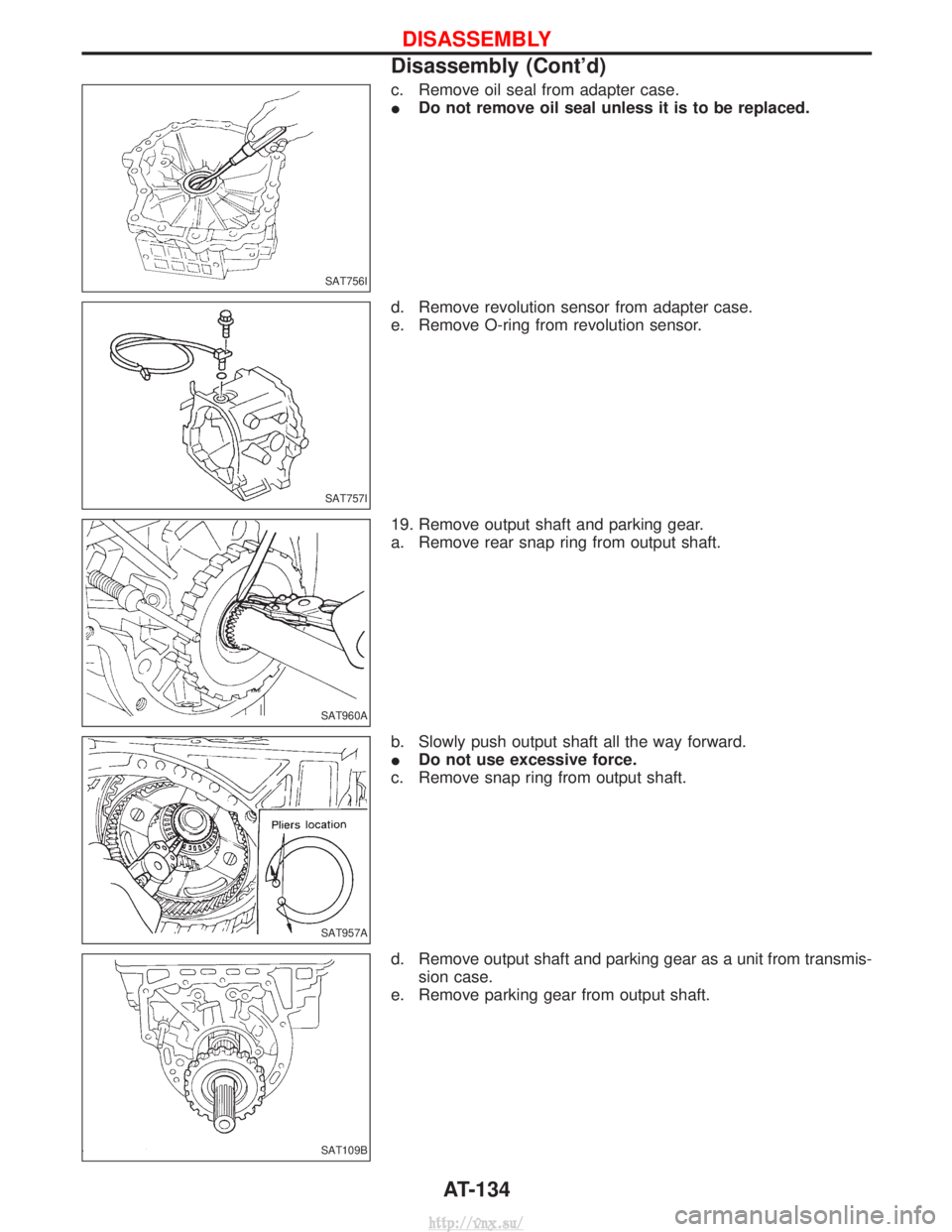

c. Remove oil seal from adapter case.
IDo not remove oil seal unless it is to be replaced.
d. Remove revolution sensor from adapter case.
e. Remove O-ring from revolution sensor.
19. Remove output shaft and parking gear.
a. Remove rear snap ring from output shaft.
b. Slowly push output shaft all the way forward.
I Do not use excessive force.
c. Remove snap ring from output shaft.
d. Remove output shaft and parking gear as a unit from transmis- sion case.
e. Remove parking gear from output shaft.
SAT756I
SAT757I
SAT960A
SAT957A
SAT109B
DISASSEMBLY
Disassembly (Cont'd)
AT-134
http://vnx.su/

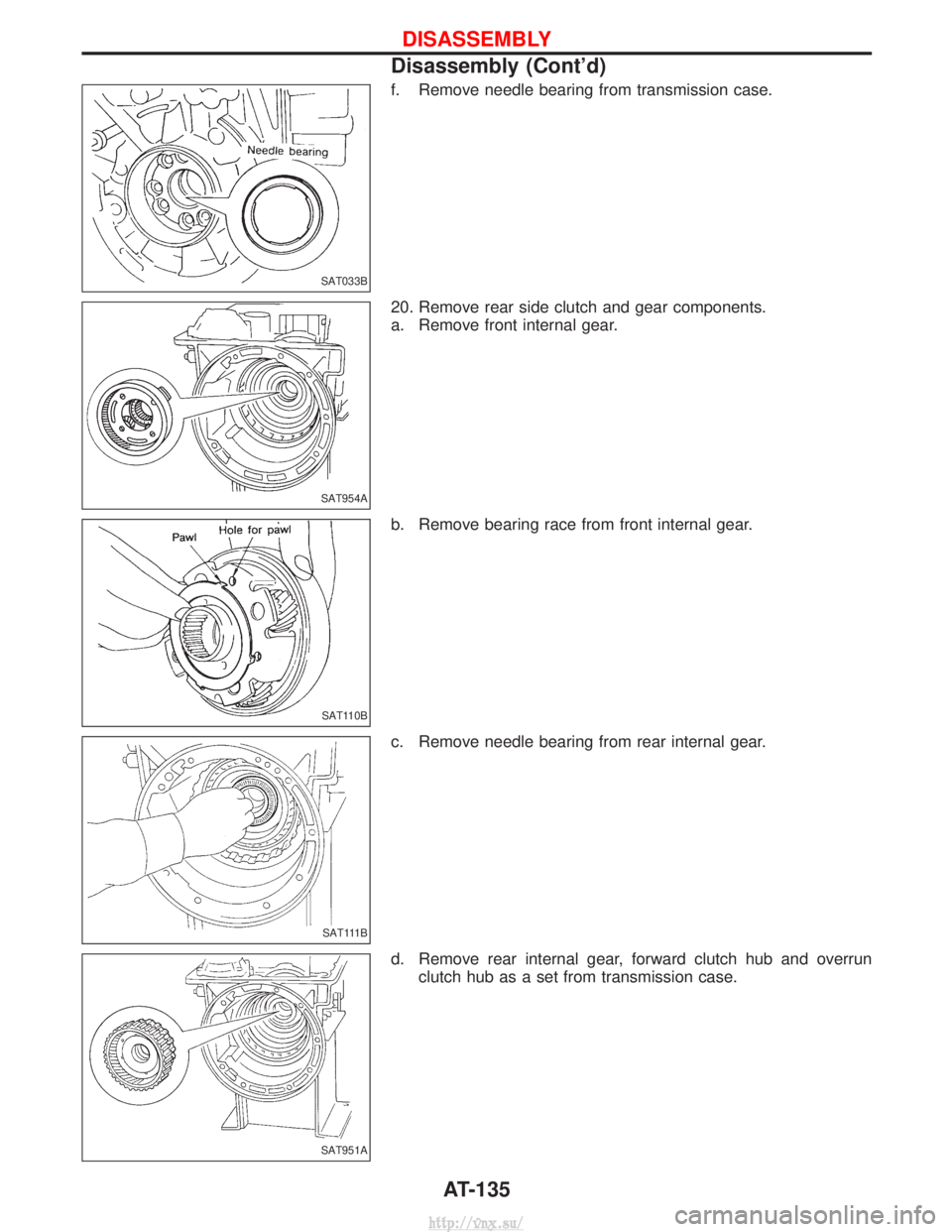

f. Remove needle bearing from transmission case.
20. Remove rear side clutch and gear components.
a. Remove front internal gear.
b. Remove bearing race from front internal gear.
c. Remove needle bearing from rear internal gear.
d. Remove rear internal gear, forward clutch hub and overrunclutch hub as a set from transmission case.
SAT033B
SAT954A
SAT110B
SAT111B
SAT951A
DISASSEMBLY
Disassembly (Cont'd)
AT-135
http://vnx.su/

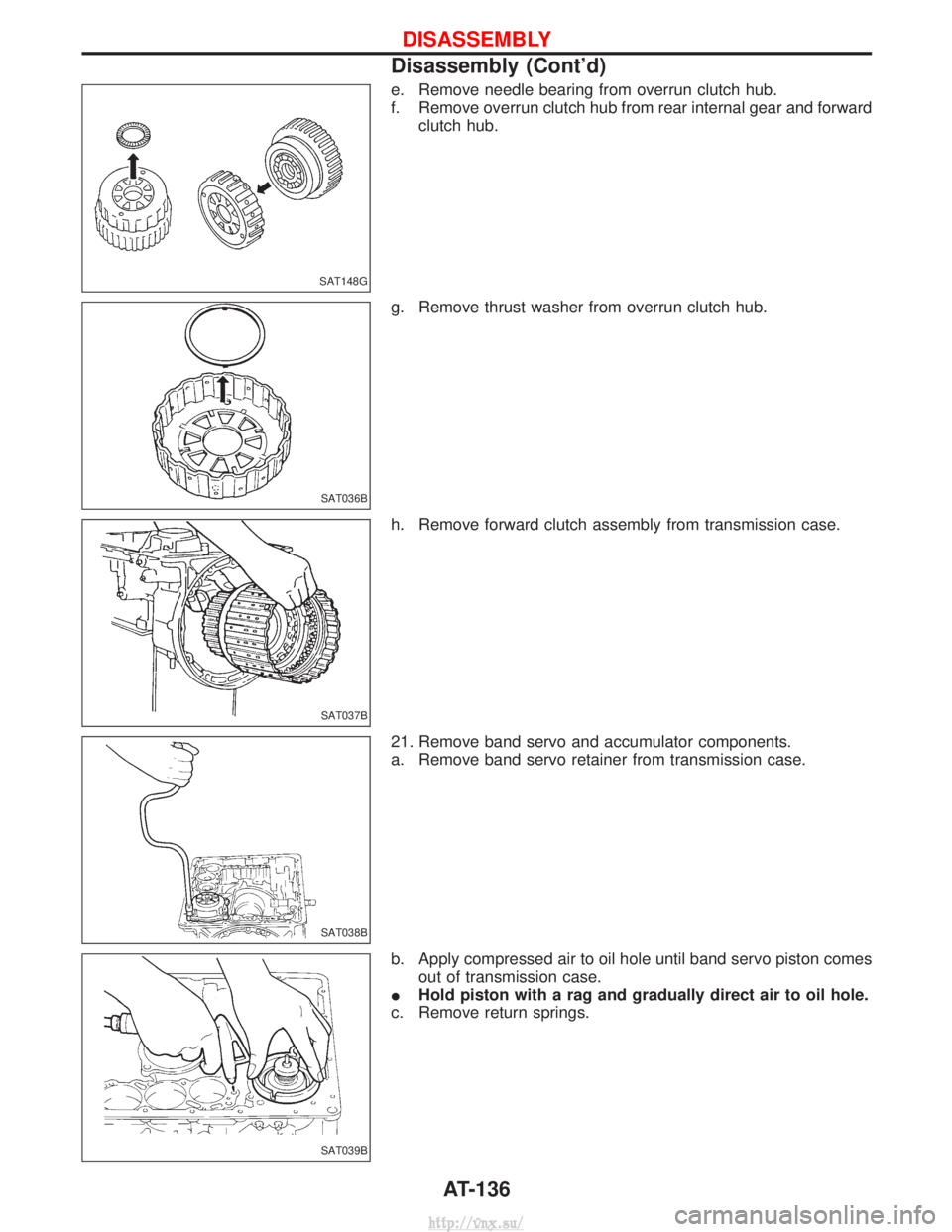

e. Remove needle bearing from overrun clutch hub.
f. Remove overrun clutch hub from rear internal gear and forwardclutch hub.
g. Remove thrust washer from overrun clutch hub.
h. Remove forward clutch assembly from transmission case.
21. Remove band servo and accumulator components.
a. Remove band servo retainer from transmission case.
b. Apply compressed air to oil hole until band servo piston comes out of transmission case.
I Hold piston with a rag and gradually direct air to oil hole.
c. Remove return springs.
SAT148G
SAT036B
SAT037B
SAT038B
SAT039B
DISASSEMBLY
Disassembly (Cont'd)
AT-136
http://vnx.su/

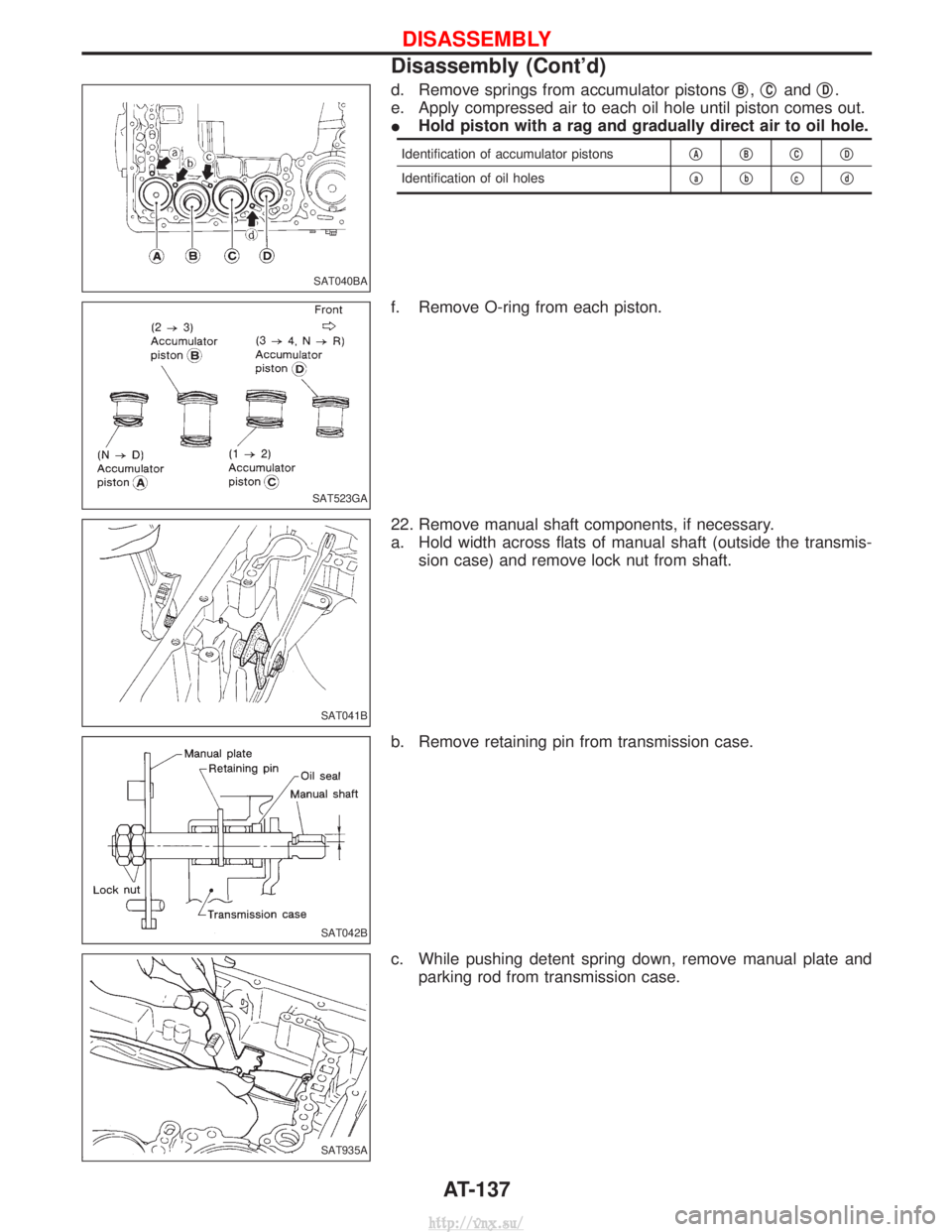

d. Remove springs from accumulator pistonsqB,qCand qD.
e. Apply compressed air to each oil hole until piston comes out.
I Hold piston with a rag and gradually direct air to oil hole.
Identification of accumulator pistons qAqBqCqD
Identification of oil holes qaqbqcqd
f. Remove O-ring from each piston.
22. Remove manual shaft components, if necessary.
a. Hold width across flats of manual shaft (outside the transmis-
sion case) and remove lock nut from shaft.
b. Remove retaining pin from transmission case.
c. While pushing detent spring down, remove manual plate and parking rod from transmission case.
SAT040BA
SAT523GA
SAT041B
SAT042B
SAT935A
DISASSEMBLY
Disassembly (Cont'd)
AT-137
http://vnx.su/

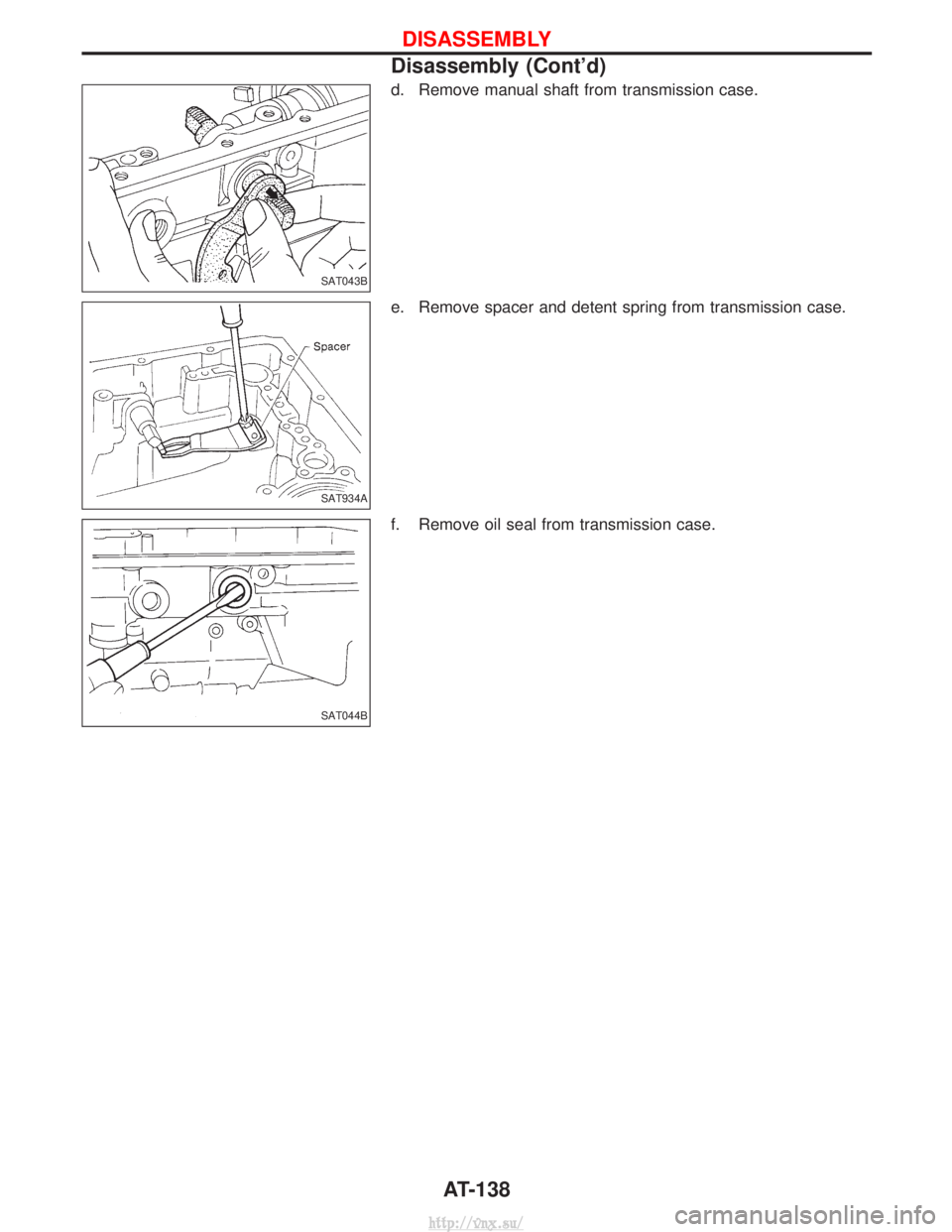

d. Remove manual shaft from transmission case.
e. Remove spacer and detent spring from transmission case.
f. Remove oil seal from transmission case.
SAT043B
SAT934A
SAT044B
DISASSEMBLY
Disassembly (Cont'd)AT-138
http://vnx.su/

Oil Pump
DISASSEMBLY
1. Loosen bolts in numerical order and remove oil pump cover.
2. Remove rotor, vane rings and vanes.
IInscribe a mark on back of rotor for identification of fore-
aft direction when reassembling rotor. Then remove rotor.
3. While pushing on cam ring remove pivot pin.
I Be careful not to scratch oil pump housing.
SAT648AB
SAT649A
SAT650A
SAT651A
REPAIR FOR COMPONENT PARTS
AT-139
