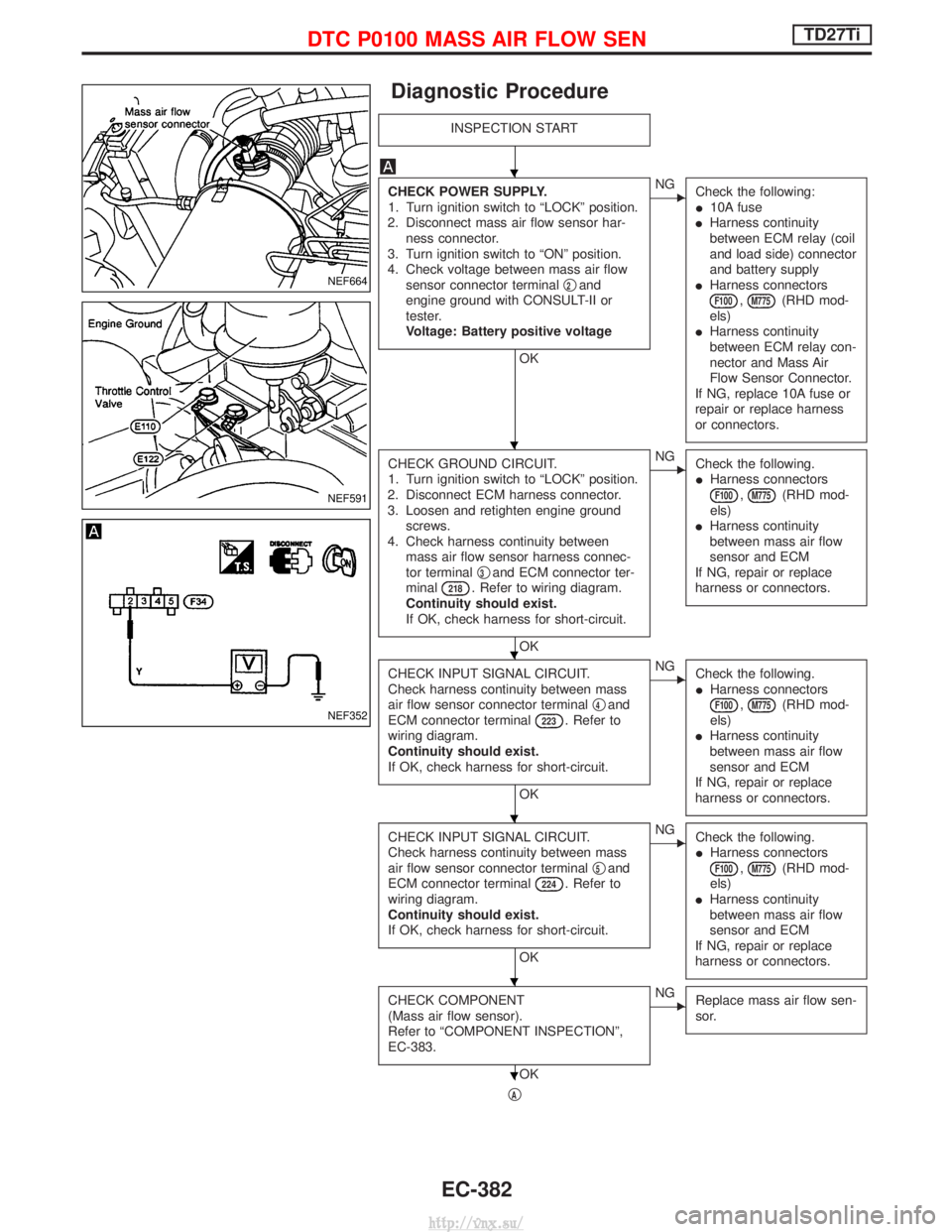

Diagnostic Procedure
INSPECTION START
CHECK POWER SUPPLY.
1. Turn ignition switch to ªLOCKº position.
2. Disconnect mass air flow sensor har- ness connector.
3. Turn ignition switch to ªONº position.
4. Check voltage between mass air flow sensor connector terminal q
2and
engine ground with CONSULT-II or
tester.
Voltage: Battery positive voltage
OK
ENG Check the following:
I10A fuse
I Harness continuity
between ECM relay (coil
and load side) connector
and battery supply
I Harness connectors
F100,M775(RHD mod-
els)
I Harness continuity
between ECM relay con-
nector and Mass Air
Flow Sensor Connector.
If NG, replace 10A fuse or
repair or replace harness
or connectors.
CHECK GROUND CIRCUIT.
1. Turn ignition switch to ªLOCKº position.
2. Disconnect ECM harness connector.
3. Loosen and retighten engine ground screws.
4. Check harness continuity between mass air flow sensor harness connec-
tor terminal q
3and ECM connector ter-
minal218. Refer to wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.
OK
ENG Check the following.
IHarness connectors
F100,M775(RHD mod-
els)
I Harness continuity
between mass air flow
sensor and ECM
If NG, repair or replace
harness or connectors.
CHECK INPUT SIGNAL CIRCUIT.
Check harness continuity between mass
air flow sensor connector terminal q
4and
ECM connector terminal223. Refer to
wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.
OK
ENG Check the following.
IHarness connectors
F100,M775(RHD mod-
els)
I Harness continuity
between mass air flow
sensor and ECM
If NG, repair or replace
harness or connectors.
CHECK INPUT SIGNAL CIRCUIT.
Check harness continuity between mass
air flow sensor connector terminal q
5and
ECM connector terminal224. Refer to
wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.
OK
ENG Check the following.
IHarness connectors
F100,M775(RHD mod-
els)
I Harness continuity
between mass air flow
sensor and ECM
If NG, repair or replace
harness or connectors.
CHECK COMPONENT
(Mass air flow sensor).
Refer to ªCOMPONENT INSPECTIONº,
EC-383.
OK
ENG Replace mass air flow sen-
sor.
qA
NEF664
NEF591
NEF352
H
H
H
H
H
H
DTC P0100 MASS AIR FLOW SENTD27Ti
EC-382
http://vnx.su/

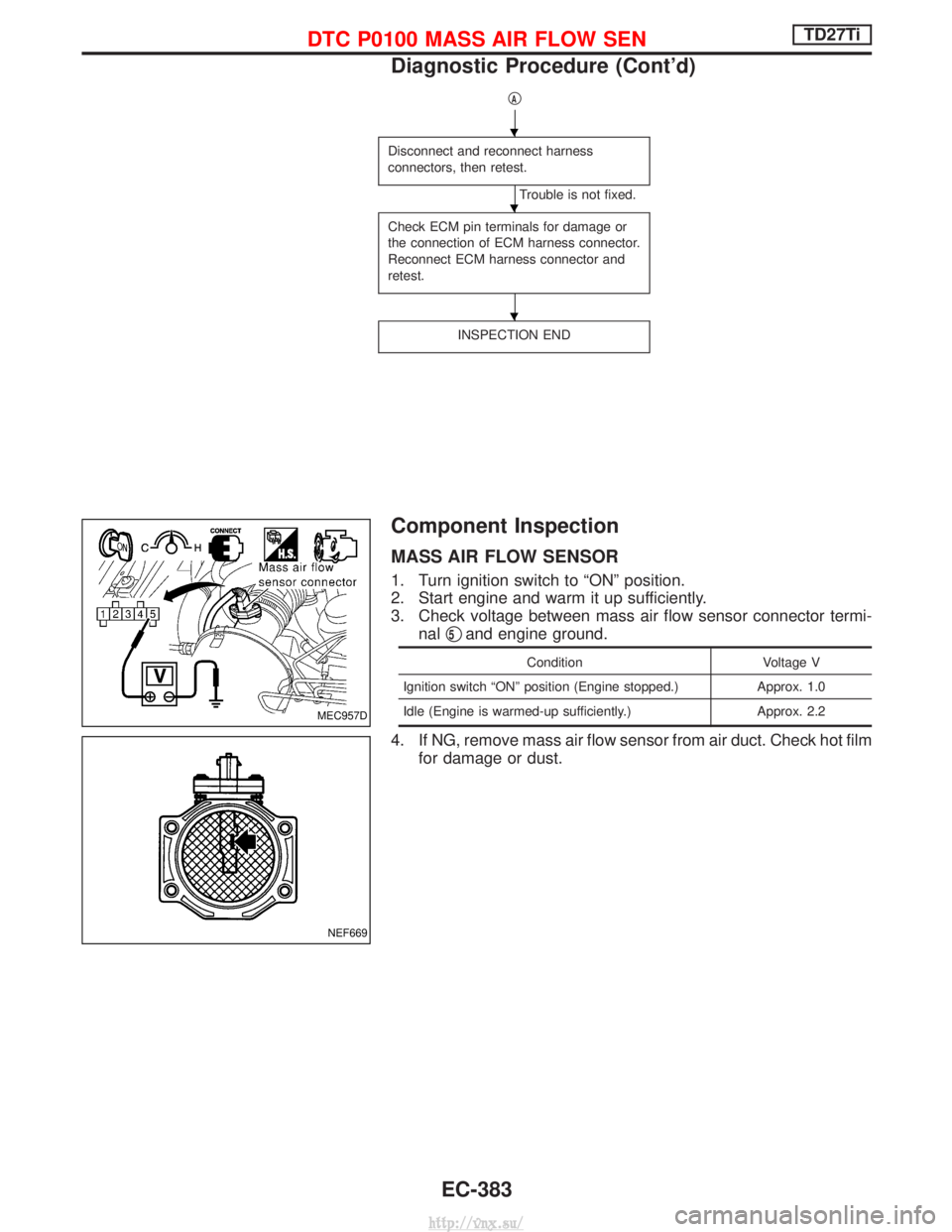

qA
Disconnect and reconnect harness
connectors, then retest.
Trouble is not fixed.
Check ECM pin terminals for damage or
the connection of ECM harness connector.
Reconnect ECM harness connector and
retest.
INSPECTION END
Component Inspection
MASS AIR FLOW SENSOR
1. Turn ignition switch to ªONº position.
2. Start engine and warm it up sufficiently.
3. Check voltage between mass air flow sensor connector termi- nalq
5and engine ground.
Condition
Voltage V
Ignition switch ªONº position (Engine stopped.) Approx. 1.0
Idle (Engine is warmed-up sufficiently.) Approx. 2.2
4. If NG, remove mass air flow sensor from air duct. Check hot film
for damage or dust.
MEC957D
NEF669
H
H
H
DTC P0100 MASS AIR FLOW SENTD27Ti
Diagnostic Procedure (Cont'd)
EC-383
http://vnx.su/

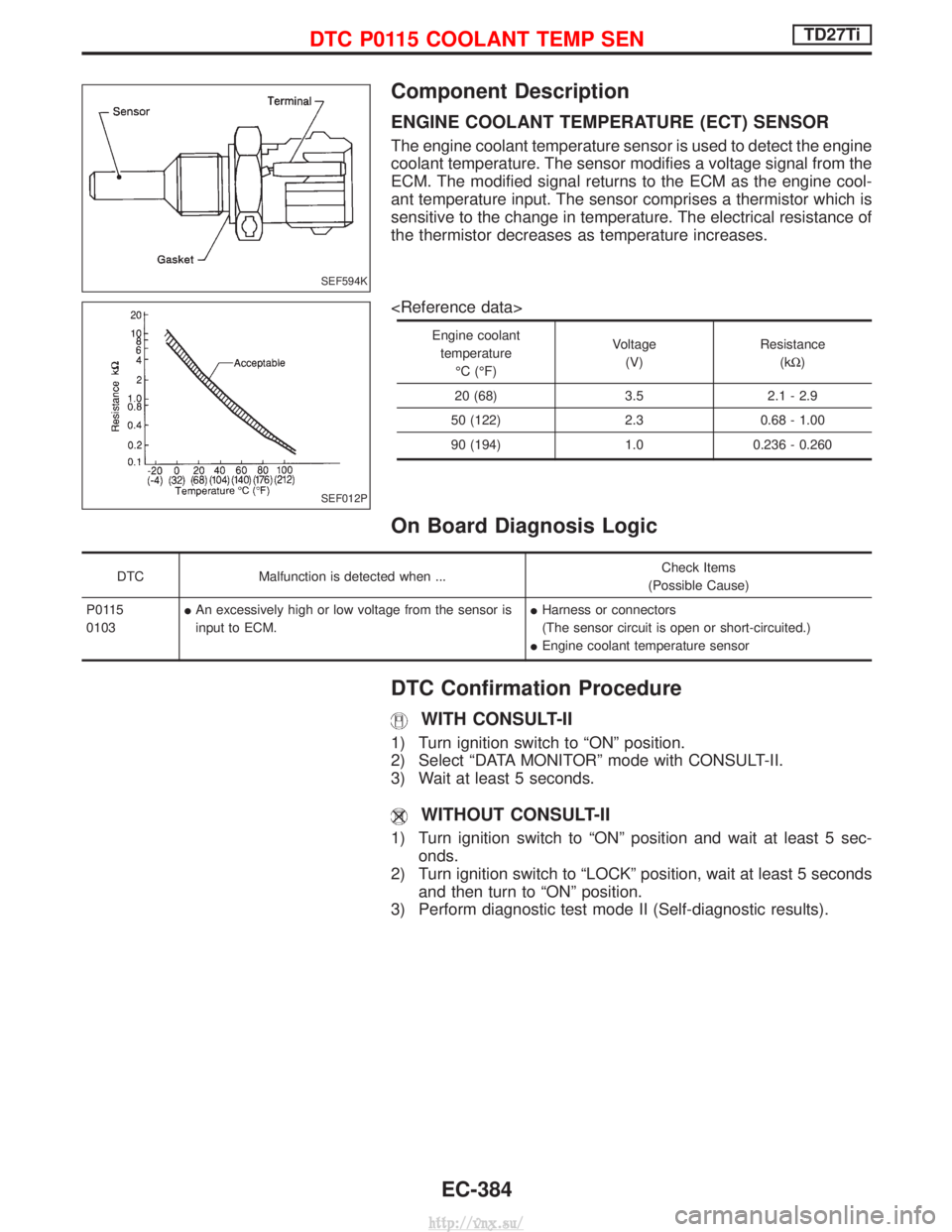

Component Description
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine cool-
ant temperature input. The sensor comprises a thermistor which is
sensitive to the change in temperature. The electrical resistance of
the thermistor decreases as temperature increases.

Engine coolanttemperature ÉC (ÉF) Voltage
(V) Resistance
(kW )
20 (68) 3.5 2.1 - 2.9
50 (122) 2.3 0.68 - 1.00
90 (194) 1.0 0.236 - 0.260
On Board Diagnosis Logic
DTC Malfunction is detected when ... Check Items
(Possible Cause)
P0115
0103 I
An excessively high or low voltage from the sensor is
input to ECM. I
Harness or connectors
(The sensor circuit is open or short-circuited.)
I Engine coolant temperature sensor
DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch to ªONº position.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Wait at least 5 seconds.
WITHOUT CONSULT-II
1) Turn ignition switch to ªONº position and wait at least 5 sec-
onds.
2) Turn ignition switch to ªLOCKº position, wait at least 5 seconds and then turn to ªONº position.
3) Perform diagnostic test mode II (Self-diagnostic results).
SEF594K
SEF012P
DTC P0115 COOLANT TEMP SENTD27Ti
EC-384
http://vnx.su/

Wiring Diagram
YEC675A
DTC P0115 COOLANT TEMP SENTD27Ti
EC-385
http://vnx.su/

Diagnostic Procedure
INSPECTION START
CHECK POWER SUPPLY.
1. Turn ignition switch to ªLOCKº position.
2. Disconnect engine coolant temperature sensor harness connector.
3. Turn ignition switch to ªONº position.
4. Check voltage between engine coolant temperature sensor connector terminal
q
1and engine ground with CONSULT-II
or tester.
Voltage: Approximately 4.9V
OK
ENG Check the following:
IHarness connectors
E151,F138(LHD model)
E151,M843(RHD
model)
I Harness for open or
short circuit between
ECM and engine coolant
temperature sensor.
If NG, repair harness or
connectors.
CHECK GROUND CIRCUIT.
1. Turn ignition switch to ªLOCKº position.
2. Check harness continuity between engine coolant temperature sensor
connector terminal q
2and ECM termi-
nal
334. Refer to wiring diagram.
Continuity should exist.
If OK, check harness for short-circuit.
OK
ENG Check the following:
IHarness connectors
E151,F138(LHD model)
E151,M843(RHD
model)
I Harness for open or
short circuit between
ECM and engine coolant
temperature sensor.
If NG, repair harness or
connectors.
CHECK COMPONENT
(Engine coolant temperature sensor).
Refer to EC-387.
OK
ENG Replace engine coolant
temperature sensor.
Disconnect and reconnect harness con-
nectors in the circuit. Then retest.
Trouble is not fixed.
Check ECM pin terminals for damage and
check the connection of ECM harness
connector. Reconnect ECM harness con-
nector and retest.
INSPECTION END
NEF487
NEF670
H
H
H
H
H
H
DTC P0115 COOLANT TEMP SENTD27Ti
EC-386
http://vnx.su/

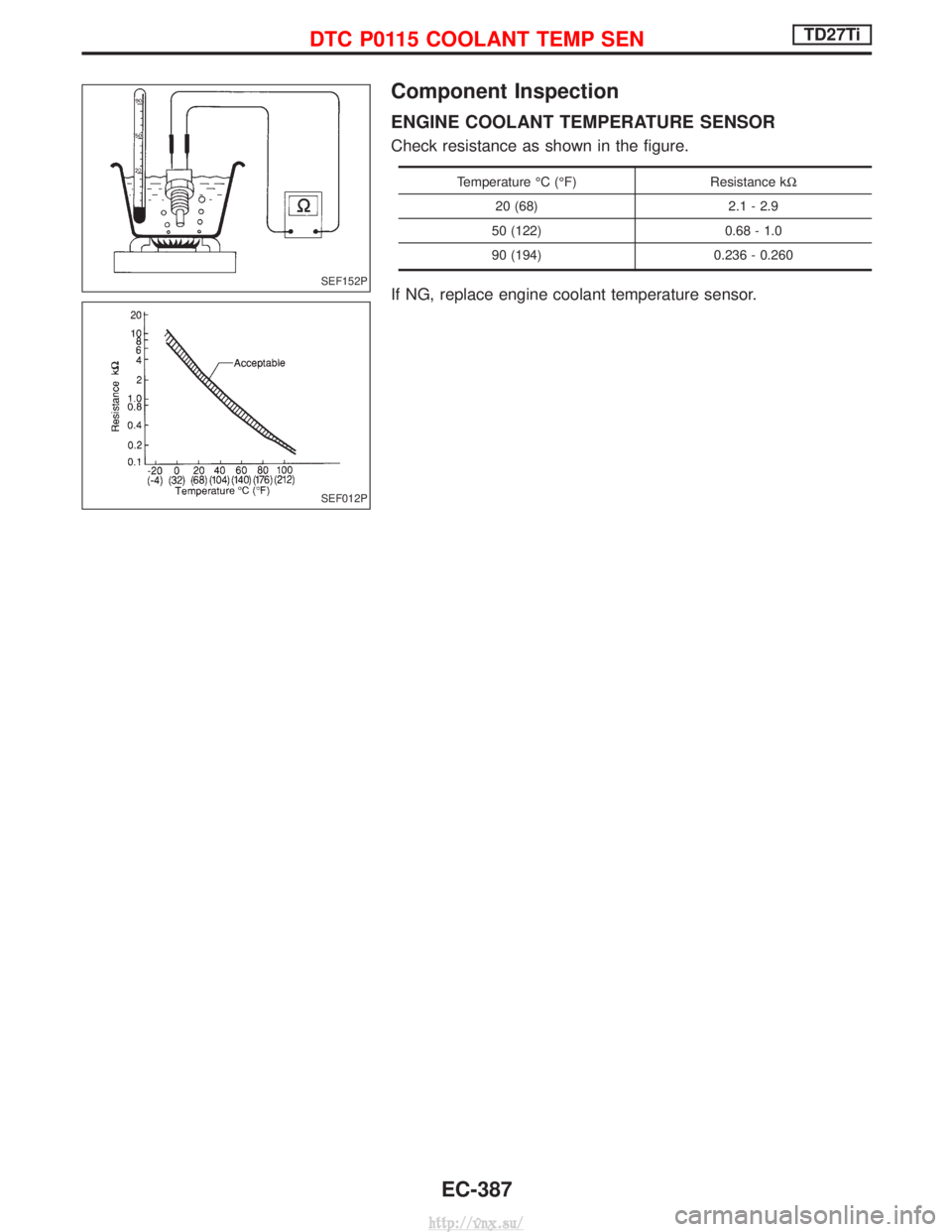

Component Inspection
ENGINE COOLANT TEMPERATURE SENSOR
Check resistance as shown in the figure.
Temperature ÉC (ÉF)Resistance kW
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.0
90 (194) 0.236 - 0.260
If NG, replace engine coolant temperature sensor.SEF152P
SEF012P
DTC P0115 COOLANT TEMP SENTD27Ti
EC-387
http://vnx.su/

Component Description
ACCELERATOR WORK UNIT
The accelerator position sensor is installed on the upper end of the
accelerator pedal assembly. The sensor detects the accelerator
position and sends a signal to the ECM. The ECM uses the signal
to determine the amount of fuel to be injected.
The accelerator position switch is installed inside the accelerator
position sensor. This switch is used for plausibility check of the
accelerator position sensor.
On Board Diagnosis Logic
DTCMalfunction is detected when ... Check Items
(Possible Cause)
P0120
0403 I
An excessively low or high voltage from the sensor is
detected by the ECM. I
Harness or connectors
(The sensor or switch circuit is open or
short-circuited.)
I Accelerator position sensor
I Accelerator position switch
DTC Confirmation Procedure A (For General
Plausibility)
WITH CONSULT-II
1) Turn ignition switch to ªONº position.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Depress accelerator pedal fully and keep it for at least 1 sec-
ond. Then release it and wait at least 5 seconds.
WITHOUT CONSULT-II
1) Turn ignition switch to ªONº position.
2) Depress accelerator pedal fully and keep it for at least 1 sec-ond. Then release it and wait at least 5 seconds.
3) Turn ignition switch to ªLOCKº position, wait at least 5 seconds and then turn to ªONº position.
4) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
MEC959D
DTC P0120 ACCEL POS SENSORTD27Ti
EC-388
http://vnx.su/

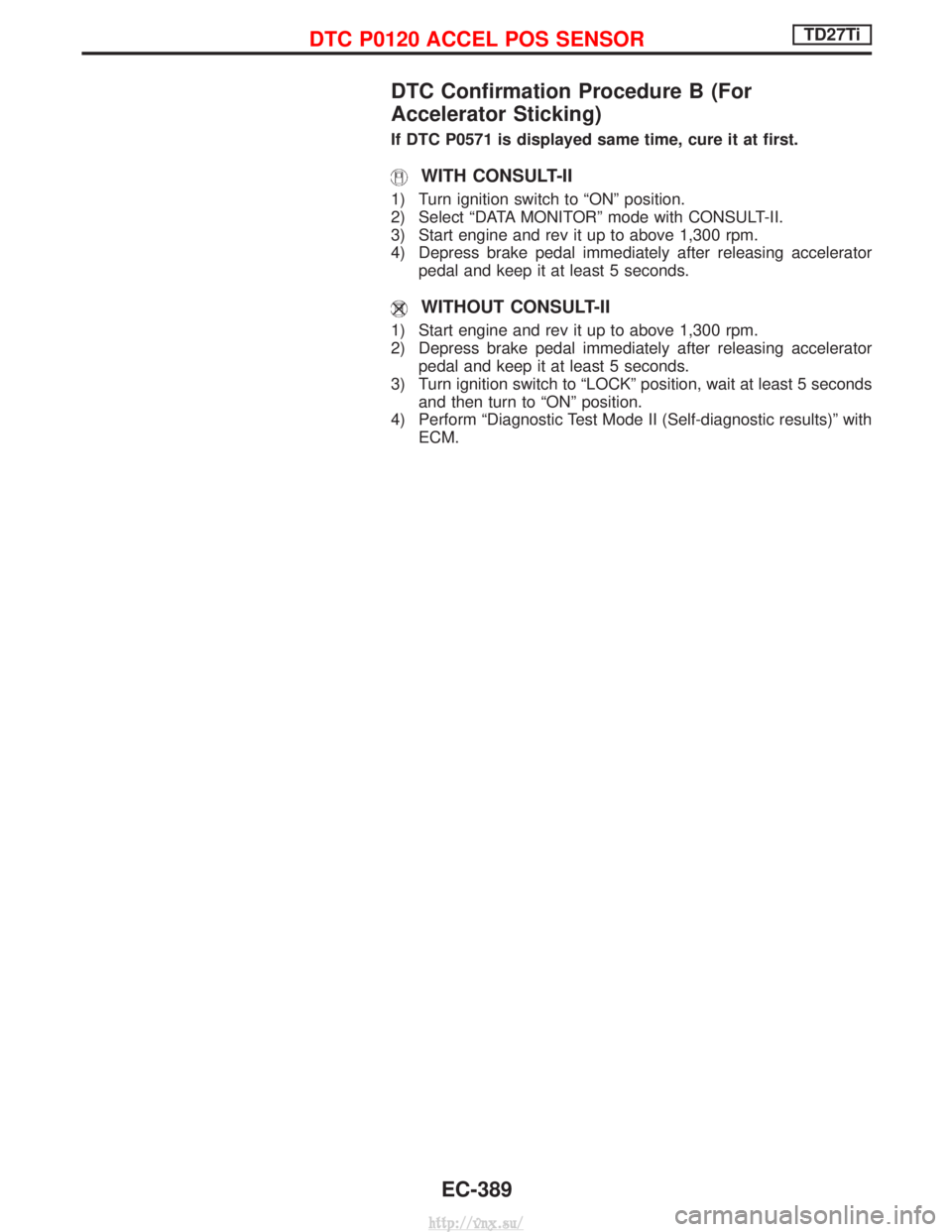

DTC Confirmation Procedure B (For
Accelerator Sticking)
If DTC P0571 is displayed same time, cure it at first.
WITH CONSULT-II
1) Turn ignition switch to ªONº position.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and rev it up to above 1,300 rpm.
4) Depress brake pedal immediately after releasing acceleratorpedal and keep it at least 5 seconds.
WITHOUT CONSULT-II
1) Start engine and rev it up to above 1,300 rpm.
2) Depress brake pedal immediately after releasing acceleratorpedal and keep it at least 5 seconds.
3) Turn ignition switch to ªLOCKº position, wait at least 5 seconds and then turn to ªONº position.
4) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
DTC P0120 ACCEL POS SENSORTD27Ti
