2004 NISSAN TERRANO Service Repair Manual

RHD MODELS
YEL771E
WARNING LAMPS AND CHIME
Wiring Diagram Ð WARN Ð (Cont'd)EL-108
http://vnx.su/

RHD MODELS
YEL772E
WARNING LAMPS AND CHIME
Wiring Diagram Ð WARN Ð (Cont'd)EL-109
http://vnx.su/

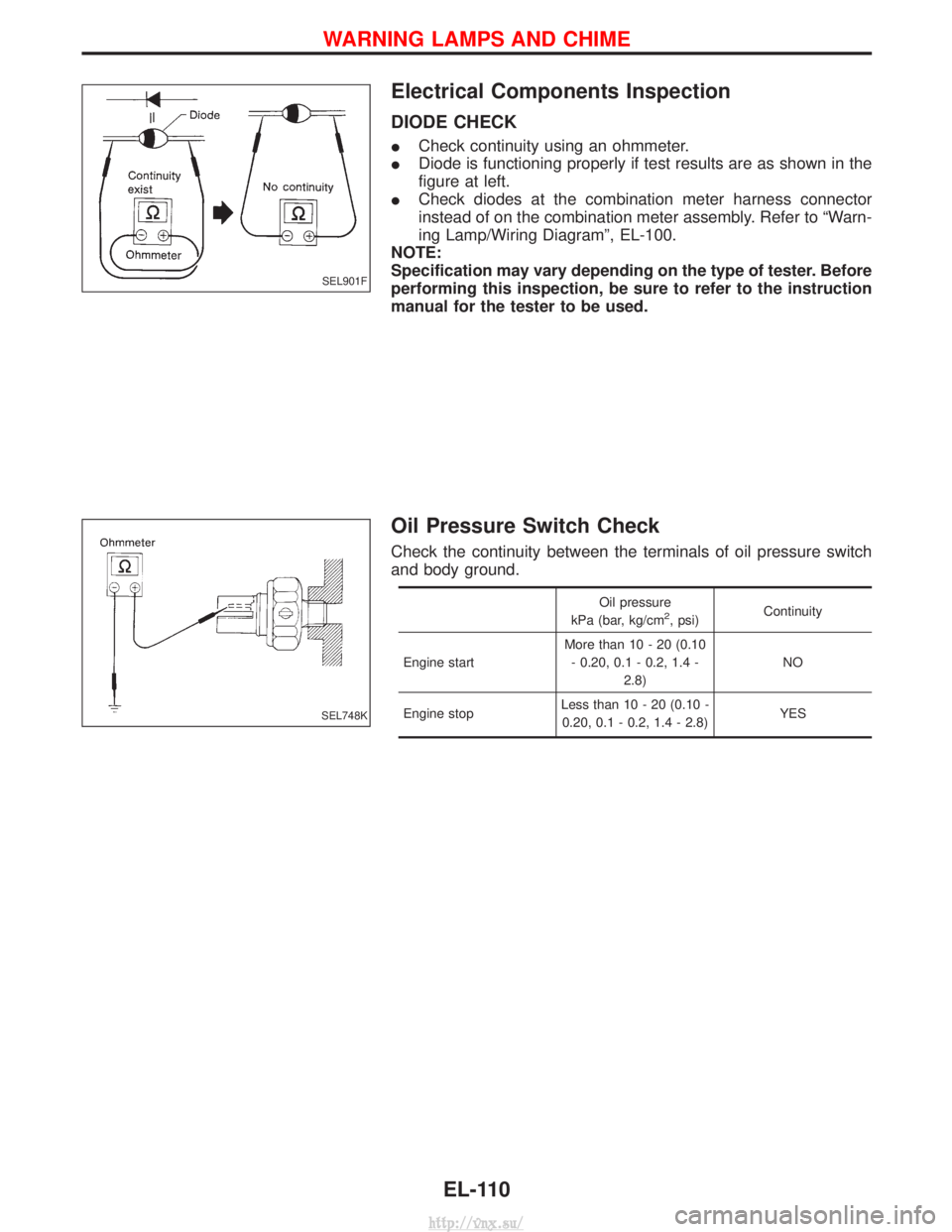

Electrical Components Inspection
DIODE CHECK
ICheck continuity using an ohmmeter.
I Diode is functioning properly if test results are as shown in the
figure at left.
I Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer to ªWarn-
ing Lamp/Wiring Diagramº, EL-100.
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
Oil Pressure Switch Check
Check the continuity between the terminals of oil pressure switch
and body ground.
Oil pressure
kPa (bar, kg/cm2, psi) Continuity
Engine start More than 10 - 20 (0.10
- 0.20, 0.1 - 0.2, 1.4 - 2.8) NO
Engine stop Less than 10 - 20 (0.10 -
0.20, 0.1 - 0.2, 1.4 - 2.8) YES
SEL901F
SEL748K
WARNING LAMPS AND CHIME
EL-110
http://vnx.su/

Wiring Diagram Ð CHIME Ð
YEL773E
WARNING LAMPS AND CHIME
EL-111
http://vnx.su/

Wiring Diagram Ð WIPER Ð
LHD MODELS
YEL774E
WIPER AND WASHER
EL-112
http://vnx.su/

RHD MODELS
YEL111D
WIPER AND WASHER
Wiring Diagram Ð WIPER Ð (Cont'd)EL-113
http://vnx.su/

Wiring Diagram Ð WIP/R Ð
LHD MODELS
YEL112D
WIPER AND WASHER
EL-114
http://vnx.su/

RHD MODELS
YEL775E
WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð (Cont'd)EL-115
http://vnx.su/
