2004 NISSAN TERRANO Service Repair Manual

14 CHECK ECM POWER SUPPLY CIRCUIT-V
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ªONº.
3. Check voltage between ECM terminal 102 and ground with CONSULT-II or tester.
SEF290Z
OK or NG
OK EGO TO 16.
NG EGO TO 15.
15 DETECT MALFUNCTIONING PART
Check the following.
I10A fuse
I Harness for open or short between ECM and fuse
ERepair open circuit or short to ground or short to power in harness or connectors.
16 CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Turn ignition switch ªOFFº.
2. Disconnect ECM relay.
MEC021E
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminals 56, 61, 116 and ECM relay terminal 5. Refer to Wiring Diagram.
Continuity should exist.
5. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 18.
NG EGO TO 17.
TROUBLE DIAGNOSIS FOR POWER SUPPLYZD30DDTi
Main Power Supply and Ground Circuit
(Cont'd)
EC-86
http://vnx.su/

17 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors M787, F66 (LHD models)
I Harness for open or short between ECM and ECM relay
ERepair open circuit or short to ground or short to power in harness or connectors.
18 CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals 39, 43, 106, 112, 118 and engine ground. Refer to Wiring Diagram.
Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 20.
NG EGO TO 19.
19 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors F108, E225
I Harness connectors M842, F135 (RHD models)
I Harness for open or short between ECM and engine ground
ERepair open circuit or short to ground or short to power in harness or connectors.
20 CHECK INTERMITTENT INCIDENT
Refer to ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-78.
EINSPECTION END
TROUBLE DIAGNOSIS FOR POWER SUPPLYZD30DDTi
Main Power Supply and Ground Circuit
(Cont'd)
EC-87
http://vnx.su/

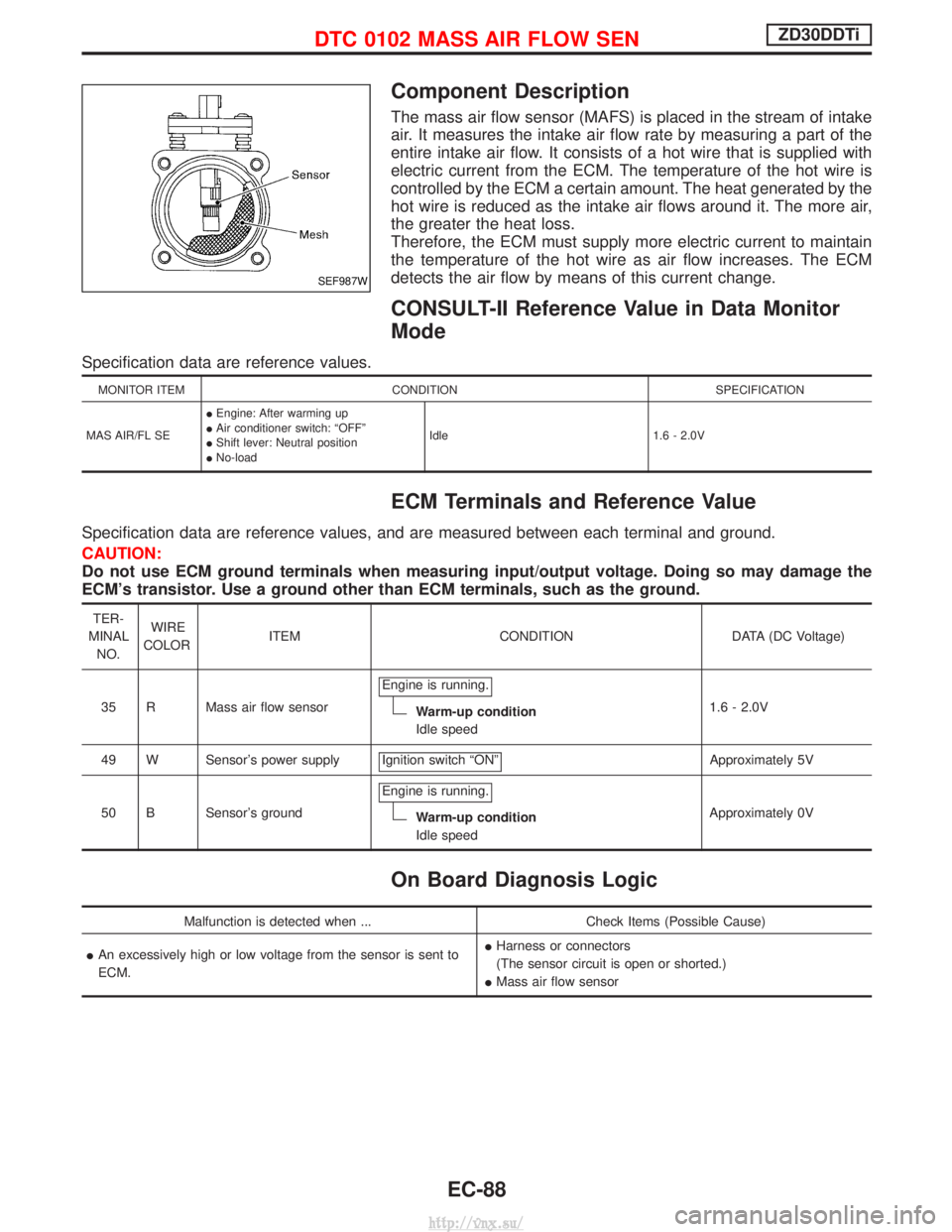

Component Description
The mass air flow sensor (MAFS) is placed in the stream of intake
air. It measures the intake air flow rate by measuring a part of the
entire intake air flow. It consists of a hot wire that is supplied with
electric current from the ECM. The temperature of the hot wire is
controlled by the ECM a certain amount. The heat generated by the
hot wire is reduced as the intake air flows around it. The more air,
the greater the heat loss.
Therefore, the ECM must supply more electric current to maintain
the temperature of the hot wire as air flow increases. The ECM
detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor
Mode
Specification data are reference values.
MONITOR ITEMCONDITION SPECIFICATION
MAS AIR/FL SE I
Engine: After warming up
I Air conditioner switch: ªOFFº
I Shift lever: Neutral position
I No-load Idle
1.6 - 2.0V
ECM Terminals and Reference Value
Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
35 R Mass air flow sensor Engine is running.
Warm-up condition
Idle speed 1.6 - 2.0V
49 W Sensor's power supply Ignition switch ªONº
Approximately 5V
50 B Sensor's ground Engine is running.
Warm-up condition
Idle speed Approximately 0V
On Board Diagnosis Logic
Malfunction is detected when ...
Check Items (Possible Cause)
I An excessively high or low voltage from the sensor is sent to
ECM. I
Harness or connectors
(The sensor circuit is open or shorted.)
I Mass air flow sensor
SEF987W
DTC 0102 MASS AIR FLOW SENZD30DDTi
EC-88
http://vnx.su/

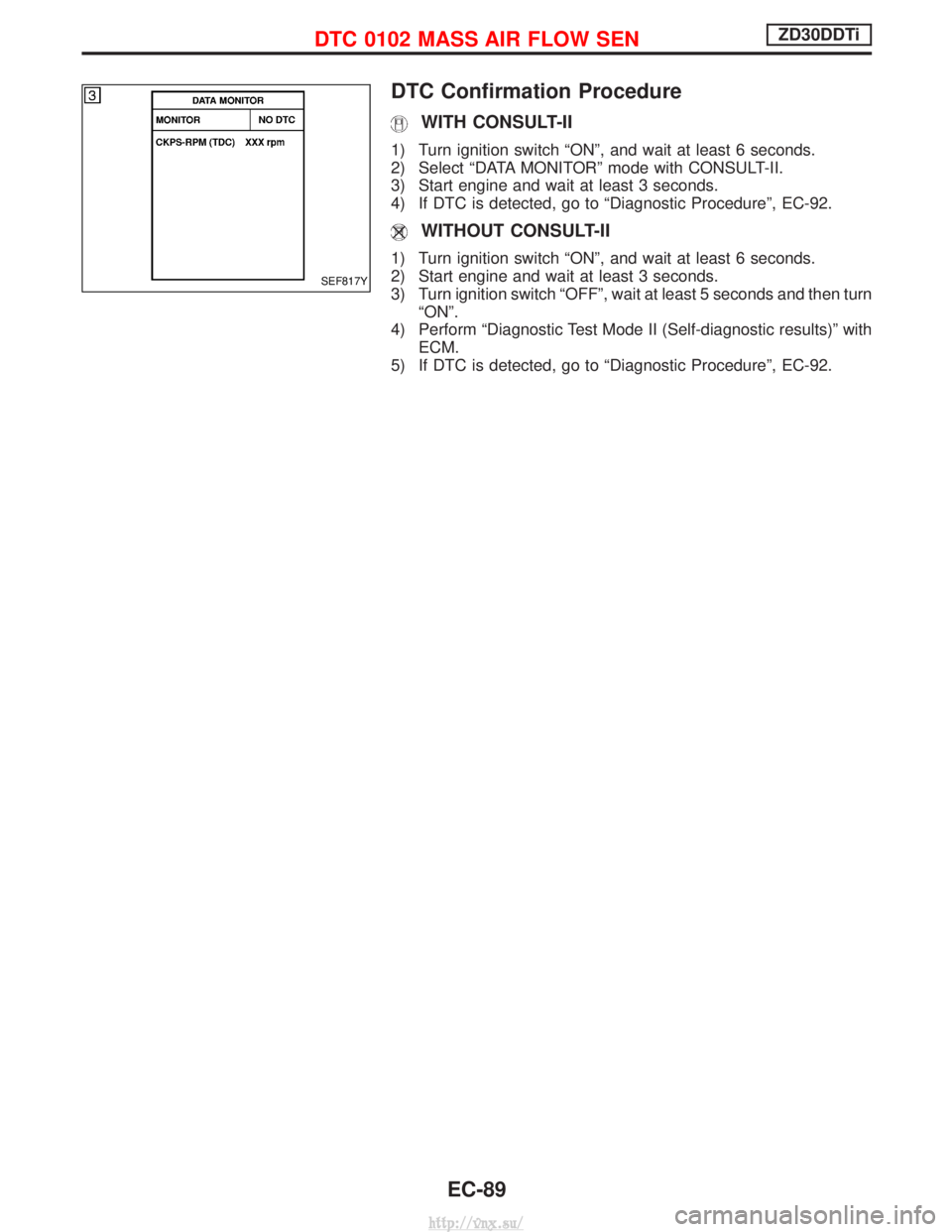

DTC Confirmation Procedure
WITH CONSULT-II
1) Turn ignition switch ªONº, and wait at least 6 seconds.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and wait at least 3 seconds.
4) If DTC is detected, go to ªDiagnostic Procedureº, EC-92.
WITHOUT CONSULT-II
1) Turn ignition switch ªONº, and wait at least 6 seconds.
2) Start engine and wait at least 3 seconds.
3) Turn ignition switch ªOFFº, wait at least 5 seconds and then turnªONº.
4) Perform ªDiagnostic Test Mode II (Self-diagnostic results)º with ECM.
5) If DTC is detected, go to ªDiagnostic Procedureº, EC-92.
SEF817Y
DTC 0102 MASS AIR FLOW SENZD30DDTi
EC-89
http://vnx.su/

Wiring Diagram
LHD MODELS
YEC173A
DTC 0102 MASS AIR FLOW SENZD30DDTi
EC-90
http://vnx.su/

RHD MODELS
YEC174A
DTC 0102 MASS AIR FLOW SENZD30DDTi
Wiring Diagram (Cont'd)EC-91
http://vnx.su/

Diagnostic Procedure
1 CHECK MAFS POWER SUPPLY CIRCUIT
1. Turn ignition switch ªOFFº.
2. Disconnect mass air flow sensor harness connector.
MEC993D
3. Turn ignition switch ªONº.
4. Check voltage between mass air flow sensor terminals 2, 4 and ground with CONSULT-II or tester.
MEC973D
MTBL1318
OK or NG
OK EGO TO 3.
NG EGO TO 2.
2 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors M787, F66 (LHD models)
I Harness connectors F135, M842 (RHD models)
I Harness for open or short between mass air flow sensor and ECM
I Harness for open or short between mass air flow sensor and ECM relay
ERepair open circuit or short to ground or short to power in harness or connector.
DTC 0102 MASS AIR FLOW SENZD30DDTi
EC-92
http://vnx.su/

3 CHECK MAFS GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Loosen and retighten engine ground screws.
MEC994D
3. Check harness continuity between mass air flow sensor terminal 3 and engine ground. Refer to Wiring Diagram.Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 5.
NG EGO TO 4.
4 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors F135, M842 (RHD models)
I Harness for open or short between mass air flow sensor and ECM
ERepair open circuit or short to ground or short to power in harness or connectors.
5 CHECK MAFS INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between mass air flow sensor terminal 5 and ECM terminal 35. Refer to Wiring Diagram.
Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
OK EGO TO 7.
NG EGO TO 6.
6 DETECT MALFUNCTIONING PART
Check the following.
IHarness connectors F135, M842 (RHD models)
I Harness for open or short between mass air flow sensor and ECM
ERepair open circuit or short to ground or short to power in harness or connectors.
DTC 0102 MASS AIR FLOW SENZD30DDTi
Diagnostic Procedure (Cont'd)
EC-93
http://vnx.su/
