Page 281 of 1833

DTC Confirmation Procedure ..................................463
Wiring Diagram ........................................................464
Diagnostic Procedure ..............................................466
DTC PD1603 ECM 12, DTC P1607 ECM2 .................467
Description ...............................................................467
On Board Diagnosis Logic.......................................467
DTC Confirmation Procedure ..................................467
Diagnostic Procedure ..............................................468
DTC P1620 ECM RLY .................................................469
On Board Diagnosis Logic.......................................469
DTC Confirmation Procedure ..................................469
Wiring Diagram ........................................................470 Diagnostic Procedure ..............................................471
START SIGNAL ...........................................................472
Wiring Diagram ........................................................472
Diagnostic Procedure ..............................................473
OIL PRESSURE SWITCH ...........................................474
Wiring Diagram ........................................................474
MI & DATA LINK CONNECTORS ...............................475
Wiring Diagram ........................................................475
SERVICE DATA AND SPECIFICATIONS (SDS) ........476
General Specifications .............................................476
Injection Nozzle .......................................................476
Inspection and Adjustment ......................................476
CONTENTS(Cont'd)
EC-6
http://vnx.su/

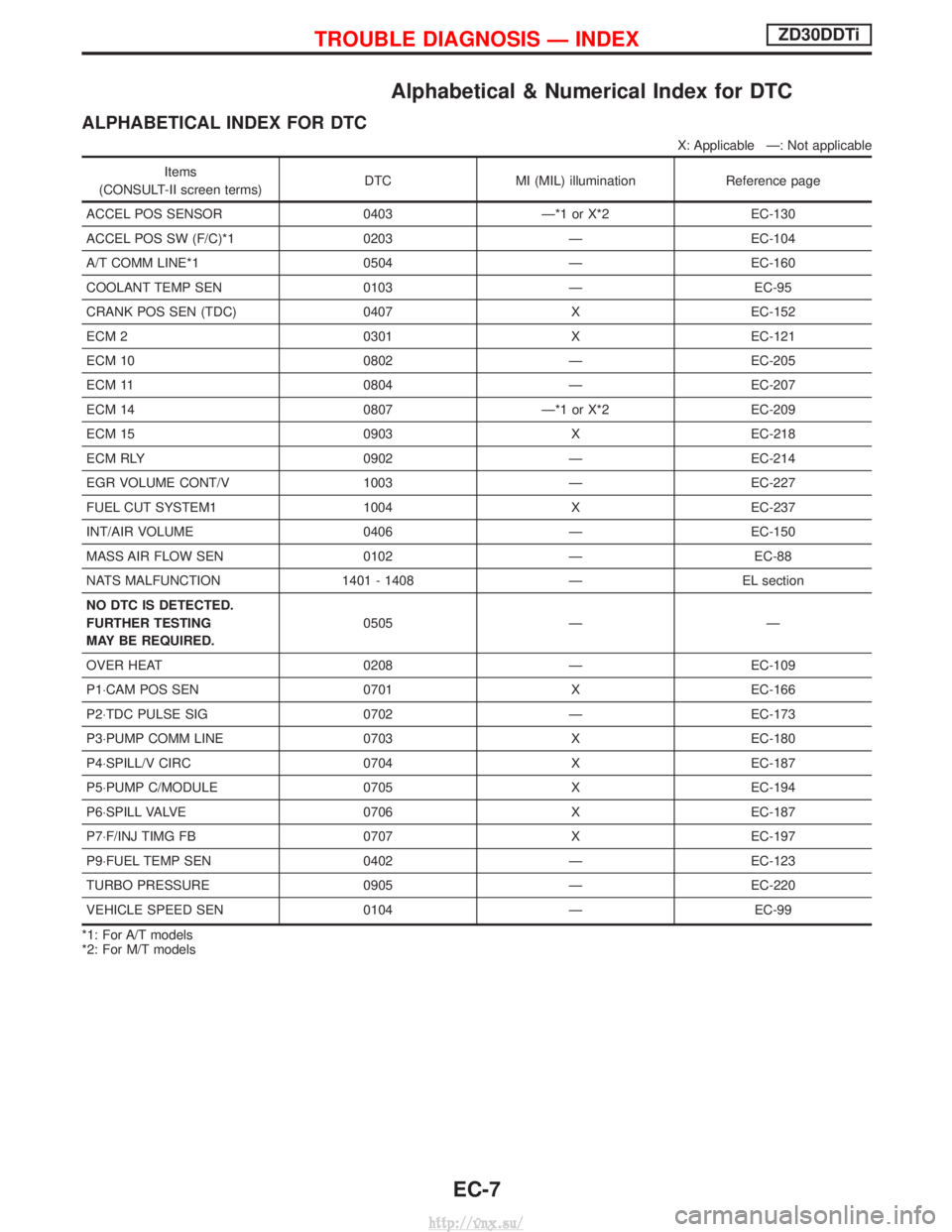

Page 282 of 1833

Alphabetical & Numerical Index for DTC
ALPHABETICAL INDEX FOR DTC
X: Applicable Ð: Not applicable
Items
(CONSULT-II screen terms) DTC MI (MIL) illumination Reference page
ACCEL POS SENSOR 0403 Ð*1 or X*2 EC-130
ACCEL POS SW (F/C)*1 0203 Ð EC-104
A/T COMM LINE*1 0504 Ð EC-160
COOLANT TEMP SEN 0103 Ð EC-95
CRANK POS SEN (TDC) 0407 X EC-152
ECM 2 0301 X EC-121
ECM 10 0802 Ð EC-205
ECM 11 0804 Ð EC-207
ECM 14 0807 Ð*1 or X*2 EC-209
ECM 15 0903 X EC-218
ECM RLY 0902 Ð EC-214
EGR VOLUME CONT/V 1003 Ð EC-227
FUEL CUT SYSTEM1 1004 X EC-237
INT/AIR VOLUME 0406 Ð EC-150
MASS AIR FLOW SEN 0102 Ð EC-88
NATS MALFUNCTION 1401 - 1408 Ð EL section
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. 0505 Ð Ð
OVER HEAT 0208 Ð EC-109
P1×CAM POS SEN 0701XEC-166
P2×TDC PULSE SIG 0702ÐEC-173
P3×PUMP COMM LINE 0703XEC-180
P4×SPILL/V CIRC 0704XEC-187
P5×PUMP C/MODULE 0705XEC-194
P6×SPILL VALVE 0706XEC-187
P7×F/INJ TIMG FB 0707XEC-197
P9×FUEL TEMP SEN 0402ÐEC-123
TURBO PRESSURE 0905ÐEC-220
VEHICLE SPEED SEN 0104ÐEC-99
*1: For A/T models
*2: For M/T models
TROUBLE DIAGNOSIS Ð INDEXZD30DDTi
EC-7
http://vnx.su/

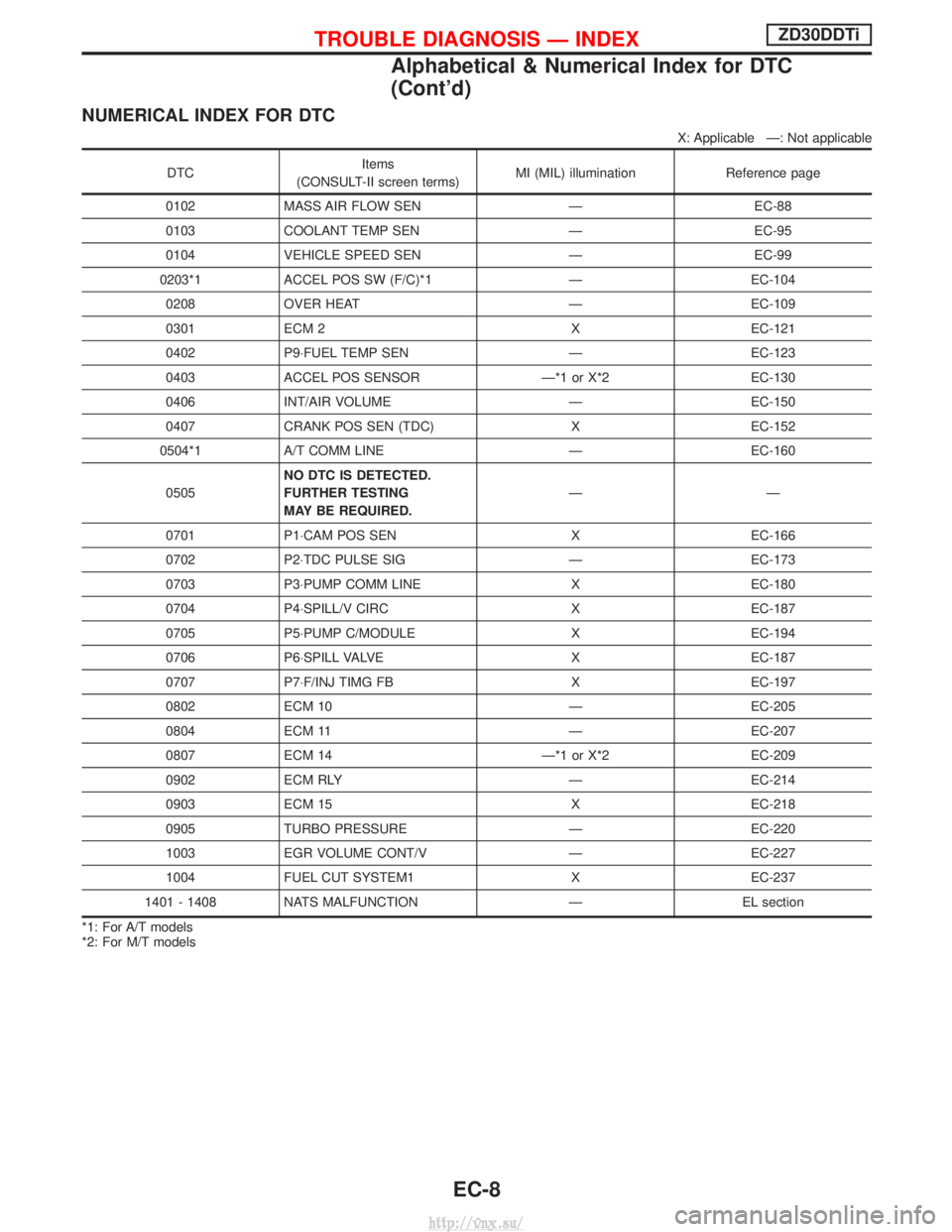

Page 283 of 1833

NUMERICAL INDEX FOR DTC
X: Applicable Ð: Not applicable
DTCItems
(CONSULT-II screen terms) MI (MIL) illumination Reference page
0102 MASS AIR FLOW SEN Ð EC-88
0103 COOLANT TEMP SEN Ð EC-95
0104 VEHICLE SPEED SEN Ð EC-99
0203*1 ACCEL POS SW (F/C)*1 Ð EC-104 0208 OVER HEAT Ð EC-109
0301 ECM 2 X EC-121
0402 P9×FUEL TEMP SEN ÐEC-123
0403 ACCEL POS SENSOR Ð*1 or X*2EC-130
0406 INT/AIR VOLUME ÐEC-150
0407 CRANK POS SEN (TDC) XEC-152
0504*1 A/T COMM LINE ÐEC-160
0505 NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. ÐÐ
0701 P1×CAM POS SEN XEC-166
0702 P2×TDC PULSE SIG ÐEC-173
0703 P3×PUMP COMM LINE XEC-180
0704 P4×SPILL/V CIRC XEC-187
0705 P5×PUMP C/MODULE XEC-194
0706 P6×SPILL VALVE XEC-187
0707 P7×F/INJ TIMG FB XEC-197
0802 ECM 10 ÐEC-205
0804 ECM 11 ÐEC-207
0807 ECM 14 Ð*1 or X*2EC-209
0902 ECM RLY ÐEC-214
0903 ECM 15 XEC-218
0905 TURBO PRESSURE ÐEC-220
1003 EGR VOLUME CONT/V Ð EC-227
1004 FUEL CUT SYSTEM1 X EC-237
1401 - 1408 NATS MALFUNCTION Ð EL section
*1: For A/T models
*2: For M/T models
TROUBLE DIAGNOSIS Ð INDEXZD30DDTi
Alphabetical & Numerical Index for DTC
(Cont'd)
EC-8
http://vnx.su/

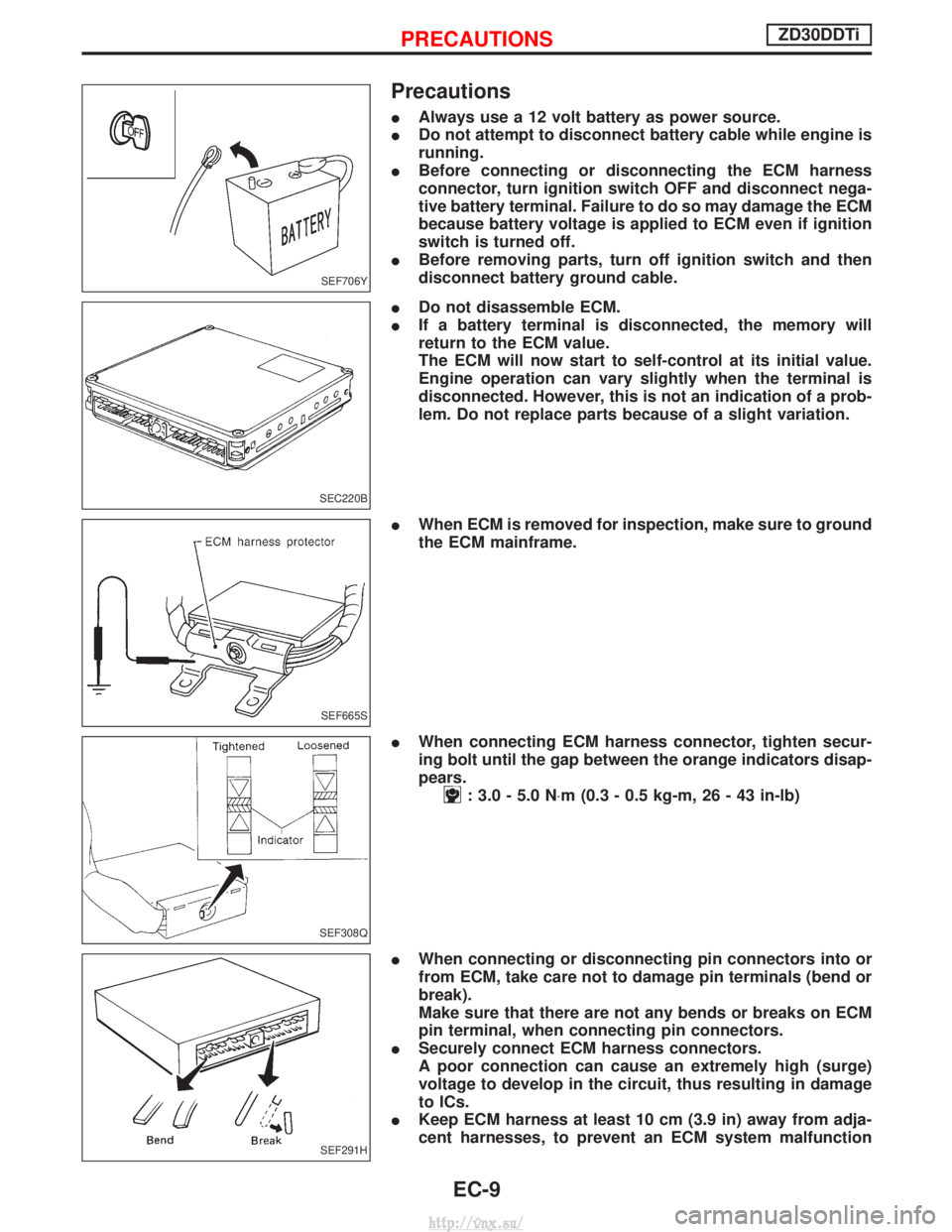

Page 284 of 1833

Precautions
IAlways use a 12 volt battery as power source.
I Do not attempt to disconnect battery cable while engine is
running.
I Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.
I Before removing parts, turn off ignition switch and then
disconnect battery ground cable.
I Do not disassemble ECM.
I If a battery terminal is disconnected, the memory will
return to the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is
disconnected. However, this is not an indication of a prob-
lem. Do not replace parts because of a slight variation.
I When ECM is removed for inspection, make sure to ground
the ECM mainframe.
I When connecting ECM harness connector, tighten secur-
ing bolt until the gap between the orange indicators disap-
pears.
: 3.0 - 5.0 N ×m (0.3 - 0.5 kg-m, 26 - 43 in-lb)
I When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminal, when connecting pin connectors.
I Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge)
voltage to develop in the circuit, thus resulting in damage
to ICs.
I Keep ECM harness at least 10 cm (3.9 in) away from adja-
cent harnesses, to prevent an ECM system malfunction
SEF706Y
SEC220B
SEF665S
SEF308Q
SEF291H
PRECAUTIONSZD30DDTi
EC-9
http://vnx.su/

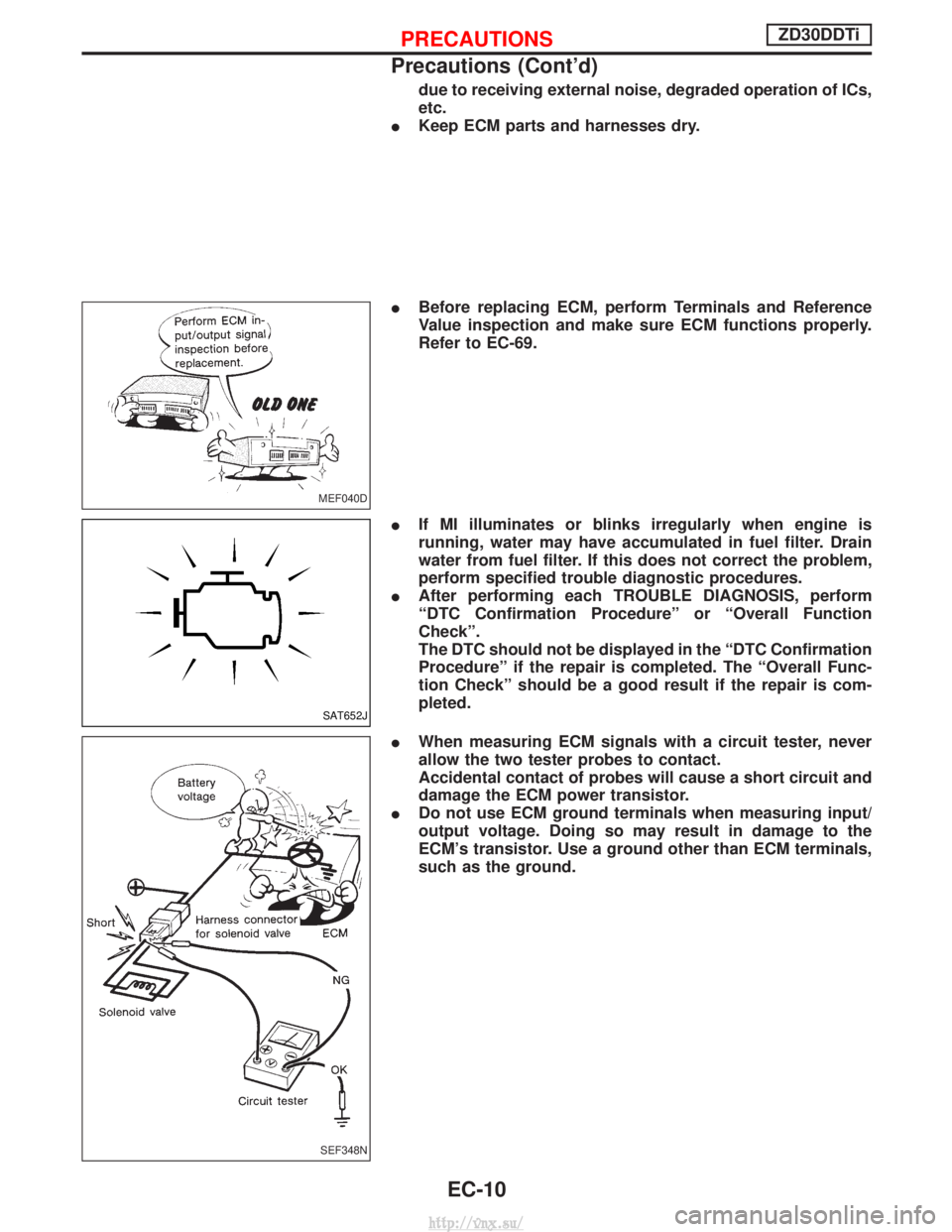

Page 285 of 1833

due to receiving external noise, degraded operation of ICs,
etc.
I Keep ECM parts and harnesses dry.
I Before replacing ECM, perform Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to EC-69.
I If MI illuminates or blinks irregularly when engine is
running, water may have accumulated in fuel filter. Drain
water from fuel filter. If this does not correct the problem,
perform specified trouble diagnostic procedures.
I After performing each TROUBLE DIAGNOSIS, perform
ªDTC Confirmation Procedureº or ªOverall Function
Checkº.
The DTC should not be displayed in the ªDTC Confirmation
Procedureº if the repair is completed. The ªOverall Func-
tion Checkº should be a good result if the repair is com-
pleted.
I When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
I Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the
ECM's transistor. Use a ground other than ECM terminals,
such as the ground.
MEF040D
SAT652J
SEF348N
PRECAUTIONSZD30DDTi
Precautions (Cont'd)
EC-10
http://vnx.su/

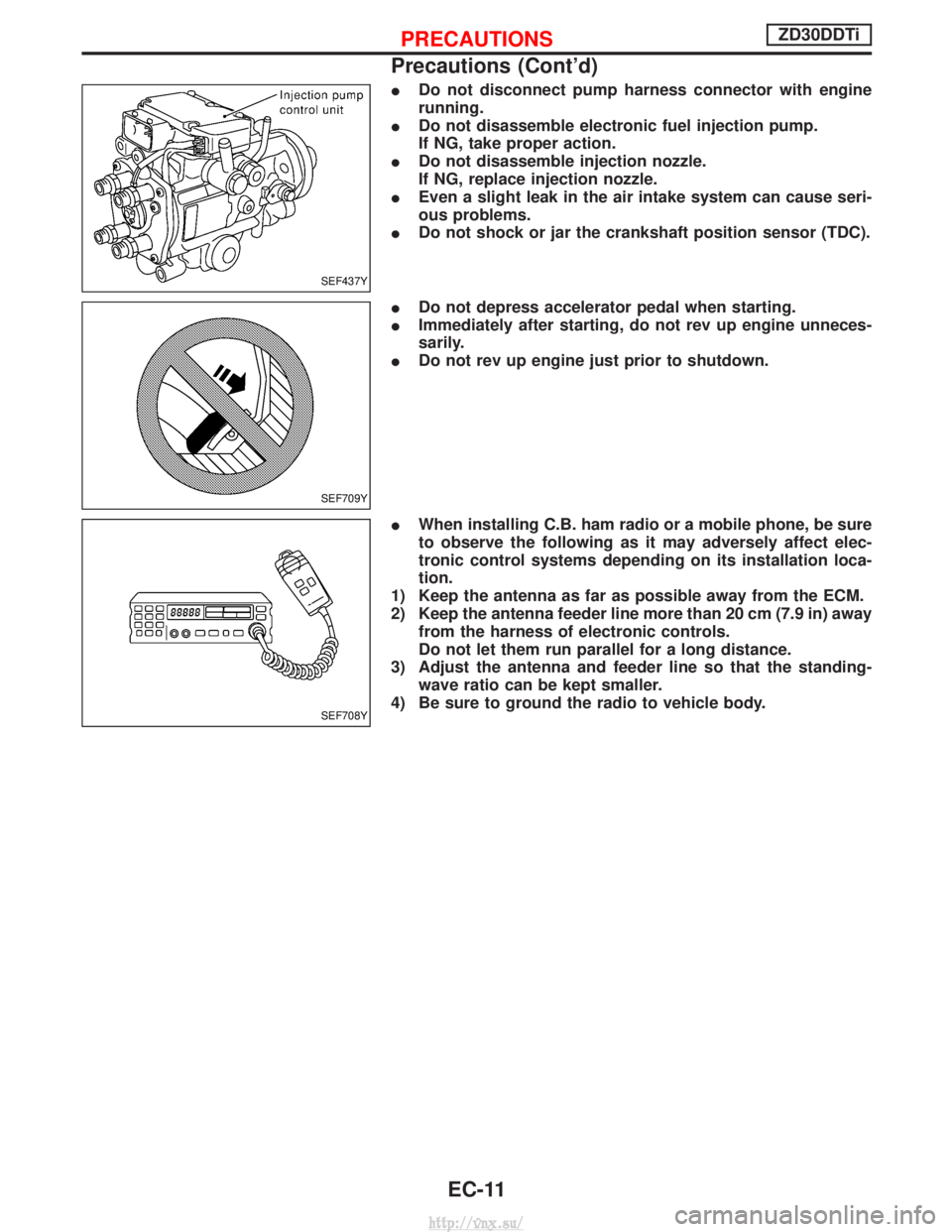

Page 286 of 1833

IDo not disconnect pump harness connector with engine
running.
I Do not disassemble electronic fuel injection pump.
If NG, take proper action.
I Do not disassemble injection nozzle.
If NG, replace injection nozzle.
I Even a slight leak in the air intake system can cause seri-
ous problems.
I Do not shock or jar the crankshaft position sensor (TDC).
I Do not depress accelerator pedal when starting.
I Immediately after starting, do not rev up engine unneces-
sarily.
I Do not rev up engine just prior to shutdown.
I When installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on its installation loca-
tion.
1) Keep the antenna as far as possible away from the ECM.
2) Keep the antenna feeder line more than 20 cm (7.9 in) away from the harness of electronic controls.
Do not let them run parallel for a long distance.
3) Adjust the antenna and feeder line so that the standing- wave ratio can be kept smaller.
4) Be sure to ground the radio to vehicle body.
SEF437Y
SEF709Y
SEF708Y
PRECAUTIONSZD30DDTi
Precautions (Cont'd)
EC-11
http://vnx.su/
Page 287 of 1833
Engine Control Component Parts Location
MEC988D
ENGINE AND EMISSION CONTROL OVERALL SYSTEMZD30DDTi
EC-12
http://vnx.su/
Page 288 of 1833
MEC989D
ENGINE AND EMISSION CONTROL OVERALL SYSTEMZD30DDTi
Engine Control Component Parts Location
(Cont'd)EC-13
