2004 NISSAN TERRANO Service Repair Manual

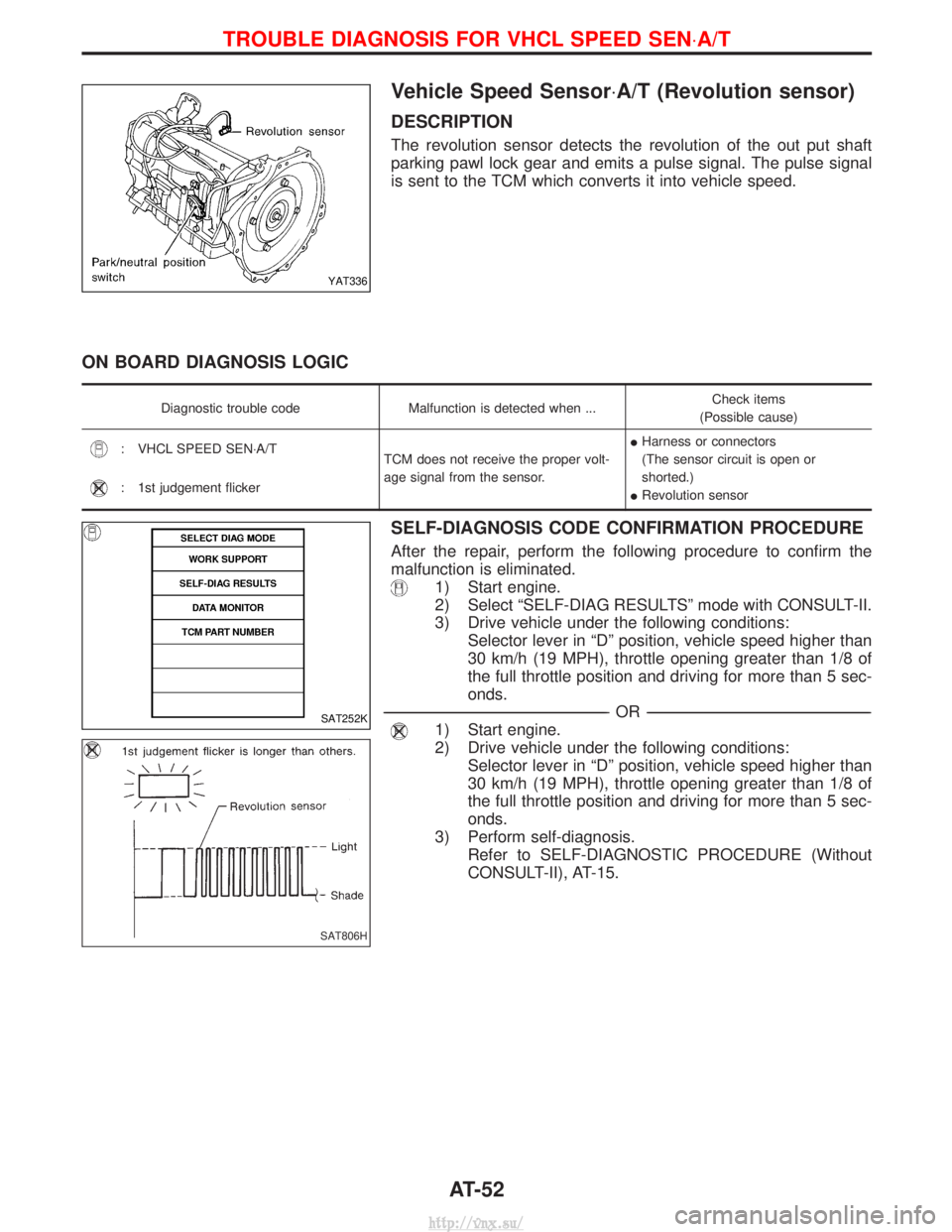

Vehicle Speed Sensor×A/T (Revolution sensor)
DESCRIPTION
The revolution sensor detects the revolution of the out put shaft
parking pawl lock gear and emits a pulse signal. The pulse signal
is sent to the TCM which converts it into vehicle speed.
ON BOARD DIAGNOSIS LOGIC
Diagnostic trouble codeMalfunction is detected when ... Check items
(Possible cause)
: VHCL SPEED SEN×A/T TCM does not receive the proper volt-
age signal from the sensor.I
Harness or connectors
(The sensor circuit is open or
shorted.)
I Revolution sensor
: 1st judgement flicker
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
1) Start engine.
2) Select ªSELF-DIAG RESULTSº mode with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than
30 km/h (19 MPH), throttle opening greater than 1/8 of
the full throttle position and driving for more than 5 sec-
onds.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- -OR------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than
30 km/h (19 MPH), throttle opening greater than 1/8 of
the full throttle position and driving for more than 5 sec-
onds.
3) Perform self-diagnosis. Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.
YAT336
SAT252K
SAT806H
TROUBLE DIAGNOSIS FOR VHCL SPEED SEN ×A/T
AT-52
http://vnx.su/

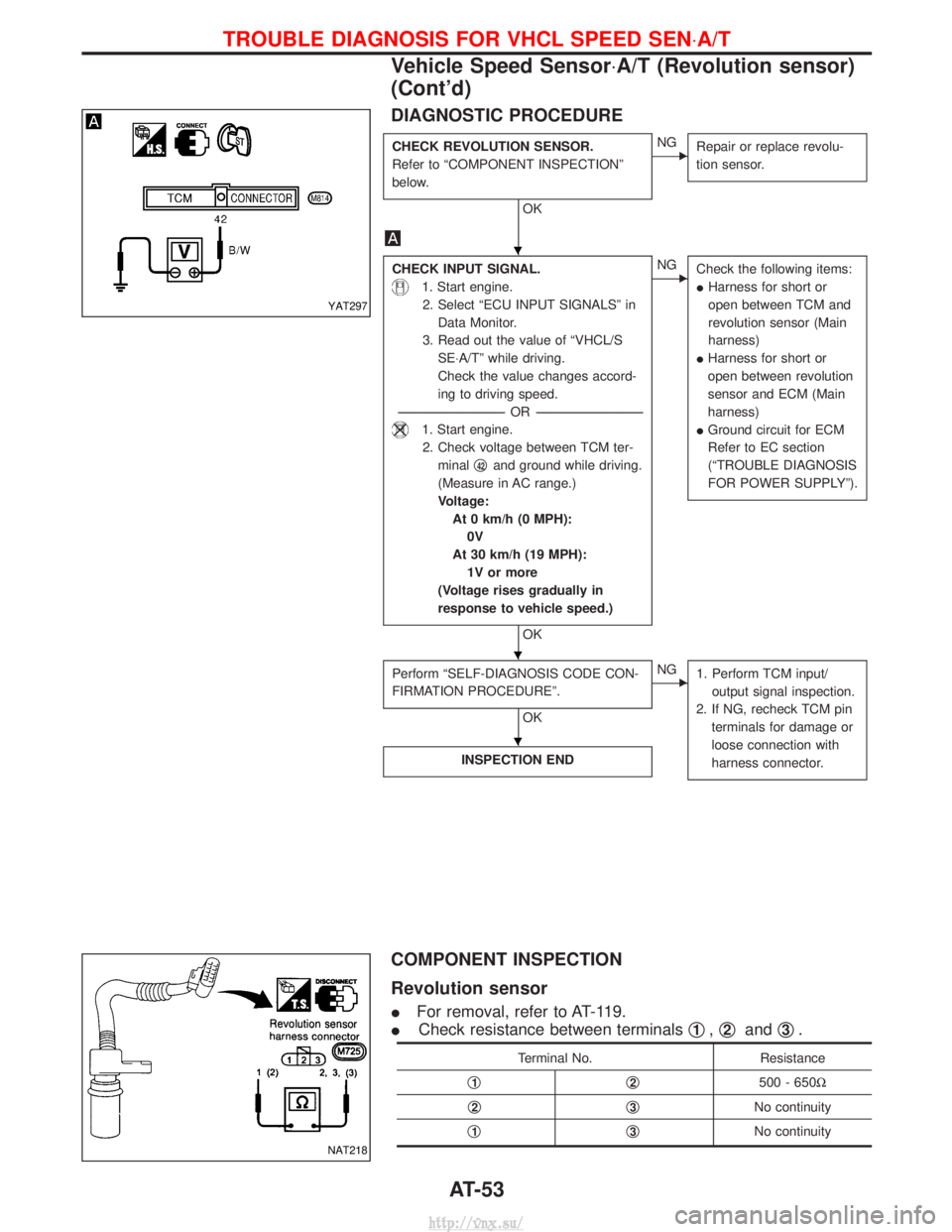

DIAGNOSTIC PROCEDURE
CHECK REVOLUTION SENSOR.
Refer to ªCOMPONENT INSPECTIONº
below.
OK
ENGRepair or replace revolu-
tion sensor.
CHECK INPUT SIGNAL.
1. Start engine.
2. Select ªECU INPUT SIGNALSº in Data Monitor.
3. Read out the value of ªVHCL/S SE×A/Tº while driving.
Check the value changes accord-
ing to driving speed.
---------------------------------------------------------------------------------------------------------------------- -OR -----------------------------------------------------------------------------------------------------------------------
1. Start engine.
2. Check voltage between TCM ter- minal q
42and ground while driving.
(Measure in AC range.)
Voltage: At 0 km/h (0 MPH):0V
At 30 km/h (19 MPH): 1V or more
(Voltage rises gradually in
response to vehicle speed.)
OK
ENG Check the following items:
IHarness for short or
open between TCM and
revolution sensor (Main
harness)
I Harness for short or
open between revolution
sensor and ECM (Main
harness)
I Ground circuit for ECM
Refer to EC section
(ªTROUBLE DIAGNOSIS
FOR POWER SUPPLYº).
Perform ªSELF-DIAGNOSIS CODE CON-
FIRMATION PROCEDUREº.
OK
ENG
1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin terminals for damage or
loose connection with
harness connector.
INSPECTION END
COMPONENT INSPECTION
Revolution sensor
I For removal, refer to AT-119.
I Check resistance between terminals q
1,q2and q3.
Terminal No.
Resistance
q
1q2500 - 650W
q
2q3No continuity
q
1q3No continuity
YAT297
NAT218
H
H
H
TROUBLE DIAGNOSIS FOR VHCL SPEED SEN ×A/T
Vehicle Speed Sensor×A/T (Revolution sensor)
(Cont'd)
AT-53
http://vnx.su/

Wiring Diagram Ð AT Ð VSSMTR
LHD MODELS
YAT263
TROUBLE DIAGNOSIS FOR VHCL SPEED SEN×MTR
AT-54
http://vnx.su/

RHD MODELS
YAT264
TROUBLE DIAGNOSIS FOR VHCL SPEED SEN×MTR
Wiring Diagram Ð AT Ð VSSMTR (Cont'd)
AT-55
http://vnx.su/

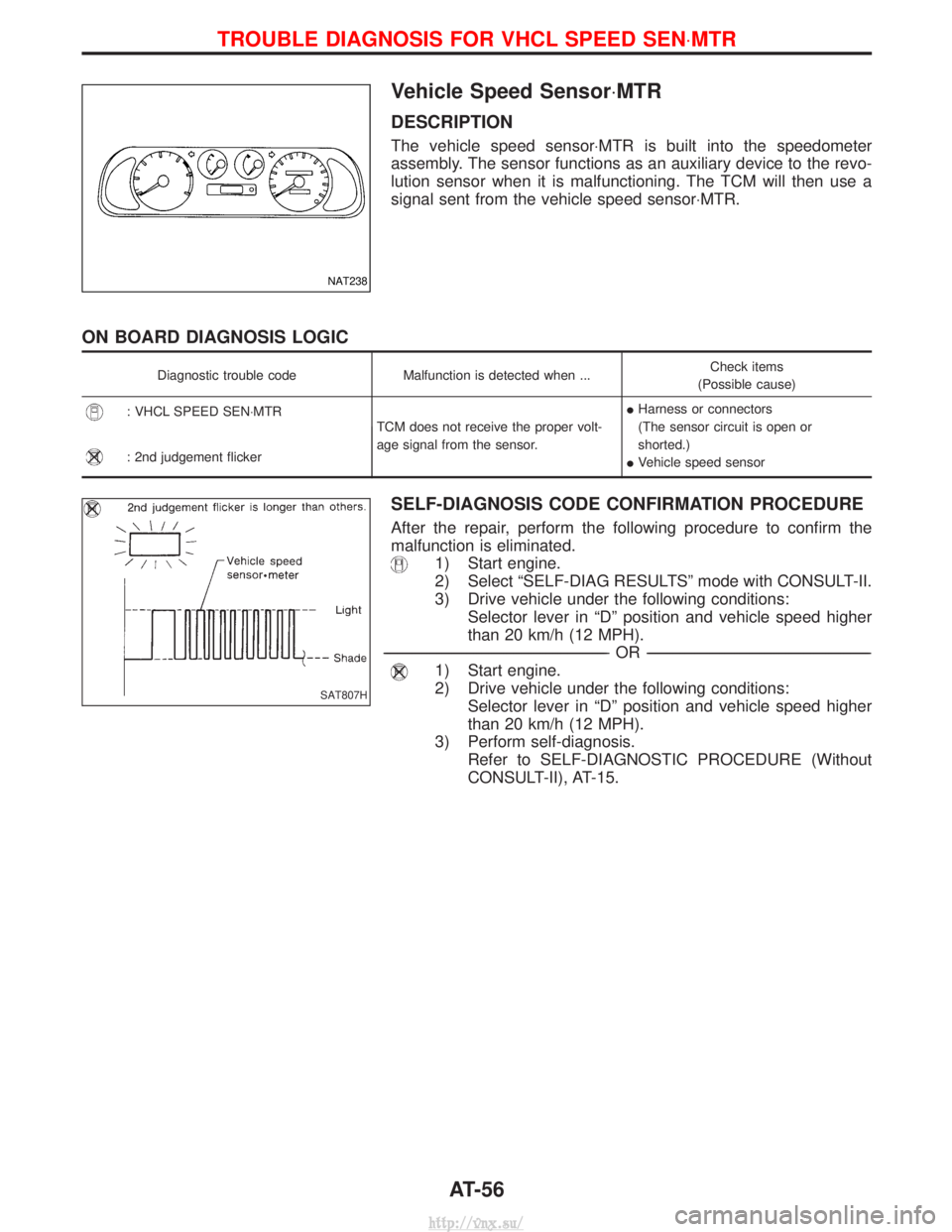

Vehicle Speed Sensor×MTR
DESCRIPTION
The vehicle speed sensor×MTR is built into the speedometer
assembly. The sensor functions as an auxiliary device to the revo-
lution sensor when it is malfunctioning. The TCM will then use a
signal sent from the vehicle speed sensor×MTR.
ON BOARD DIAGNOSIS LOGIC
Diagnostic trouble codeMalfunction is detected when ... Check items
(Possible cause)
: VHCL SPEED SEN×MTR TCM does not receive the proper volt-
age signal from the sensor.I
Harness or connectors
(The sensor circuit is open or
shorted.)
I Vehicle speed sensor
: 2nd judgement flicker
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
1) Start engine.
2) Select ªSELF-DIAG RESULTSº mode with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº position and vehicle speed higher
than 20 km/h (12 MPH).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- -OR------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position and vehicle speed higher
than 20 km/h (12 MPH).
3) Perform self-diagnosis. Refer to SELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II), AT-15.
NAT238
SAT807H
TROUBLE DIAGNOSIS FOR VHCL SPEED SEN ×MTR
AT-56
http://vnx.su/

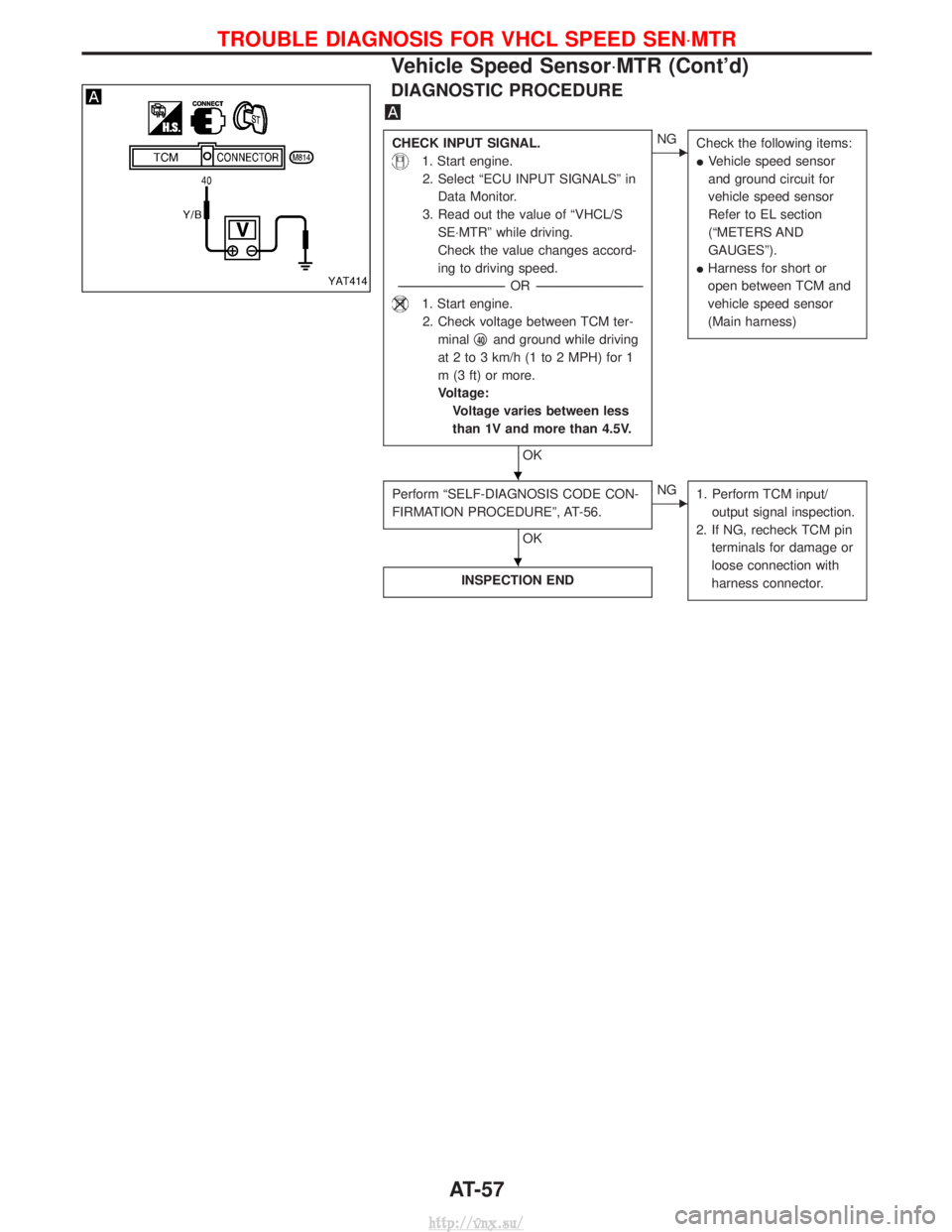

DIAGNOSTIC PROCEDURE
CHECK INPUT SIGNAL.
1. Start engine.2. Select ªECU INPUT SIGNALSº in Data Monitor.
3. Read out the value of ªVHCL/S SE×MTRº while driving.
Check the value changes accord-
ing to driving speed.
---------------------------------------------------------------------------------------------------------------------- -OR -----------------------------------------------------------------------------------------------------------------------
1. Start engine.
2. Check voltage between TCM ter- minal q
40and ground while driving
at 2 to 3 km/h (1 to 2 MPH) for 1
m (3 ft) or more.
Voltage: Voltage varies between less
than 1V and more than 4.5V.
OK
ENG Check the following items:
IVehicle speed sensor
and ground circuit for
vehicle speed sensor
Refer to EL section
(ªMETERS AND
GAUGESº).
I Harness for short or
open between TCM and
vehicle speed sensor
(Main harness)
Perform ªSELF-DIAGNOSIS CODE CON-
FIRMATION PROCEDUREº, AT-56.
OK
ENG
1. Perform TCM input/
output signal inspection.
2. If NG, recheck TCM pin terminals for damage or
loose connection with
harness connector.
INSPECTION END
YAT414
H
H
TROUBLE DIAGNOSIS FOR VHCL SPEED SEN ×MTR
Vehicle Speed Sensor×MTR (Cont'd)
AT-57
http://vnx.su/

Wiring Diagram Ð AT Ð TPS
LHD MODELS
YAT265
TROUBLE DIAGNOSIS FOR THROTTLE POSI SEN
AT-58
http://vnx.su/

LHD MODELS
YAT401
TROUBLE DIAGNOSIS FOR THROTTLE POSI SEN
Wiring Diagram Ð AT Ð TPS (Cont'd)AT-59
