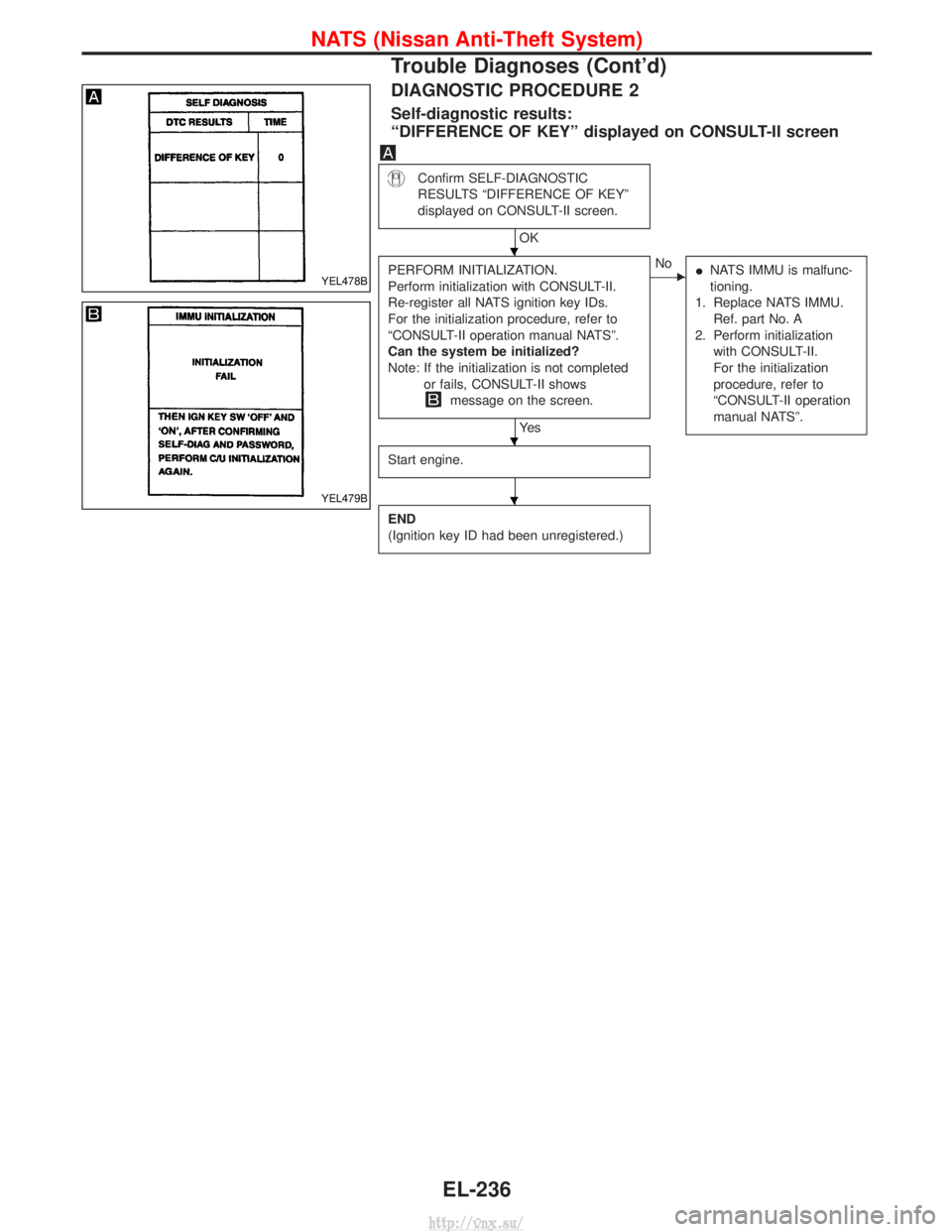

DIAGNOSTIC PROCEDURE 2
Self-diagnostic results:
ªDIFFERENCE OF KEYº displayed on CONSULT-II screen
Confirm SELF-DIAGNOSTIC
RESULTS ªDIFFERENCE OF KEYº
displayed on CONSULT-II screen.
OK
PERFORM INITIALIZATION.
Perform initialization with CONSULT-II.
Re-register all NATS ignition key IDs.
For the initialization procedure, refer to
ªCONSULT-II operation manual NATSº.
Can the system be initialized?
Note: If the initialization is not completed or fails, CONSULT-II shows
message on the screen.
Ye s
ENo INATS IMMU is malfunc-
tioning.
1. Replace NATS IMMU. Ref. part No. A
2. Perform initialization with CONSULT-II.
For the initialization
procedure, refer to
ªCONSULT-II operation
manual NATSº.
Start engine.
END
(Ignition key ID had been unregistered.)
YEL478B
YEL479B
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-236
http://vnx.su/

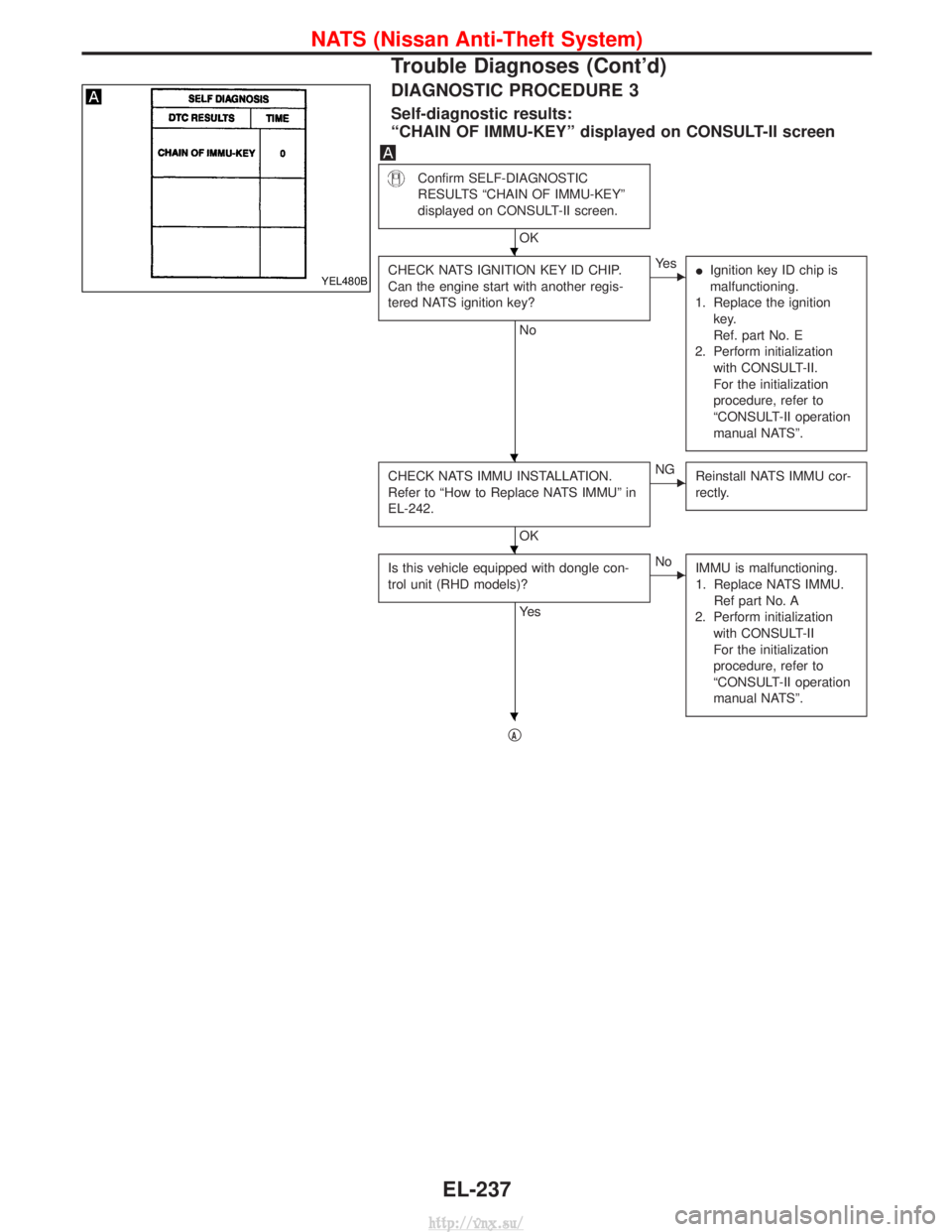

DIAGNOSTIC PROCEDURE 3
Self-diagnostic results:
ªCHAIN OF IMMU-KEYº displayed on CONSULT-II screen
Confirm SELF-DIAGNOSTIC
RESULTS ªCHAIN OF IMMU-KEYº
displayed on CONSULT-II screen.
OK
CHECK NATS IGNITION KEY ID CHIP.
Can the engine start with another regis-
tered NATS ignition key?
No
EYe s IIgnition key ID chip is
malfunctioning.
1. Replace the ignition key.
Ref. part No. E
2. Perform initialization with CONSULT-II.
For the initialization
procedure, refer to
ªCONSULT-II operation
manual NATSº.
CHECK NATS IMMU INSTALLATION.
Refer to ªHow to Replace NATS IMMUº in
EL-242.
OK
ENG Reinstall NATS IMMU cor-
rectly.
Is this vehicle equipped with dongle con-
trol unit (RHD models)?
Ye s
ENoIMMU is malfunctioning.
1. Replace NATS IMMU.
Ref part No. A
2. Perform initialization with CONSULT-II
For the initialization
procedure, refer to
ªCONSULT-II operation
manual NATSº.
qA
YEL480B
H
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-237
http://vnx.su/

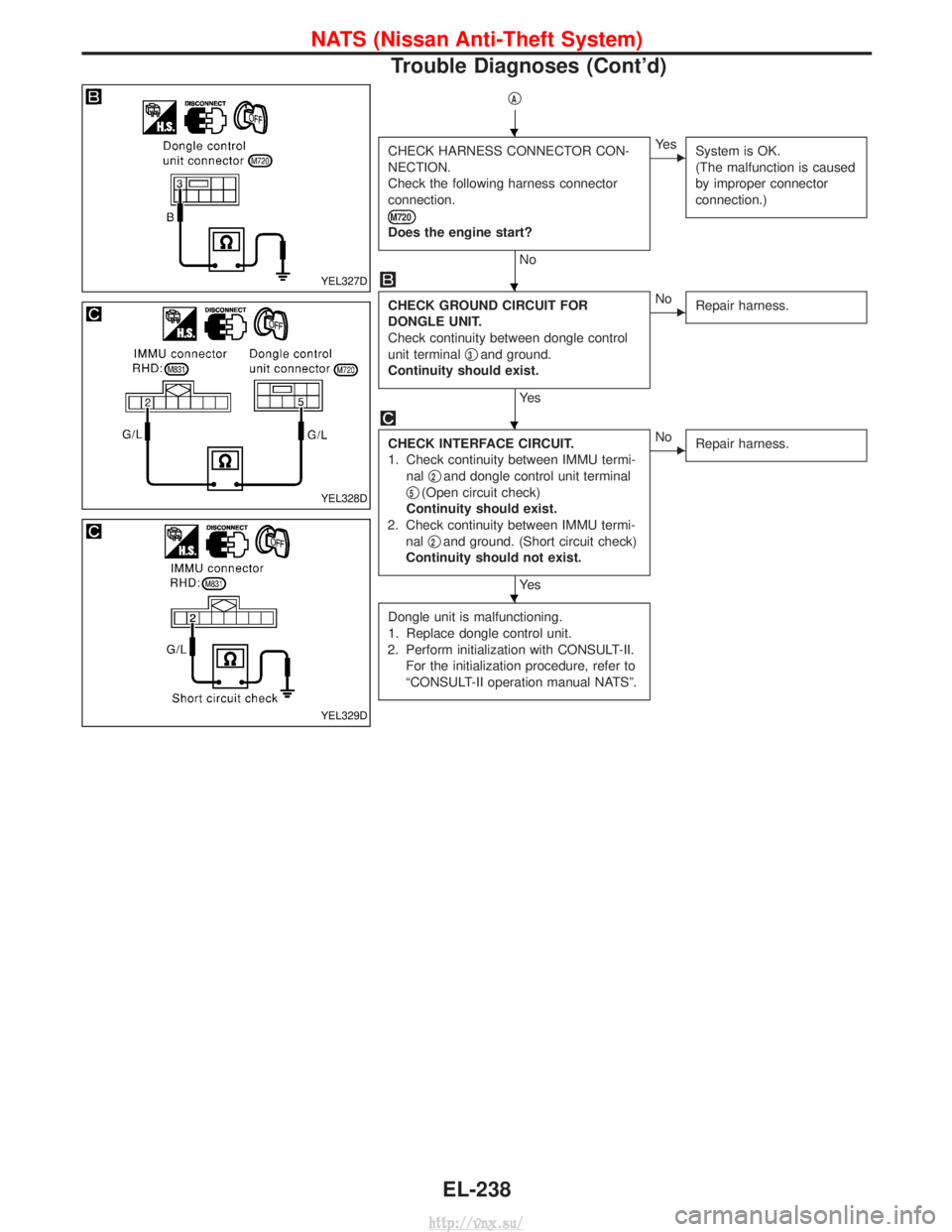

qA
CHECK HARNESS CONNECTOR CON-
NECTION.
Check the following harness connector
connection.
M720
Does the engine start?
No
EYe sSystem is OK.
(The malfunction is caused
by improper connector
connection.)
CHECK GROUND CIRCUIT FOR
DONGLE UNIT.
Check continuity between dongle control
unit terminal q
3and ground.
Continuity should exist.
Ye s
ENo Repair harness.
CHECK INTERFACE CIRCUIT.
1. Check continuity between IMMU termi-
nal q
2and dongle control unit terminal
q
5(Open circuit check)
Continuity should exist.
2. Check continuity between IMMU termi- nal q
2and ground. (Short circuit check)
Continuity should not exist.
Ye s
ENo Repair harness.
Dongle unit is malfunctioning.
1. Replace dongle control unit.
2. Perform initialization with CONSULT-II. For the initialization procedure, refer to
ªCONSULT-II operation manual NATSº.
YEL327D
YEL328D
YEL329D
H
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-238
http://vnx.su/

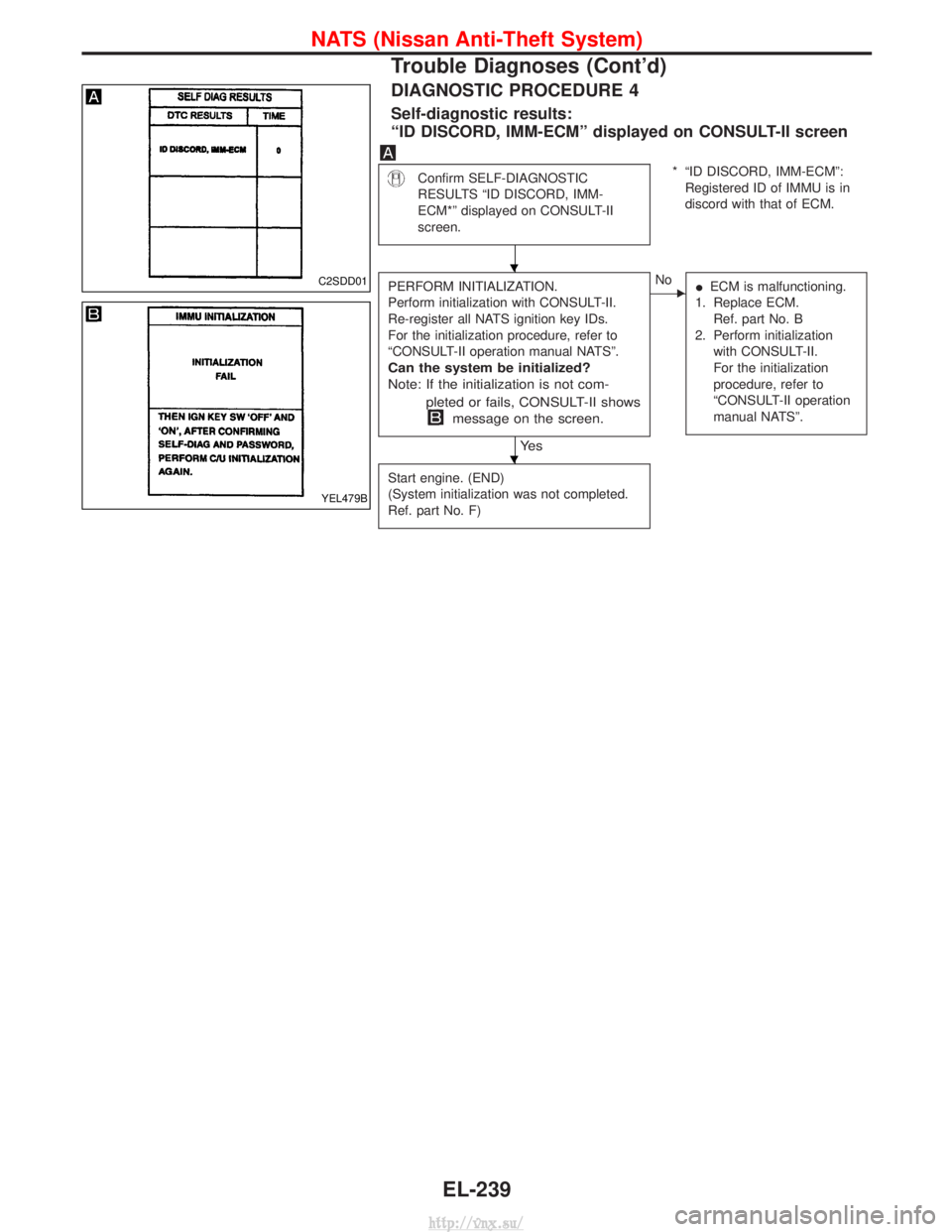

DIAGNOSTIC PROCEDURE 4
Self-diagnostic results:
ªID DISCORD, IMM-ECMº displayed on CONSULT-II screen
Confirm SELF-DIAGNOSTIC
RESULTS ªID DISCORD, IMM-
ECM*º displayed on CONSULT-II
screen.* ªID DISCORD, IMM-ECMº:Registered ID of IMMU is in
discord with that of ECM.
PERFORM INITIALIZATION.
Perform initialization with CONSULT-II.
Re-register all NATS ignition key IDs.
For the initialization procedure, refer to
ªCONSULT-II operation manual NATSº.
Can the system be initialized?
Note: If the initialization is not com- pleted or fails, CONSULT-II shows
message on the screen.
Ye s
ENo IECM is malfunctioning.
1. Replace ECM. Ref. part No. B
2. Perform initialization with CONSULT-II.
For the initialization
procedure, refer to
ªCONSULT-II operation
manual NATSº.
Start engine. (END)
(System initialization was not completed.
Ref. part No. F)
C2SDD01
YEL479B
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-239
http://vnx.su/

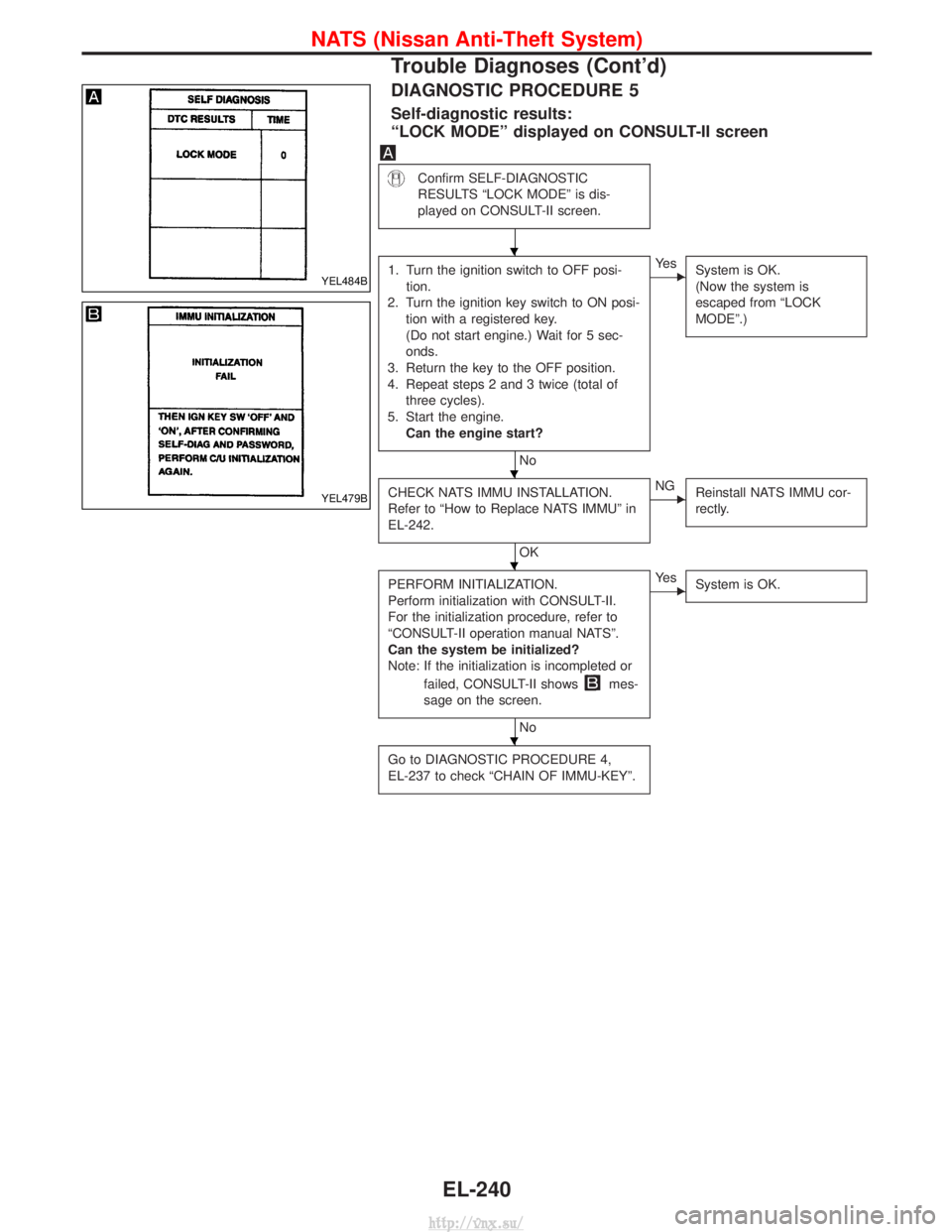

DIAGNOSTIC PROCEDURE 5
Self-diagnostic results:
ªLOCK MODEº displayed on CONSULT-II screen
Confirm SELF-DIAGNOSTIC
RESULTS ªLOCK MODEº is dis-
played on CONSULT-II screen.
1. Turn the ignition switch to OFF posi-tion.
2. Turn the ignition key switch to ON posi- tion with a registered key.
(Do not start engine.) Wait for 5 sec-
onds.
3. Return the key to the OFF position.
4. Repeat steps 2 and 3 twice (total of three cycles).
5. Start the engine. Can the engine start?
No
EYe s System is OK.
(Now the system is
escaped from ªLOCK
MODEº.)
CHECK NATS IMMU INSTALLATION.
Refer to ªHow to Replace NATS IMMUº in
EL-242.
OK
ENGReinstall NATS IMMU cor-
rectly.
PERFORM INITIALIZATION.
Perform initialization with CONSULT-II.
For the initialization procedure, refer to
ªCONSULT-II operation manual NATSº.
Can the system be initialized?
Note: If the initialization is incompleted or
failed, CONSULT-II shows
mes-
sage on the screen.
No
EYe s System is OK.
Go to DIAGNOSTIC PROCEDURE 4,
EL-237 to check ªCHAIN OF IMMU-KEYº.
YEL484B
YEL479B
H
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-240
http://vnx.su/

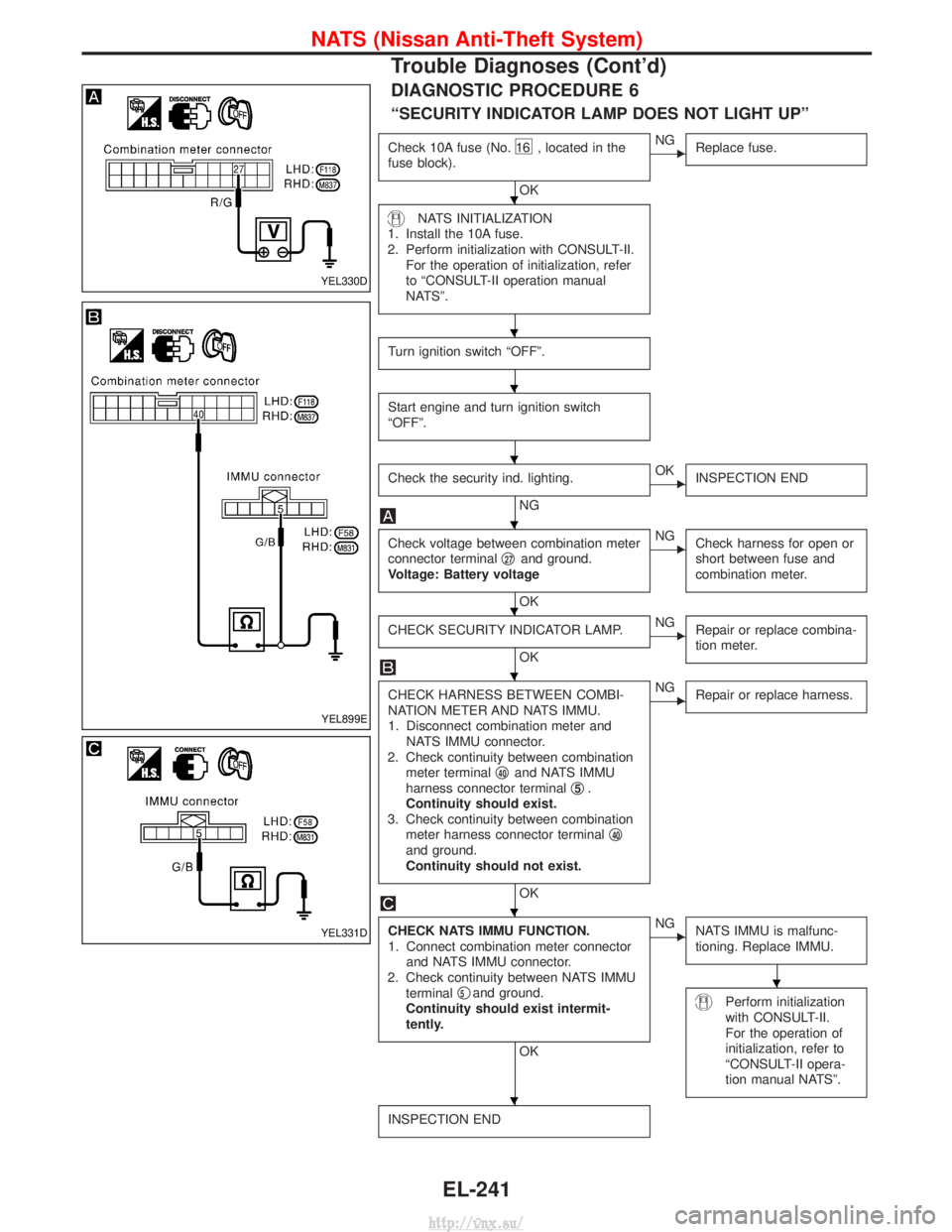

DIAGNOSTIC PROCEDURE 6
ªSECURITY INDICATOR LAMP DOES NOT LIGHT UPº
Check 10A fuse (No.16 , located in the
fuse block).
OK
ENG Replace fuse.
NATS INITIALIZATION
1. Install the 10A fuse.
2. Perform initialization with CONSULT-II. For the operation of initialization, refer
to ªCONSULT-II operation manual
NATSº.
Turn ignition switch ªOFFº.
Start engine and turn ignition switch
ªOFFº.
Check the security ind. lighting.
NG
EOK INSPECTION END
Check voltage between combination meter
connector terminal q27and ground.
Voltage: Battery voltage
OK
ENG Check harness for open or
short between fuse and
combination meter.
CHECK SECURITY INDICATOR LAMP.
OK
ENGRepair or replace combina-
tion meter.
CHECK HARNESS BETWEEN COMBI-
NATION METER AND NATS IMMU.
1. Disconnect combination meter and
NATS IMMU connector.
2. Check continuity between combination meter terminal q
40and NATS IMMU
harness connector terminal q5.
Continuity should exist.
3. Check continuity between combination meter harness connector terminal q
40and ground.
Continuity should not exist.
OK
ENG
Repair or replace harness.
CHECK NATS IMMU FUNCTION.
1. Connect combination meter connector
and NATS IMMU connector.
2. Check continuity between NATS IMMU terminal q
5and ground.
Continuity should exist intermit-
tently.
OK
ENG NATS IMMU is malfunc-
tioning. Replace IMMU.
Perform initialization
with CONSULT-II.
For the operation of
initialization, refer to
ªCONSULT-II opera-
tion manual NATSº.
INSPECTION END
YEL330D
YEL899E
YEL331D
H
H
H
H
H
H
H
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-241
http://vnx.su/

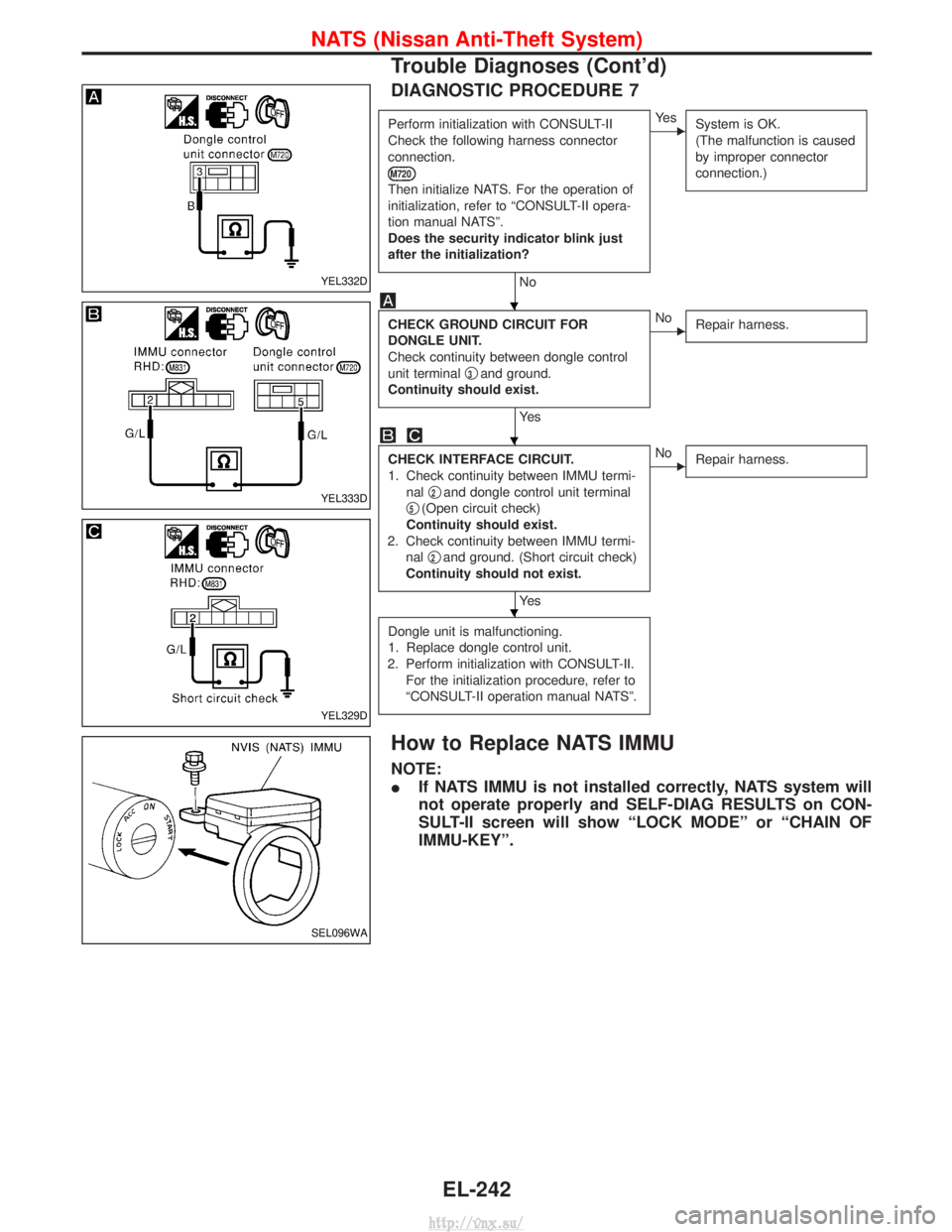

DIAGNOSTIC PROCEDURE 7
Perform initialization with CONSULT-II
Check the following harness connector
connection.
M720
Then initialize NATS. For the operation of
initialization, refer to ªCONSULT-II opera-
tion manual NATSº.
Does the security indicator blink just
after the initialization?
No
EYe sSystem is OK.
(The malfunction is caused
by improper connector
connection.)
CHECK GROUND CIRCUIT FOR
DONGLE UNIT.
Check continuity between dongle control
unit terminal q
3and ground.
Continuity should exist.
Ye s
ENo Repair harness.
CHECK INTERFACE CIRCUIT.
1. Check continuity between IMMU termi-
nal q
2and dongle control unit terminal
q
5(Open circuit check)
Continuity should exist.
2. Check continuity between IMMU termi- nal q
2and ground. (Short circuit check)
Continuity should not exist.
Ye s
ENo Repair harness.
Dongle unit is malfunctioning.
1. Replace dongle control unit.
2. Perform initialization with CONSULT-II. For the initialization procedure, refer to
ªCONSULT-II operation manual NATSº.
How to Replace NATS IMMU
NOTE:
I If NATS IMMU is not installed correctly, NATS system will
not operate properly and SELF-DIAG RESULTS on CON-
SULT-II screen will show ªLOCK MODEº or ªCHAIN OF
IMMU-KEYº.
YEL332D
YEL333D
YEL329D
SEL096WA
H
H
H
NATS (Nissan Anti-Theft System)
Trouble Diagnoses (Cont'd)
EL-242
http://vnx.su/

Components Parts and Harness Connector
Location
YEL335D
