2004 NISSAN TERRANO Service Repair Manual

Trouble Diagnoses
PRELIMINARY CHECK
*1: Combination Meter Self-Diagnosis(EL-90) *2: POWER SUPPLY AND GROUND
CIRCUIT CHECK (EL-83) *3: Symptom Chart 1 (EL-93)
*4:SymptomChart2(EL-93)
SEL361WB
METER AND GAUGES
EL-92
http://vnx.su/

SYMPTOM CHART
Symptom Chart 1 (Malfunction is Indicated in Diagnosis Mode)
SymptomPossible causes Repair order
Odo/trip meter indicates
malfunction in Diagnosis
mode. Unified meter control unit
Replace unified meter control unit.
Multiple meter/gauge indi-
cate malfunction in Diagno-
sis mode.
One of speedometer/
tachometer/fuel gauge/
water temp. gauge indicates
malfunction in Diagnosis
mode. 1. Meter/Gauge
2. Unified meter control unit
1. Check resistance of meter/gauge indicating malfunction.
If the resistance is NG, replace the meter/gauge.
2. If the resistance of meter/gauge is OK, replace unified- meter control unit.
Symptom Chart 2 (No Malfunction is Indicated in Diagnosis Mode)
Symptom Possible causes Repair order
One of speedometer/
tachometer/fuel gauge/
water temp. gauge is mal-
functioning. 1. Sensor signal
- Vehicle speed signal
- Engine revolution signal
- Fuel gauge
- Water temp. gauge
2. Unified meter control unit 1. Check the sensor for malfunctioning meter/gauge.
INSPECTION/VEHICLE SPEED SENSOR (Refer to
EL-95.)
INSPECTION/ENGINE REVOLUTION SIGNAL (Refer
to EL-96.)
INSPECTION/FUEL LEVEL SENSOR UNIT (Refer to
EL-96.)
INSPECTION/THERMAL TRANSMITTER (Refer to
EL-97.)
2. Replace unified meter control unit.
Multiple meter/gauge are
malfunctioning. (except odo/
trip meter)
Before starting trouble diagnoses below, perform PRELIMINARY CHECK, EL-92.
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-93
http://vnx.su/

POWER SUPPLY AND GROUND CIRCUIT CHECK
Power Supply Circuit Check
TerminalsIgnition switch position
(+) (-) OFF ACC ON
27 Ground Battery volt-
age Battery volt-
age Battery volt-
age
28 Ground 0V 0V Battery volt-
age
If NG, check the following.
I10A fuse [No. 12, located in fuse block (J/B)]
I 10A fuse [No. 16, located in fuse block (J/B)]
I Harness for open or short between fuse and combination meter
Ground Circuit Check
Terminals Continuity
29 - Ground Yes
YEL885E
YEL886E
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-94
http://vnx.su/

INSPECTION/VEHICLE SPEED SENSOR
CHECK VEHICLE SPEED SENSOR
OUTPUT.
1. Remove vehicle speed sensor fromtransmission.
2. Turn ignition switch to ªONº position.
3. Check voltage between combination meter terminals q
21and ground while
quickly turning speed sensor pinion.
Tester pointer should remove.
NG
EOK Vehicle speed sensor is
OK.
CHECK POWER SOURCE.
IRe-install vehicle speed sensor.
I Disconnect vehicle speed sensor con-
nector.
Check voltage between vehicle speed
sensor connector terminal q
1and ground.
Battery voltage should exist.
OK
ENG Check harness for open or
short between vehicle
speed sensor and fuse.
CHECK GROUND CIRCUIT OF
VEHICLE SPEED SENSOR
ITurn ignition switch to the ªLOCKº posi-
tion.
Check continuity between vehicle speed
sensor harness connector terminal q
3and
body ground.
Continuity should exist.
OK
ENG Repair harness or connec-
tor
Check continuity between speedometer
harness connector terminal q
21and
vehicle speed sensor connector terminal
q
2.
Continuity should exist.
OK
ENG Repair harness and con-
nector.
Replace vehicle speed sensor.
YEL870E
YEL871E
YEL872E
YEL873E
H
H
H
H
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-95
http://vnx.su/

INSPECTION/REVOLUTION SIGNAL
CHECK ECM OUTPUT SIGNAL.
1. Start engine.
2. Check voltage between combination meter terminal 23 and ground at idle
and 2,000 rpm.
Higher rpm = Higher voltage
Lower rpm = Lower voltage
Voltage should change with rpm.
OK
ENG Check harness for open or
short between ECM and
meter.
Engine revolution signal is OK.
INSPECTION/FUEL LEVEL SENSOR UNIT
CHECK GROUND CIRCUIT FOR FUEL
LEVEL SENSOR UNIT.
1. Disconnect fuel level sensor unit har-
ness connector.
2. Check continuity between fuel level sensor unit terminal 3 and ground.
Continuity should exist.
OK
ENG Repair harness or connec-
tor.
CHECK FUEL LEVEL SENSOR UNIT.
Refer to ªFUEL LEVEL SENSOR UNIT
CHECKº (EL-98).
OK
ENGReplace fuel level sensor
unit.
CHECK HARNESS FOR OPEN OR
SHORT.
1. Disconnect fuel level sensor unit har-
ness connector and combination meter
harness connector.
2. Check continuity between combination meter terminal 13 and fuel level sensor
unit terminal 2 (TD27Ti engine) or 1
(ZD30DDTi engine).
Continuity should exist.
3. Check continuity between combination meter terminal 13 and ground.
Continuity should not exist.ENG Repair harness or connec-
tor.
YEL881E
YEL882E
YEL883E
H
H
H
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-96
http://vnx.su/

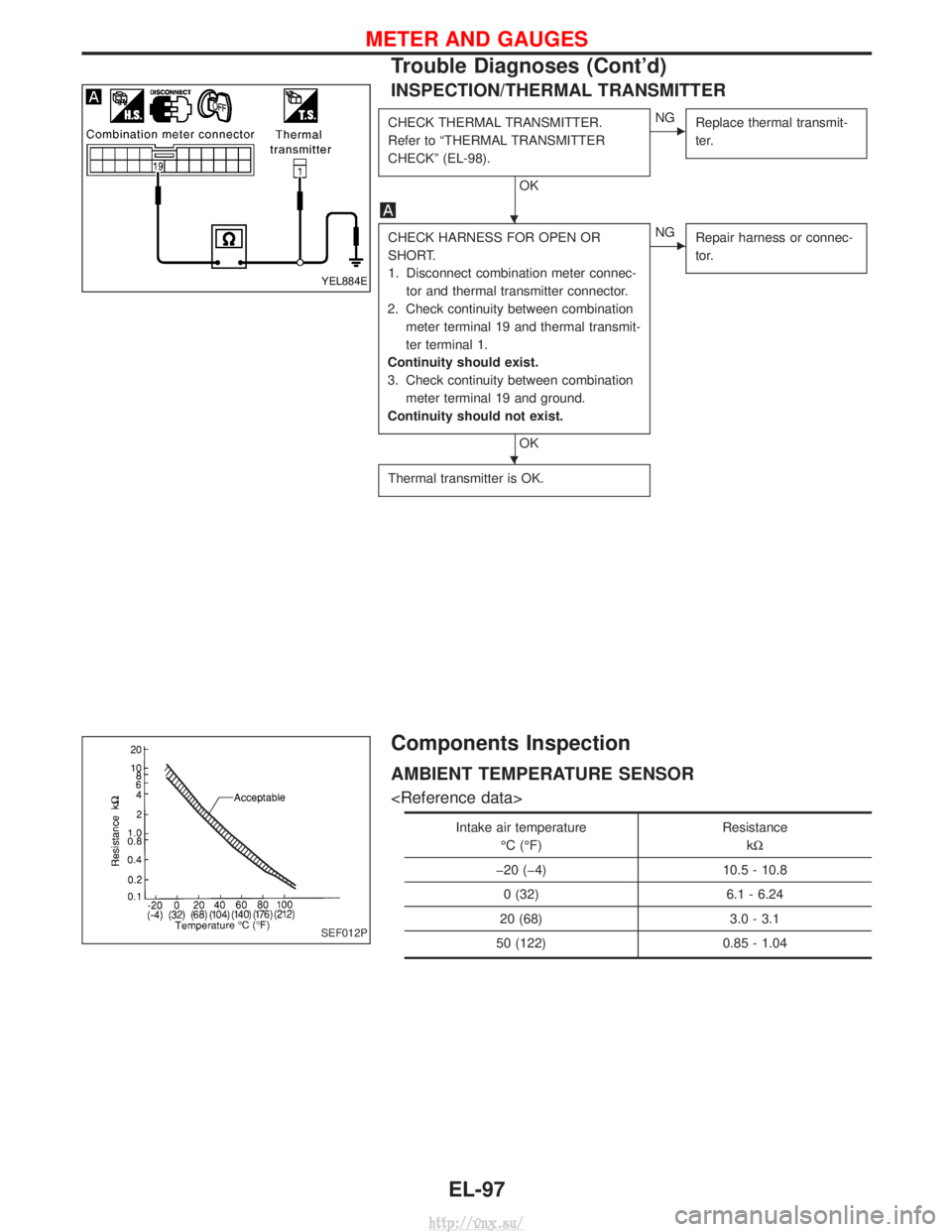

INSPECTION/THERMAL TRANSMITTER
CHECK THERMAL TRANSMITTER.
Refer to ªTHERMAL TRANSMITTER
CHECKº (EL-98).
OK
ENGReplace thermal transmit-
ter.
CHECK HARNESS FOR OPEN OR
SHORT.
1. Disconnect combination meter connec-
tor and thermal transmitter connector.
2. Check continuity between combination meter terminal 19 and thermal transmit-
ter terminal 1.
Continuity should exist.
3. Check continuity between combination meter terminal 19 and ground.
Continuity should not exist.
OK
ENG Repair harness or connec-
tor.
Thermal transmitter is OK.
Components Inspection
AMBIENT TEMPERATURE SENSOR

Intake air temperature
ÉC (ÉF) Resistance
kW
þ20 (þ4) 10.5 - 10.8 0 (32) 6.1 - 6.24
20 (68) 3.0 - 3.1
50 (122) 0.85 - 1.04
YEL884E
SEF012P
H
H
METER AND GAUGES
Trouble Diagnoses (Cont'd)
EL-97
http://vnx.su/

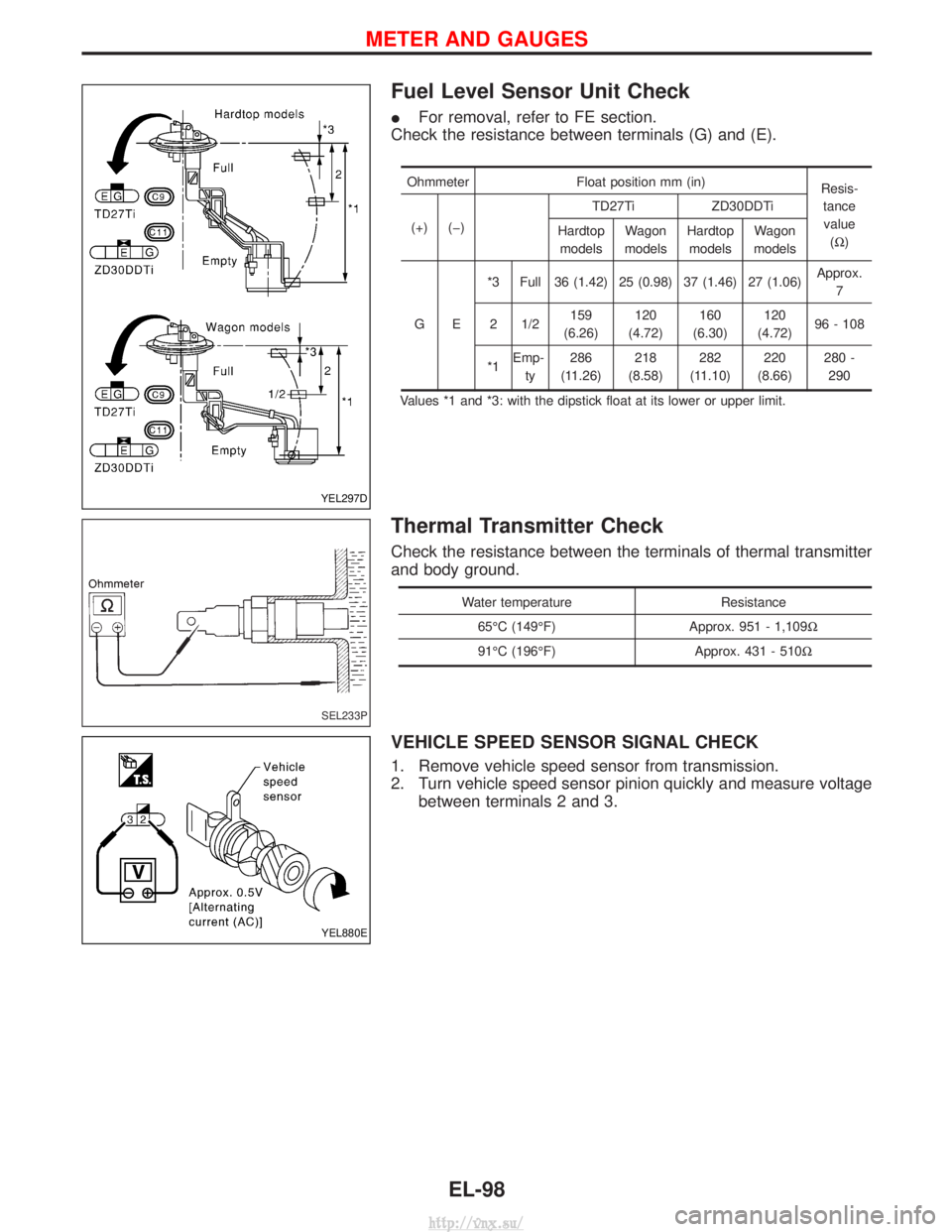

Fuel Level Sensor Unit Check
IFor removal, refer to FE section.
Check the resistance between terminals (G) and (E).
Ohmmeter Float position mm (in)
Resis-
tancevalue (W )
(+) (þ) TD27Ti ZD30DDTi
Hardtop models Wagon
models Hardtop
models Wagon
models
GE *3 Full 36 (1.42) 25 (0.98) 37 (1.46) 27 (1.06)
Approx.
7
2 1/2 159
(6.26) 120
(4.72) 160
(6.30) 120
(4.72) 96 - 108
*1 Emp-
ty 286
(11.26) 218
(8.58) 282
(11.10) 220
(8.66) 280 -
290
Values *1 and *3: with the dipstick float at its lower or upper limit.
Thermal Transmitter Check
Check the resistance between the terminals of thermal transmitter
and body ground.
Water temperature Resistance
65ÉC (149ÉF) Approx. 951 - 1,109W
91ÉC (196ÉF) Approx. 431 - 510W
VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage between terminals 2 and 3.
YEL297D
SEL233P
YEL880E
METER AND GAUGES
EL-98
http://vnx.su/

Schematic
YEL762E
