8. Touch ªTROUBLE DIAG RECORDº.
NOTE:
With ªTROUBLE DIAG RECORDº, diagnosis results previously
erased by a reset operation can be displayed.
9. Diagnostic code is displayed on ªTROUBLE DIAG RECORDº.
10. Touch ªPRINTº.
11. Compare diagnostic codes to ªIntermittent Malfunction Diag-nostic Code Chartº, page RS-53.
12. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº appears.
13. Turn ignition switch ªOFFº, then turn off and disconnect CONSULT-II, and disconnect both battery cables.
14. Repair the system as outlined by the ªRepair orderº in ªInter- mittent Malfunction Diagnostic Code Chartº, that corresponds
to the self-diagnostic result. For replacement procedure of com-
ponent parts, refer to RS-13.
15. Go to DIAGNOSTIC PROCEDURE 3, page RS-42, for final- checking.
INTERMITTENT MALFUNCTION DIAGNOSTIC CODE
CHART (ªSELF-DIAG [PAST] or TROUBLE DIAG
RECORDº)
Diagnostic item ExplanationRepair order
NO DTC IS DETECTED. INo malfunction is detected. IGo to DIAGNOSTIC PROCEDURE 3
(RS-42).
AIRBAG MODULE
[OPEN] I
Driver air bag module circuit is open.
(including the spiral cable) 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the spiral cable, diagnosis sensor unit and
driver air bag module. (Before disposing
of the driver air bag module, it must be
deployed.)
AIRBAG MODULE
[VB-SHORT]
I
Driver air bag module circuit is shorted
to a power supply circuit. (including the
spiral cable)
AIRBAG MODULE
[GND-SHORT] I
Driver air bag module circuit is shorted
to ground. (including the spiral cable)
AIRBAG MODULE
[SHORT] I
Driver air bag module circuit is shorted
between wires.
SRS697
SRS704
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-46
http://vnx.su/

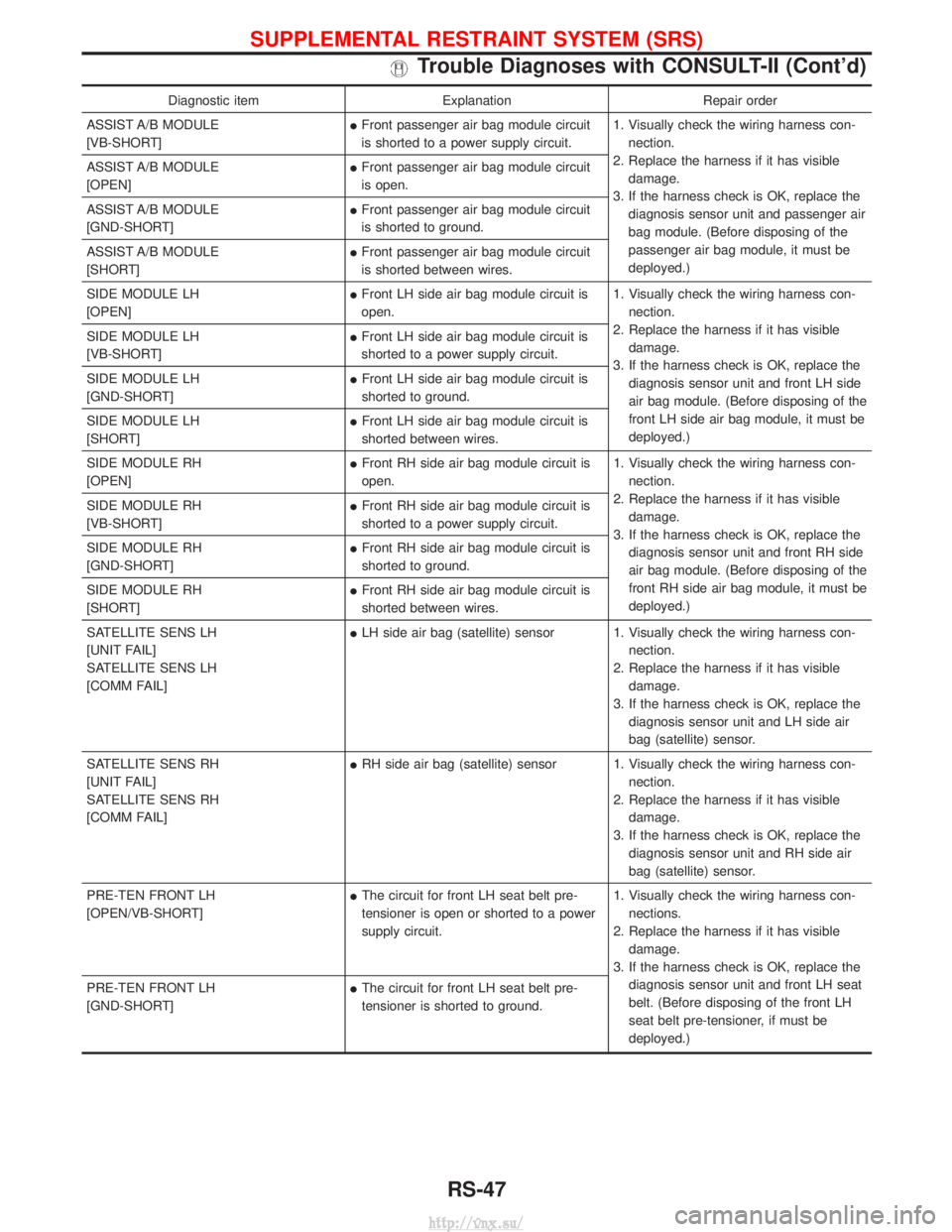

Diagnostic itemExplanationRepair order
ASSIST A/B MODULE
[VB-SHORT] I
Front passenger air bag module circuit
is shorted to a power supply circuit. 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and passenger air
bag module. (Before disposing of the
passenger air bag module, it must be
deployed.)
ASSIST A/B MODULE
[OPEN]
I
Front passenger air bag module circuit
is open.
ASSIST A/B MODULE
[GND-SHORT] I
Front passenger air bag module circuit
is shorted to ground.
ASSIST A/B MODULE
[SHORT] I
Front passenger air bag module circuit
is shorted between wires.
SIDE MODULE LH
[OPEN] I
Front LH side air bag module circuit is
open. 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and front LH side
air bag module. (Before disposing of the
front LH side air bag module, it must be
deployed.)
SIDE MODULE LH
[VB-SHORT]
I
Front LH side air bag module circuit is
shorted to a power supply circuit.
SIDE MODULE LH
[GND-SHORT] I
Front LH side air bag module circuit is
shorted to ground.
SIDE MODULE LH
[SHORT] I
Front LH side air bag module circuit is
shorted between wires.
SIDE MODULE RH
[OPEN] I
Front RH side air bag module circuit is
open. 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and front RH side
air bag module. (Before disposing of the
front RH side air bag module, it must be
deployed.)
SIDE MODULE RH
[VB-SHORT]
I
Front RH side air bag module circuit is
shorted to a power supply circuit.
SIDE MODULE RH
[GND-SHORT] I
Front RH side air bag module circuit is
shorted to ground.
SIDE MODULE RH
[SHORT] I
Front RH side air bag module circuit is
shorted between wires.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL] I
LH side air bag (satellite) sensor 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and LH side air
bag (satellite) sensor.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL] I
RH side air bag (satellite) sensor 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and RH side air
bag (satellite) sensor.
PRE-TEN FRONT LH
[OPEN/VB-SHORT] I
The circuit for front LH seat belt pre-
tensioner is open or shorted to a power
supply circuit. 1. Visually check the wiring harness con-
nections.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and front LH seat
belt. (Before disposing of the front LH
seat belt pre-tensioner, if must be
deployed.)
PRE-TEN FRONT LH
[GND-SHORT]
I
The circuit for front LH seat belt pre-
tensioner is shorted to ground.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-47
http://vnx.su/

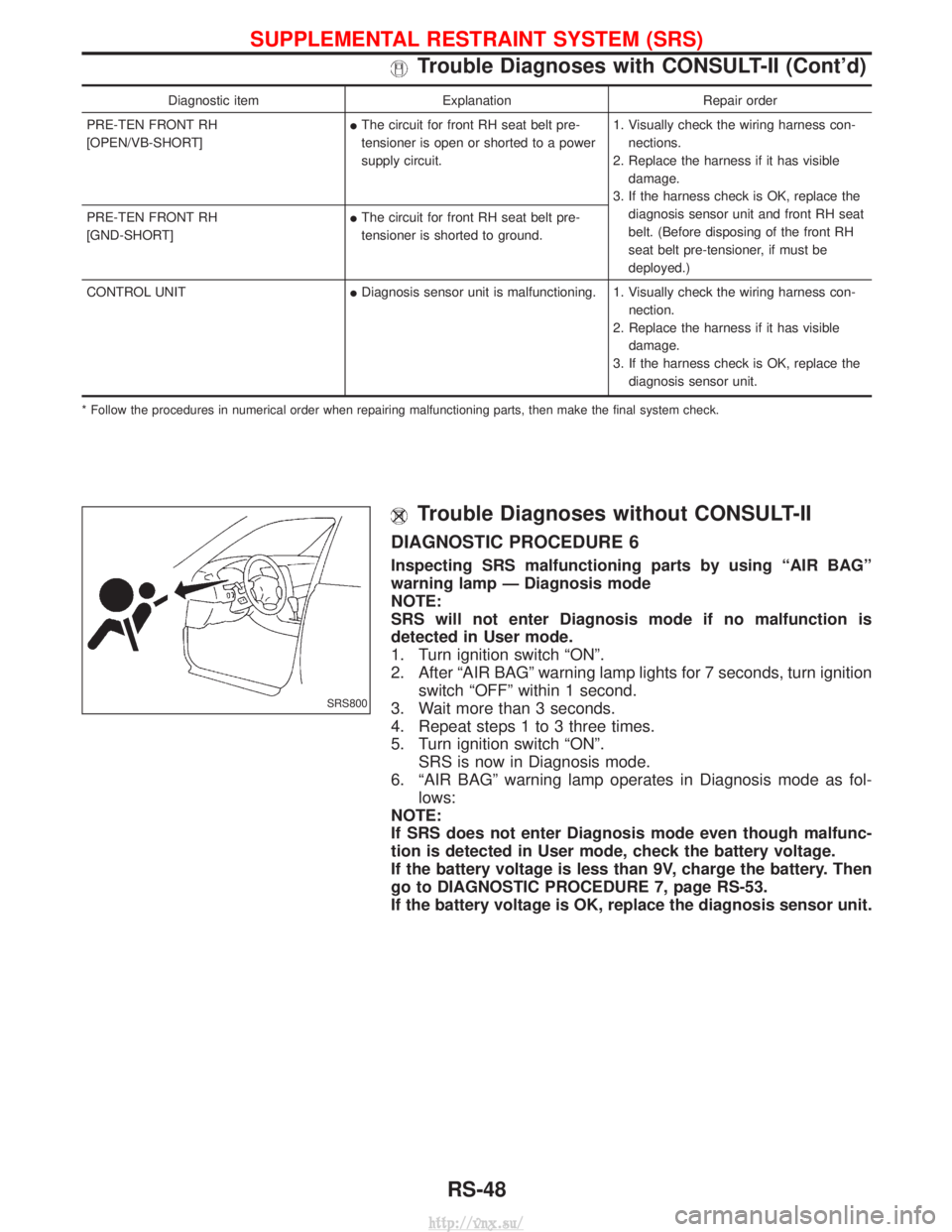

Diagnostic itemExplanationRepair order
PRE-TEN FRONT RH
[OPEN/VB-SHORT] I
The circuit for front RH seat belt pre-
tensioner is open or shorted to a power
supply circuit. 1. Visually check the wiring harness con-
nections.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit and front RH seat
belt. (Before disposing of the front RH
seat belt pre-tensioner, if must be
deployed.)
PRE-TEN FRONT RH
[GND-SHORT]
I
The circuit for front RH seat belt pre-
tensioner is shorted to ground.
CONTROL UNIT IDiagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible damage.
3. If the harness check is OK, replace the diagnosis sensor unit.
* Follow the procedures in numerical order when repairing malfunctioning parts, then make the final system check.
Trouble Diagnoses without CONSULT-II
DIAGNOSTIC PROCEDURE 6
Inspecting SRS malfunctioning parts by using ªAIR BAGº
warning lamp Ð Diagnosis mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is
detected in User mode.
1. Turn ignition switch ªONº.
2. After ªAIR BAGº warning lamp lights for 7 seconds, turn ignition switch ªOFFº within 1 second.
3. Wait more than 3 seconds.
4. Repeat steps 1 to 3 three times.
5. Turn ignition switch ªONº. SRS is now in Diagnosis mode.
6. ªAIR BAGº warning lamp operates in Diagnosis mode as fol- lows:
NOTE:
If SRS does not enter Diagnosis mode even though malfunc-
tion is detected in User mode, check the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then
go to DIAGNOSTIC PROCEDURE 7, page RS-53.
If the battery voltage is OK, replace the diagnosis sensor unit.
SRS800
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-48
http://vnx.su/

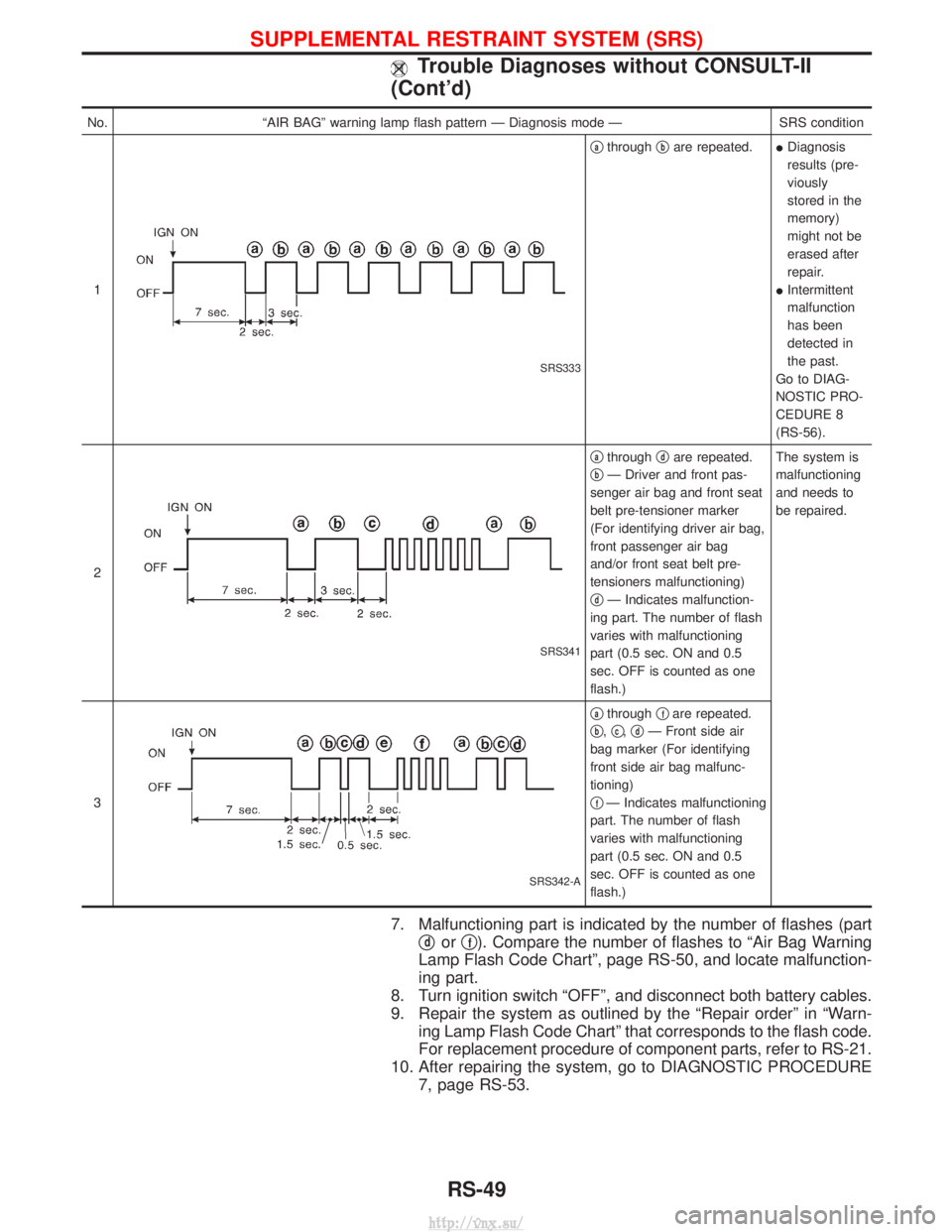

No.ªAIR BAGº warning lamp flash pattern Ð Diagnosis mode Ð SRS condition
1
SRS333
qathrough qbare repeated.
IDiagnosis
results (pre-
viously
stored in the
memory)
might not be
erased after
repair.
I Intermittent
malfunction
has been
detected in
the past.
Go to DIAG-
NOSTIC PRO-
CEDURE 8
(RS-56).
2
SRS341
qathrough qdare repeated.
q
bÐ Driver and front pas-
senger air bag and front seat
belt pre-tensioner marker
(For identifying driver air bag,
front passenger air bag
and/or front seat belt pre-
tensioners malfunctioning)
q
dÐ Indicates malfunction-
ing part. The number of flash
varies with malfunctioning
part (0.5 sec. ON and 0.5
sec. OFF is counted as one
flash.) The system is
malfunctioning
and needs to
be repaired.
3
SRS342-A
qathrough qfare repeated.
q
b, qc,qdÐ Front side air
bag marker (For identifying
front side air bag malfunc-
tioning)
q
fÐ Indicates malfunctioning
part. The number of flash
varies with malfunctioning
part (0.5 sec. ON and 0.5
sec. OFF is counted as one
flash.)
7. Malfunctioning part is indicated by the number of flashes (part q
dorqf). Compare the number of flashes to ªAir Bag Warning
Lamp Flash Code Chartº, page RS-50, and locate malfunction-
ing part.
8. Turn ignition switch ªOFFº, and disconnect both battery cables.
9. Repair the system as outlined by the ªRepair orderº in ªWarn- ing Lamp Flash Code Chartº that corresponds to the flash code.
For replacement procedure of component parts, refer to RS-21.
10. After repairing the system, go to DIAGNOSTIC PROCEDURE 7, page RS-53.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-49
http://vnx.su/

Air Bag Warning Lamp Flash Code Chart (Diagnosis
mode)
IDiagnosis results (pre-
viously stored in the
memory) might not be
erased after repair.
I Intermittent malfunction
has been detected in
the past. Flash pattern
SRS333
qathrough
qbare
repeated.
Repair order
I Go to DIAGNOSTIC PROCEDURE 8 (RS-56).
The front RH seat belt
pre-tensioner circuit is
malfunctioning.
( q
d: 1 flash) Flash pattern
SRS801
qathrough
qdare
repeated.
q
dÐ One flash indicates
malfunctioning front RH
seat belt pre-tensioner
circuit.
Repair order (ªRecheck SRS at each replacementº.)
1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front RH seat belt pre-tensioner. (Before disposal, it must be deactivated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
The driver air bag mod-
ule circuit is malfunction-
ing.
( q
d: 2 flashes) Flash pattern
SRS334
qathrough
qdare
repeated.
q
dÐ Two flashes indi-
cate malfunctioning
driver air bag module
circuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the spiral cable.
4. Replace driver air bag module. (Before disposal, it must be deployed.)
5. Replace the diagnosis sensor unit.
6. Replace the related harness.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-50
http://vnx.su/

The front LH seat belt
pre-tensioner circuit is
malfunctioning.
(q
d: 3 flashes) Flash pattern
SRS802
qathrough
qdare
repeated.
q
dÐ Three flashes indi-
cate malfunctioning front
LH seat belt pre-ten-
sioner circuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace front LH seat belt pre-tensioner. (Before disposal, it must be deactivated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
The diagnosis sensor
unit is malfunctioning.
( q
d: 7 flashes) Flash pattern
SRS335
qathrough
qdare
repeated.
q
dÐ Seven flashes indi-
cate malfunctioning diag-
nosis sensor unit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connections.
2. Replace the harness if it has visible damage.
3. Replace the diagnosis sensor unit.
4. Replace the related harness.
The front passenger air
bag module circuit is
malfunctioning.
( q
d: 8 flashes) Flash pattern
SRS336
qathrough
qdare
repeated.
q
dÐ Eight flashes indi-
cate malfunctioning front
passenger air bag mod-
ule circuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace front passenger air bag module. (Before disposal, it must be deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-51
http://vnx.su/

More than two parts
groups are out of order.
(q
d: 9 flashes) Flash pattern
YRS073
qathrough
qdare
repeated.
q
dÐ Nine flashes indicate
malfunctioning more than
two parts groups.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace spiral cable and air bag module.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
The front RH side air bag
module circuit is malfunc-
tioning.
( q
f: 1 flash) Flash pattern
SRS338
qathrough
qfare
repeated.
q
fÐ One flash indicates
malfunctioning front RH
side air bag module circuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace front RH side air bag module. (Before disposal, it must be deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
The front LH side air bag
module circuit is malfunc-
tioning.
( q
f: 2 flashes) Flash pattern
SRS337
qathrough
qfare
repeated.
q
fÐ Two flashes indicate
malfunctioning front LH
side air bag module circuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace front LH side air bag module. (Before disposal, it must be deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-52
http://vnx.su/

The RH side air bag (sat-
ellite) sensor is malfunc-
tioning.
(q
f: 3 flashes) Flash pattern
SRS340
qathrough
qfare
repeated.
q
fÐ Three flashes indi-
cate malfunctioning RH
side air bag (satellite) sen-
sor circuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the RH side air bag (satellite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
The LH side air bag (satel-
lite) sensor is malfunction-
ing.
( q
f: 4 flashes) Flash pattern
SRS339-A
qathrough
qfare
repeated.
q
fÐ Four flashes indicate
malfunctioning LH side air
bag (satellite) sensor cir-
cuit.
Repair order (ªRecheck SRS at each replacement.º)
1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the LH side air bag (satellite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is elimi-
nated using the air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, pro-
ceed to the next step. When malfunction is eliminated, further repair work is not required.
DIAGNOSTIC PROCEDURE 7
Final checking after repairing SRS by using ªAIR BAGº warn-
ing lamp Ð Diagnosis mode and User mode
1. After repairing SRS connect both battery cables.
2. Open driver's door.
3. Turn ignition switch from ªOFFº to ªONº.
4. ªAIR BAGº warning lamp operates in Diagnosis mode as fol- lows:
SRS800
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses without CONSULT-II
(Cont'd)
RS-53
http://vnx.su/
