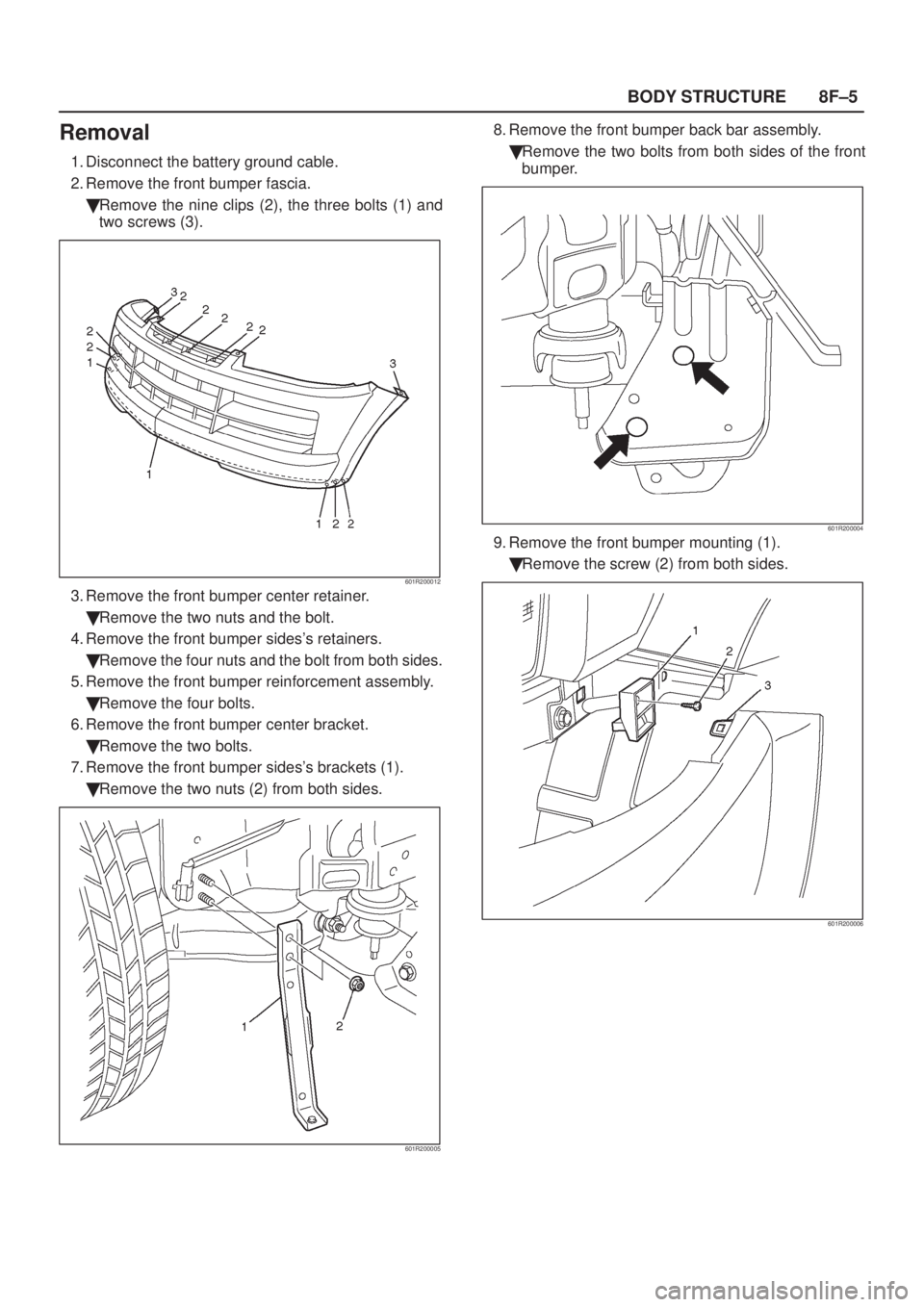

ISUZU AXIOM 2002 Service Repair Manual 8F±5 BODY STRUCTURE Removal 1. Disconnect the battery ground cable. 2. Remove the front bumper fascia. Remove the nine clips (2), the three bolts (1) and two screws (3). 601R200012 3. Remove the fro

Page 1882 of 2100

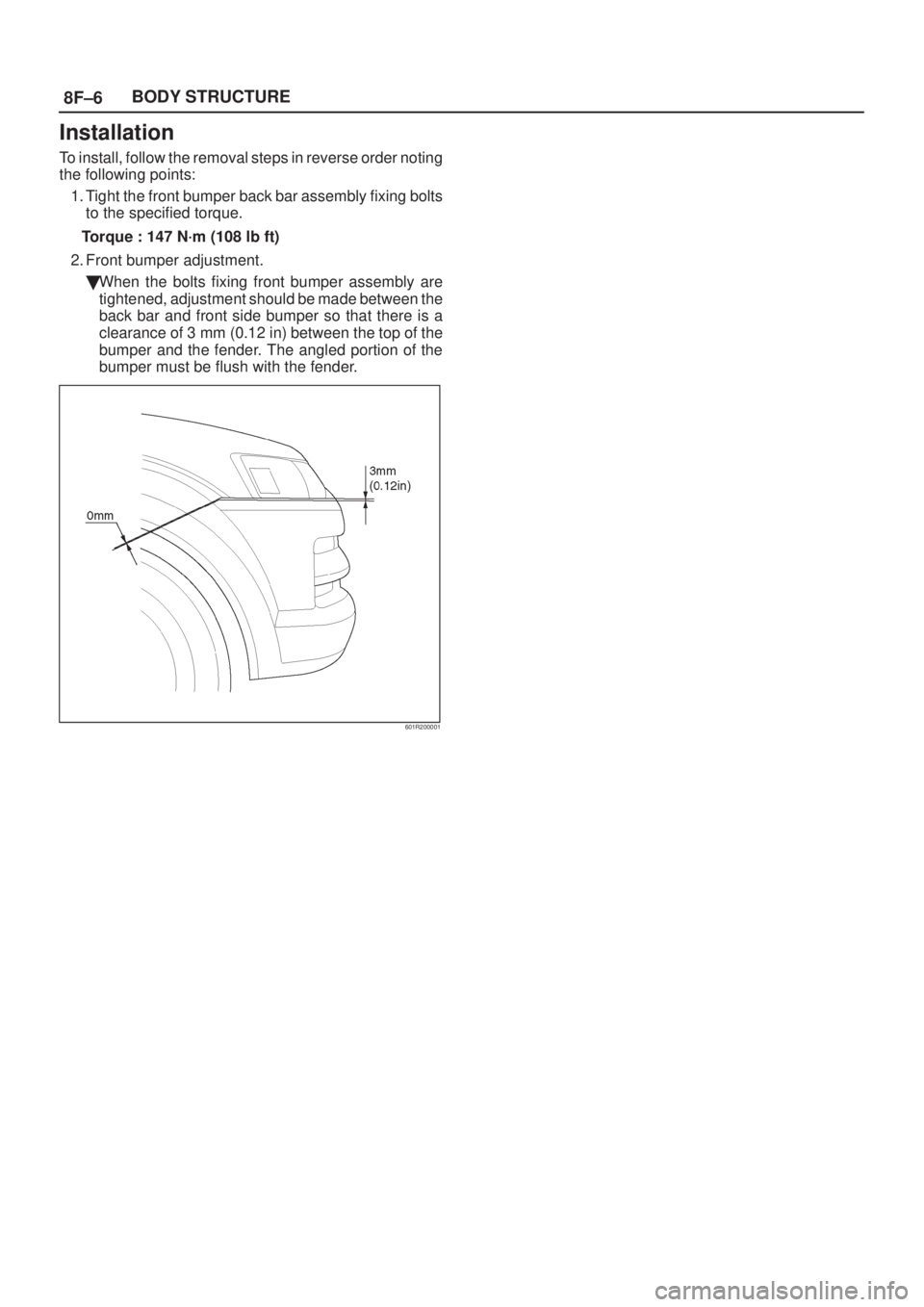

ISUZU AXIOM 2002 Service Repair Manual 8F±6BODY STRUCTURE Installation To install, follow the removal steps in reverse order noting the following points: 1. Tight the front bumper back bar assembly fixing bolts to the specified torque. To

Page 1883 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8F±7 BODY STRUCTURE Rear Bumper Parts Location 601R200002 Legend (1) Rear Bumper Mounting (2) Rear Bumper Side Bracket (3) Rear Bumper Back Bar Assembly (4) Rear Bumper Reinforcement Assembly(5) Rear

Page 1884 of 2100

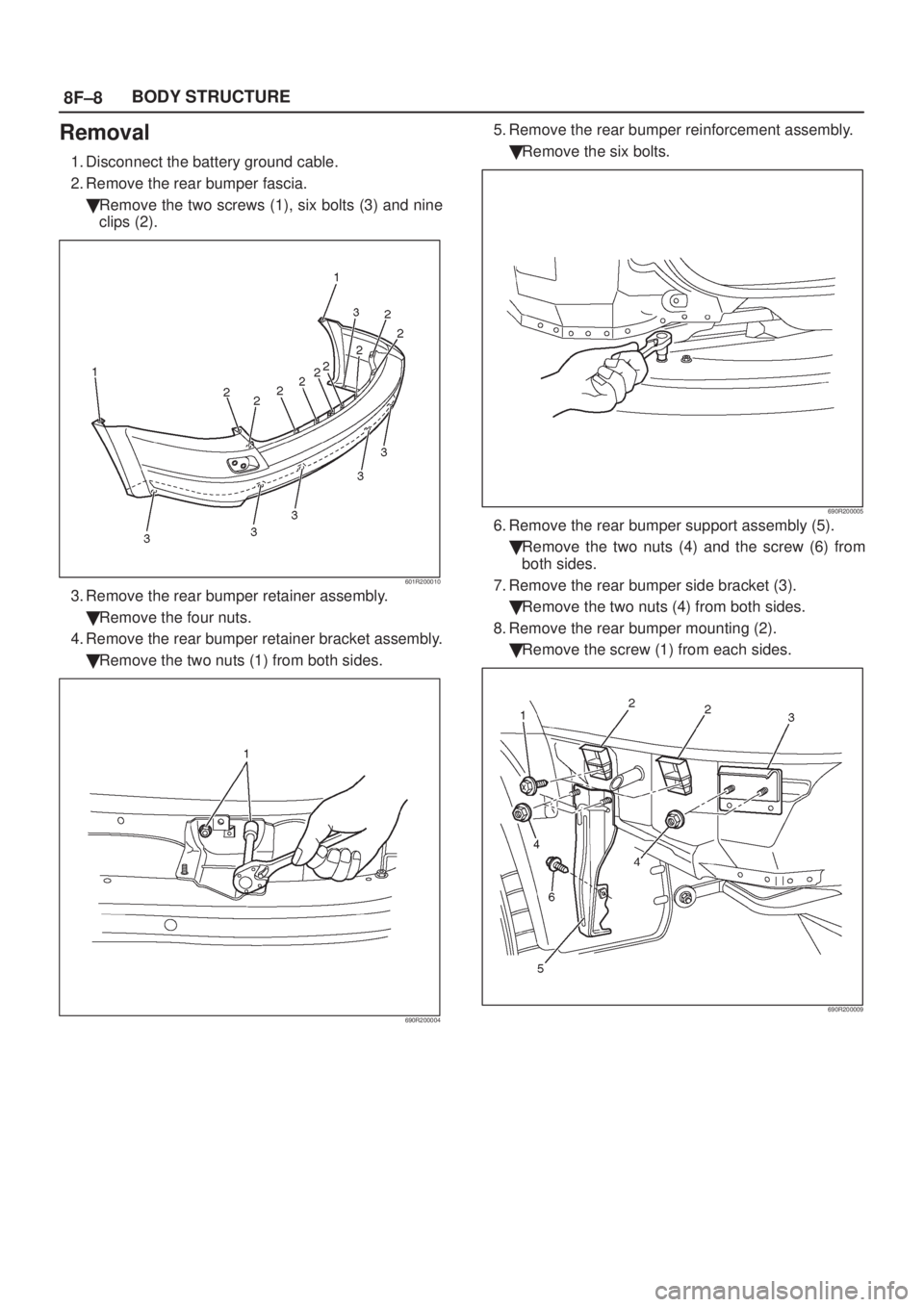

ISUZU AXIOM 2002 Service Repair Manual 8F±8BODY STRUCTURE Removal 1. Disconnect the battery ground cable. 2. Remove the rear bumper fascia. Remove the two screws (1), six bolts (3) and nine clips (2). 601R200010 3. Remove the rear bumper

Page 1885 of 2100

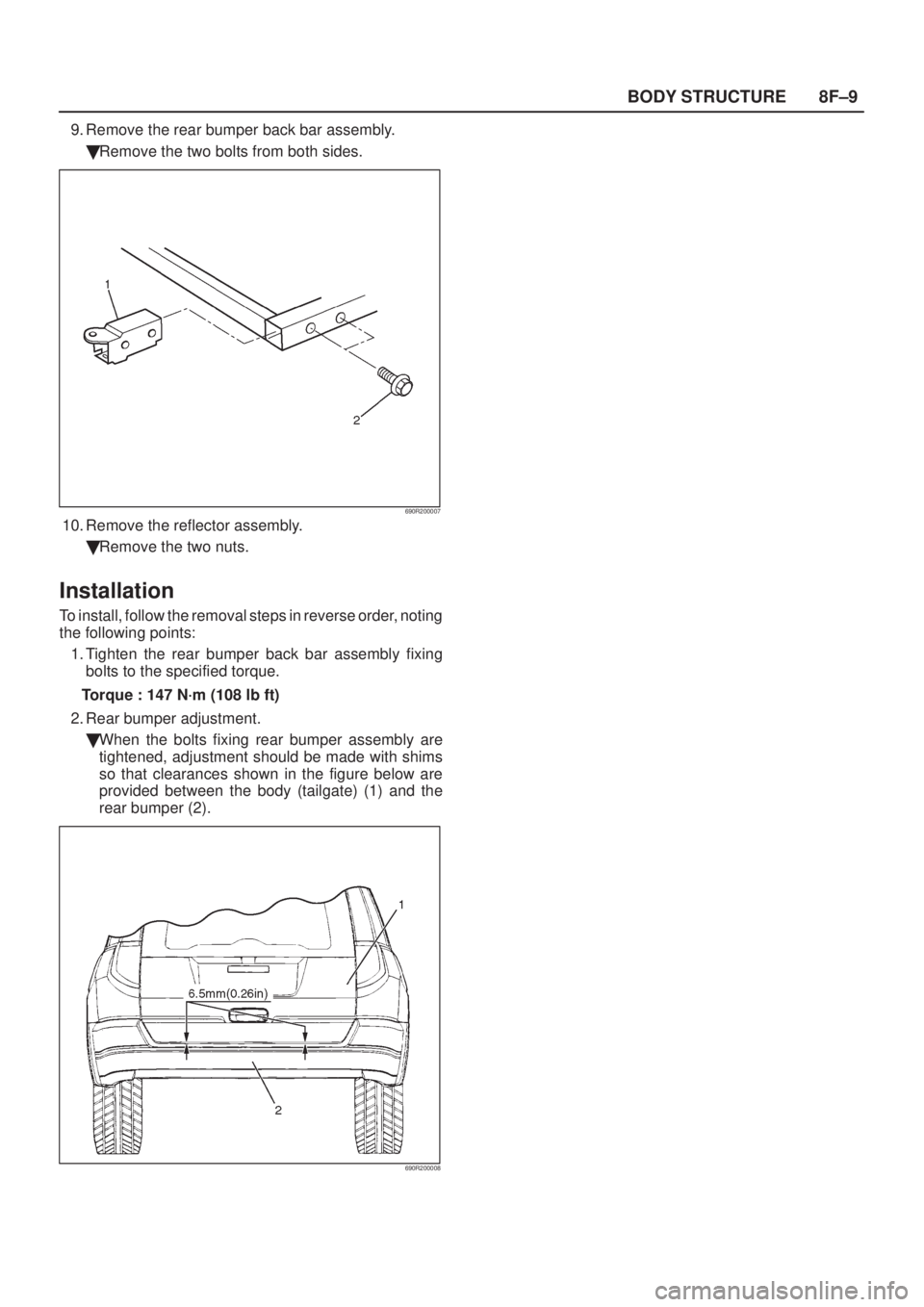

ISUZU AXIOM 2002 Service Repair Manual 8F±9 BODY STRUCTURE 9. Remove the rear bumper back bar assembly. Remove the two bolts from both sides. 690R200007 10. Remove the reflector assembly. Remove the two nuts. Installation To install, fo

Page 1886 of 2100

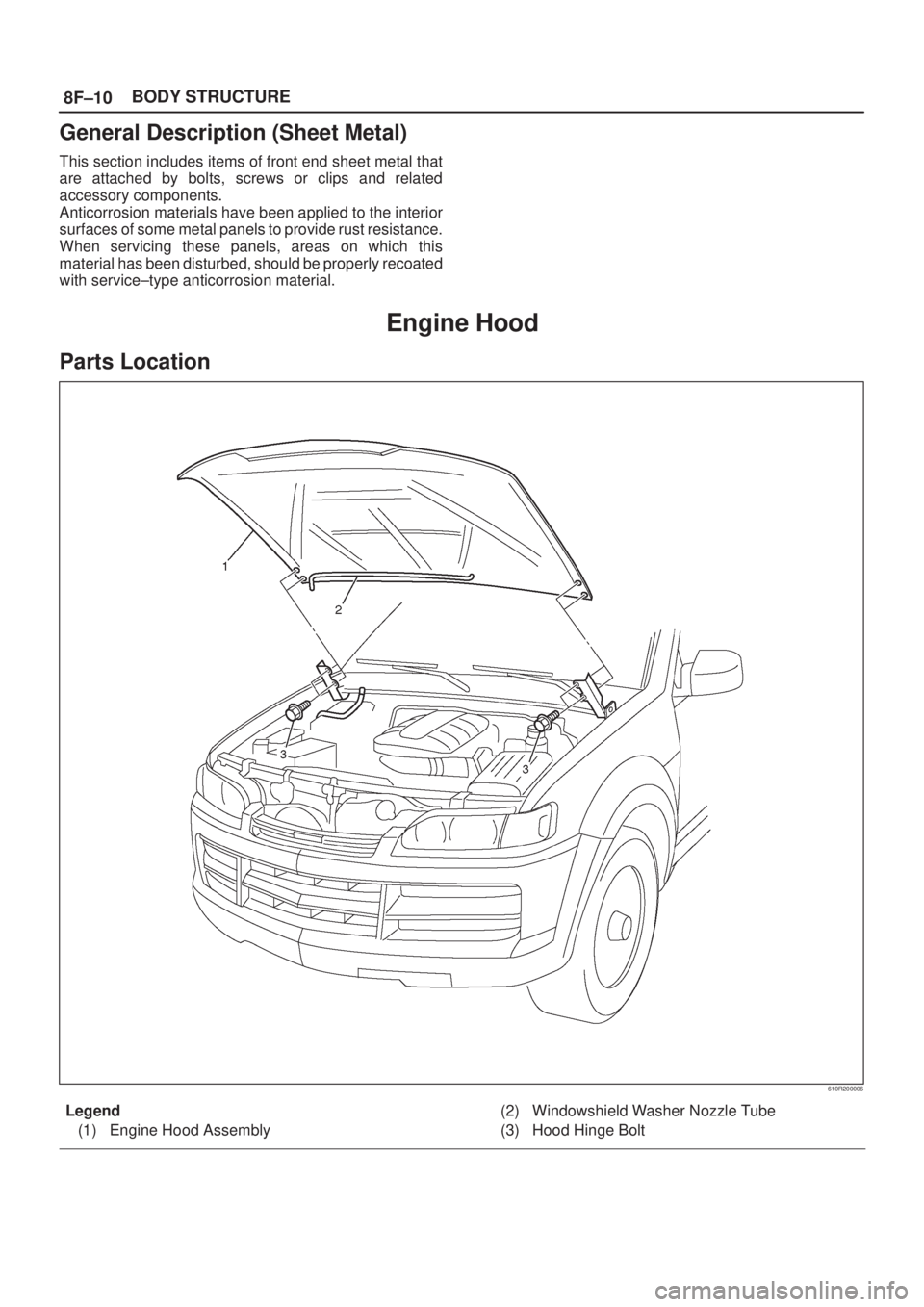

ISUZU AXIOM 2002 Service Repair Manual 8F±10BODY STRUCTURE General Description (Sheet Metal) This section includes items of front end sheet metal that are attached by bolts, screws or clips and related accessory components. Anticorrosion

Page 1887 of 2100

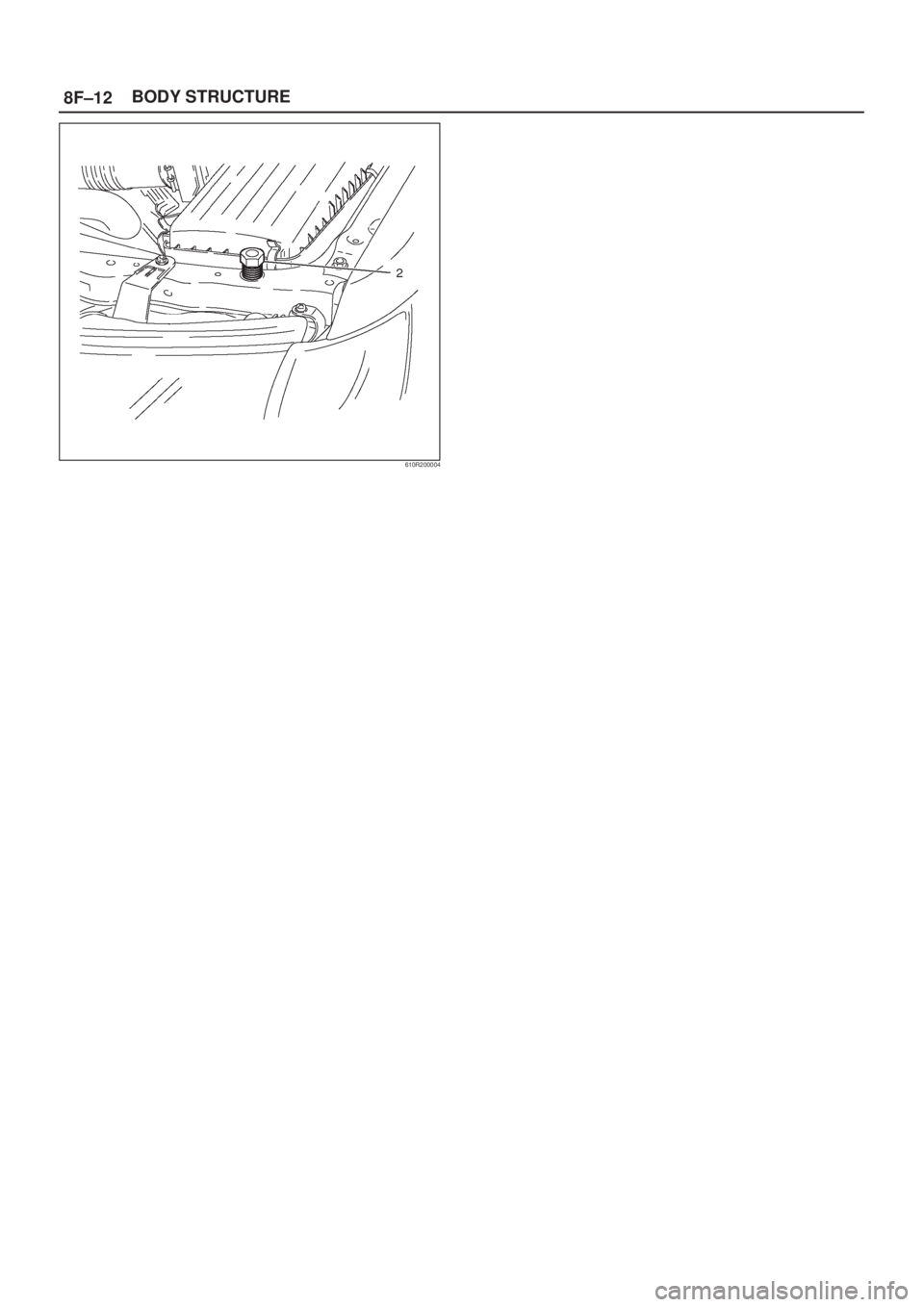

ISUZU AXIOM 2002 Service Repair Manual 8F±11 BODY STRUCTURE Removal 1. Open the hood. 2. Support the hood. 3. Remove the windshield washer nozzle tube. 860R200005 4. Remove the hood hinge bolts. Before removing the hinges from the engine

Page 1888 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8F±12BODY STRUCTURE 610R200004
