ISUZU AXIOM 2002 Service Repair Manual 6E±42
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Operating Procedure (For Example)
The power up screen is displayed when you power up the
tester with the Isuzu systems PCMCIA card. Follow the
operat

Page 1010 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±43
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Menu
The following table shows which functions are used
for the available equipment versions.
060R100018
DTC Modes
060R100077
On OBD II vehicles the

6E±43
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Menu
The following table shows which functions are used
for the available equipment versions.
060R100018
DTC Modes
060R100077
On OBD II vehicles there are options available in Tech 2
DTC mode to display the enhanced information available.
After selecting DTC, the following menu appears:
1. Read DTC Info by Priority
2. Freeze Frame
3. Fail Records (not all applications)
4. DTC Info
5. Clear Info
060RW223
The following is a brief description of each of the sub
menus in DTC Info and DTC. The order in which they
appear here is alphabetical and not necessarily the way
they will appear on the Tech 2.
DTC Information Mode
Use the DTC info mode to search for a specific type of
stored DTC information.
DTC Status
This selection will display any DTCs that have not run
during the current ignition cycle or have reported a test
failure during this ignition up to DTCs. DTC tests which
run and pass will cause that DTC number to be removed
from Tech 2 screen.
Fail This Ignition
This selection will display all DTCs that have failed during
the present ignition cycle.
History
This selection will display only DTCs that are stored in the
PCM's history memory. It will display all type A and B
DTCs that have requested the MIL and have failed within
the last 40 warm-up cycles. In addition, it will display all
type C and type D DTCs that have failed within the last 40
warm-up cycles.
Last Test Failed
This selection will display only DTCs that have failed the
last time the test run. The last test may have run during a
previous ignition cycle if a type A or type B DTC is
displayed. For type C and type D DTCs, the last failure
must have occurred during the current ignition cycle to
appear as Last Test Fail.
MILSVC or Message Request
This selection will display only DTCs that are requesting
the MIL. Type C and type D DTCs cannot be displayed
using this option. This selection will report type B DTCs
only after the MIL has been requested.

Page 1011 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±44
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Not Run Since Code Cleared
This option will display up to DTCs that have not run since
the DTCs were last cleared. Since any displayed DTCs
have not

Page 1012 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±45
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

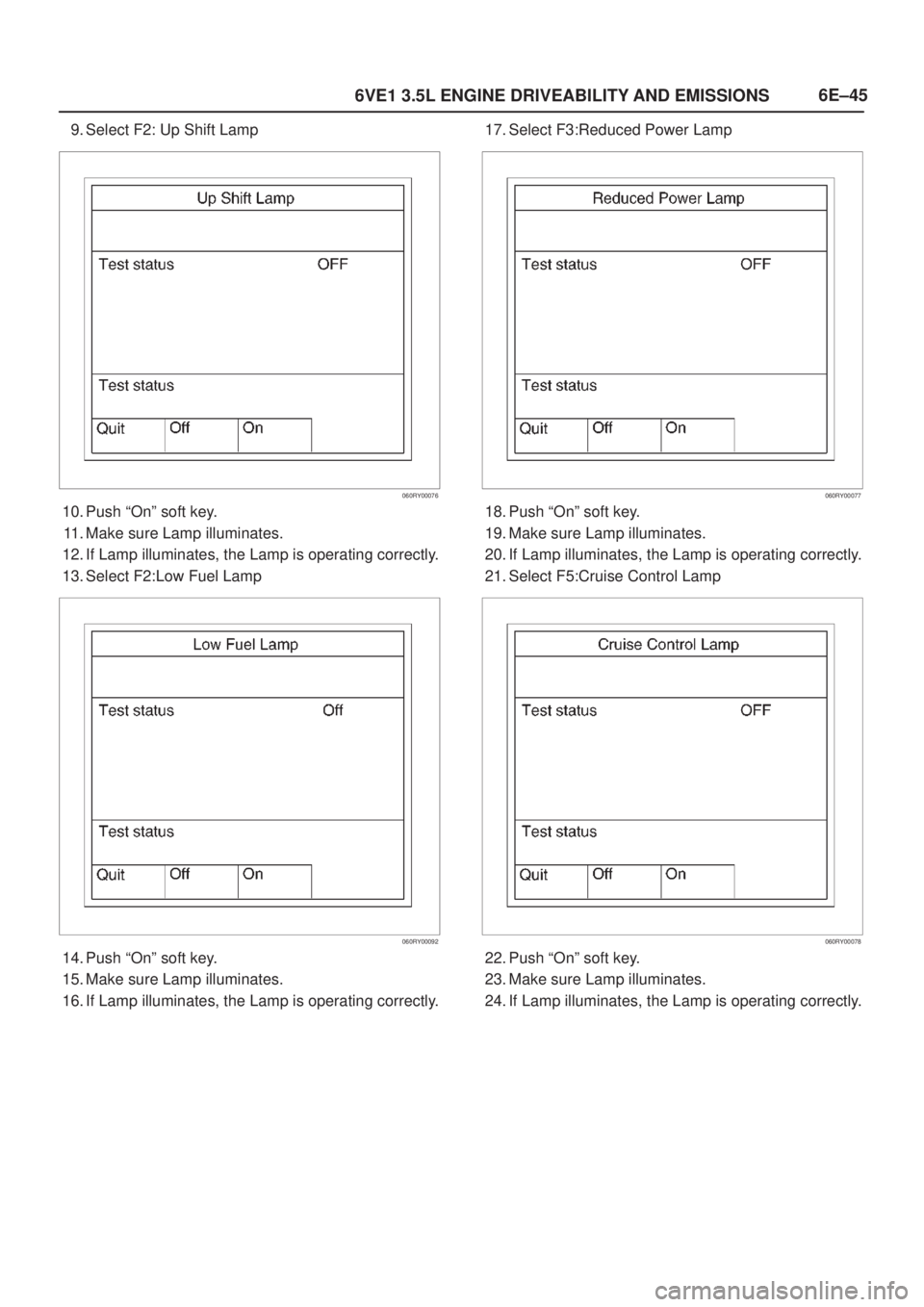

9. Select F2: Up Shift Lamp
060RY00076
10. Push ªOnº soft key.
11. Make sure Lamp illuminates.
12. If Lamp illuminates, the Lamp is operating corre

Page 1013 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±46
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Relays Test
This test is conducted to check Fuel Pump Relay and A/C
Clutch for proper operation.
Tech 2 must be used for this test.
Test Procedure:
1

Page 1014 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±47
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
11. Turn on Air Conditioning.
060RY00094
12. Turn ªOnº and ªOffº A/C Switch.
13. Contol A/C Clutch Relay and check data list.
14. If the data lis

Page 1015 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±48
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
6. Push ªDecreaseº or ªIncreaseº soft key.
060RY00095
7. Control EVAP Purge Solenoid and check a data list.
8. If the data list changes, the Purg

Page 1016 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±49
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
4. Select F3: Fuel System in the Miscellaneous Menu.
060RY00083
5. Select F0: Fuel Trim Enable.
060R200071
6. Push ªDisableº or ªEnableº soft key
