Page 1673 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±89 AUTOMATIC TRANSMISSION (4L30±E) Main Data And Specification General Specifications Remarks ModelTHM 4L30±E EngineV6 3.5L 6VE1DOHC TypeAutomatic four speed overdrive in 4th gear lock±up clutc

Page 1674 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±90 AUTOMATIC TRANSMISSION (4L30±E) Torque Specifications E07R200003

Page 1675 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±91 AUTOMATIC TRANSMISSION (4L30±E) E07RY003

Page 1676 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±92 AUTOMATIC TRANSMISSION (4L30±E) E07R200002

Page 1677 of 2100

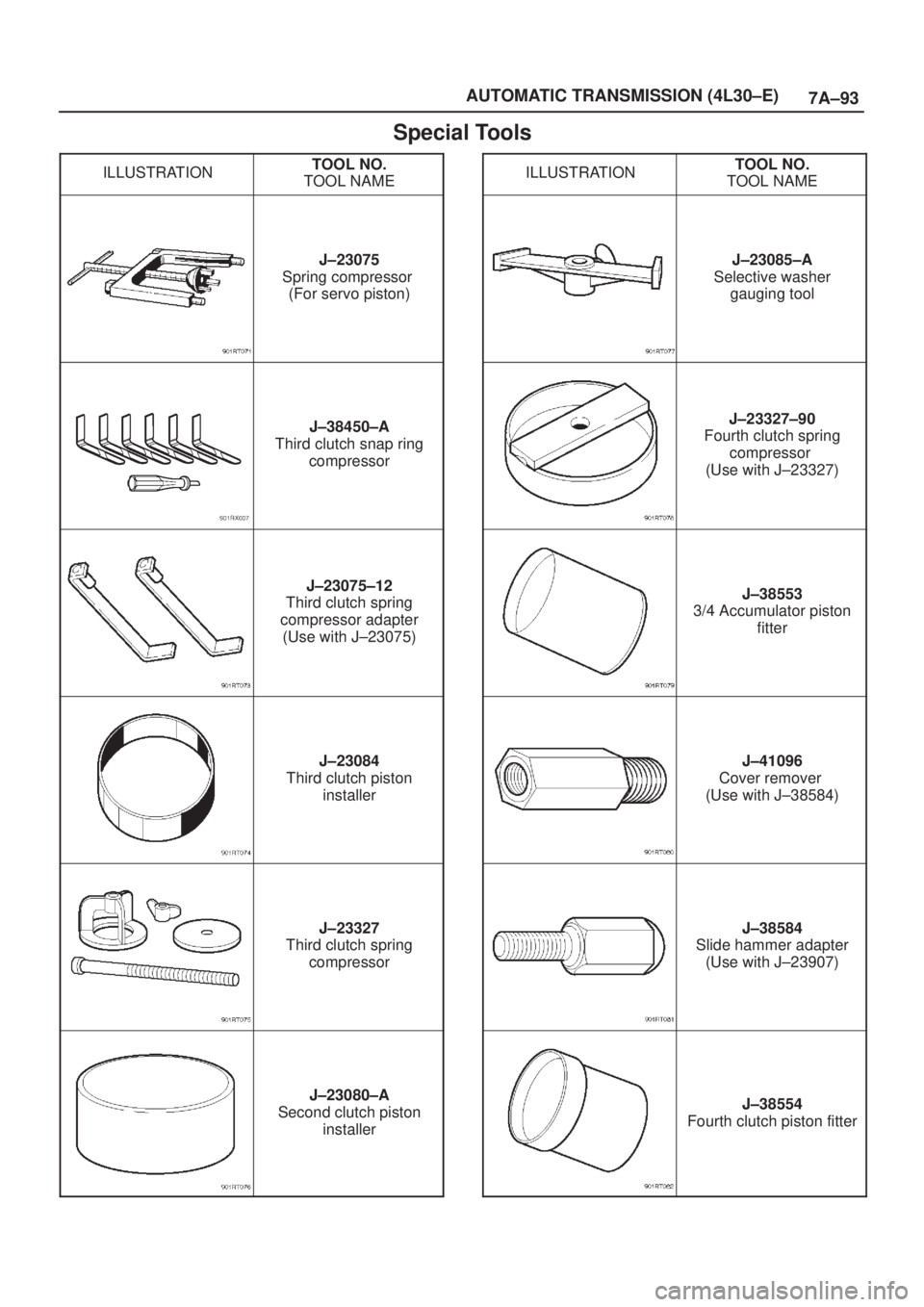

ISUZU AXIOM 2002 Service Repair Manual 7A±93 AUTOMATIC TRANSMISSION (4L30±E) Special Tools ILLUSTRATIONTOOL NO. TOOL NAME J±23075 Spring compressor (For servo piston) J±38450±A Third clutch snap ring compressor J±23075±12 Third clu

Page 1678 of 2100

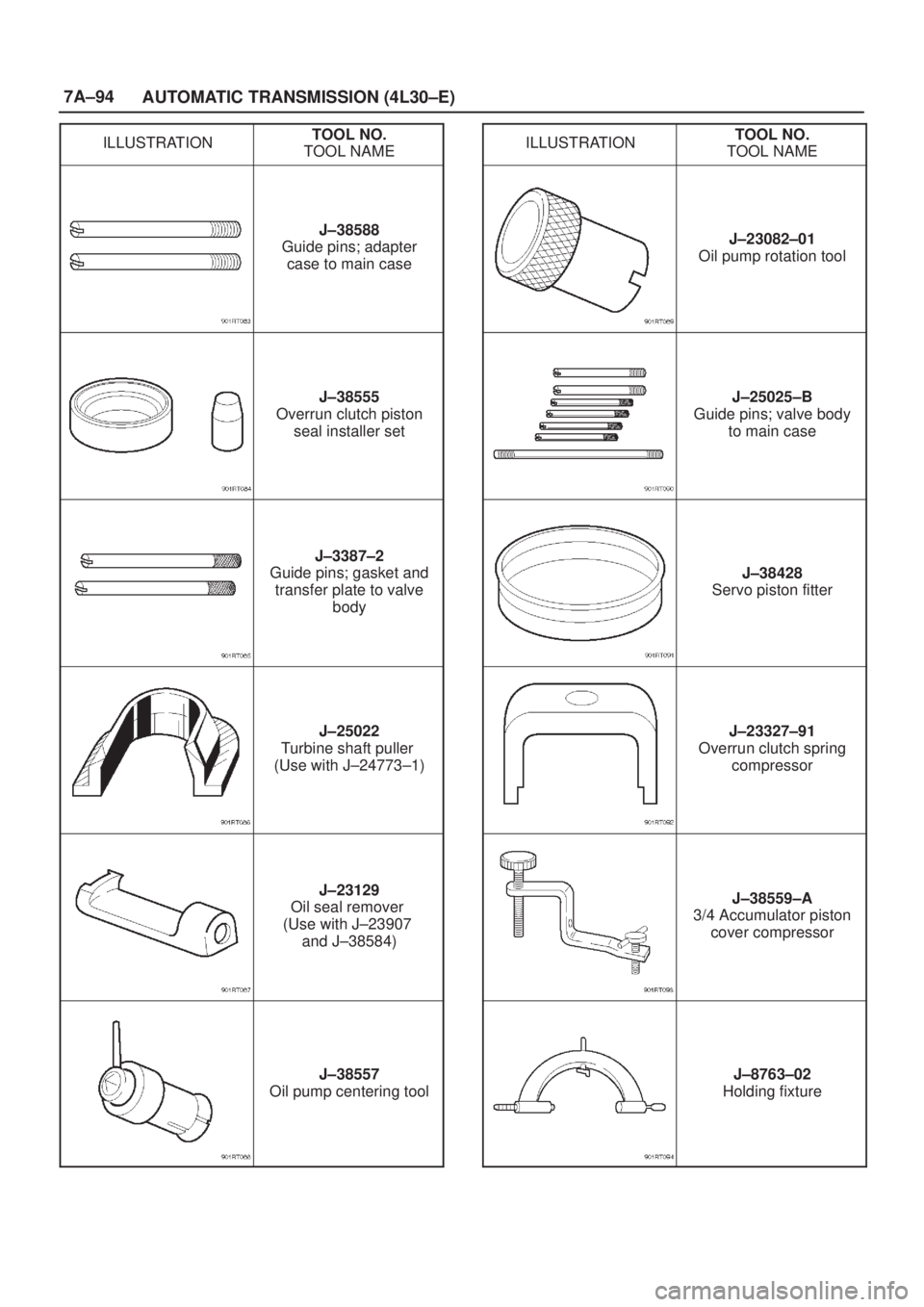

ISUZU AXIOM 2002 Service Repair Manual 7A±94 AUTOMATIC TRANSMISSION (4L30±E) ILLUSTRATIONTOOL NO. TOOL NAME J±38588 Guide pins; adapter case to main case J±38555 Overrun clutch piston seal installer set J±3387±2 Guide pins; gasket an

Page 1679 of 2100

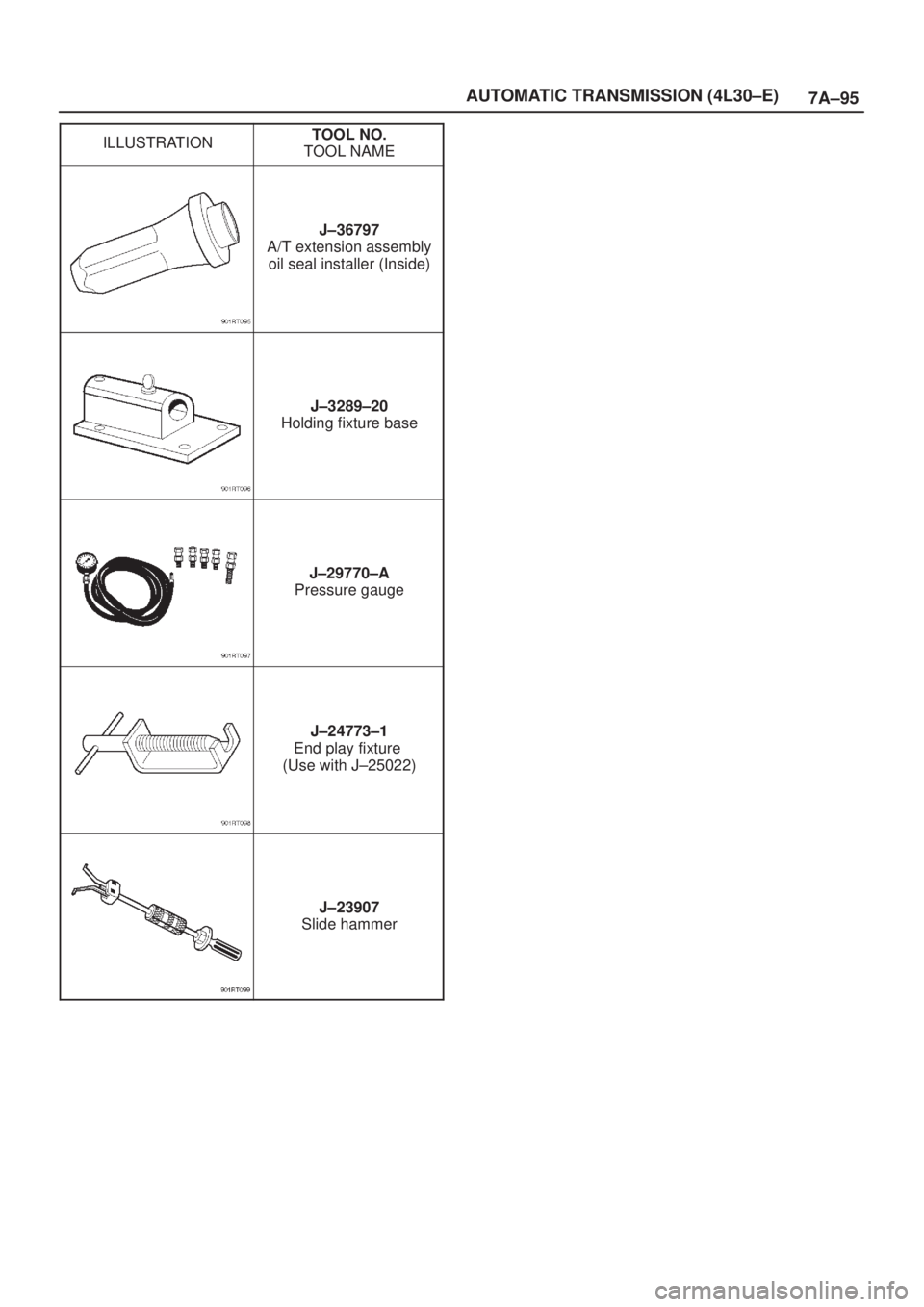

ISUZU AXIOM 2002 Service Repair Manual 7A±95 AUTOMATIC TRANSMISSION (4L30±E) ILLUSTRATIONTOOL NO. TOOL NAME J±36797 A/T extension assembly oil seal installer (Inside) J±3289±20 Holding fixture base J±29770±A Pressure gauge J±24773

Page 1680 of 2100

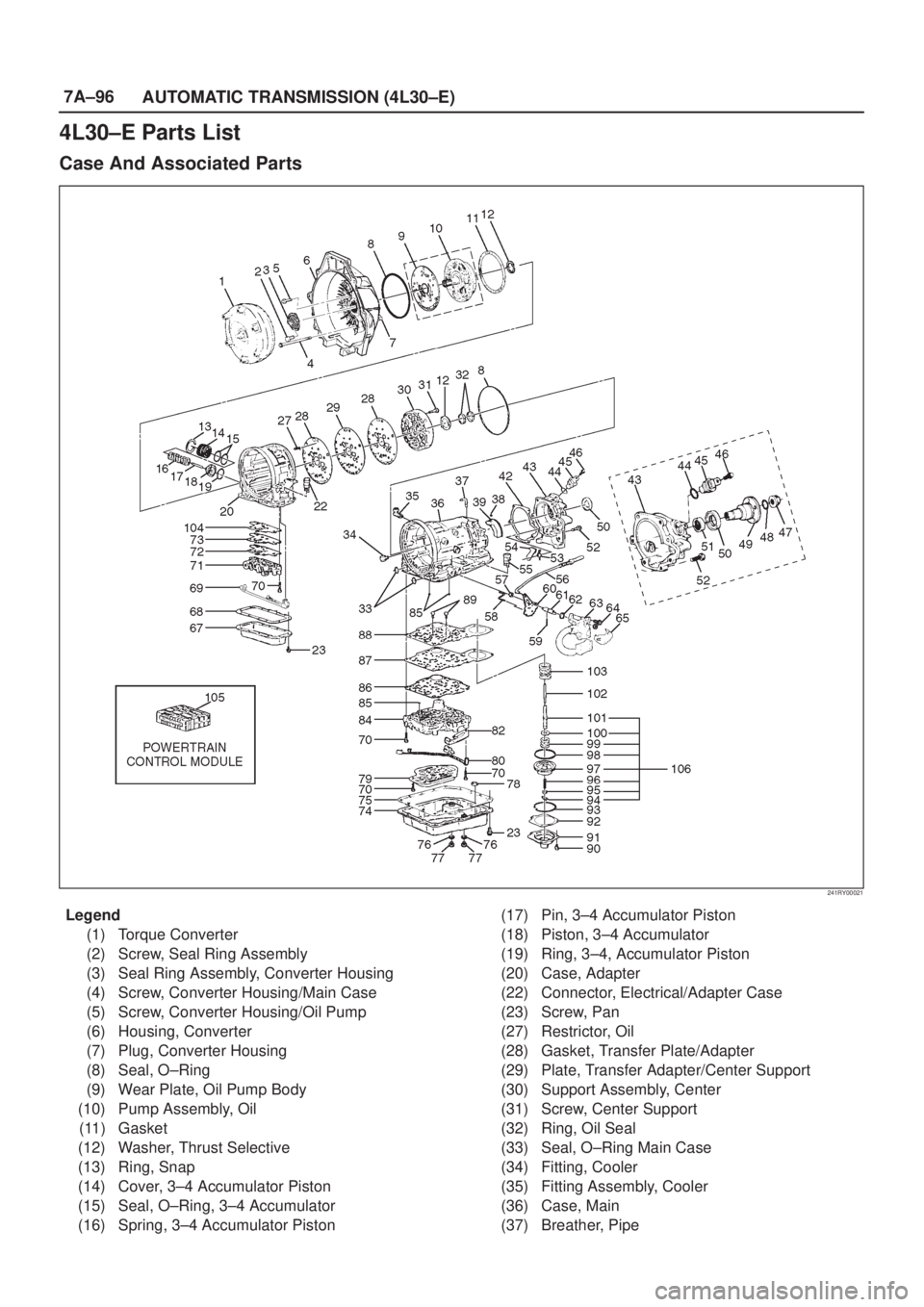

ISUZU AXIOM 2002 Service Repair Manual 7A±96 AUTOMATIC TRANSMISSION (4L30±E) 4L30±E Parts List Case And Associated Parts 241RY00021 Legend (1) Torque Converter (2) Screw, Seal Ring Assembly (3) Seal Ring Assembly, Converter Housing (4)
