8I±8SUN ROOF/CONVERTIBLE TOP

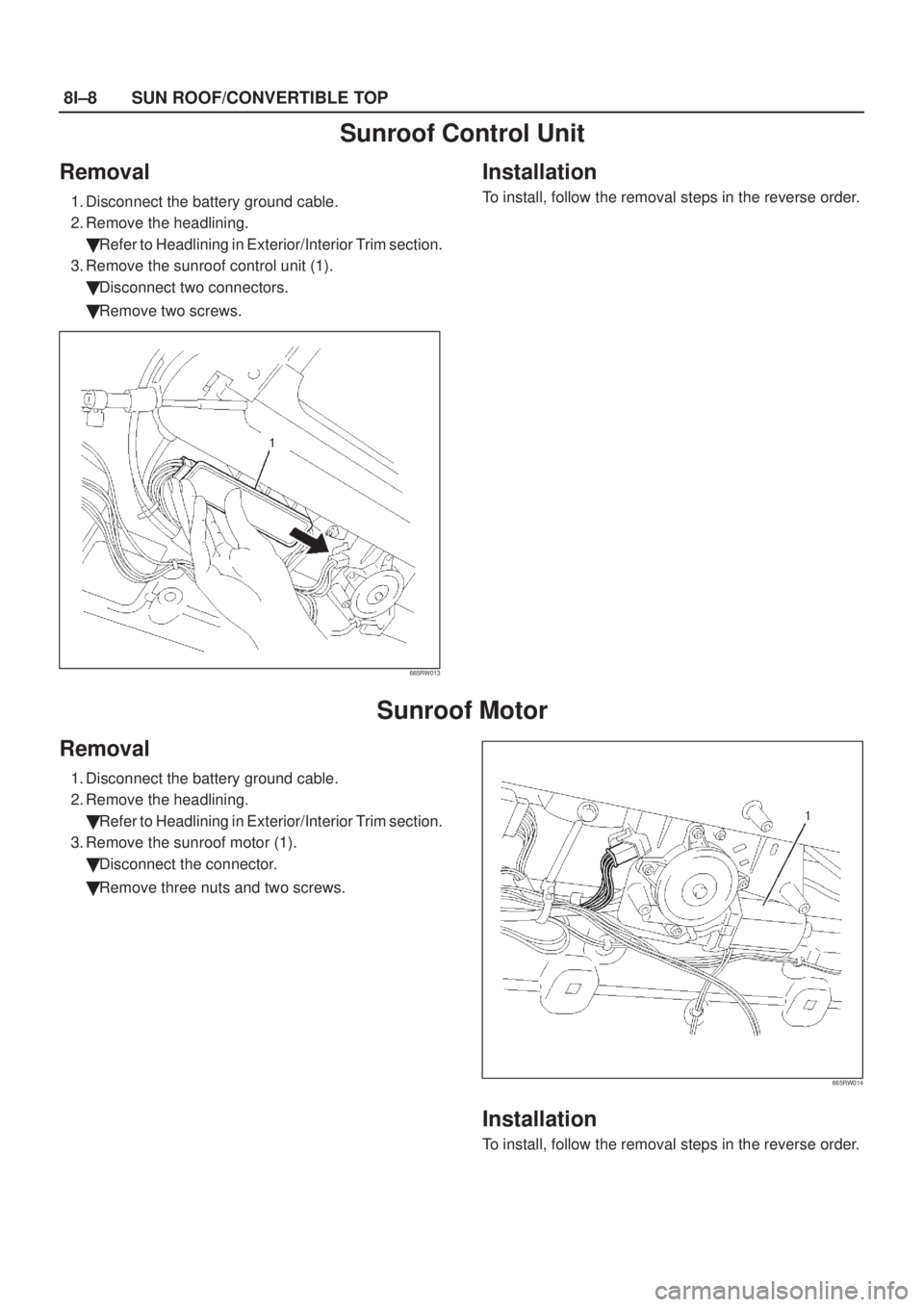

Sunroof Control Unit
Removal
1. Disconnect the battery ground cable.
2. Remove the headlining.
Refer to Headlining in Exterior/Interior Trim section.
3. Remove the sunroof control unit (1).
Disconnect two connectors.
Remove two screws.
665RW013
Installation
To install, follow the removal steps in the reverse order.
Sunroof Motor
Removal
1. Disconnect the battery ground cable.
2. Remove the headlining.
Refer to Headlining in Exterior/Interior Trim section.
3. Remove the sunroof motor (1).
Disconnect the connector.
Remove three nuts and two screws.
665RW014
Installation
To install, follow the removal steps in the reverse order.
Page 1978 of 2100
SUN ROOF/CONVERTIBLE TOP8I±9

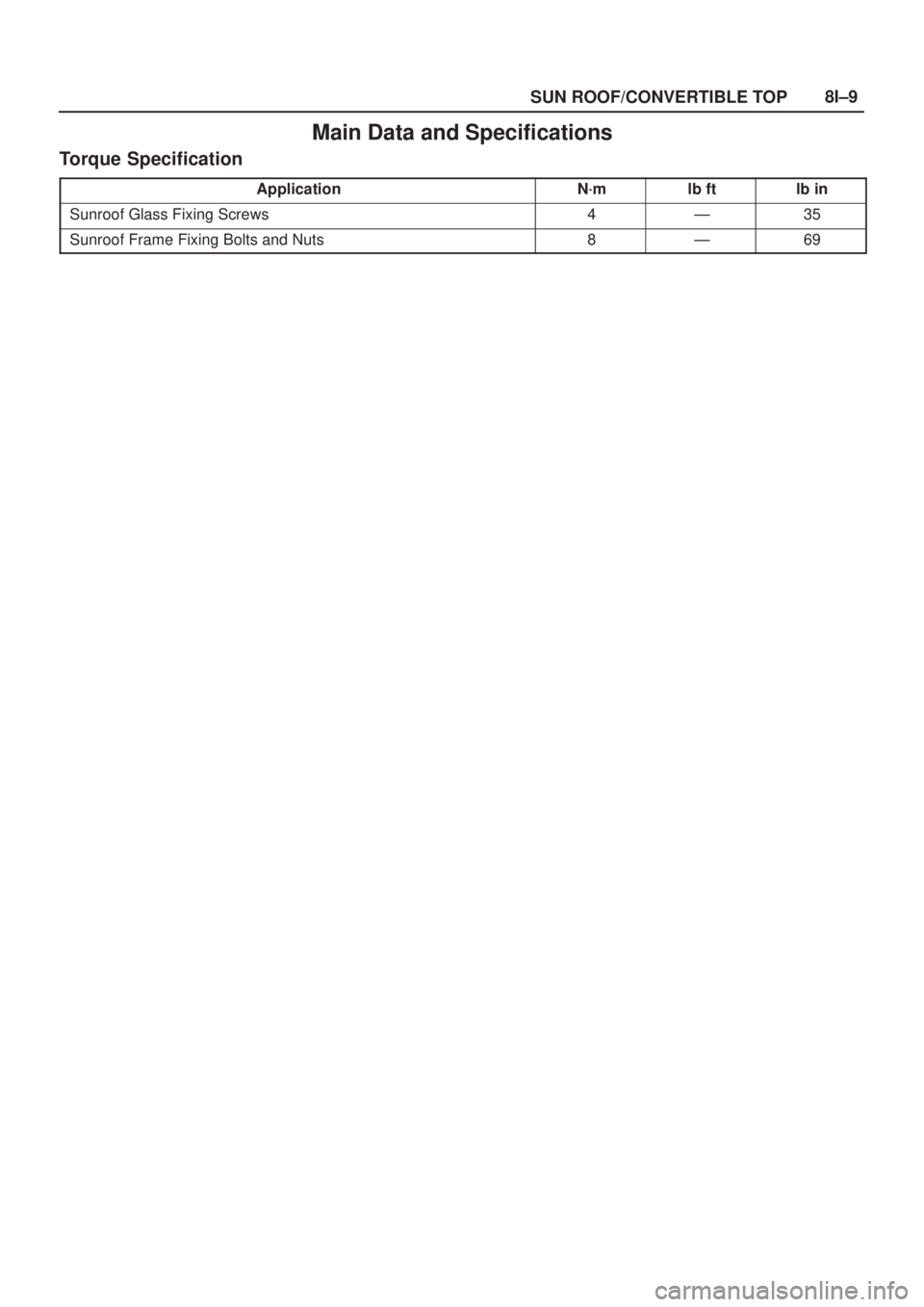

Main Data and Specifications
Torque Specification
ApplicationN´mlb ftlb in
Sunroof Glass Fixing Screws4Ð35
Sunroof Frame Fixing Bolts and Nuts8Ð69
Page 1979 of 2100

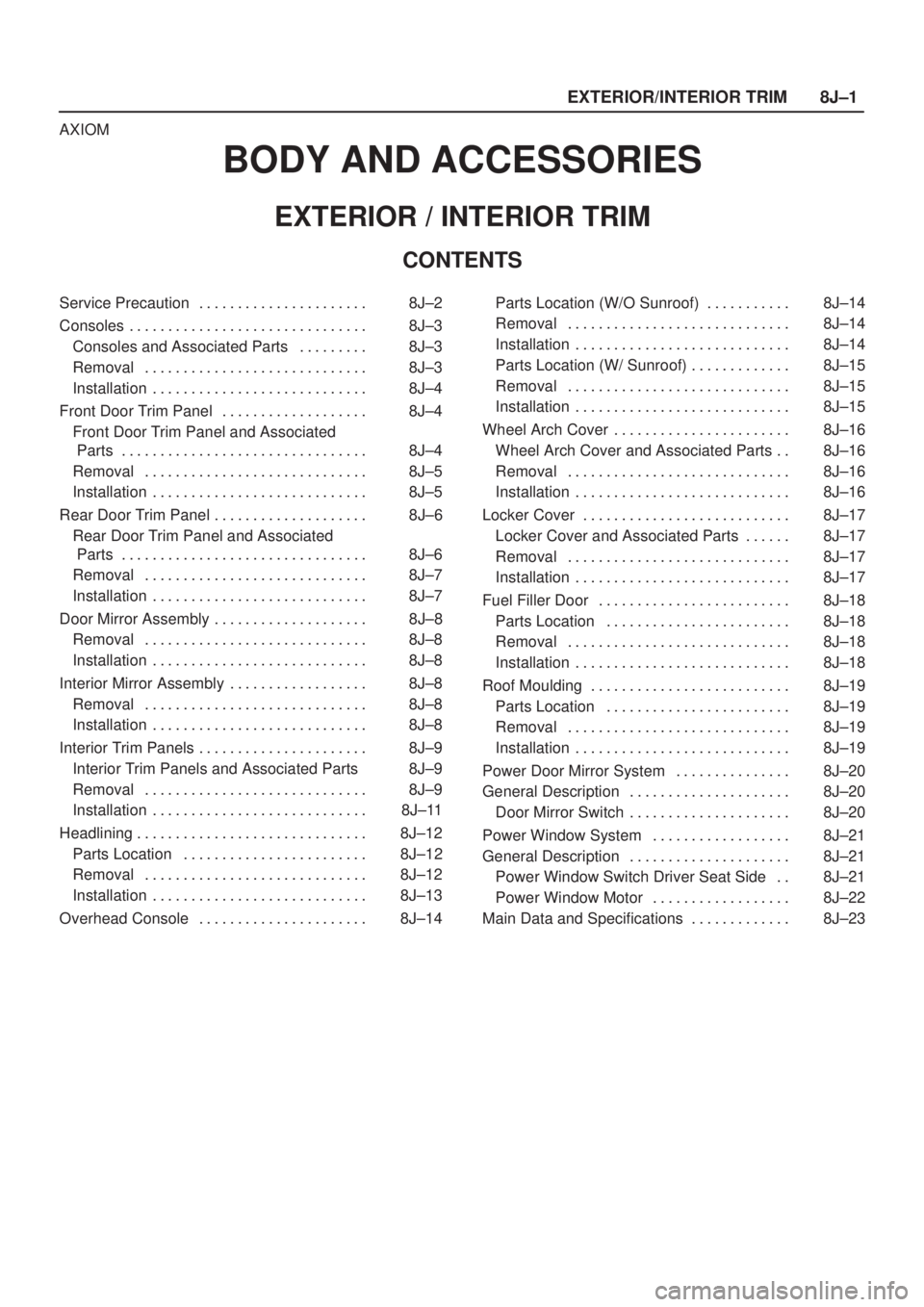

EXTERIOR/INTERIOR TRIM8J±1
AXIOM
BODY AND ACCESSORIES
EXTERIOR / INTERIOR TRIM
CONTENTS
Service Precaution 8J±2. . . . . . . . . . . . . . . . . . . . . .
Consoles 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Consoles and Associated Parts 8J±3. . . . . . . . .
Removal 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Door Trim Panel 8J±4. . . . . . . . . . . . . . . . . . .
Front Door Trim Panel and Associated
Parts 8J±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Trim Panel 8J±6. . . . . . . . . . . . . . . . . . . .
Rear Door Trim Panel and Associated
Parts 8J±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Mirror Assembly 8J±8. . . . . . . . . . . . . . . . . . . .
Removal 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Mirror Assembly 8J±8. . . . . . . . . . . . . . . . . .
Removal 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Trim Panels 8J±9. . . . . . . . . . . . . . . . . . . . . .
Interior Trim Panels and Associated Parts 8J±9
Removal 8J±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlining 8J±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±12. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead Console 8J±14. . . . . . . . . . . . . . . . . . . . . . Parts Location (W/O Sunroof) 8J±14. . . . . . . . . . .
Removal 8J±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location (W/ Sunroof) 8J±15. . . . . . . . . . . . .
Removal 8J±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel Arch Cover 8J±16. . . . . . . . . . . . . . . . . . . . . . .
Wheel Arch Cover and Associated Parts 8J±16. .
Removal 8J±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locker Cover 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . .
Locker Cover and Associated Parts 8J±17. . . . . .
Removal 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filler Door 8J±18. . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±18. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof Moulding 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±19. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Mirror System 8J±20. . . . . . . . . . . . . . .
General Description 8J±20. . . . . . . . . . . . . . . . . . . . .
Door Mirror Switch 8J±20. . . . . . . . . . . . . . . . . . . . .
Power Window System 8J±21. . . . . . . . . . . . . . . . . .
General Description 8J±21. . . . . . . . . . . . . . . . . . . . .
Power Window Switch Driver Seat Side 8J±21. .
Power Window Motor 8J±22. . . . . . . . . . . . . . . . . .
Main Data and Specifications 8J±23. . . . . . . . . . . . .
Page 1980 of 2100

8J±2EXTERIOR/INTERIOR TRIM

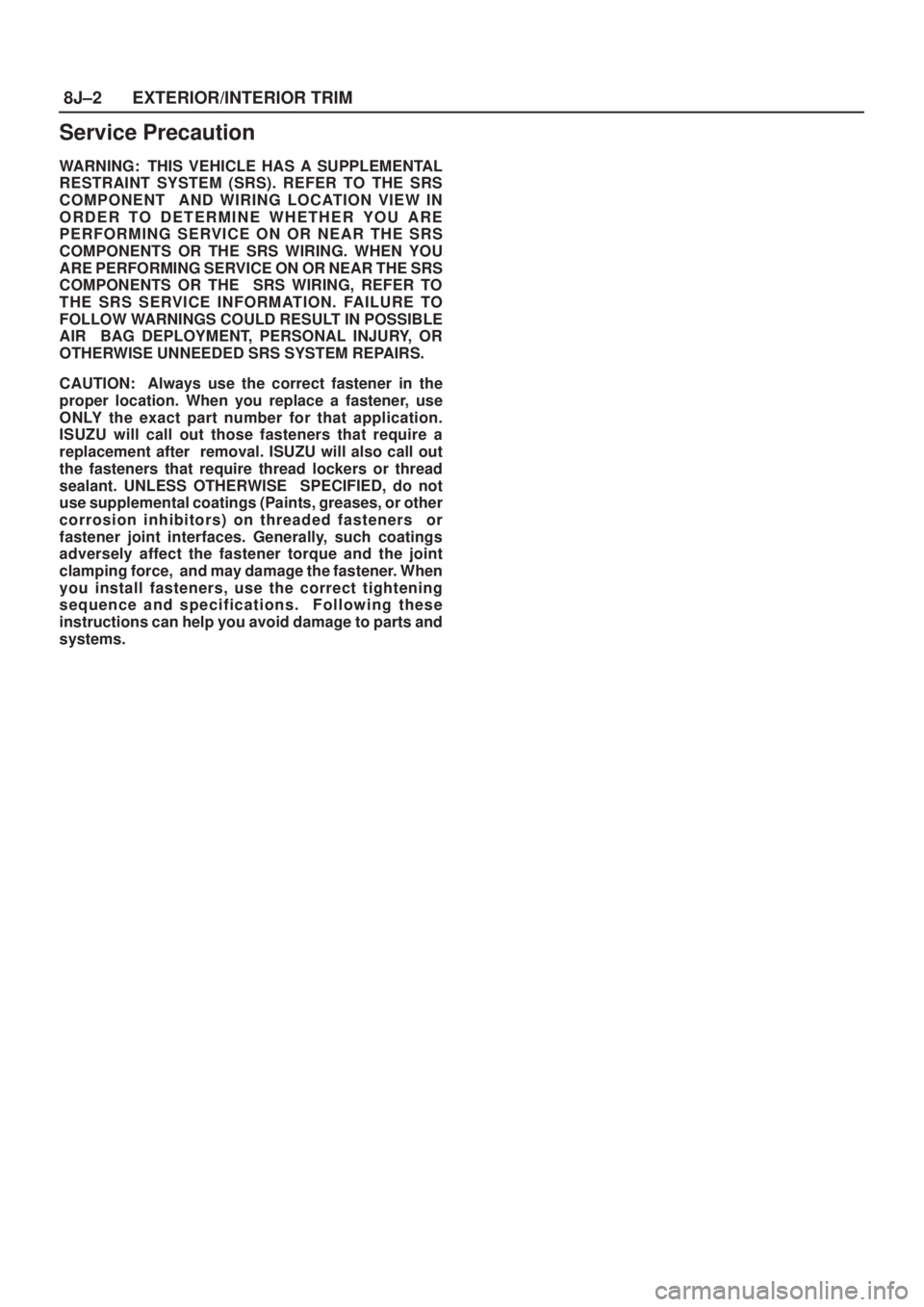

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Page 1981 of 2100
EXTERIOR/INTERIOR TRIM8J±3
Consoles

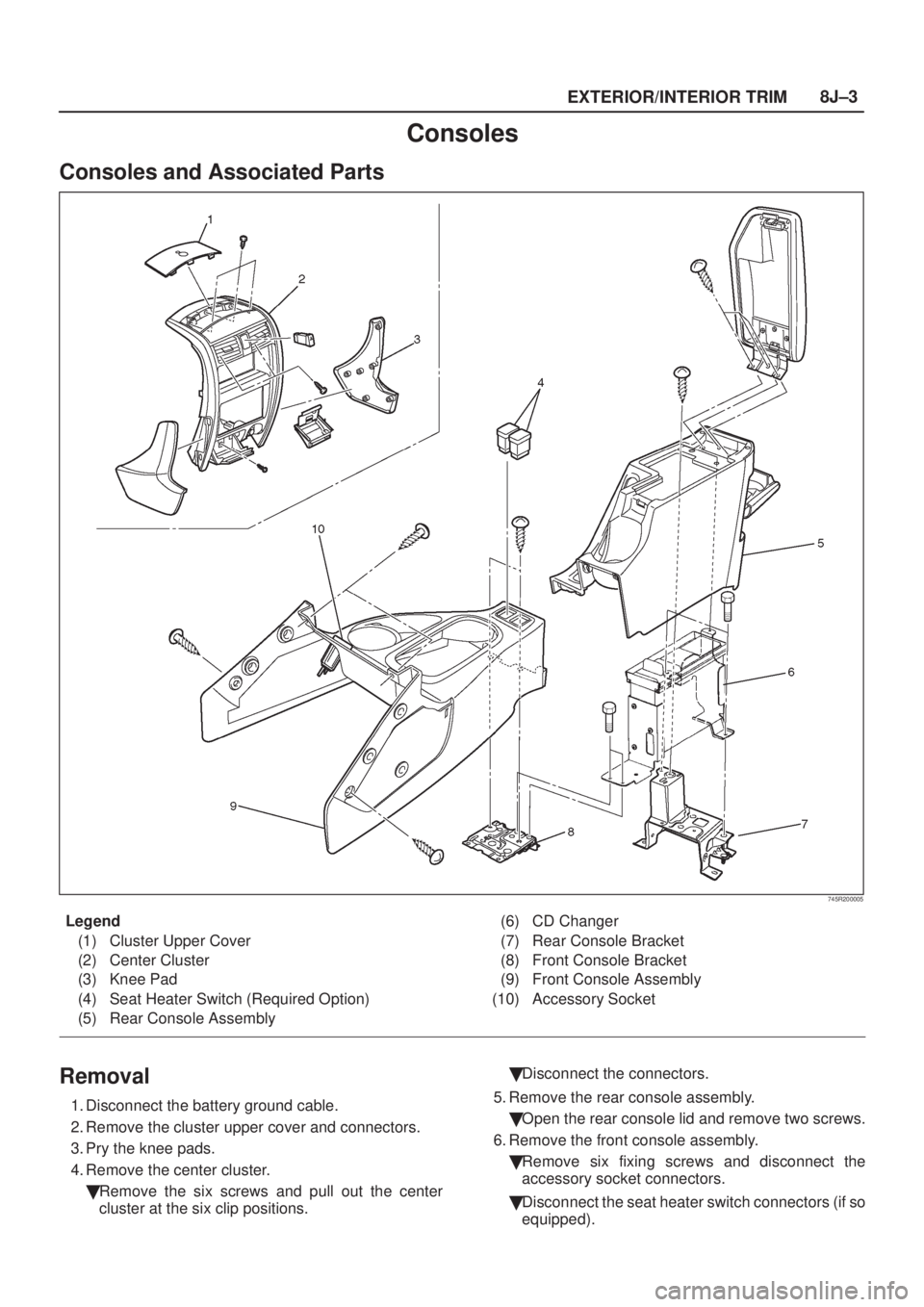

Consoles and Associated Parts
745R200005
Legend
(1) Cluster Upper Cover
(2) Center Cluster
(3) Knee Pad
(4) Seat Heater Switch (Required Option)
(5) Rear Console Assembly(6) CD Changer
(7) Rear Console Bracket
(8) Front Console Bracket
(9) Front Console Assembly
(10) Accessory Socket
Removal
1. Disconnect the battery ground cable.
2. Remove the cluster upper cover and connectors.
3. Pry the knee pads.
4. Remove the center cluster.
Remove the six screws and pull out the center
cluster at the six clip positions.Disconnect the connectors.
5. Remove the rear console assembly.
Open the rear console lid and remove two screws.
6. Remove the front console assembly.
Remove six fixing screws and disconnect the
accessory socket connectors.
Disconnect the seat heater switch connectors (if so
equipped).
Page 1982 of 2100
8J±4EXTERIOR/INTERIOR TRIM
7. Remove the CD changer.
Remove the four fixing bolts and the connector.Installation
To install, follow the removal steps in the reverse order.
Front Door Trim Panel

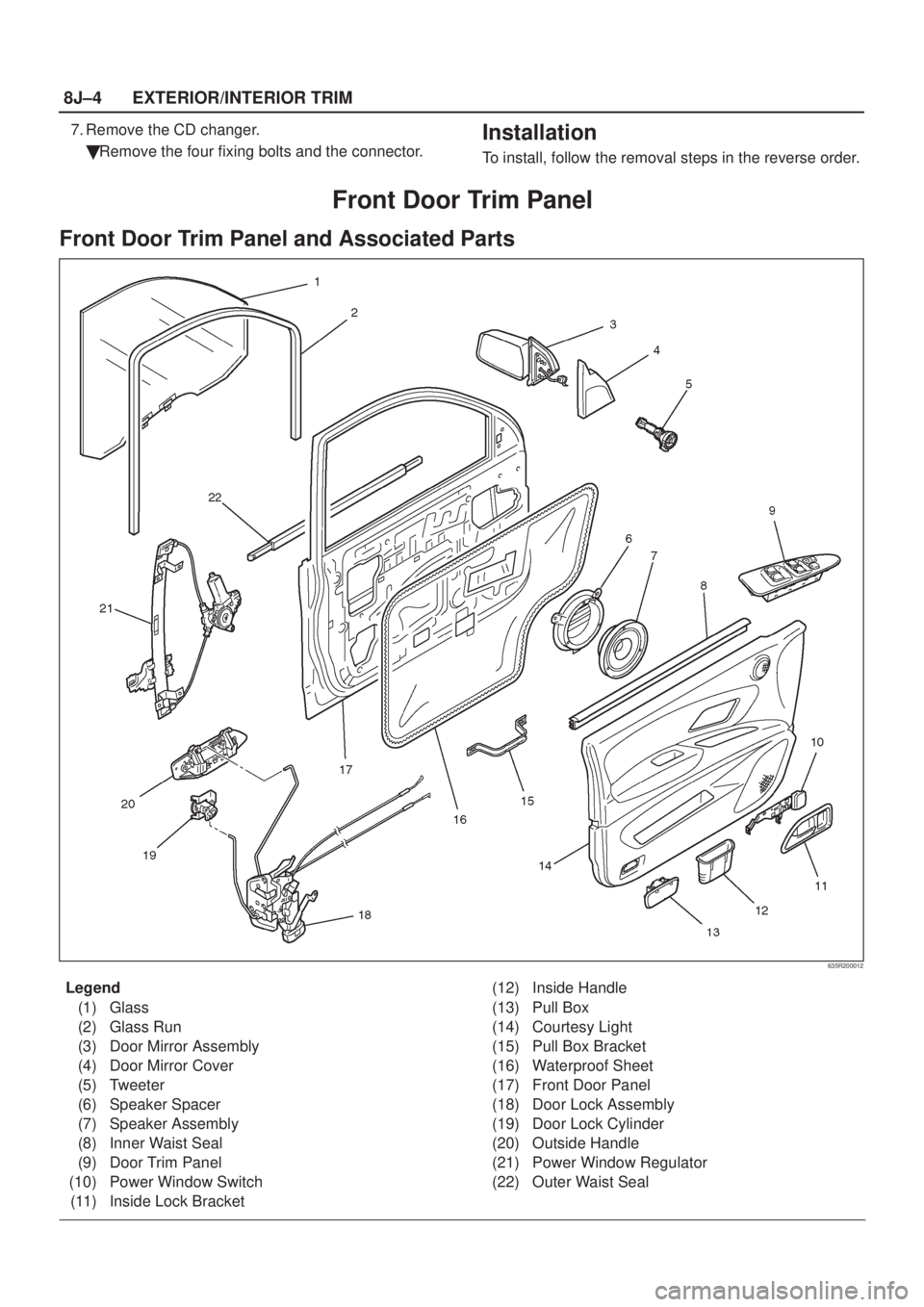

Front Door Trim Panel and Associated Parts
635R200012
Legend
(1) Glass
(2) Glass Run
(3) Door Mirror Assembly
(4) Door Mirror Cover
(5) Tweeter
(6) Speaker Spacer
(7) Speaker Assembly
(8) Inner Waist Seal
(9) Door Trim Panel
(10) Power Window Switch
(11) Inside Lock Bracket(12) Inside Handle
(13) Pull Box
(14) Courtesy Light
(15) Pull Box Bracket
(16) Waterproof Sheet
(17) Front Door Panel
(18) Door Lock Assembly
(19) Door Lock Cylinder
(20) Outside Handle
(21) Power Window Regulator
(22) Outer Waist Seal
Page 1983 of 2100
EXTERIOR/INTERIOR TRIM8J±5

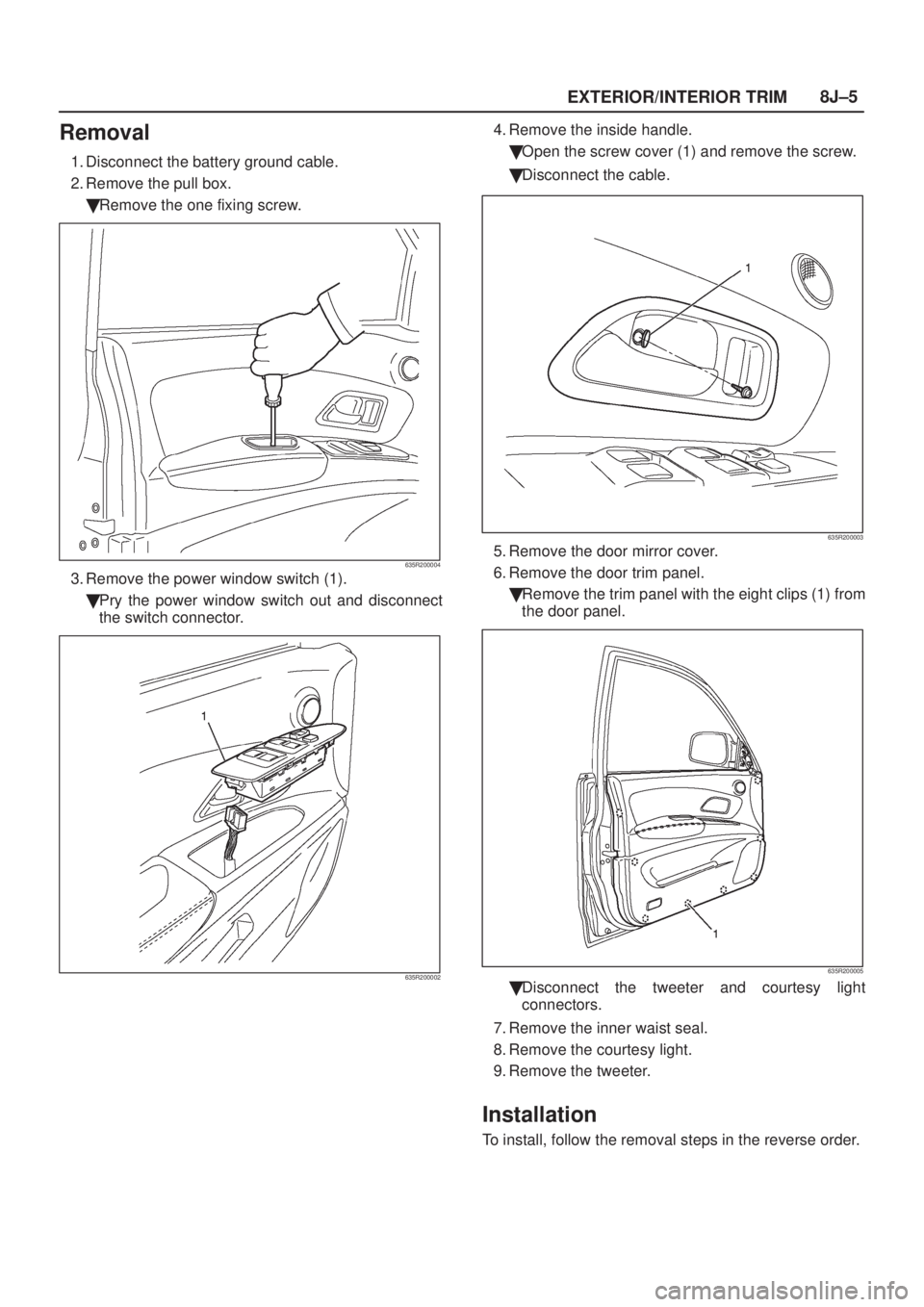

Removal
1. Disconnect the battery ground cable.
2. Remove the pull box.
Remove the one fixing screw.
635R200004
3. Remove the power window switch (1).
Pry the power window switch out and disconnect
the switch connector.
635R200002
4. Remove the inside handle.
Open the screw cover (1) and remove the screw.
Disconnect the cable.
635R200003
5. Remove the door mirror cover.
6. Remove the door trim panel.
Remove the trim panel with the eight clips (1) from
the door panel.
635R200005
Disconnect the tweeter and courtesy light
connectors.
7. Remove the inner waist seal.
8. Remove the courtesy light.
9. Remove the tweeter.
Installation
To install, follow the removal steps in the reverse order.
Page 1984 of 2100
8J±6EXTERIOR/INTERIOR TRIM
Rear Door Trim Panel

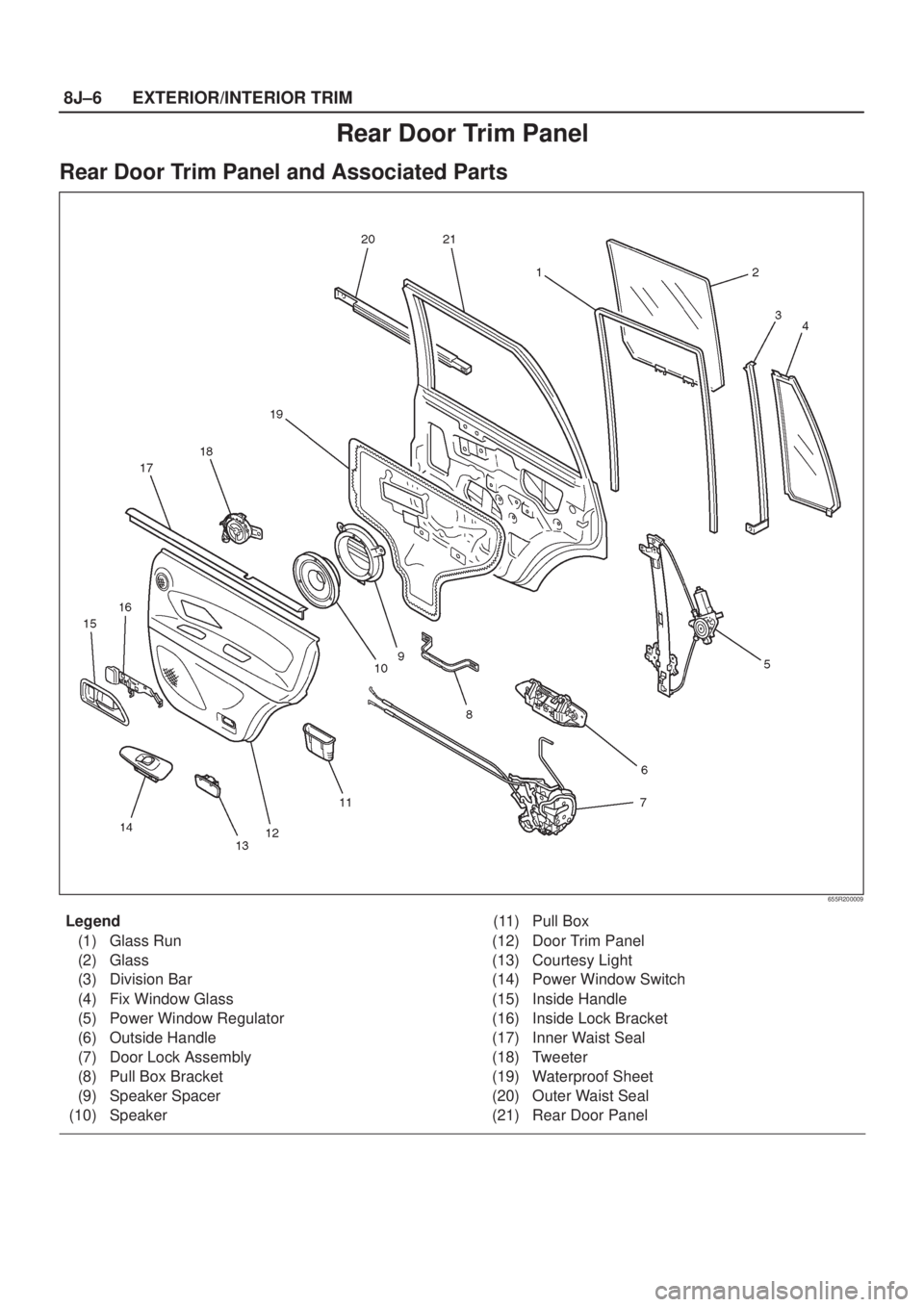

Rear Door Trim Panel and Associated Parts
655R200009
Legend
(1) Glass Run
(2) Glass
(3) Division Bar
(4) Fix Window Glass
(5) Power Window Regulator
(6) Outside Handle
(7) Door Lock Assembly
(8) Pull Box Bracket
(9) Speaker Spacer
(10) Speaker(11) Pull Box
(12) Door Trim Panel
(13) Courtesy Light
(14) Power Window Switch
(15) Inside Handle
(16) Inside Lock Bracket
(17) Inner Waist Seal
(18) Tweeter
(19) Waterproof Sheet
(20) Outer Waist Seal
(21) Rear Door Panel
