Page 1913 of 2100

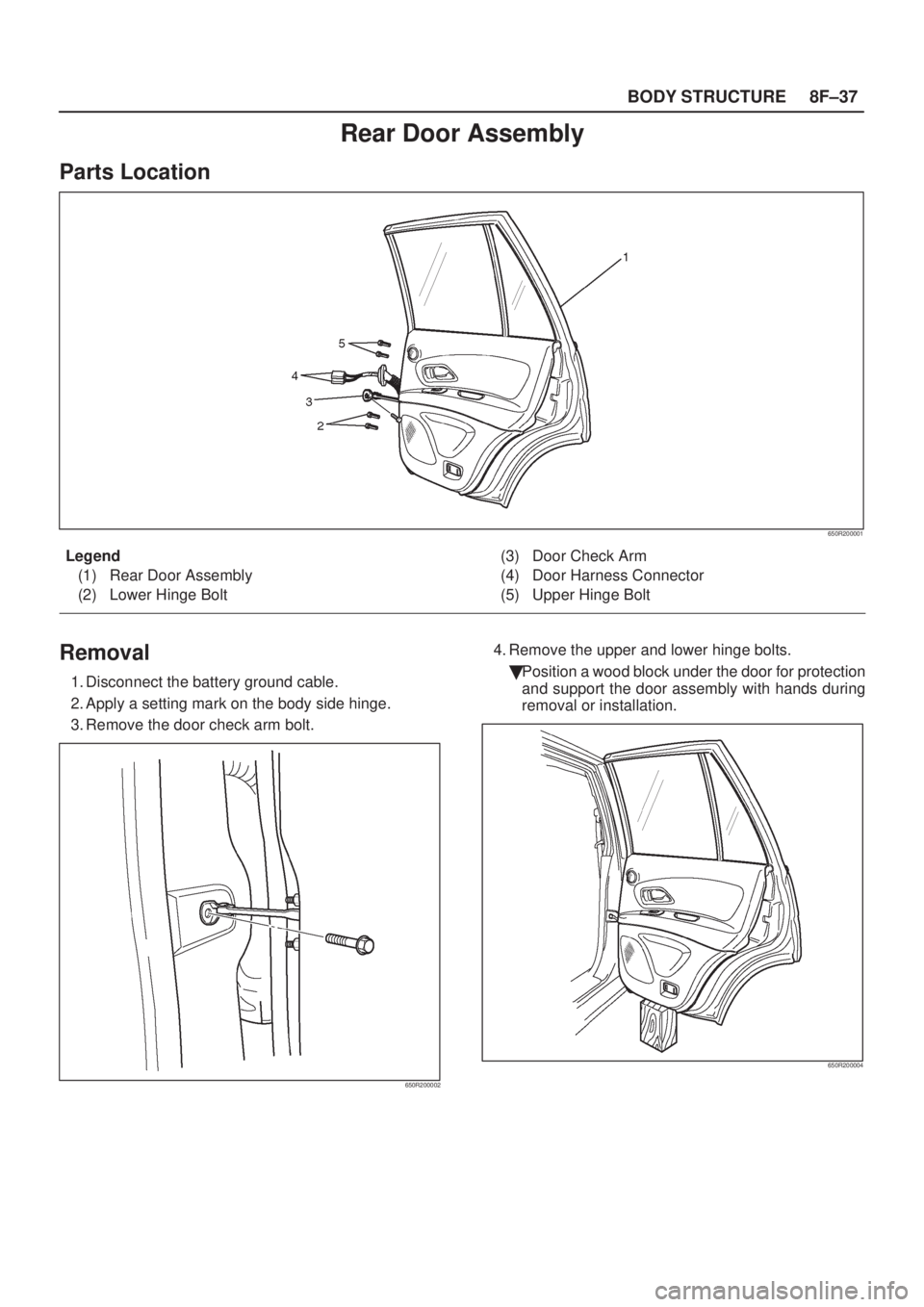

ISUZU AXIOM 2002 Service Repair Manual 8F±37 BODY STRUCTURE Rear Door Assembly Parts Location 650R200001 Legend (1) Rear Door Assembly (2) Lower Hinge Bolt(3) Door Check Arm (4) Door Harness Connector (5) Upper Hinge Bolt Removal 1. Disco

Page 1914 of 2100

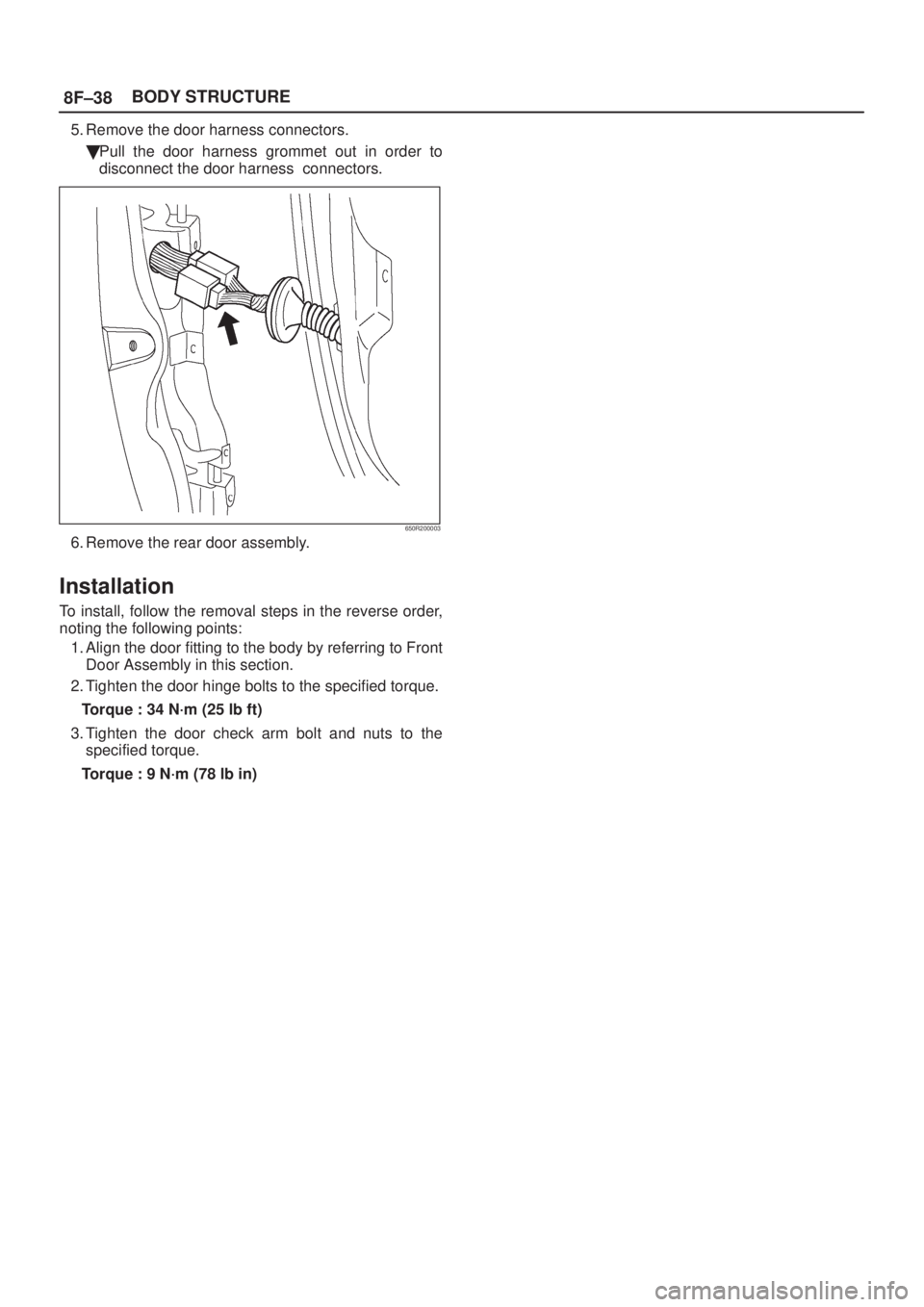

ISUZU AXIOM 2002 Service Repair Manual 8F±38BODY STRUCTURE 5. Remove the door harness connectors. Pull the door harness grommet out in order to disconnect the door harness connectors. 650R200003 6. Remove the rear door assembly. Install

Page 1915 of 2100

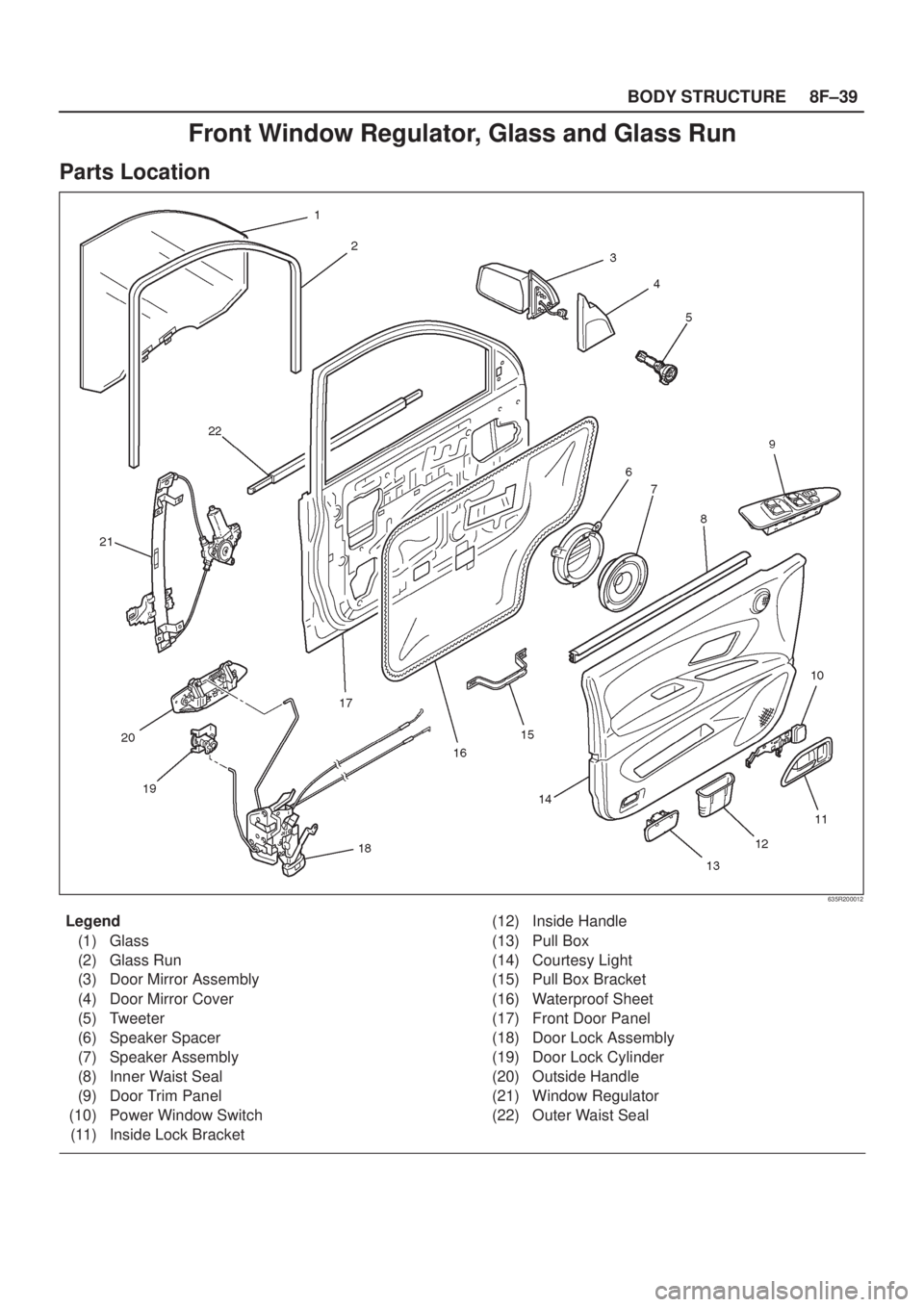

ISUZU AXIOM 2002 Service Repair Manual 8F±39 BODY STRUCTURE Front Window Regulator, Glass and Glass Run Parts Location 635R200012 Legend (1) Glass (2) Glass Run (3) Door Mirror Assembly (4) Door Mirror Cover (5) Tweeter (6) Speaker Spacer

Page 1916 of 2100

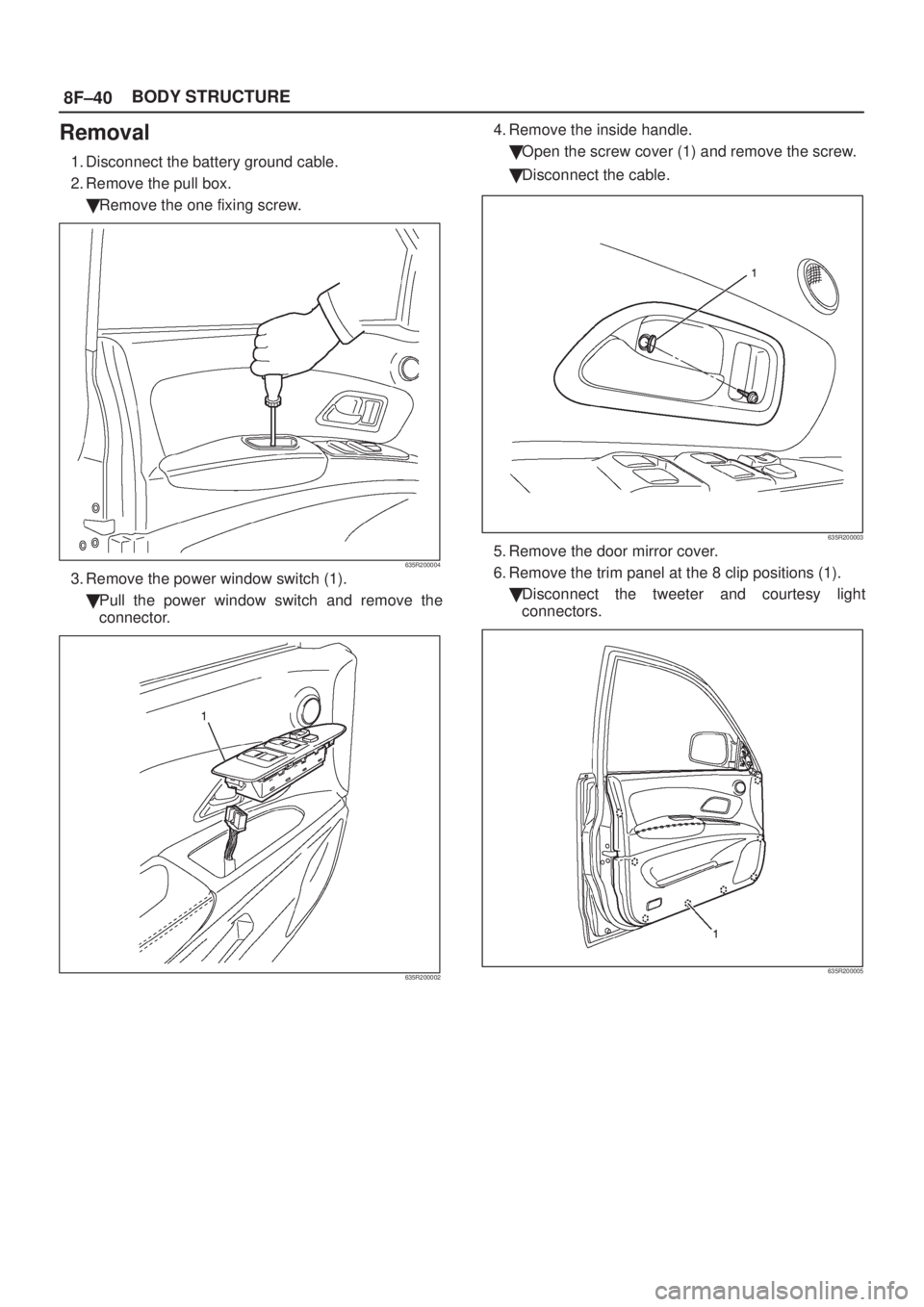

ISUZU AXIOM 2002 Service Repair Manual 8F±40BODY STRUCTURE Removal 1. Disconnect the battery ground cable. 2. Remove the pull box. Remove the one fixing screw. 635R200004 3. Remove the power window switch (1). Pull the power window swit

Page 1917 of 2100

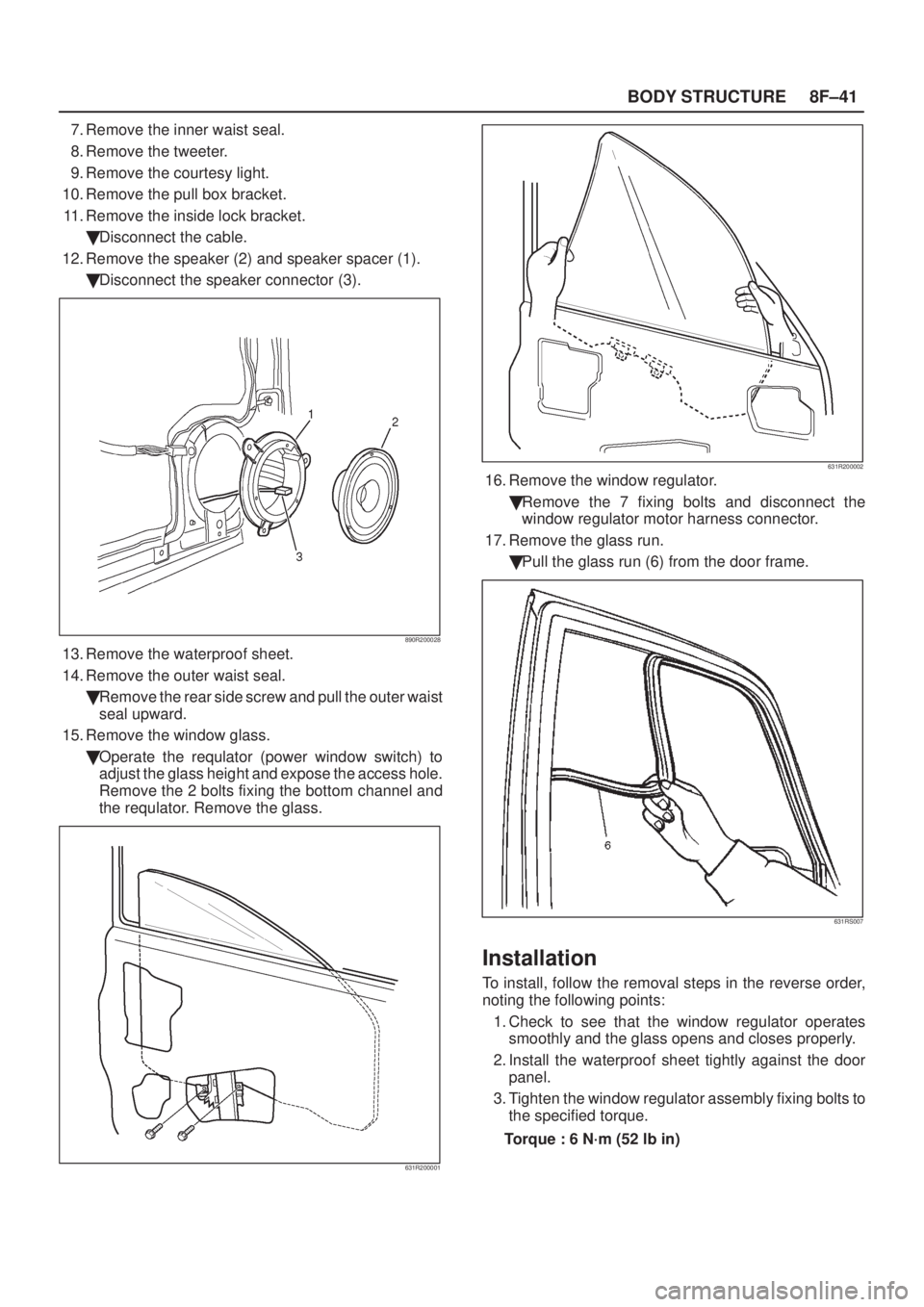

ISUZU AXIOM 2002 Service Repair Manual 8F±41 BODY STRUCTURE 7. Remove the inner waist seal. 8. Remove the tweeter. 9. Remove the courtesy light. 10. Remove the pull box bracket. 11. Remove the inside lock bracket. Disconnect the cable. 1

Page 1918 of 2100

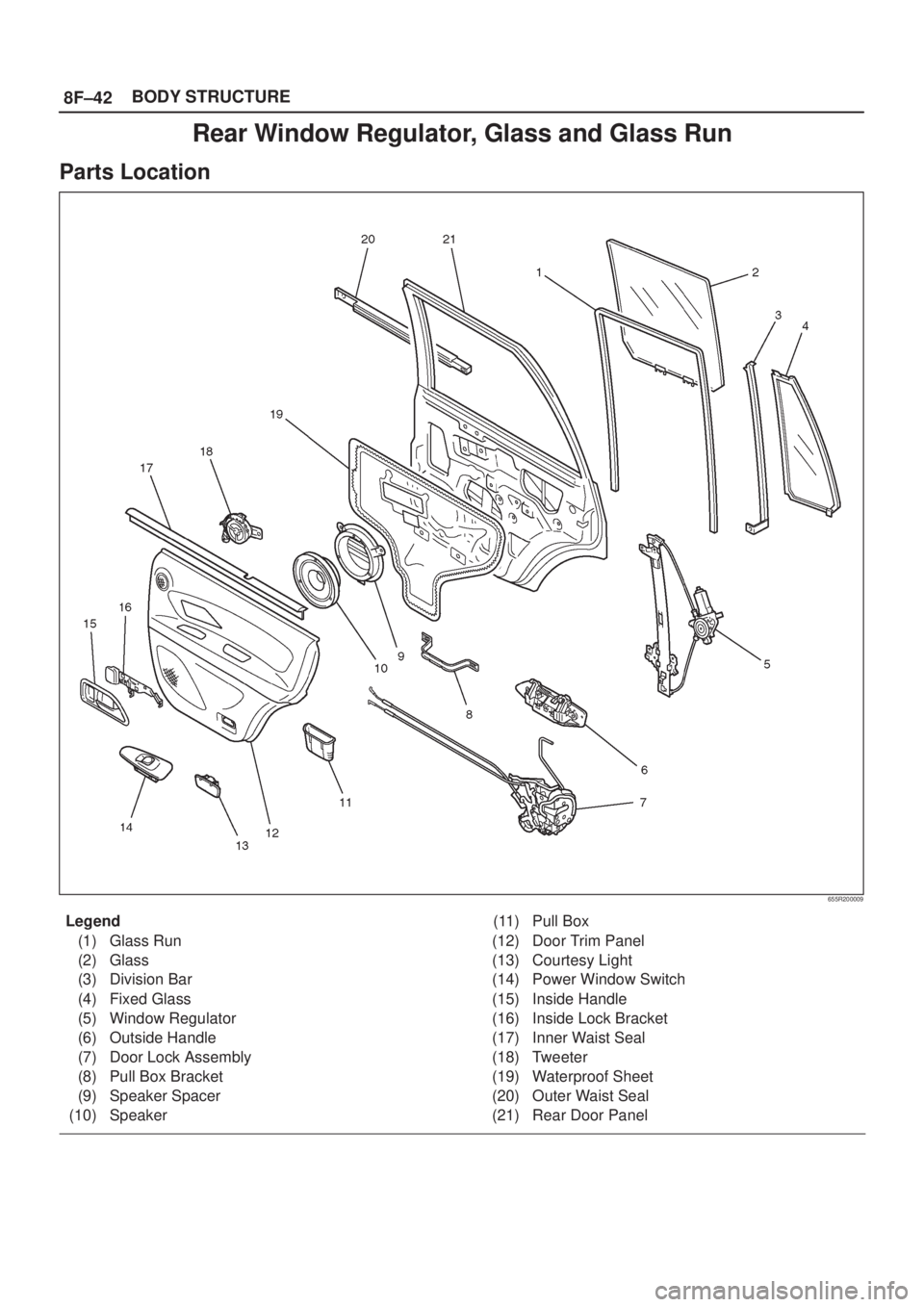

ISUZU AXIOM 2002 Service Repair Manual 8F±42BODY STRUCTURE Rear Window Regulator, Glass and Glass Run Parts Location 655R200009 Legend (1) Glass Run (2) Glass (3) Division Bar (4) Fixed Glass (5) Window Regulator (6) Outside Handle (7) Do

Page 1919 of 2100

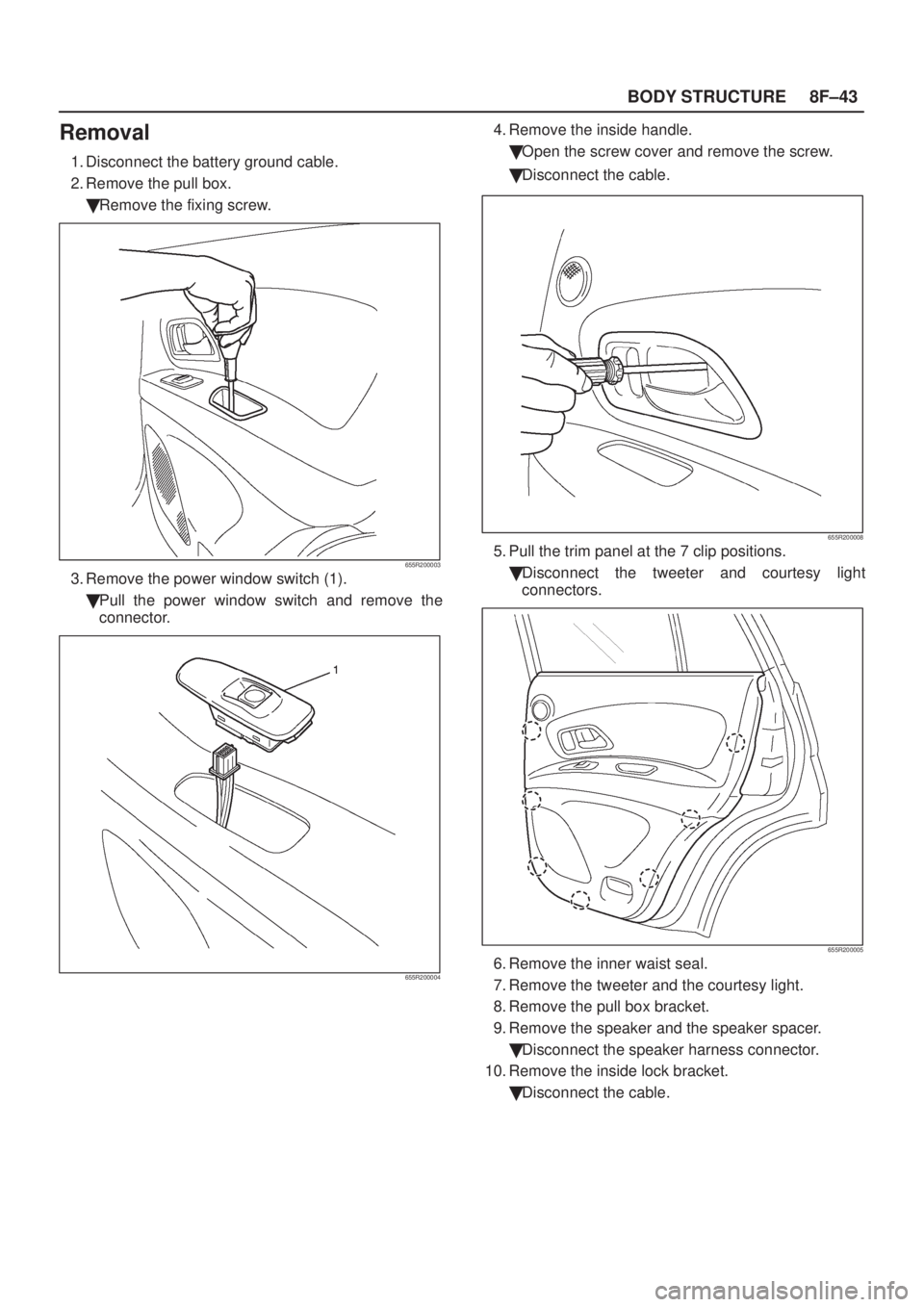

ISUZU AXIOM 2002 Service Repair Manual 8F±43 BODY STRUCTURE Removal 1. Disconnect the battery ground cable. 2. Remove the pull box. Remove the fixing screw. 655R200003 3. Remove the power window switch (1). Pull the power window switch

Page 1920 of 2100

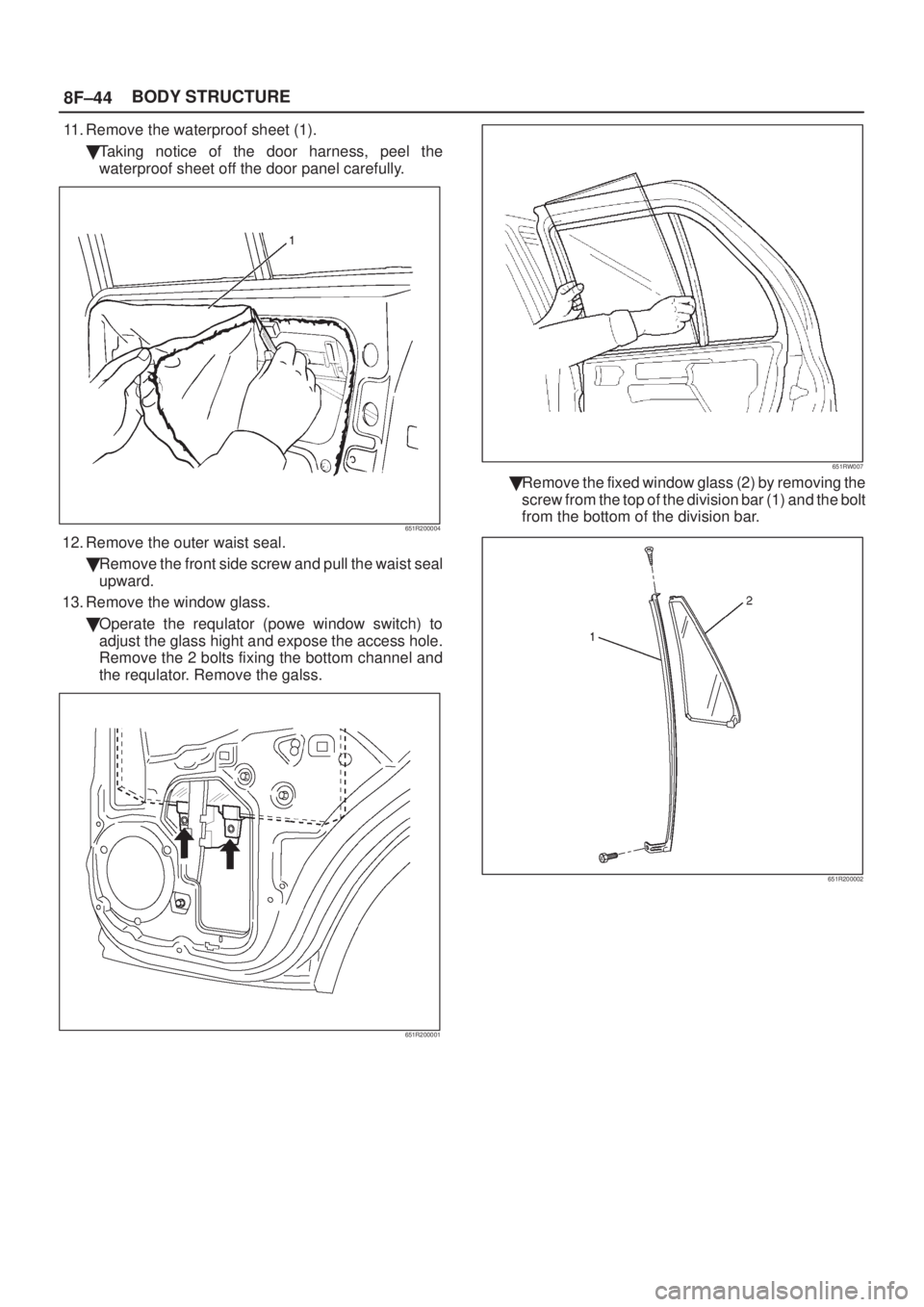

ISUZU AXIOM 2002 Service Repair Manual 8F±44BODY STRUCTURE 11. Remove the waterproof sheet (1). Taking notice of the door harness, peel the waterproof sheet off the door panel carefully. 651R200004 12. Remove the outer waist seal. Remov
