DRIVE LINE CONTROL SYSTEM (TOD) 4B2±110

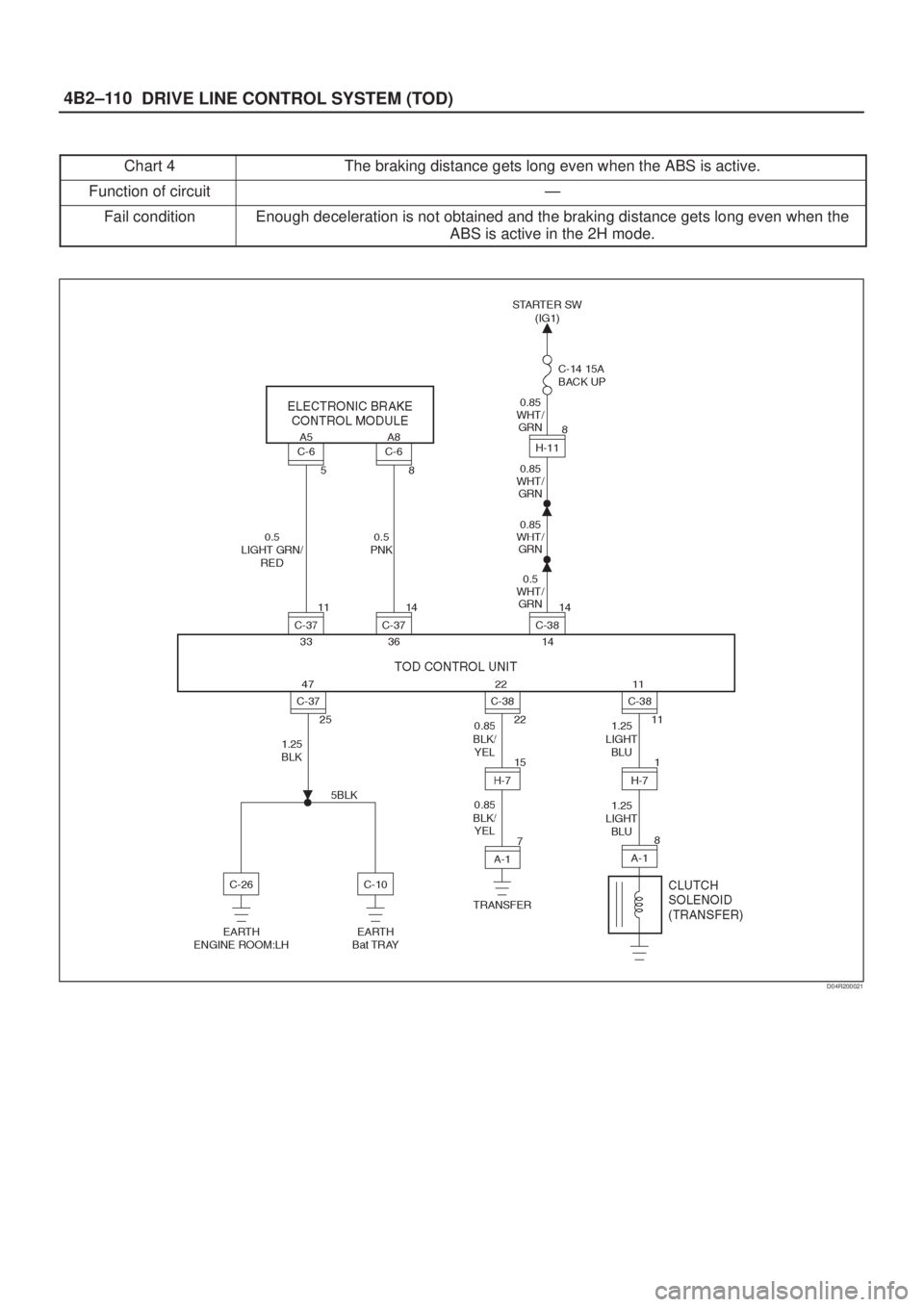

Chart 4The braking distance gets long even when the ABS is active.
Function of circuitÐ
Fail conditionEnough deceleration is not obtained and the braking distance gets long even when the
ABS is active in the 2H mode.
D04R200021
Page 490 of 2100
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–111
Step Action Yes No
1 Are the brake and ABS systems healthy?
Go to
Step 2
Repair the brake
and ABS. (Refer to
section 5A and 5B)
2 Turn on the star ter switch.
Is the battery voltage observed between terminals 14 and 47?
Go to
Step 3
Repair the
battery system.
Go to
Step 5
3 1. Select the TOD switch to the 2H position.
Does the voltage between terminals 36 and 47 range between
7.5 and 16V (0.12 seconds make a cycle)? Go to
Step 4
The ECU has
failed. Replace
the ECU.
Go to
Step 5
4 1. Turn off the starter switch.
2. Disconnect the connector (C–37).
Is there the continuity between the connector terminal (C–37) 14
and (C–6) 8?The
phenomenon is
not reproduced.
Refer to
“Trouble
intermittently
observed".
Repair the
harness.
Go to Step 5
5 Check that all the par ts are mounted.
Is this step complete? Verify the repair. Go to
Step 5
Page 491 of 2100
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±112

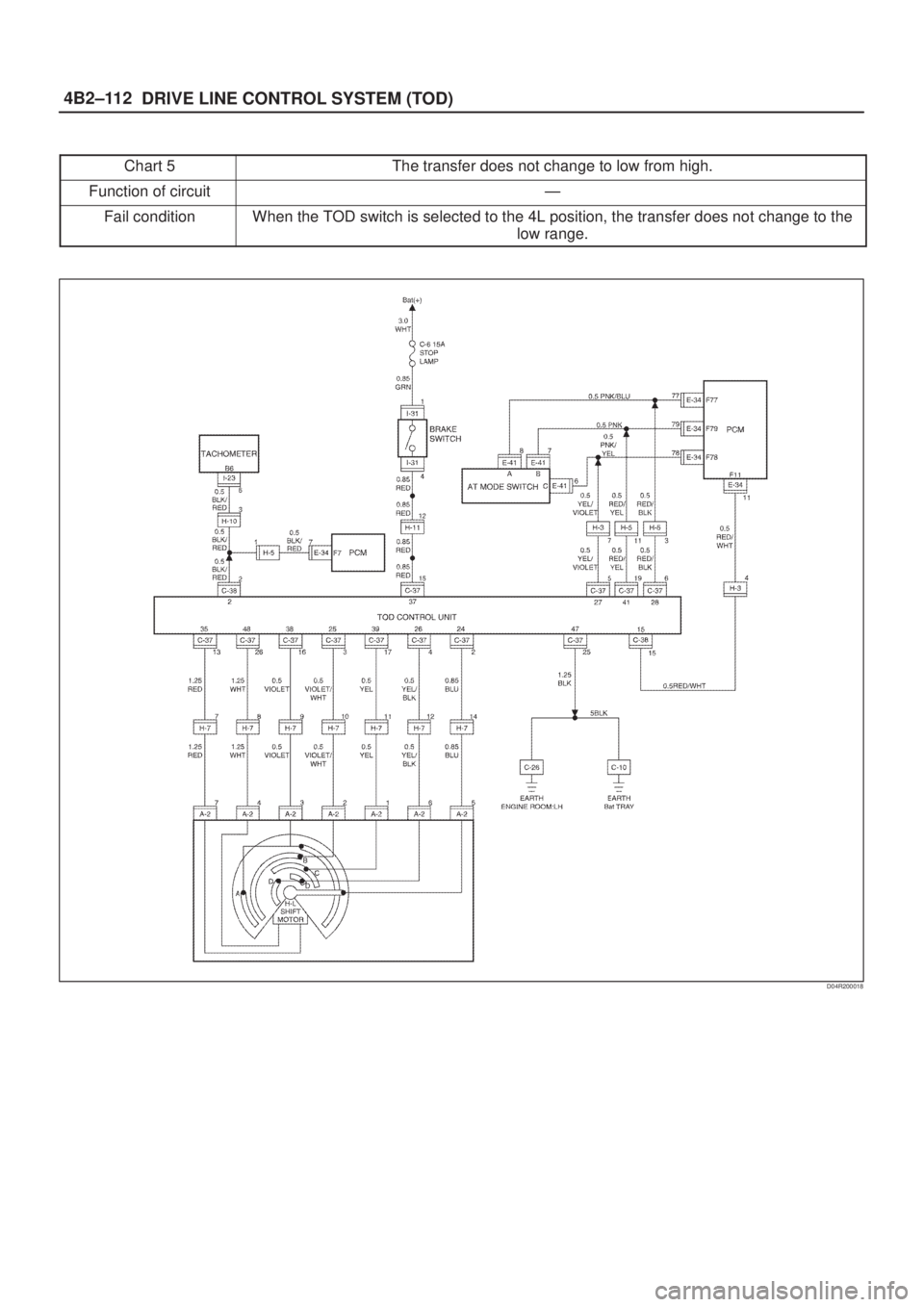

Chart 5The transfer does not change to low from high.
Function of circuitÐ
Fail conditionWhen the TOD switch is selected to the 4L position, the transfer does not change to the
low range.
D04R200018
Page 492 of 2100

4B2±113
DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Turn on the starter switch.
Is any of the trouble codes 41 (P1741), 42 (P1773), 43 (P1743)
and 55 (P1755) recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 2
2Is any of the trouble codes 13 (P1735), 14 (P1731), 15 (P1736),
16 (P1737), 24 (P1733), and 27 (P1738) recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 3
3Is the trouble code 17 (P1774) recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 4
41. Turn on the starter switch.
2. The car stops, engine speed is less than 1500 rpm, the AT
selector is N position, and select the TOD switch to the 4L
position.
Do the front lamp and rear lamp in the indicator blink?
Go to Step 5
Examine the
trouble based on
ªTrouble
Diagnosis
Depending on the
Status of TOD
Indicatorº.
51. Step on the brake pedal.
Is the transfer changed to the 4L mode?The phenomenon
is not
reproduced.
Refer to
ªTrouble
intermittently
observedº.
Go to Step 6
6When the vehicle is moved forth and back, is the transfer changed
to the 4L mode?The phenomenon
is not
reproduced.
Refer to
ªTrouble
intermittently
observedº.
Go to Step 7
7Does the continuity corresponding to the encoder position
between the terminals comply with the 4L position in the following
table (continuity)?Examine the
trouble based on
ªTrouble
diagnosis
Depending on
The Status of
TOD Indicatorº.
Go to Step 8
81. Step on the brake pedal.
Is the battery voltage observed between the terminal 37 and 47?
Go to Step 10Go to Step 9
91. Turn off the starter switch.
2. Disconnect the ECU connector (C±37) and the brake switch
connector (I±31).
Is there the continuity between the connector terminal (C±37) 15
and (I±31) 4?The brake switch
is abnormal.
Repair or replace
the brake switch.
Go to
Step 13
Repair the
harness.
Go to
Step 13
101. Select the AT selector to the N position.
Is the voltage between the terminals ranged within the following
table (voltage)?
Go to Step 12Go to Step 11
111. Turn off the starter switch.
2. Disconnect the ECU connector (C±37).
3. Disconnect the AT mode switch connector (E±41).
Is there the continuity between the following connector terminals?
(C±37)6 and (E±41)8 (C±37)19 and (E±41)7 (C±37)5 and
(E±41)6
Repair or replace
the AT mode
switch.
Go to
Step 13
Repair the circuit
which has no
continuity.
Go to
Step 13
Page 493 of 2100
DRIVE LINE CONTROL SYSTEM (TOD) 4B2±114
StepNo Ye s Action
121. Start the engine.
Is the engine pulse signal between terminal 2 and 47 at engine
speed under 1500 rpm within the standard? Standard: less than
4500 Hz
Replace the
ECU.
Go to
Step 13
The engine pulse
signal is
abnormal. Repair
or replace the
PCM.
Go to
Step 13
13Check that all the parts are mounted.
Is this step complete?
Verify the repair.Go to Step 13
Continuity between terminal in 4L position
(Table: continuity)
Terminals
No.
26 and
2439 and
2425 and
2438 and
24
Continuity
of 4L
positionYESNOYESYES or
NO
Standard (Table: voltage)
Unit: V
Terminals28 and 4741 and 4727 and 47
Voltage0120
Page 494 of 2100
4B2±115
DRIVE LINE CONTROL SYSTEM (TOD)

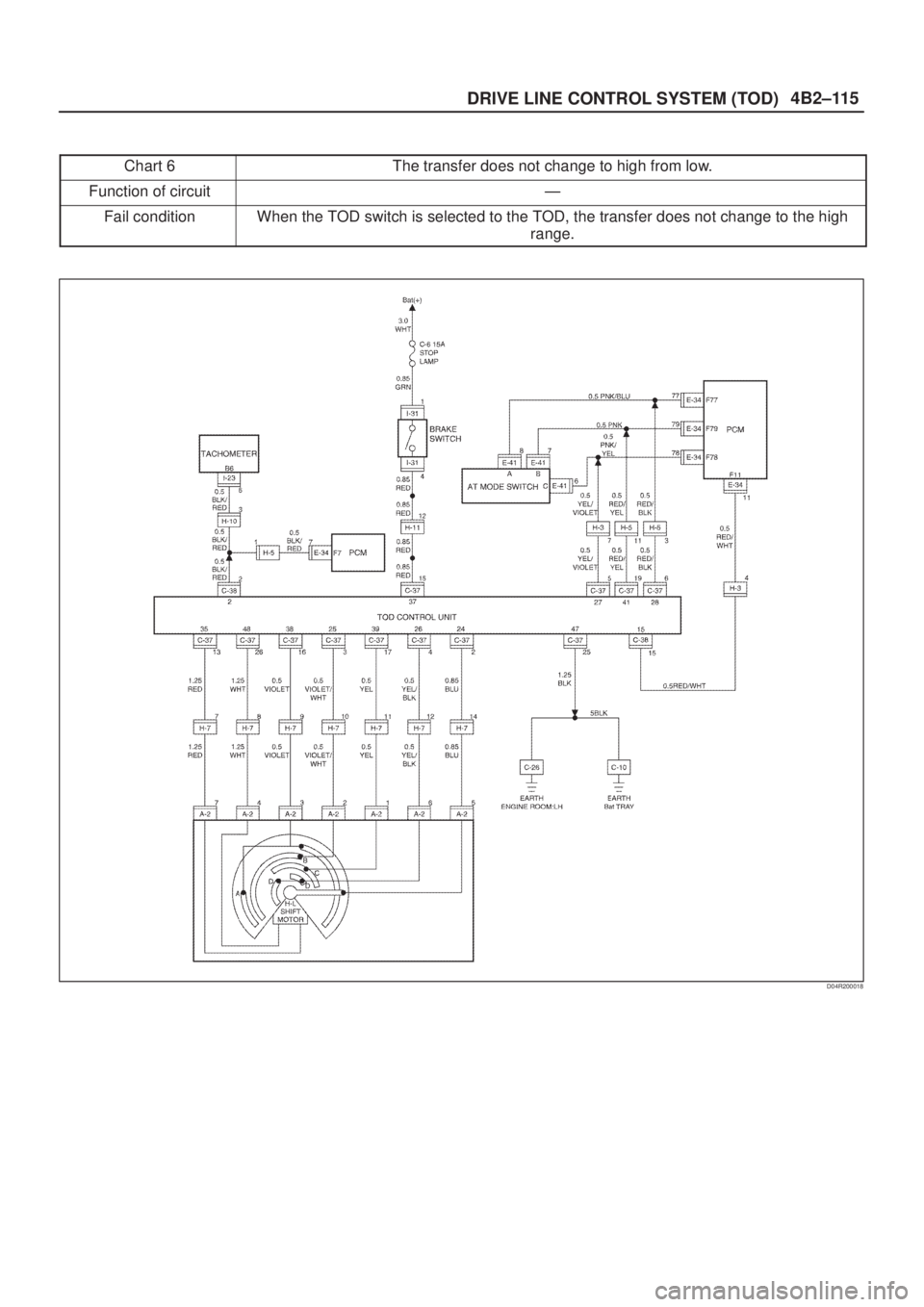

Chart 6The transfer does not change to high from low.
Function of circuitÐ
Fail conditionWhen the TOD switch is selected to the TOD, the transfer does not change to the high
range.
D04R200018
Page 495 of 2100

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±116
StepActionYe sNo
11. Turn on the starter switch.
Is any of the trouble codes 41 (P1741), 42 (P1773), 43 (P1743)
and 55 (P1755) recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 2
2Is any of the trouble codes 13 (P1735), 14 (P1731), 15 (P1736),
16 (P1737), 24 (P1733), and 27 (P1738) recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 3
3Is the trouble code 17 (P1774) recorded?Examine the
trouble based on
ªDiagnosis from
Trouble Codesº.
Go to Step 4
41. Turn on the starter switch.
2. The car stops, engine speed is less than 1500 rpm, the AT
selector is N position, and select the TOD switch to the TOD
position.
Do the front, rear, and AUTO lamps in the indicator blink?
Go to Step 5
Examine the
trouble based on
ªTrouble
Diagnosis
Depending on the
Status of TOD
Indicatorº.
51. Step on the brake pedal.
Is the transfer changed to the TOD mode?The phenomenon
is not
reproduced.
Refer to
ªTrouble
intermittently
observedº.
Go to Step 6
6When the vehicle is moved forth and back, is the transfer changed
to the TOD mode?The phenomenon
is not
reproduced.
Refer to
ªTrouble
intermittently
observedº.
Go to Step 7
7Is the continuity corresponding to the encoder position between
the terminals ranged within the any case (case 1, 2 and 3) of TOD
position in the following table (continuity)?Examine the
trouble based on
ªTrouble
diagnosis
Depending on
The Status of
TOD Indicatorº.
Go to Step 8
81. Step on the brake pedal.
Is the battery voltage observed between the terminal 37 and 47?
Go to Step 10Go to Step 9
91. Turn off the starter switch.
2. Disconnect the ECU connector (C±37) and the brake switch
connector (I±31).
Is there the continuity between the connector terminal (C±37) 15
and (I±31) 4?The brake switch
is abnormal.
Repair or replace
the brake switch.
Go to
Step 13
Repair the
harness.
Go to
Step 13
101. Select the AT selector to the N position.
Is the voltage between the terminals ranged within the following
table (voltage)?
Go to Step 12Go to Step 11
111. Turn off the starter switch.
2. Disconnect the ECU connector (C±37) and brake switch
connector (I±31).
3. Disconnect the AT mode switch connector (E±41).
Is there the continuity between the following connector terminals?
(C±37)6 and (E±41)8 (C±37)19 and (E±41)7 (C±37)5 and
(E±41)6
Repair or replace
the AT mode
switch.
Go to
Step 13
Repair the circuit
which has no
continuity.
Go to
Step 13
Page 496 of 2100
4B2±117
DRIVE LINE CONTROL SYSTEM (TOD)
StepNo Ye s Action
121. Start the engine.
Is the engine pulse signal between terminal 2 and 47 at engine
speed under 1500 rpm within the standard? Standard: less than
4500 Hz
Replace the
ECU.
Go to
Step 13
The engine pulse
signal is
abnormal. Repair
or replace the
PCM.
Go to
Step 13
13Check that all the parts are mounted.
Is this step complete?
Verify the repair.Go to Step 13
Continuity in TOD position (Table: continuity)
Case
Continuity between terminals
26 and
2439 and
2425 and
2438 and
24
1NONONOYES
2NOYESNOYES
3YESYESNOYES
Standard (Table: voltage)
Unit: V
Terminals28 and 4741 and 4727 and 47
Voltage0120
