ISUZU AXIOM 2002 Service Repair Manual 4C±24 DRIVE SHAFT SYSTEM 2. Install a new needle bearing into inner shaft by using a Installer J±41694 and grip J±8092. 412RS051 3. Place a new snap ring(internal) in inner shaft. Install a new in

Page 522 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±25 DRIVE SHAFT SYSTEM 12. Apply liquid gasket to the contact surface on the actuator side. 412RW012 13. Align shift arm with the groove of sleeve and install the actuator. 14. Tighten bolts to spe

Page 523 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±26 DRIVE SHAFT SYSTEM Main Data and Specifications General Specifications Front drive axle oil capacity1.25 liter (1.32 US qt)(Differential) 0.12 liter (0.13 US qt)(Actuator Housing:Shift on the f

Page 524 of 2100

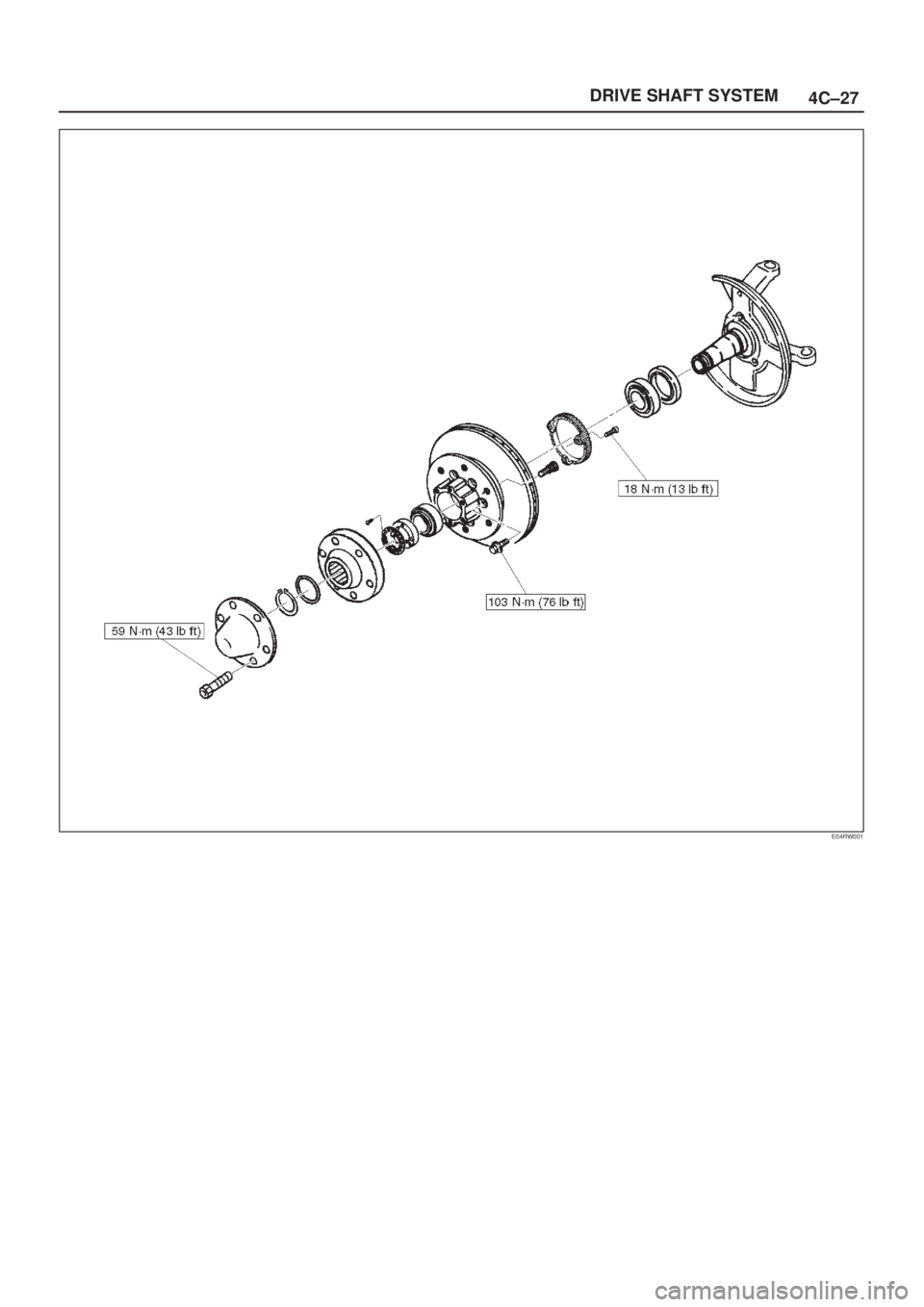

ISUZU AXIOM 2002 Service Repair Manual 4C±27 DRIVE SHAFT SYSTEM E04RW001

Page 525 of 2100

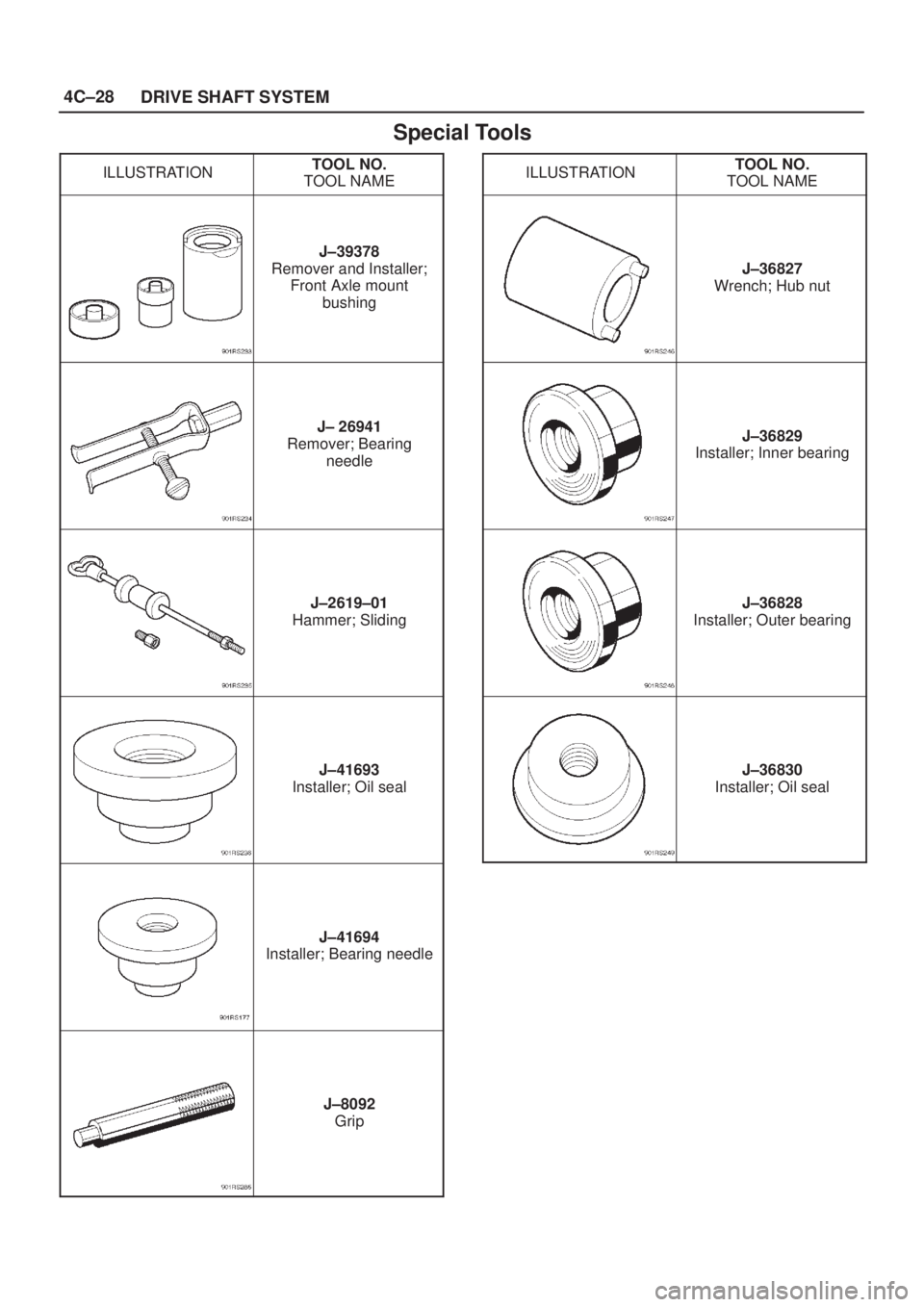

ISUZU AXIOM 2002 Service Repair Manual 4C±28 DRIVE SHAFT SYSTEM Special Tools ILLUSTRATIONTOOL NO. TOOL NAME J±39378 Remover and Installer; Front Axle mount bushing J± 26941 Remover; Bearing needle J±2619±01 Hammer; Sliding J±41693 I

Page 526 of 2100

ISUZU AXIOM 2002 Service Repair Manual 4C±29 DRIVE SHAFT SYSTEM Propeller Shaft General Description 401R200001 Legend (1) Front Propeller Shaft (2) Rear Propeller Shaft; Aluminum Tube with Flange Yoke Type (for 4y2 model) (3) Rear Propell

Page 527 of 2100

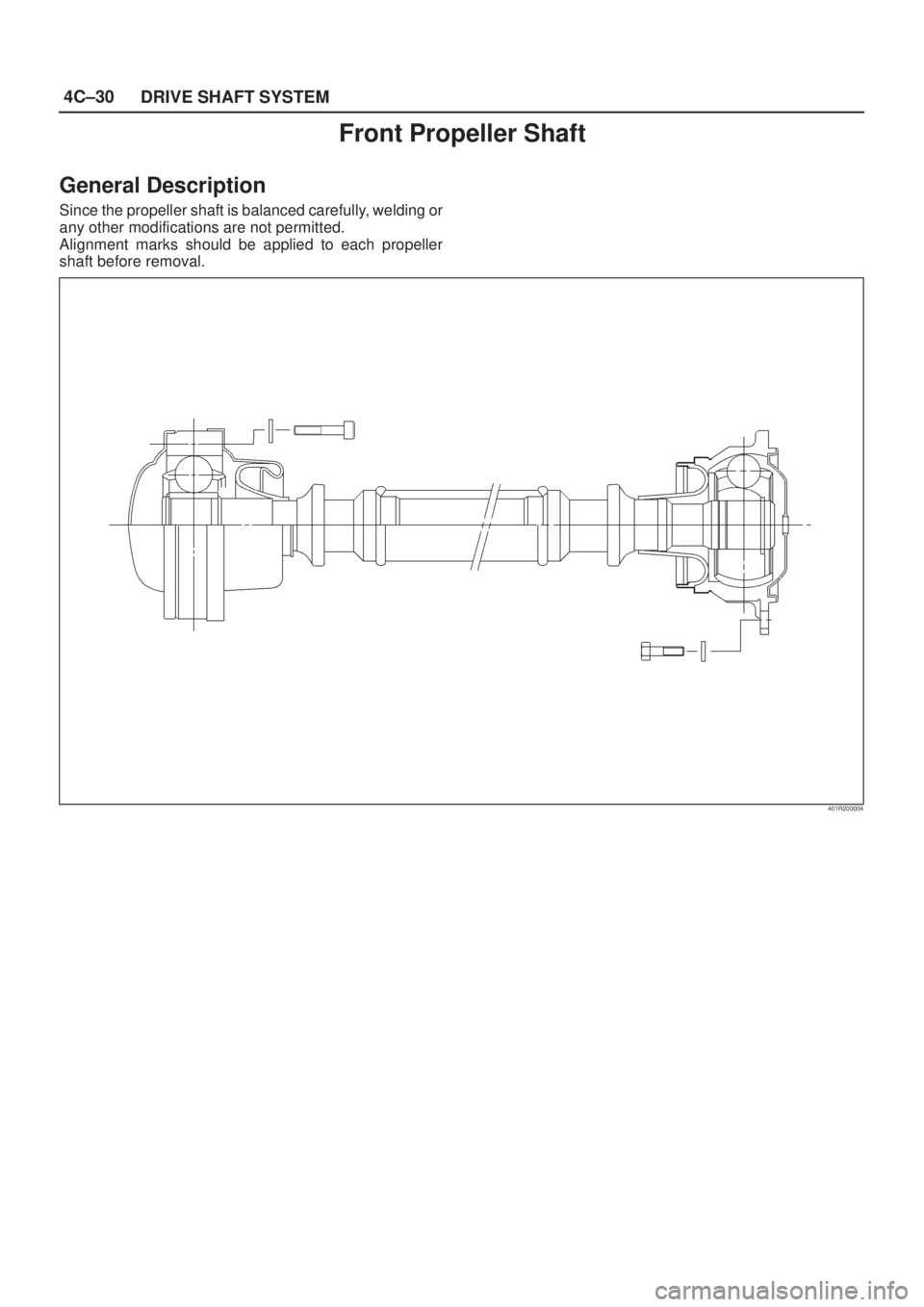

ISUZU AXIOM 2002 Service Repair Manual 4C±30 DRIVE SHAFT SYSTEM Front Propeller Shaft General Description Since the propeller shaft is balanced carefully, welding or any other modifications are not permitted. Alignment marks should be app

Page 528 of 2100

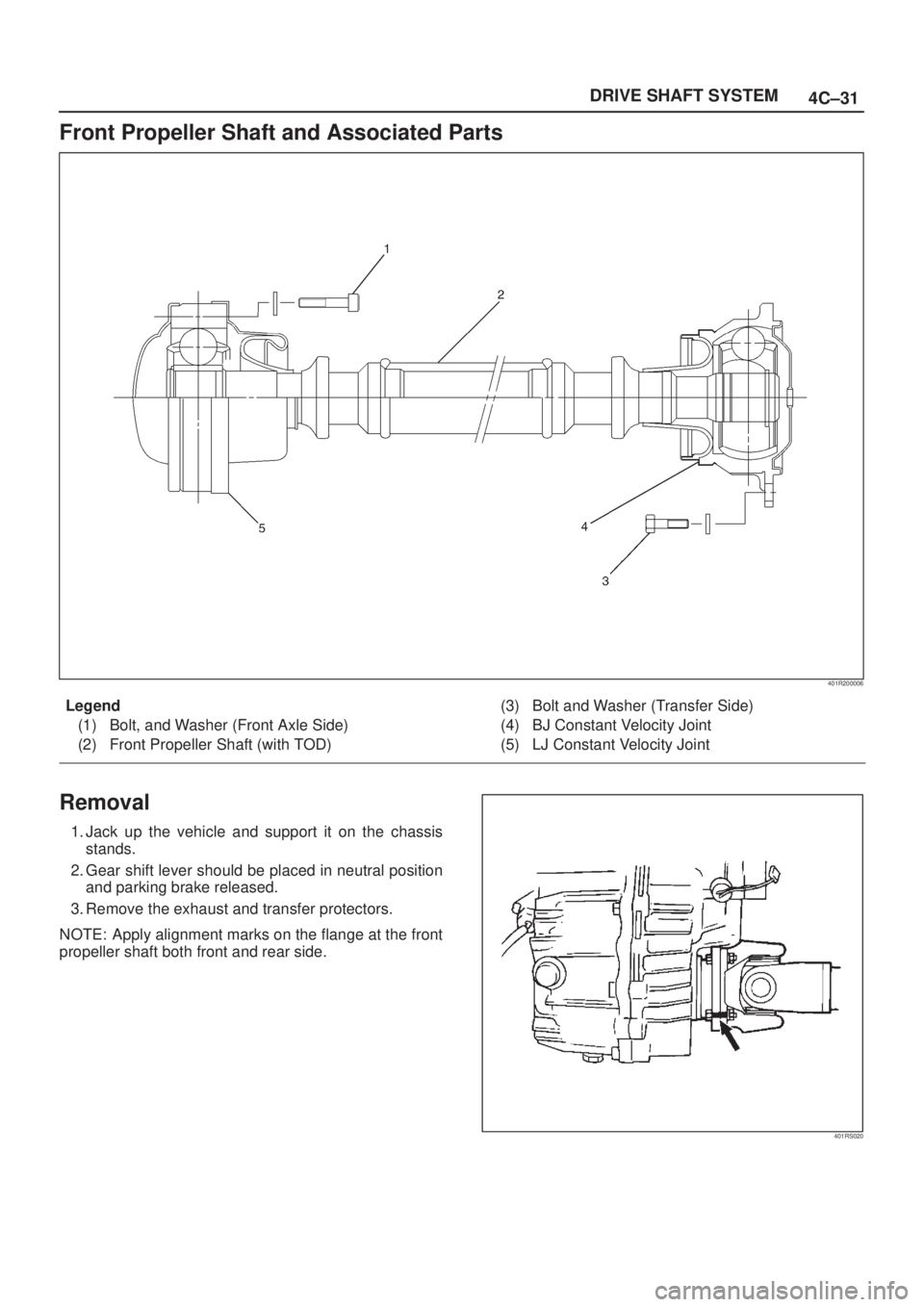

ISUZU AXIOM 2002 Service Repair Manual 4C±31 DRIVE SHAFT SYSTEM Front Propeller Shaft and Associated Parts 401R200006 Legend (1) Bolt, and Washer (Front Axle Side) (2) Front Propeller Shaft (with TOD)(3) Bolt and Washer (Transfer Side) (4
