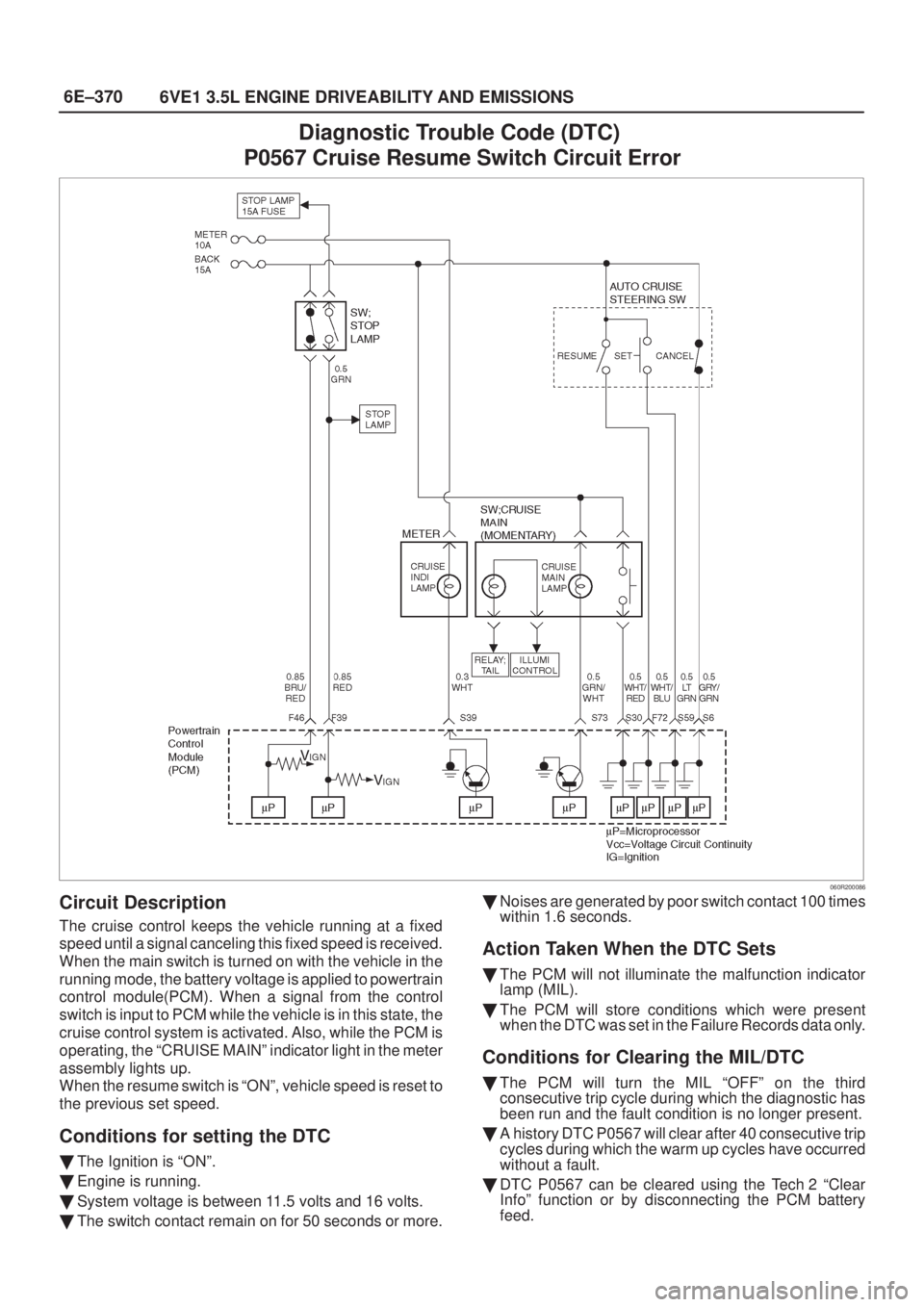

Page 1337 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±370
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P0567 Cruise Resume Switch Circuit Error
060R200086
Circuit Description
The cruise control keeps the vehicle running

Page 1338 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±371
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire

6E±371
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe the Cruise
resume switch display on the Tech 2 while moving
connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault.
If DTC P0567 cannot be duplicated, the information
included in the Failure Records data can be useful in
determined vehicle mileage since the DTC was last
set.
If it is determined that the DTC occurs intermittently,
performing the DTCP0567 Diagnostic Chart may
isolate the cause of the fault.
DTC P0567 Cruise Resume Switch Circuit Error
StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Check the signal circuit for auto cruise resume switch.
1. Ignition is ªOFFº.
2. Disconnect the powertrain control module (PCM).
3. Disconnect the cruise resume switch. Check for
cruise resume switch signal circuit between the
PCM and the cruise resume switch.
Is a problem found?
Go to Step 3Go to Step 4
3Repair the main cruise resume switch signal circuit.
Is the action complete?
ÐVerify repairÐ
4Check the auto cruise resume switch.
Is a problem found?
ÐGo to Step 5Go to Step 6
5Repair or replace the main cruise resume switch.
Is the action complete?
ÐVerify repairÐ
6Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed.
Refer to
ON-Vehicle Service in Power Control Module
and Sensors for procedures.
And also refer to latest Service Bulletin.
Check to see if the latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

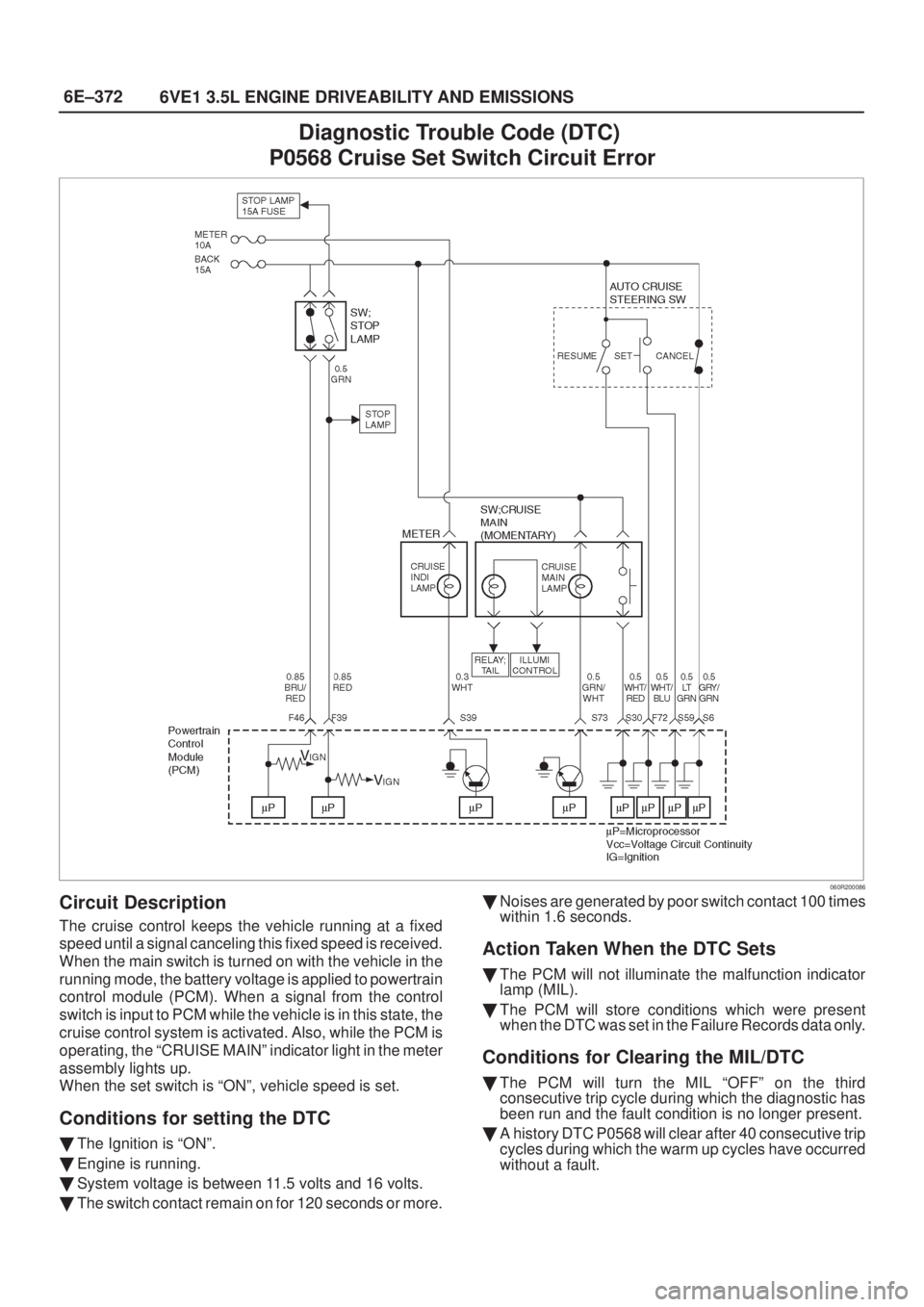

Page 1339 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±372
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P0568 Cruise Set Switch Circuit Error
060R200086
Circuit Description
The cruise control keeps the vehicle running at

Page 1340 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±373
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0568 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An intermittent may be

6E±373
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0568 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.Damaged harness±Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
cruise set switch display on the Tech 2 while moving
connectors and wiring harnesses related to the sensor.
A change in the display will indicate the location of
the fault.
If DTC P0568 cannot be duplicated, the information
included in the Failure Records data can be useful in
determined vehicle mileage since the DTC was last
set.
If it is determined that the DTC occurs intermittently,
performing the DTCP0568 Diagnostic Chart may
isolate the cause of the fault.
DTC P0568 Cruise Set Switch Circuit Error
StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªON,º engine ªON.º
2. Observe the cruise indicator lamp in the meter.
Is the cruise indicator lamp ªON?º
ÐGo to Step 3Go to Step 4
31. Push the auto cruise set switch.
2. Observe the cruise indicator lamp in the meter.
Is the cruise indicator lamp ªOFF ?º
Ð
Go to
Diagnostic
Aids
Go to Step 5
4Check the signal circuit for auto cruise set switch.
1. Ignition is ªOFFº.
2. Disconnect the powertrain control module (PCM).
3. Disconnect the cruise set switch.
Check for cruise set switch signal circuit between
the PCM and the cruise set switch.
Is a problem found?
Go to Step 5Go to Step 6
5Repair the main cruise set switch signal circuit.
Is the action complete?
ÐVerify repairÐ
6Check the auto cruise set switch.
Is a problem found?
ÐGo to Step 7Go to Step 8
7Repair or replace the main cruise set switch.
Is the action complete?
ÐVerify repairÐ
8Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed.
Refer to
ON-Vehicle Service in Power Control Module
and Sensors for procedures.
And also refer to latest Service Bulletin.
Check to see if the latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

Page 1341 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±374
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0571 No Brake Switch Signal
060R100093
Circuit Description
The brake switch has 3 functions.
Brake pedal operation c

Page 1342 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±375
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P01571 No Brake Switch Signal
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD

Page 1343 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±376
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0601 PCM Memory
060RY014
Circuit Description
The powertrain control module (PCM) used in this vehicle
utilizes an ele

Page 1344 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6E±377
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0601 ± PCM Memory
StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Che
