Page 1641 of 2100

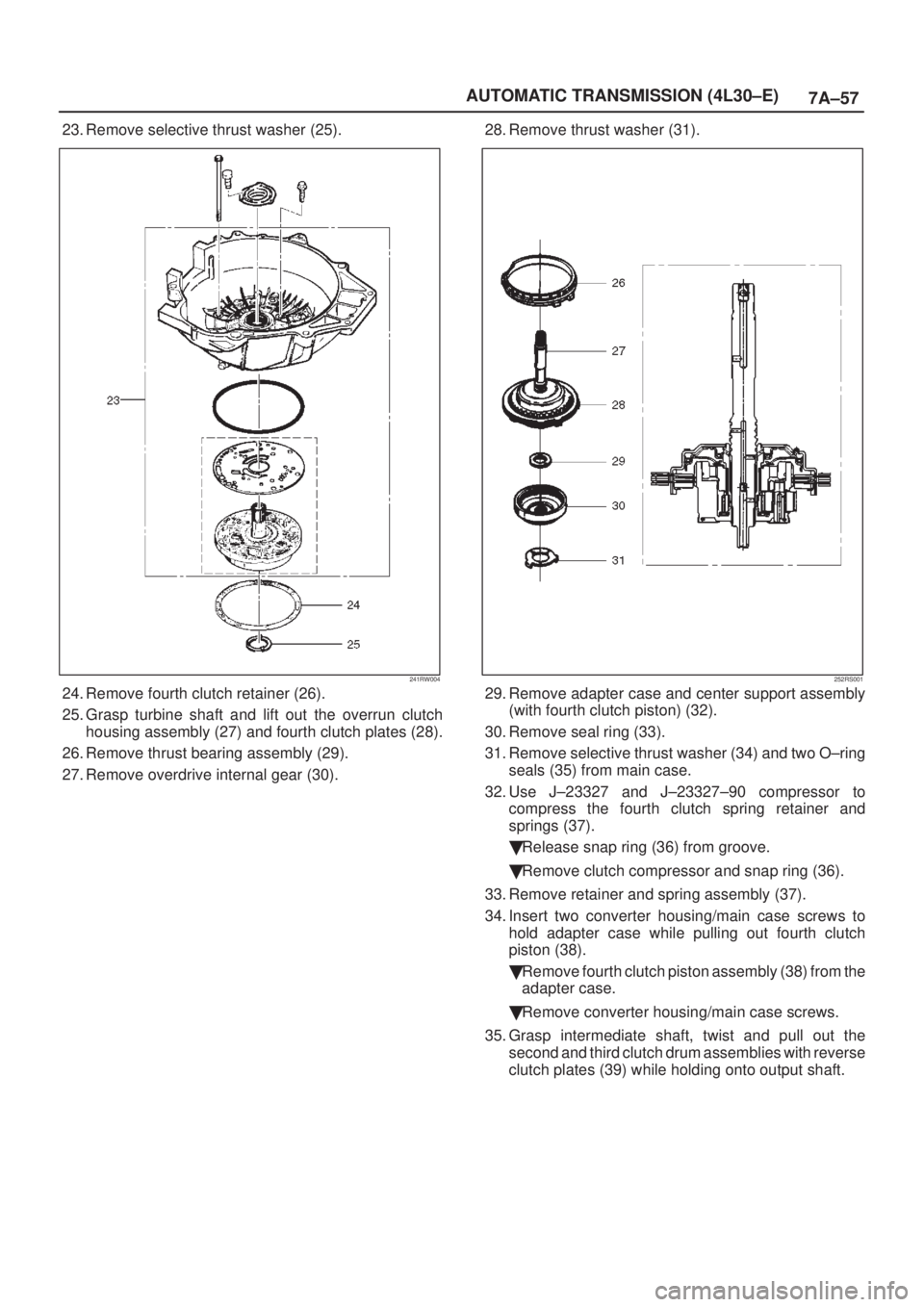

ISUZU AXIOM 2002 Service Repair Manual 7A±57 AUTOMATIC TRANSMISSION (4L30±E) 23. Remove selective thrust washer (25). 241RW004 24. Remove fourth clutch retainer (26). 25. Grasp turbine shaft and lift out the overrun clutch housing assemb

Page 1642 of 2100

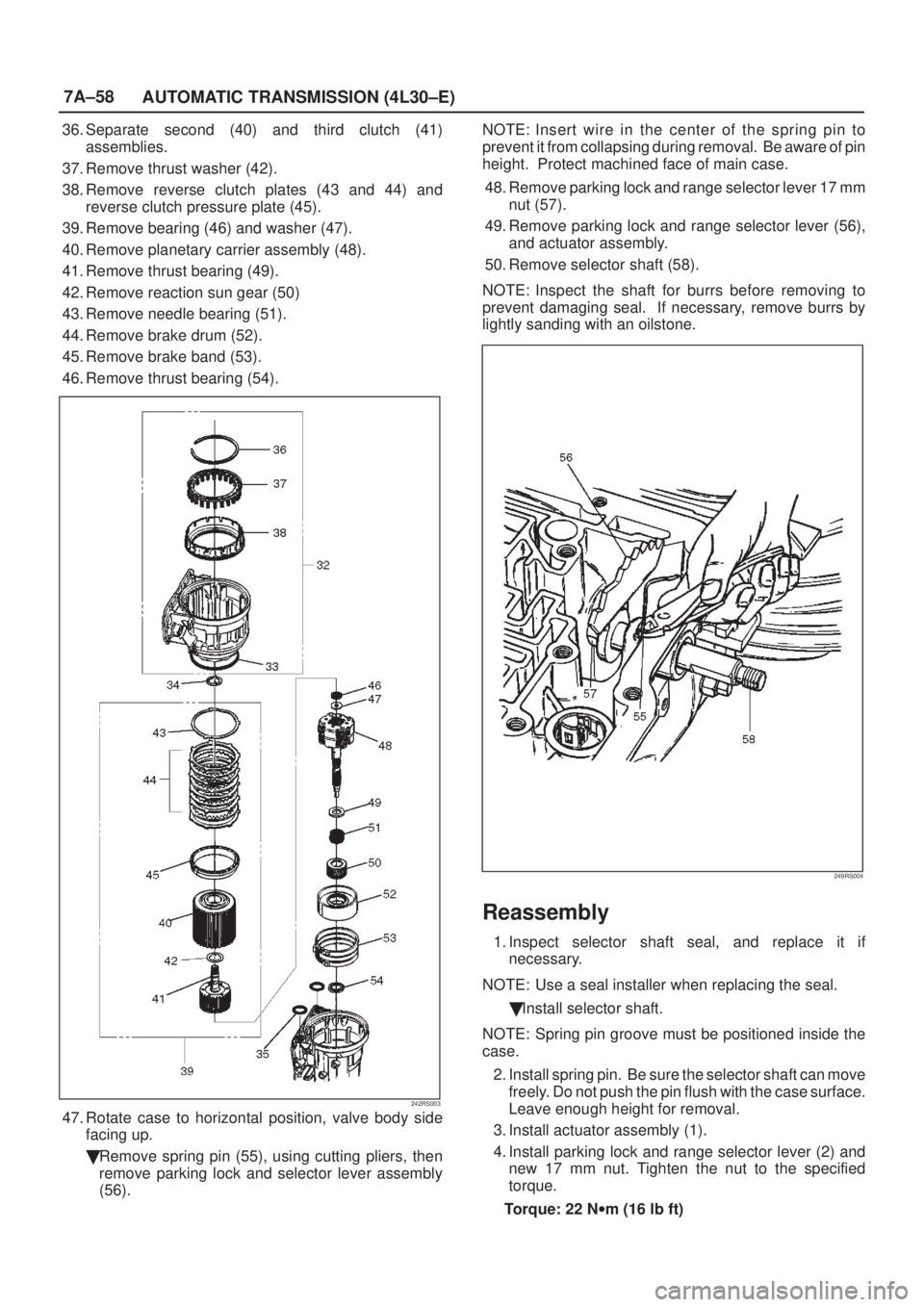

ISUZU AXIOM 2002 Service Repair Manual 7A±58 AUTOMATIC TRANSMISSION (4L30±E) 36. Separate second (40) and third clutch (41) assemblies. 37. Remove thrust washer (42). 38. Remove reverse clutch plates (43 and 44) and reverse clutch pressu

Page 1643 of 2100

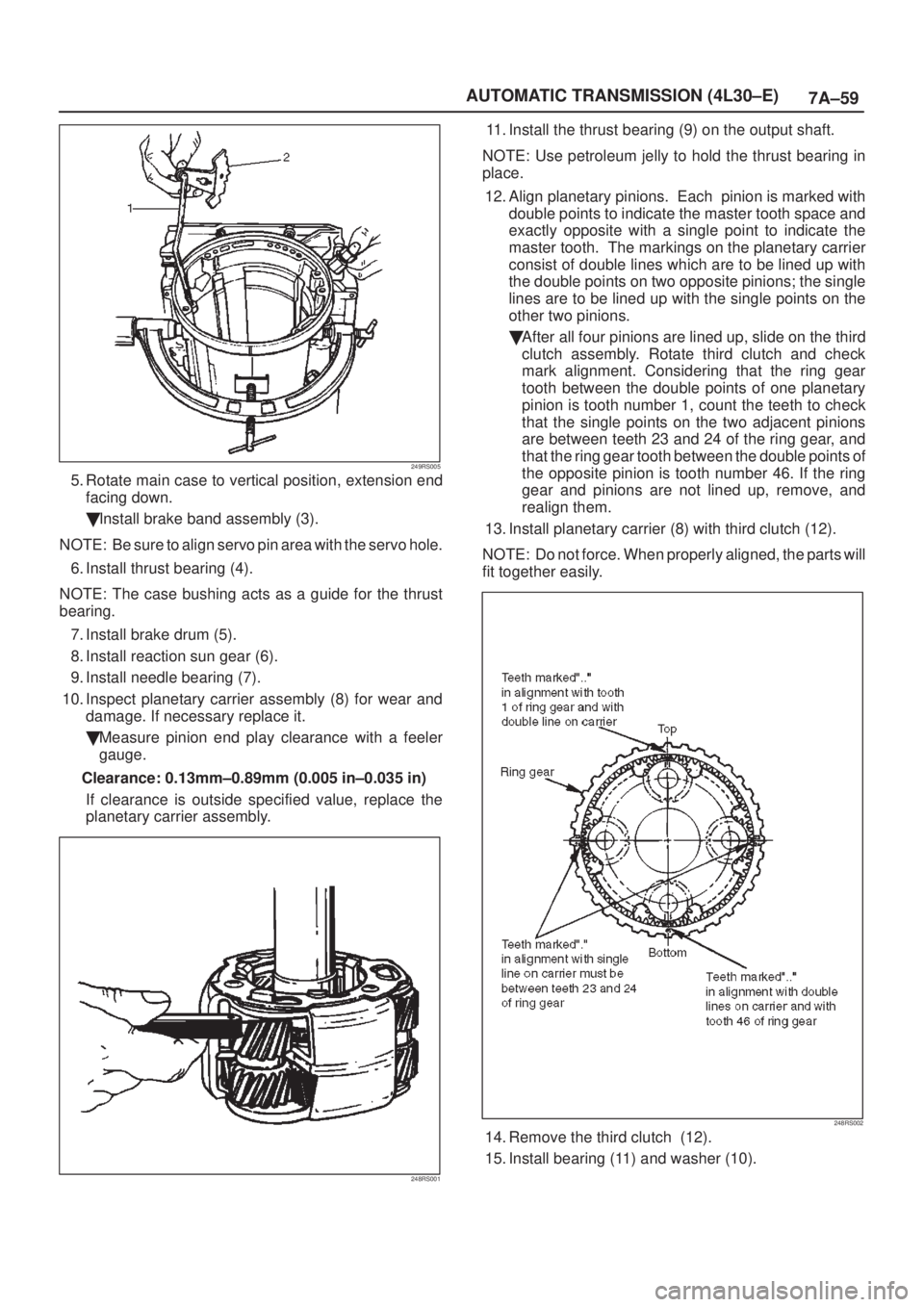

ISUZU AXIOM 2002 Service Repair Manual 7A±59 AUTOMATIC TRANSMISSION (4L30±E) 249RS005 5. Rotate main case to vertical position, extension end facing down. Install brake band assembly (3). NOTE: Be sure to align servo pin area with the s

Page 1644 of 2100

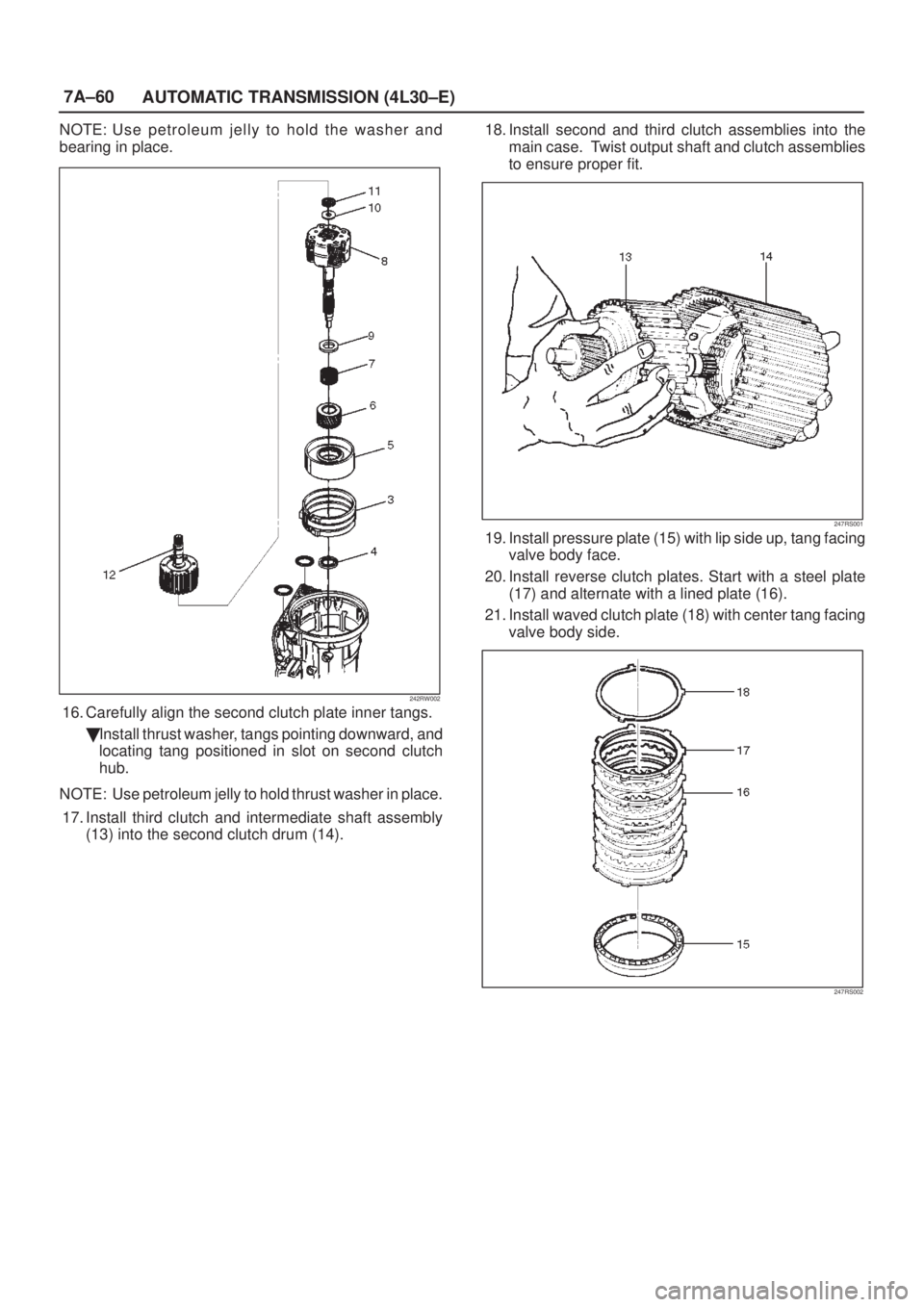

ISUZU AXIOM 2002 Service Repair Manual 7A±60 AUTOMATIC TRANSMISSION (4L30±E) NOTE: Use petroleum jelly to hold the washer and bearing in place. 242RW002 16. Carefully align the second clutch plate inner tangs. Install thrust washer, tan

Page 1645 of 2100

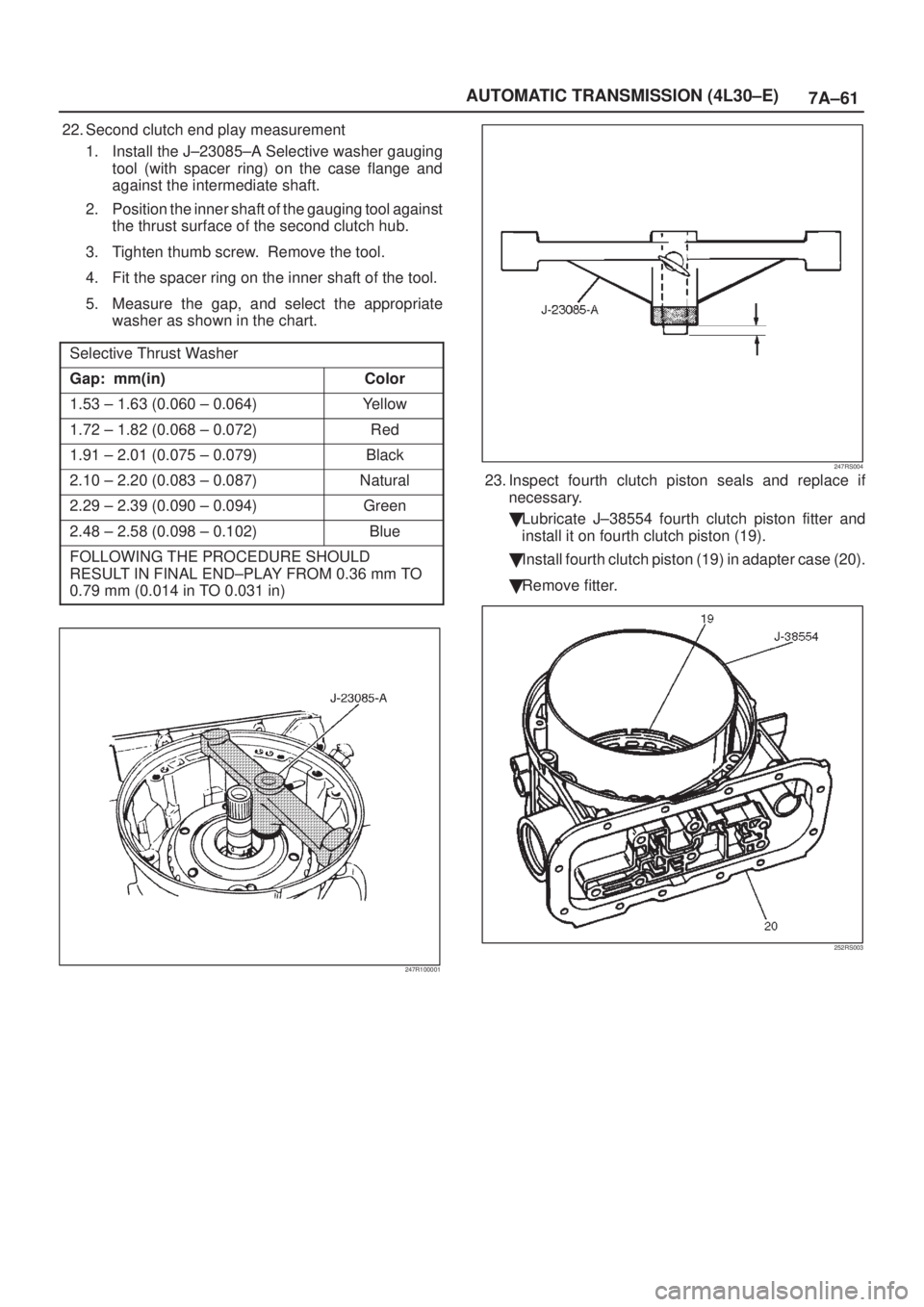

ISUZU AXIOM 2002 Service Repair Manual 7A±61 AUTOMATIC TRANSMISSION (4L30±E) 22. Second clutch end play measurement 1. Install the J±23085±A Selective washer gauging tool (with spacer ring) on the case flange and against the intermedia

Page 1646 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±62 AUTOMATIC TRANSMISSION (4L30±E) 24. Install retainer and spring assembly (22) into fourth clutch piston (21). 25. Install snap ring (23) in adapter case. Install J±23327 and J±23327±90 fou

Page 1647 of 2100

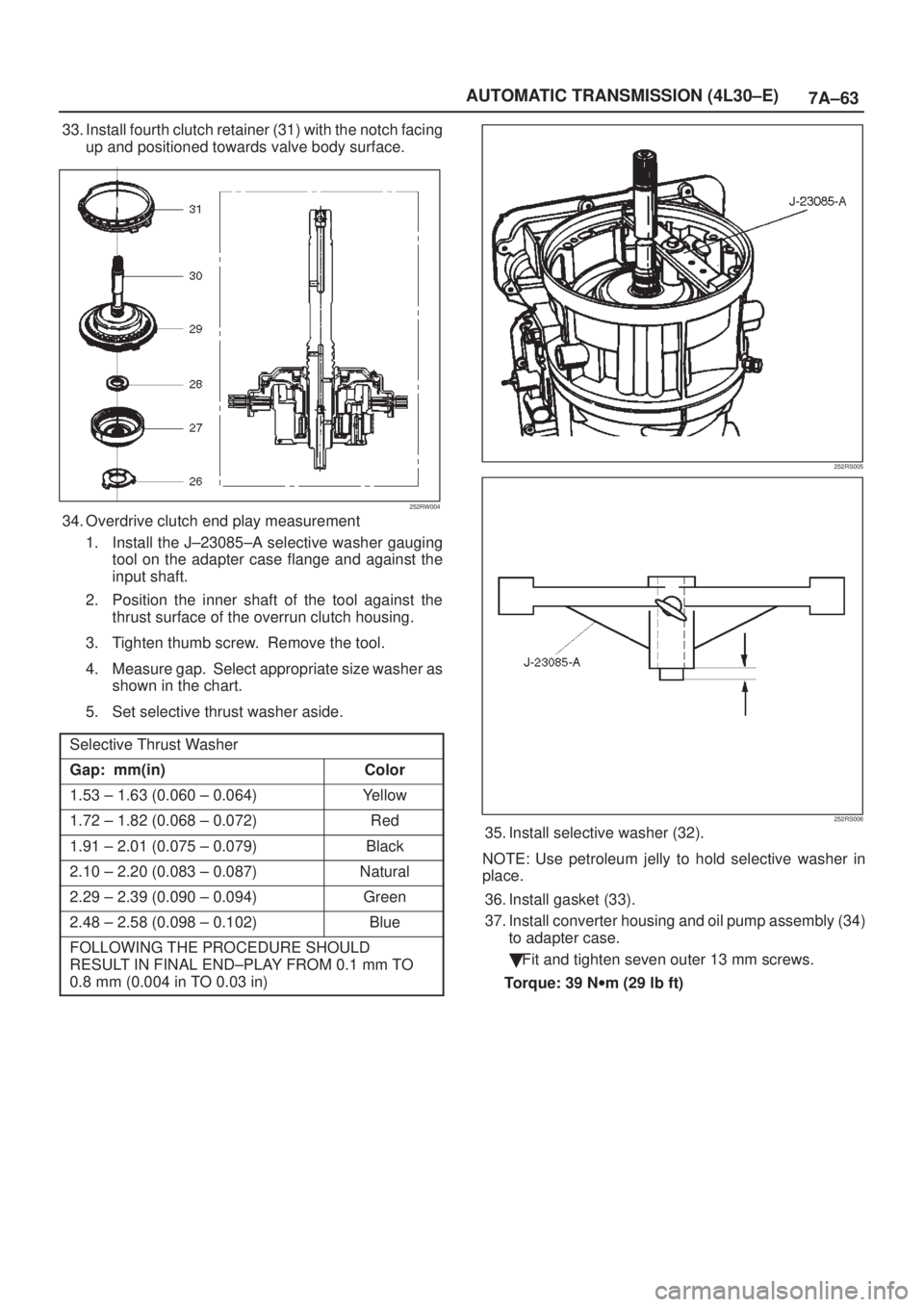

ISUZU AXIOM 2002 Service Repair Manual 7A±63 AUTOMATIC TRANSMISSION (4L30±E) 33. Install fourth clutch retainer (31) with the notch facing up and positioned towards valve body surface. 252RW004 34. Overdrive clutch end play measurement 1

Page 1648 of 2100

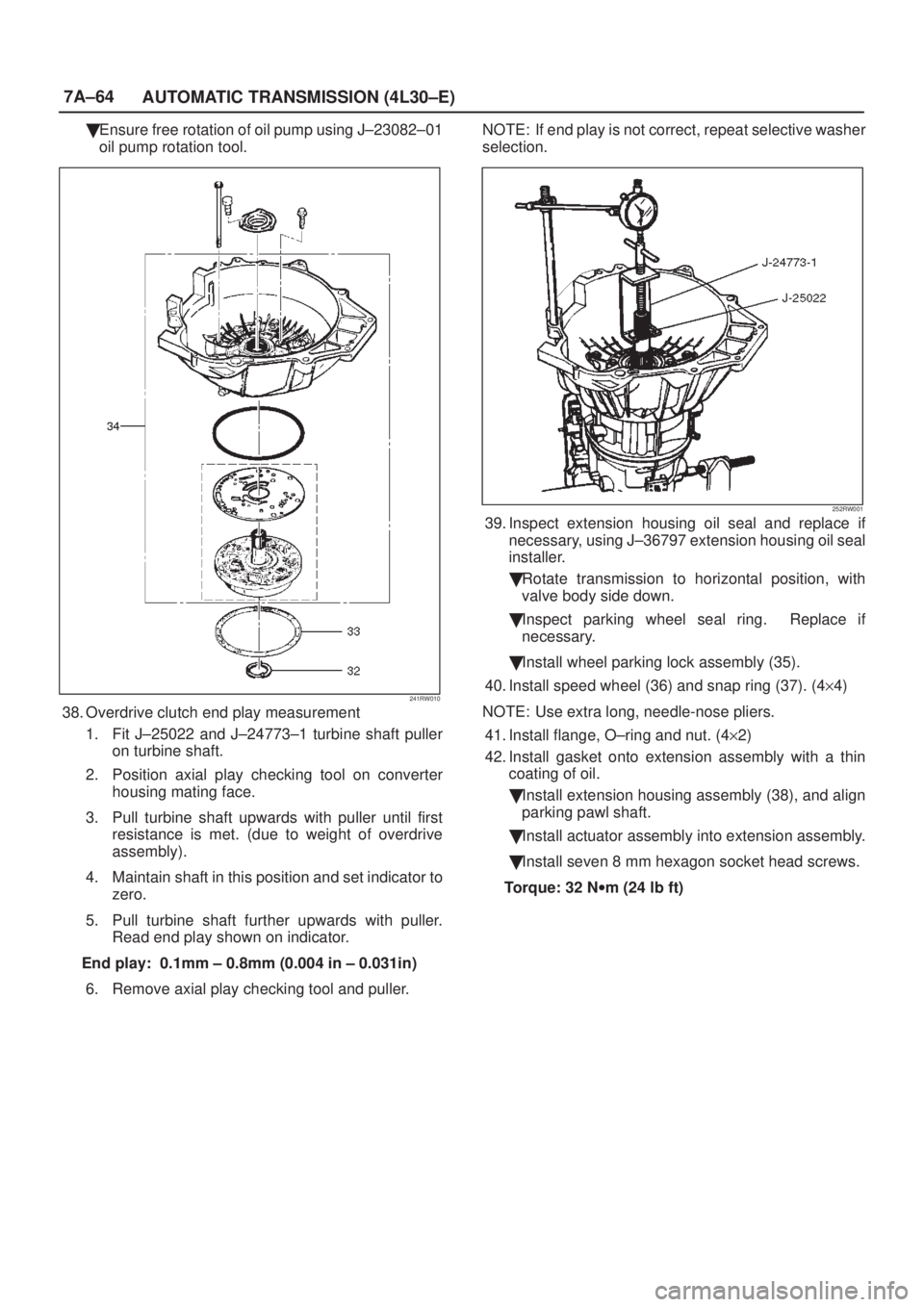

ISUZU AXIOM 2002 Service Repair Manual 7A±64 AUTOMATIC TRANSMISSION (4L30±E) Ensure free rotation of oil pump using J±23082±01 oil pump rotation tool. 241RW010 38. Overdrive clutch end play measurement 1. Fit J±25022 and J±24773±1
