Page 1609 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±25 AUTOMATIC TRANSMISSION (4L30±E) ªPower modeº Upshift Range Throttle opening1 " 2 (First Gear) (Second Gear) km/h (mph)2 " 3 (Second Gear) (Third Gear) km/h (mph)3 " 4 (Third Gear) (Fourth Ge

Page 1610 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±26 AUTOMATIC TRANSMISSION (4L30±E) Lockup Speed Chart Transfer gear ratioHigh: 1.000 Rear axle ratio4.300 ECCC ApplyECCC Release D range Throttle i6% Mode2nd Km/h (mph)3rd Km/h (mph)4th Km/h (mph

Page 1611 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±27 AUTOMATIC TRANSMISSION (4L30±E) Changing Transmission Fluid There is no need to change the transmission fluid unless the transmission is used under one or more of the following heavy duty cond

Page 1612 of 2100

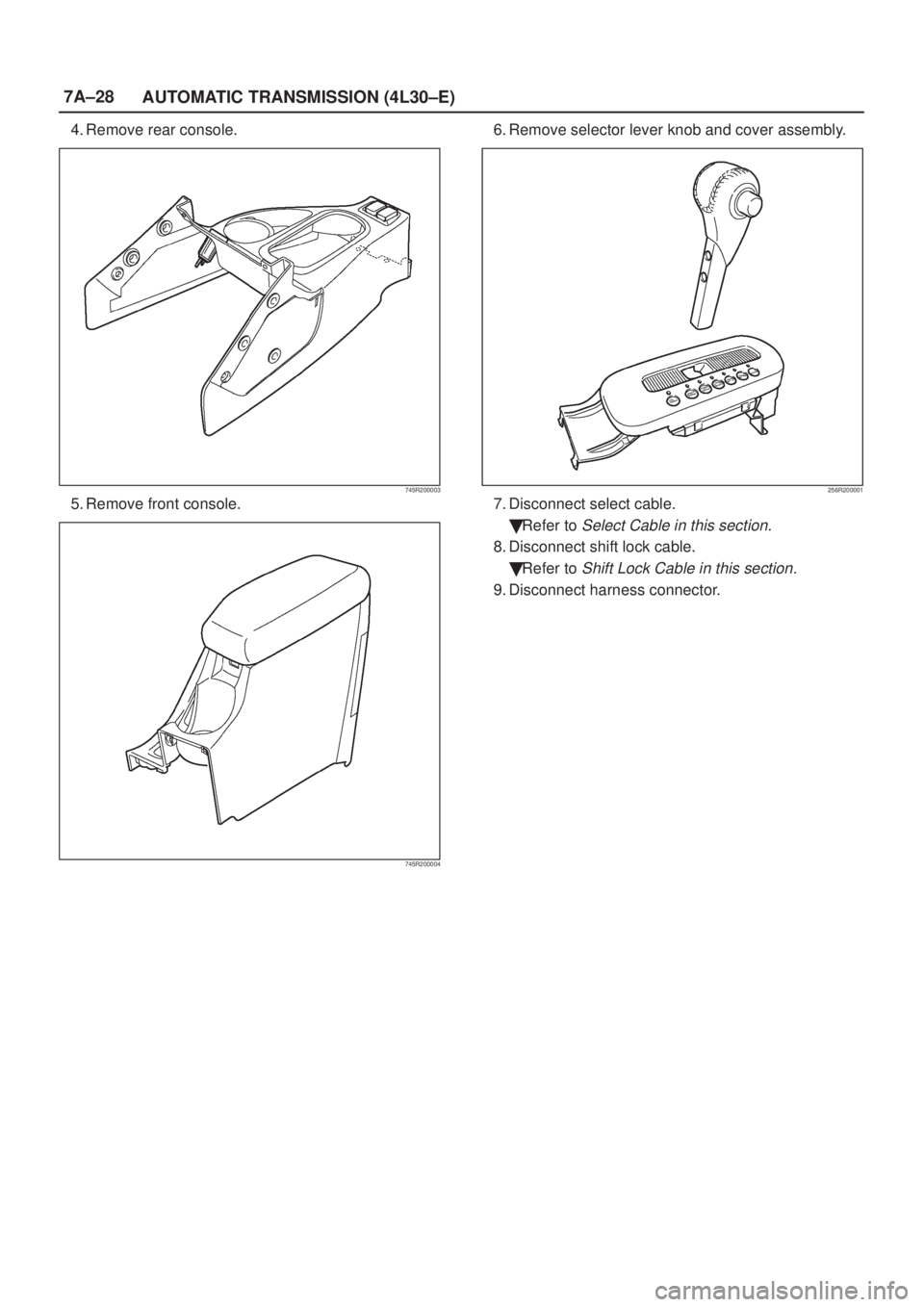

ISUZU AXIOM 2002 Service Repair Manual 7A±28 AUTOMATIC TRANSMISSION (4L30±E) 4. Remove rear console. 745R200003 5. Remove front console. 745R200004 6. Remove selector lever knob and cover assembly. 256R200001 7. Disconnect select cable.

Page 1613 of 2100

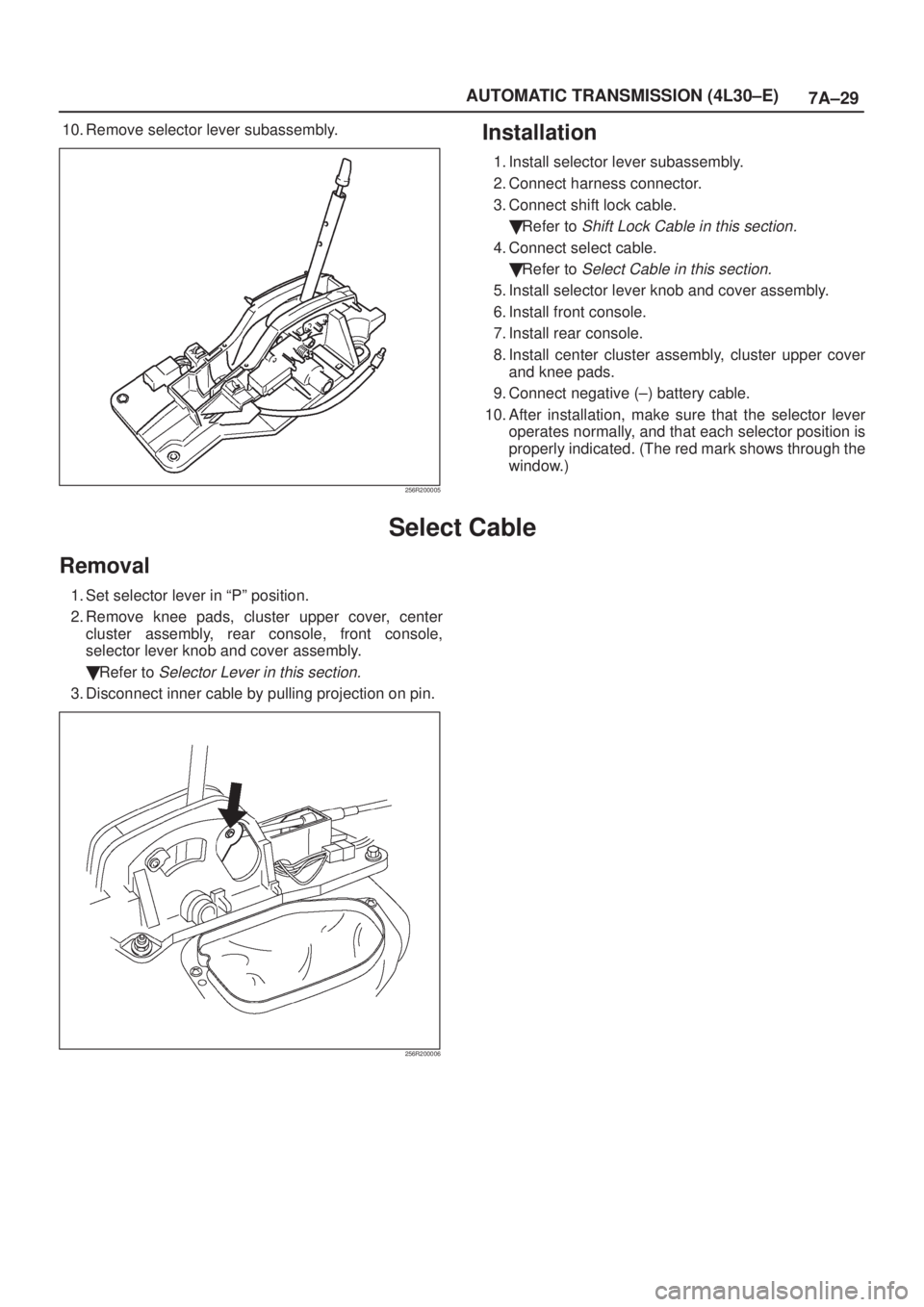

ISUZU AXIOM 2002 Service Repair Manual 7A±29 AUTOMATIC TRANSMISSION (4L30±E) 10. Remove selector lever subassembly. 256R200005 Installation 1. Install selector lever subassembly. 2. Connect harness connector. 3. Connect shift lock cable.

Page 1614 of 2100

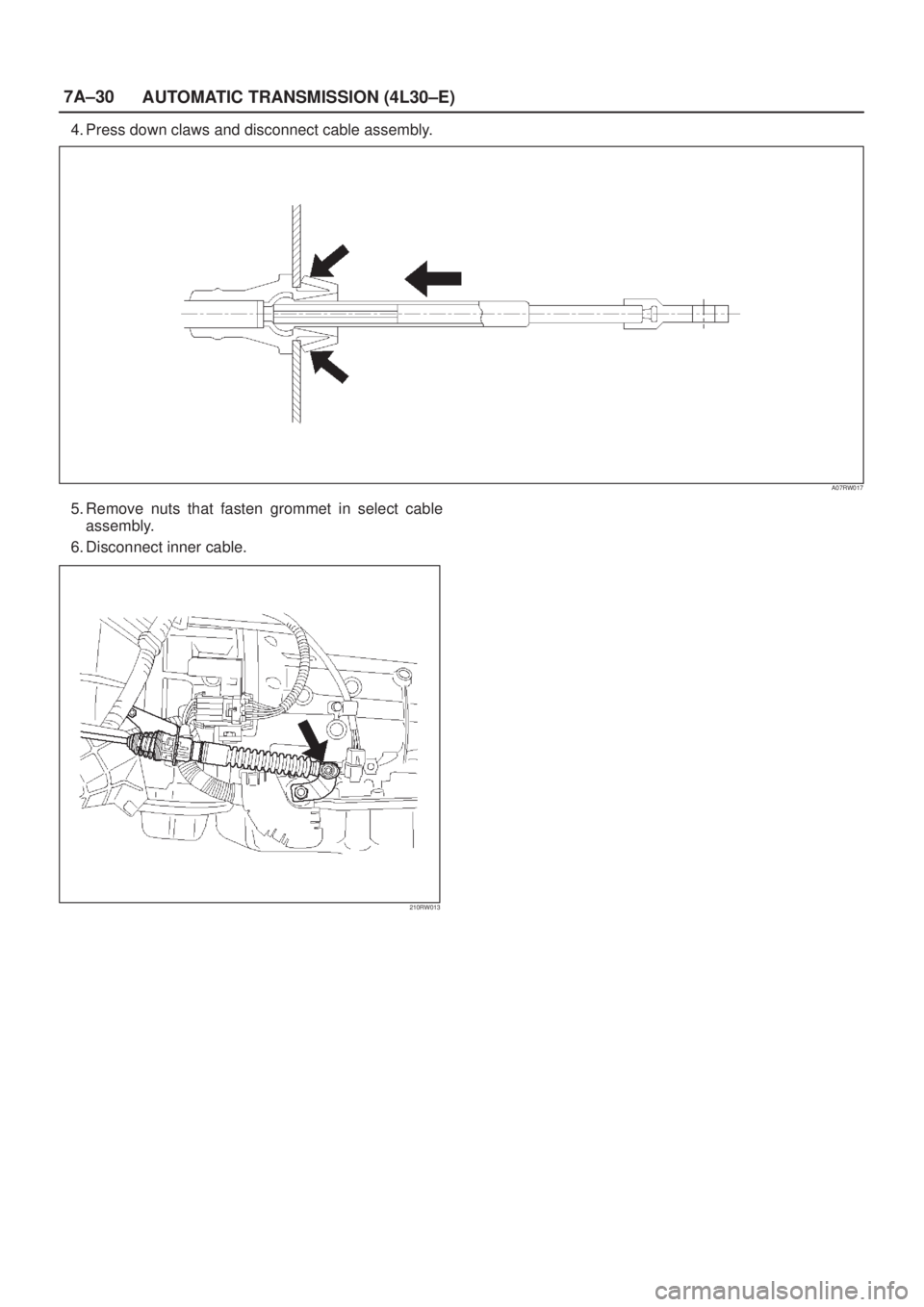

ISUZU AXIOM 2002 Service Repair Manual 7A±30 AUTOMATIC TRANSMISSION (4L30±E) 4. Press down claws and disconnect cable assembly. A07RW017 5. Remove nuts that fasten grommet in select cable assembly. 6. Disconnect inner cable. 210RW013

Page 1615 of 2100

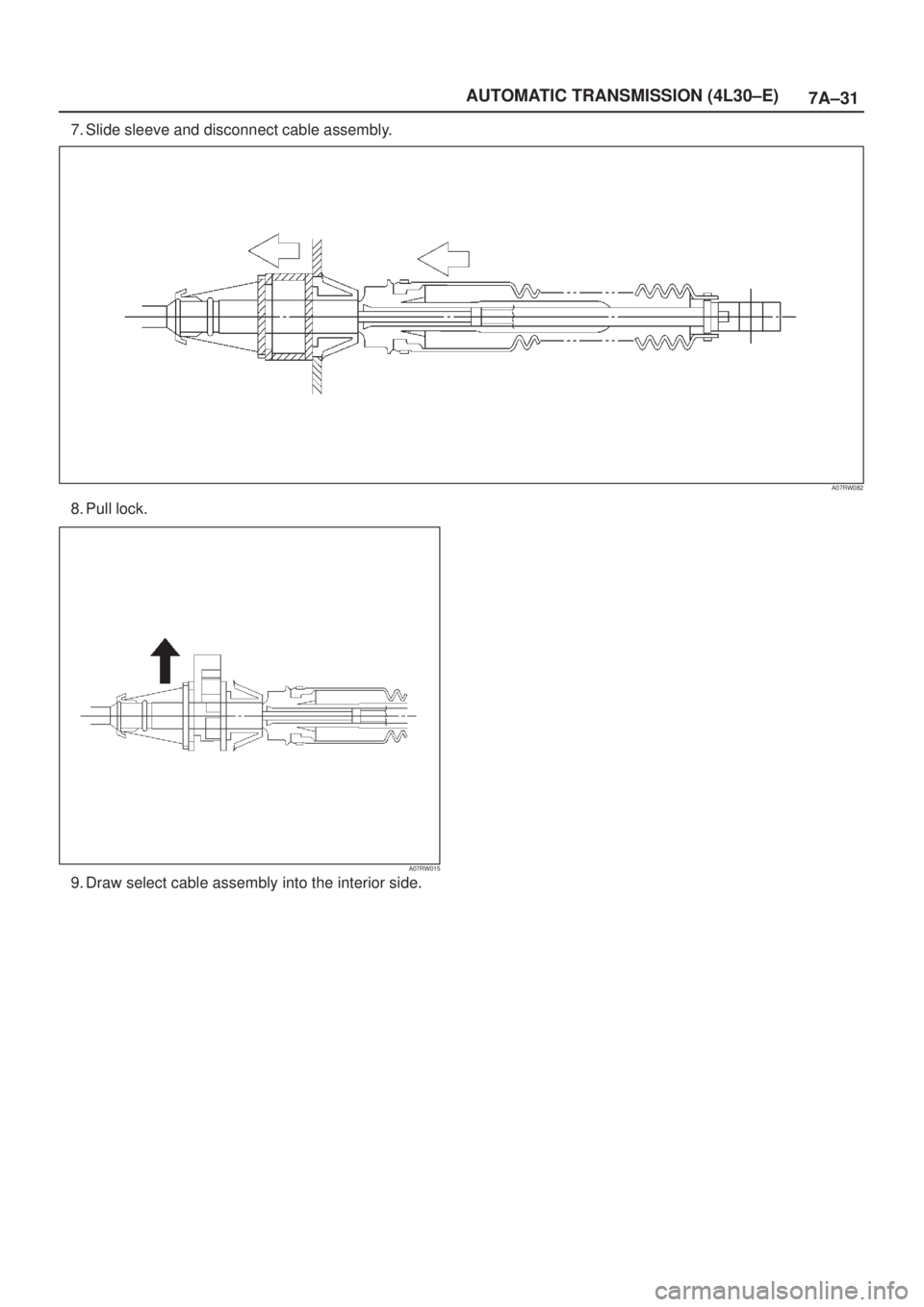

ISUZU AXIOM 2002 Service Repair Manual 7A±31 AUTOMATIC TRANSMISSION (4L30±E) 7. Slide sleeve and disconnect cable assembly. A07RW082 8. Pull lock. A07RW015 9. Draw select cable assembly into the interior side.

Page 1616 of 2100

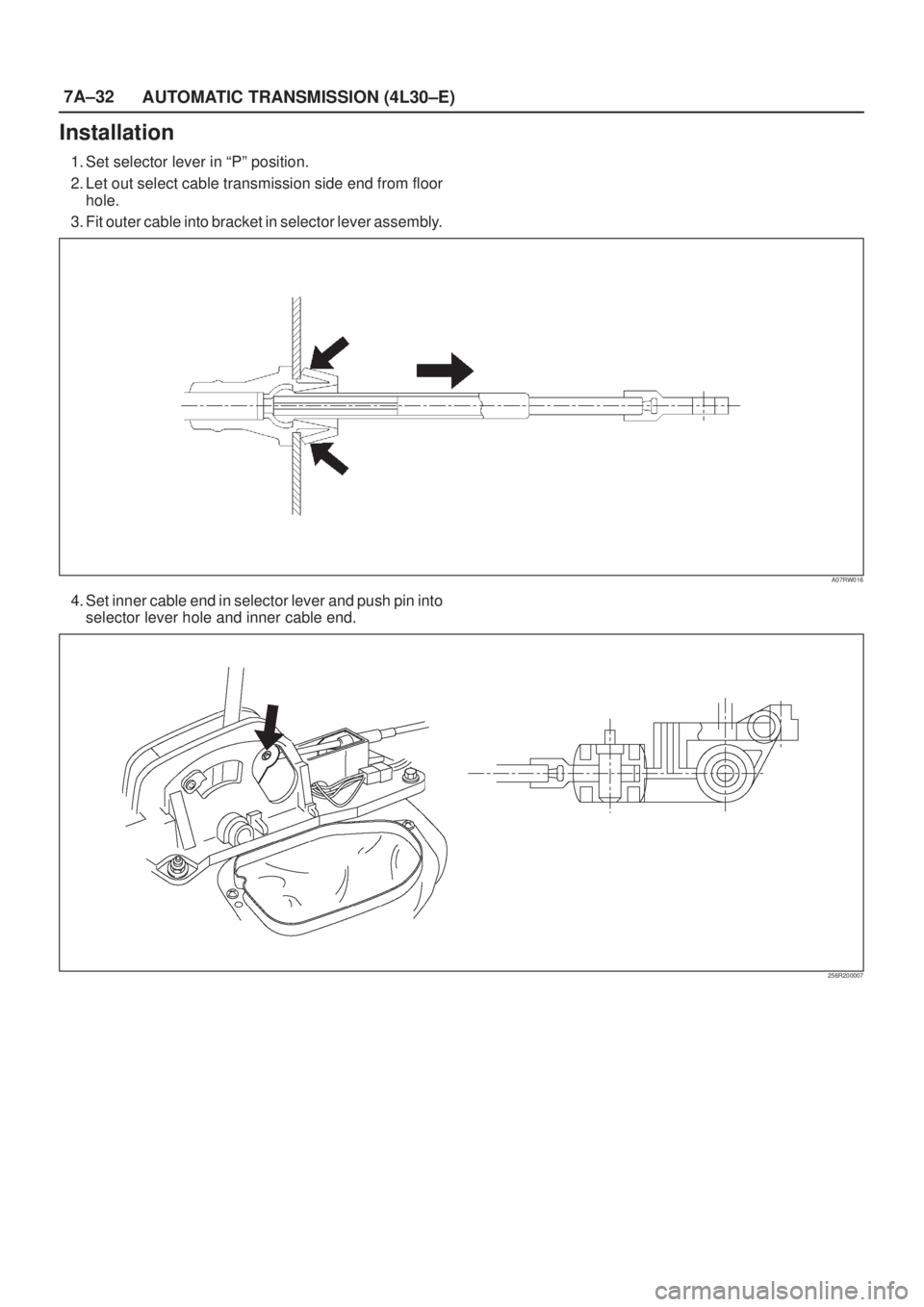

ISUZU AXIOM 2002 Service Repair Manual 7A±32 AUTOMATIC TRANSMISSION (4L30±E) Installation 1. Set selector lever in ªPº position. 2. Let out select cable transmission side end from floor hole. 3. Fit outer cable into bracket in selector
