7A±33 AUTOMATIC TRANSMISSION (4L30±E)

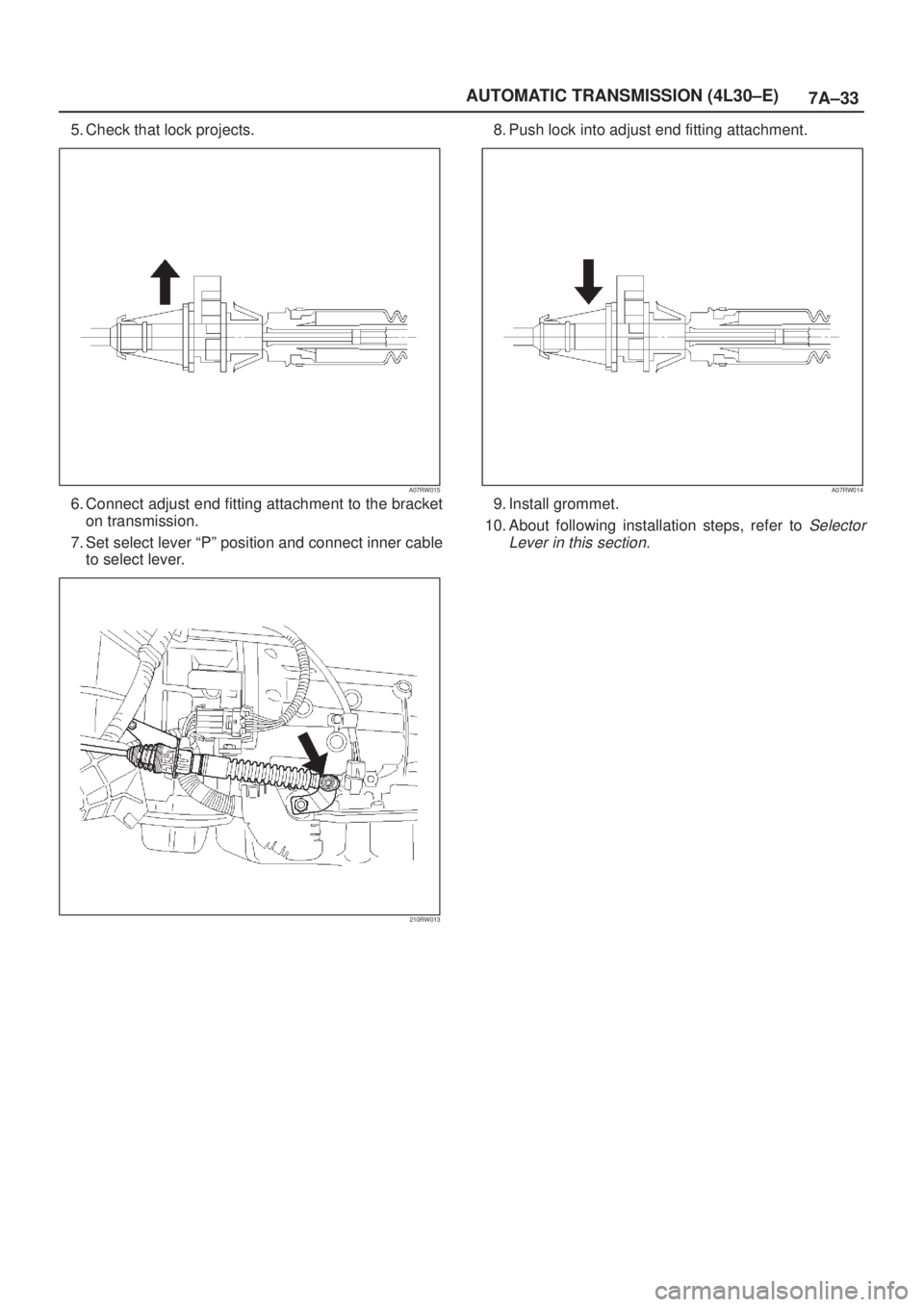

5. Check that lock projects.
A07RW015
6. Connect adjust end fitting attachment to the bracket
on transmission.
7. Set select lever ªPº position and connect inner cable
to select lever.
210RW013
8. Push lock into adjust end fitting attachment.
A07RW014
9. Install grommet.
10. About following installation steps, refer to
Selector
Lever in this section.
Page 1618 of 2100

7A±34
AUTOMATIC TRANSMISSION (4L30±E)
Shift Lock Cable
Removal
1. Set ignition key in ªLOCKº position and selector lever
in ªPº position.
2. Remove knee pads, cluster upper cover, center
cluster assembly, rear console, and front console.
Refer to
Selector Lever in this section.
3. Disconnect inner cable from selector lever assembly
then push claw and disconnect cable assembly.
256R200002
4. Disconnect lock adjust.
256R200003
5. Remove instrument panel lower cover and steering
column cover.6. Remove spring pin and disconnect inner cable.
Disconnect outer cable from bracket.
256RW008
Installation
1. Set ignition key in ªLOCKº position and selector lever
in ªPº position.
2. Connect outer cable to bracket near steering lock.
Connect inner cable to steering lock and install
spring pin.
3. Install steering column cover and instrument lower
cover.
4. Install adjust body of cable assembly to bracket in
selector lever assembly.
Install inner cable to lever, pulling inner cable with
outer cable.
256R200004
Page 1619 of 2100

7A±35 AUTOMATIC TRANSMISSION (4L30±E)
5. Check that cable moves smoothly, lightly pulling outer
cable rearward.
6. Connect lock adjust, aligning ªTº mark in the ªUpº
position.
256R200003
7. About following installation steps, refer to Selector
Lever in this section.
8. Check the shift lock operation:
a. Selector lever should not be moved out of ªPº
position with ignition key in ªLockº position.
b. Selector lever can be moved out of ªPº position with
ignition key in ªONºposition only when brake pedal
is depressed.
c. ignition key can be turned to ªLOCKº position only
when selector lever is in ªPº position (key can be
pulled out).
9. If a. and c. fail, readjust cable. If b. fails, readjust
connector wiring and brake pedal switch.
Mode Switch
Removal
1. Place selector lever in neutral.
2. Disconnect battery ground cable.
3. Remove mode switch cover (1) (V6).
4. Disconnect selector lever (2) from the mode switch.
5. Remove bracket with cable (3).
6. Disconnect transmission harness from the mode
switch connector (4).
7. Remove bracket with mode switch connector from
the transmission case.
8. Remove mode switch connector (4) from the bracket
(5).
9. Remove two mode switch bolts and nut then remove
mode switch (6).
210RW014
Page 1620 of 2100

7A±36
AUTOMATIC TRANSMISSION (4L30±E)

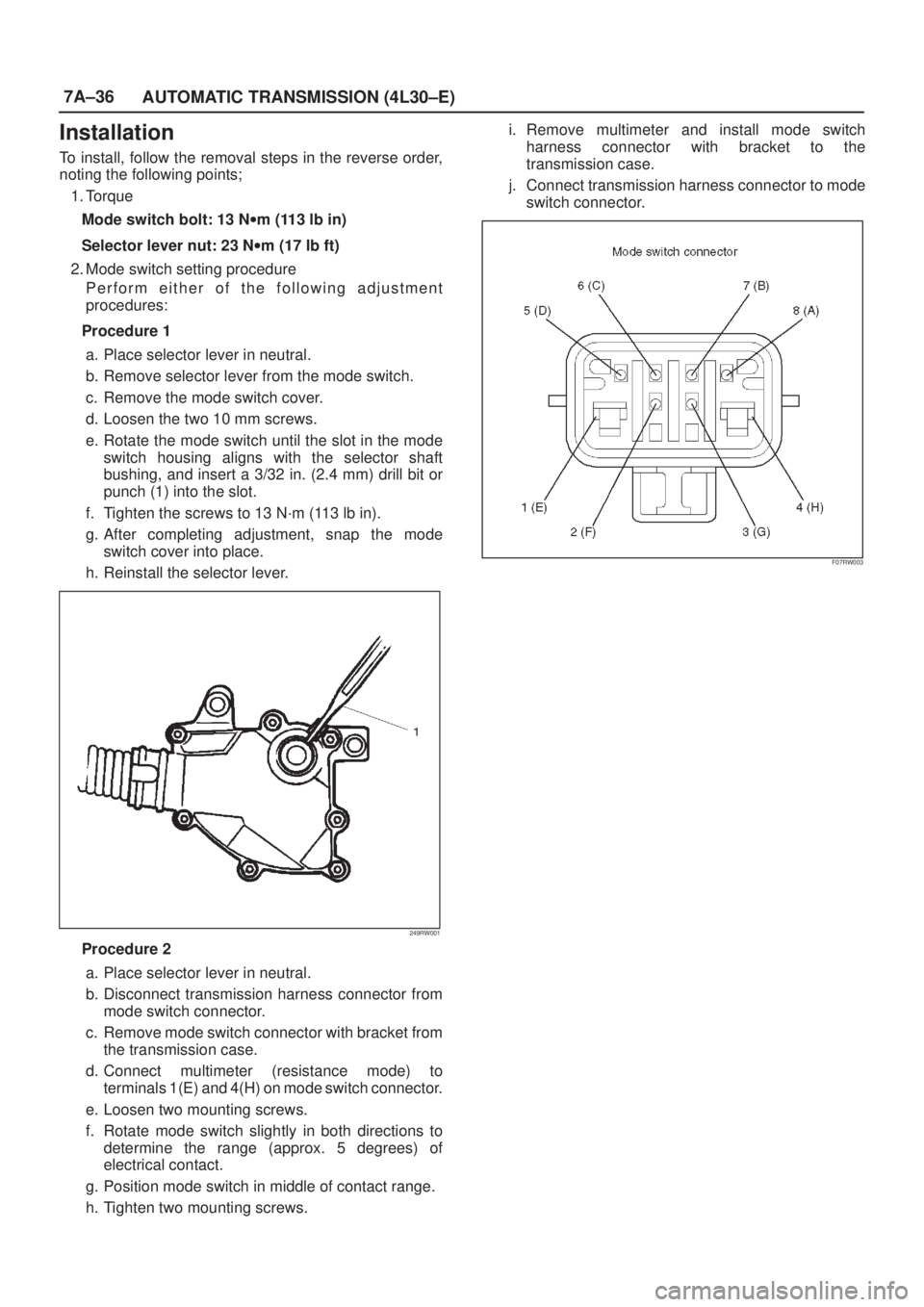

Installation
To install, follow the removal steps in the reverse order,
noting the following points;
1. Torque
Mode switch bolt: 13 Nwm (113 lb in)
Selector lever nut: 23 Nwm (17 lb ft)
2. Mode switch setting procedure
Perform either of the following adjustment
procedures:
Procedure 1
a. Place selector lever in neutral.
b. Remove selector lever from the mode switch.
c. Remove the mode switch cover.
d. Loosen the two 10 mm screws.
e. Rotate the mode switch until the slot in the mode
switch housing aligns with the selector shaft
bushing, and insert a 3/32 in. (2.4 mm) drill bit or
punch (1) into the slot.
f. Tighten the screws to 13 N´m (113 lb in).
g. After completing adjustment, snap the mode
switch cover into place.
h. Reinstall the selector lever.
249RW001
Procedure 2
a. Place selector lever in neutral.
b. Disconnect transmission harness connector from
mode switch connector.
c. Remove mode switch connector with bracket from
the transmission case.
d. Connect multimeter (resistance mode) to
terminals 1(E) and 4(H) on mode switch connector.
e. Loosen two mounting screws.
f. Rotate mode switch slightly in both directions to
determine the range (approx. 5 degrees) of
electrical contact.
g. Position mode switch in middle of contact range.
h. Tighten two mounting screws.i. Remove multimeter and install mode switch
harness connector with bracket to the
transmission case.
j. Connect transmission harness connector to mode
switch connector.
F07RW003
Page 1621 of 2100
7A±37 AUTOMATIC TRANSMISSION (4L30±E)
Transmission Assembly
Transmission and Associated Parts
240R200005
Legend
(1) Fairing Plate
(2) Transfer Protector (4y4)
(3) Under Cover
(4) Front Propeller Shaft (4y4)
(5) Transmission Oil Cooler Pipe
(6) Select Cable
(7) Rear Propeller Shaft (4y2)
(8) Rear Propeller Shaft (4y4)
(9) Rear Mount Rubber and Propeller Protector
Assembly (4y2)
(10) Fuel Pipe
(11) Fuel Pipe Heat Protector(12) Third Crossmember (4y4)
(13) Third Crossmember (4y2)
(14) Center Exhaust Pipe (4y4)
(15) Starter
(16) Harness Heat Protector
(17) Torque Converter Bolt
(18) Engine-Transmission Bolt
(19) Rear Mount Nut (4y4)
(20) Rear Mount Nut (4y2)
(21) Harness Connector
(22) Transmission Assembly with Transfer
Assembly (4y4)
(23) Transmission Assembly (4y2)
Page 1622 of 2100
7A±38
AUTOMATIC TRANSMISSION (4L30±E)

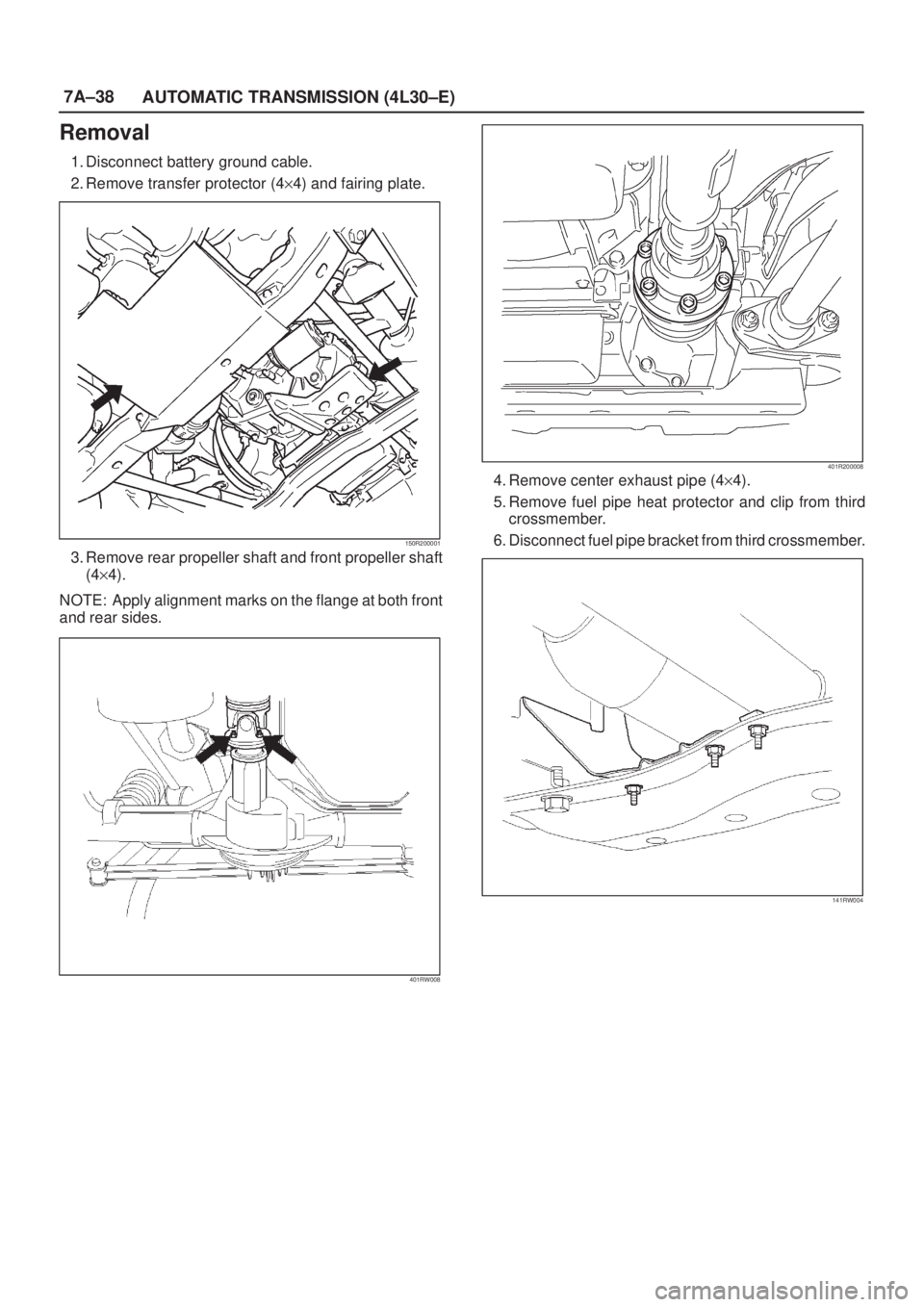

Removal
1. Disconnect battery ground cable.
2. Remove transfer protector (4y4) and fairing plate.
150R200001
3. Remove rear propeller shaft and front propeller shaft
(4y4).
NOTE: Apply alignment marks on the flange at both front
and rear sides.
401RW008
401R200008
4. Remove center exhaust pipe (4y4).
5. Remove fuel pipe heat protector and clip from third
crossmember.
6. Disconnect fuel pipe bracket from third crossmember.
141RW004

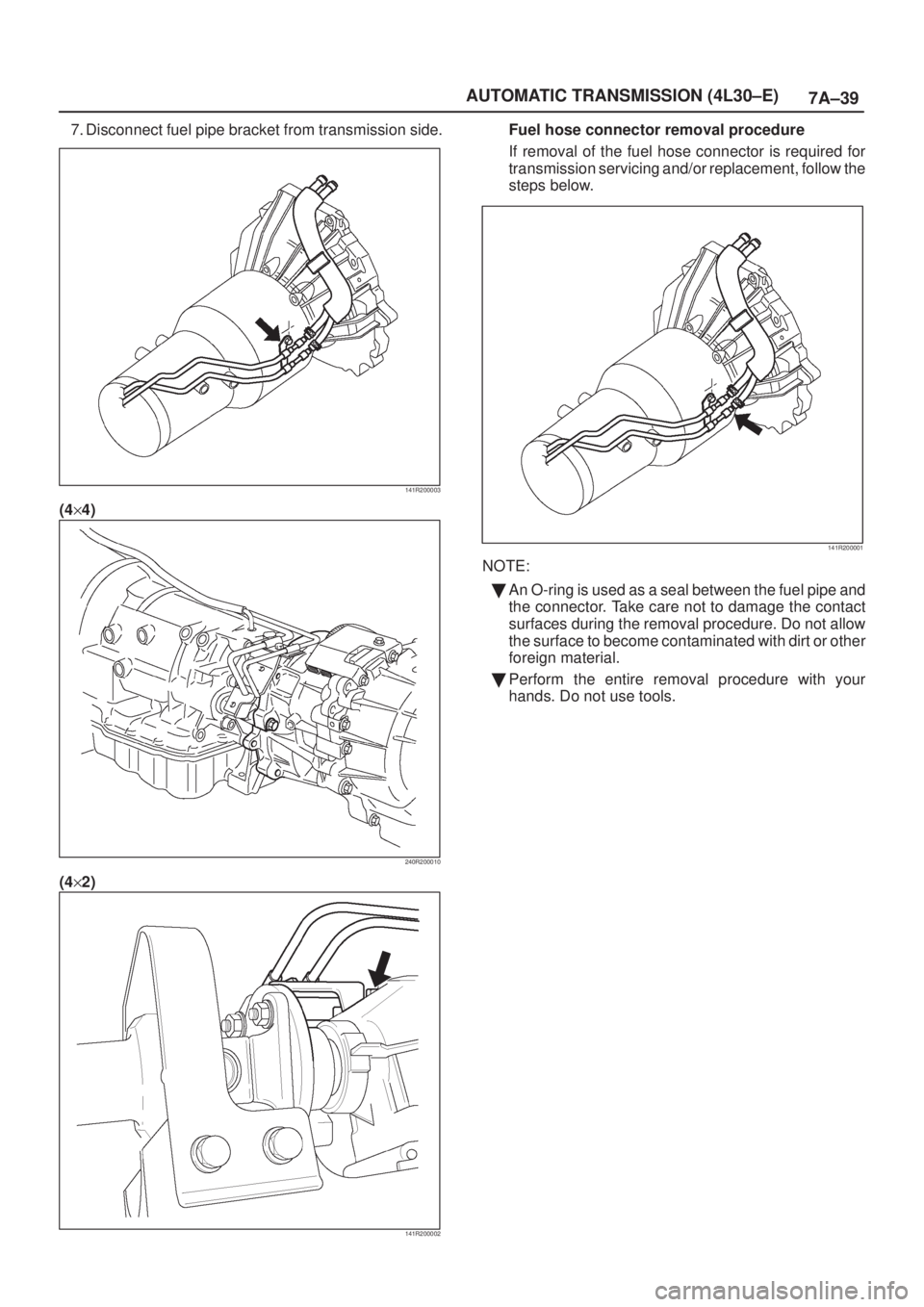

Page 1623 of 2100
7A±39 AUTOMATIC TRANSMISSION (4L30±E)
7. Disconnect fuel pipe bracket from transmission side.
141R200003
(4y4)
240R200010
(4y2)
141R200002
Fuel hose connector removal procedure
If removal of the fuel hose connector is required for
transmission servicing and/or replacement, follow the
steps below.
141R200001
NOTE:
An O-ring is used as a seal between the fuel pipe and
the connector. Take care not to damage the contact
surfaces during the removal procedure. Do not allow
the surface to become contaminated with dirt or other
foreign material.
Perform the entire removal procedure with your
hands. Do not use tools.
Page 1624 of 2100
7A±40
AUTOMATIC TRANSMISSION (4L30±E)

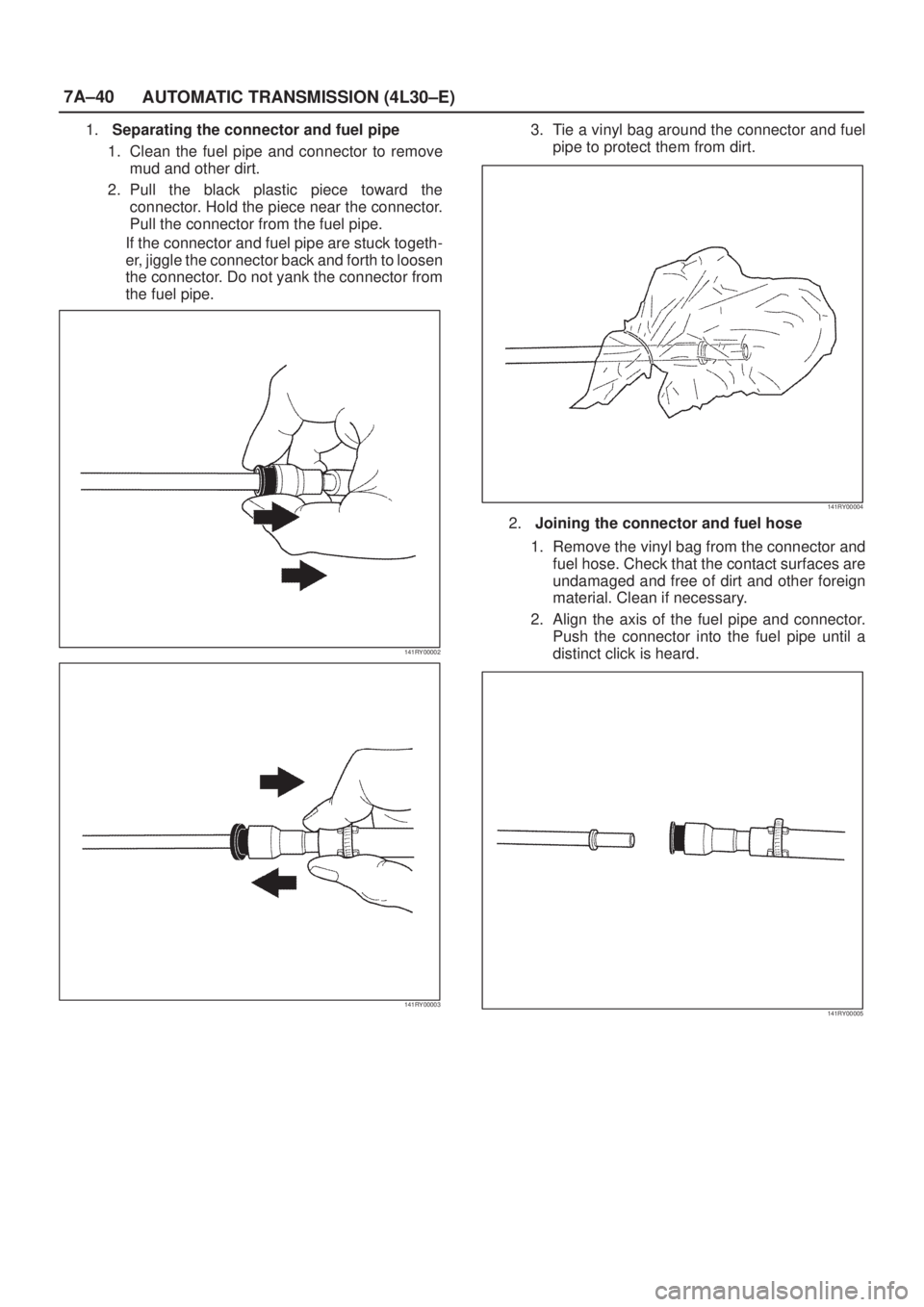

1.Separating the connector and fuel pipe
1. Clean the fuel pipe and connector to remove
mud and other dirt.
2. Pull the black plastic piece toward the
connector. Hold the piece near the connector.
Pull the connector from the fuel pipe.
If the connector and fuel pipe are stuck togeth-
er, jiggle the connector back and forth to loosen
the connector. Do not yank the connector from
the fuel pipe.
141RY00002
141RY00003
3. Tie a vinyl bag around the connector and fuel
pipe to protect them from dirt.
141RY00004
2.Joining the connector and fuel hose
1. Remove the vinyl bag from the connector and
fuel hose. Check that the contact surfaces are
undamaged and free of dirt and other foreign
material. Clean if necessary.
2. Align the axis of the fuel pipe and connector.
Push the connector into the fuel pipe until a
distinct click is heard.
141RY00005
