Page 705 of 2100

5C±25 POWER±ASSISTED BRAKE SYSTEM

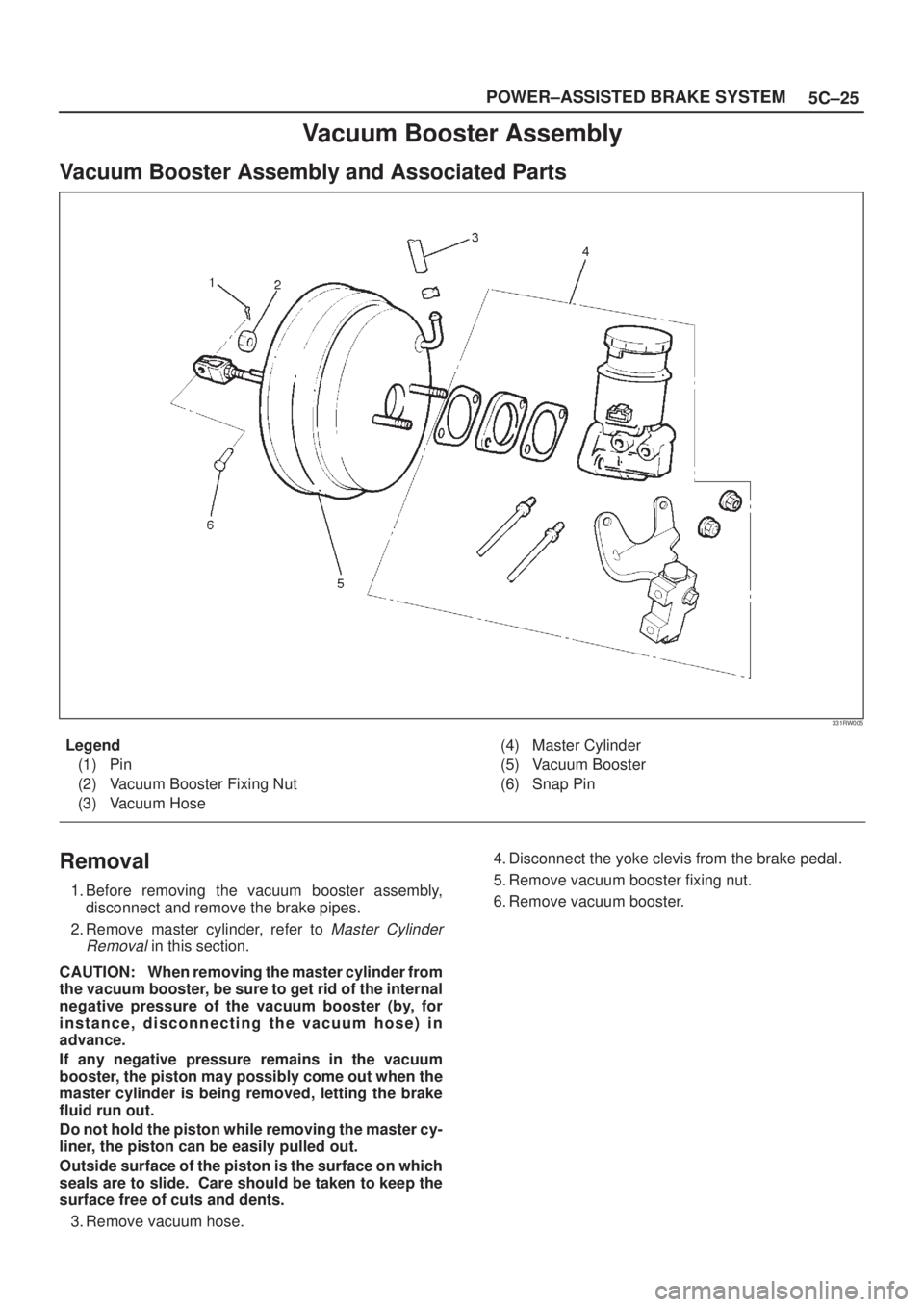

Vacuum Booster Assembly
Vacuum Booster Assembly and Associated Parts
331RW005
Legend
(1) Pin
(2) Vacuum Booster Fixing Nut
(3) Vacuum Hose(4) Master Cylinder
(5) Vacuum Booster
(6) Snap Pin
Removal
1. Before removing the vacuum booster assembly,
disconnect and remove the brake pipes.
2. Remove master cylinder, refer to
Master Cylinder
Removal
in this section.
CAUTION: When removing the master cylinder from
the vacuum booster, be sure to get rid of the internal
negative pressure of the vacuum booster (by, for
instance, disconnecting the vacuum hose) in
advance.
If any negative pressure remains in the vacuum
booster, the piston may possibly come out when the
master cylinder is being removed, letting the brake
fluid run out.
Do not hold the piston while removing the master cy-
liner, the piston can be easily pulled out.
Outside surface of the piston is the surface on which
seals are to slide. Care should be taken to keep the
surface free of cuts and dents.
3. Remove vacuum hose.4. Disconnect the yoke clevis from the brake pedal.
5. Remove vacuum booster fixing nut.
6. Remove vacuum booster.
Page 706 of 2100

5C±26
POWER±ASSISTED BRAKE SYSTEM
Inspection and Repair
Vacuum Hose (The built in check valve)
1. Inspect the check valve (2), which is installed inside
the vacuum hose.
2. Air should pass freely from the vacuum booster (3) to
the engine (1).
3. Air should not pass from the engine (1) to the vacuum
booster (3). If it does, the check valve is inoperative
and the vacuum hose built in the check valve must be
replaced.
360RY00004
Installation
1. Perform vacuum booster and vacuum booster push
rod adjustment.
NOTE: When replacing either the master cylinder or
vacuum booster, be sure to measure push rod, and adjust
if required.
2. Remove retainer from vacuum booster front shell
using a small screwdriver. Then gently draw plate and
seal assembly out of the shell inside.
331RS003
3. Set push rod gauge J±39216 on vacuum booster, and
apply negative pressure by means of vacuum pump
J±23738±A so that the pressure in the vacuum
booster becomes 500 mm Hg.
NOTE: Be s u r e t o apply NEGATIVE pressure after
installing a push rod gauge on the vacuum booster.
331RS004
Page 707 of 2100
5C±27 POWER±ASSISTED BRAKE SYSTEM
4. Measure dimension (4).
Dimension (4) (Standard): ±0.1±0.1 mm
(±0.0039±0.0039 in)
331RW002
5. If dimension (4) is out of the standard range, adjust
push rod using the Push Rod Support J±39241.
331RW003
6. Mount plate and seal assembly in vacuum booster
front shell. Then install the retainer.
7. Install vacuum booster fixing nut and tighten the
specified torque.
Torque: 15 N´m (11 lb ft)
8. Install yoke clevis.
9. Connect vacuum hose and make sure that the arrow
on the hose points in the direction of the engine.
10. Install master cylinder, refer to
Master Cylinder
Installation
in this section.
Page 708 of 2100
5C±28
POWER±ASSISTED BRAKE SYSTEM

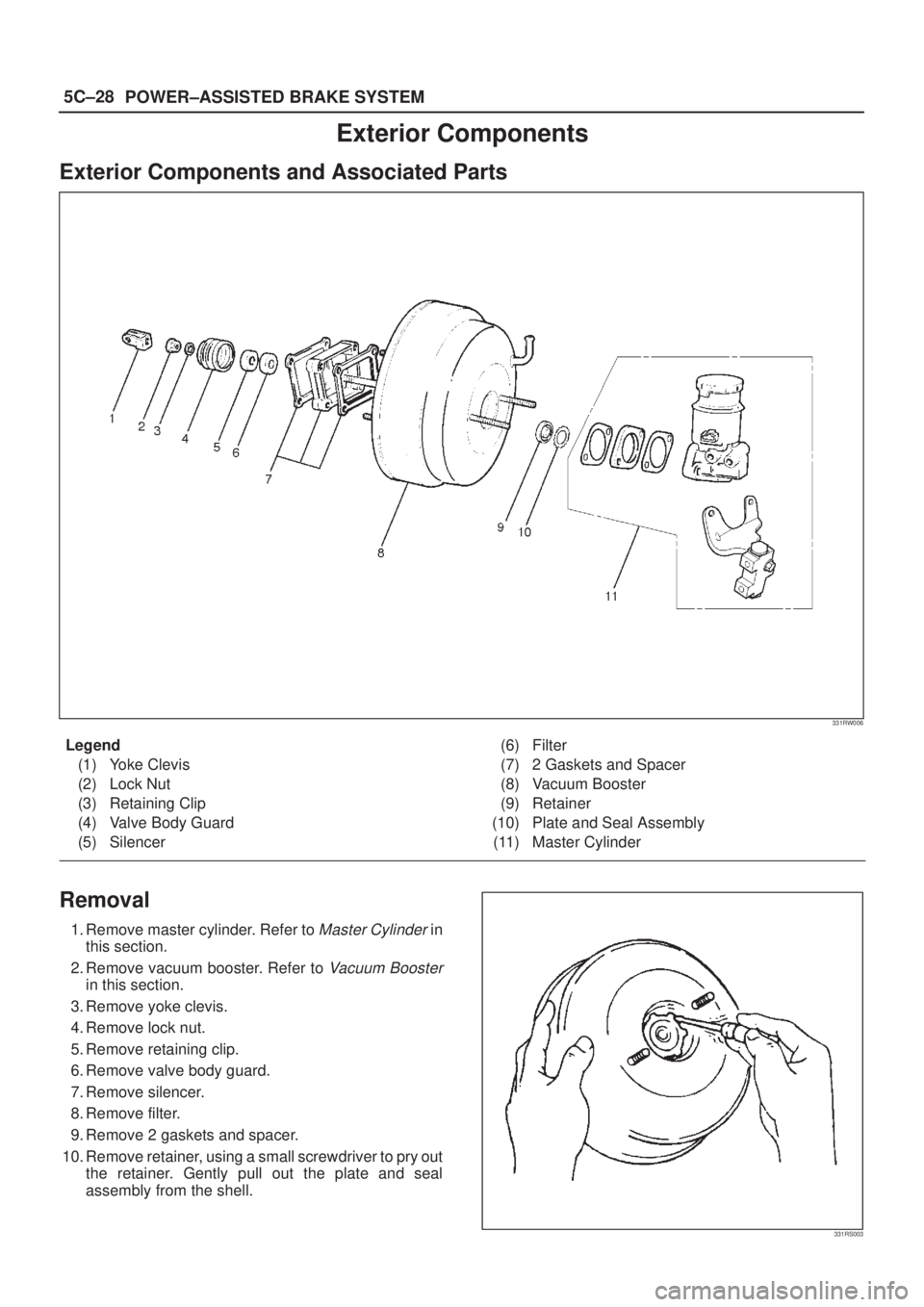

Exterior Components
Exterior Components and Associated Parts
331RW006
Legend
(1) Yoke Clevis
(2) Lock Nut
(3) Retaining Clip
(4) Valve Body Guard
(5) Silencer(6) Filter
(7) 2 Gaskets and Spacer
(8) Vacuum Booster
(9) Retainer
(10) Plate and Seal Assembly
(11) Master Cylinder
Removal
1. Remove master cylinder. Refer to Master Cylinder in
this section.
2. Remove vacuum booster. Refer to
Vacuum Booster
in this section.
3. Remove yoke clevis.
4. Remove lock nut.
5. Remove retaining clip.
6. Remove valve body guard.
7. Remove silencer.
8. Remove filter.
9. Remove 2 gaskets and spacer.
10. Remove retainer, using a small screwdriver to pry out
the retainer. Gently pull out the plate and seal
assembly from the shell.
331RS003
Page 709 of 2100
5C±29 POWER±ASSISTED BRAKE SYSTEM

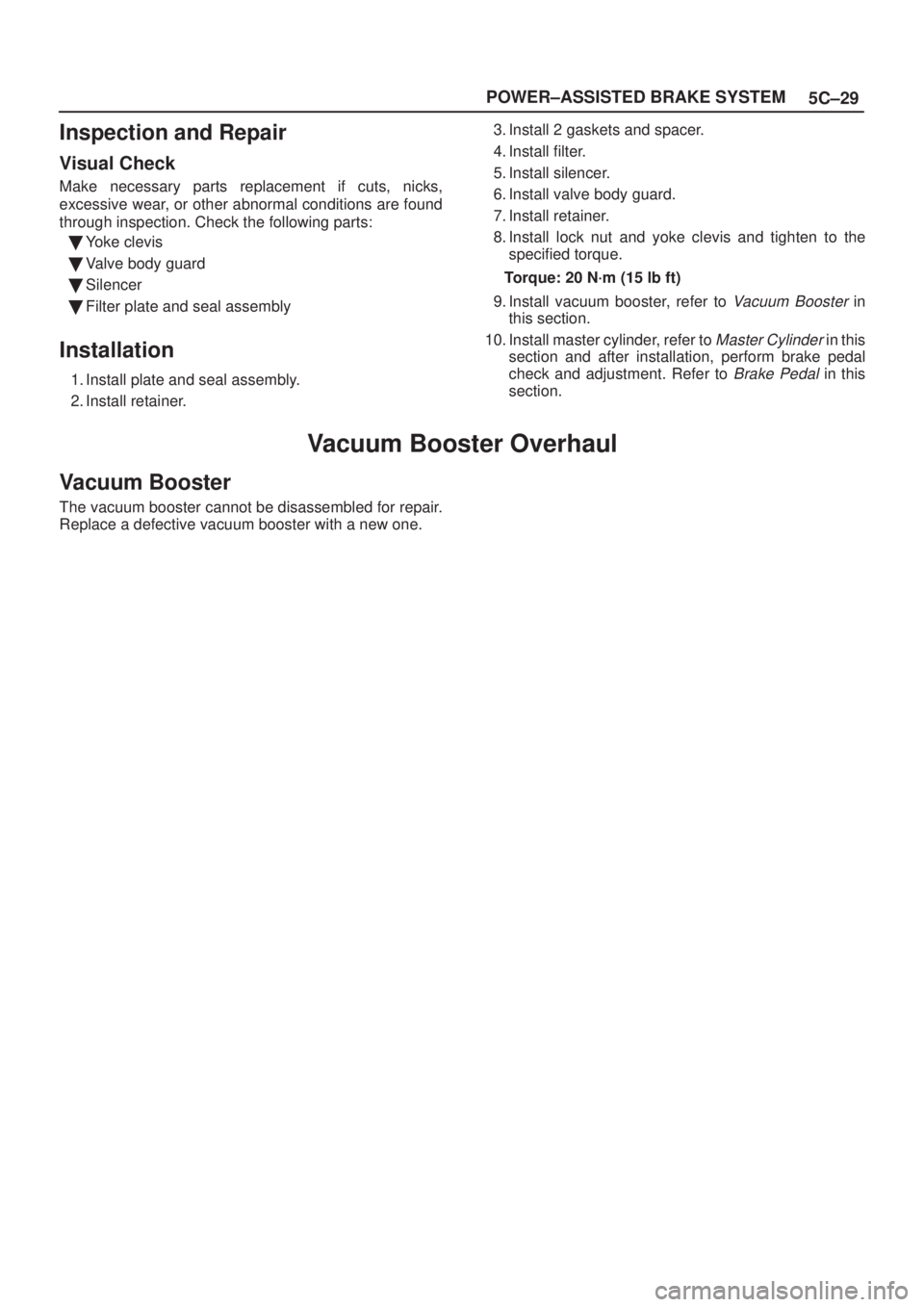

Inspection and Repair
Visual Check
Make necessary parts replacement if cuts, nicks,
excessive wear, or other abnormal conditions are found
through inspection. Check the following parts:
Yoke clevis
Valve body guard
Silencer
Filter plate and seal assembly
Installation
1. Install plate and seal assembly.
2. Install retainer.3. Install 2 gaskets and spacer.
4. Install filter.
5. Install silencer.
6. Install valve body guard.
7. Install retainer.
8. Install lock nut and yoke clevis and tighten to the
specified torque.
Torque: 20 N´m (15 lb ft)
9. Install vacuum booster, refer to
Vacuum Booster in
this section.
10. Install master cylinder, refer to
Master Cylinder in this
section and after installation, perform brake pedal
check and adjustment. Refer to
Brake Pedal in this
section.
Vacuum Booster Overhaul
Vacuum Booster
The vacuum booster cannot be disassembled for repair.
Replace a defective vacuum booster with a new one.
Page 710 of 2100
5C±30
POWER±ASSISTED BRAKE SYSTEM

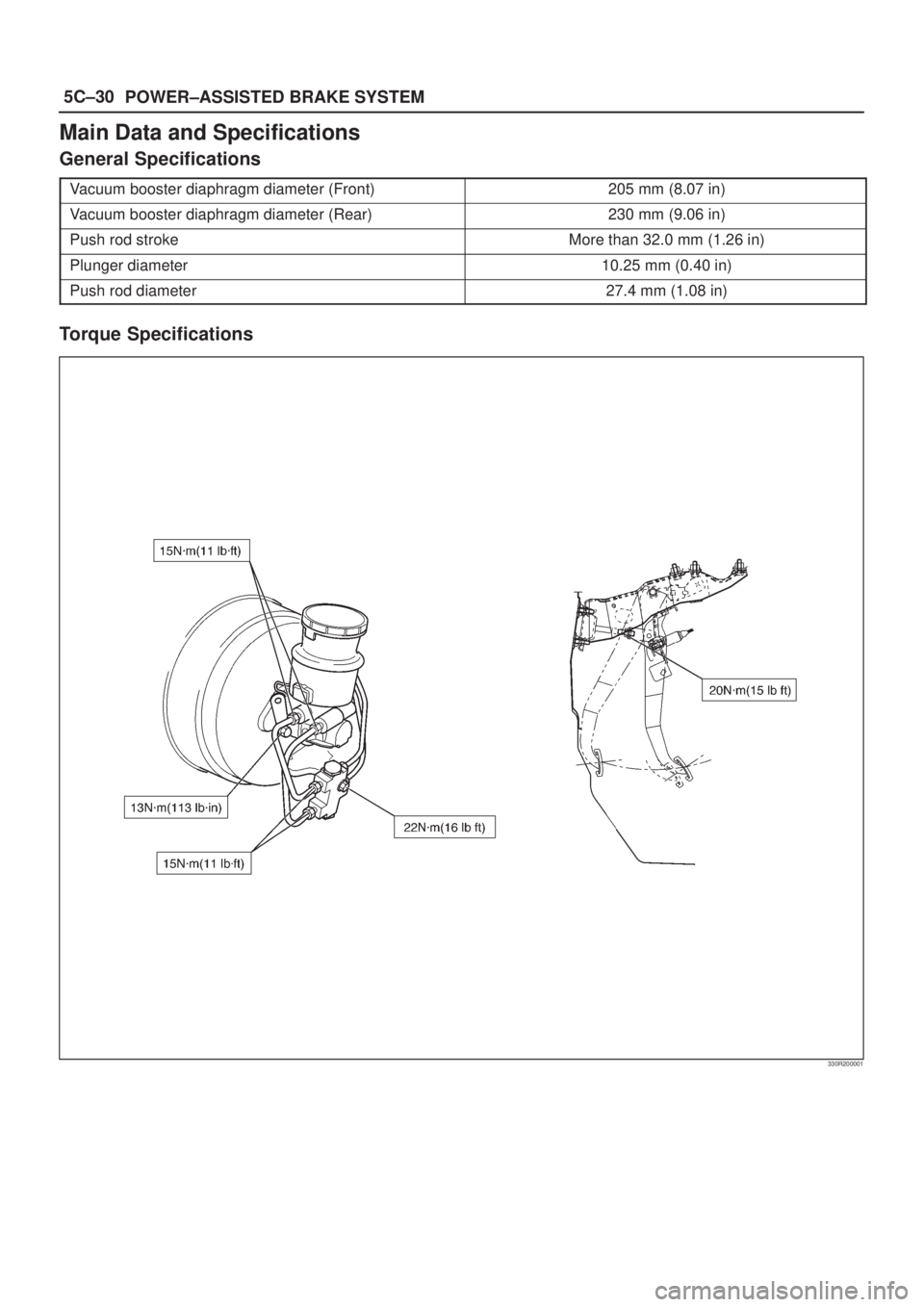

Main Data and Specifications
General Specifications
Vacuum booster diaphragm diameter (Front)205 mm (8.07 in)
Vacuum booster diaphragm diameter (Rear)230 mm (9.06 in)
Push rod strokeMore than 32.0 mm (1.26 in)
Plunger diameter10.25 mm (0.40 in)
Push rod diameter27.4 mm (1.08 in)
Torque Specifications
330R200001
Page 711 of 2100
5C±31 POWER±ASSISTED BRAKE SYSTEM

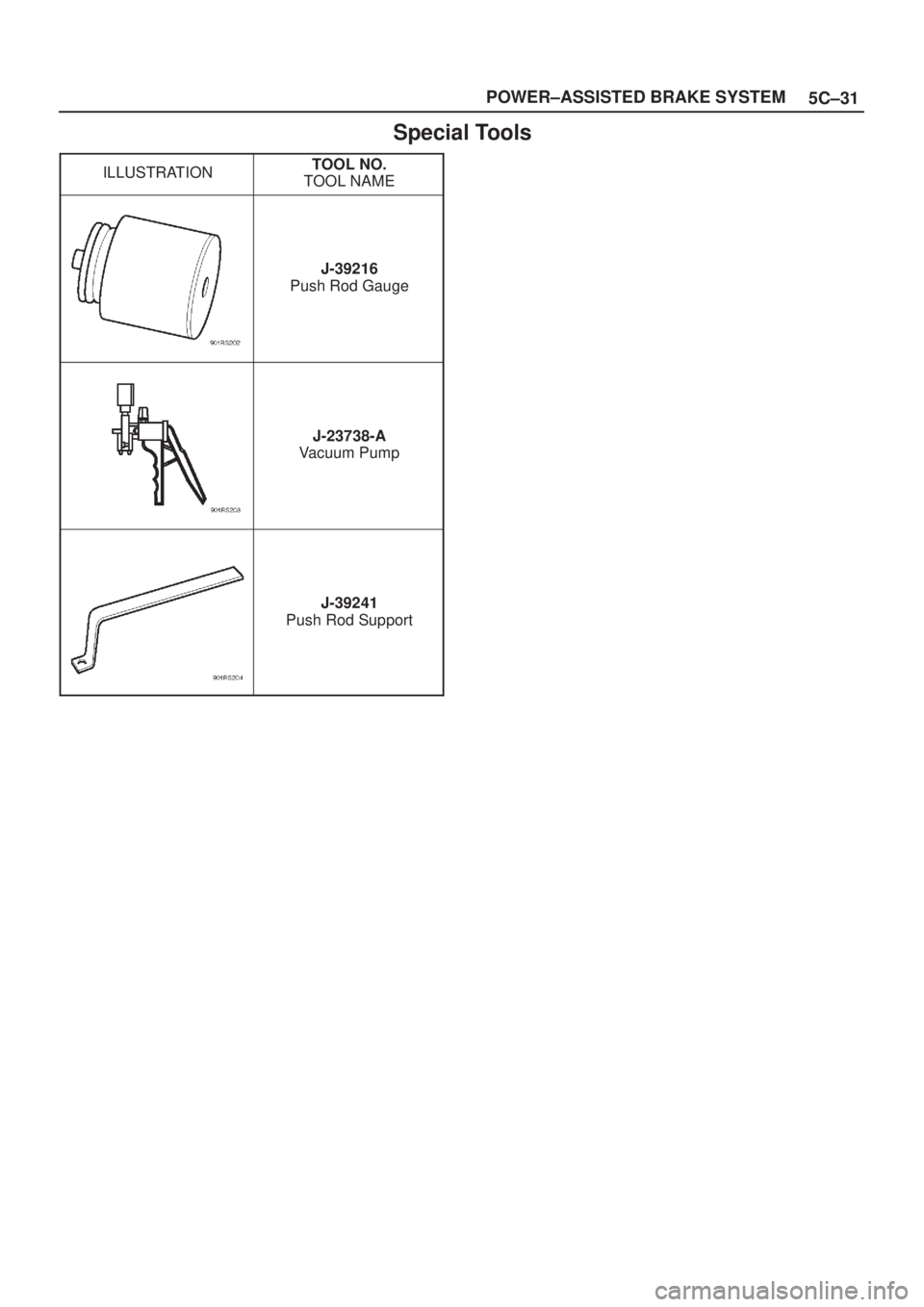

Special Tools
ILLUSTRATIONTOOL NO.
TOOL NAME
J-39216
Push Rod Gauge
J-23738-A
Vacuum Pump
J-39241
Push Rod Support
Page 712 of 2100
5C±32
POWER±ASSISTED BRAKE SYSTEM

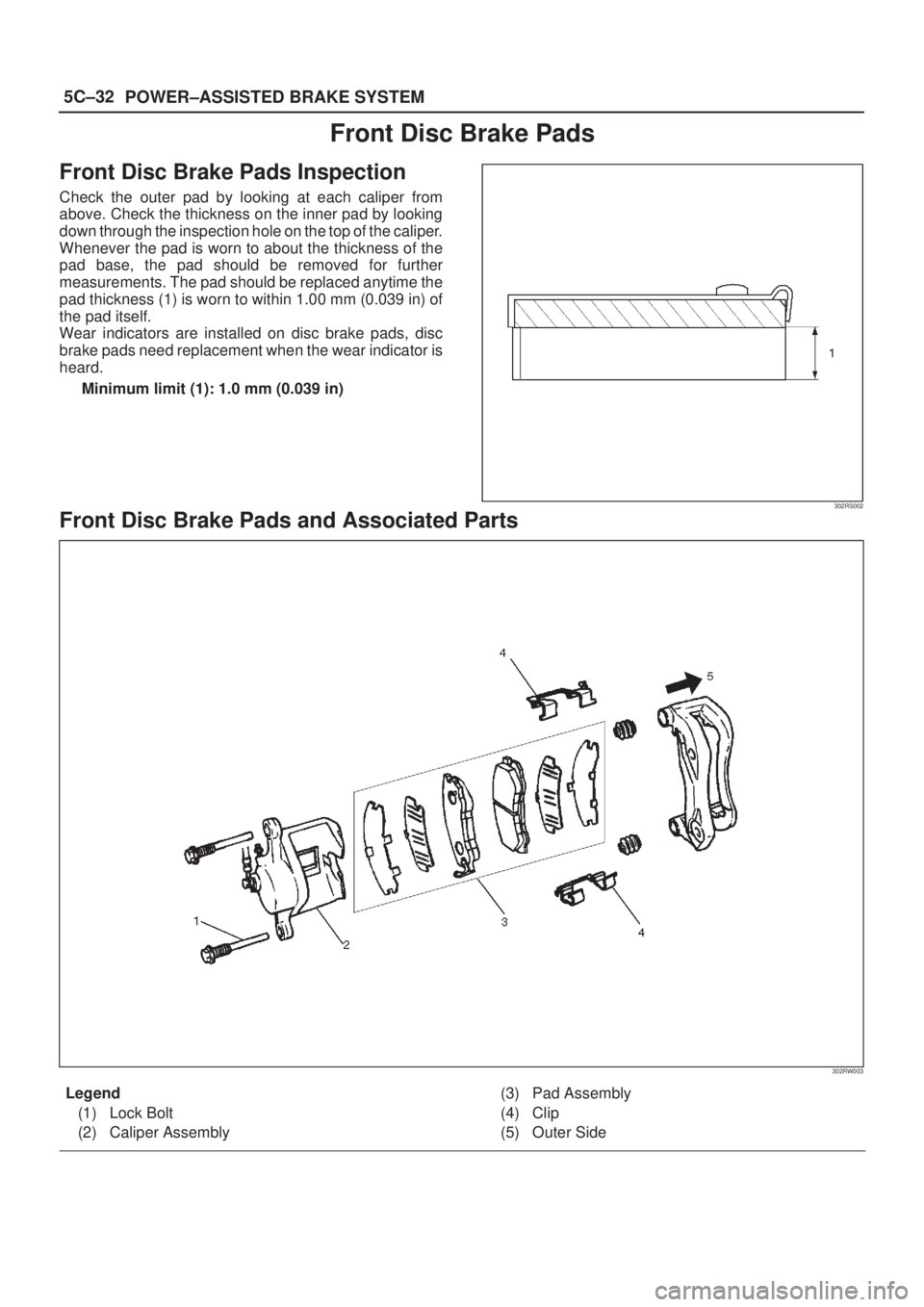

Front Disc Brake Pads
Front Disc Brake Pads Inspection
Check the outer pad by looking at each caliper from
above. Check the thickness on the inner pad by looking
down through the inspection hole on the top of the caliper.
Whenever the pad is worn to about the thickness of the
pad base, the pad should be removed for further
measurements. The pad should be replaced anytime the
pad thickness (1) is worn to within 1.00 mm (0.039 in) of
the pad itself.
Wear indicators are installed on disc brake pads, disc
brake pads need replacement when the wear indicator is
heard.
Minimum limit (1): 1.0 mm (0.039 in)
302RS002
Front Disc Brake Pads and Associated Parts
302RW003
Legend
(1) Lock Bolt
(2) Caliper Assembly(3) Pad Assembly
(4) Clip
(5) Outer Side
