LIGHTING SYSTEM8A±1
AXIOM
BODY AND ACCESSORIES
CONTENTS
Lighting System 8A. . . . . . . . . . . . . . . . . . . . . . . . .
Wiper / Washer System 8B. . . . . . . . . . . . . . . . . .
Entertainment 8C. . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring System 8D. . . . . . . . . . . . . . . . . . . . . . . . . .
Meter and Gauge 8E. . . . . . . . . . . . . . . . . . . . . . . Body Structure 8F. . . . . . . . . . . . . . . . . . . . . . . . . .
Seats 8G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security and Locks 8H. . . . . . . . . . . . . . . . . . . . . .
Sunroof / Convertible Top 8I. . . . . . . . . . . . . . . .
Exterior / Interior Trim 8J. . . . . . . . . . . . . . . . . . . .
LIGHTING SYSTEM
CONTENTS
Service Precaution 8A±2. . . . . . . . . . . . . . . . . . . . . .
Headlight Bulb 8A±3. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Assembly 8A±4. . . . . . . . . . . . . . . . . . . . .
Removal 8A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Adjustment 8A±4. . . . . . . . . . . . . . . . . .
Side Marker Light Bulb 8A±6. . . . . . . . . . . . . . . . . . .
Removal 8A±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Taillight Bulb 8A±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
License Plate Light Bulb 8A±8. . . . . . . . . . . . . . . . . .
Removal 8A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stoplight Bulb 8A±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±8. . . . . . . . . . . . . . .
High Mounted Stoplight Assembly 8A±9. . . . . . . . .
Removal 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Mounted Stoplight Bulb 8A±9. . . . . . . . . . . . . .
Removal 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backup Light Bulb 8A±10. . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Turn Signal Light Bulb 8A±10. . . . . . . . . . . . . .
Removal and Installation 8A±10. . . . . . . . . . . . . . .
Rear Turn Signal Light Bulb 8A±11. . . . . . . . . . . . . .
Removal 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dome Light Bulb 8A±11. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . Map Light Bulb 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Courtesy Light Bulb 8A±12. . . . . . . . . . . . . . . . . . . . . .
Removal 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage Room Light Bulb 8A±13. . . . . . . . . . . . . . . .
Removal 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift Lever Illumination Light Bulb (A/T) 8A±13. . . .
Removal 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity Mirror Illumination Light Bulb 8A±14. . . . . . . .
Removal 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch Unit Assembly Illumination
Light Bulb (Power/Winter & Intelligent
Suspension Switch) 8A±14. . . . . . . . . . . . . . . . . . . . .
Removal 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
TOD Switch Illumination Light Bulb 8A±15. . . . . . . .
Removal 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Main Switch Illumination
Light Bulb 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper and Washer Switch Illumination
Light Bulb 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat Heater Switch Illumination Light Bulb 8A±16. .
Removal 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starter Switch 8A±17. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±17. . . . . . . . . . . . . . .
Lighting Switch (Combination Switch) 8A±17. . . . . .

ENTERTAINMENT8C±1
AXIOM
BODY AND ACCESSORIES
ENTERTAINMENT
CONTENTS
Service Precaution 8C±1. . . . . . . . . . . . . . . . . . . . . .
Cigarette Lighter 8C±2. . . . . . . . . . . . . . . . . . . . . . . .
General Description 8C±2. . . . . . . . . . . . . . . . . . . . .
Removal 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rod Type Antenna 8C±3. . . . . . . . . . . . . . . . . . . . . .
Removal 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessory Socket 8C±4. . . . . . . . . . . . . . . . . . . . . . .
Front Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Tweeter Assembly 8C±6. . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Speaker 8C±6. . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Tweeter Assembly 8C±7. . . . . . . . . . . . . . . .
Removal 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display (MID) 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MID Control Unit 8C±9. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS Control Unit 8C±10. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis 8C±11. . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis Flow Chart±1 8C±11. . . . . . . . . . . .
Self-Diagnosis Flow Chart±2 (Audio) 8C±12. . . . .
Self-Diagnosis Flow Chart±3 (Display) 8C±13. . .
Self-Diagnosis Flow Chart±4 (MID) 8C±14. . . . . .
Audio Self-Diagnosis 8C±15. . . . . . . . . . . . . . . . . . .
Display Self-Diagnosis 8C±16. . . . . . . . . . . . . . . . .
MID Self-Diagnosis 8C±17. . . . . . . . . . . . . . . . . . . .
Symptom Diagnosis 8C±18. . . . . . . . . . . . . . . . . . . . .
MID Not Appears 8C±18. . . . . . . . . . . . . . . . . . . . . .
No COMPASS, CLOCK, FUEL
CONSUMPTION, or SERVICE Display 8C±19. .
No COMPASS Display 8C±20. . . . . . . . . . . . . . . . .
No SERVICE Display 8C±20. . . . . . . . . . . . . . . . . .
Other Trouble Symptom 8C±21. . . . . . . . . . . . . . . .
MID Circuit 8C±22. . . . . . . . . . . . . . . . . . . . . . . . . . .
Harness Connector Faces 8C±23. . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

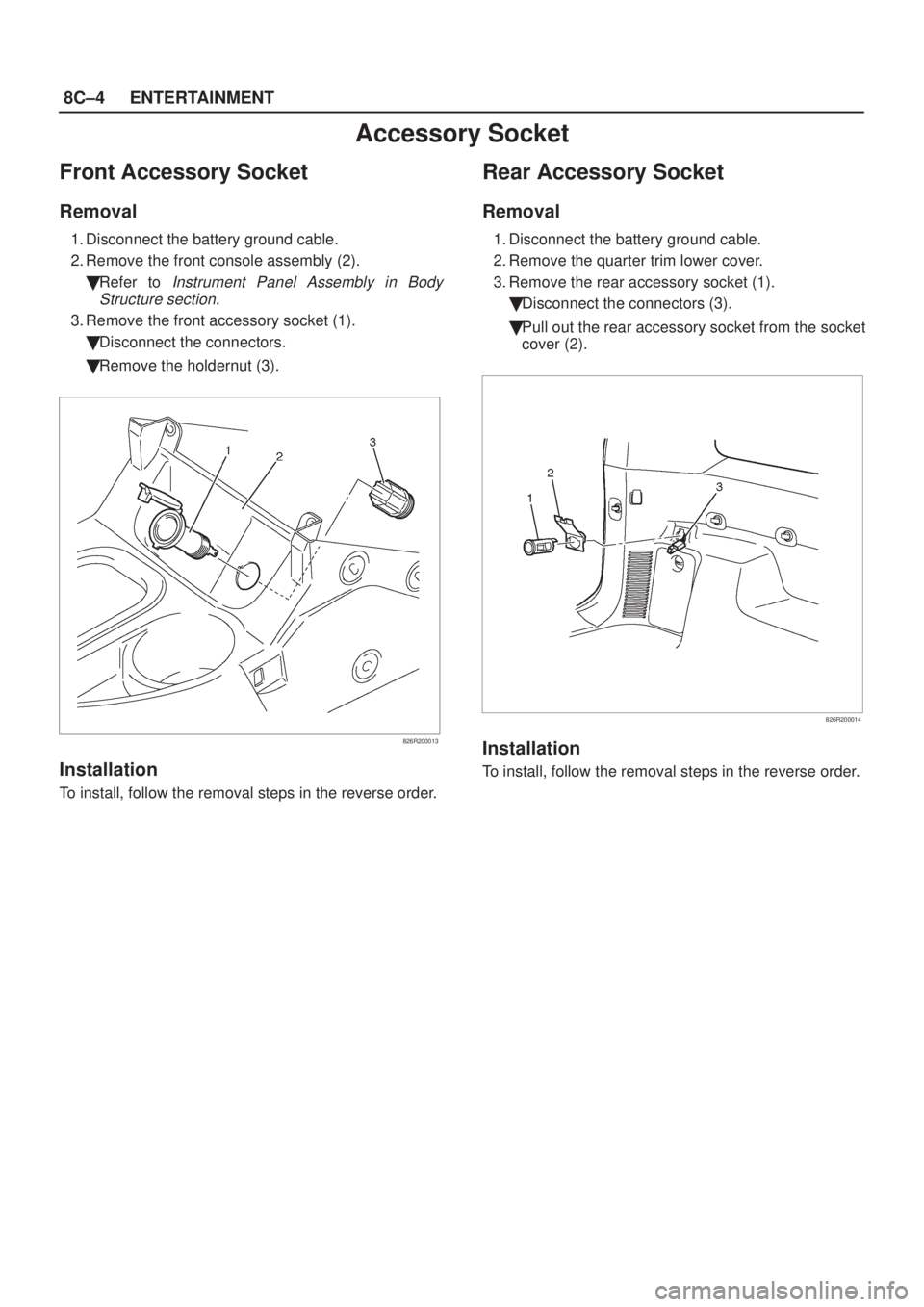

8C±4ENTERTAINMENT
Accessory Socket
Front Accessory Socket
Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly (2).

Refer to
Instrument Panel Assembly in Body
Structure section.
3. Remove the front accessory socket (1).

Disconnect the connectors.

Remove the holdernut (3).
826R200013
Installation
To install, follow the removal steps in the reverse order.
Rear Accessory Socket
Removal
1. Disconnect the battery ground cable.
2. Remove the quarter trim lower cover.
3. Remove the rear accessory socket (1).

Disconnect the connectors (3).

Pull out the rear accessory socket from the socket
cover (2).
826R200014
Installation
To install, follow the removal steps in the reverse order.

8C±6ENTERTAINMENT
Speaker
Front Speaker
Removal
1. Disconnect the battery ground cable.
2. Remove the front door trim pad.

Refer to
Front Door in Body Structure section.
3. Remove the front speaker (2).

Remove the three screws and the speaker spacer
(1).

Disconnect the connector (3).
890R200028
Installation
To install, follow the removal steps in the reverse order.
Front Tweeter Assembly
Removal
1. Disconnect the battery ground cable.
2. Remove the front door trim pad (2).

Refer to
Front Door in Body Structure section.
3. Remove the tweeter (1).

Disconnect the connector.
890R200030
Installation
To install, follow the removal steps in the reverse order.
Rear Door Speaker
Removal
1. Disconnect the battery ground cable.
2. Remove the rear door trim pad.

Refer to
Rear Door in Body Structure section.
3. Remove the rear speaker (2).

Remove the three screws and the speaker spacer
(1).

Disconnect the connector (3).
890R200028

ENTERTAINMENT8C±7
Installation
To install, follow the removal steps in the reverse order.
Rear Tweeter Assembly
Removal
1. Disconnect the battery ground cable.
2. Remove the rear door trim pad (2).

Refer to
Rear Door in Body Structure section.
3. Remove the tweeter (1).

Disconnect the connector.
890R200031
Installation
To install, follow the removal steps in the reverse order.
