6G±10

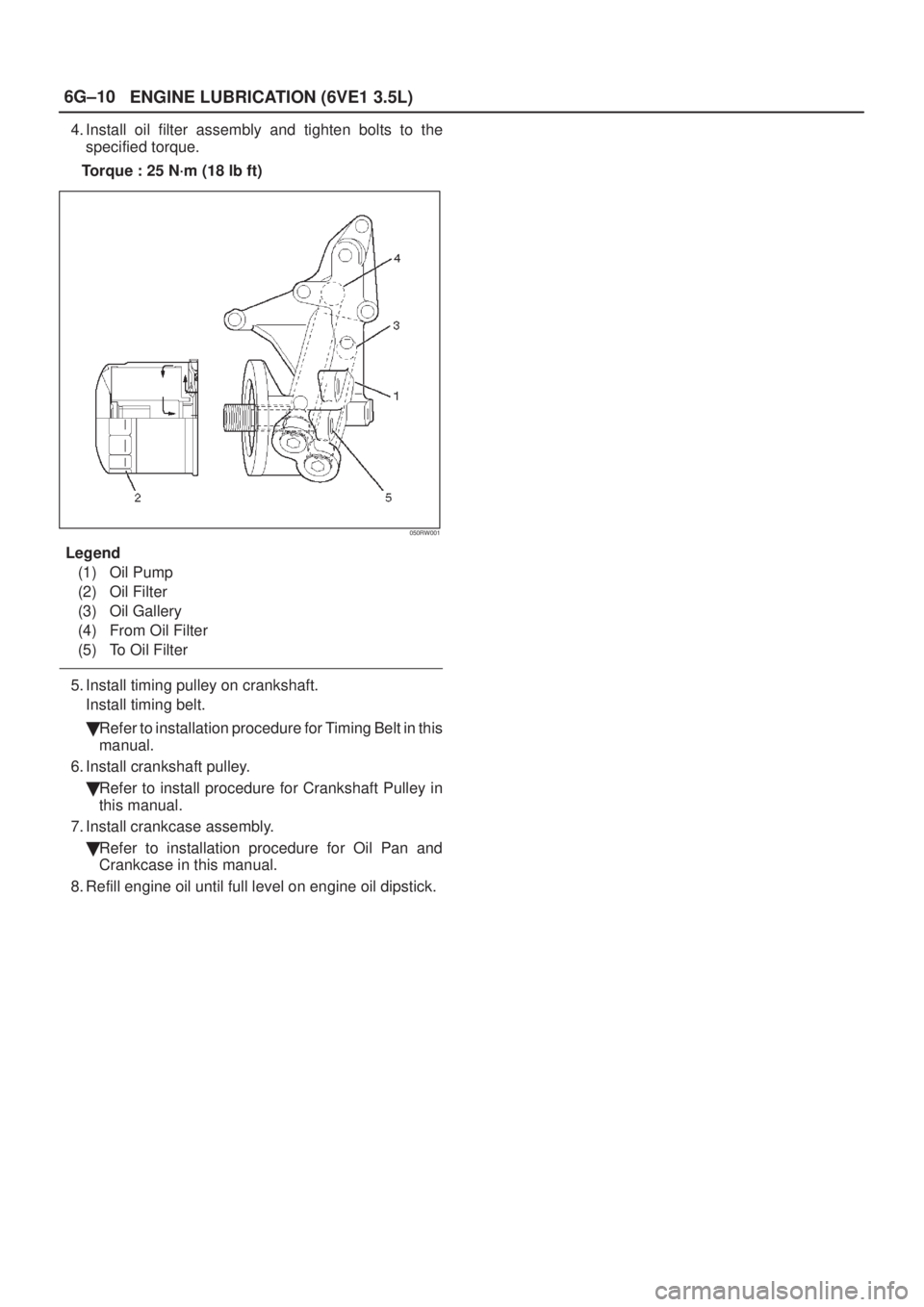

ENGINE LUBRICATION (6VE1 3.5L)
4. Install oil filter assembly and tighten bolts to the
specified torque.
Torque : 25 N´m (18 lb ft)
050RW001
Legend
(1) Oil Pump
(2) Oil Filter
(3) Oil Gallery
(4) From Oil Filter
(5) To Oil Filter
5. Install timing pulley on crankshaft.
Install timing belt.
Refer to installation procedure for Timing Belt in this
manual.
6. Install crankshaft pulley.
Refer to install procedure for Crankshaft Pulley in
this manual.
7. Install crankcase assembly.
Refer to installation procedure for Oil Pan and
Crankcase in this manual.
8. Refill engine oil until full level on engine oil dipstick.
Page 1578 of 2100
6G±11
ENGINE LUBRICATION (6VE1 3.5L)

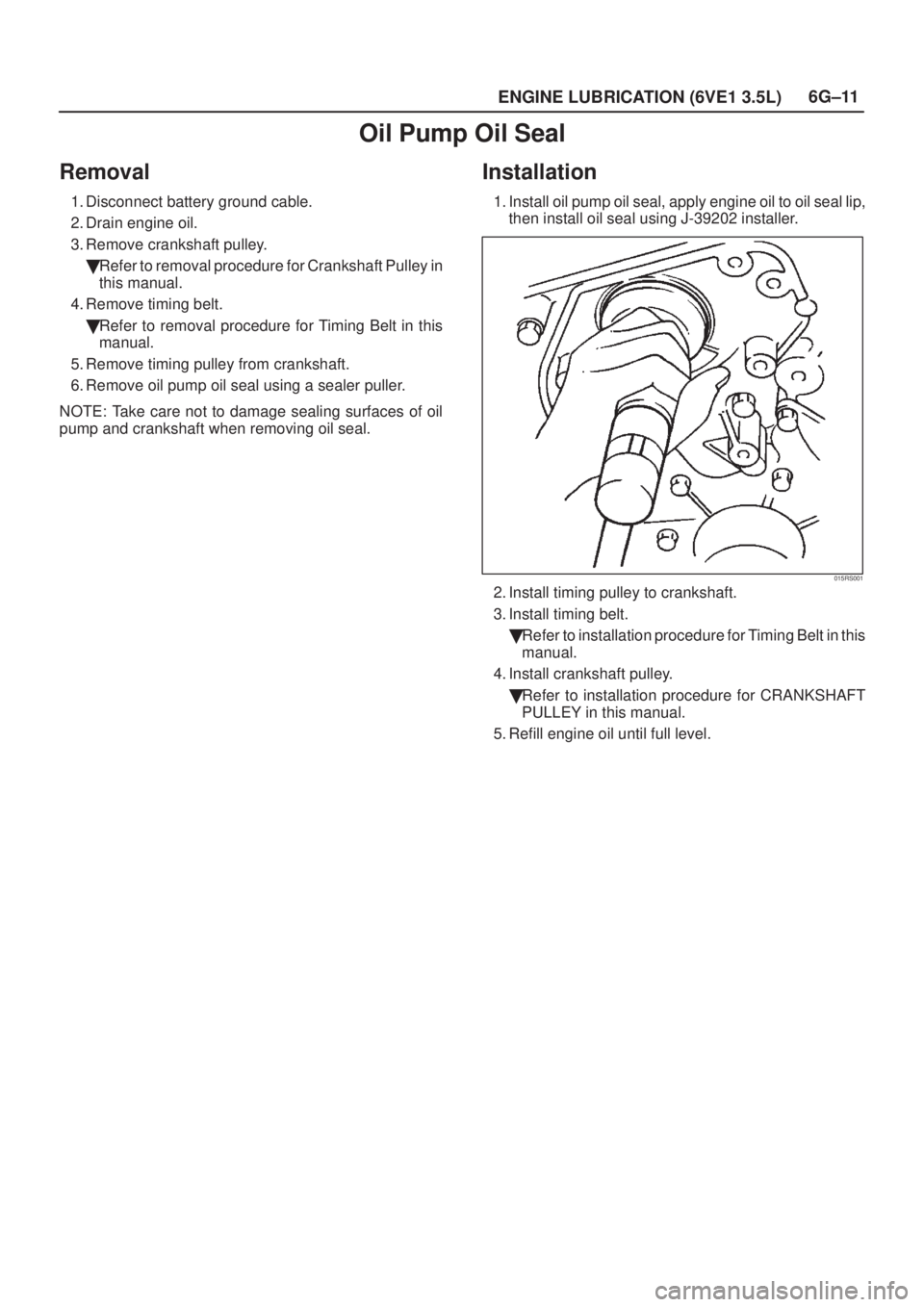

Oil Pump Oil Seal
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove crankshaft pulley.
Refer to removal procedure for Crankshaft Pulley in
this manual.
4. Remove timing belt.
Refer to removal procedure for Timing Belt in this
manual.
5. Remove timing pulley from crankshaft.
6. Remove oil pump oil seal using a sealer puller.
NOTE: Take care not to damage sealing surfaces of oil
pump and crankshaft when removing oil seal.
Installation
1. Install oil pump oil seal, apply engine oil to oil seal lip,
then install oil seal using J-39202 installer.
015RS001
2. Install timing pulley to crankshaft.
3. Install timing belt.
Refer to installation procedure for Timing Belt in this
manual.
4. Install crankshaft pulley.
Refer to installation procedure for CRANKSHAFT
PULLEY in this manual.
5. Refill engine oil until full level.
Page 1579 of 2100
6G±12
ENGINE LUBRICATION (6VE1 3.5L)
Oil Filter
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove oil filter using J-36390 filter wrench.
Installation
1. Apply a light coat of engine oil to the oil filter gasket.
2. Hand tighten the filter until the gasket contacts the
sealing face.
3. Using J±36390 filter wrench, tighten the filter an
additional 7/8 turn or by torque 22 N´m (16 lb ft).
050RW001
Legend
(1) Oil Pump
(2) Oil Filter
(3) Oil Gallery
(4) From Filter
(5) To Filter
4. Fill the oil to the proper lever by following the oil level
check procedures.
5. Reconnect battery ground cable.
6. Run the engine and inspect for leaks.
Page 1580 of 2100
6G±13
ENGINE LUBRICATION (6VE1 3.5L)

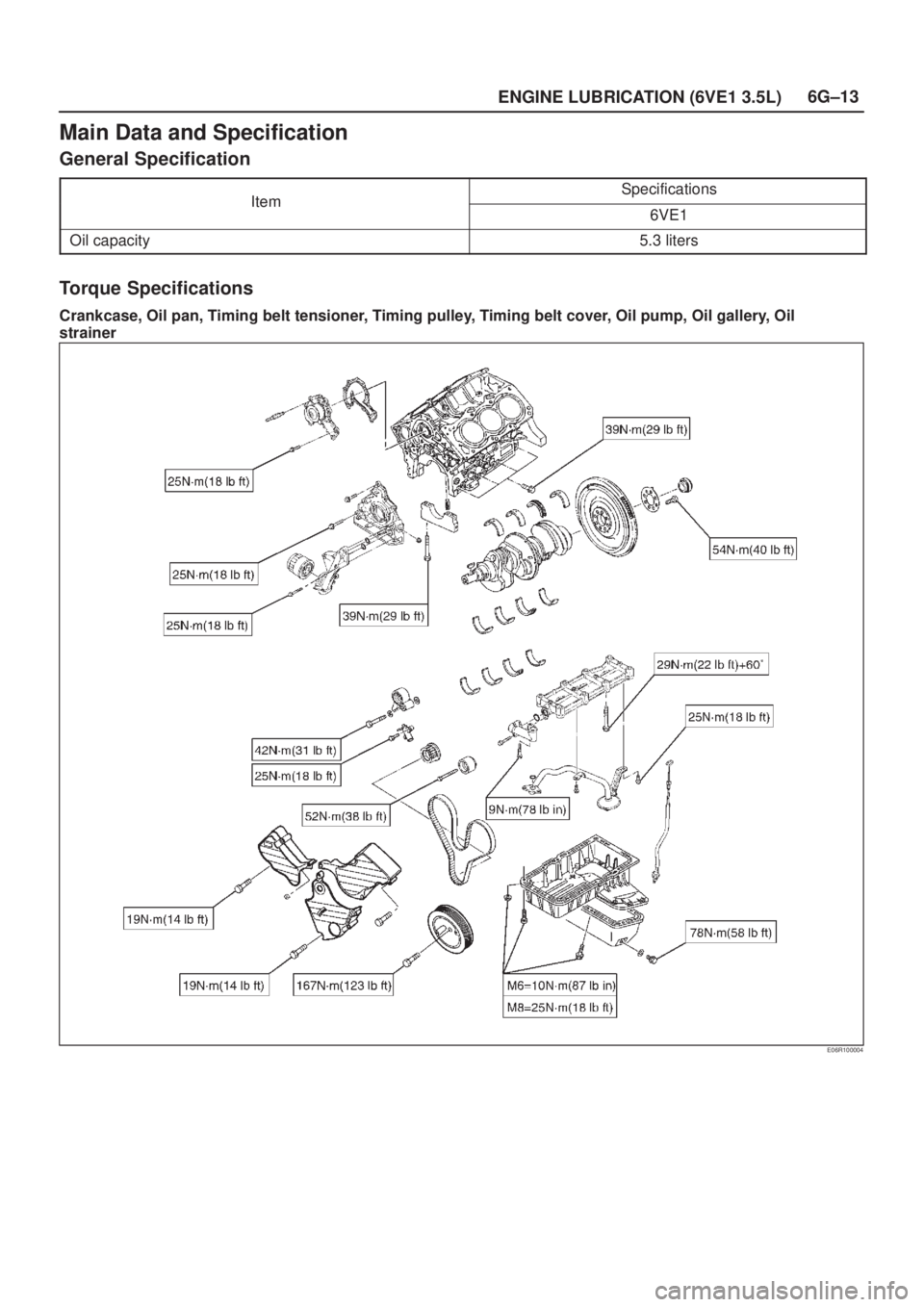

Main Data and Specification
General Specification
ItemSpecificationsItem6VE1
Oil capacity5.3 liters
Torque Specifications
Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil
strainer
E06R100004
Page 1581 of 2100

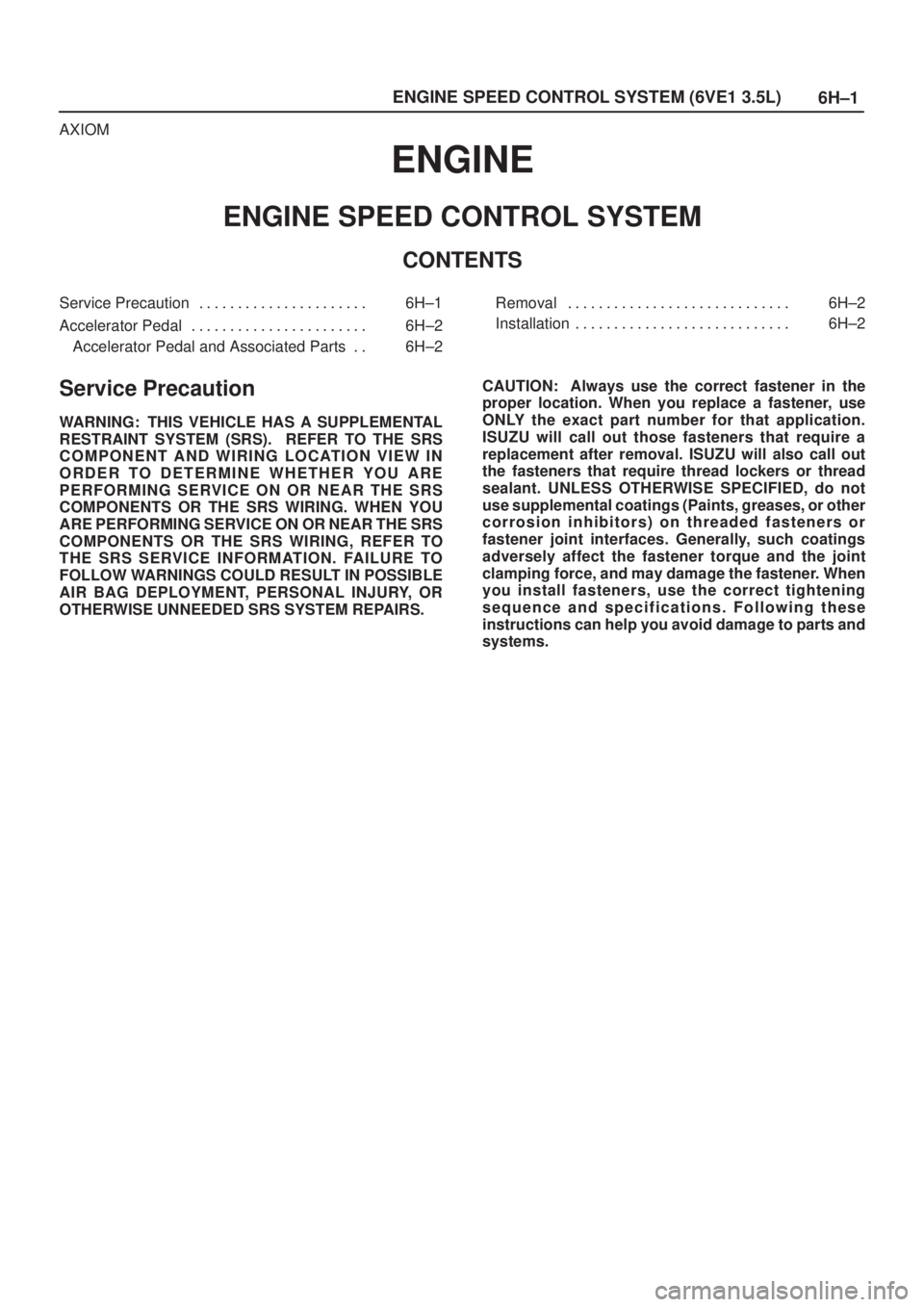

6H±1 ENGINE SPEED CONTROL SYSTEM (6VE1 3.5L)
AXIOM
ENGINE
ENGINE SPEED CONTROL SYSTEM
CONTENTS
Service Precaution 6H±1. . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal 6H±2. . . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal and Associated Parts 6H±2. . Removal 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Page 1582 of 2100
6H±2
ENGINE SPEED CONTROL SYSTEM (6VE1 3.5L)

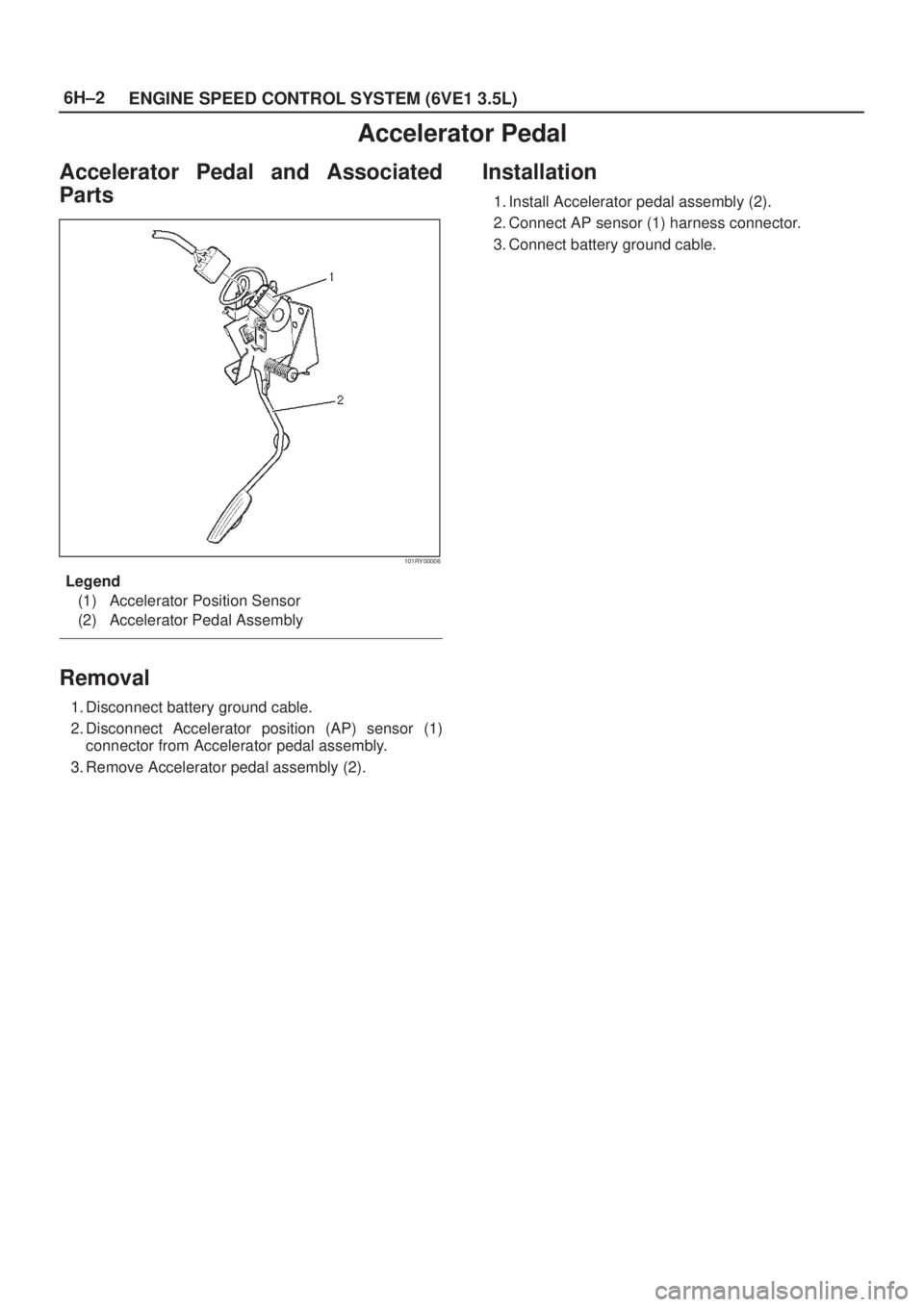

Accelerator Pedal
Accelerator Pedal and Associated
Parts
101RY00006
Legend
(1) Accelerator Position Sensor
(2) Accelerator Pedal Assembly
Removal
1. Disconnect battery ground cable.
2. Disconnect Accelerator position (AP) sensor (1)
connector from Accelerator pedal assembly.
3. Remove Accelerator pedal assembly (2).
Installation
1. Install Accelerator pedal assembly (2).
2. Connect AP sensor (1) harness connector.
3. Connect battery ground cable.
Page 1583 of 2100

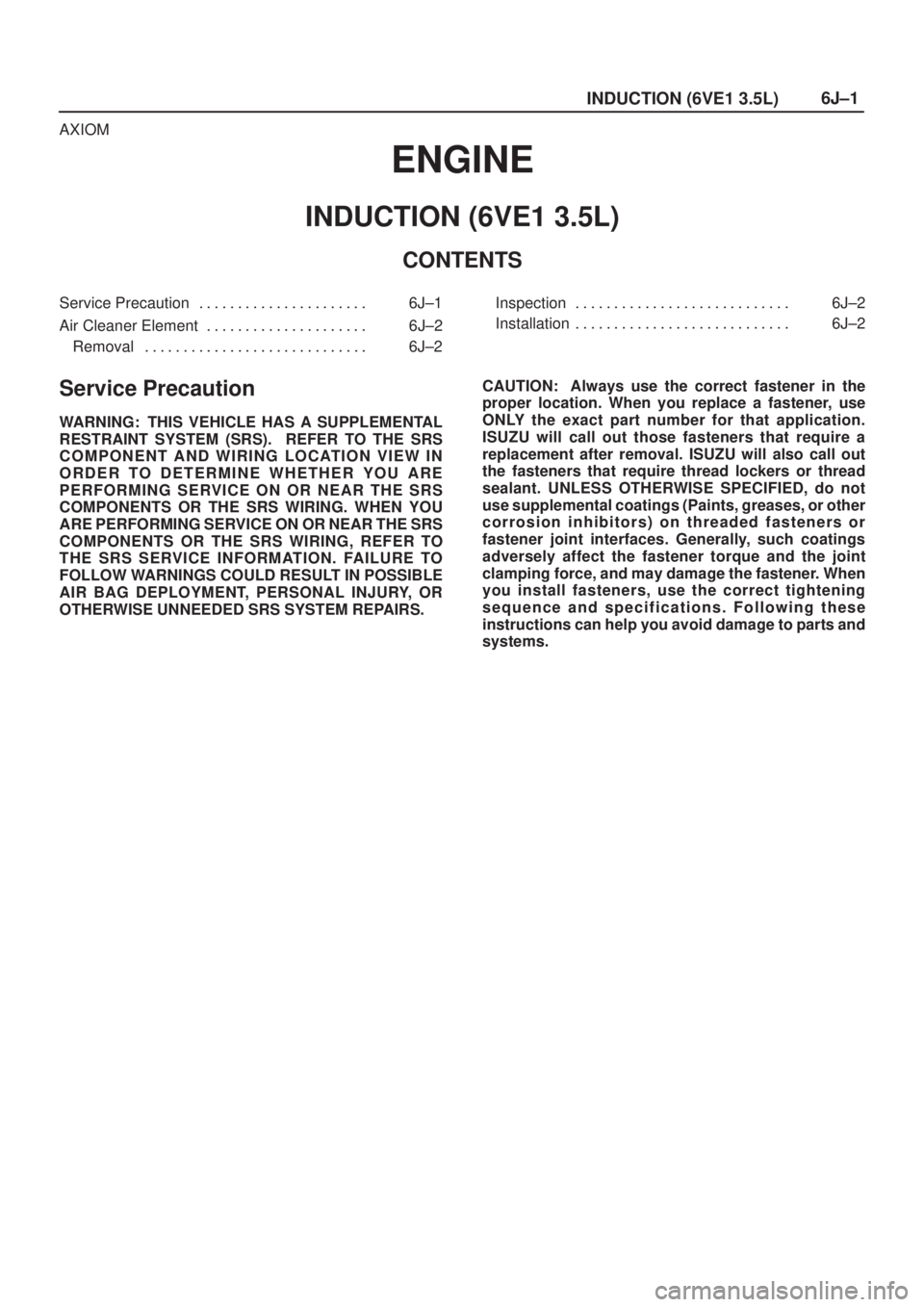

INDUCTION (6VE1 3.5L)6J±1
AXIOM
ENGINE
INDUCTION (6VE1 3.5L)
CONTENTS
Service Precaution 6J±1. . . . . . . . . . . . . . . . . . . . . .
Air Cleaner Element 6J±2. . . . . . . . . . . . . . . . . . . . .
Removal 6J±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inspection 6J±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6J±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Page 1584 of 2100
6J±2
INDUCTION (6VE1 3.5L)

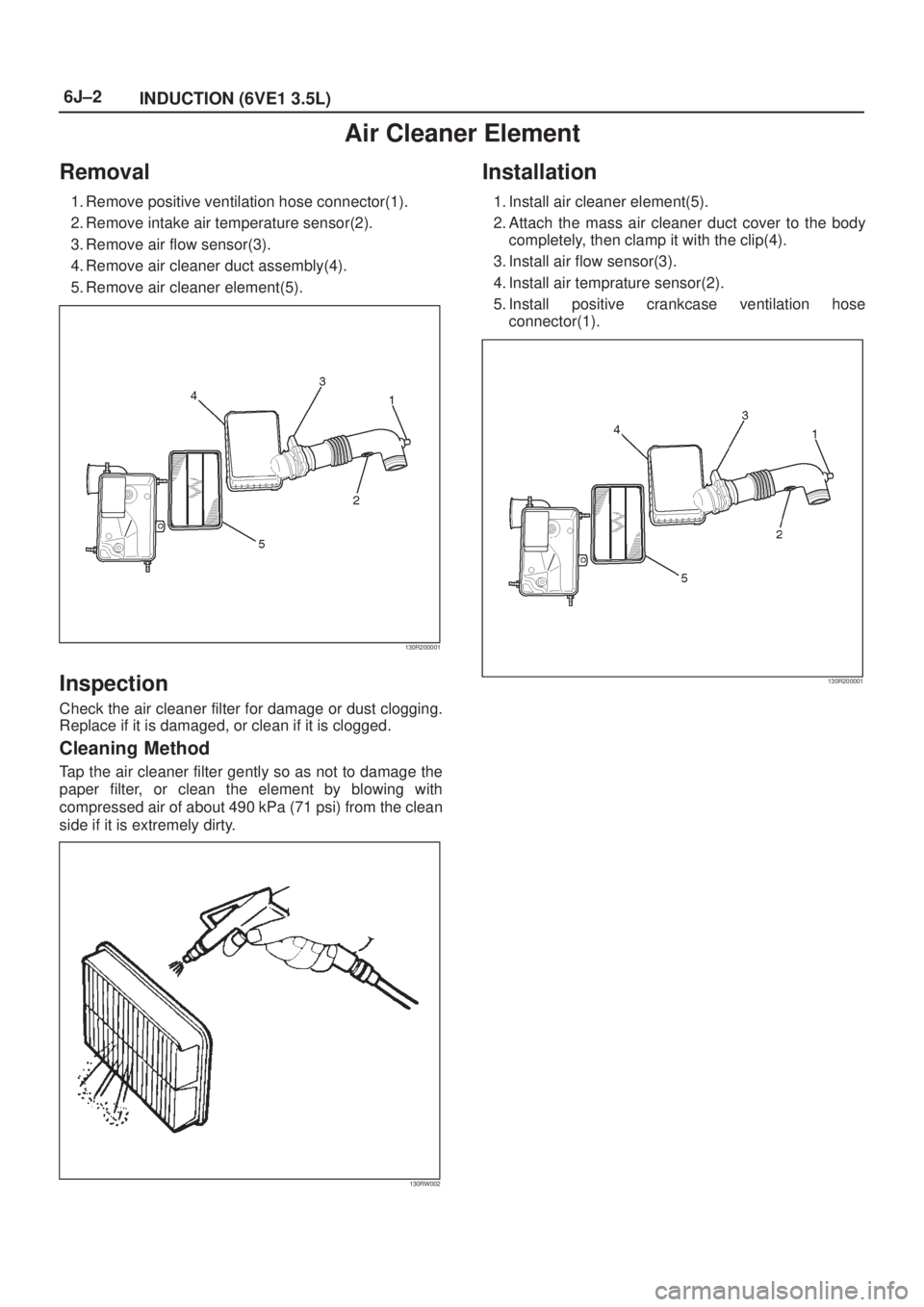

Air Cleaner Element
Removal
1. Remove positive ventilation hose connector(1).
2. Remove intake air temperature sensor(2).
3. Remove air flow sensor(3).
4. Remove air cleaner duct assembly(4).
5. Remove air cleaner element(5).
130R200001
Inspection
Check the air cleaner filter for damage or dust clogging.
Replace if it is damaged, or clean if it is clogged.
Cleaning Method
Tap the air cleaner filter gently so as not to damage the
paper filter, or clean the element by blowing with
compressed air of about 490 kPa (71 psi) from the clean
side if it is extremely dirty.
130RW002
Installation
1. Install air cleaner element(5).
2. Attach the mass air cleaner duct cover to the body
completely, then clamp it with the clip(4).
3. Install air flow sensor(3).
4. Install air temprature sensor(2).
5. Install positive crankcase ventilation hose
connector(1).
130R200001
