2002 ISUZU AXIOM Service Repair Manual

wheel torque open hood oil transmission oil mirror controls auxiliary battery

Load previous 8 pages

Page 9 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0A±8
GENERAL INFORMATION

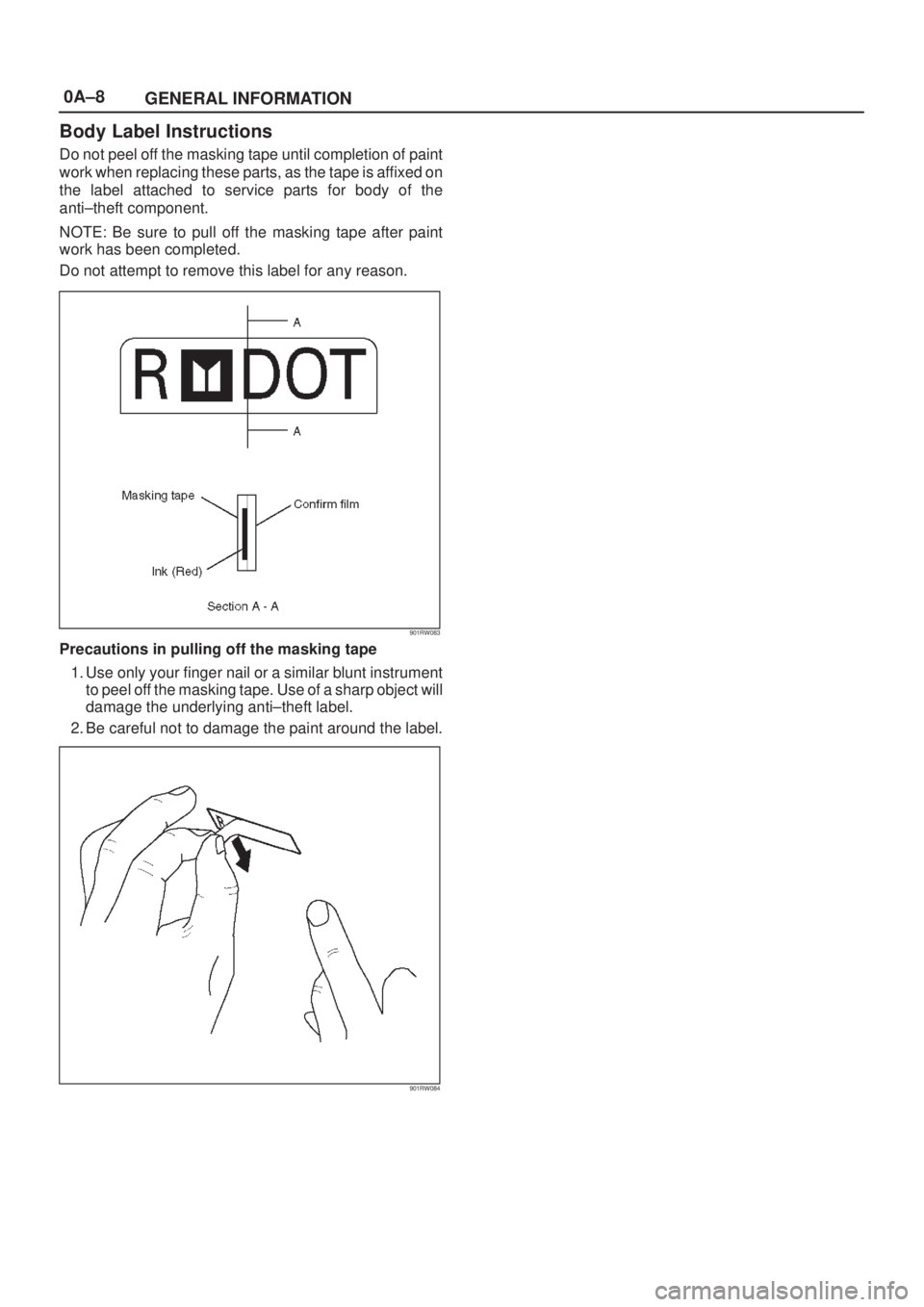

Body Label Instructions
Do not peel off the masking tape until completion of paint
work when replacing these parts, as the tape is affixed on
the label attached to service pa

Page 10 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0A±9
GENERAL INFORMATION
Lifting Instructions
CAUTION:
If a lifting device other than the original jack is
used, it is most important that the device be
applied only to the correct lifting points. R

Page 11 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0A±10
GENERAL INFORMATION

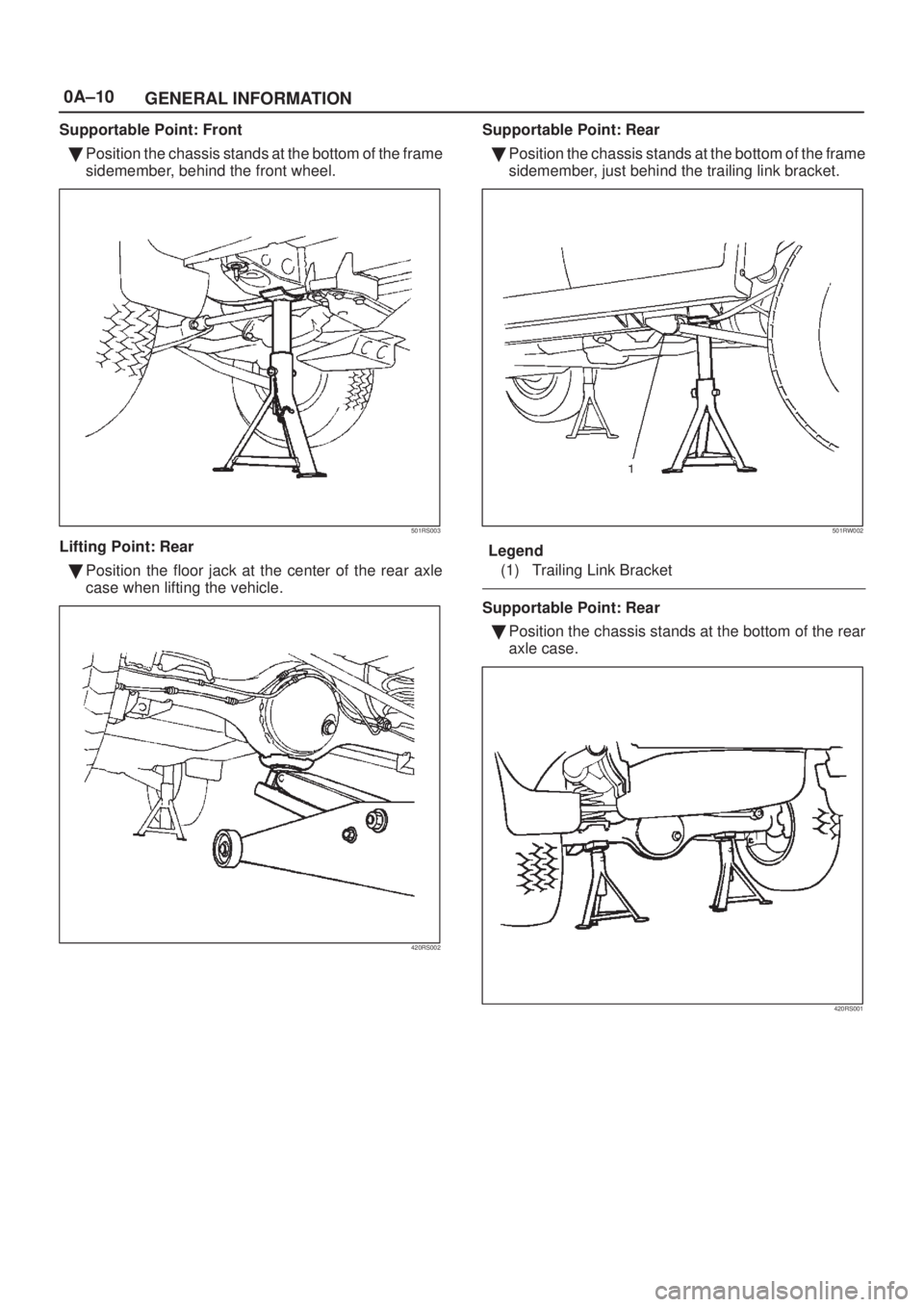

Supportable Point: Front
Position the chassis stands at the bottom of the frame
sidemember, behind the front wheel.
501RS003
Lifting Point: Rear
Position the floor jack at

Page 12 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0A±11
GENERAL INFORMATION

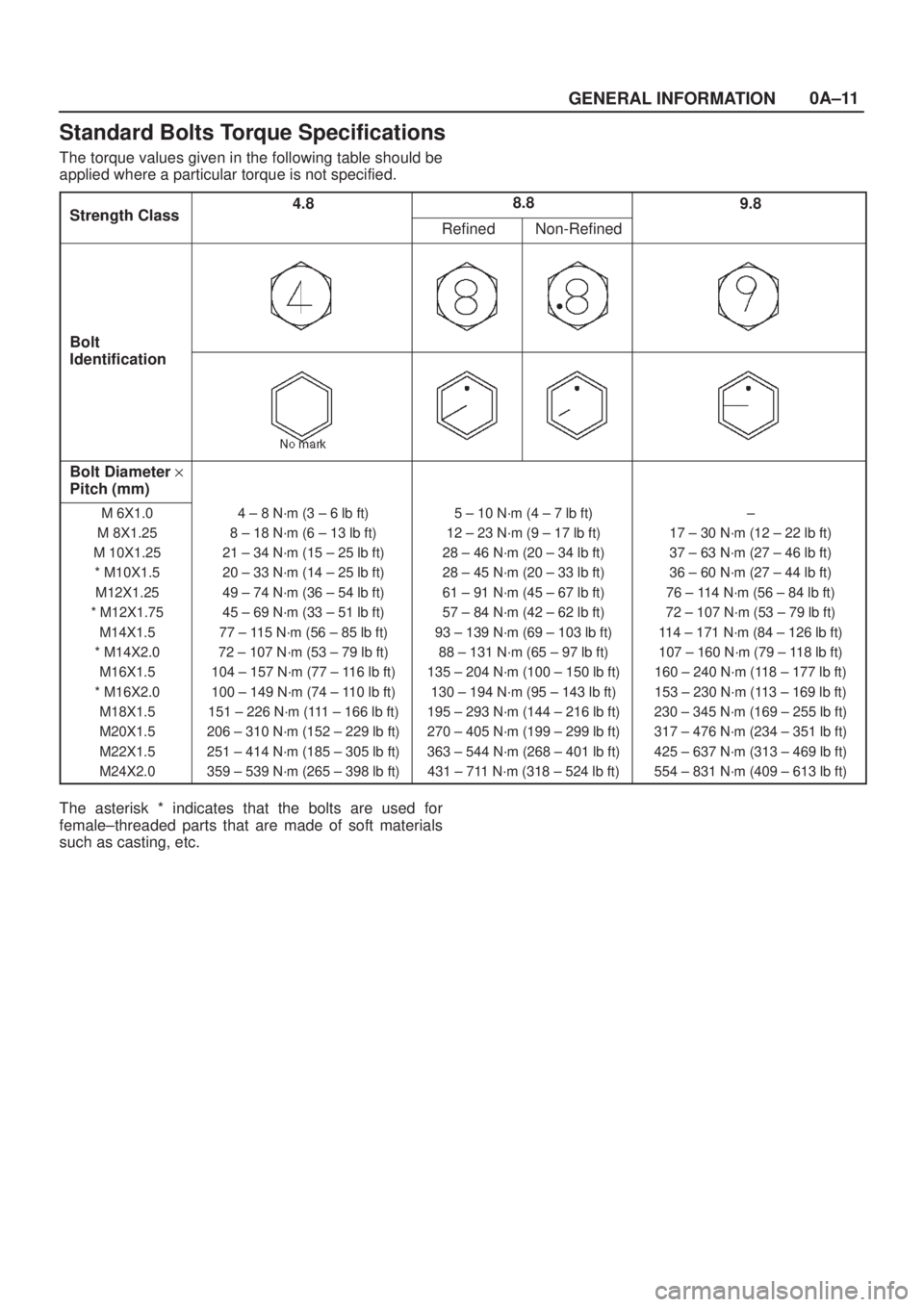

Standard Bolts Torque Specifications
The torque values given in the following table should be
applied where a particular torque is not specified.
Strength Class4.88.89.8Stre

Page 13 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0A±12
GENERAL INFORMATION
Abbreviations Charts
List of automotive abbreviations which may be used
in this manual
A Ð Ampere(s)
ABS Ð Antilock Brake System
AC Ð Alternating Current
A/C Ð Air Condi

0A±12
GENERAL INFORMATION
Abbreviations Charts
List of automotive abbreviations which may be used
in this manual
A Ð Ampere(s)
ABS Ð Antilock Brake System
AC Ð Alternating Current
A/C Ð Air Conditioning
ACCEL Ð Accelerator
ACC Ð Accessory
ACL Ð Air Cleaner
Adj Ð Adjust
A/F Ð Air Fuel Ratio
AIR Ð Secondary Air Injection System
Alt Ð Altitude
AMP Ð Ampere(s)
ANT Ð Antenna
ASM Ð Assembly
A/T Ð Automatic Transmission/Transaxle
ATDC Ð After Top Dead Center
ATF Ð Automatic Transmission Fluid
Auth Ð Authority
Auto Ð Automatic
BARO Ð Barometric Pressure
Bat Ð Battery
B+ Ð Battery Positive Voltage
Bbl Ð Barrel
BHP Ð Brake Horsepower
BPT Ð Backpressure Transducer
BTDC Ð Before Top Dead Center
C Ð Degrees Celsius
CAC Ð Charge Air Cooler
Calif Ð California
cc Ð Cubic Centimeter
CID Ð Cubic Inch Displacement
CKP Ð Crankshaft Position
CL Ð Closed Loop
CLCC Ð Closed Loop Carburetor Control
CMP Ð Camshaft Position
CO Ð Carbon Monoxide
Coax Ð Coaxial
Conn Ð Connector
Conv Ð Converter
Crank Ð Crankshaft
Cu. In. Ð Cubic Inch
CV Ð Constant Velocity
Cyl Ð Cylinder(s)
DI Ð Distributor Ignition
Diff Ð Differential
Dist Ð Distributor
DLC Ð Data Link Connector
DOHC Ð Double Overhead Camshaft
DTC Ð Diagnostic Trouble Code
DTM Ð Diagnostic Test Mode
DTT Ð Diagnostic Test Terminal
DVM Ð Digital Voltmeter (10 meg.)
DVOM Ð Digital Volt Ohmmeter
EBCM Ð Electronic Brake Control Module
ECM Ð Engine Control Module
ECT Ð Engine Coolant Temperature
EEPROM Ð Electronically Erasable Programmable
Read Only Memory
EGR Ð Exhaust Gas Recirculation
EI Ð Electronic Ignition
ETR Ð Electronically Tuned Receiver
EVAP Ð Evaporation EmissionExh Ð Exhaust
F Ð Degrees Fahrenheit
Fed Ð Federal (All States Except Calif.)
FF Ð Front Drive Front Engine
FL Ð Fusible Link
FLW Ð Fusible Link Wire
FP Ð Fuel Pump
FRT Ð Front
ft Ð Foot
FWD Ð Front Wheel Drive
4WD Ð Four Wheel Drive
4 x 4 Ð Four Wheel Drive
4 A/T Ð Four Speed Automatic Transmission/Transaxle
Gal Ð Gallon
GEN Ð Generator
GND Ð Ground
Gov Ð Governor
g Ð Gram
Harn Ð Harness
HC Ð Hydrocarbons
HD Ð Heavy Duty
Hg Ð Hydrargyrum (Mercury)
HiAlt Ð High Altitude
HO2S Ð Heated Oxygen Sensor
HVAC Ð Heater±Vent±Air±Conditioning
IAC Ð Idle Air Control
IAT Ð Intake Air Temperature
IC Ð Integrated Circuit / Ignition Control
ID Ð Identification / Inside Diameter
IGN Ð Ignition
INJ Ð Injection
IP Ð Instrument Panel
IPC Ð Instrument Panel Cluster
Int Ð Intake
ISC Ð Idle Speed Control
J/B Ð Junction Block
kg Ð Kilograms
km Ð Kilometers
km/h Ð Kilometer per Hour
kPa Ð Kilopascals
kV Ð Kilovolts (thousands of volts)
kW Ð Kilowatts
KS Ð Knock Sensor
L Ð Liter
lb ft Ð Foot Pounds
lb in Ð Inch Pounds
LF Ð Left Front
LH Ð Left Hand
LR ÐLeft Rear
LS Ð Left Side
LWB Ð Long Wheel Base
L±4 Ð In±Line Four Cylinder Engine
MAF Ð Mass Air Flow
MAN Ð Manual
MAP Ð Manifold Absolute Pressure
Max Ð Maximum
MC Ð Mixture Control
MFI Ð Multiport Fuel Injection
MIL Ð Malfunction Indicator Lamp
Min Ð Minimum
mm Ð Millimeter
MPG Ð Miles Per Gallon
MPH Ð Miles Per Hour
M/T Ð Manual Transmission/Transaxle
MV Ð Millivolt

Page 14 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0A±13
GENERAL INFORMATION
N Ð Newtons
NA Ð Natural Aspirated
NC Ð Normally Closed
N´M Ð Newton Meters
NO Ð Normally Open
NOX Ð Nitrogen, Oxides of
OBD Ð On-Board Diagnostic
OD Ð Outside Diam

0A±13
GENERAL INFORMATION
N Ð Newtons
NA Ð Natural Aspirated
NC Ð Normally Closed
N´M Ð Newton Meters
NO Ð Normally Open
NOX Ð Nitrogen, Oxides of
OBD Ð On-Board Diagnostic
OD Ð Outside Diameter
O/D Ð Over Drive
OHC Ð Overhead Camshaft
OL Ð Open Loop
O2 Ð Oxygen
O2S Ð Oxygen Sensor
PAIR Ð Pulsed Secondary Air Injection System
P/B Ð Power Brakes
PCM Ð Powertrain Control Module
PCV Ð Positive Crankcase Ventilation
PRESS Ð Pressure
PROM Ð Programmable Read Only Memory
PNP Ð Park/Neutral Position
P/S Ð Power Steering
PSI Ð Pounds per Square Inch
PSP Ð Power Steering Pressure
Pt. Ð Pint
Pri Ð Primary
PWM Ð Pulse Width Modulate
Qt. Ð Quart
REF Ð Reference
RF Ð Right Front
RFI Ð Radio Frequency Interference
RH Ð Right Hand
RPM Ð Revolutions Per Minute
RPM Sensor Ð Engine Speed Sensor
RPO Ð Regular Production Option
RR Ð Right Rear
RS Ð Right Side
RTV Ð Room Temperature Vulcanizing
RWAL Ð Rear Wheel Antilock Brake
RWD Ð Rear Wheel Drive
SAE Ð Society of Automotive Engineers
Sec Ð Secondary
SFI Ð Sequential Multiport Fuel Injection
SI Ð System International
SIR Ð Supplemental Inflatable Restraint System
SOHC Ð Single Overhead Camshaft
Sol Ð Solenoid
SPEC Ð Specification
Speedo Ð Speedometer
SRS Ð Supplemental Restraint System
ST Ð Start / Scan Tool
Sw Ð Switch
SWB Ð Short Wheel Base
SYN Ð Synchronize
Tach Ð Tachometer
TB Ð Throttle Body
TBI Ð Throttle Body Fuel Injection
TCC Ð Torque Converter Clutch
TCM Ð Transmission Control Module
TDC Ð Top Dead Center
Term Ð Terminal
TEMP Ð Temperature
TODÐ Torque On Demand
TP Ð Throttle Position
TRANS Ð Transmission/Transaxle
TURBO Ð TurbochargerTVRS Ð Television & Radio Suppression
TVV Ð Thermal Vacuum Valve
TWC Ð Three Way Catalytic Converter
3 A/T Ð Three Speed Automatic Transmission/Transaxle
2WD Ð Two Wheel Drive
4 x 2 Ð Two Wheel Drive
U±joint Ð Universal Joint
V Ð Volt(s)
VAC Ð Vacuum
VIN Ð Vehicle Identification Number
VRRRE Ð Vehicle Refrigerant Recovery and Recycling
Equipment
V±ref Ð ECM Reference Voltage
VSS Ð Vehicle Speed Sensor
VSV Ð Vacuum Switch Valve
V±6 Ð Six Cylinder ªVº Engine
V±8 Ð Eight Cylinder ºVº Engine
W Ð Watt(s)
w/ Ð With
w/b Ð Wheel Base
w/o Ð Without
WOT Ð Wide Open Throttle
Service Parts Identification Plate
The Vehicle Information Plate (Service Parts ID plate) is
provided on all vehicle models.
It is located on the center dash wall inside the engine
compartment. The plate lists the VIN (Vehicle
Identification Number), paint information and all
production options and special equipment on the vehicle
when it was shipped from the factory.
905R200002

Page 15 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0B±1 MAINTENANCE AND LUBRICATION
AXIOM
GENERAL INFORMATION
Maintenance and Lubrication
CONTENTS
Maintenance Schedule List 0B±1. . . . . . . . . . . . . . .
Explanation of Complete Vehicle Maintenan

0B±1 MAINTENANCE AND LUBRICATION
AXIOM
GENERAL INFORMATION
Maintenance and Lubrication
CONTENTS
Maintenance Schedule List 0B±1. . . . . . . . . . . . . . .
Explanation of Complete Vehicle Maintenance
Schedule 0B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Fluids and Lubricants 0B±8. . . .
Lubricant Viscosity Chart 0B±9. . . . . . . . . . . . . . . . . Recommended Liquid Gasket 0B±11. . . . . . . . . . .
Recommended Thread Locking Agents 0B±11. . .
Maintenance Service Data 0B±12. . . . . . . . . . . . . . . .
Maintenance Schedule List
Normal Vehicle Use
The maintenance instructions in this Maintenance
Schedule are based on the assumption that the vehicle
will be used as designed:
to carry passengers and cargo within the limitations
specified on the tire placard located on the inside of
the glove compartment door;
to be driven on reasonable road surfaces within legal
operating limits;
to be driven on a daily basis, as a general rule, for at
least several miles/kilometers;
to be driven on unleaded fuel
Unusual or severe operating conditions will require more
frequent vehicle maintenance, as specified in the
following sections.
Severe Driving Conditions
If the vehicle is usually operated under any of the severe
driving conditions listed below, it is recommended that the
applicable maintenance services be performed at the
specified interval shown in the chart below.
Severe driving conditions:
Towing a trailer, using a camper or car top carrier.
Repeated short trips of less than 8 Km (5 miles) with
outside temperature remaining below freezing.
Extensive idling and/or low speed driving for long
distances, such as police, taxi or door±to±door
delivery use.
Operating on dusty, rough, muddy or salt spread
roads.
ITEMS
INTERVAL
CHANGE ENGINE OIL AND OIL FILTEREvery 3,000 miles (4,800 km) or 3 months
CHANGE AUTOMATIC TRANSMISSION FLUIDEvery 20,000 miles (32,000 km)
CHANGE REAR AXLE OILEvery 15,000 miles (24,000 km)
REPLACE TIMING BELTEvery 75,000 miles (120,000 km)
REPLACE AIR CLEANER FILTERSee explanation of service, page 0B±5
CHANGE POWER STEERING FLUIDEvery 30,000 miles (48,000 km)

Page 16 of 2100

ISUZU AXIOM 2002 Service Repair Manual 0B±2MAINTENANCE AND LUBRICATION
Mileage Only Items

Load next 8 pages
