Page 1985 of 2100

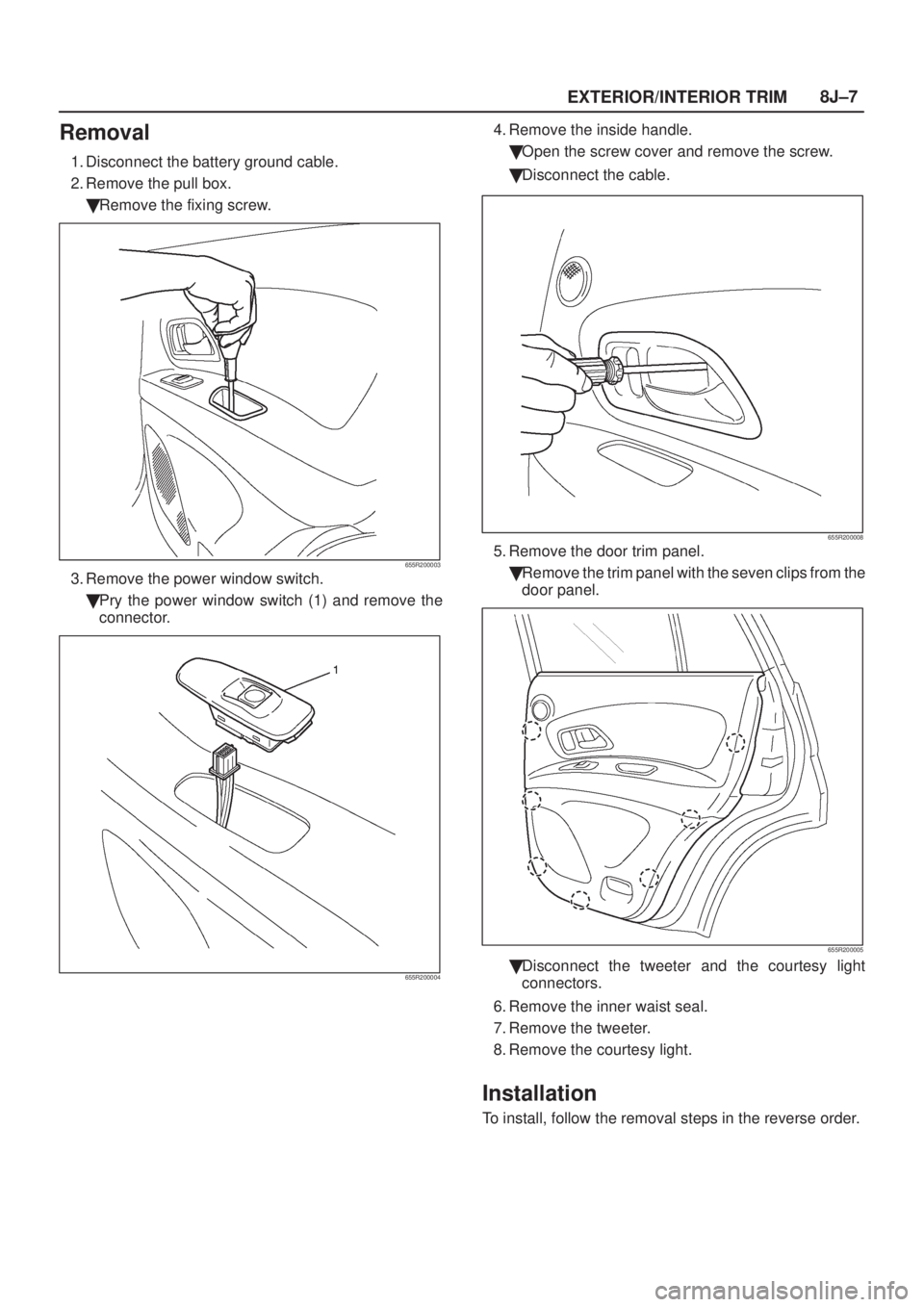

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±7 Removal 1. Disconnect the battery ground cable. 2. Remove the pull box. Remove the fixing screw. 655R200003 3. Remove the power window switch. Pry the power window switch

Page 1986 of 2100

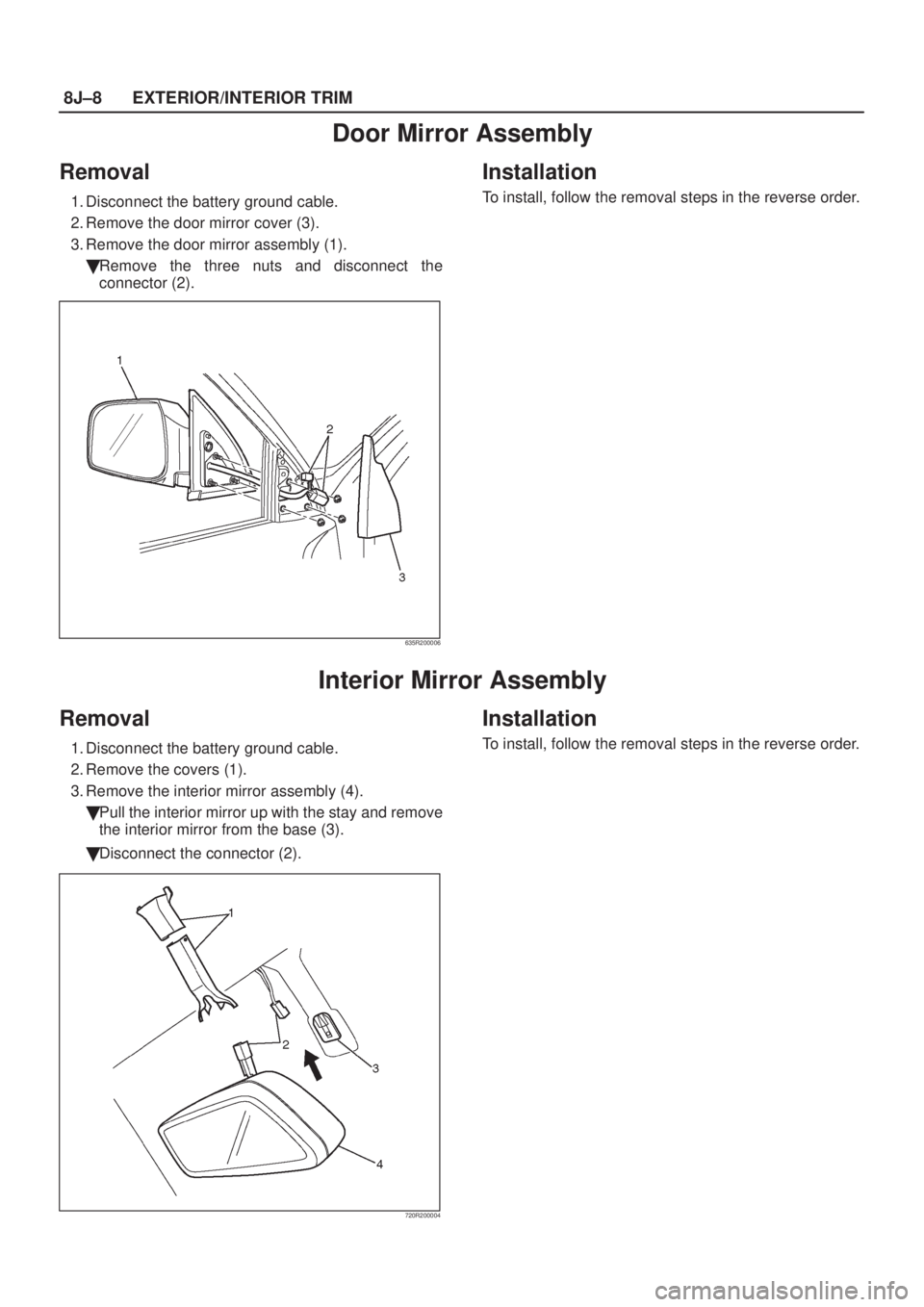

ISUZU AXIOM 2002 Service Repair Manual 8J±8EXTERIOR/INTERIOR TRIM Door Mirror Assembly Removal 1. Disconnect the battery ground cable. 2. Remove the door mirror cover (3). 3. Remove the door mirror assembly (1). Remove the three nuts and

Page 1987 of 2100

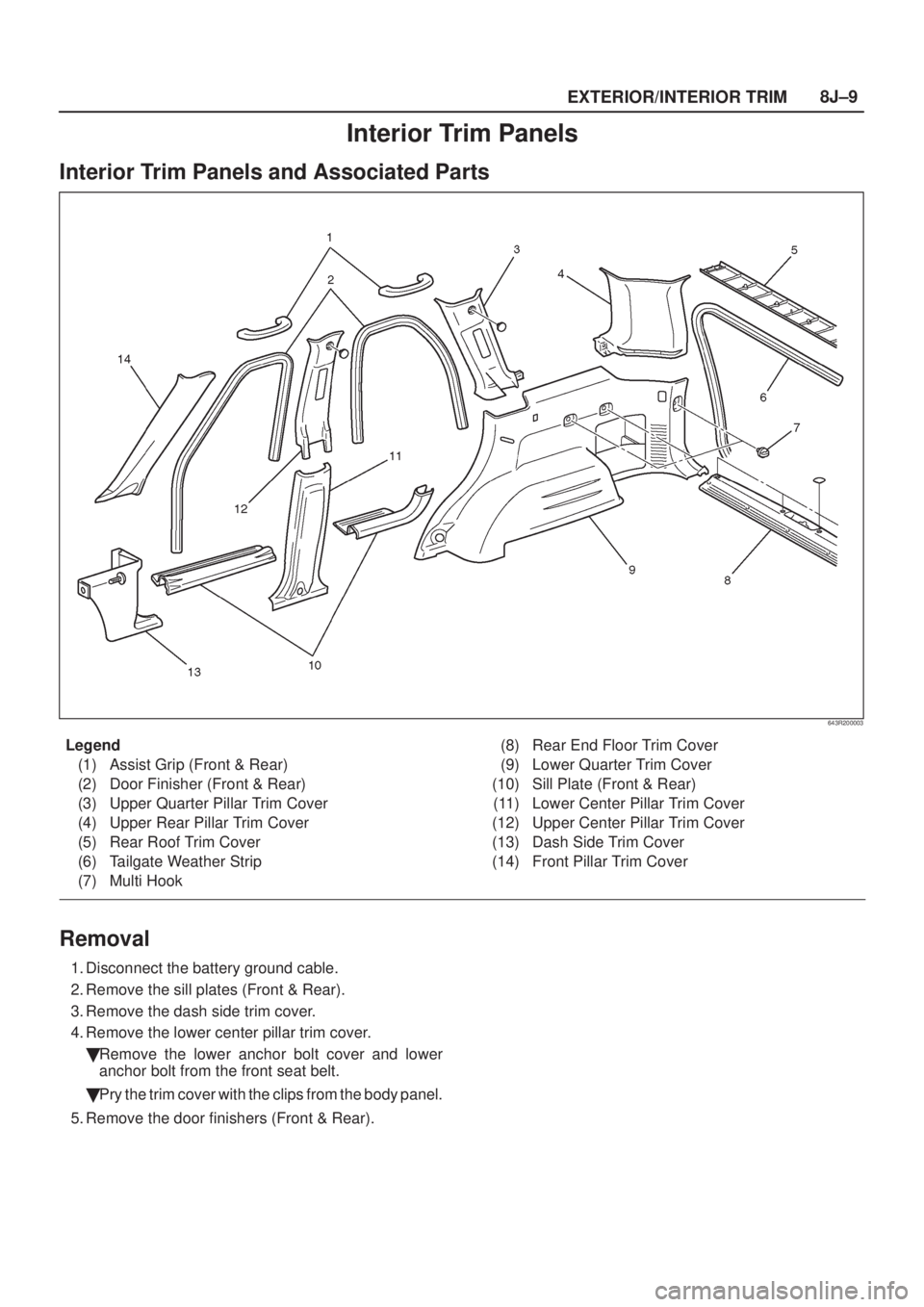

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±9 Interior Trim Panels Interior Trim Panels and Associated Parts 643R200003 Legend (1) Assist Grip (Front & Rear) (2) Door Finisher (Front & Rear) (3) Upper Quarter Pillar Tr

Page 1988 of 2100

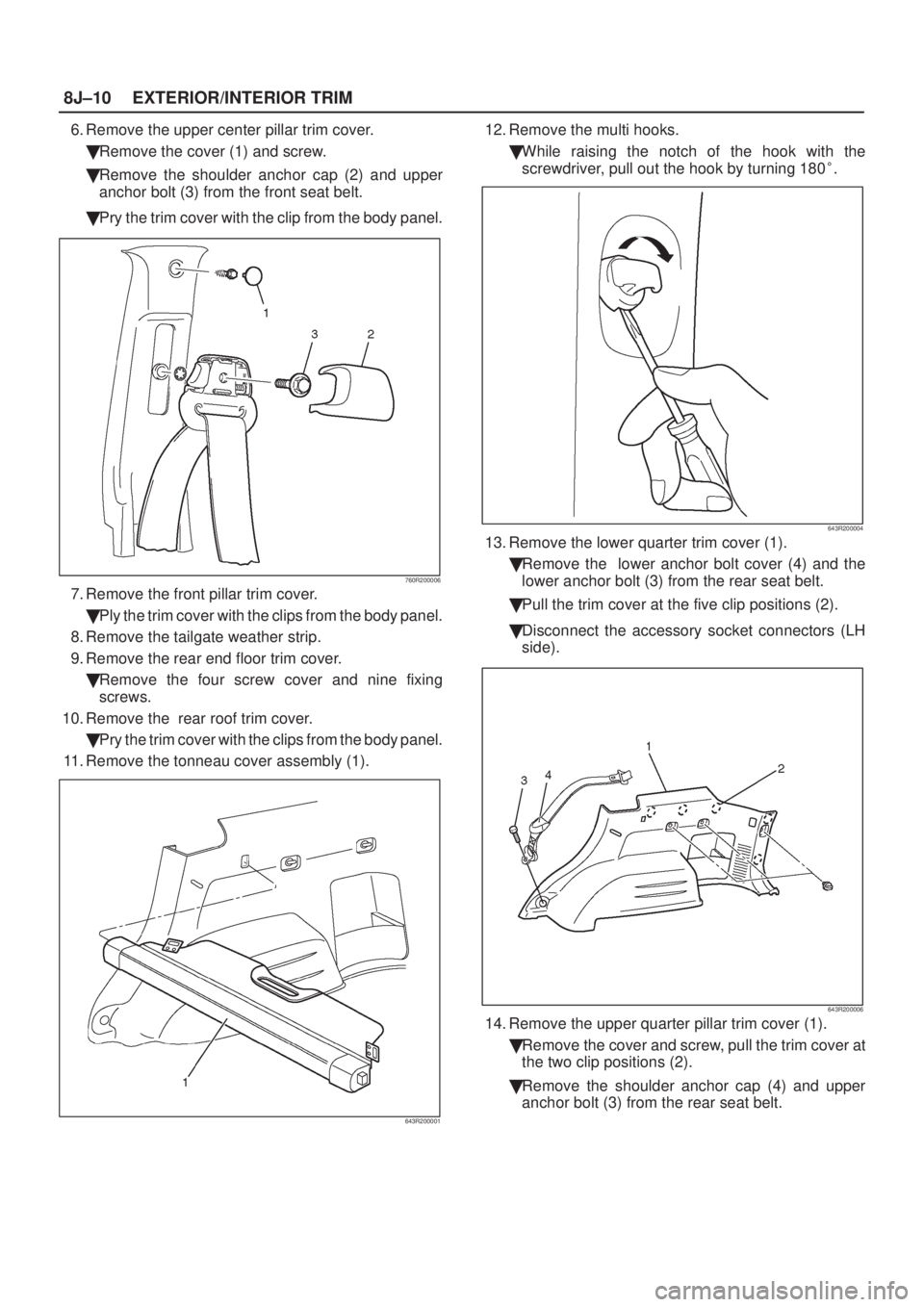

ISUZU AXIOM 2002 Service Repair Manual 8J±10EXTERIOR/INTERIOR TRIM 6. Remove the upper center pillar trim cover. Remove the cover (1) and screw. Remove the shoulder anchor cap (2) and upper anchor bolt (3) from the front seat belt. Pry

Page 1989 of 2100

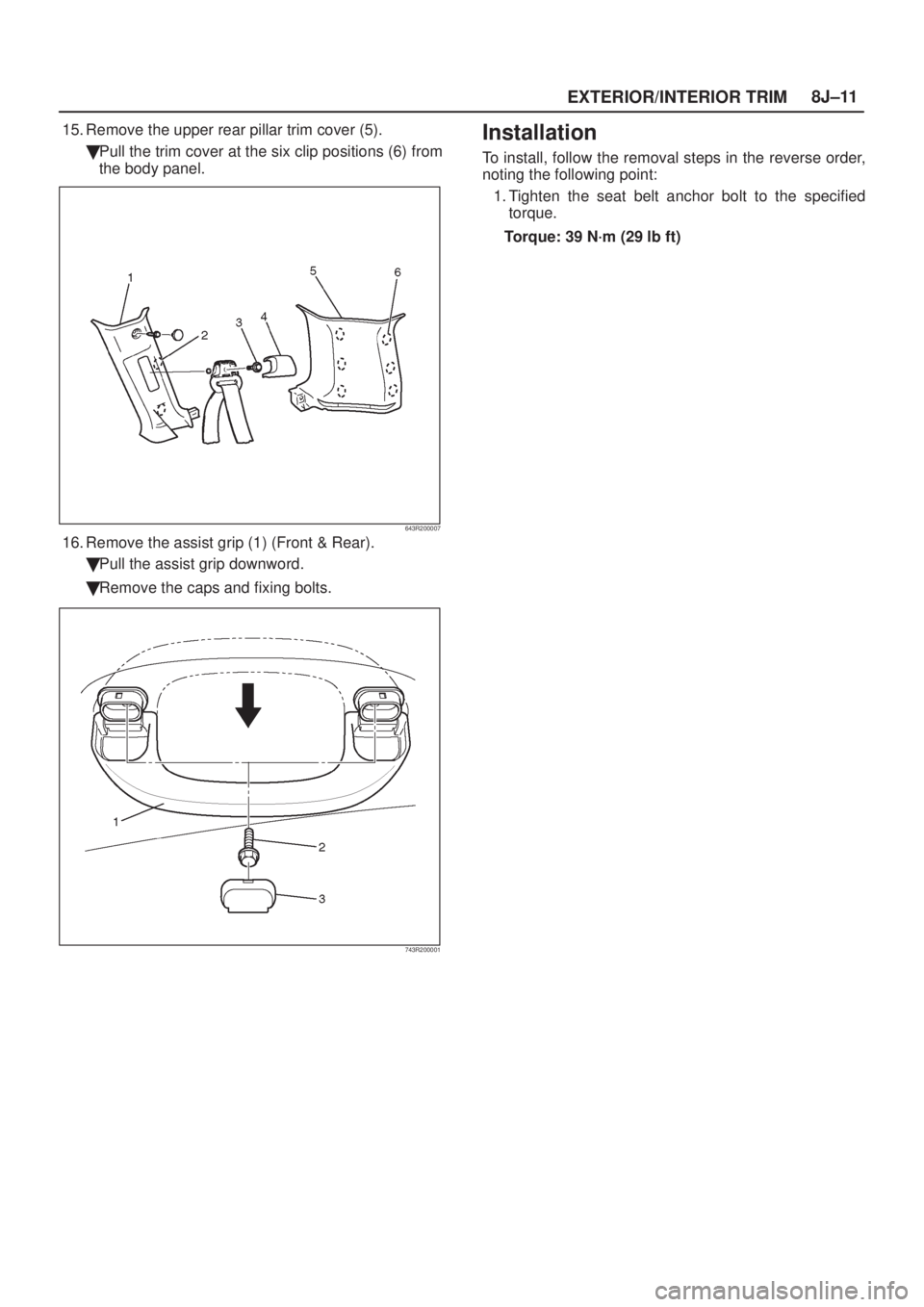

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±11 15. Remove the upper rear pillar trim cover (5). Pull the trim cover at the six clip positions (6) from the body panel. 643R200007 16. Remove the assist grip (1) (Front &

Page 1990 of 2100

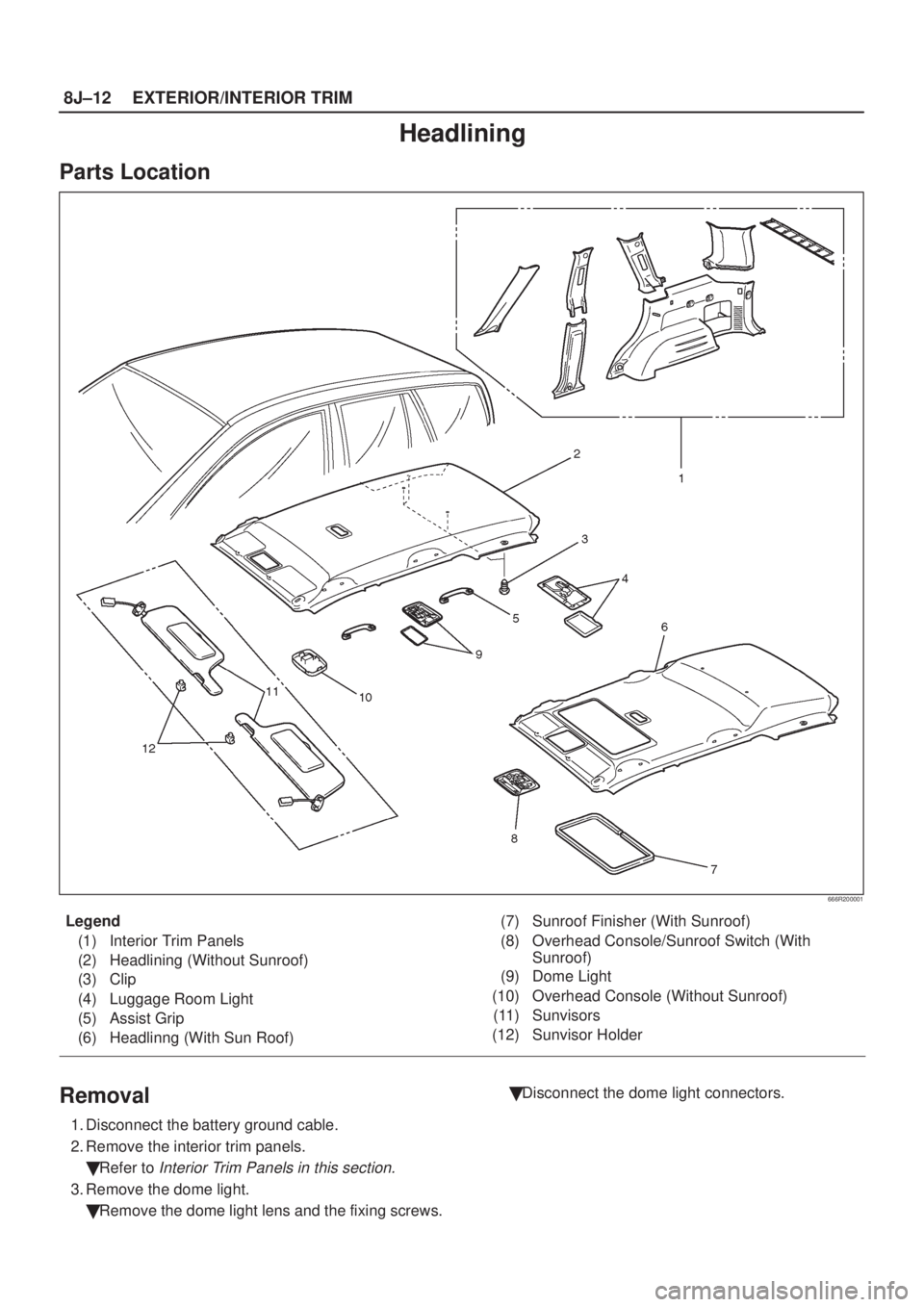

ISUZU AXIOM 2002 Service Repair Manual 8J±12EXTERIOR/INTERIOR TRIM Headlining Parts Location 666R200001 Legend (1) Interior Trim Panels (2) Headlining (Without Sunroof) (3) Clip (4) Luggage Room Light (5) Assist Grip (6) Headlinng (With S

Page 1991 of 2100

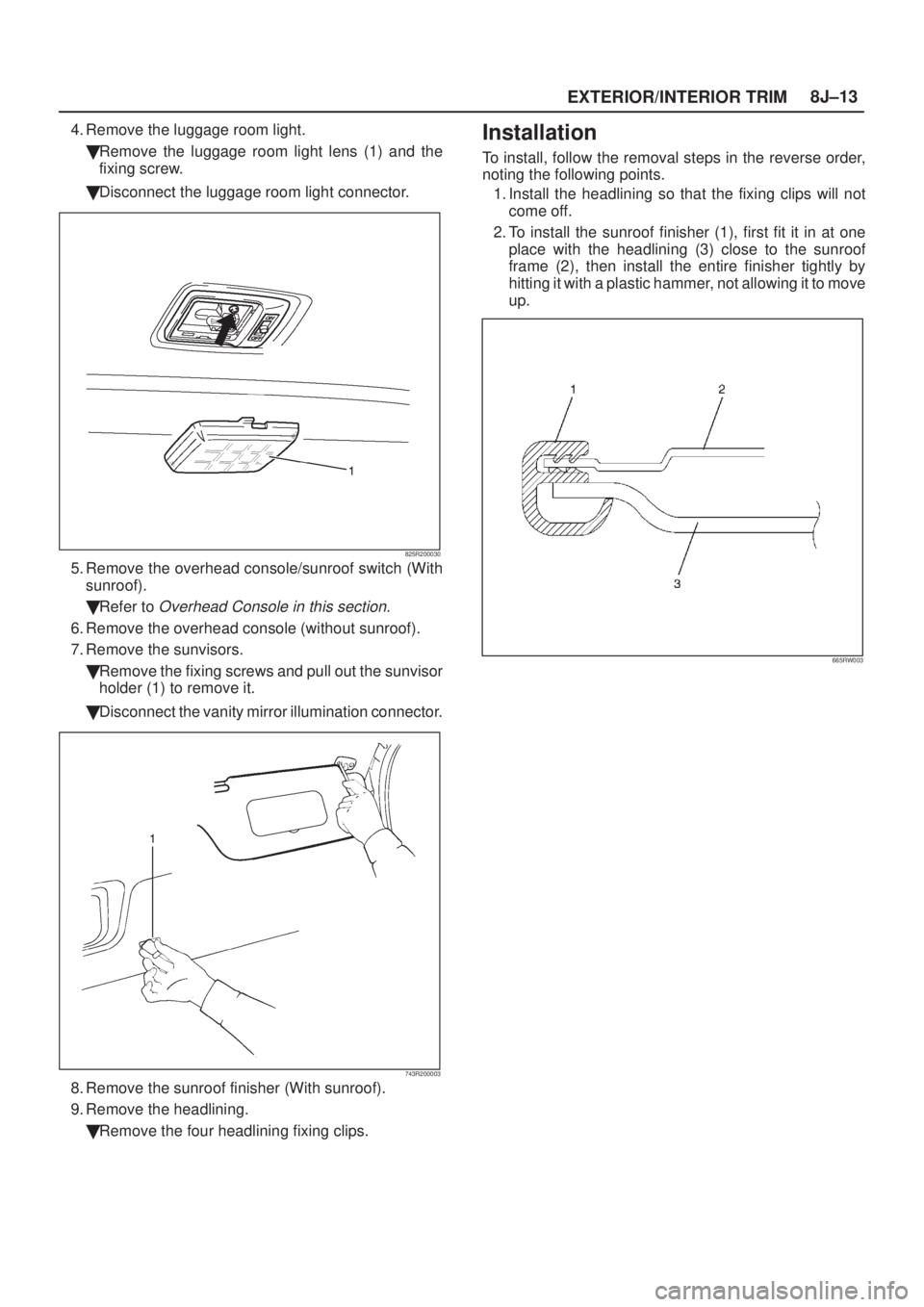

ISUZU AXIOM 2002 Service Repair Manual EXTERIOR/INTERIOR TRIM8J±13 4. Remove the luggage room light. Remove the luggage room light lens (1) and the fixing screw. Disconnect the luggage room light connector. 825R200030 5. Remove the over

Page 1992 of 2100

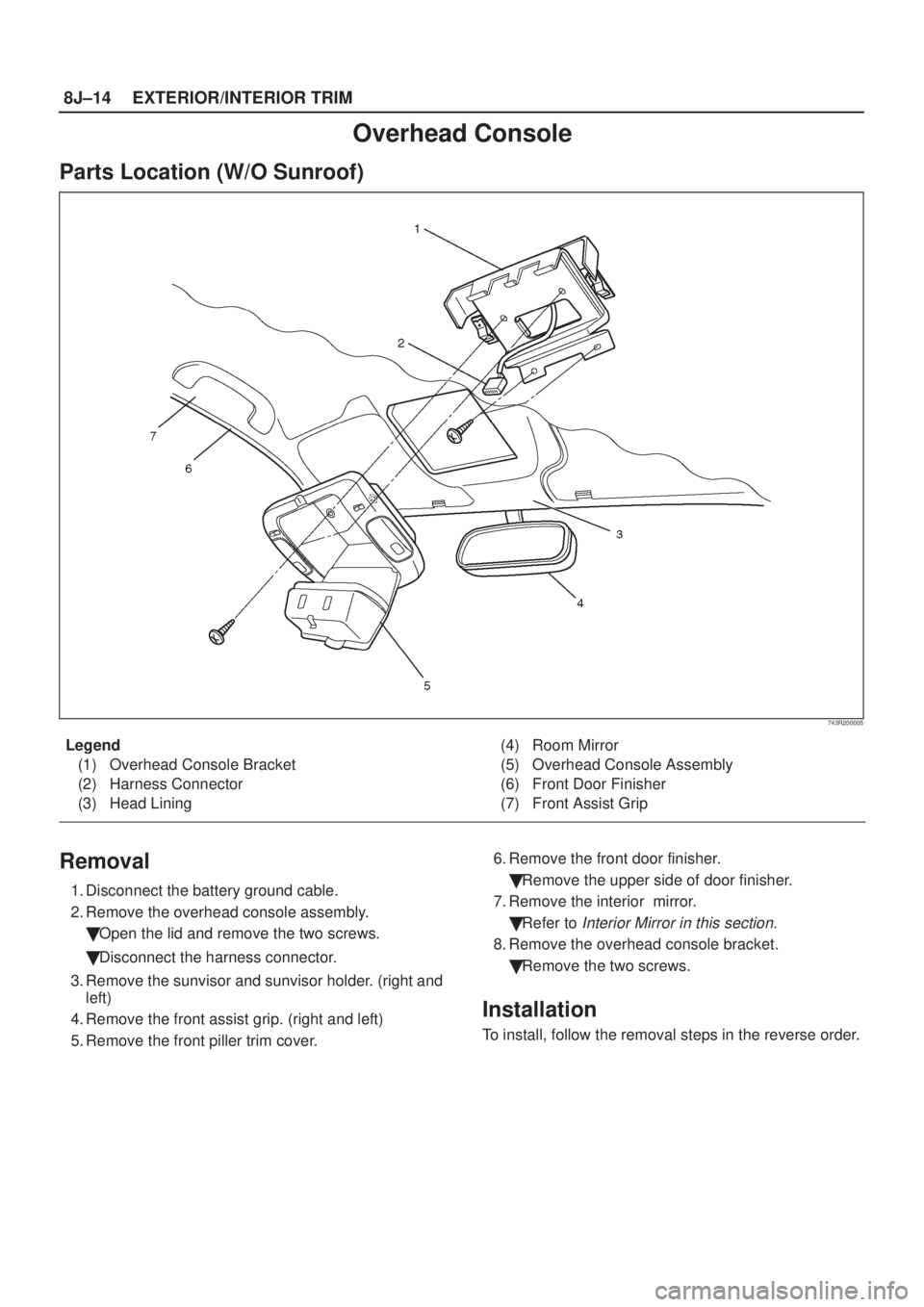

ISUZU AXIOM 2002 Service Repair Manual 8J±14EXTERIOR/INTERIOR TRIM Overhead Console Parts Location (W/O Sunroof) 743R200005 Legend (1) Overhead Console Bracket (2) Harness Connector (3) Head Lining(4) Room Mirror (5) Overhead Console Asse
