Page 545 of 2100
4C±48
DRIVE SHAFT SYSTEM
Reassembly
1. Install wheel pin.
411RS005
Place hub on a wood workbench or a block of wood
approx. 6º by 6º to protect the wheel stud ends and
threads.
Install wheel stud, using a hammer.
NOTE: Be sure wheel stud is started squarely and seats
completely.
2. Install the hub unit bearing to the knuckle.
Tighten the bolts to the specified torque.
Hub unit bearing bolt
Torque: 103+10 N´m (10.5 + 1 kg´m)
If there is rust on the bearing and knuckle contact
surfaces, use sandpaper to remove it before installation.
3. Install the ABS sensor connector.
4. Install the disc rotor.
5. Install the brake caliper to the bracket.
Refer to
Front disc caliper assembly in Section 5C of this
Manual.
Page 546 of 2100
4C±49 DRIVE SHAFT SYSTEM
Front Hub and Disc (4WD Model)
Disassembled View
411R200010
Legend
(1) Disc Rotor
(2) Hub Unit, Bearing(3) Wheel Pin
(4) ABS Sensor Ring
(5) Bolt
Disassembly
1. Move the transfer case lever to the 2WD position.
2. Raise the vehicle with a jack. Support the frame with
chassis stands.
3. Remove the brake caliper from the bracket. Secure
the caliper with a wire that it does not interfare with the
work process.Refer to
Front disc caliper assembly in Section 5C of this
Manual.
4. Remove the disk rotor.
Apply penetrating oil to the bearing and disc rotor contact
surfaces if the surfaces are stuck together because of
rust.
5. Inspect the hub unit bearing. Refer to
inspection
below.
Page 547 of 2100

4C±50
DRIVE SHAFT SYSTEM
6. Use a dial gauge to measure the bearing axial rattle.
Bearing axial rattle: 0.05 mm max
411R200002If abnormal conditins are discovered during
inspection, go to Step 7. If there are no abnormal
conditions, reassemble the front discrotor and
caliper.
NOTE: Hub, wheel bearing and spindle is integrated to
the hub unit bearing so it must not be disassembled. If it
has abnormal rattle or noize, replace the hub unit bearing.
7. Loosen the caulking around the front drive shaft nuts.
8. Remove the nuts and discard them (they cannot be
reused).
9. Remove the 4 bolts fixing the hub unit bearing to the
knuckle.
Apply penetrating oil to the bearing and knuckle contact
surfaces if the surfaces are stuck together because of
rust.
10. Temporarily install long bolts to 2 of the fixing bolt
holes (the bolts must have the same diameter and
thread width).
411R200012
Legend
(1) Bolt
11. Strike the long bolts with a hammer to loosen and
remove the hub unit bearing from the knuckle.
Take care not to strike the front drive shaft.
Take care not to drop the bearing.
12. Remove the ABS rotor sensor from the bearing.
13. If necessary, replace the wheel pin in the following
manner.
Place hub on a suitable work surface and remove
wheel studs, as required, using a hammer.
411RS004
Inspection
Inspect the parts listed below for abrasion, breakage, and
other abnormal conditions.
Repair or replace the parts as required.
Disc
Caliper
Drive shaft oil seal
ABS sensor rotor
Wheel pin
Hub unit bearing
Page 548 of 2100

4C±51 DRIVE SHAFT SYSTEM
Reassembly
1. Install the wheel pin.
Place hub on a wood workbench or a block of wood
approx. 6º by 6º to protect the wheel stud ends and
threads.
Install the wheel stud, using a hammer.
NOTE: Be sure wheel stud is started squarely and seats
completely.
411RS005
2. Install the ABS rotor sensor to the hub unit bearing.
Tighten the bolts to the specified torque.
ABS rotor sensor bolt
Torque: 18.7+5 N´m (1.9+0.5 kg´m)
3. Install the hub unit bearing to the knuckle. Tighten the
bolts to the specified torque.
Hub unit bearing bolt
Torque: 103+10 N´m (10.5+1 kg´m)
If there is rust on the bearing and knuckle contact
surfaces, use sandpaper to remove it before installation.
Take care not to push the front drive shaft and oil seal out
of position.
4. Hand tighten the front drive shaft nuts.
Use new nuts.
5. Install the disc rotor.
6. Install the brake caliper to the bracket.
Refer to
Front disc caliper assembly in Section 5C of this
Manual.7. Tighten the front drive shaft nuts to the specified
torque.
Front drive shaft nut
Torque: 245+19.6 N´m (25+2 kg´m)
411R200005
8. Caulk the front drive shaft nuts.
The caulking must be free of cracks.
411R200006
Page 549 of 2100

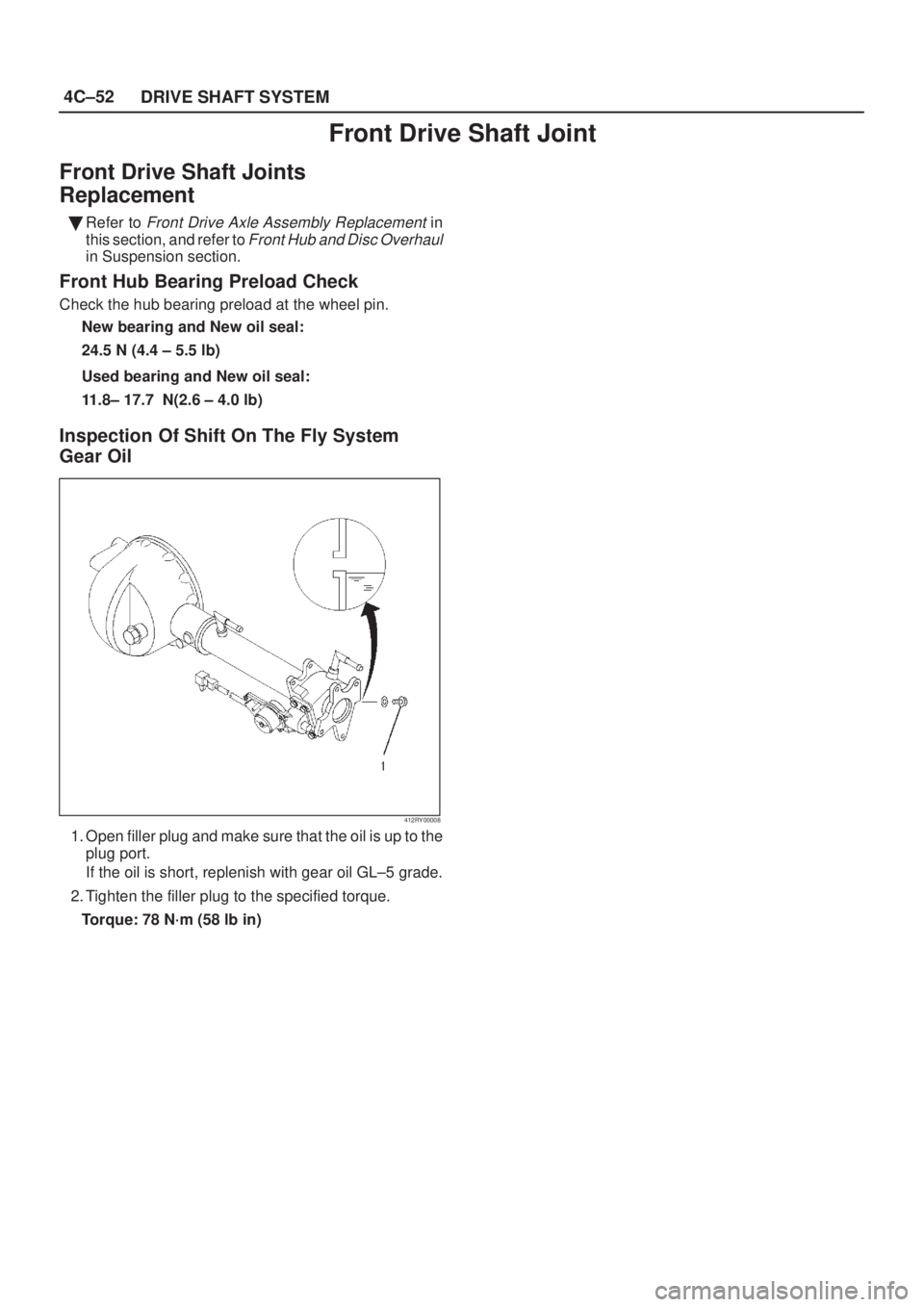

4C±52
DRIVE SHAFT SYSTEM
Front Drive Shaft Joint
Front Drive Shaft Joints
Replacement
Refer to Front Drive Axle Assembly Replacement in
this section, and refer to
Front Hub and Disc Overhaul
in Suspension section.
Front Hub Bearing Preload Check
Check the hub bearing preload at the wheel pin.
New bearing and New oil seal:
24.5 N (4.4 ± 5.5 lb)
Used bearing and New oil seal:
11.8± 17.7 N(2.6 ± 4.0 lb)
Inspection Of Shift On The Fly System
Gear Oil
412RY00008
1. Open filler plug and make sure that the oil is up to the
plug port.
If the oil is short, replenish with gear oil GL±5 grade.
2. Tighten the filler plug to the specified torque.
Torque: 78 N´m (58 lb in)
Page 550 of 2100
4C±53 DRIVE SHAFT SYSTEM
Front Axle Drive Shaft
Front Axle Drive Shaft and Associated Parts
412R200009
Legend
(1) Axle Case and Differential
(2) Snap Ring
(3) Bearing
(4) Snap Ring
(5) Oil Seal
(6) Bracket
(7) DOJ Case
(8) Circlip
(9) Bolt
(10) Drive Shaft Joint Assembly
(11) Ball(12) Snap Ring
(13) Ball Retainer
(14) Ball Guide
(15) Band
(16) Bellows
(17) Band
(18) Band
(19) Bellows
(20) Band
(21) BJ Shaft
(22) Dust Seal
Page 551 of 2100

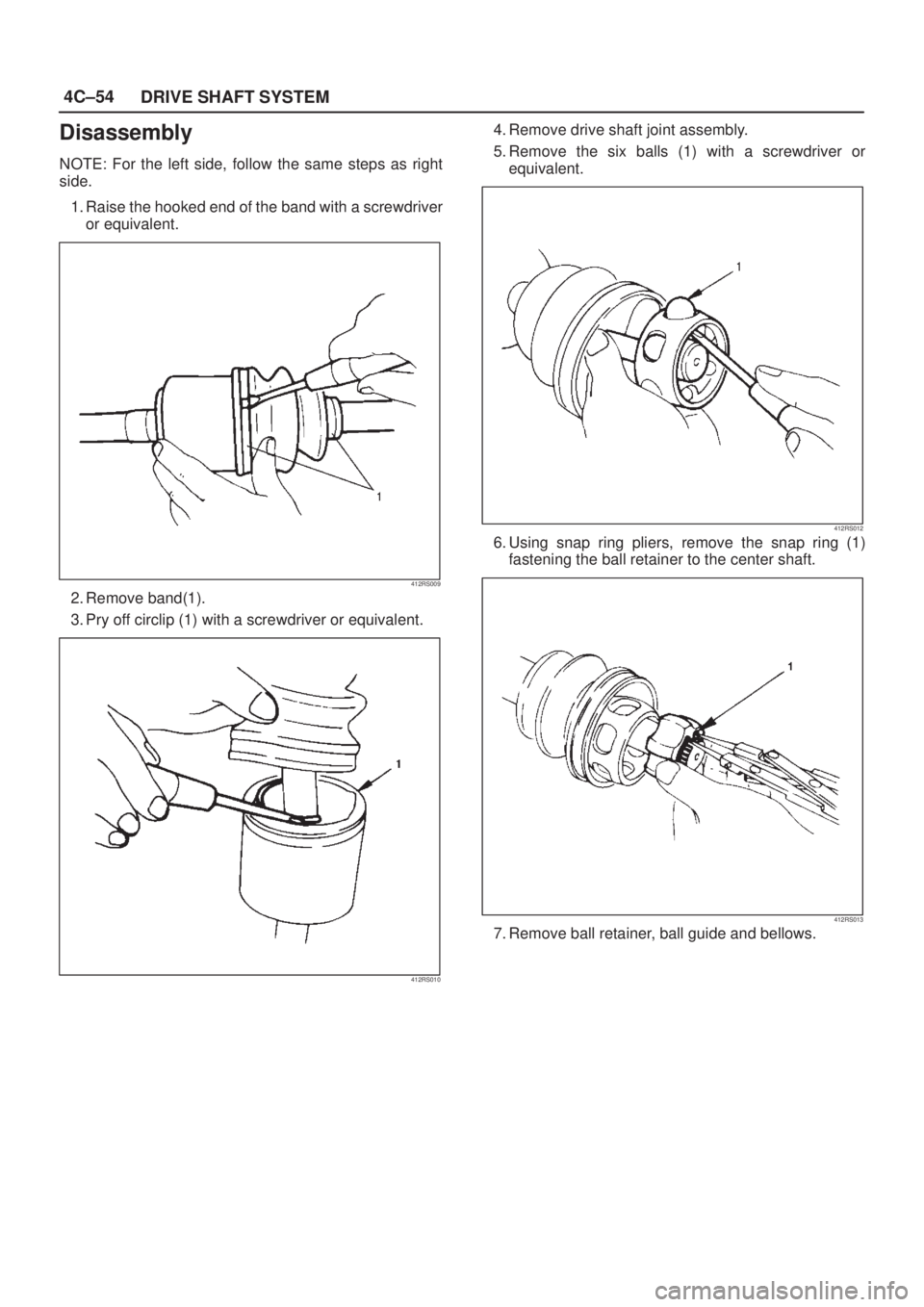

4C±54
DRIVE SHAFT SYSTEM
Disassembly
NOTE: For the left side, follow the same steps as right
side.
1. Raise the hooked end of the band with a screwdriver
or equivalent.
412RS009
2. Remove band(1).
3. Pry off circlip (1) with a screwdriver or equivalent.
412RS010
4. Remove drive shaft joint assembly.
5. Remove the six balls (1) with a screwdriver or
equivalent.
412RS012
6. Using snap ring pliers, remove the snap ring (1)
fastening the ball retainer to the center shaft.
412RS013
7. Remove ball retainer, ball guide and bellows.
Page 552 of 2100

4C±55 DRIVE SHAFT SYSTEM
8. Use a hammer and chisel to remove the 3 pawls
(above the large and small boot bands on the BJ
side).
CAUTION: Take care not to damage the bellows
during band removal.
412R100009
9. Remove band(1).
10. Remove bellows.
11. Remove dust seal from BJ.
12. Remove BJ shaft assembly.
13. Remove the mounting bracket fixing bolts, and then
remove DOJ case assembly from the axle case.
14. Remove snap ring and bearing.
15. Remove snap ring and oil seal.
16. Remove bracket.
Inspection And Repair
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
Check the following parts.
1. Drive shaft joint assembly
2. DOJ case, ball, ball guide, ball retainer
3. Bellows
4. Bearing
5. Dust seal, oil seal
Bushing Replacement
Remove the bushings using a remover J±39378±1
and hammer.
412RS015
By using installer J±39378±2 and base J±39378±3,
press fit the bushings into the bracket.
412RS016
Reassembly
1. Install DOJ case to bracket.
2. Install oil seal and fix snap ring.
3. Install bearing and fix snap ring.
4. Install bracket to axle case. Tighten the bracket bolt to
the specified torque.
Torque: 116 N´m (85 lb ft)
5. Apply 150g of the specified grease in BJ.
6. Install dust seal for BJ.
7. Apply a thin coat of grease to the shaft for smooth
installation then install bellows.
