Page 745 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±65 POWER±ASSISTED BRAKE SYSTEM

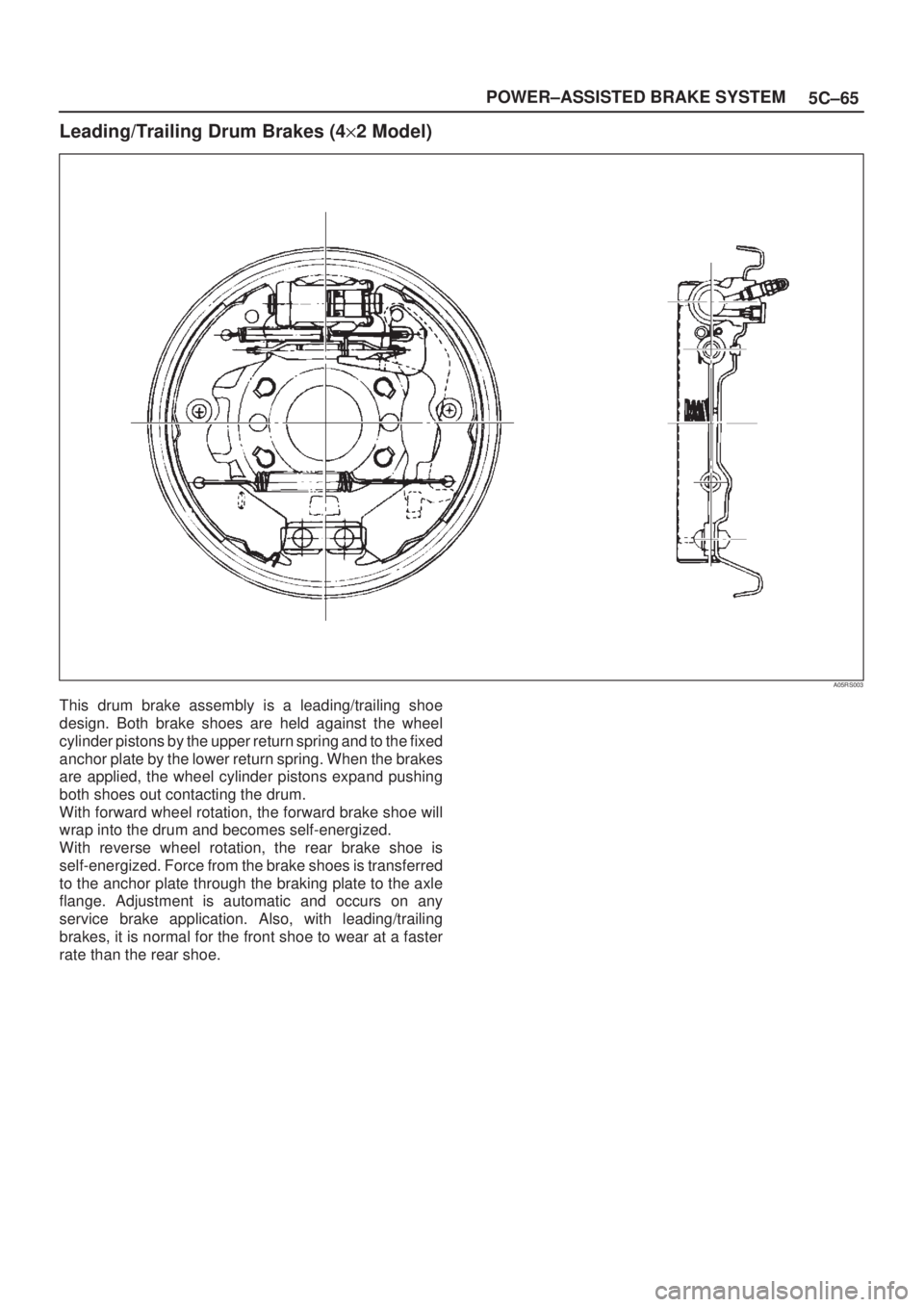

Leading/Trailing Drum Brakes (4y2 Model)
A05RS003
This drum brake assembly is a leading/trailing shoe
design. Both brake shoes are held against the wheel
cylinder p

Page 746 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±66
POWER±ASSISTED BRAKE SYSTEM
Diagnosis
Road Testing The Brakes
Brake Test
Brakes should be tested on a dry, clean, reasonably
smooth and level roadway. A true test of brake
performance cannot b

5C±66
POWER±ASSISTED BRAKE SYSTEM
Diagnosis
Road Testing The Brakes
Brake Test
Brakes should be tested on a dry, clean, reasonably
smooth and level roadway. A true test of brake
performance cannot be made if the roadway is wet,
greasy or covered with loose dirt where all tires do not grip
the road equally. Testing will also be adversely affected if
the roadway is crowned so as to throw the weight of the
vehicle toward wheels on one side or if the roadway is so
rough that wheels tend to bounce. Test the brakes at
different vehicle speeds with both light and heavy pedal
pressure; however, avoid locking the wheels and sliding
the tires. Braking without locking the tires will stop the
vehicle in less distance than braking to a skid (which has
no brake efficiency). More tire to road friction is present
while braking without locking the tires than braking to a
skid.
The standard brake system is designed and balanced to
avoid locking the wheels except at very high deceleration
levels.
It is designed this way because the shortest stopping
distance and best control is achieved without brake
lock±up.
Because of high deceleration capability, a firmer pedal
may be felt at higher deceleration levels.
External Conditions That Affect Brake Performance
1. Tires: Tires having unequal contact and grip on the
road will cause unequal braking. Tires must be
equally inflated, identical in size, and the thread
pattern of right and left tires must be approximately
equal.
2. Vehicle Loading: A heavily loaded vehicle requires
more braking effort.
3. Wheel Alignment: Misalignment of the wheels,
particularly in regard to excessive camber and caster,
will cause the brakes to pull to one side.
Brake Fluid Leaks
With engine running at idle and the transmission in
ªNeutralº, depress the brake pedal and hold a constant
foot pressure on the pedal. If pedal gradually falls away
with the constant pressure, the hydraulic system may be
leaking.
Check the master cylinder fluid level. While a slight drop in
the reservoir level will result from normal lining wear, an
abnormally low level in reservoir indicates a leak in the
system. The hydraulic system may be leaking internally
as well as externally. Refer to
Master Cylinder Inspection.
Also, the system may appear to pass this test but still
have slight leakage. If fluid level is normal, check the
vacuum booster push rod length. If an incorrect length
push rod is found, adjust or replace the push rod. Check
the brake pedal travel and the parking brake adjustment.
When checking the fluid level, the master cylinder fluid
level may be lower than the ªMAXº mark if the front and
rear linings are worn. This is normal.
Warning Light Operation
When the ignition switch is in the START position, the
ªBRAKEº warning light should turn on and go off when the
ignition switch returns to the ON position.
The following conditions will activate the ªBRAKEº light:
1. Parking brake applied. The light should be on
whenever the parking brake is applied and the ignition
switch is on.
2. Low fluid level. A low fluid level in the master cylinder
will turn the ªBRAKEº light on.
3. During engine cranking the ªBRAKEº light should
remain on. This notifies the driver that the warning
circuit is operating properly.

Page 747 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±67 POWER±ASSISTED BRAKE SYSTEM

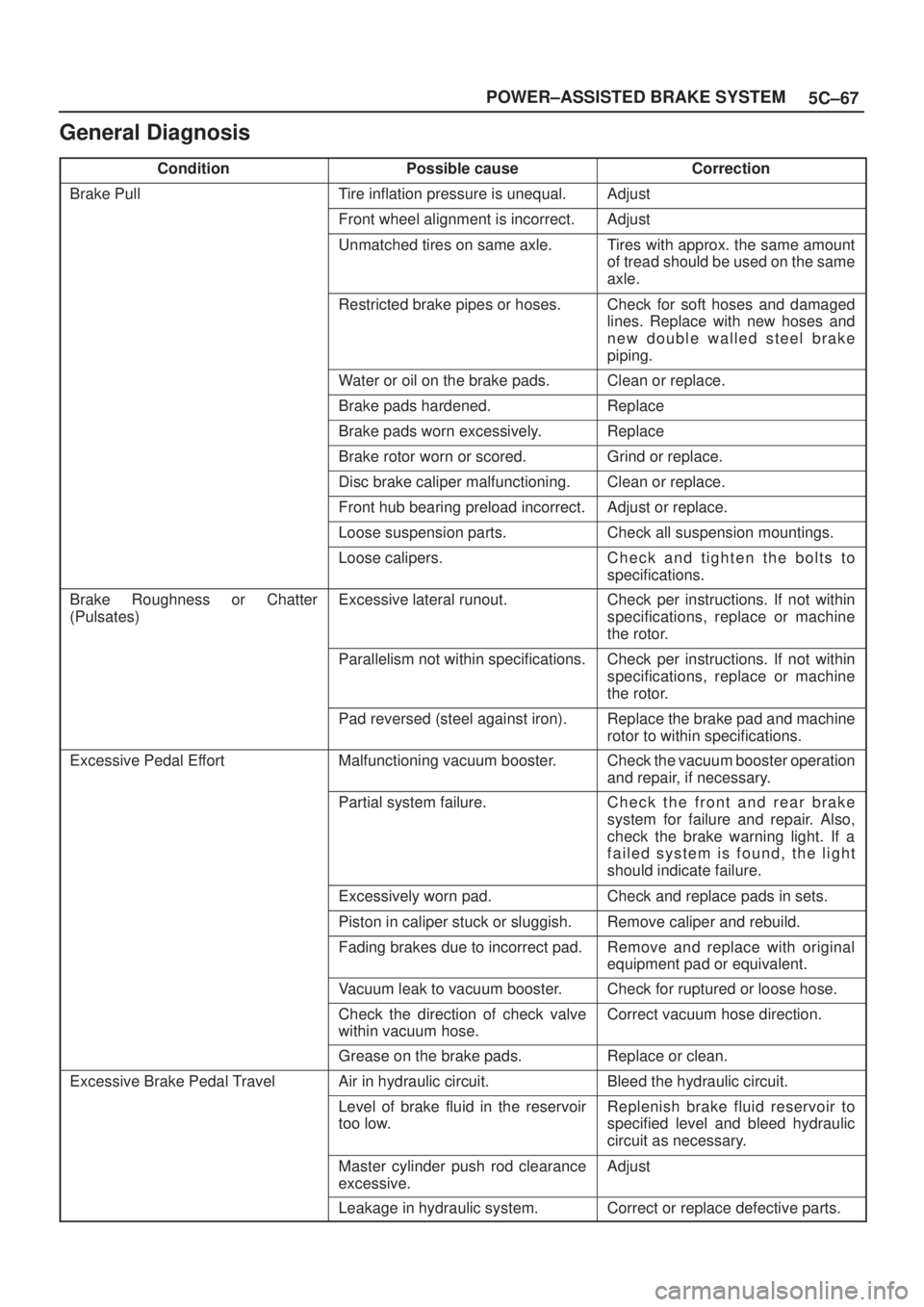

General Diagnosis
ConditionPossible causeCorrection
Brake PullTire inflation pressure is unequal.Adjust
Front wheel alignment is incorrect.Adjust
Unmatched tires on

5C±67 POWER±ASSISTED BRAKE SYSTEM
General Diagnosis
ConditionPossible causeCorrection
Brake PullTire inflation pressure is unequal.Adjust
Front wheel alignment is incorrect.Adjust
Unmatched tires on same axle.Tires with approx. the same amount
of tread should be used on the same
axle.
Restricted brake pipes or hoses.Check for soft hoses and damaged
lines. Replace with new hoses and
new double walled steel brake
piping.
Water or oil on the brake pads.Clean or replace.
Brake pads hardened.Replace
Brake pads worn excessively.Replace
Brake rotor worn or scored.Grind or replace.
Disc brake caliper malfunctioning.Clean or replace.
Front hub bearing preload incorrect.Adjust or replace.
Loose suspension parts.Check all suspension mountings.
Loose calipers.Check and tighten the bolts to
specifications.
Brake Roughness or Chatter
(Pulsates)Excessive lateral runout.Check per instructions. If not within
specifications, replace or machine
the rotor.
Parallelism not within specifications.Check per instructions. If not within
specifications, replace or machine
the rotor.
Pad reversed (steel against iron).Replace the brake pad and machine
rotor to within specifications.
Excessive Pedal EffortMalfunctioning vacuum booster.Check the vacuum booster operation
and repair, if necessary.
Partial system failure.Check the front and rear brake
system for failure and repair. Also,
check the brake warning light. If a
failed system is found, the light
should indicate failure.
Excessively worn pad.Check and replace pads in sets.
Piston in caliper stuck or sluggish.Remove caliper and rebuild.
Fading brakes due to incorrect pad.Remove and replace with original
equipment pad or equivalent.
Vacuum leak to vacuum booster.Check for ruptured or loose hose.
Check the direction of check valve
within vacuum hose.Correct vacuum hose direction.
Grease on the brake pads.Replace or clean.
Excessive Brake Pedal TravelAir in hydraulic circuit.Bleed the hydraulic circuit.
Level of brake fluid in the reservoir
too low.Replenish brake fluid reservoir to
specified level and bleed hydraulic
circuit as necessary.
Master cylinder push rod clearance
excessive.Adjust
Leakage in hydraulic system.Correct or replace defective parts.

Page 748 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±68
POWER±ASSISTED BRAKE SYSTEM

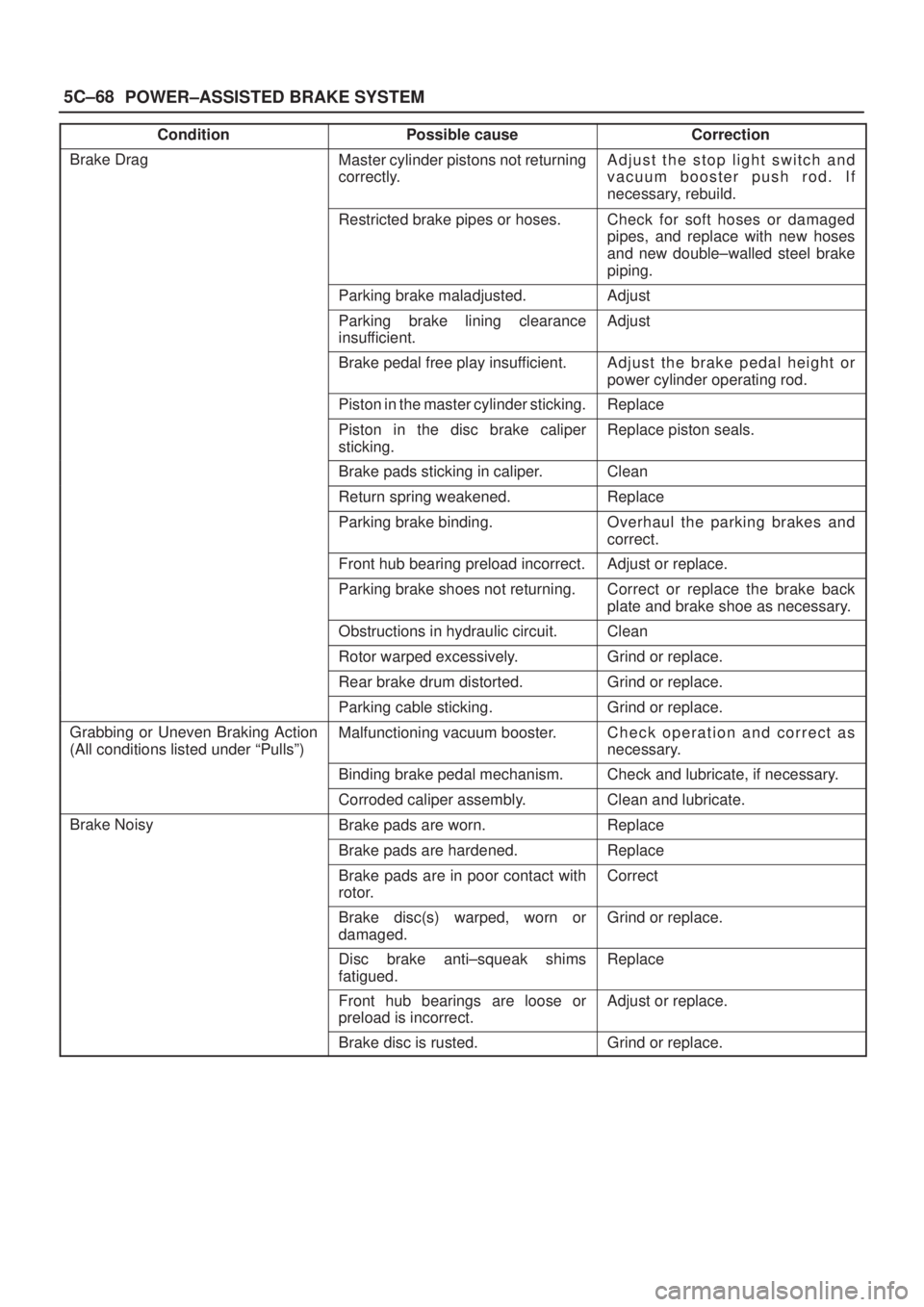

Condition CorrectionPossible cause
Brake DragMaster cylinder pistons not returning
correctly.Adjust the stop light switch and
vacuum booster push rod. If
necessary,

Page 749 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±69 POWER±ASSISTED BRAKE SYSTEM

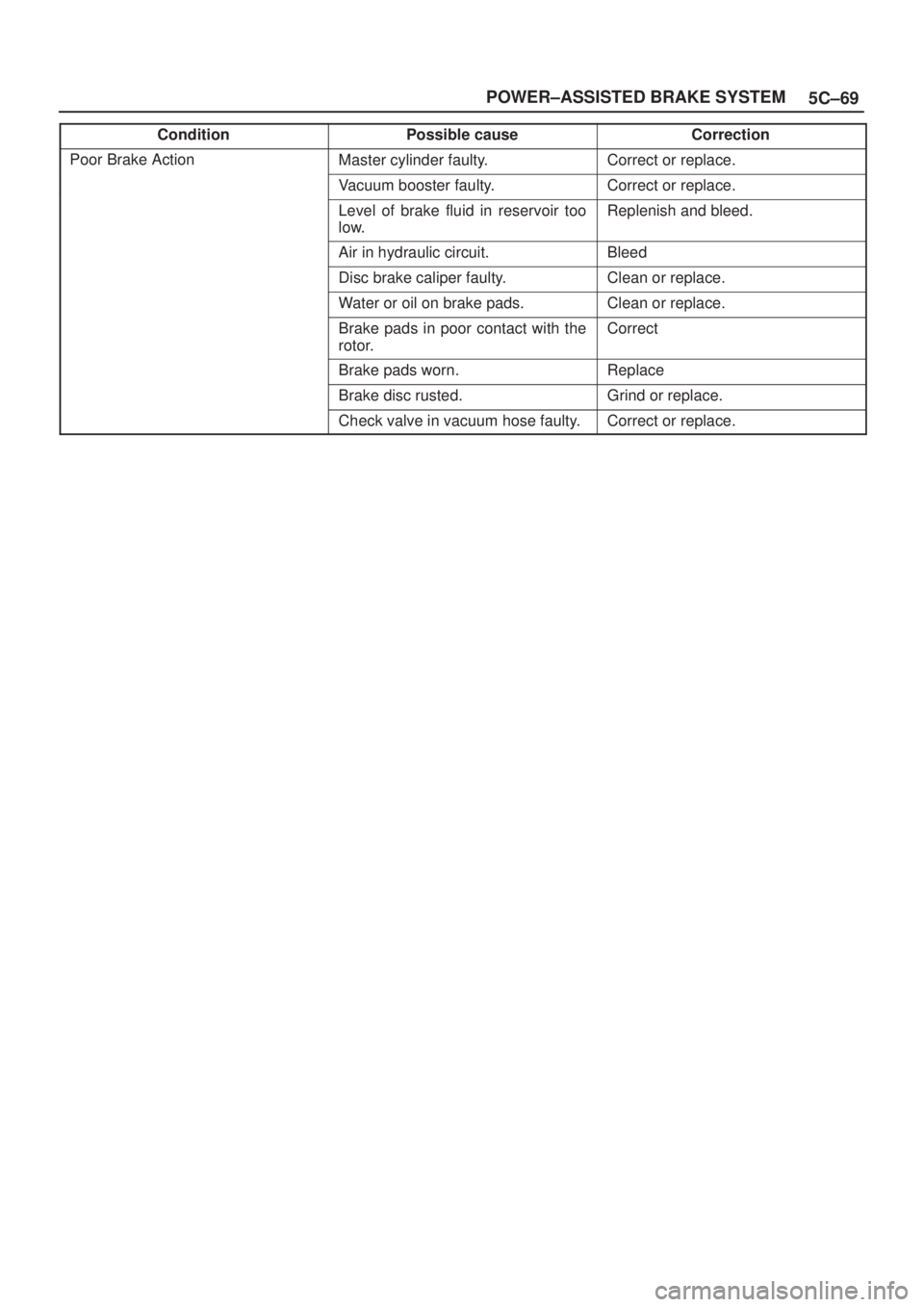

Condition CorrectionPossible cause
Poor Brake ActionMaster cylinder faulty.Correct or replace.
Vacuum booster faulty.Correct or replace.
Level of brake fluid in res

Page 750 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±70
POWER±ASSISTED BRAKE SYSTEM
Hydraulic Brakes
Filling Master Cylinder Reservoir
CAUTION: Use only specified brake fluid. Do not
use any fluid which contains a petroleum base. Do
not use a conta

5C±70
POWER±ASSISTED BRAKE SYSTEM
Hydraulic Brakes
Filling Master Cylinder Reservoir
CAUTION: Use only specified brake fluid. Do not
use any fluid which contains a petroleum base. Do
not use a container which has been used for
petroleum based fluids or a container which is wet
with water. Petroleum based fluid will cause swelling
and distortion of rubber parts in the hydraulic brake
system. Water mixed with brake fluid lowers the fluid
boiling point. Keep all fluid containers capped to
prevent contamination.
Always fill the master cylinder reservoir when the en-
gine is cold.
Never allow the brake fluid to come in contact with
the painted surfaces.
The master cylinder reservoir must be kept properly
filled to ensure adequate reserve and to prevent air
and moisture from entering the hydraulic system.
However, because of expansion due to heat ab-
sorbed from the brakes and the engine, the reservoir
must not be overfilled. The brake fluid reservoir is on
the master cylinder, which is located under the hood
on the left side of the cowl. Thoroughly clean reser-
voir cap before removal to avoid getting dirt into res-
ervoir. Remove the diaphragm. Add fluid as required
to bring level to the ªMAXº mark on the reservoir
tank. Use ªDOT 3º Hydraulic Brake Fluid. If the fluid
cap diaphragm is stretched, return it to the original
position before installing.
Deterioration of Brake Fluid
Using any other brake fluid than specified or brake fluid
with mineral oil or water mixed in will drop the boiling point
of brake fluid. It may, in turn, result in vapor lock or
deteriorated rubber parts of the hydraulic system. Be sure
to change the brake fluid at specified intervals.
If the rubber parts are deteriorated, remove all the system
parts and clean them with alcohol. Prior to reassembly,
dry the cleaned parts with air to remove the alcohol.
Replace all the hoses and rubber parts of the system.
Leakage of Brake Fluid
With engine idling, set shift lever in the neutral position
and continue to depress brake pedal at a constant pedal
application force.
Should the pedal stroke become deeper gradually,
leakage from the hydraulic pressure system is possible.
Perform visual inspection for any signs of leakage.
Bleeding Brake Hydraulic System
A bleeding operation is necessary to remove air from the
hydraulic brake system whenever air is introduced into
the hydraulic system. It may be necessary to bleed the
hydraulic system at all four brakes if air has been
introduced through a low fluid level or by disconnecting
brake pipes at the master cylinder. If a brake pipe is
disconnected at one wheel, only that wheel
cylinder/caliper needs to be bled. If the pipes are
disconnected at any fitting located between the master
cylinder and brakes, then the brake system served by the
disconnected pipe must be bled.
1. For 4±Wheel Antilock Brake System (ABS) equipped
vehicle, be sure to remove the ABS main fuse 60A
located at the relay and fuse box before bleeding air. If
you attempt to bleed air without removing the main
fuse, air cannot be let out thoroughly, and this may
cause damage to the hydraulic unit. After bleeding air,
be sure to replace the ABS main fuse back to its
original position.
2. Set the parking brake completely, then start the
engine.
NOTE: The vacuum booster will be damaged if the
bleeding operation is performed with the engine off.
3. Remove the master cylinder reservoir cap.
4. Fill the master cylinder reservoir with brake fluid.
Keep the reservoir at least half full during the air
bleeding operation
5. Always use new brake fluid for replenishment.
6. When replenishing the brake fluid reservoir, carefully
pour in the brake fluid to prevent air bubbles from
entering the brake system.
When the master cylinder is replaced or overhauled,
first bleed the air from the master cylinder, then from
each wheel cylinder and caliper following the
procedures described below.
Bleeding the Master Cylinder
7. Disconnect the rear wheel brake pipe (1) from the
master cylinder.
Check the fluid level and replenish as necessary. If
replenished, leave the system for at least one minute.
8. Depress the brake pedal slowly once and hold it
depressed.
9. Completely seal the delivery port of the master
cylinder with your finger, where the pipe was
disconnected then release the brake pedal slowly.
10. Release your finger from the delivery port when the
brake pedal returns completely.
11. Repeat steps 8 through 10 until the brake fluid comes
out of the delivery port during step 8.

Page 751 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±71 POWER±ASSISTED BRAKE SYSTEM
NOTE: Do not allow the fluid level in the reservoir to go
below the half±way mark.
12. Reconnect the brake pipe (1) to the master cylinder
and tighten the pipe.
13

5C±71 POWER±ASSISTED BRAKE SYSTEM
NOTE: Do not allow the fluid level in the reservoir to go
below the half±way mark.
12. Reconnect the brake pipe (1) to the master cylinder
and tighten the pipe.
13. Depress the brake pedal slowly once and hold it
depressed.
14. Loosen the rear wheel brake pipe (1) at the master
cylinder.
15. Retighten the brake pipe, then release the brake
pedal slowly.
16. Repeat steps 13 through 15 until no air comes out of
the port when the brake pipe is loosened
NOTE: Be very careful not to allow the brake fluid to come
in contact with painted surfaces.
330R200004
17. Bleed the air from the front wheel brake pipe
connection (2) by repeating steps 7 through 16.
Bleeding the Caliper
18. Bleed the air from each wheel in the order listed
below:
Right rear caliper or wheel cylinder
Left rear caliper or wheel cylinder
Right front caliper
Left front caliper
Conduct air bleeding from the wheels in the above
order. If no brake fluid comes out, it suggests that air
is mixed in the master cylinder. In this case, bleed air
from the master cylinder in accordance with steps 7
through 17, and then bleed air from the caliper or
wheel cylinder.
19. Place the proper size box end wrench over the
bleeder screw.
20. Cover the bleeder screw with a transparent tube, and
submerge the free end of the transparent tube in a
transparent container containing brake fluid.
21. Pump the brake pedal slowly three (3) times
(once/sec), then hold it depressed.
22. Loosen the bleeder screw until fluid flows through the
tube.
23. Retighten the bleeder screw.24. Release the brake pedal slowly.
25. Repeat steps 21 through 24 until the air is completely
removed.
It may be necessary to repeat the bleeding procedure
10 or more times for front wheels and 15 or more
times for rear wheels.
26. Go to the next wheel in the sequence after each wheel
is bled.
Be sure to monitor reservoir fluid level.
27. Depress the brake pedal to check if you feel
ªsponginessº after the air has been removed from all
wheel cylinders and calipers.
If the pedal feels ªspongyº, the entire bleeding
procedure must be repeated.
28. After the bleeding operation is completed on the each
individual wheel, check the level of the brake fluid in
the reservoir and replenish up to the ªMAXº level as
necessary.
29. Attach the reservoir cap.
If the diaphragm inside the cap is deformed, reform
it and install.
30. Stop the engine.
Flushing Brake Hydraulic System
It is recommended that the entire hydraulic system be
thoroughly flushed with clean brake fluid whenever new
parts are installed in the hydraulic system. Approximately
one quart of fluid is required to flush the hydraulic system.
The system must be flushed if there is any doubt as to the
grade of fluid in the system or if fluid has been used which
contains the slightest trace of mineral oil. All rubber parts
that have been subjected to a contaminated fluid must be
replaced.
Brake Pipes and Hoses
The hydraulic brake system components are
interconnected by special steel piping and flexible hoses.
Flexible hoses are used between the frame and the front
calipers, the frame and rear axle case and the rear axle
and the rear calipers.
When the hydraulic pipes have been disconnected for
any reason, the brake system must be bled after
reconnecting the pipe. Refer to
Bleeding the Brake
Hydraulic System
in this section.
Brake Hose Inspection
The brake hose should be inspected at least twice a year.
The brake hose assembly should be checked for road
hazard, cracks and chafing of the outer cover, and for
leaks and blisters. Inspect for proper routing and
mounting of the hose. A brake hose that rubs on
suspension components will wear and eventually fail. A
light and mirror may be needed for an adequate
inspection. If any of the above conditions are observed on
the brake hose, adjust or replace the hose as necessary.
CAUTION: Never allow brake components such as
calipers to hang from the brake hoses, as damage to
the hoses may occur.

Page 752 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±72
POWER±ASSISTED BRAKE SYSTEM

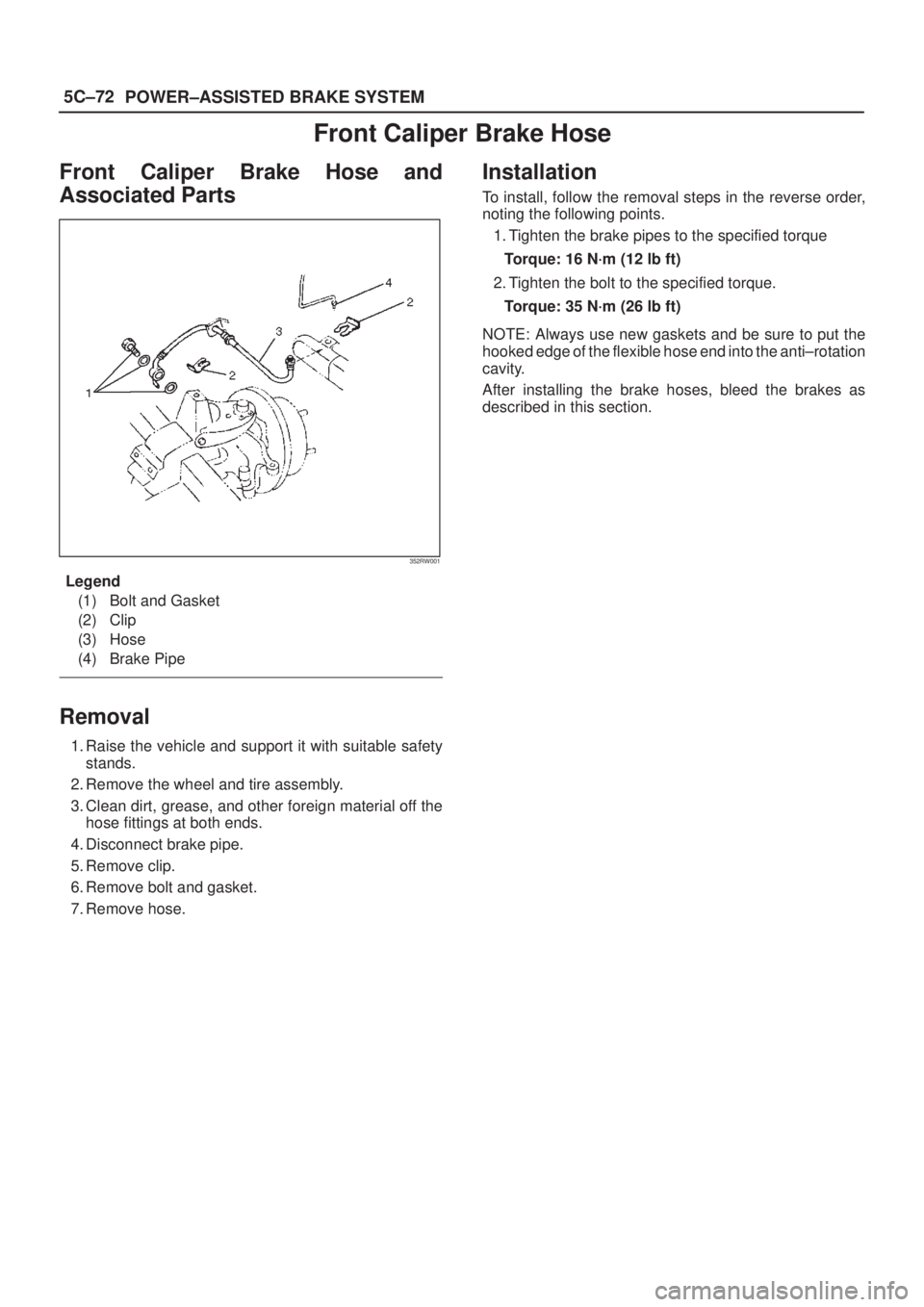

Front Caliper Brake Hose
Front Caliper Brake Hose and
Associated Parts
352RW001
Legend
(1) Bolt and Gasket
(2) Clip
(3) Hose
(4) Brake Pipe
Removal
1. Raise the veh

Load next 8 pages

Page: < prev 1-10 ... 713-720 721-728 729-736 737-744 745-752 753-760 761-768 769-776 777-784 ... 2104 next >

sensor window 4WD maintenance auxiliary battery location open bonnet
