Page 1785 of 2100

ISUZU AXIOM 2002 Service Repair Manual LIGHTING SYSTEM8A±9 High Mounted Stoplight Assembly Removal 1. Disconnect the battery ground cable. 2. Remove the high mounted stoplight assembly (1). Remove the cover (2). Remove two screws. Disc

Page 1786 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8A±10LIGHTING SYSTEM Backup Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the rear combination light assembly. Refer to Taillight Bulb in this section. 3. Remove the bulb (1)

Page 1787 of 2100

ISUZU AXIOM 2002 Service Repair Manual LIGHTING SYSTEM8A±11 Rear Turn Signal Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the rear combination light assembly. Refer to Taillight Bulb in this section. 3. Remove th

Page 1788 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8A±12LIGHTING SYSTEM Map Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the lens (2). 3. Remove the bulb (1). Pull out the bulb. 805R200002 Installation To install, follow the

Page 1789 of 2100

ISUZU AXIOM 2002 Service Repair Manual LIGHTING SYSTEM8A±13 Luggage Room Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the lens (2). 3. Remove the bulb (1). Pull out the bulb. 805R200001 Installation To install, fo

Page 1790 of 2100

ISUZU AXIOM 2002 Service Repair Manual 8A±14LIGHTING SYSTEM Vanity Mirror Illumination Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the lens (1). 3. Remove the bulb (2). 805R200004 Installation To install, follow t

Page 1791 of 2100

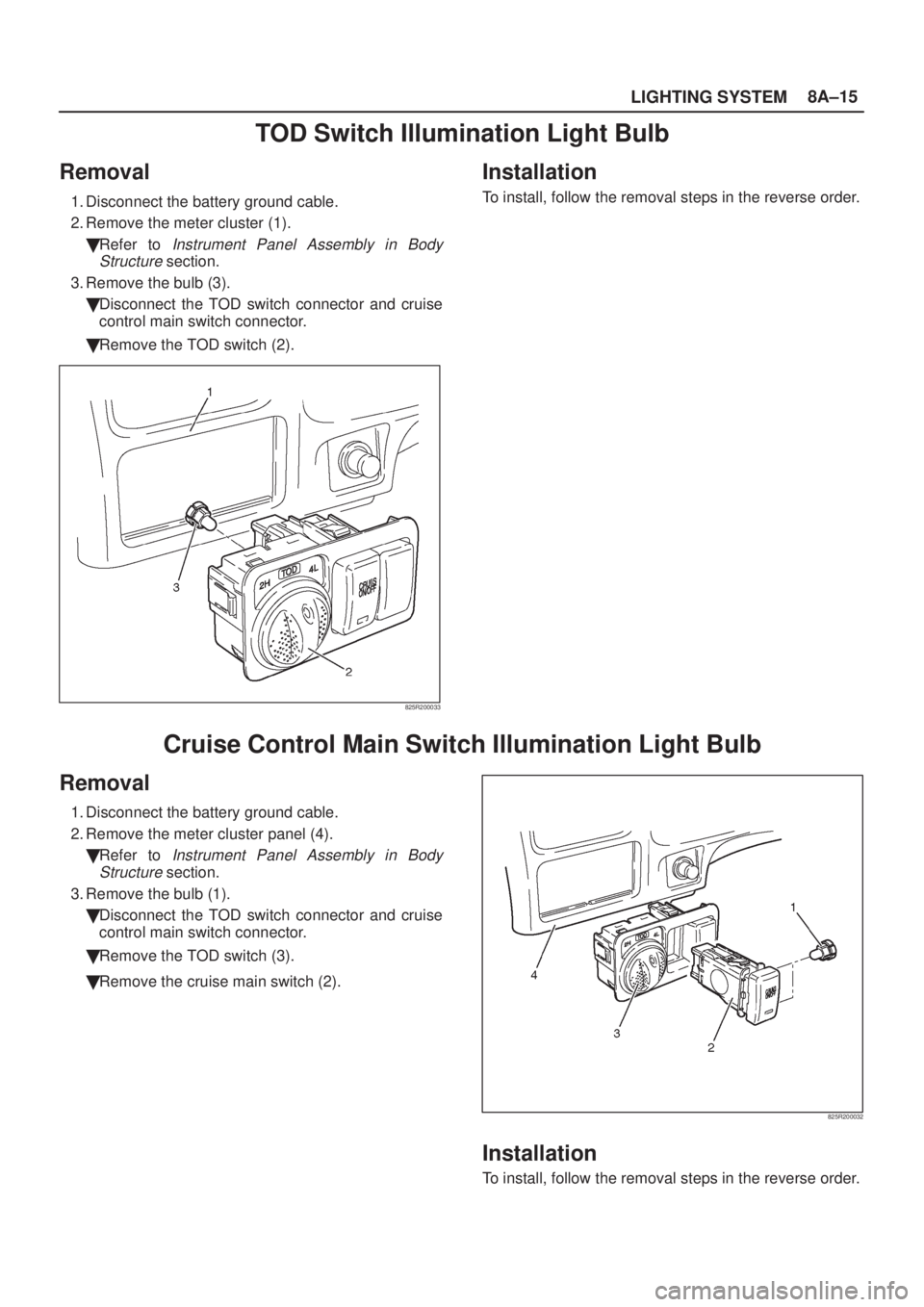

ISUZU AXIOM 2002 Service Repair Manual LIGHTING SYSTEM8A±15 TOD Switch Illumination Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the meter cluster (1). Refer to Instrument Panel Assembly in Body Structure sectio

Page 1792 of 2100

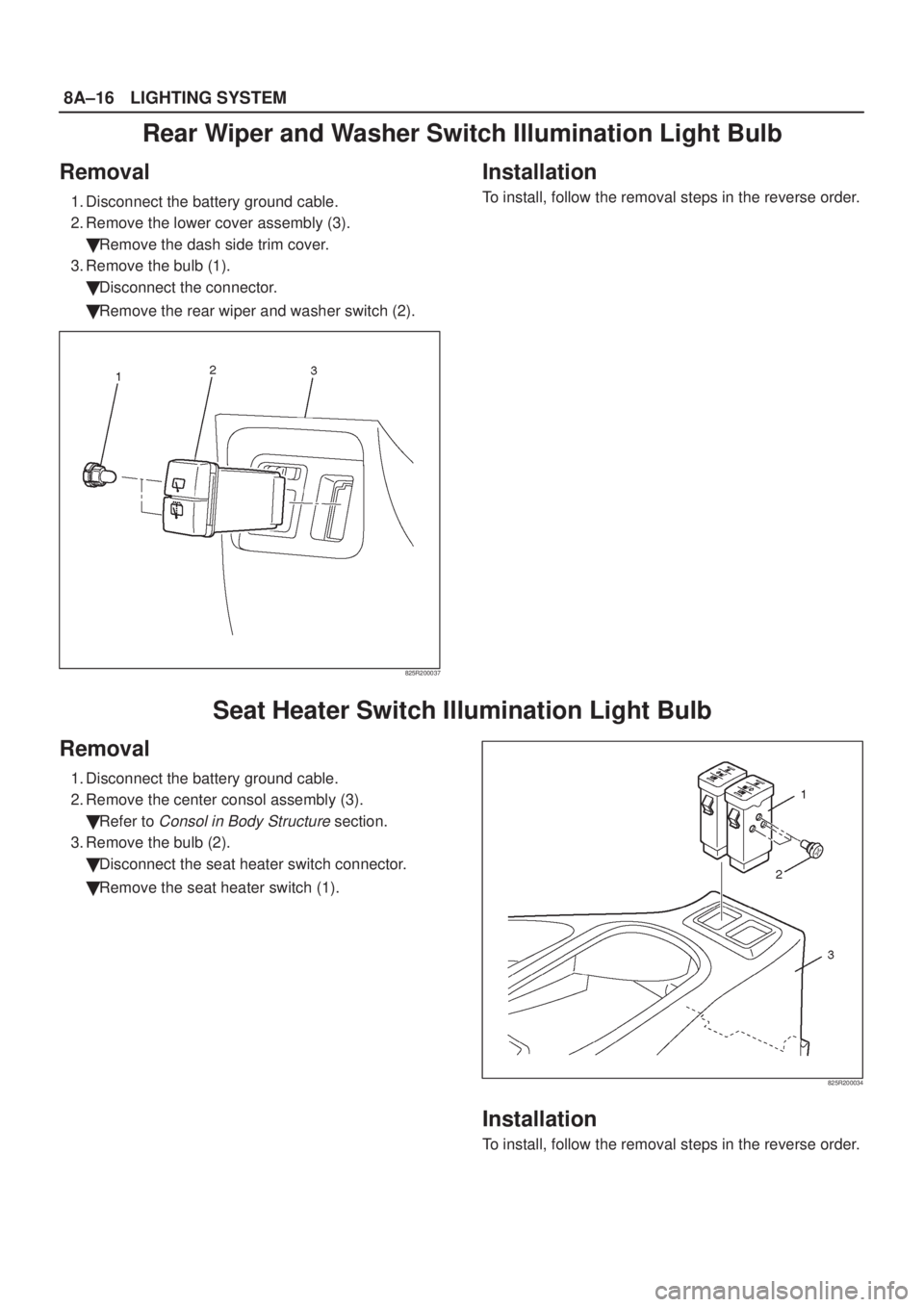

ISUZU AXIOM 2002 Service Repair Manual 8A±16LIGHTING SYSTEM Rear Wiper and Washer Switch Illumination Light Bulb Removal 1. Disconnect the battery ground cable. 2. Remove the lower cover assembly (3). Remove the dash side trim cover. 3.
