Page 753 of 2100

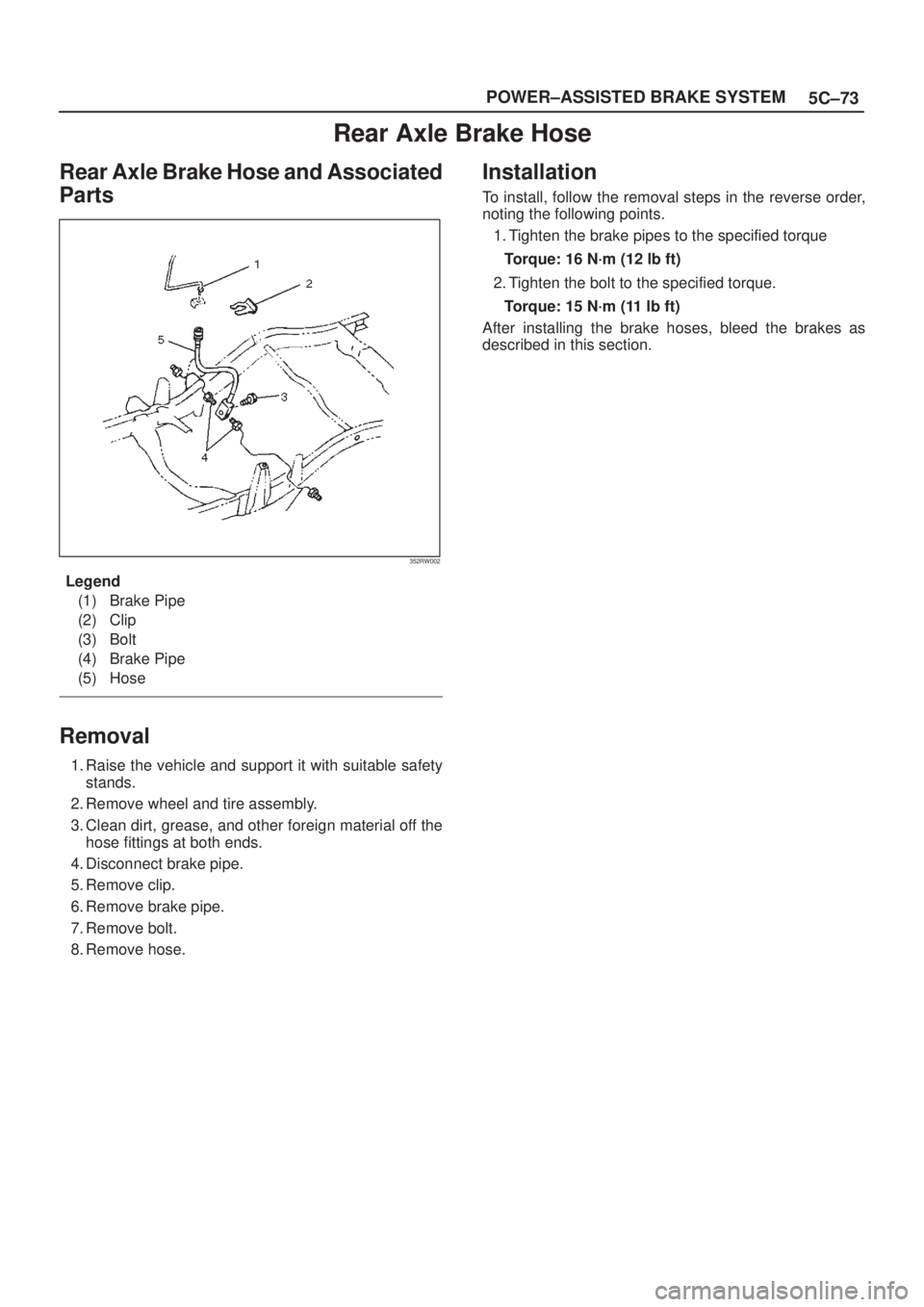

ISUZU AXIOM 2002 Service Repair Manual 5C±73 POWER±ASSISTED BRAKE SYSTEM Rear Axle Brake Hose Rear Axle Brake Hose and Associated Parts 352RW002 Legend (1) Brake Pipe (2) Clip (3) Bolt (4) Brake Pipe (5) Hose Removal 1. Raise the vehicle

Page 754 of 2100

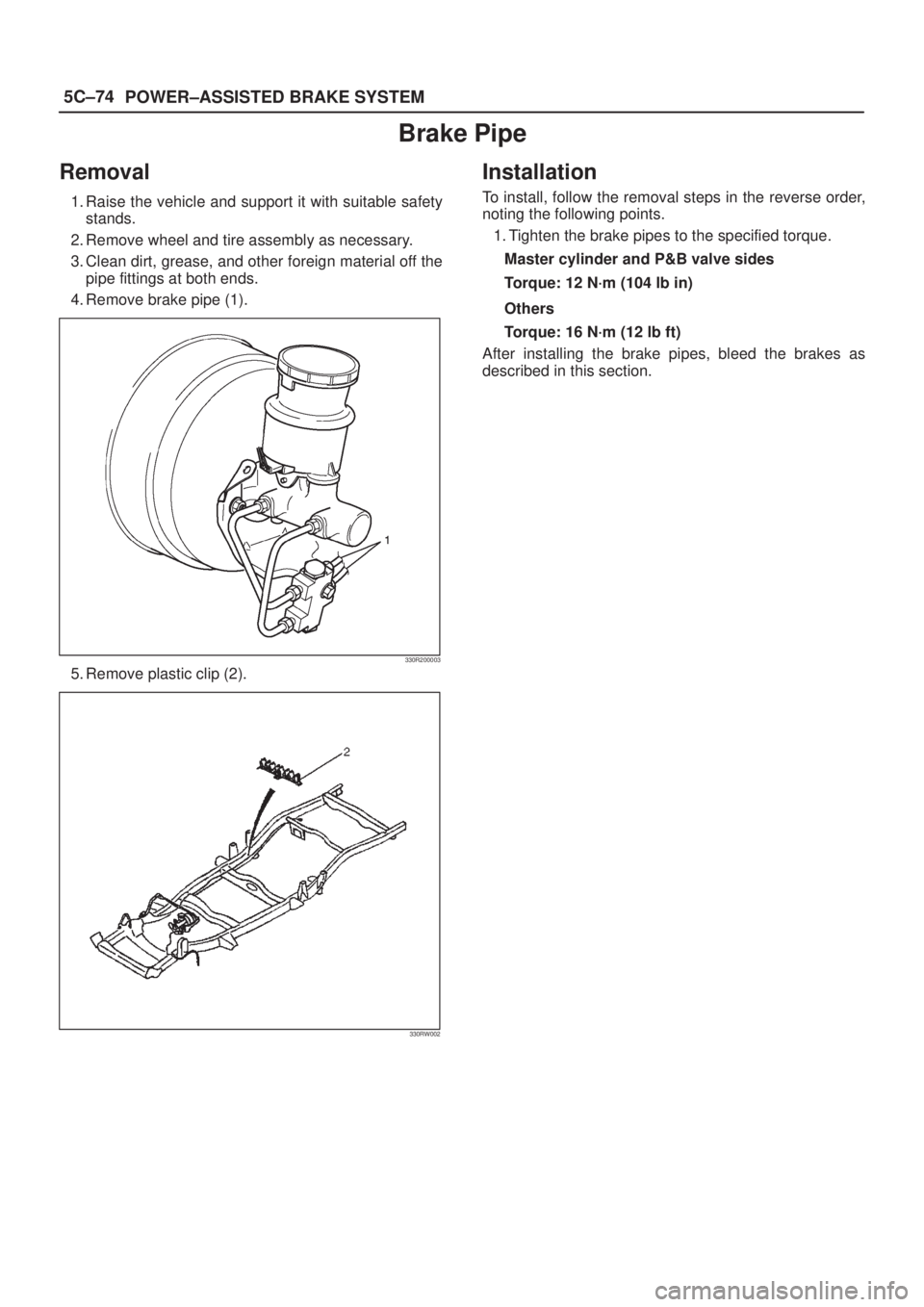

ISUZU AXIOM 2002 Service Repair Manual 5C±74 POWER±ASSISTED BRAKE SYSTEM Brake Pipe Removal 1. Raise the vehicle and support it with suitable safety stands. 2. Remove wheel and tire assembly as necessary. 3. Clean dirt, grease, and other

Page 755 of 2100

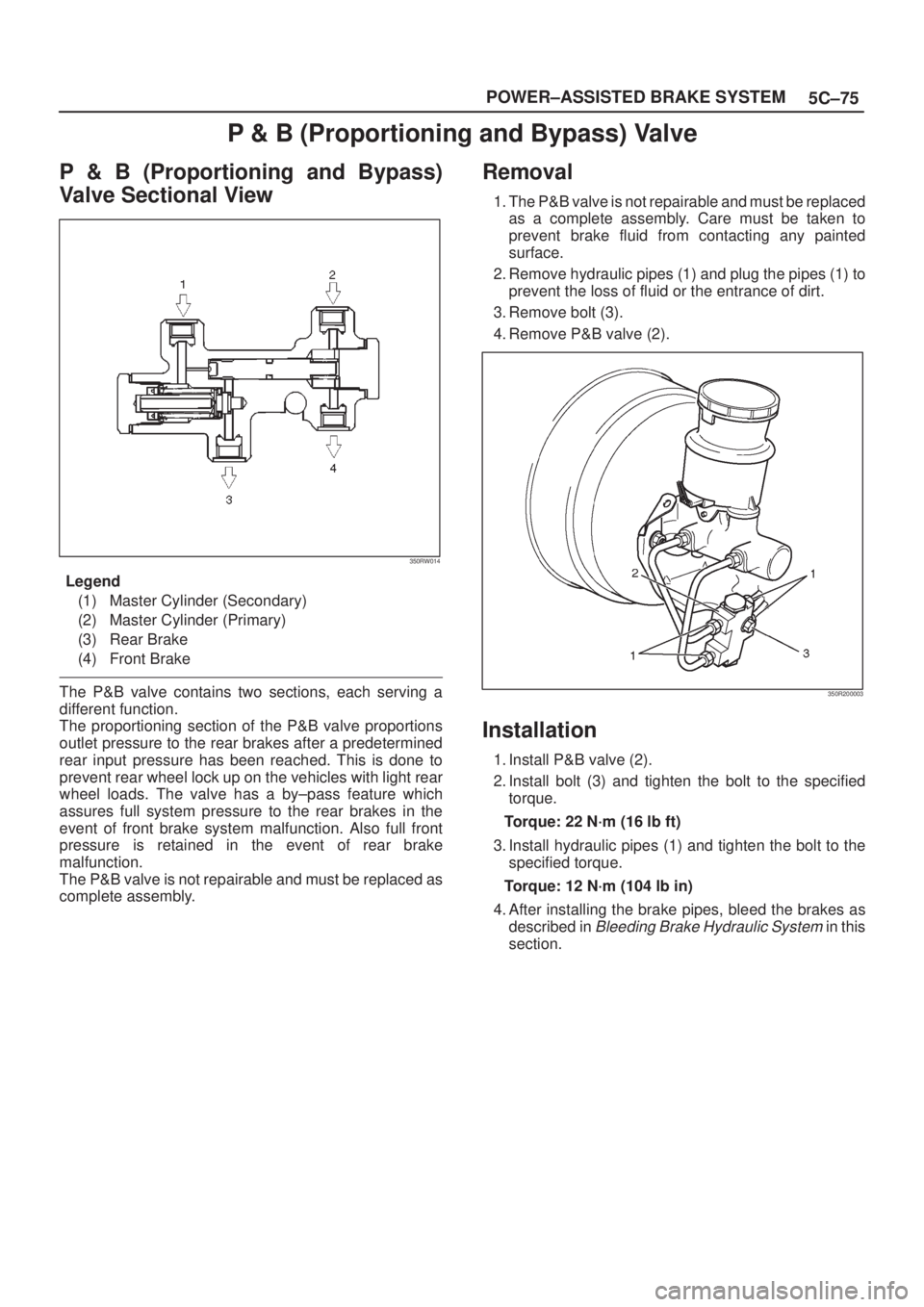

ISUZU AXIOM 2002 Service Repair Manual 5C±75 POWER±ASSISTED BRAKE SYSTEM P & B (Proportioning and Bypass) Valve P & B (Proportioning and Bypass) Valve Sectional View 350RW014 Legend (1) Master Cylinder (Secondary) (2) Master Cylinder (Pr

Page 756 of 2100

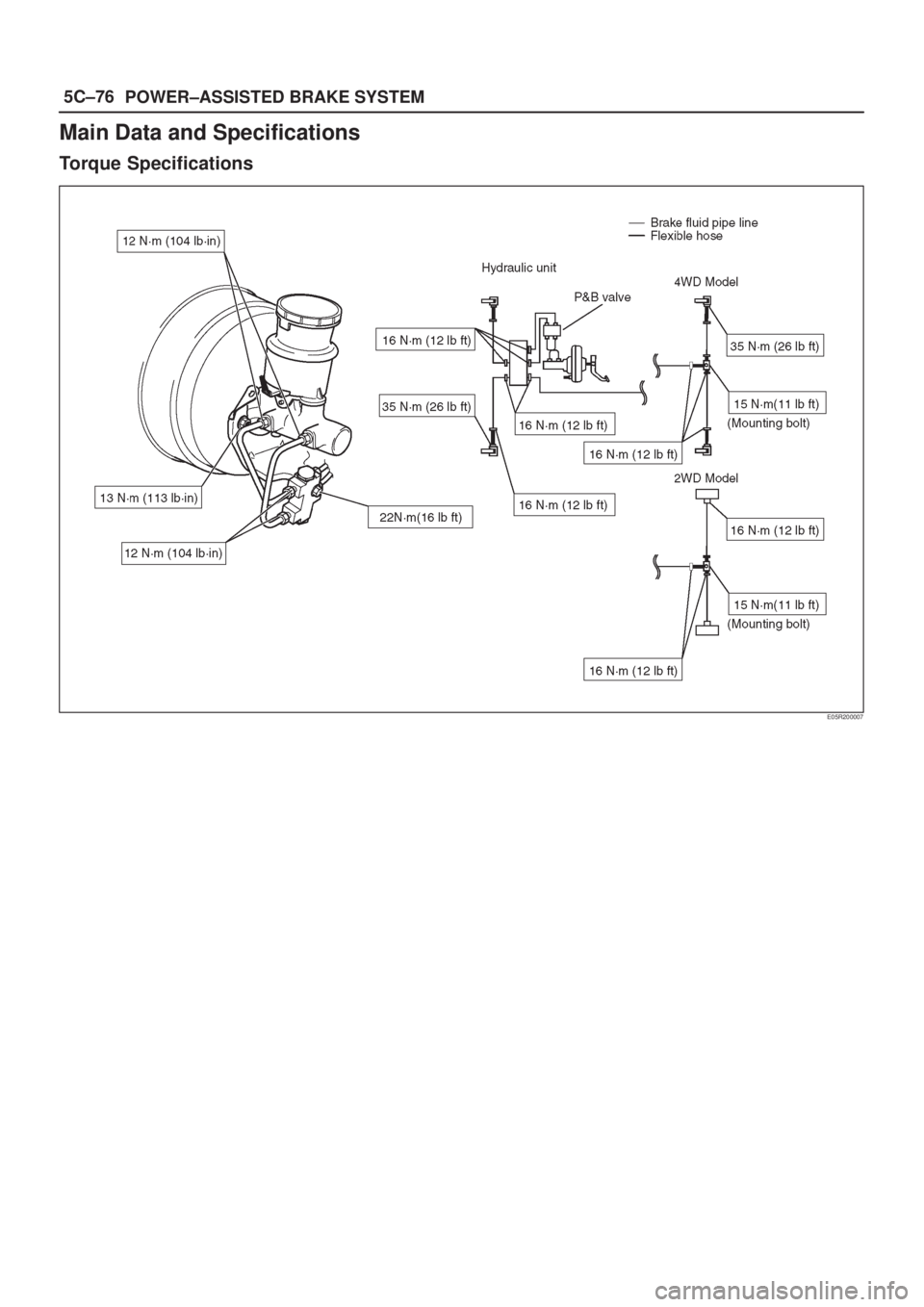

ISUZU AXIOM 2002 Service Repair Manual 5C±76 POWER±ASSISTED BRAKE SYSTEM Main Data and Specifications Torque Specifications E05R200007

Page 757 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±77 POWER±ASSISTED BRAKE SYSTEM Brake Pedal Checking Pedal Height The push rod serves as the brake pedal stopper when the pedal is fully released. Brake pedal height adjustment should be performed

Page 758 of 2100

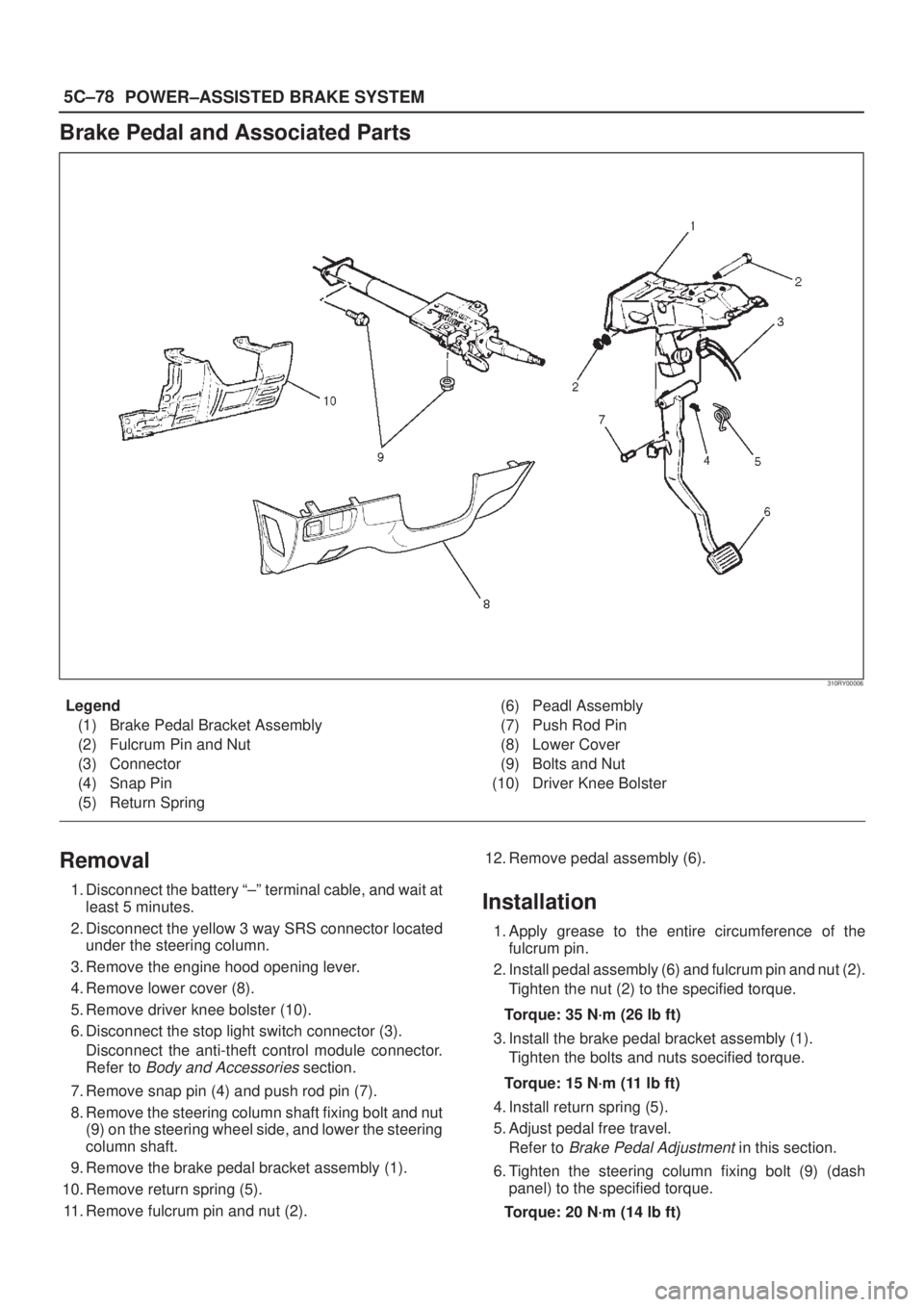

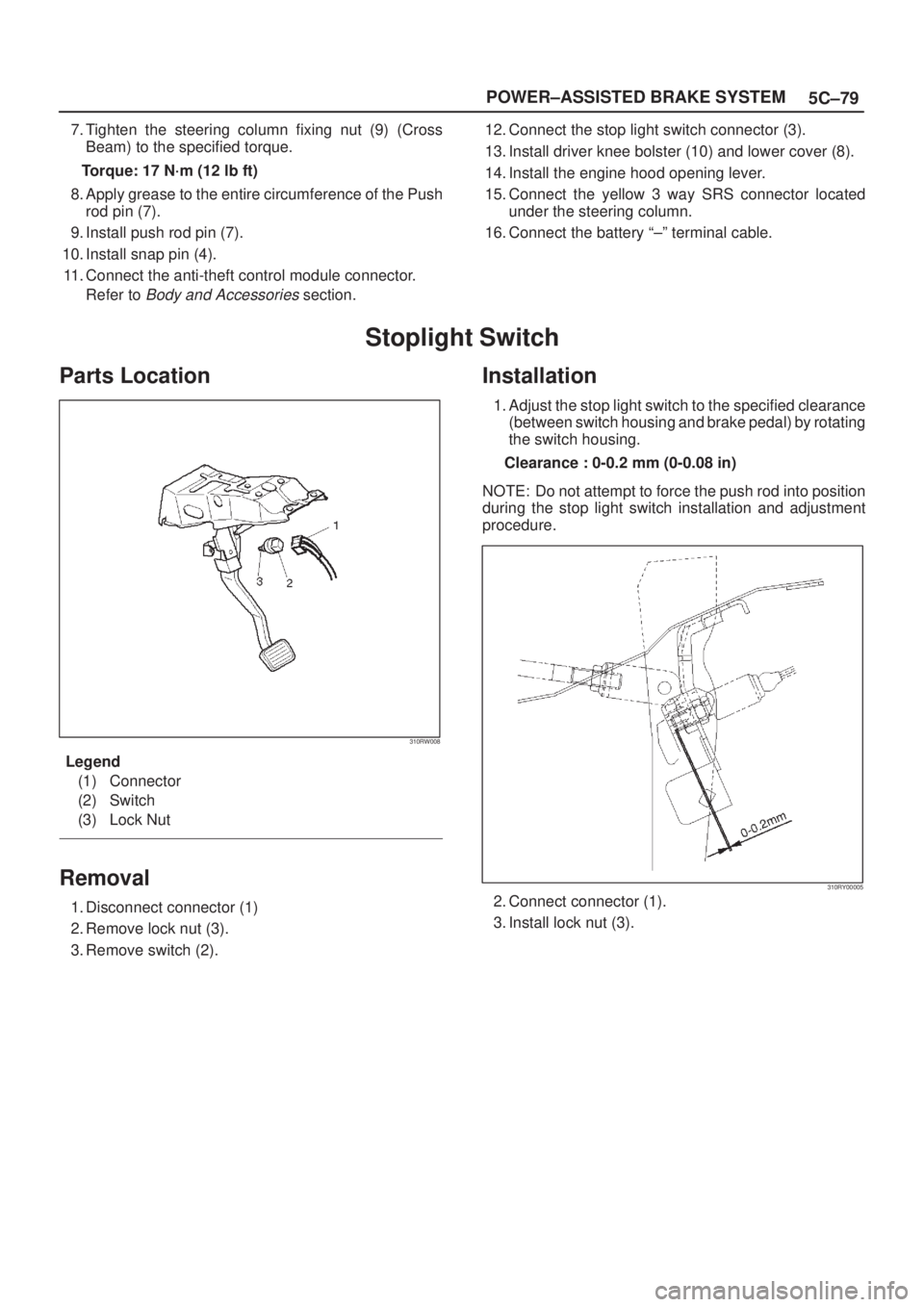

ISUZU AXIOM 2002 Service Repair Manual 5C±78 POWER±ASSISTED BRAKE SYSTEM Brake Pedal and Associated Parts 310RY00006 Legend (1) Brake Pedal Bracket Assembly (2) Fulcrum Pin and Nut (3) Connector (4) Snap Pin (5) Return Spring(6) Peadl As

Page 759 of 2100

ISUZU AXIOM 2002 Service Repair Manual 5C±79 POWER±ASSISTED BRAKE SYSTEM 7. Tighten the steering column fixing nut (9) (Cross Beam) to the specified torque. Torque: 17 N´m (12 lb ft) 8. Apply grease to the entire circumference of the Pu

Page 760 of 2100

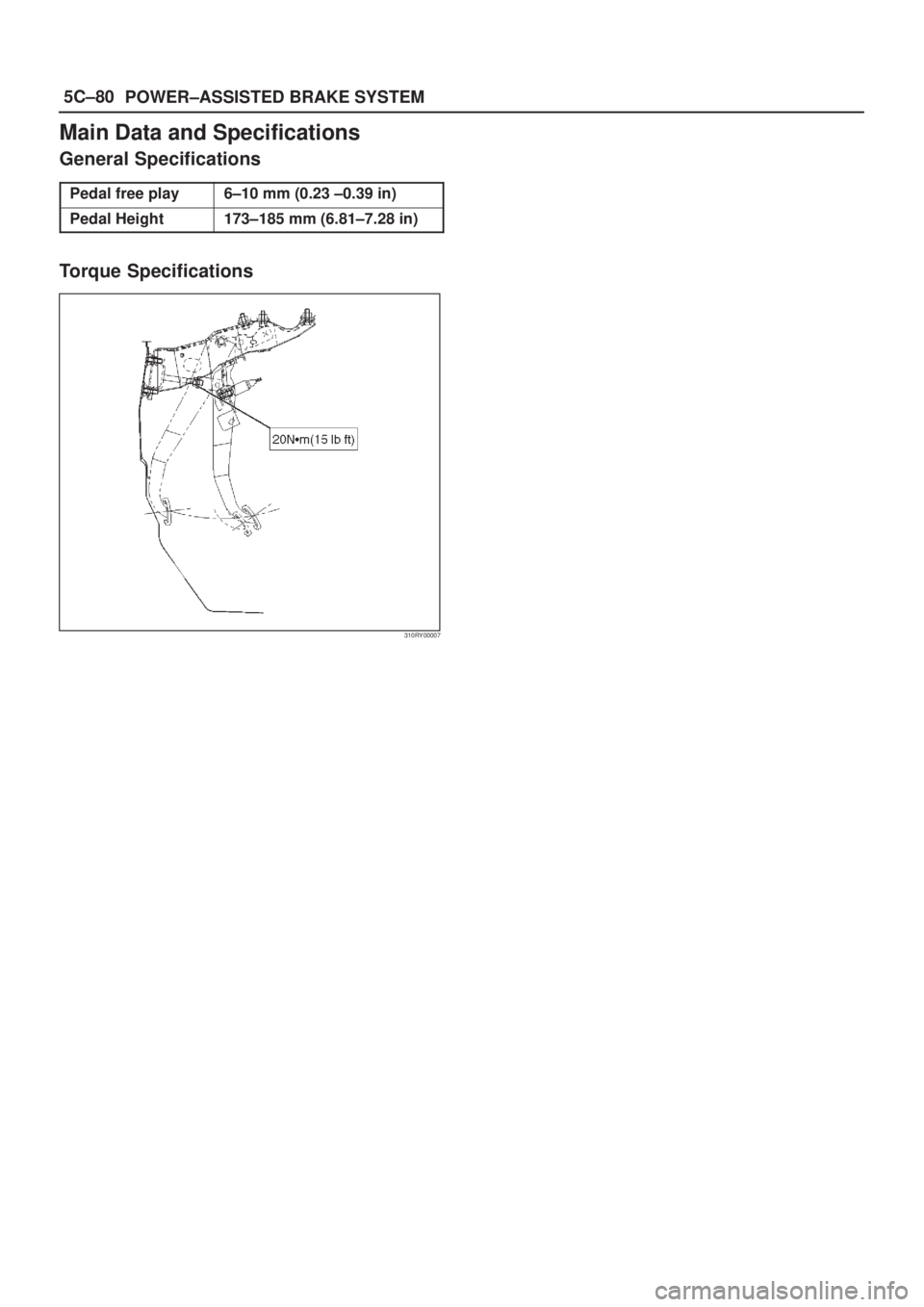

ISUZU AXIOM 2002 Service Repair Manual 5C±80 POWER±ASSISTED BRAKE SYSTEM Main Data and Specifications General Specifications Pedal free play6±10 mm (0.23 ±0.39 in) Pedal Height173±185 mm (6.81±7.28 in) Torque Specifications 310RY0000
