ISUZU AXIOM 2002 Service Repair Manual 7A±41 AUTOMATIC TRANSMISSION (4L30±E) 3. Gently pull on the connector to check that it is securely latched. 141RY00006 8. Disconnect transmission harness connector and clip. Connector : Adapter case

Page 1626 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±42 AUTOMATIC TRANSMISSION (4L30±E) 14. Loosen oil cooler pipe clamp bolt at the engine mount side. (4y4) 253RY001 15. Remove select cable by disconnecting inner cable from select lever and removi

Page 1627 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±43 AUTOMATIC TRANSMISSION (4L30±E) Installation 1. Slowly raise transmission jack until front of the transmission assembly is aligned with rear of the engine. Attach the transmission assembly to

Page 1628 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±44 AUTOMATIC TRANSMISSION (4L30±E) 4. Install under covers to the transmission and engine. 5. Install starter. Torque: 40 Nwm (30 lb ft) 6. Install select cable by connecting inner cable to selec

Page 1629 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±45 AUTOMATIC TRANSMISSION (4L30±E) 12. Install harness heat protector. Torque: 6 Nwm (52 lb in) 815RW002 13. Connect transmission harness connector and clip. Connector : Adapter case, mode switch

Page 1630 of 2100

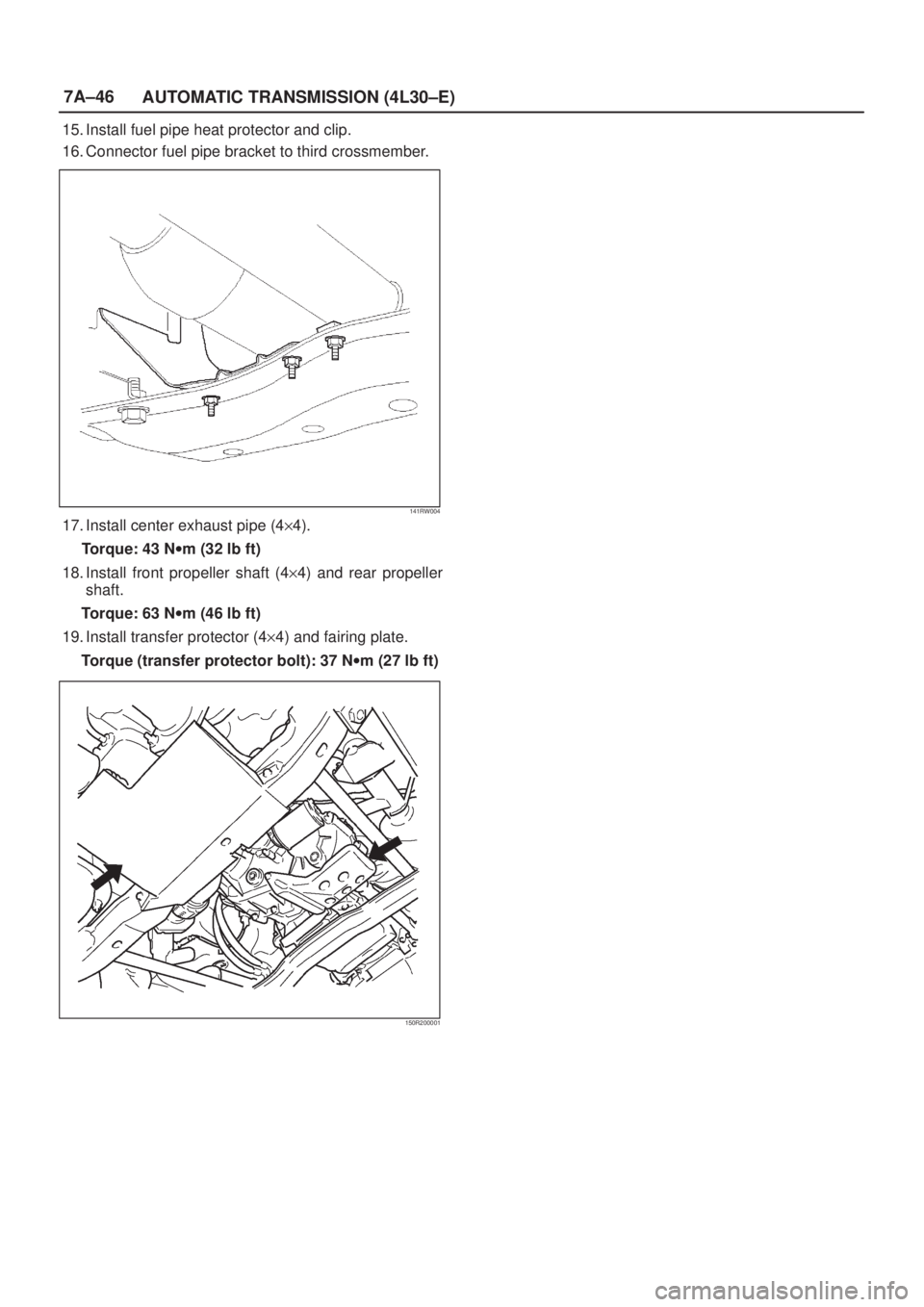

ISUZU AXIOM 2002 Service Repair Manual 7A±46 AUTOMATIC TRANSMISSION (4L30±E) 15. Install fuel pipe heat protector and clip. 16. Connector fuel pipe bracket to third crossmember. 141RW004 17. Install center exhaust pipe (4y4). Torque: 43

Page 1631 of 2100

ISUZU AXIOM 2002 Service Repair Manual 7A±47 AUTOMATIC TRANSMISSION (4L30±E) Solenoid (Main Case Valve Body) Removal 1. Raise the vehicle and support it on jack stands. 2. Disconnect battery ground cable. 3. Remove transfer protector (4

Page 1632 of 2100

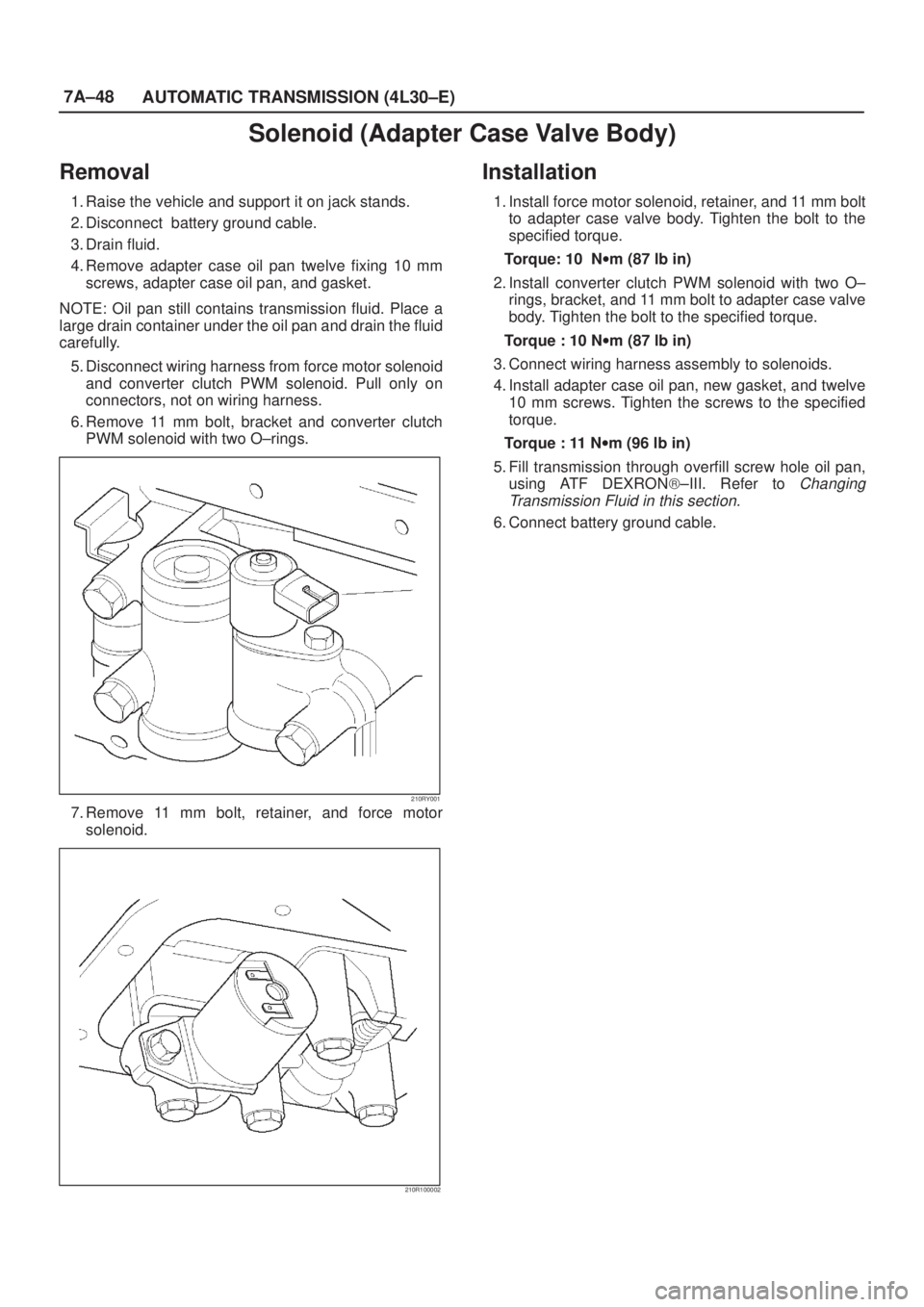

ISUZU AXIOM 2002 Service Repair Manual 7A±48 AUTOMATIC TRANSMISSION (4L30±E) Solenoid (Adapter Case Valve Body) Removal 1. Raise the vehicle and support it on jack stands. 2. Disconnect battery ground cable. 3. Drain fluid. 4. Remove ad
