Page 1873 of 2100
METER AND GAUGE8E±7
A/T Shift Indicator Light Bulb
Removal
1. Disconnect the battery ground cable.

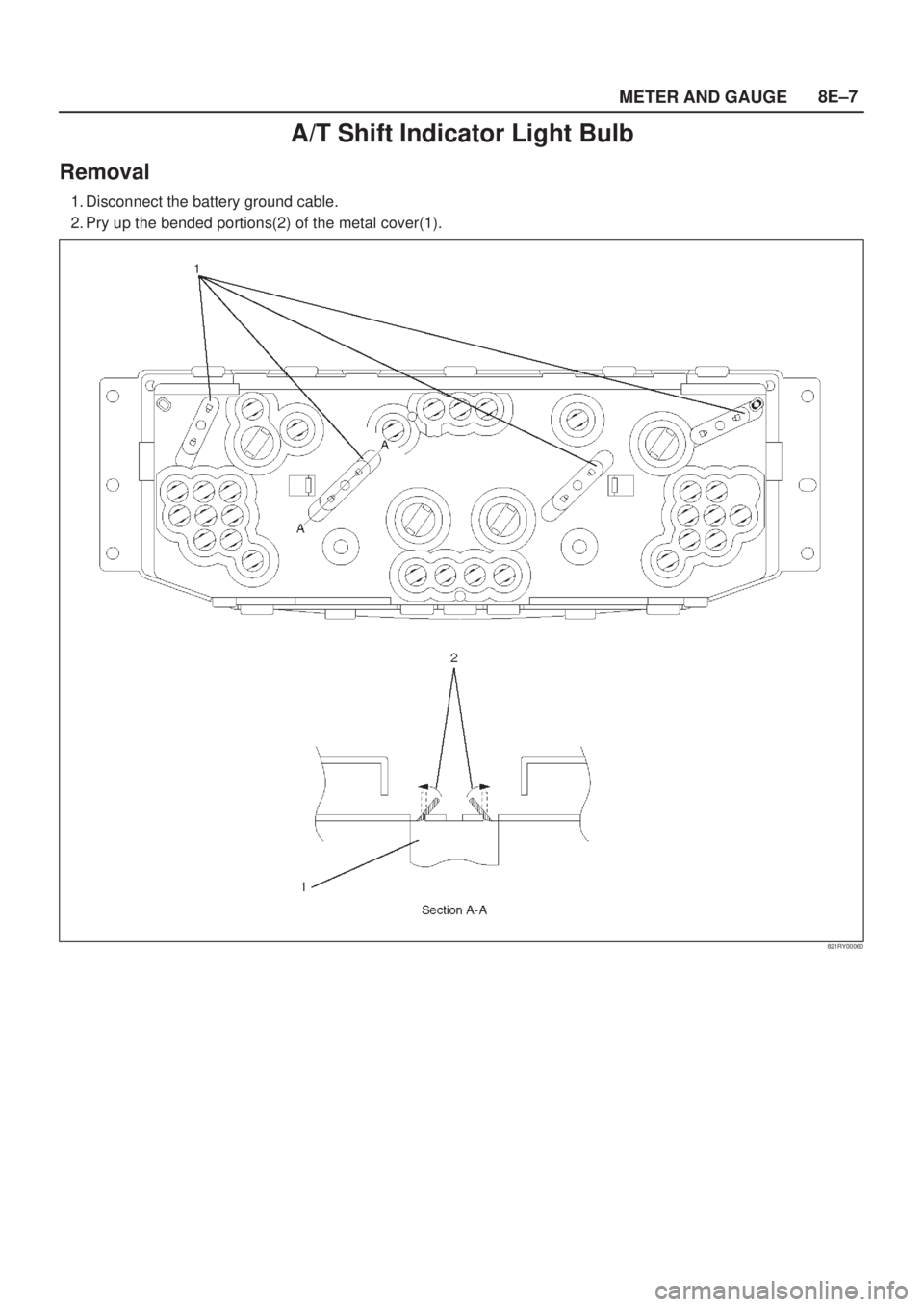

2. Pry up the bended portions(2) of the metal cover(1).
821RY00060
Page 1874 of 2100
8E±8METER AND GAUGE

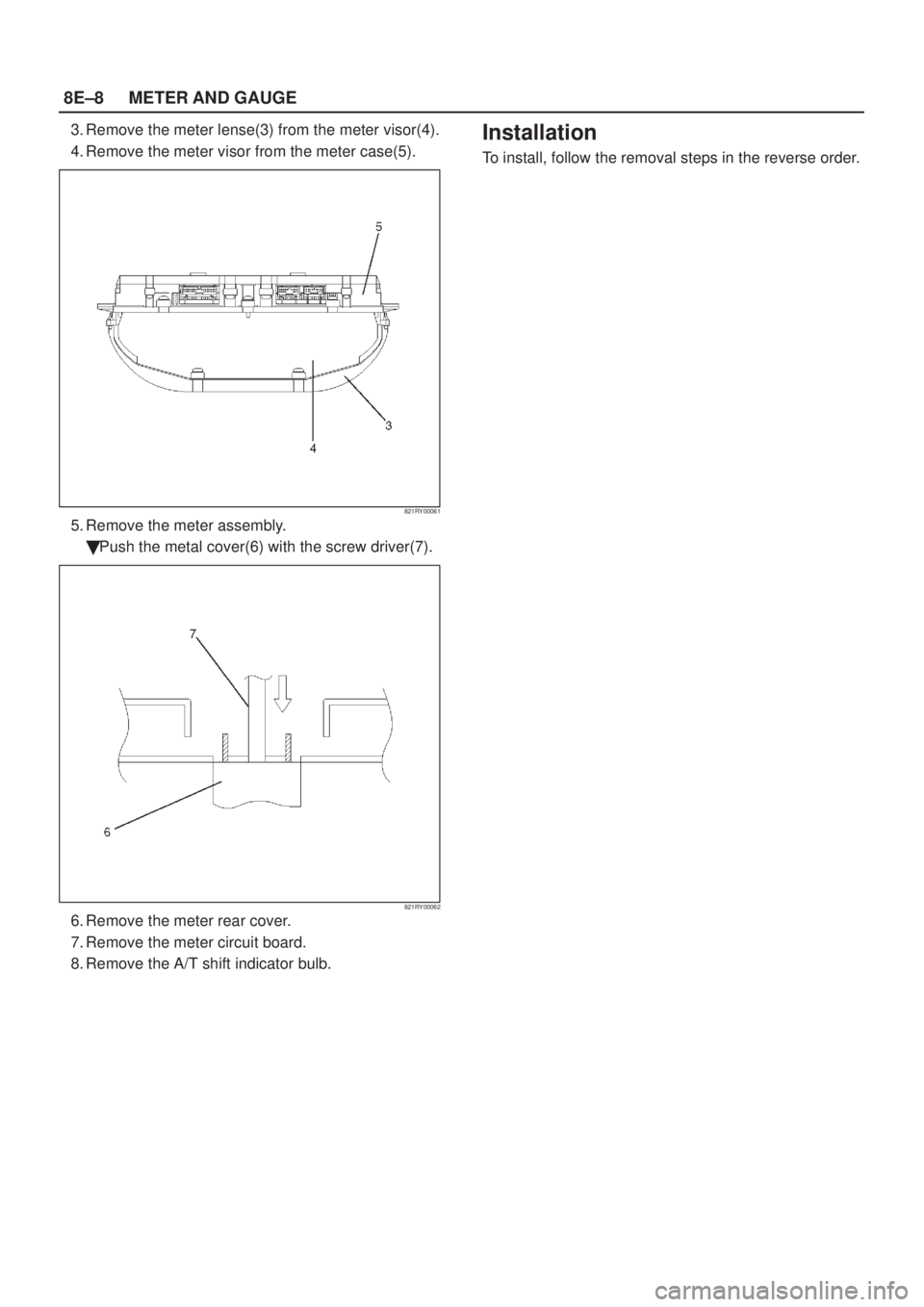

3. Remove the meter lense(3) from the meter visor(4).
4. Remove the meter visor from the meter case(5).
821RY00061
5. Remove the meter assembly.
Push the metal cover(6) with the screw driver(7).
821RY00062
6. Remove the meter rear cover.
7. Remove the meter circuit board.
8. Remove the A/T shift indicator bulb.
Installation
To install, follow the removal steps in the reverse order.
Page 1875 of 2100
METER AND GAUGE8E±9
Vehicle Speed Sensor
Removal
1. Disconnect the battery ground cable.
2. Remove the vehicle speed sensor(1).
Disconnect the connector.
Rotate the sensor counterclockwise.
225R200001
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the vehicle speed sensor to the specified
torque.
Torque: 25 N´m (18 lb ft)
Fuel Tank Unit
Removal
Refer to Engine Fuel section.
Page 1876 of 2100
8E±10METER AND GAUGE
Main Data and Specifications
Torque Specifications
ApplicationN´mLb FtLb In
Vehicle Speed Sensor Fixing2720Ð
Page 1877 of 2100

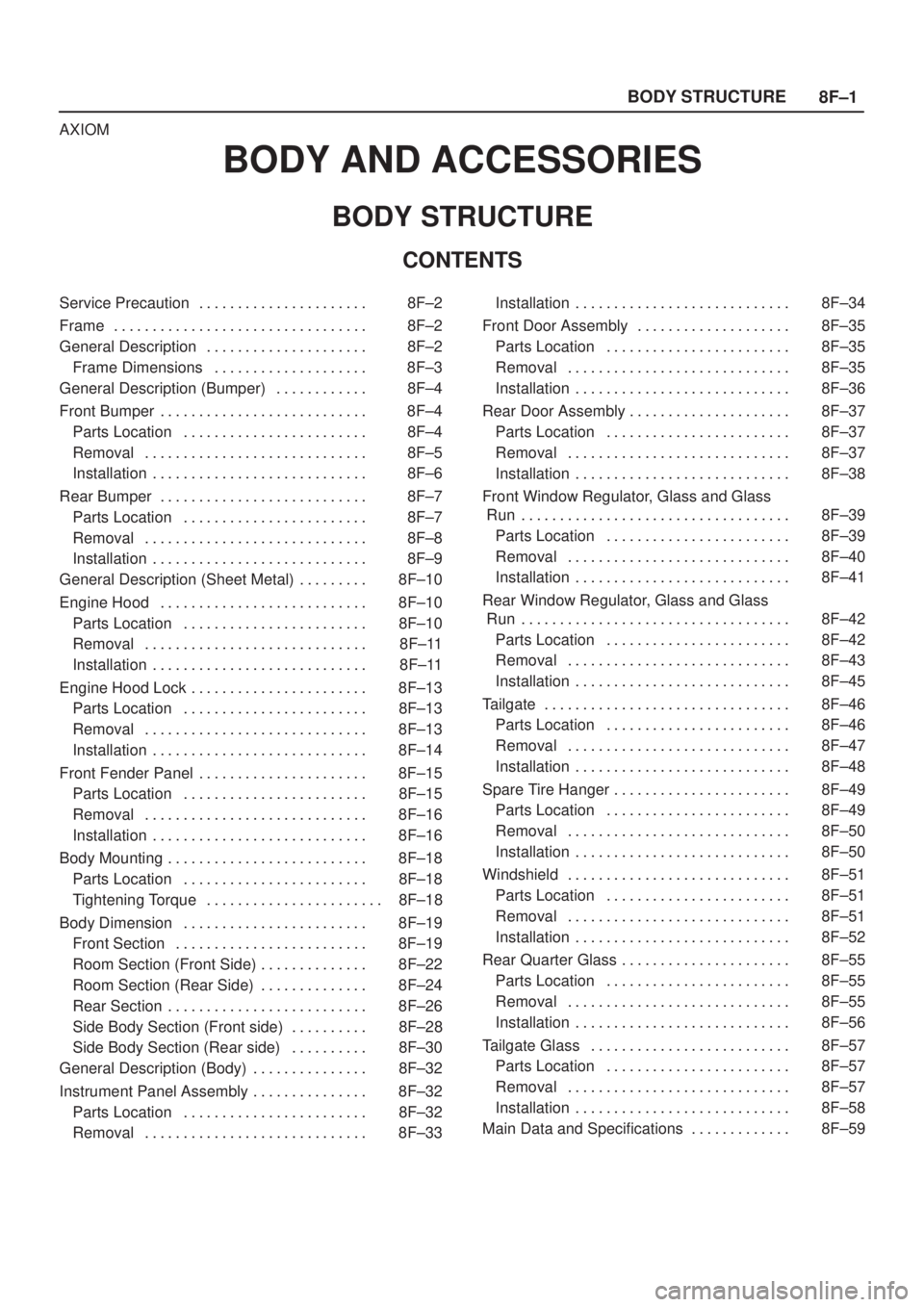

8F±1 BODY STRUCTURE
AXIOM
BODY AND ACCESSORIES
BODY STRUCTURE
CONTENTS
Service Precaution 8F±2. . . . . . . . . . . . . . . . . . . . . .
Frame 8F±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 8F±2. . . . . . . . . . . . . . . . . . . . .
Frame Dimensions 8F±3. . . . . . . . . . . . . . . . . . . .
General Description (Bumper) 8F±4. . . . . . . . . . . .
Front Bumper 8F±4. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±4. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Bumper 8F±7. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±7. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description (Sheet Metal) 8F±10. . . . . . . . .
Engine Hood 8F±10. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±10. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Lock 8F±13. . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±13. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Fender Panel 8F±15. . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±15. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Body Mounting 8F±18. . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±18. . . . . . . . . . . . . . . . . . . . . . . .
Tightening Torque 8F±18. . . . . . . . . . . . . . . . . . . . . . .
Body Dimension 8F±19. . . . . . . . . . . . . . . . . . . . . . . .
Front Section 8F±19. . . . . . . . . . . . . . . . . . . . . . . . .
Room Section (Front Side) 8F±22. . . . . . . . . . . . . .
Room Section (Rear Side) 8F±24. . . . . . . . . . . . . .
Rear Section 8F±26. . . . . . . . . . . . . . . . . . . . . . . . . .
Side Body Section (Front side) 8F±28. . . . . . . . . .
Side Body Section (Rear side) 8F±30. . . . . . . . . .
General Description (Body) 8F±32. . . . . . . . . . . . . . .
Instrument Panel Assembly 8F±32. . . . . . . . . . . . . . .
Parts Location 8F±32. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation 8F±34. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Door Assembly 8F±35. . . . . . . . . . . . . . . . . . . .
Parts Location 8F±35. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±35. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±36. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Assembly 8F±37. . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±37. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±37. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±38. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Window Regulator, Glass and Glass
Run 8F±39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±39. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±40. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±41. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Window Regulator, Glass and Glass
Run 8F±42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±42. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±43. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±45. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate 8F±46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±46. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±47. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±48. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spare Tire Hanger 8F±49. . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±49. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±50. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±50. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield 8F±51. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±51. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±51. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±52. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Quarter Glass 8F±55. . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±55. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±55. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±56. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Glass 8F±57. . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±57. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±58. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8F±59. . . . . . . . . . . . .
Page 1878 of 2100

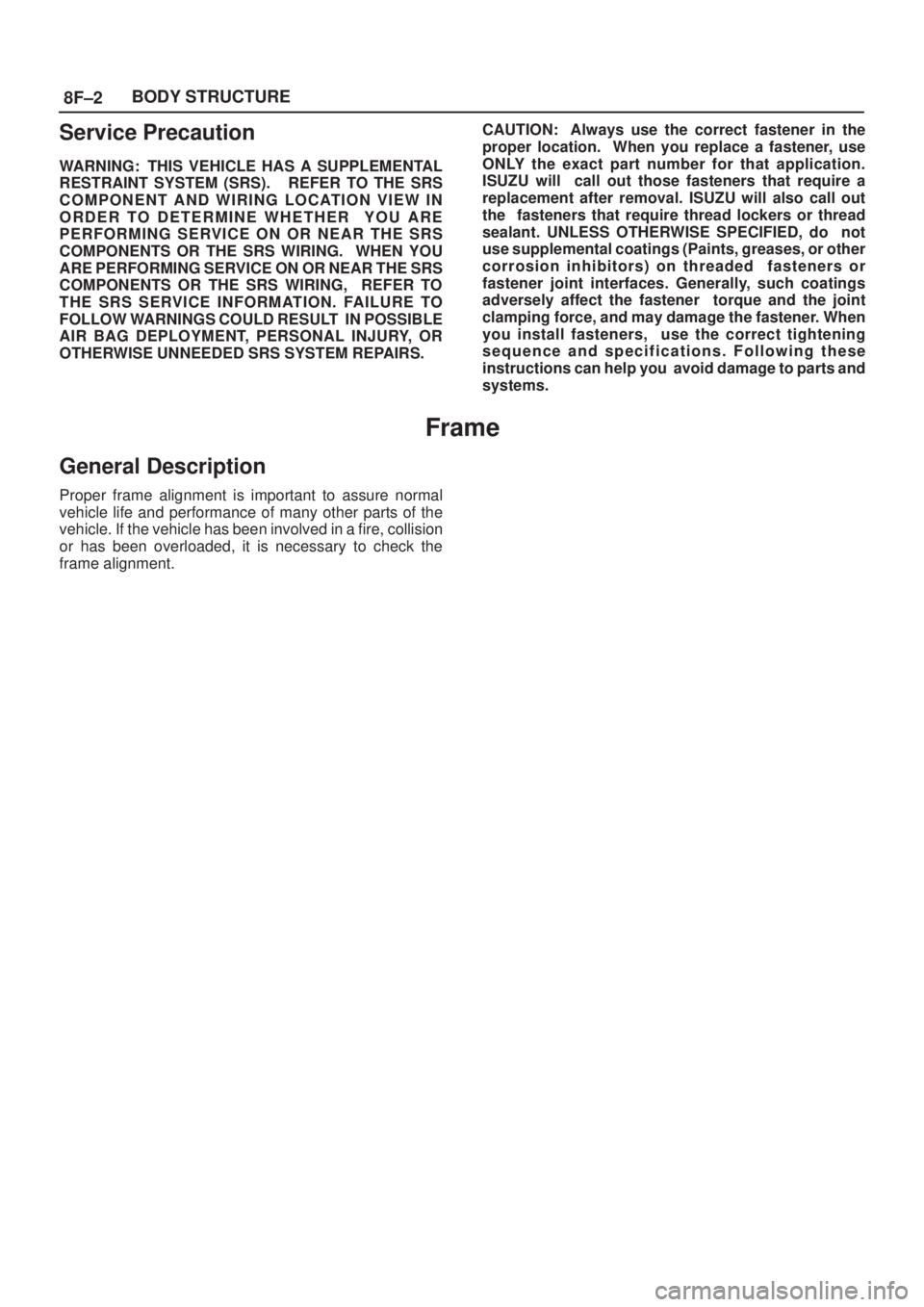

8F±2BODY STRUCTURE
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Frame
General Description
Proper frame alignment is important to assure normal
vehicle life and performance of many other parts of the
vehicle. If the vehicle has been involved in a fire, collision
or has been overloaded, it is necessary to check the
frame alignment.
Page 1879 of 2100
8F±3 BODY STRUCTURE
Frame Dimensions
501R200004
Page 1880 of 2100
8F±4BODY STRUCTURE
General Description (Bumper)
Front and rear bumpers consist of bumper fascia,
support, and reinforcement.
The absorbing capability for both front and rear bumper
systems are achieved through reinforcements in each
bumper.
Front Bumper
Parts Location
601R200011

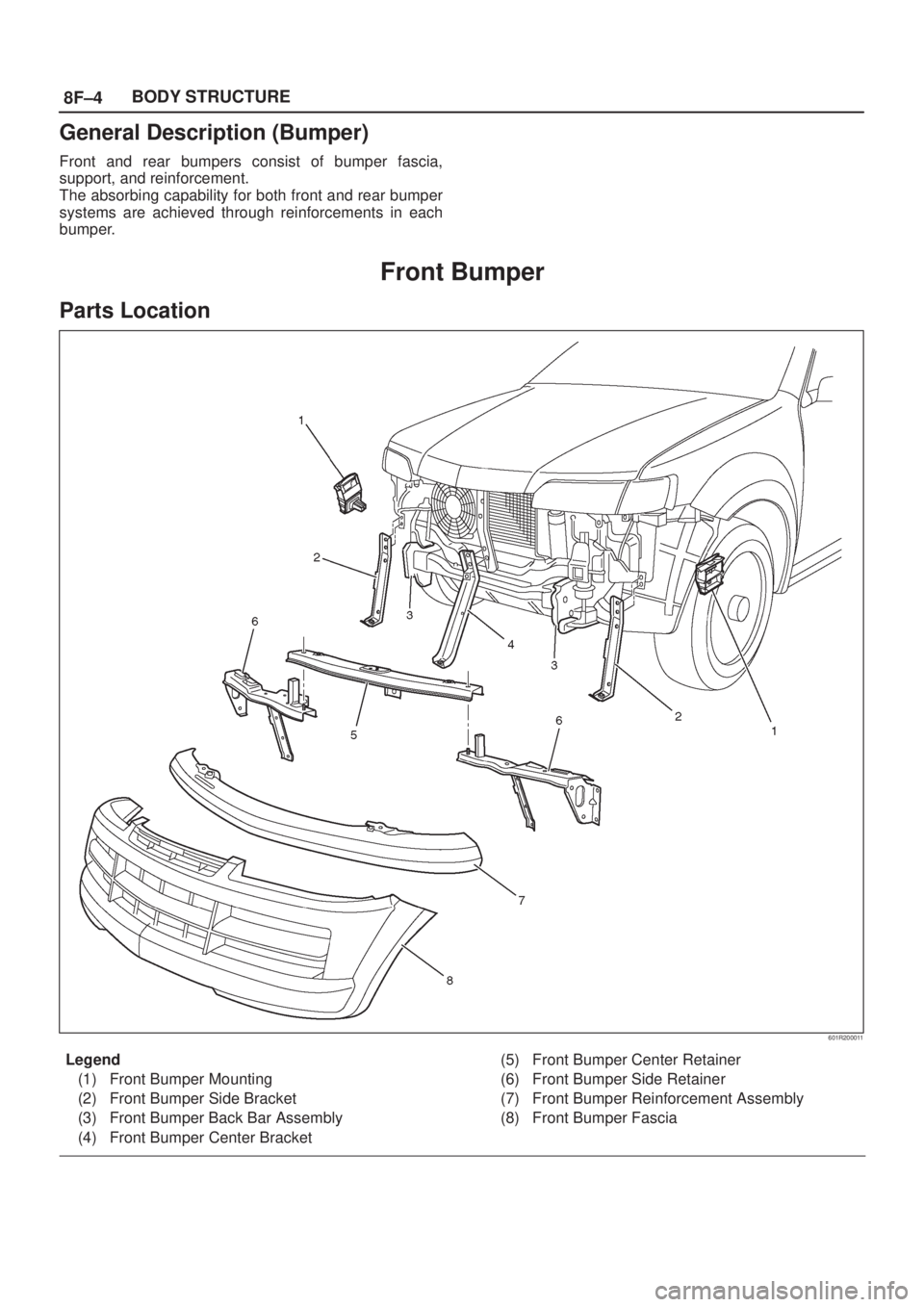

Legend
(1) Front Bumper Mounting
(2) Front Bumper Side Bracket
(3) Front Bumper Back Bar Assembly
(4) Front Bumper Center Bracket(5) Front Bumper Center Retainer
(6) Front Bumper Side Retainer
(7) Front Bumper Reinforcement Assembly
(8) Front Bumper Fascia
