2002 ISUZU AXIOM Service Repair Manual

lockfuel typeUSBtire pressure resettiming beltspark plugs replace
Popular search:
lightjump cableOil weightoil filtertire typeradiatorrecommended oil
Previous
Next
Load previous 8 pages

Page 1569 of 2100

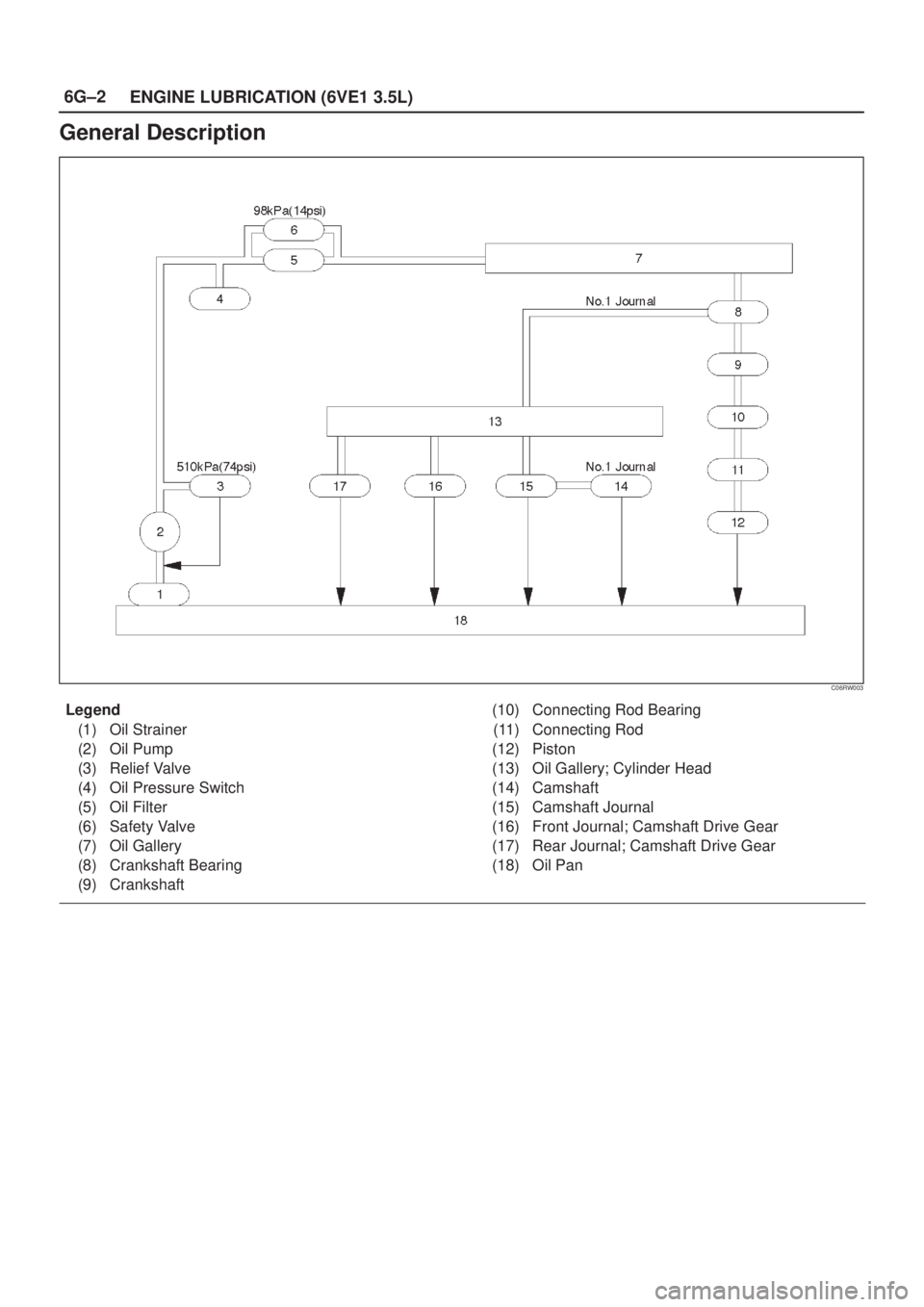

ISUZU AXIOM 2002 Service Repair Manual 6G±2 ENGINE LUBRICATION (6VE1 3.5L) General Description C06RW003 Legend (1) Oil Strainer (2) Oil Pump (3) Relief Valve (4) Oil Pressure Switch (5) Oil Filter (6) Safety Valve (7) Oil Gallery (8) Cran

Page 1570 of 2100

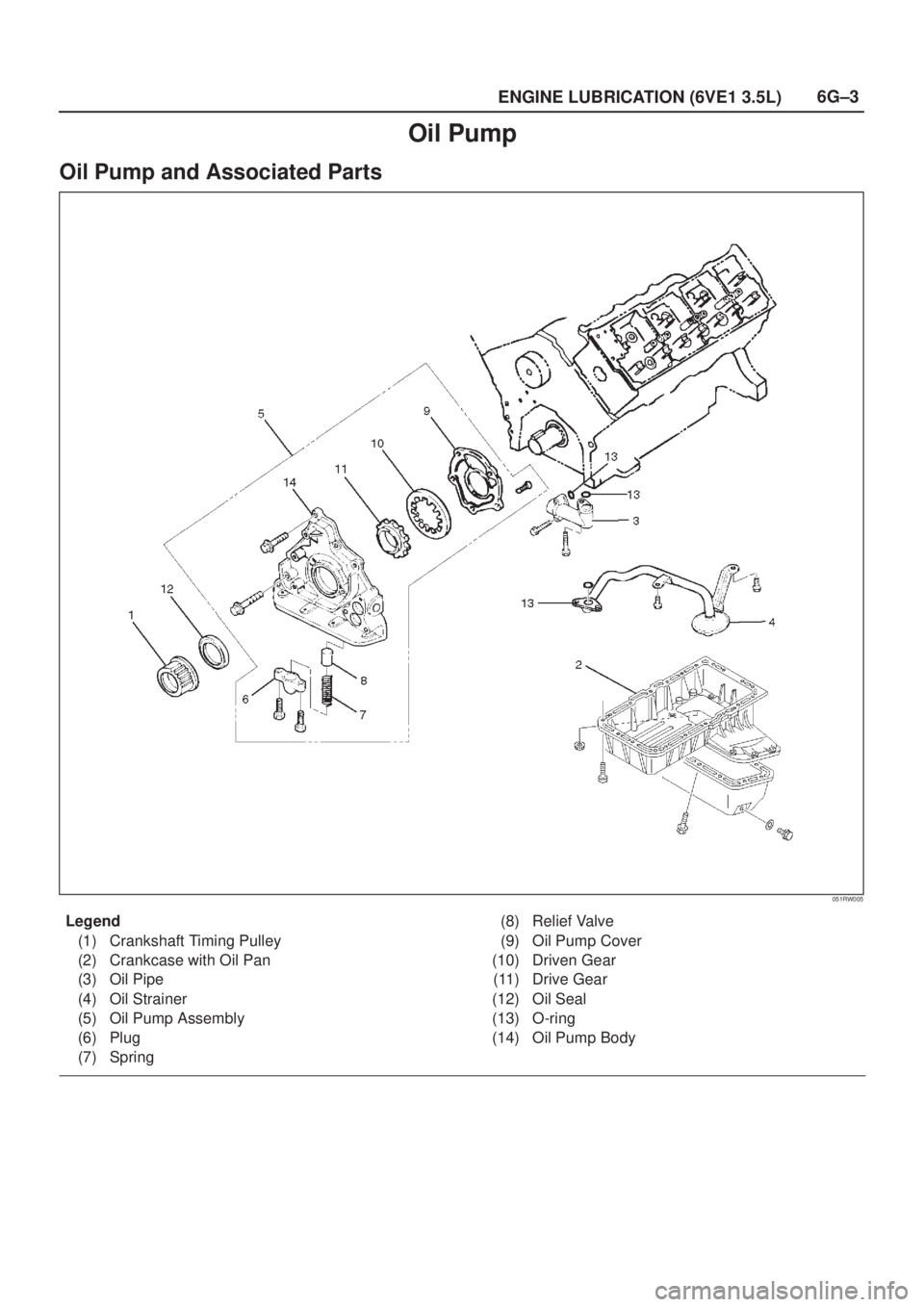

ISUZU AXIOM 2002 Service Repair Manual 6G±3 ENGINE LUBRICATION (6VE1 3.5L) Oil Pump Oil Pump and Associated Parts 051RW005 Legend (1) Crankshaft Timing Pulley (2) Crankcase with Oil Pan (3) Oil Pipe (4) Oil Strainer (5) Oil Pump Assembly

Page 1571 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6G±4 ENGINE LUBRICATION (6VE1 3.5L) Disassembly 1. Remove crankshaft timing pulley. 2. Remove crankcase with oil pan. 3. Remove oil pipe. 4. Remove oil strainer. 5. Remove oil pump assembly. 6. Remov

Page 1572 of 2100

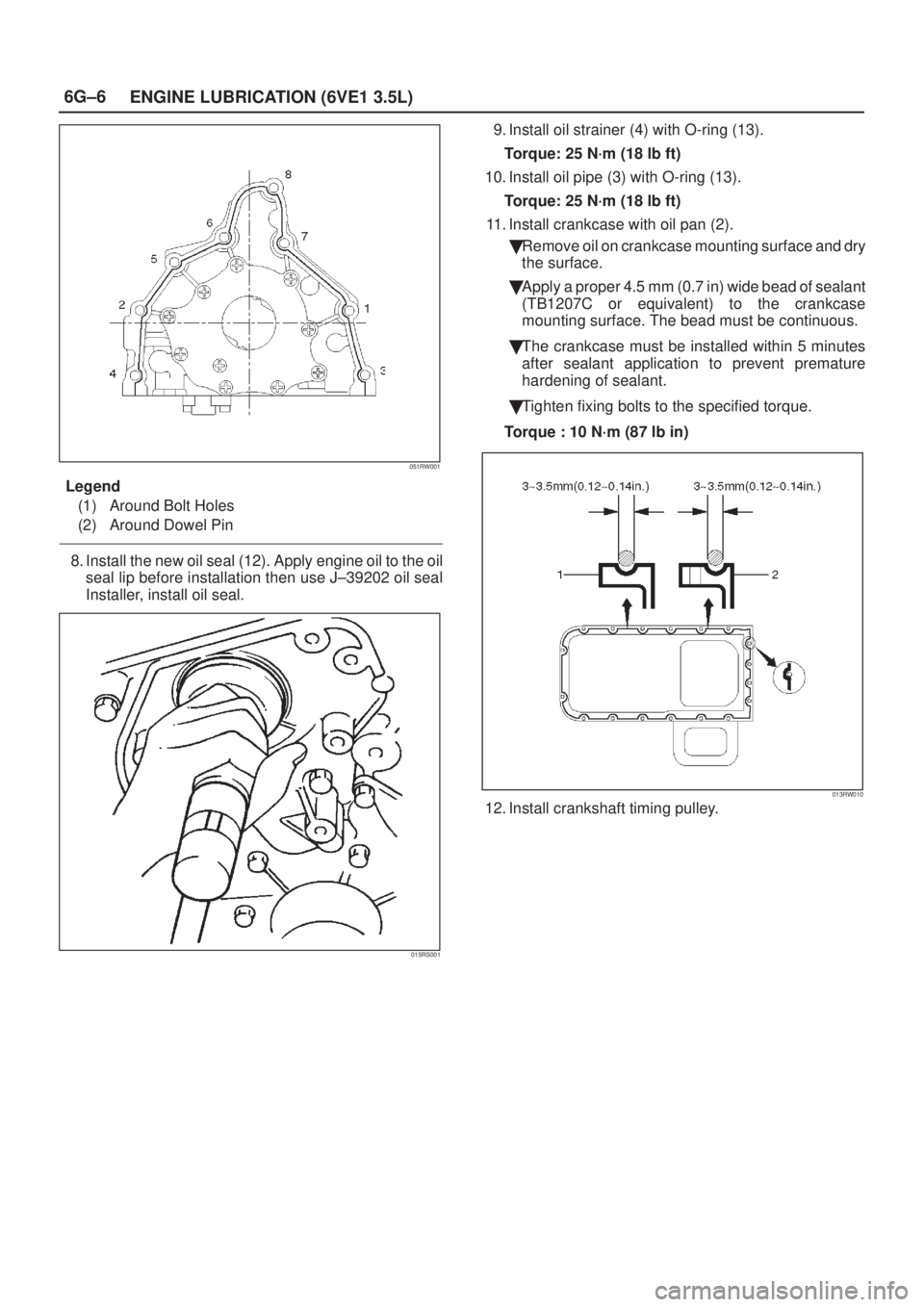

ISUZU AXIOM 2002 Service Repair Manual 6G±5 ENGINE LUBRICATION (6VE1 3.5L) Measure the side clearance with a precision straight edge and a feeler gauge. Clearance Standard : 0.03 mm±0.09 mm (0.0011 in±0.0035 in) Limit : 0.15mm (0.0059

Page 1573 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6G±6 ENGINE LUBRICATION (6VE1 3.5L) 051RW001 Legend (1) Around Bolt Holes (2) Around Dowel Pin 8. Install the new oil seal (12). Apply engine oil to the oil seal lip before installation then use J±3

Page 1574 of 2100

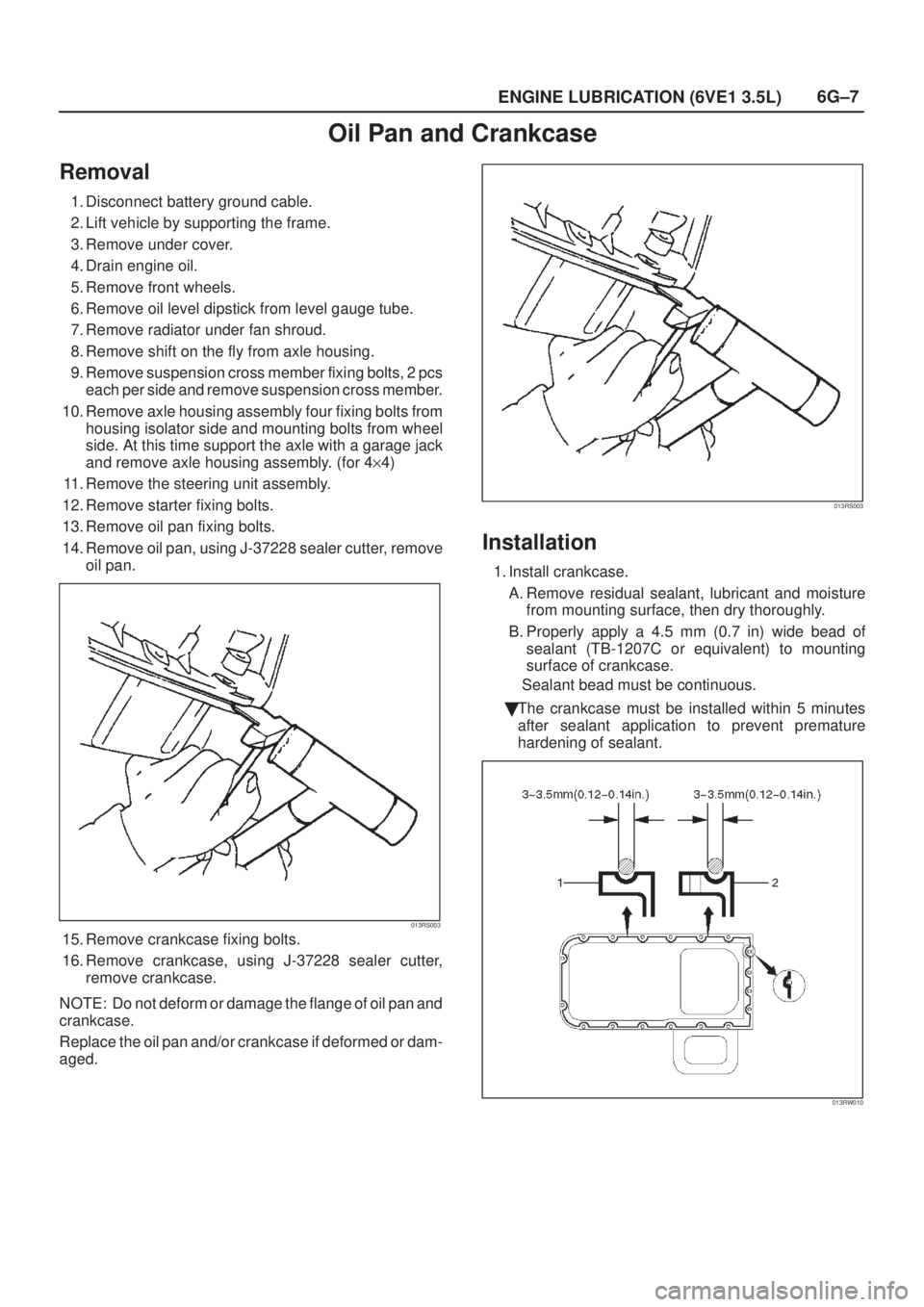

ISUZU AXIOM 2002 Service Repair Manual 6G±7 ENGINE LUBRICATION (6VE1 3.5L) Oil Pan and Crankcase Removal 1. Disconnect battery ground cable. 2. Lift vehicle by supporting the frame. 3. Remove under cover. 4. Drain engine oil. 5. Remove fr

Page 1575 of 2100

ISUZU AXIOM 2002 Service Repair Manual 6G±8 ENGINE LUBRICATION (6VE1 3.5L) C. Install crankcase, tighten crankcase fixing bolts to the specified torque. Torque : 10 N´m (87 lb in) 013RW004 2. Install oil pan A. Remove residual sealant, l

Page 1576 of 2100

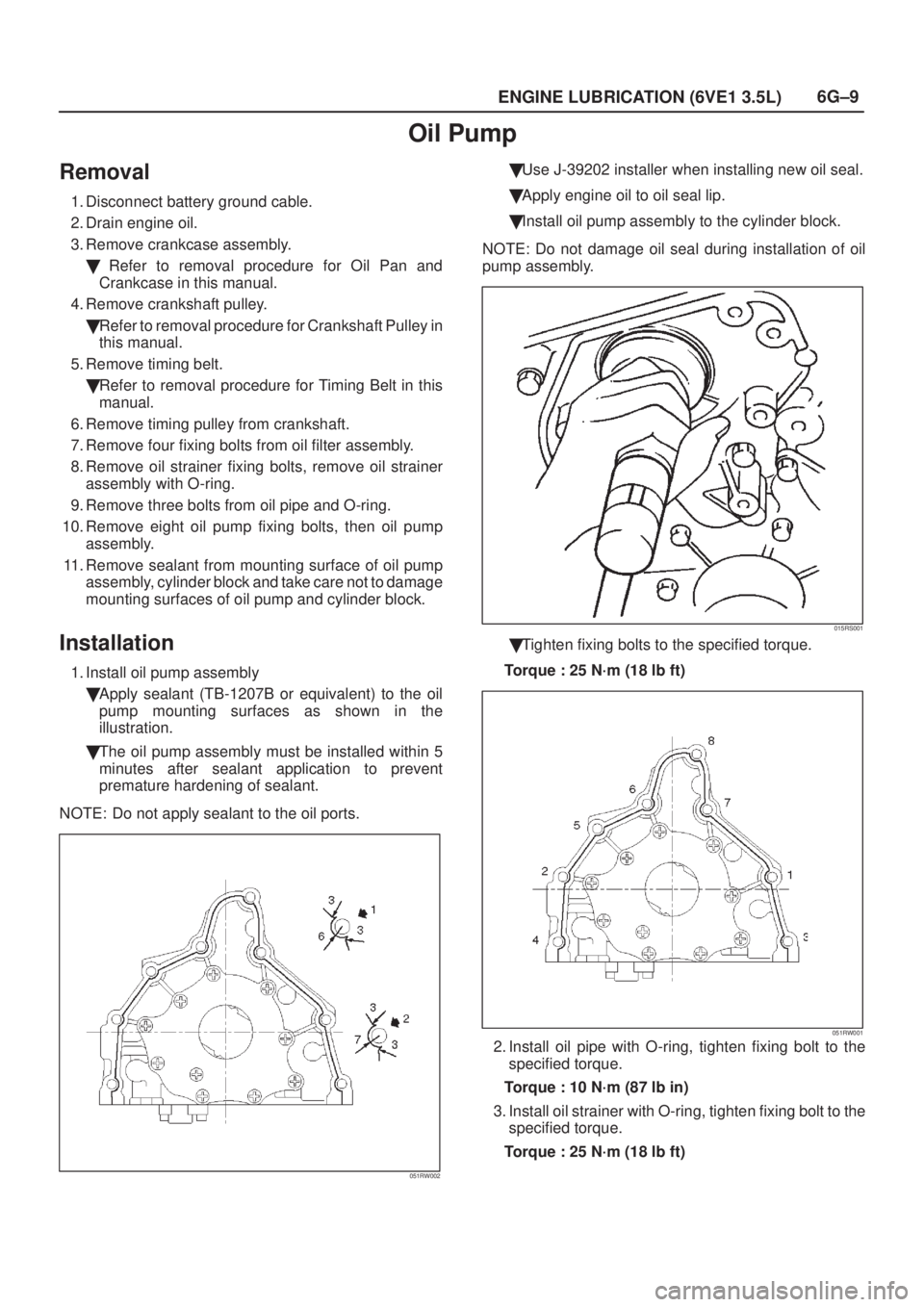

ISUZU AXIOM 2002 Service Repair Manual 6G±9 ENGINE LUBRICATION (6VE1 3.5L) Oil Pump Removal 1. Disconnect battery ground cable. 2. Drain engine oil. 3. Remove crankcase assembly.  Refer to removal procedure for Oil Pan and Crankcase in t
