GENERAL INFORMATION
AXIOM
GENERAL INFORMATION
CONTENTS
General Information 0A. . . . . . . . . . . . . . . . . . . . .
Maintenance and Lubrication 0B. . . . . . . . . . . . .
General Information
CONTENTS
General Repair Instruction 0A±1. . . . . . . . . . . . . . . .
Illustration Arrows 0A±2. . . . . . . . . . . . . . . . . . . . . . .
Identification 0A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft Prevention Standard 0A±5. . . . . . . . . . . . . . . . Lifting Instructions 0A±9. . . . . . . . . . . . . . . . . . . . . . .
Standard Bolts Torque Specifications 0A±11. . . . . .
Abbreviations Charts 0A±12. . . . . . . . . . . . . . . . . . . .
Service Parts Identification Plate 0A±13. . . . . . . . . .
General Repair Instruction
1. If a floor jack is used, the following precautions are
recommended.
Park vehicle on level ground, ªblockº front or rear
wheels, set jack against the recommended lifting
points (see ªLifting Instructionsº in this section), raise
vehicle and support with chassis stands and then
perform the service operations.
2. Before performing service operations, disconnect
ground cable from the battery to reduce the chance of
cable damage and burning due to short circuiting.
3. Use a cover on body, seats and floor to protect them
against damage and contamination.
4. Brake fluid and anti±freeze solution must be handled
with reasonable care, as they can cause paint
damage.
5. The use of proper tools and recommended essential
and available tools, where specified, is important for
efficient and reliable performance of service repairs.
6. Use genuine Isuzu parts.
7. Used cotter pins, plastic clips, gaskets, O±rings, oil
seals, lock washers and self±locking nuts should be
discarded and new ones should be installed, as
normal function of the parts cannot be maintained if
these parts are reused.
8. To facilitate proper and smooth reassembly
operation, keep disassembled parts neatly in groups.
Keeping fixing bolts and nuts separate is very
important, as they vary in hardness and design
depending on position of installation.
9. Clean the parts before inspection or reassembly. Also
clean oil ports, etc. using compressed air, and make
certain they are free from restrictions.
10. Lubricate rotating and sliding faces of the parts with
oil or grease before installation.
11. When necessary, use a sealer on gaskets to prevent
leakage.
12. Carefully observe all specifications for bolt and nut
torques.13. When removing or replacing parts that require
refrigerant to be discharged from the air conditioning
system, be sure to use the Vehicle Refrigerant
Recovery and Recycling Equipment (VRRRE) to
recover and recycle Refrigerant±134a.
14. When a service operation is completed, make a final
check to be sure the service has been done properly
and the problem has been corrected.
15. SUPPLEMENTAL RESTRAINT SYSTEM
The vehicle is equipped with a Supplemental
Restraint System (SRS) ± Air Bags. This system is
not to be serviced without consulting the appropriate
service information. Consult Section 9J ªSRS
Systemº if work is to be done on the front of the
vehicle such as bumper, sheet metal, seats, wiring,
steering wheel or column. Also review SRS system
information if any arc welding is to be done on the
vehicle. The SRS system equipped vehicle can be
identified by:
1. ªAIR BAGº warning light on the instrument
cluster.
2. A Code ªKº or ªMº for fifth digit of Vehicle
Identification Number.

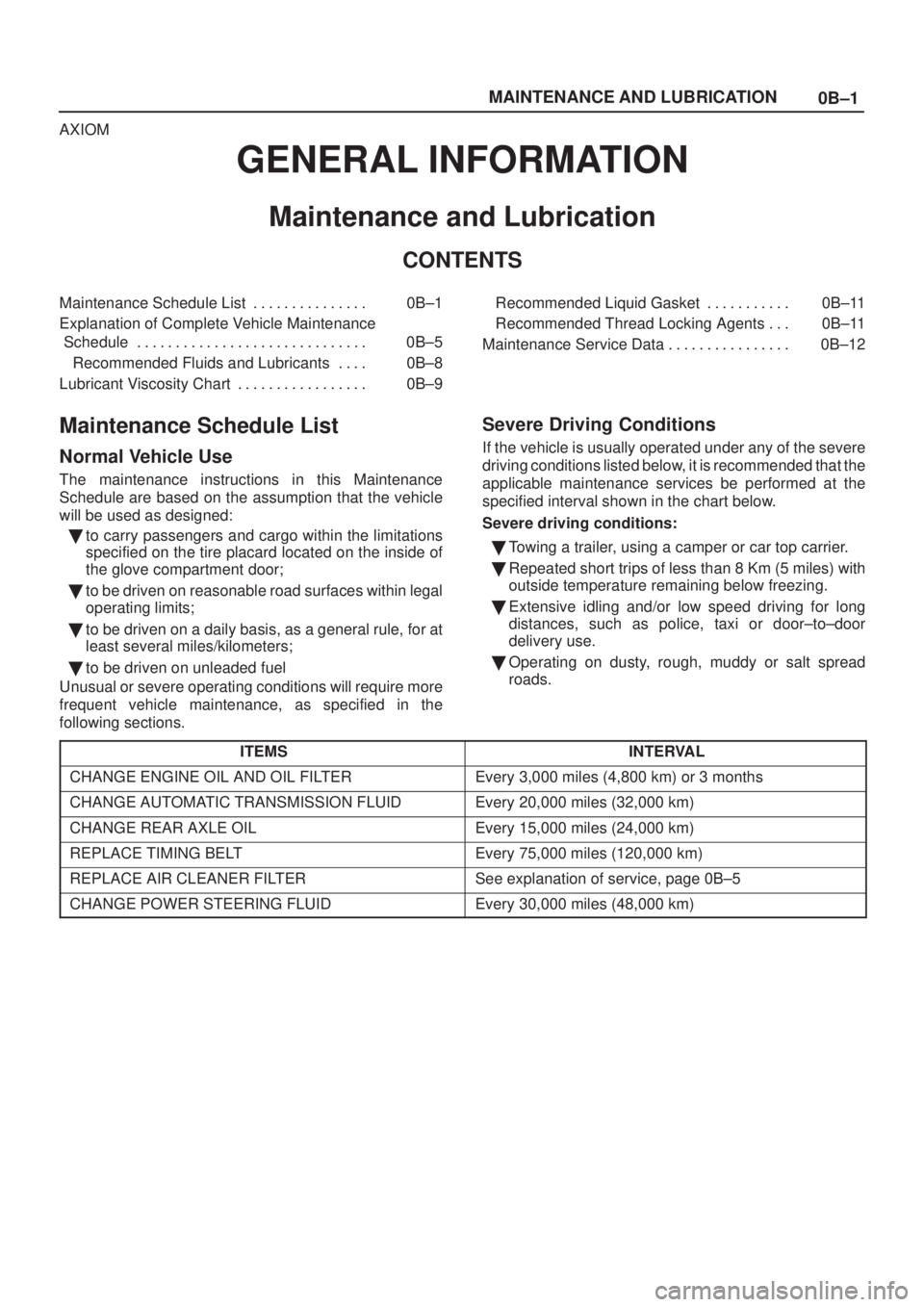

0B±1 MAINTENANCE AND LUBRICATION
AXIOM
GENERAL INFORMATION
Maintenance and Lubrication
CONTENTS
Maintenance Schedule List 0B±1. . . . . . . . . . . . . . .
Explanation of Complete Vehicle Maintenance
Schedule 0B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Fluids and Lubricants 0B±8. . . .
Lubricant Viscosity Chart 0B±9. . . . . . . . . . . . . . . . . Recommended Liquid Gasket 0B±11. . . . . . . . . . .
Recommended Thread Locking Agents 0B±11. . .
Maintenance Service Data 0B±12. . . . . . . . . . . . . . . .
Maintenance Schedule List
Normal Vehicle Use
The maintenance instructions in this Maintenance
Schedule are based on the assumption that the vehicle
will be used as designed:

to carry passengers and cargo within the limitations
specified on the tire placard located on the inside of
the glove compartment door;

to be driven on reasonable road surfaces within legal
operating limits;

to be driven on a daily basis, as a general rule, for at
least several miles/kilometers;

to be driven on unleaded fuel
Unusual or severe operating conditions will require more
frequent vehicle maintenance, as specified in the
following sections.
Severe Driving Conditions
If the vehicle is usually operated under any of the severe
driving conditions listed below, it is recommended that the
applicable maintenance services be performed at the
specified interval shown in the chart below.
Severe driving conditions:

Towing a trailer, using a camper or car top carrier.

Repeated short trips of less than 8 Km (5 miles) with
outside temperature remaining below freezing.

Extensive idling and/or low speed driving for long
distances, such as police, taxi or door±to±door
delivery use.

Operating on dusty, rough, muddy or salt spread
roads.
ITEMS
INTERVAL
CHANGE ENGINE OIL AND OIL FILTEREvery 3,000 miles (4,800 km) or 3 months
CHANGE AUTOMATIC TRANSMISSION FLUIDEvery 20,000 miles (32,000 km)
CHANGE REAR AXLE OILEvery 15,000 miles (24,000 km)
REPLACE TIMING BELTEvery 75,000 miles (120,000 km)
REPLACE AIR CLEANER FILTERSee explanation of service, page 0B±5
CHANGE POWER STEERING FLUIDEvery 30,000 miles (48,000 km)

0B±5 MAINTENANCE AND LUBRICATION
Explanation of Complete Vehicle
Maintenance Schedule
Brief explanations of the services listed in the preceding
Maintenance Schedule are presented below.
Replace all questionable parts and note any necessary
repairs as you perform these maintenance procedures.
Front and Rear Axle Lubricant
Replacement
Check the lubricant level after every 7,500 miles (12,000
km) of operation and add lubricant to level of filler hole if
necessary.
Replace the front and rear axle lubricant at 15,000 miles
(24,000 km) and 30,000 miles (48,000 km) and after
every 30,000 miles (48,000 km) of operation thereafter.
Air Cleaner Element Replacement
Replace the air cleaner under normal operating
conditions every 30,000 miles (48,000 km).
Operation of the vehicle in dusty areas will necessitate
more frequent replacement.
Spark Plug Replacement
Replace the plugs at 100,000 miles (160,000 km)
intervals with the type specified at the end of this section.
Cooling System Service
Drain, flush and refill system with new engine coolant.
Refer to
ªRecommended Fluids and Lubricantsº in this
section, or ENGINE COOLING (SEC.6B).
Timing Belt Replacement
Replacement of the timing belt is recommended at every
100,000 miles (160,000 km).
Failure to replace the timing belt may result in serious
damage to the engine.
Valve Clearance Adjustment
Incorrect valve clearance will result in increased engine
noise and reduced engine output.
Retorque the camshaft bracket bolts before checking and
adjusting the valve clearance.
Check and adjust the valve clearance whenever
increased engine noise is heard.
Tire Rotation
Rotate tires every 7,500 miles (12,000 km).
Front Wheel Bearings Lubricant
Replacement (Vehicles Produced Before
July/31/2001)
Clean and repack the front wheel bearings at 30,000
miles (48,000 km) intervals.
Refer to DRIVE SHAFT SYSTEM (SEC. 4C).
Front Wheel Bearings Check (Vehicles
Produced After Aug./1/2001)
Inspect hub unit bearing at every 60,000 miles (96,000
km).
If there is abnormal condition, replace hub unit bearing.
Radiator Core and Air Conditioning
Condenser Cleaning
Clean the front of the radiator core and air conditioning
condenser, at 60,000 miles (96,000 km) intervals.
Fluid Level Check
A fluid loss in any system (except windshield
washer) may indicate a problem. Repair the system
at once.
Engine oil level
Check level and add if necessary. The best time to check
the engine oil level is when the oil is warm. After stopping
the engine with the vehicle on a level surface, wait a few
minutes for the oil to drain back to the oil pan. Pull out the
oil level indicator (dipstick). Wipe it clean and push the oil
level indicator back down all the way. Pull out the oil level
indicator, keeping the tip down, and look at the oil level on
it.
Add oil, if needed, to keep the oil level above the ªADDº
mark and between the ªADDº and ªFULLº marks in the
operating range area. Avoid overfilling the engine since
this may cause engine damage. Push the oil level
indicator back down all the way after taking the reading.
If you check the oil level when the oil is cold, do not run the
engine first. The cold oil will not drain back to the pan fast
enough to give a true oil level.
Engine coolant level and condition
Check engine coolant level in the coolant reservoir and
add engine coolant if necessary. Inspect the engine
coolant and replace it if dirty or rusty.
Windshield washer fluid level
Check washer fluid level in the reservoir and add if
necessary.
Power steering system reservoir level
Check and keep at the proper level.
Brake master cylinder reservoir level
Check fluid. Keep fluid at proper level. A low fluid level can
indicate worn disc brake pads which may need to be
serviced.
Hydraulic clutch system
Check fluid level in the reservoir. Add fluid as required.
Battery fluid level
Check fluid level in the battery.
Fluid Leak Check
Check for fuel, water, oil or other fluid leaks by looking at
the surface beneath the vehicle after it has been parked
for a while. Water dripping from the air conditioning
system after use is normal. If you notice gasoline fumes or
fluid at any time, locate the source and correct it at once.
Engine Oil and Oil Filter Replacement
Always use API SE, SF, SG, SH or ILSAC GF±1 quality
oils of the proper viscosity.
When choosing an oil, consider the range of
temperatures the car will be operated in before the next oil
change. Then, select the recommended oil viscosity from
the chart.

0B±8MAINTENANCE AND LUBRICATION
Recommended Fluids and Lubricants
USAGEFLUID/LUBRICANT
EngineAPI SE, SF, SG, SH or ILSAC GF-1 Engine oil (See oil
chart on the following page for proper viscosity)
Engine coolantMixture of water and good quality ethylene glycol base
type antifreeze.
Brake systemDOT-3 hydraulic brake fluid.
Power steering systemDEXRON) -III Automatic transmission fluid.
Automatic transmissionDEXRON) -III Automatic transmission fluid.
TOD SYSTEM (TOD system model only)DEXRON) -IIE or DEXRON) -III Automatic transmis-
sion fluid.
Rear axle and front axleGL-5 gear lubricant (Standard differential)
GL-5 Limited slip differential gear lubricant together
with limited slip differential lubricant additive (Part No.
8-01052-358-0) or equivalent (If equipped with optional
limited slip differential) (See oil chart in this section for
proper viscosity)
Hood latch assembly
a. Pivots and spring anchorEngine oil
b. Release pawlChassis grease
Hood and door hingesEngine oil
Chassis lubricationChassis grease
Parking brake cablesChassis grease
Front wheel bearingsMultipurpose grease
Shift on the fly systemGL-5 gear lubricant (SAE 75W-90)
Body door hinge pins and linkage, fuel door hinge, rear
compartment lid hingesEngine oil
Windshield washer solventWasher fluid
Key lock cylinderSynthetic light weight engine oil (SAE 5W-30)
Accelerator linkageChassis grease

0B±9 MAINTENANCE AND LUBRICATION
Lubricant Viscosity Chart
Lubricants should be carefully selected according to the
lubrication chart. It is also important to select viscosity of
lubricants according to the ambient temperature by
referring to the following table.
Oil Viscosity Chart for Gasoline Engine
905RT011
Oil Viscosity Chart for Front Axle
B00RW003

0B±10MAINTENANCE AND LUBRICATION
Oil Viscosty Chart for Rear Axle
B00RW004

4B2±1
DRIVE LINE CONTROL SYSTEM (TOD)
AXIOM
DRIVELINE/AXLE
DRIVELINE CONTROL SYSTEM (TOD)
CONTENTS
Service Precaution 4B2±1. . . . . . . . . . . . . . . . . . . . . .
General Description 4B2±2. . . . . . . . . . . . . . . . . . . . .
Transfer Position and Drive Mode 4B2±2. . . . . . . .
TOD Control 4B2±3. . . . . . . . . . . . . . . . . . . . . . . . . .
TOD Indicator Control 4B2±3. . . . . . . . . . . . . . . . . .
Abbreviations 4B2±3. . . . . . . . . . . . . . . . . . . . . . . . .
System Components 4B2±4. . . . . . . . . . . . . . . . . . . .
Parts Location 4B2±4. . . . . . . . . . . . . . . . . . . . . . . .
Front and Rear Speed Sensors 4B2±5. . . . . . . . . .
Electromagnetic Coil 4B2±5. . . . . . . . . . . . . . . . . . .
Multi Plate Disk Clutch Pack 4B2±5. . . . . . . . . . . .
Mechanical Lock Sleeve 4B2±5. . . . . . . . . . . . . . . .
High-Low Planetary Gear Set 4B2±6. . . . . . . . . . .
4H and 4L Switch 4B2±6. . . . . . . . . . . . . . . . . . . . . .
Transfer Connector (12-pin type) 4B2±6. . . . . . . .
Transfer Connector (8-pin type) 4B2±6. . . . . . . . .
TOD Indicator Lamps
(on the instrument panel) 4B2±7. . . . . . . . . . . . . .
Check Lamp 4B2±7. . . . . . . . . . . . . . . . . . . . . . . . . .
TOD ECU 4B2±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
High-Low Shift Motor 4B2±9. . . . . . . . . . . . . . . . . . .
Motor Position and Encoder Position Code 4B2±10
Encode Position Plate 4B2±10. . . . . . . . . . . . . . . . . .
Shift High Range and Low Range 4B2±10. . . . . . . . Functions of TOD Switch and Indicator
Lamp 4B2±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TOD Switch and Indication of Drive Mode 4B2±11.
Check Lamp 4B2±13. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis 4B2±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information Diagnosis 4B2±14. . . . . . . . . .
Self-diagnosis 4B2±14. . . . . . . . . . . . . . . . . . . . . . . . .
Precautions on Diagnosis 4B2±16. . . . . . . . . . . . . . .
Basic Diagnostic Flow Chart 4B2±18. . . . . . . . . . . . . .
Parts Location 4B2±19. . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Diagram 4B2±20. . . . . . . . . . . . . . . . . . . . . . . . .
Connector List 4B2±24. . . . . . . . . . . . . . . . . . . . . . . . . .
Checking Failed Pin 4B2±26. . . . . . . . . . . . . . . . . . . . .
Connector Pin Assignment 4B2±26. . . . . . . . . . . . . .
Reference 4B2±28. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking Failed TOD Control Unit Pin 4B2±30. . . . .
Tech 2 Scan Tool 4B2±32. . . . . . . . . . . . . . . . . . . . . .
Getting Started 4B2±33. . . . . . . . . . . . . . . . . . . . . . . .
Operating Procedure 4B2±33. . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Codes 4B2±35. . . . . . . . . . . . . . . .
Diagnosis from Trouble Codes 4B2±36. . . . . . . . . . . .
Trouble Diagnosis Depending on The Status
of TOD Indicator 4B2±67. . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis from Symptom 4B2±102. . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

4C±26
DRIVE SHAFT SYSTEM
Main Data and Specifications
General Specifications
Front drive axle oil capacity1.25 liter (1.32 US qt)(Differential)
0.12 liter (0.13 US qt)(Actuator Housing:Shift on the fly)
Type of lubricantGL±5 (75W±90) Refer to chart in General Information
Axle shaft typeConstant velocity joint(Birfield joint type and double offset joint)
Torque Specifications
412RY00040
