LIGHTING SYSTEM8A±1
AXIOM
BODY AND ACCESSORIES
CONTENTS
Lighting System 8A. . . . . . . . . . . . . . . . . . . . . . . . .
Wiper / Washer System 8B. . . . . . . . . . . . . . . . . .
Entertainment 8C. . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring System 8D. . . . . . . . . . . . . . . . . . . . . . . . . .
Meter and Gauge 8E. . . . . . . . . . . . . . . . . . . . . . . Body Structure 8F. . . . . . . . . . . . . . . . . . . . . . . . . .
Seats 8G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security and Locks 8H. . . . . . . . . . . . . . . . . . . . . .
Sunroof / Convertible Top 8I. . . . . . . . . . . . . . . .
Exterior / Interior Trim 8J. . . . . . . . . . . . . . . . . . . .
LIGHTING SYSTEM
CONTENTS
Service Precaution 8A±2. . . . . . . . . . . . . . . . . . . . . .
Headlight Bulb 8A±3. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Assembly 8A±4. . . . . . . . . . . . . . . . . . . . .
Removal 8A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Adjustment 8A±4. . . . . . . . . . . . . . . . . .
Side Marker Light Bulb 8A±6. . . . . . . . . . . . . . . . . . .
Removal 8A±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Taillight Bulb 8A±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
License Plate Light Bulb 8A±8. . . . . . . . . . . . . . . . . .
Removal 8A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stoplight Bulb 8A±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±8. . . . . . . . . . . . . . .
High Mounted Stoplight Assembly 8A±9. . . . . . . . .
Removal 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Mounted Stoplight Bulb 8A±9. . . . . . . . . . . . . .
Removal 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backup Light Bulb 8A±10. . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Turn Signal Light Bulb 8A±10. . . . . . . . . . . . . .
Removal and Installation 8A±10. . . . . . . . . . . . . . .
Rear Turn Signal Light Bulb 8A±11. . . . . . . . . . . . . .
Removal 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dome Light Bulb 8A±11. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . Map Light Bulb 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Courtesy Light Bulb 8A±12. . . . . . . . . . . . . . . . . . . . . .
Removal 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage Room Light Bulb 8A±13. . . . . . . . . . . . . . . .
Removal 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift Lever Illumination Light Bulb (A/T) 8A±13. . . .
Removal 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity Mirror Illumination Light Bulb 8A±14. . . . . . . .
Removal 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch Unit Assembly Illumination
Light Bulb (Power/Winter & Intelligent
Suspension Switch) 8A±14. . . . . . . . . . . . . . . . . . . . .
Removal 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
TOD Switch Illumination Light Bulb 8A±15. . . . . . . .
Removal 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Main Switch Illumination
Light Bulb 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper and Washer Switch Illumination
Light Bulb 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat Heater Switch Illumination Light Bulb 8A±16. .
Removal 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8A±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starter Switch 8A±17. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 8A±17. . . . . . . . . . . . . . .
Lighting Switch (Combination Switch) 8A±17. . . . . .

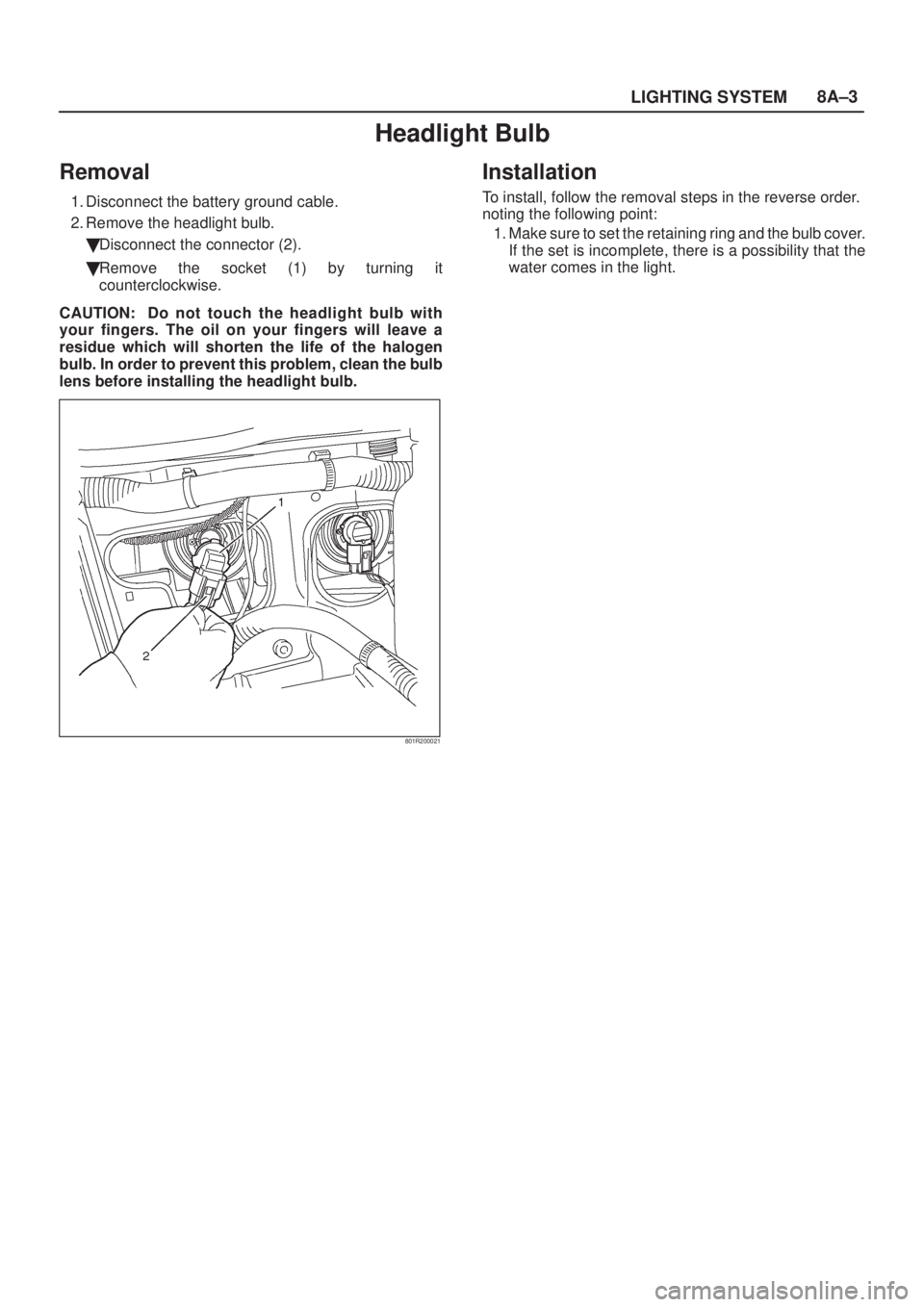

LIGHTING SYSTEM8A±3
Headlight Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the headlight bulb.

Disconnect the connector (2).

Remove the socket (1) by turning it
counterclockwise.
CAUTION: Do not touch the headlight bulb with
your fingers. The oil on your fingers will leave a
residue which will shorten the life of the halogen
bulb. In order to prevent this problem, clean the bulb
lens before installing the headlight bulb.
801R200021
Installation
To install, follow the removal steps in the reverse order.
noting the following point:
1. Make sure to set the retaining ring and the bulb cover.
If the set is incomplete, there is a possibility that the
water comes in the light.

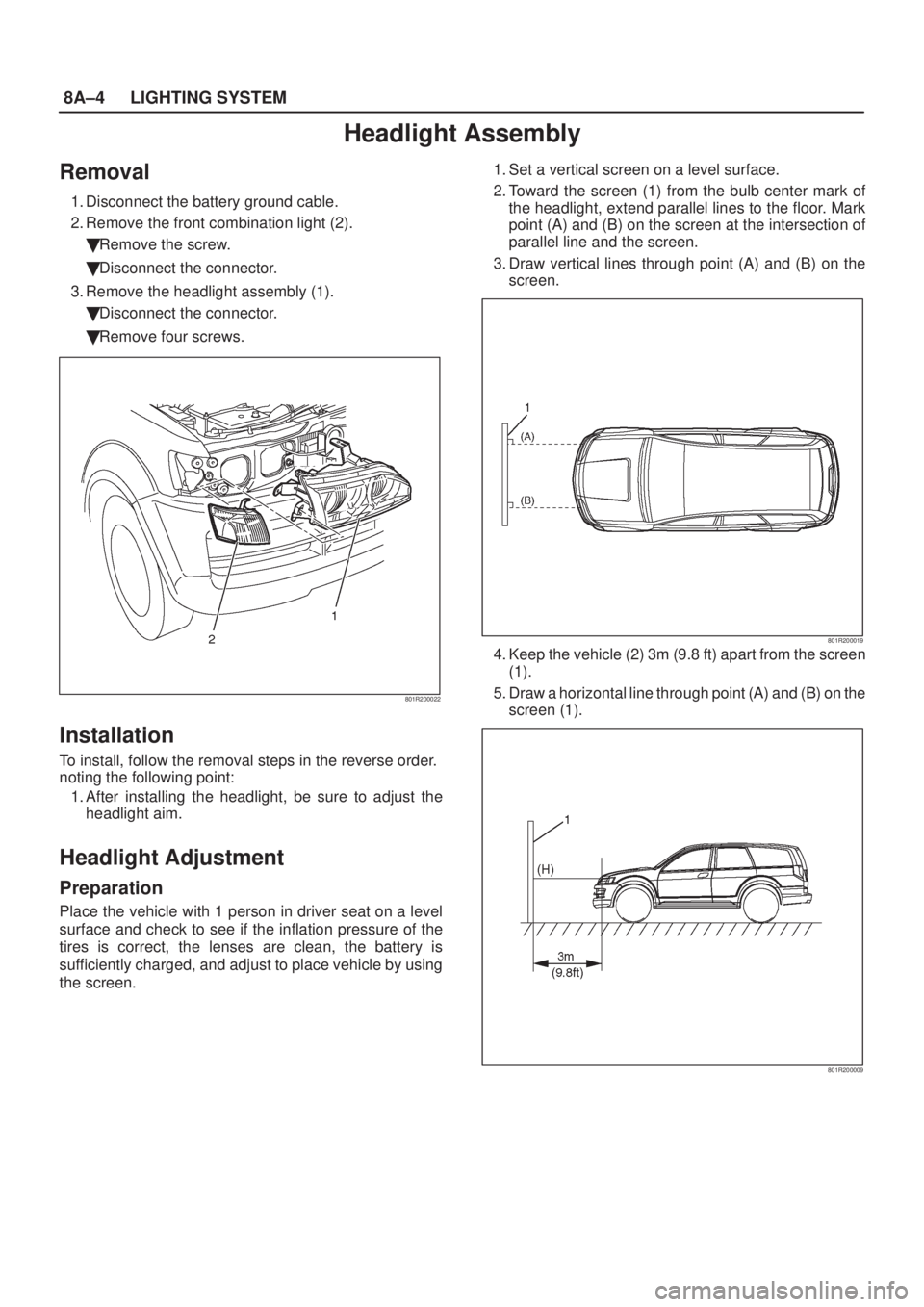

8A±4LIGHTING SYSTEM
Headlight Assembly
Removal
1. Disconnect the battery ground cable.
2. Remove the front combination light (2).

Remove the screw.

Disconnect the connector.
3. Remove the headlight assembly (1).

Disconnect the connector.

Remove four screws.
801R200022
Installation
To install, follow the removal steps in the reverse order.
noting the following point:
1. After installing the headlight, be sure to adjust the
headlight aim.
Headlight Adjustment
Preparation
Place the vehicle with 1 person in driver seat on a level
surface and check to see if the inflation pressure of the
tires is correct, the lenses are clean, the battery is
sufficiently charged, and adjust to place vehicle by using
the screen.1. Set a vertical screen on a level surface.
2. Toward the screen (1) from the bulb center mark of
the headlight, extend parallel lines to the floor. Mark
point (A) and (B) on the screen at the intersection of
parallel line and the screen.
3. Draw vertical lines through point (A) and (B) on the
screen.
801R200019
4. Keep the vehicle (2) 3m (9.8 ft) apart from the screen
(1).
5. Draw a horizontal line through point (A) and (B) on the
screen (1).
801R200009

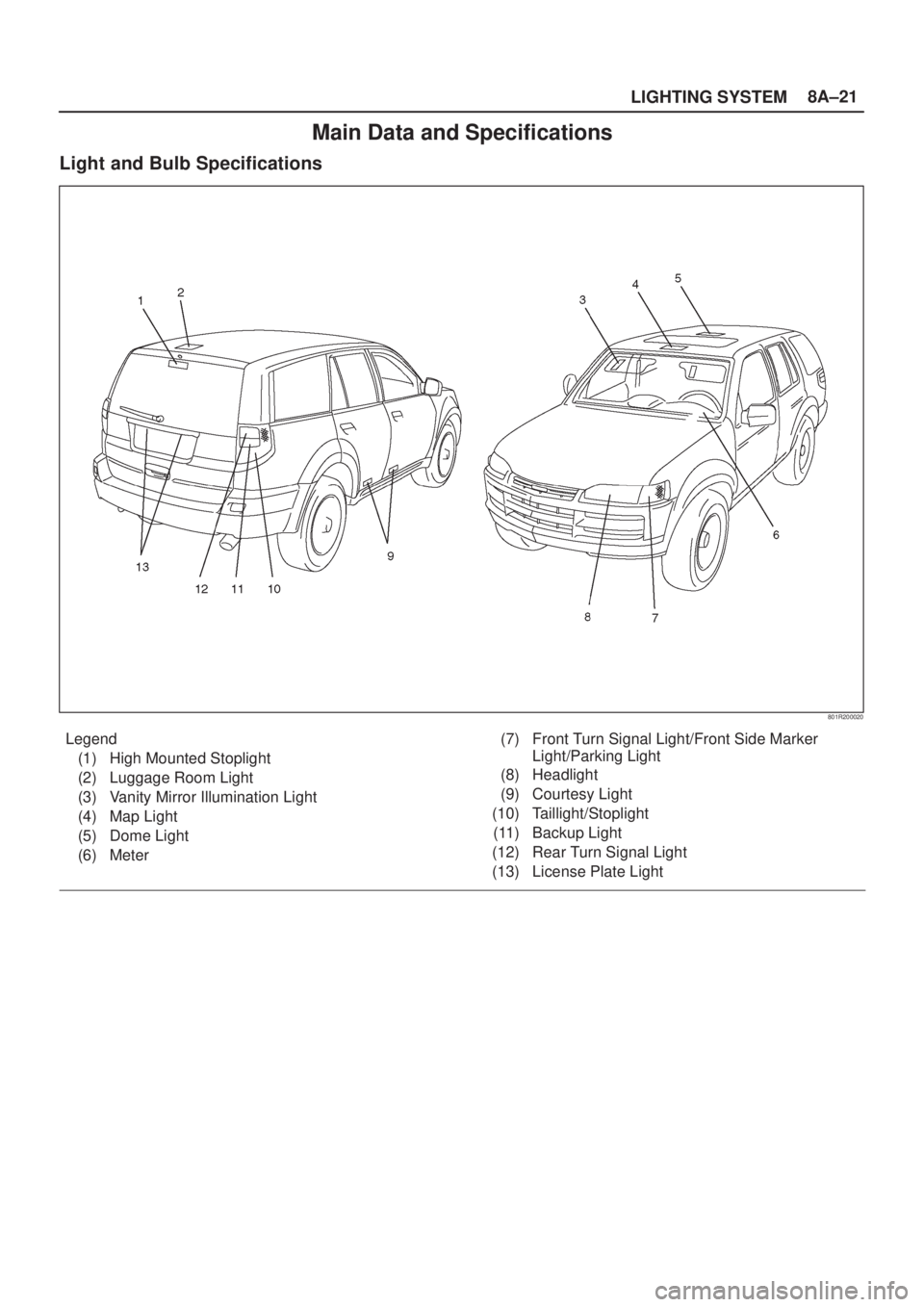

LIGHTING SYSTEM8A±21
Main Data and Specifications
Light and Bulb Specifications
801R200020
Legend
(1) High Mounted Stoplight
(2) Luggage Room Light
(3) Vanity Mirror Illumination Light
(4) Map Light
(5) Dome Light
(6) Meter(7) Front Turn Signal Light/Front Side Marker
Light/Parking Light
(8) Headlight
(9) Courtesy Light
(10) Taillight/Stoplight
(11) Backup Light
(12) Rear Turn Signal Light
(13) License Plate Light

8A±22LIGHTING SYSTEM
Light NameBulb No.Rated
PowerNumber of
BulbsLens ColorRemarks
Headlight9005/900660w/51w2WhiteHalogen
Front Turn signal Light/
Front Side Marker Light/Parking Light1157NA27w/8w2Amber
Rear Turn Signal Light744021w2Amber
Backup Light92118w2White
Taillight/Stoplight744321w/5w2Red
High Mounted Stoplight92118w2Red
License Plate Light (Tailgate type)1685w2White
Map LightÐ8w2White
Dome LightÐ10w1White
Luggage Room LightÐ5w1White
Courtesy LightÐ3.4w4White
Check TransÐ1.4w1RedMeter
A/T Oil TempÐ1.4w1RedMeter
Cruise SetÐ1.4w1GreenMeter
Power DriveÐ1.4w1AmberMeter
Winter DriveÐ1.4w1GreenMeter
Turn SignalÐ1.4w2GreenMeter
Check TODÐ1.4w1RedMeter
High BeamÐ1.4w1BlueMeter
ABSÐ1.4w1AmberMeter
Seat BeltÐ2w1RedMeter
Indicator/Warning
Malfunction Indicator
(Check Engine)Ð1.4w1AmberMeter
Indicator/Warning
LightLow FuelÐ1.4w1AmberMeterg
Reduced PowerÐ1.4w1AmberMeter
Sports ModeÐ1.4w1GreenMeter
TOD FrontÐ1.1w1GreenMeter
TOD AutoÐ1.1w1GreenMeter
TOD RearÐ1.1w1GreenMeter
Oil PressureÐ1.4w1RedMeter
Brake SystemÐ1.4w1RedMeter
ChargeÐ1.4w1RedMeter
A/T Shift PositionÐ1.1w7
P,N,D,3,2,L
:Green
R: Amber
Meter
Air BagÐ2w1RedMeter
Illumination LightMeterÐ3.4w4Meter
Shift leverÐ1.4w1WhiteShift lever
Vanity MirrorÐ2w2WhiteSun Visor
Cigarette LighterÐ1.4w1WhiteCigarette
Lighter
AshtrayÐ1.4w1WhiteAshtray
